Transporto priemonė: 2636 AS; VIN numerio dalis: 624336

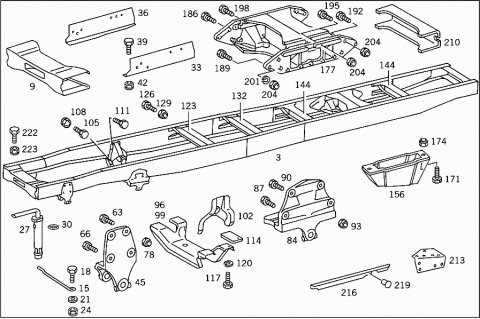

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 6243103701 | FRAME |
| 003 | A 6243103001 | FRAME |
| 003 | A 6243102202 | FRAME |
| 003 | A 6243102701 | FRAME |
| 003 | A 6243102901 | FRAME |
| 003 | A 6243103401 | FRAME |
| 003 | A 6243103801 | FRAME |
| 003 | A 6243108601 | FRAME |
| 003 | A 6243103201 | FRAME |
| 003 | A 6243103501 | FRAME |
| A 6243101201 | FRAME | |
| Repalced by: A 6243106101 | ||
| 006 | A 6243106101 | FRAME |
| 009 | A 3873100422 | CROSS MEMBER |
| FRONT | ||
| 009 | A 3873100522 | CROSS MEMBER |
| FRONT | ||
| 012 | A 6203100022 | CROSS MEMBER |
| FRONT | ||
| 012 | A 6203100222 | CROSS MEMBER |
| FRONT | ||
| 015 | A 3353150031 | LOCKING SPRING |
| COUPLING PIN | ||
| 015 | A 3873150031 | LOCKING SPRING |
| COUPLING PIN | ||
| 018 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 018 | N 304017008034 | SCREW |
| SPRING TO CROSS MEMBER | ||
| M 8X25 | ||
| 018 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 018 | N 304017008027 | SCREW |
| SPRING TO CROSS MEMBER | ||
| M 8X30 | ||
| 021 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 021 | N 000125008443 | WASHER |
| SPRING TO CROSS MEMBER | ||
| 024 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 024 | N 913004008001 | NUT |
| SPRING TO CROSS MEMBER | ||
| 027 | A 3873150106 | COUPLING PIN |
| FOR COUPLING MOUTH | ||
| 027 | A 6203150006 | COUPLING PIN |
| FOR COUPLING MOUTH | ||
| 030 | A 0009874346 | SEALING CORD |
| FOR COUPLING MOUTH | ||
| 033 | A 3873122087 | GUSSET PLATE |
| FRONT LEFT | ||
| 036 | A 6203120987 | GUSSET PLATE |
| FRONT RIGHT | ||
| 039 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 039 | N 308676012026 | SCREW |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| N 000125013008 | WASHER | |
| 042 | N 910113012002 | NUT |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| N 910005014018 | RIVET | |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| 14 X 40 MM | ||
| A 6203220201 | FRONT SPRING BRACKET | |
| Repalced by: A 6203220501 | ||
| 045 | A 6203220501 | FRONT SPRING BRACKET |
| Repalced by: A 6203220901 | ||
| 045 | A 6203220901 | FRONT SPRING BRACKET |
| FRONT | ||
| 048 | A 6213100036 | CROSS MEMBER |
| NO.2 | ||
| 051 | A 6213220001 | FRONT SPRING BRACKET |
| FRONT LEFT | ||
| 051 | A 6213220101 | FRONT SPRING BRACKET |
| FRONT RIGHT | ||
| 054 | N 000960016065 | SCREW |
| FRONT SPRING FRONT BRACKET TO CROSS MEMBER | ||
| M 16X95 | ||
| 057 | N 000960016244 | SCREW |
| FRONT SPRING FRONT BRACKET TO CROSS MEMBER | ||
| M 16X90 | ||
| 060 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 060 | N 910113016002 | NUT |
| FRONT SPRING FRONT BRACKET TO CROSS MEMBER | ||
| A 6203220301 | FRONT SPRING BRACKET | |
| Repalced by: A 6203220601 | ||
| 062 | A 6203220601 | FRONT SPRING BRACKET |
| FRONT LEFT AND RIGHT | ||
| 063 | A 6569900014 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 16X45 | ||
| 066 | A 3879900214 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 16X55 | ||
| 069 | N 000960016249 | SCREW |
| Repalced by: N 308676016004 | ||
| 069 | N 308676016004 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 16X55 | ||
| 069 | N 000961016096 | SCREW |
| Repalced by: N 308676016007 | ||
| 069 | N 308676016007 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 16X50 | ||
| 072 | N 000961016075 | SCREW |
| Repalced by: N 308676016020 | ||
| 072 | N 308676016020 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 16X35 | ||
| 072 | N 000961016108 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 16X30 | ||
| 072 | N 000961016108 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 16X32 | ||
| 075 | N 912004016101 | LOCK WASHER |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| 078 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 078 | N 910113016001 | NUT |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| 081 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 081 | N 910113016001 | NUT |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| 082 | A 6203121261 | STRUT |
| FRONT LEFT | ||
| 082 | A 6203100653 | STRUT |
| Repalced by: A 6553100453 | ||
| 082 | A 6553100453 | STRUT |
| FRONT LEFT | ||
| 082 | A 6203121361 | STRUT |
| FRONT RIGHT | ||
| 082 | A 6203100753 | STRUT |
| FRONT RIGHT | ||
| 082K | N 000961016105 | SCREW |
| Repalced by: N 308676016004 | ||
| 082K | N 308676016004 | SCREW |
| STRUT TO CROSS MEMBER | ||
| 082K | N 000960016061 | SCREW |
| STRUT TO CROSS MEMBER | ||
| 083 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 083 | N 910113016001 | NUT |
| STRUT TO CROSS MEMBER | ||
| 084 | A 6203220003 | FRONT SPRING BRACKET |
| Repalced by: A 6203220103 | ||
| 084 | A 6203220103 | FRONT SPRING BRACKET |
| REAR | ||
| 087 | N 000960014229 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| M 14X55 | ||
| 090 | N 000960014237 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| M 14X50 | ||
| 090 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 090 | N 308676014012 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| M 14X45 | ||
| 093 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 093 | N 910113014000 | NUT |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| 096 | A 3873120810 | CROSS MEMBER |
| FRONT SPRING REAR BRACKET | ||
| NO.2 | ||
| 096 | A 3873120810 | CROSS MEMBER |
| FRONT SPRING REAR BRACKET | ||
| NO.3 | ||
| 096 | A 3873120810 | CROSS MEMBER |
| FRONT SPRING REAR BRACKET | ||
| NO.2 | ||
| 099 | A 3873120410 | CROSS MEMBER |
| FRONT SPRING REAR BRACKET | ||
| NO.2 | ||
| A 3873100353 | STRUT | |
| Repalced by: A 6203121561 | ||
| 102 | A 6203121561 | STRUT |
| FRONT SPRING REAR BRACKET | ||
| 105 | N 000961014113 | SCREW |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| M 14X28 | ||
| 108 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 108 | N 910113014001 | NUT |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| 111 | N 000961014028 | SCREW |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| M 14X40 | ||
| A 3873120084 | SHIM | |
| Repalced by: A 6203121984 | ||
| 114 | A 6203121984 | SHIM |
| CROSS MEMBER TO FRONT SPRING REAR BRACKET | ||
| 117 | N 000961014100 | SCREW |
| CROSS MEMBER TO FRONT SPRING REAR BRACKET | ||
| 120 | N 912004014100 | LOCK WASHER |
| CROSS MEMBER TO FRONT SPRING REAR BRACKET | ||
| 123 | A 3873101037 | CROSS MEMBER |
| NO.3 | ||
| 123 | A 3873101037 | CROSS MEMBER |
| NO.4 | ||
| 123 | A 6243100537 | CROSS MEMBER |
| NO.3 | ||
| 123 | A 6243100537 | CROSS MEMBER |
| NO.3 | ||
| A 6243120025 | CROSS MEMBER | |
| NO.3 | ||
| A 6243120025 | CROSS MEMBER | |
| NO.3 | ||
| A 3893120125 | CROSS MEMBER | |
| NO.3 | ||
| A 3893120125 | CROSS MEMBER | |
| NO.4 | ||
| A 6243120261 | STRUT | |
| AT CROSS MEMBER | ||
| NO.3 | ||
| A 6243120261 | STRUT | |
| AT CROSS MEMBER | ||
| NO.3 | ||
| A 3873121961 | STRUT | |
| AT CROSS MEMBER | ||
| NO.3 | ||
| A 3873121961 | STRUT | |
| AT CROSS MEMBER | ||
| NO.4 | ||
| A 0039900901 | SCREW | |
| Repalced by: A 0029908201 | ||
| A 0029908201 | SCREW | |
| STRUT TO CROSS MEMBER | ||
| N 913004012009 | NUT | |
| Repalced by: N 910113012003 | ||
| N 910113012003 | NUT | |
| STRUT TO CROSS MEMBER | ||
| 126 | N 000961014028 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 129 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 129 | N 910113014001 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 132 | A 6203100137 | CROSS MEMBER |
| NO.3 | ||
| 132 | A 6203100137 | CROSS MEMBER |
| NO.4 | ||
| 132 | A 6203100137 | CROSS MEMBER |
| NO.3 | ||
| 132 | A 3913100136 | CROSS MEMBER |
| NO.4 | ||
| 132 | A 3953101037 | CROSS MEMBER |
| Repalced by: A 3953100037 | ||
| 132 | A 6203100036 | CROSS MEMBER |
| NO.3 | ||
| 135 | N 000961014028 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 138 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 138 | N 910113014001 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 144 | A 6243100237 | CROSS MEMBER |
| Repalced by: A 3953100037 | ||
| 144 | A 3953100037 | CROSS MEMBER |
| NO.5 | ||
| 144 | A 3953100037 | CROSS MEMBER |
| NO.7 | ||
| 144 | A 3953100037 | CROSS MEMBER |
| NO.3 | ||
| 144 | A 3953100037 | CROSS MEMBER |
| NO.4 | ||
| 144 | A 3953100037 | CROSS MEMBER |
| NO.5 | ||
| 144 | A 3953100037 | CROSS MEMBER |
| NO.4 | ||
| A 3893120025 | CROSS MEMBER | |
| A 3873120261 | STRUT | |
| AT CROSS MEMBER | ||
| A 0039900901 | SCREW | |
| Repalced by: A 0029908201 | ||
| A 0029908201 | SCREW | |
| STRUT TO CROSS MEMBER | ||
| N 913004012009 | NUT | |
| Repalced by: N 910113012003 | ||
| N 910113012003 | NUT | |
| STRUT TO CROSS MEMBER | ||
| A 6203121584 | SHIM | |
| CROSS MEMBER TO SIDE MEMBERS | ||
| NO.3-5 | ||
| A 6203122084 | SHIM | |
| Repalced by: A 6203121584 | ||
| A 6203121584 | SHIM | |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 147 | N 000961014028 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 147 | N 000961016039 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 150 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 150 | N 910113014001 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 150 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 150 | N 910113016002 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 153 | A 3933250731 | PLATE |
| REAR AXLE | ||
| 156 | A 3933110087 | STOP |
| REAR AXLE | ||
| 156 | A 3433110187 | STOP |
| REAR AXLE | ||
| 159 | A 3933250044 | RUBBER BUFFER |
| REAR AXLE | ||
| 162 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 162 | N 304017010002 | SCREW |
| RUBBER BUFFER TO PLATE | ||
| 165 | N 912004010102 | LOCK WASHER |
| RUBBER BUFFER TO PLATE | ||
| 168 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 168 | N 007349010007 | WASHER |
| RUBBER BUFFER TO PLATE | ||
| 170 | N 910005012087 | RIVET |
| PLATE TO SIDE MEMBER | ||
| 12X58 MM | ||
| 170 | N 910005012080 | RIVET |
| PLATE TO SIDE MEMBER | ||
| 12X42 MM | ||
| 171 | N 000960012342 | SCREW |
| Repalced by: N 308676012015 | ||
| 171 | N 308676012015 | SCREW |
| STOP TO SIDE MEMBER | ||
| 174 | N 910113012002 | NUT |
| STOP TO SIDE MEMBER | ||
| 177 | A 6243100037 | CROSS MEMBER |
| Repalced by: A 6243100437 | ||
| 177 | A 6243100437 | CROSS MEMBER |
| CENTRAL BEARING | ||
| NO.6 | ||
| 177 | A 6243100437 | CROSS MEMBER |
| CENTRAL BEARING | ||
| NO.6 | ||
| 177 | A 6243100437 | CROSS MEMBER |
| CENTRAL BEARING | ||
| NO.5 | ||
| 177 | A 6243100437 | CROSS MEMBER |
| CENTRAL BEARING | ||
| NO.5 | ||
| 177 | A 6243100437 | CROSS MEMBER |
| CENTRAL BEARING | ||
| NO.4 | ||

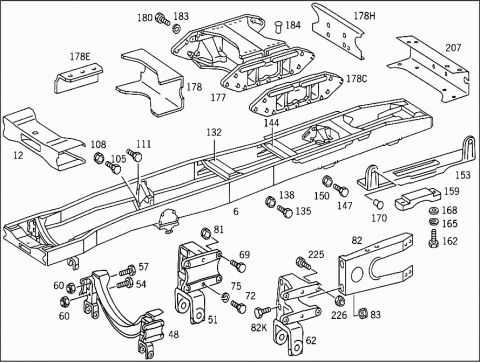

| 178 | A 3953120124 | CROSS MEMBER |
| CENTRAL BEARING | ||
| A 6243250110 | SUPPORT | |
| Repalced by: A 6243250310 | ||
| 178C | A 6243250310 | SUPPORT |
| CENTRAL BEARING | ||
| A 6243120041 | ANGLE | |
| Repalced by: A 6243120141 | ||
| 178E | A 6243120141 | ANGLE |
| AT CROSS MEMBER | ||
| 178H | A 6243120060 | REINFORCEMENT |
| AT CROSS MEMBER | ||
| 180 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 180 | N 308676014020 | SCREW |
| CROSS MEMBER TO CONSOLE | ||
| 183 | N 912004014100 | LOCK WASHER |
| CROSS MEMBER TO CONSOLE | ||
| 184 | N 910005014056 | RIVET |
| AT CROSS MEMBER | ||
| 14X45 MM | ||
| 184 | N 910005012087 | RIVET |
| AT CROSS MEMBER | ||
| 12X58 MM | ||
| 186 | A 0003120071 | SCREW |
| Repalced by: A 0003121271 | ||
| 186 | A 0003121271 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 16X40 | ||
| A 0003120271 | SCREW | |
| Repalced by: N 914112016340 | ||
| 189 | N 914112016340 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 16X55 | ||
| A 0003120371 | SCREW | |
| Repalced by: N 914112016339 | ||
| 189 | N 914112016341 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 16X60 | ||
| A 0003120471 | SCREW | |
| Repalced by: N 914112016015 | ||
| 192 | N 914112016015 | SCREW |
| Repalced by: A 3469901104 | ||
| 192 | A 3469901104 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 16X65 | ||
| 195 | A 0003120171 | SCREW |
| Repalced by: A 0003121471 | ||
| 195 | A 0003121471 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 16X85 | ||
| N 914112016343 | SCREW | |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 16X85 | ||
| A 0003120671 | SCREW | |
| Repalced by: N 914112016344 | ||
| 198 | N 914112016344 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 16X95 | ||
| 201 | N 912004016101 | LOCK WASHER |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 204 | N 913012016002 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| Repalced by: N 000000000143 | ||
| 204 | N 000000000143 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| A 6213120635 | CROSS MEMBER | |
| Repalced by: A 6213120335 | ||
| 207 | A 6213120335 | CROSS MEMBER |
| Repalced by: A 6553120435 | ||
| 207 | A 6553120435 | CROSS MEMBER |
| REAR | ||
| A 3933100246 | CROSS MEMBER | |
| Repalced by: A 3873120735 | ||
| 210 | A 3873120735 | CROSS MEMBER |
| REAR | ||
| 213 | A 6213120287 | GUSSET PLATE |
| REAR LEFT | ||
| 213 | A 6583120087 | GUSSET PLATE |
| REAR LEFT | ||
| 213 | A 6213120387 | GUSSET PLATE |
| REAR RIGHT | ||
| 213 | A 6583120187 | GUSSET PLATE |
| REAR RIGHT | ||
| 216 | A 6243160052 | ANGLE |
| LEFT | ||
| 216 | A 6243160152 | ANGLE |
| RIGHT | ||
| N 000933010157 | SCREW | |
| GUSSET PLATE TO SIDE MEMBER | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| GUSSET PLATE TO SIDE MEMBER | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| MOUNTING USED FOR FRAME CONNECTION PARTS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| DIMENSIONS ARE INDICATED IN THE FOLLOWING ORDER: | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| THREAD X SHANK DIA. X SHANK LENGTH X TOTAL LENGTH | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| N 000609010004 | FITTED SCREW | |
| M 10X11X14X28 | ||
| N 000610010003 | FITTED SCREW | |
| M 10X11X25X38 | ||
| N 000609010014 | FITTED SCREW | |
| M 10X11X24X40 | ||
| A 3859900514 | SCREW | |
| M 10X11X26.5X46 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3859900714 | SCREW | |
| M 12X12X10X25 | ||
| A 3859901414 | SCREW | |
| M 12X12X11X26 | ||
| A 0039900901 | SCREW | |
| Repalced by: A 0029908201 | ||
| A 0029908201 | SCREW | |
| M 12X12X12X28 | ||
| A 3859901514 | SCREW | |
| M 12X12X13X28 | ||
| A 0029908201 | SCREW | |
| M 12X12X14X30 | ||
| A 3859902114 | SCREW | |
| M 12X12X15X30 | ||
| A 0029908301 | SCREW | |
| Repalced by: N 308676012013 | ||
| N 308676012013 | HEXAGON HEAD BOLT | |
| M12X1.5X30 | ||
| A 3859902214 | SCREW | |
| M 12X12X17X32 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 6209900114 | SCREW | |
| M 12X13X12X29 | ||
| A 3969900314 | SCREW | |
| M 12X13X13X30 | ||
| A 3589901914 | SCREW | |
| M 12X13X15X32 | ||
| A 3559900014 | SCREW | |
| M 12X13X18X35 | ||
| A 3589900614 | SCREW | |
| M 12X13X21X38 | ||
| A 6179900114 | SCREW | |
| M 12X13X23X40 | ||
| A 6249900014 | SCREW | |
| M 12X13X25X42 | ||
| A 3859900214 | SCREW | |
| M 12X13X35X52 | ||
| A 6689900114 | SCREW | |
| M 12X13X58X80 | ||
| A 6689900014 | SCREW | |
| M 12X13X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3859900814 | SCREW | |
| Repalced by: A 3229903101 | ||
| A 3229903101 | SCREW | |
| M 14X14X18X32 | ||
| A 3859902014 | SCREW | |
| M 14X14X18X34 | ||
| A 3559900114 | SCREW | |
| M 12X14X13X35 | ||
| A 3219901601 | SCREW | |
| Repalced by: A 3169900014 | ||
| A 3169900014 | SCREW | |
| M 14X14X17X35 | ||
| A 3219901901 | SCREW | |
| M 14X14X22X40 | ||
| A 3559900501 | SCREW | |
| M 14X14X24X42 | ||
| A 3409900201 | SCREW | |
| M 14X14X27X45 | ||
| A 3609902001 | SCREW | |
| M 14X14X32X50 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3589900114 | SCREW | |
| M 14X15X15X32 | ||
| A 3589900814 | SCREW | |
| M 14X15X17X34 | ||
| A 6459900014 | SCREW | |
| M 14X15X18X35 | ||
| A 3589901014 | SCREW | |
| M 14X15X19X36 | ||
| A 3589900214 | SCREW | |
| M 14X15X21X38 | ||
| A 3589900414 | SCREW | |
| M 14X15X25X42 | ||
| A 3589900714 | SCREW | |
| M 14X15X27X44 | ||
| A 3589900914 | SCREW | |
| M 14X15X29X46 | ||
| A 3859900414 | SCREW | |
| M 14X15X31X48 | ||
| A 3859900314 | SCREW | |
| M 14X15X35X52 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3859900914 | SCREW | |
| Repalced by: N 308676016020 | ||
| N 308676016020 | SCREW | |
| M 16X16X18X36 | ||
| A 3859901714 | SCREW | |
| M 16X16X20X38 | ||
| A 3859901014 | SCREW | |
| M 16X16X22X40 | ||
| A 3859901114 | SCREW | |
| Repalced by: N 000961016118 | ||
| N 000961016118 | SCREW | |
| M 16X16X24X42 | ||
| A 0029909901 | SCREW | |
| Repalced by: A 3959900501 | ||
| A 3959900501 | SCREW | |
| M 16X16X20X45 | ||
| A 3859901814 | SCREW | |
| M 16X16X30X48 | ||
| A 3859901914 | SCREW | |
| M 16X16X32X50 | ||
| A 6259900301 | SCREW | |
| M 16X16X38X90 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3589900514 | SCREW | |
| M 16X17X22X42 | ||
| A 6459900714 | SCREW | |
| M 16X17X24X44 | ||
| A 3609900114 | SCREW | |
| Repalced by: A 0009906314 | ||
| A 0009906314 | SCREW | |
| M 16X17X28X48 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3469900014 | SCREW | |
| M 16X18X18X40 | ||
| A 3859902314 | SCREW | |
| M 18X18X23X45 | ||
| A 6569900014 | SCREW | |
| M 16X18X25X45 | ||
| A 6209900014 | SCREW | |
| M 16X18X26X48 | ||
| A 3469900114 | SCREW | |
| M 16X18X31X50 | ||
| A 3859902414 | SCREW | |
| Repalced by: N 000961018043 | ||
| N 000961018043 | SCREW | |
| M 18X18X33X55 | ||
| A 6229900014 | SCREW | |
| M 16X18X38X60 | ||
| A 3919900014 | SCREW | |
| M 16X18X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| N 000610018004 | FITTED SCREW | |
| M 18X19X25X45 | ||
| N 000610018009 | FITTED SCREW | |
| M 18X19X33X55 | ||
| N 000610018006 | FITTED SCREW | |
| M 18X19X38X60 | ||
| N 000609018000 | FITTED SCREW | |
| M 18X19X57X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| N 913004010011 | NUT | |
| N 913004012009 | NUT | |
| Repalced by: N 910113012003 | ||
| N 910113012003 | NUT | |
| N 913004014005 | NUT | |
| Repalced by: N 910113014000 | ||
| N 910113014000 | NUT | |
| N 913004016005 | NUT | |
| Repalced by: N 910113016001 | ||
| N 910113016001 | NUT | |
| N 913004018004 | NUT | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 219 | N 910005012073 | RIVET |
| 12X28 MM | ||
| 219 | N 910005012080 | RIVET |
| 12X42 MM | ||
| 219 | N 910005012087 | RIVET |
| 12X58 MM | ||
| 219 | N 910005014056 | RIVET |
| 14X45 MM | ||
| 219 | N 910005014059 | RIVET |
| 14X55 MM | ||
| 219 | N 910005014066 | RIVET |
| 14X70 MM | ||
| 219 | N 910005016017 | RIVET |
| 16X48 MM | ||
| 219 | N 910005016027 | RIVET |
| 16X58 MM | ||
| 222 | N 000961014028 | SCREW |
| CROSS MEMBER NO.1 TO SIDE MEMBERS | ||
| 223 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 223 | N 910113014001 | NUT |
| CROSS MEMBER NO.1 TO SIDE MEMBERS | ||
| 225 | N 000960016249 | SCREW |
| Repalced by: N 308676016004 | ||
| 225 | N 308676016004 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 16X55 | ||
| 226 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 226 | N 910113016002 | NUT |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||

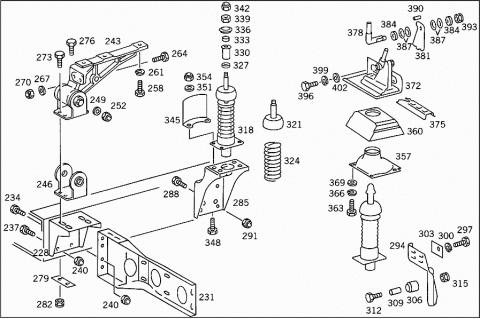

| 228 | A 3878912631 | CONSOLE |
| CAB MOUNTING,FRONT | ||
| 231 | A 6203170223 | STRUT |
| BUMPER,LEFT | ||
| 231 | A 6203170423 | STRUT |
| BUMPER,RIGHT | ||
| 234 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 234 | N 308676014012 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X45 | ||
| 237 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 237 | A 9429901304 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X40 | ||
| 240 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 240 | N 910113014000 | NUT |
| CONSOLE AND STRUT TO FRAME | ||
| 243 | A 3813106509 | BRACKET |
| CAB,LEFT | ||
| 243 | A 6208902103 | MOUNTING |
| CAB,LEFT | ||
| 243 | A 3813106609 | BRACKET |
| CAB, RIGHT | ||
| 243 | A 6208902203 | MOUNTING |
| CAB, RIGHT | ||
| 246 | A 3878902903 | MOUNTING |
| Repalced by: A 3878908703 | ||
| 246 | A 3878908703 | MOUNTING |
| 246 | A 6208902003 | MOUNTING |
| Repalced by: A 6208902903 | ||
| 246 | A 6208902903 | MOUNTING |
| 249 | N 007349017002 | WASHER |
| Repalced by: N 007349017003 | ||
| 249 | N 007349017003 | WASHER |
| 252 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 252 | N 910113016002 | NUT |

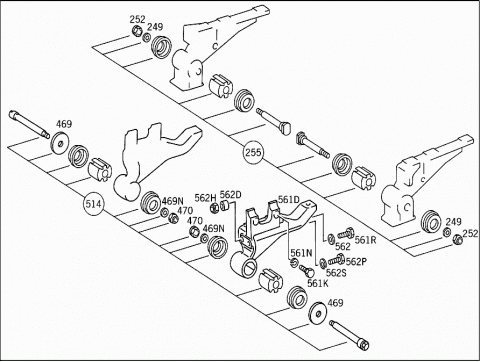

| 255 | A 3815860031 | REPAIR KIT |
| CAB SUSPENSION,FRONT | ||
| 258 | N 000961014028 | SCREW |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 261 | N 912004014100 | LOCK WASHER |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 264 | N 000961014064 | SCREW |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 267 | A 3209901840 | WASHER |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 270 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 270 | N 910113014001 | NUT |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 273 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 273 | A 9429901304 | SCREW |
| CAB TO FRAME | ||
| M 14X40 | ||
| 276 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 276 | N 308676014012 | SCREW |
| CAB TO FRAME | ||
| M 14X45 | ||
| 279 | A 3878910398 | SHIM |
| CAB TO FRAME | ||
| 282 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 282 | N 910113014000 | NUT |
| CAB TO FRAME | ||
| 285 | A 3873170001 | CONSOLE |
| Repalced by: A 6553170001 | ||
| 285 | A 6553170001 | CONSOLE |
| Repalced by: A 3873170001 | ||
| 285 | A 3873170001 | CONSOLE |
| CAB MOUNTING,REAR | ||
| 288 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 288 | N 308676012026 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 291 | N 910113012002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 294 | A 3873170626 | GUIDE |
| LEFT | ||
| 294 | A 3873170726 | GUIDE |
| RIGHT | ||
| 297 | N 000960012301 | SCREW |
| GUIDE TO CAB | ||
| 300 | N 912004012100 | LOCK WASHER |
| GUIDE TO CAB | ||
| 303 | A 3873170084 | SHIM |
| GUIDE TO CAB | ||
| 306 | A 3813170750 | BUSHING |
| GUIDE TO CAB | ||
| 309 | A 3813170553 | SPACER TUBE |
| GUIDE TO CAB | ||
| 312 | N 000960012230 | SCREW |
| GUIDE TO CAB | ||
| 315 | N 910113012002 | NUT |
| GUIDE TO CAB | ||
| 318 | A 3878901619 | SHOCK ABSORBER |
| Repalced by: A 3878901319 | ||
| 318 | A 3878901319 | SHOCK ABSORBER |
| (VIBRATION ABSORBER),CAB REAR SUSPENSION | ||
| 318 | A 3878901319 | SHOCK ABSORBER |
| (VIBRATION ABSORBER),CAB REAR SUSPENSION | ||
| 318 | A 6208900019 | SHOCK ABSORBER |
| Repalced by: A 6208900119 | ||
| 318 | A 6208900119 | SHOCK ABSORBER |
| (VIBRATION ABSORBER),CAB REAR SUSPENSION | ||
| 318 | A 6208900119 | SHOCK ABSORBER |
| (VIBRATION ABSORBER),CAB REAR SUSPENSION | ||
| 321 | A 0008910201 | RUBBER MOUNTING |
| TO 387 890 16 19,620 890 00 19 | ||
| A 0008900148 | JOINT | |
| Repalced by: A 0008910301 | ||
| 321 | A 0008910301 | RUBBER MOUNTING |
| TO 620 890 01 19,387 890 13 19 | ||
| 324 | A 0008910751 | SPRING |
| TO 387 890 13 19,387 390 16 19 | ||
| 324 | A 0008911051 | SPRING |
| TO 620 890 00 19 | ||
| 324 | A 0008911151 | SPRING |
| TO 620 890 01 19 | ||
| A 0008910123 | BUFFER | |
| TO 620 890 00 19 | ||
| 327 | N 000433015005 | WASHER |
| SHOCK ABSORBER | ||
| 330 | A 3813170753 | SPACER TUBE |
| SHOCK ABSORBER | ||
| 333 | A 3275045082 | RUBBER RING |
| SHOCK ABSORBER | ||
| 336 | A 3878912010 | WASHER |
| SHOCK ABSORBER | ||
| 339 | N 000934012022 | NUT |
| SHOCK ABSORBER | ||
| 342 | N 308673012002 | HEXAGON NUT |
| SHOCK ABSORBER | ||
| 345 | A 3813170031 | COVER PLATE |
| SHOCK ABSORBER | ||
| 348 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 348 | N 304017008034 | SCREW |
| VIBRATION ABSORBER TO CONSOLE | ||
| 351 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 351 | N 009021008213 | WASHER |
| VIBRATION ABSORBER TO CONSOLE | ||
| 354 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 354 | N 913004008001 | NUT |
| VIBRATION ABSORBER TO CONSOLE | ||
| 357 | A 3813177840 | BRACKET |
| VIBRATION ABSORBER TO CAB,LEFT | ||
| 357 | A 3813177940 | BRACKET |
| VIBRATION ABSORBER TO CAB,RIGHT | ||
| 360 | A 3813170097 | BOOT |
| SHOCK ABSORBER,TOP | ||
| 363 | N 000933010105 | SCREW |
| BRACKET AND BOOT TO CAB SIDE MEMBER | ||
| 366 | N 912004010102 | LOCK WASHER |
| BRACKET AND BOOT TO CAB SIDE MEMBER | ||
| 369 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 369 | N 000125010532 | WASHER |
| BRACKET AND BOOT TO CAB SIDE MEMBER | ||
| 372 | A 3813102075 | LOCKING MECHANISM |
| CAB LOCKING MECHANISM,LEFT | ||
| 372 | A 3813101975 | LOCKING MECHANISM |
| CAB LOCKING MECHANISM,RIGHT | ||
| 375 | A 3813170119 | LATCH |
| 378 | A 3813172374 | PIN |
| 381 | A 3813170924 | LEVER |
| 384 | A 3813170676 | WASHER |
| 387 | A 0009935426 | DISC SPRING |
| 390 | N 001481006041 | CLAMPING SLEEVE |
| 393 | N 910113012002 | NUT |
| 396 | N 000933010105 | SCREW |
| LOCKING MECHANISM TO CAB | ||
| 399 | N 912004010102 | LOCK WASHER |
| LOCKING MECHANISM TO CAB | ||
| 402 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 402 | N 000125010532 | WASHER |
| LOCKING MECHANISM TO CAB | ||

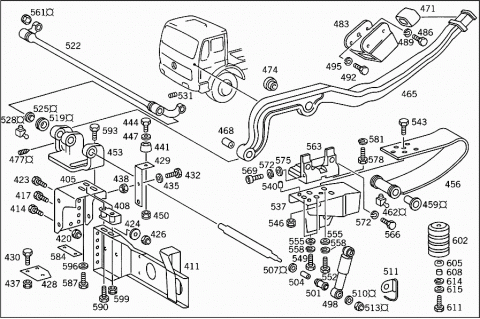

| 405 | A 3878912631 | CONSOLE |
| CAB SUSPENSION,FRONT | ||
| 405 | A 3878912831 | CONSOLE |
| CAB SUSPENSION,FRONT | ||
| 408 | A 6208900232 | BOW |
| CAB SUSPENSION,FRONT | ||
| 411 | A 6203170223 | STRUT |
| CAB SUSPENSION,FRONT | ||
| 411 | A 6203100253 | STRUT |
| BUMPER,LEFT | ||
| 411 | A 6203100053 | STRUT |
| BUMPER,LEFT | ||
| 411 | A 6203170423 | STRUT |
| BUMPER,RIGHT | ||
| 411 | A 6203100353 | STRUT |
| BUMPER,RIGHT | ||
| 411 | A 6203100153 | STRUT |
| BUMPER,RIGHT | ||
| 414 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 414 | A 9429901304 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X40 | ||
| 417 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 417 | N 308676014012 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X45 | ||
| 420 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 420 | N 910113014000 | NUT |
| CONSOLE AND STRUT TO FRAME | ||
| 423 | A 6209900014 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| 424 | A 3939900240 | WASHER |
| CONSOLE AND STRUT TO FRAME | ||
| 426 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 426 | N 910113016001 | NUT |
| CONSOLE AND STRUT TO FRAME | ||
| 428 | A 3878910914 | BRACKET |
| BUFFER | ||
| 429 | A 3878900314 | BRACKET |
| LEFT BUFFER | ||
| 429 | A 3878900414 | BRACKET |
| RIGHT BUFFER | ||
| 430 | N 000961012151 | SCREW |
| BRACKET TO FRAME | ||
| M 12X30 | ||
| 430 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 430 | N 308676012026 | SCREW |
| BRACKET TO FRAME | ||
| M 12X35 | ||
| 432 | N 000961014028 | SCREW |
| BRACKET TO CONSOLE | ||
| 435 | N 007349015003 | WASHER |
| BRACKET TO CONSOLE | ||
| 437 | N 910113012002 | NUT |
| BRACKET TO FRAME | ||
| 438 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 438 | N 910113014001 | NUT |
| BRACKET TO CONSOLE | ||
| 441 | A 3348910072 | MOUNTING |
| BUFFER | ||
| 444 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 444 | N 304017008034 | SCREW |
| BUFFER TO BRACKET | ||
| 447 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 447 | N 009021008213 | WASHER |
| BUFFER TO BRACKET | ||
| 450 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 450 | N 913004008001 | NUT |
| BUFFER TO BRACKET | ||
| A 3878916020 | MOUNTING | |
| Repalced by: A 6558910320 | ||
| 453 | A 6558910320 | MOUNTING |
| CAB SUSPENSION,FRONT LEFT | ||
| 453 | A 3878913720 | MOUNTING |
| CAB SUSPENSION,FRONT LEFT | ||
| 453 | A 6208910420 | MOUNTING |
| CAB SUSPENSION,FRONT LEFT | ||
| 453 | A 3878916120 | MOUNTING |
| Repalced by: A 6558910420 | ||
| 453 | A 6558910420 | MOUNTING |
| CAB SUSPENSION,FRONT LEFT | ||
| 453 | A 3878913820 | MOUNTING |
| CAB SUSPENSION,FRONT RIGHT | ||
| 453 | A 6208910520 | MOUNTING |
| CAB SUSPENSION,FRONT RIGHT | ||
| 456 | A 3878910551 | SPRING |
| MOUNTING | ||
| 456 | A 6208910151 | SPRING |
| MOUNTING | ||
| 459 | A 3638910617 | BUSHING |
| CAB SUSPENSION,FRONT | ||
| 462 | N 071412008200 | GREASE NIPPLE |
| CAB SUSPENSION,FRONT | ||
| 465 | A 3878912856 | LEVER |
| (TILTING LEVER),CAB | ||
| 465 | A 3878912856 | LEVER |
| (TILTING LEVER),CAB | ||
| 465 | A 3878912556 | LEVER |
| (TILTING LEVER),CAB | ||
| 468 | A 3879920003 | BUSHING |
| CAB TILTING LEVER | ||
| 468 | A 3879920203 | BUSHING |
| CAB TILTING LEVER | ||
| 469 | A 3873170376 | WASHER |
| CAB SUSPENSION,FRONT | ||
| 469N | N 007349017002 | WASHER |
| CAB SUSPENSION,FRONT | ||
| Repalced by: N 007349017003 | ||
| 469N | N 007349017003 | WASHER |
| CAB SUSPENSION,FRONT | ||
| 470 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 470 | N 910113016002 | NUT |
| CAB SUSPENSION,FRONT | ||
| 471 | A 3638910023 | BUFFER |
| LEVER TO BEARING | ||
| 474 | A 6208910017 | BUSHING |
| CAB TILTING LEVER | ||
| 477 | N 000417008004 | HEADLESS SETSCREW |
| CAB TILTING LEVER | ||
| A 3875860431 | REPAIR KIT | |
| Repalced by: A 3879920003 | ||
| A 3879920003 | BUSHING | |
| CAB MOUNTING | ||
| A 3878915520 | MOUNTING | |
| Repalced by: A 6208901603 | ||
| 483 | A 6208901603 | MOUNTING |
| TILTING LEVER TO CAB SIDE MEMBER | ||
| 486 | N 000933010105 | SCREW |
| BEARING BRACKET TO CAB | ||
| 489 | N 912004010102 | LOCK WASHER |
| BEARING BRACKET TO CAB | ||
| 492 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 492 | N 308676012012 | HEXAGON HEAD BOLT |
| BEARING BRACKET TO CAB | ||
| 492 | N 308676012012 | HEXAGON HEAD BOLT |
| BEARING BRACKET TO CAB | ||
| 495 | N 912004012100 | LOCK WASHER |
| BEARING BRACKET TO CAB | ||
| 498 | A 0008911805 | SHOCK ABSORBER |
| CAB SUSPENSION,FRONT | ||
| A 0008911805 | SHOCK ABSORBER | |
| Repalced by: A 0008912205 | ||
| 498 | A 0008912205 | SHOCK ABSORBER |
| CAB SUSPENSION,FRONT | ||
| 501 | A 0008910501 | RUBBER MOUNTING |
| 504 | A 0008910617 | BUSHING |
| A 3873170176 | WASHER | |
| Repalced by: A 6203170176 | ||
| 507 | A 6203170176 | WASHER |
| SHOCK ABSORBER TO CONSOLE AND TO CAB | ||
| A 3873170276 | WASHER | |
| Repalced by: N 000125013008 | ||
| 510 | N 000125013008 | WASHER |
| 510 | N 000125013008 | WASHER |

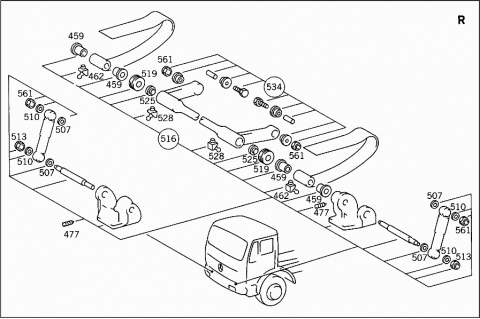

| 511 | A 6208900332 | BOW |
| SHOCK ABSORBER TO CONSOLE AND TO CAB | ||
| 513 | N 910113012002 | NUT |
| SHOCK ABSORBER TO CONSOLE AND TO CAB | ||
| 513 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 513 | N 910113014001 | NUT |
| SHOCK ABSORBER TO CONSOLE AND TO CAB | ||
| 514 | A 6205860031 | REPAIR KIT |
| CAB SUSPENSION,FRONT | ||
| A 3875860131 | REPAIR KIT | |
| Repalced by: A 3873100077 | ||
| 516 | A 3873100077 | REPAIR KIT |
| CAB SUSPENSION,FRONT | ||
| 519 | A 3878911910 | WASHER |
| CAB SUSPENSION,FRONT | ||
| 522 | A 6218900304 | STABILIZER |
| Repalced by: A 6528900104 | ||
| 522 | A 6528900104 | STABILIZER |
| CAB SUSPENSION,FRONT | ||
| 522 | A 6218900504 | STABILIZER |
| Repalced by: A 6558900004 | ||
| 522 | A 6558900004 | STABILIZER |
| CAB SUSPENSION,FRONT | ||
| A 0009817331 | JOINT BEARING | |
| Repalced by: A 0009817231 | ||
| A 0009817231 | JOINT BEARING | |
| Repalced by: A 0019814631 | ||
| 525 | A 0019814631 | JOINT BEARING |
| 525 | A 0019814831 | JOINT BEARING |
| 528 | N 071412008200 | GREASE NIPPLE |
| 531 | N 000906010000 | SCREW PLUG |
| CAB SUSPENSION,FRONT | ||
| 534 | A 6203100077 | REPAIR KIT |
| CAB FRONT SUSPENSION STABILIZER | ||
| 534 | A 6203100177 | REPAIR KIT |
| CAB FRONT SUSPENSION STABILIZER | ||
| 537 | A 6218900203 | MOUNTING |
| Repalced by: A 6218900403 | ||
| 537 | A 6218900403 | MOUNTING |
| STABILIZER TO CAB,LEFT | ||
| A 6218900303 | MOUNTING | |
| Repalced by: A 6218900503 | ||
| 537 | A 6218900503 | MOUNTING |
| STABILIZER TO CAB,RIGHT | ||
| 540 | A 6218910157 | PIN |
| 543 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 543 | N 304017008034 | SCREW |
| BEARING BRACKET TO CAB | ||
| 546 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 546 | N 913004008001 | NUT |
| BEARING BRACKET TO CAB | ||
| 549 | N 000961014028 | SCREW |
| BEARING BRACKET TO CAB | ||
| M 14X40 | ||
| 552 | N 000960014061 | SCREW |
| BEARING BRACKET TO CAB | ||
| M 14X80 | ||
| 555 | N 007349015003 | WASHER |
| BEARING BRACKET TO CAB | ||
| 558 | N 912004014100 | LOCK WASHER |
| BEARING BRACKET TO CAB | ||
| N 000960014245 | SCREW | |
| STABILIZER TO BEARING BRACKET | ||
| 561 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 561 | N 910113014001 | NUT |
| STABILIZER TO BEARING BRACKET | ||
| 561D | A 3878916420 | MOUNTING |
| CAB TO LEFT BEARING BRACKET | ||
| 561D | A 3878916520 | MOUNTING |
| CAB TO RIGHT BEARING BRACKET | ||
| 561K | N 000960012189 | SCREW |
| Repalced by: N 308676012031 | ||
| 561K | N 308676012031 | SCREW |
| Repalced by: N 308676012011 | ||
| 561K | N 308676012011 | SCREW |
| MOUNTING TO CAB | ||
| 561N | N 912004012100 | LOCK WASHER |
| MOUNTING TO CAB | ||
| 561R | N 000960014167 | SCREW |
| Repalced by: N 000961014064 | ||
| 561R | N 000961014064 | SCREW |
| MOUNTING TO CAB | ||
| 562 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 562 | N 000125015019 | WASHER |
| MOUNTING TO CAB | ||
| 562D | A 3209901840 | WASHER |
| MOUNTING TO CAB | ||
| 562H | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 562H | N 910113014001 | NUT |
| MOUNTING TO CAB | ||
| 562P | N 000961014054 | SCREW |
| MOUNTING TO CAB | ||
| 562P | N 000961014028 | SCREW |
| MOUNTING TO CAB | ||
| 562S | N 912004014100 | LOCK WASHER |
| MOUNTING TO CAB | ||
| A 3878910831 | CONSOLE | |
| Repalced by: A 6208910631 | ||
| 563 | A 6208910631 | CONSOLE |
| LEFT | ||
| A 3878910931 | CONSOLE | |
| Repalced by: A 6208910731 | ||
| 563 | A 6208910731 | CONSOLE |
| RIGHT | ||
| 566 | N 000961012069 | SCREW |
| Repalced by: N 308676012015 | ||
| 566 | N 308676012015 | SCREW |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| M 12X45 | ||
| 569 | N 006912012013 | SCREW |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| M 12X30 | ||
| 572 | N 912004012100 | LOCK WASHER |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| 575 | A 3609900940 | WASHER |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| 578 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 578 | N 308676014020 | SCREW |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| 581 | N 912004014100 | LOCK WASHER |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| 584 | A 3878910098 | SHIM |
| Repalced by: A 3878910498 | ||
| 584 | A 3878910498 | SHIM |
| CAB ON CONSOLE AT FRAME | ||
| 587 | N 000961014008 | SCREW |
| Repalced by: N 308676014003 | ||
| 587 | N 308676014003 | SCREW |
| CAB ON CONSOLE AT FRAME | ||
| M 14X30 | ||
| 587 | N 000961014088 | SCREW |
| Repalced by: N 308676014008 | ||
| 587 | N 308676014008 | SCREW |
| CAB ON CONSOLE AT FRAME | ||
| M 14X35 | ||
| 590 | N 000960014251 | SCREW |
| CAB ON CONSOLE AT FRAME | ||
| M 14X85 | ||
| 590 | N 000961014103 | SCREW |
| CAB ON CONSOLE AT FRAME | ||
| M 14X55 | ||
| 593 | N 000960014248 | SCREW |
| Repalced by: N 308765014008 | ||
| 593 | N 308765014008 | SCREW |
| CAB ON CONSOLE AT FRAME | ||
| M 14X100 | ||
| 596 | N 007349015003 | WASHER |
| CAB ON CONSOLE AT FRAME | ||
| 599 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 599 | N 910113014000 | NUT |
| CAB ON CONSOLE AT FRAME | ||
| 602 | A 3638910223 | BUFFER |
| HOLLOW RUBBER SPRING | ||
| 605 | A 3638910047 | FLANGE |
| HOLLOW RUBBER SPRING | ||
| 608 | A 3638910517 | BUSHING |
| HOLLOW RUBBER SPRING | ||
| 611 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 611 | N 304017010002 | SCREW |
| HOLLOW RUBBER SPRING TO CAB | ||
| M 10X30 | ||
| 611 | N 000933010094 | SCREW |
| HOLLOW RUBBER SPRING TO CAB | ||
| M 10X40 | ||
| 614 | N 912004010102 | LOCK WASHER |
| HOLLOW RUBBER SPRING TO CAB | ||
| A 3878912210 | WASHER | |
| Repalced by: A 4432610076 | ||
| 615 | A 4432610076 | WASHER |
| HOLLOW RUBBER SPRING TO CAB | ||
| 617 | A 3878911731 | CONSOLE |
| CAB SUSPENSION,REAR | ||
| 617 | A 3878911731 | CONSOLE |
| CAB SUSPENSION,REAR LEFT | ||
| 617 | A 6208910031 | CONSOLE |
| CAB SUSPENSION,REAR LEFT | ||
| 620 | A 6208910096 | BASE |
| CAB MOUNTING,REAR | ||
| 623 | N 000961014028 | SCREW |
| PAD TO FRAME | ||
| 623 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 623 | N 308676014020 | SCREW |
| PAD TO FRAME | ||
| 624 | N 912004014100 | LOCK WASHER |
| PAD TO FRAME | ||
| 626 | A 6208910231 | CONSOLE |
| AIR INTAKE | ||
| 626 | A 6208910231 | CONSOLE |
| AIR INTAKE | ||
| 626 | A 6208910831 | CONSOLE |
| AIR INTAKE | ||
| 626 | A 6208910831 | CONSOLE |
| AIR INTAKE | ||
| 629 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 629 | N 308676014020 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X35 | ||
| 629 | N 000961014028 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X40 | ||
| 630 | N 000961014054 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X45 | ||
| 630 | N 000961014054 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X45 | ||
| 630 | N 000961016040 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 632 | N 912004014100 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 632 | N 912004014100 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 632 | N 912004016101 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 635 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 635 | N 910113014001 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 638 | A 6208900031 | CONSOLE |
| REAR RIGHT,TOP | ||
| 638 | A 6208910131 | CONSOLE |
| REAR RIGHT,TOP | ||
| 641 | N 000961012151 | SCREW |
| CONSOLE TO CONSOLE | ||
| 644 | A 3609900940 | WASHER |
| CONSOLE TO CONSOLE | ||
| 647 | N 912004012100 | LOCK WASHER |
| CONSOLE TO CONSOLE | ||
| 650 | A 3878910024 | STRUT |
| Repalced by: A 6558910224 | ||
| 650 | A 6558910224 | STRUT |
| CAB MOUNTING,REAR | ||
| 653 | A 3878910198 | SHIM |
| STRUT TO CONSOLE | ||
| 656 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 656 | N 308676012012 | HEXAGON HEAD BOLT |
| STRUT TO CONSOLE | ||
| M12X1.5X25 | ||
| 656 | N 000961012151 | SCREW |
| STRUT TO CONSOLE | ||
| M 12X30 | ||
| 659 | N 000125013008 | WASHER |
| 662 | N 912004012100 | LOCK WASHER |
| STRUT TO CONSOLE | ||
| 665 | A 3878911551 | SPRING |
| CAB SUSPENSION,REAR | ||
| 665 | A 3878911651 | SPRING |
| CAB SUSPENSION,REAR | ||
| 665 | A 3878911051 | SPRING |
| CAB SUSPENSION,REAR | ||
| 665 | A 6208910051 | SPRING |
| CAB SUSPENSION,REAR | ||
| 668 | N 000960012153 | SCREW |
| SPRING TO STRUT | ||
| 668 | N 000960012332 | SCREW |
| SPRING TO STRUT | ||
| 671 | A 3638910010 | WASHER |
| SPRING TO STRUT | ||
| 674 | N 009021013200 | WASHER |
| SPRING TO STRUT | ||
| 677 | A 3638910218 | TUBE |
| SPRING TO STRUT | ||
| 680 | A 3638910717 | BUSHING |
| SPRING TO STRUT | ||
| 683 | N 910113012002 | NUT |
| SPRING TO STRUT | ||
| 686 | A 3878900622 | RAIL |
| Repalced by: A 6558900222 | ||
| 686 | A 6558900222 | RAIL |
| CAB SUSPENSION,REAR | ||
| 686 | A 3878900522 | RAIL |
| Repalced by: A 6558900122 | ||
| 686 | A 6558900122 | RAIL |
| CAB SUSPENSION,REAR | ||
| 687 | N 000007012201 | CYLINDRICAL PIN |
| 689 | A 3878910323 | BUFFER |
| CAB SUSPENSION,REAR | ||
| 690 | A 3878910072 | MOUNTING |
| BUFFER | ||
| 692 | A 6208910072 | MOUNTING |
| Repalced by: A 3878910072 | ||
| 692 | A 3878910072 | MOUNTING |
| LEFT BUFFER | ||
| 692 | A 6208910172 | MOUNTING |
| RIGHT BUFFER | ||
| 692 | A 6208910272 | MOUNTING |
| BUFFER | ||
| 695 | N 000084008119 | SCREW |
| BUFFER AND MOUNTING TO RAIL | ||
| 698 | N 912004008102 | LOCK WASHER |
| BUFFER AND MOUNTING TO RAIL | ||
| 701 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 701 | N 304017008021 | SCREW |
| MOUNTING TO RAIL | ||
| 704 | N 912004008102 | LOCK WASHER |
| MOUNTING TO RAIL | ||
| 707 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 707 | N 000125008443 | WASHER |
| MOUNTING TO RAIL | ||
| 710 | A 6208910020 | MOUNTING |
| CAB MOUNTING,REAR | ||
| 713 | A 3878911753 | SPACER TUBE |
| MOUNTING | ||
| 716 | N 000960016242 | SCREW |
| Repalced by: N 000960016251 | ||
| 716 | N 000960016251 | SCREW |
| MOUNTING | ||
| 719 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 719 | N 910113016002 | NUT |
| MOUNTING | ||
| 722 | A 3878910811 | PLATE |
| CAB MOUNTING,REAR | ||
| 723 | A 6208910296 | BASE |
| RAIL AND PLATE TO SPRING | ||
| 725 | N 000931010357 | SCREW |
| Repalced by: N 000933010192 | ||
| 725 | A 0019909404 | SCREW |
| RAIL AND PLATE TO SPRING | ||
| 725 | N 000931010258 | SCREW |
| RAIL AND PLATE TO SPRING | ||
| 728 | N 912004010102 | LOCK WASHER |
| RAIL AND PLATE TO SPRING | ||
| 731 | A 0008911805 | SHOCK ABSORBER |
| Repalced by: A 0008912205 | ||
| 731 | A 0008912205 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 731 | A 0008912205 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 731 | A 0008911805 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 734 | A 0008910501 | RUBBER MOUNTING |
| 737 | A 0008910617 | BUSHING |
| 740 | A 3878910953 | SPACER TUBE |
| SHOCK ABSORBER TO RAIL AND TO CONSOLE | ||
| 740 | A 3878911053 | SPACER TUBE |
| Repalced by: A 3878910953 | ||
| 740 | A 3878910953 | SPACER TUBE |
| SHOCK ABSORBER TO CONSOLE | ||
| 9 MM | ||
| 740 | A 3878910453 | SPACER TUBE |
| SHOCK ABSORBER TO CONSOLE | ||
| 743 | N 000960018125 | SCREW |
| Repalced by: N 000960018072 | ||
| 743 | N 000960018072 | SCREW |
| SHOCK ABSORBER TO CONSOLE | ||
| 746 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 746 | N 910113018004 | NUT |
| SHOCK ABSORBER TO CONSOLE | ||
| 749 | N 000960018127 | SCREW |
| SHOCK ABSORBER TO RAIL | ||
| 749 | N 000960018040 | SCREW |
| Repalced by: N 000960018142 | ||
| 749 | N 000960018142 | SCREW |
| SHOCK ABSORBER TO RAIL | ||
| 750 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 750 | N 910113018004 | NUT |
| SHOCK ABSORBER TO RAIL | ||
| 753 | A 0008900089 | FASTENER |
| Repalced by: A 0008902389 | ||
| 753 | A 0008901389 | FASTENER |
| Repalced by: A 0008902389 | ||
| 753 | A 0008902389 | FASTENER |
| (CENTRAL LOCK) | ||
| 754 | A 3878911131 | CONSOLE |
| CENTRAL LOCK | ||
| 756 | N 000933010128 | SCREW |
| CENTRAL LOCK TO CAB | ||
| M 10X20 | ||
| 756 | N 000933010198 | SCREW |
| CENTRAL LOCK TO CAB | ||
| M 10X16 | ||
| 756 | N 000933010198 | SCREW |
| CENTRAL LOCK TO CAB | ||
| M 10X16 | ||
| 759 | N 000933010105 | SCREW |
| CENTRAL LOCK TO CAB | ||
| M 10X25 | ||
| 762 | N 912004010102 | LOCK WASHER |
| CENTRAL LOCK TO CAB | ||
| 765 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 765 | N 910113010000 | NUT |
| CENTRAL LOCK TO CAB | ||
| 768 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 768 | N 000125010532 | WASHER |
| CENTRAL LOCK TO CAB | ||
| 771 | A 3878910070 | ROD |
| CAB LOCKING MECHANISM | ||
| A 6208910070 | ROD | |
| Repalced by: A 6208910270 | ||
| 771 | A 6208910270 | ROD |
| CAB LOCKING MECHANISM | ||
| 774 | N 001444008202 | PIN |
| PULL TO FASTENER | ||
| A 1269911907 | PIN | |
| PULL TO FASTENER | ||
| 777 | N 000433008406 | WASHER |
| PULL TO FASTENER | ||
| 778 | N 000094002059 | COTTER PIN |
| PULL TO FASTENER | ||
| Repalced by: N 000094002060 | ||
| 778 | N 000094002060 | COTTER PIN |
| PULL TO FASTENER | ||
| N 912002008001 | LOCK | |
| Repalced by: N 912002008003 | ||
| N 912002008003 | LOCK | |
| PULL TO FASTENER | ||
| 780 | A 3878910814 | BRACKET |
| ROD THRU CAB | ||
| 783 | A 3878910085 | SEAL |
| ROD THRU CAB | ||
| 786 | N 007346005003 | CLAMPING SLEEVE |
| ROD TO BRACKET | ||
| 789 | A 3878911456 | LEVER |
| CAB LOCKING MECHANISM | ||
| 789 | A 6208910256 | LEVER |
| CAB LOCKING MECHANISM | ||
| 789 | A 6208910256 | LEVER |
| CAB LOCKING MECHANISM | ||
| 789 | A 6208910556 | LEVER |
| CAB LOCKING MECHANISM | ||
| 791 | A 3638910317 | BUSHING |
| CAB LOCKING MECHANISM | ||
| 794 | A 6208910073 | HANDLE |
| CAB LOCKING MECHANISM | ||
| 797 | N 007985008142 | SCREW |
| BUSHING AND HANDLE TO CAB | ||
| 800 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 800 | N 913004008001 | NUT |
| BUSHING AND HANDLE TO CAB | ||
| 803 | N 007346005004 | CLAMPING SLEEVE |
| Repalced by: N 001481005039 | ||
| 803 | N 001481005039 | CLAMPING SLEEVE |
| HANDLE TO LEVER | ||
| 803 | N 001481005039 | CLAMPING SLEEVE |
| LEVER MOUNTING | ||
| 806 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 806 | N 000125015019 | WASHER |
| LEVER MOUNTING | ||
| 809 | N 900055014401 | RETAINING RING |
| LEVER MOUNTING | ||
| 812 | N 001444008233 | PIN |
| ROD TO LEVER | ||
| 815 | N 000433008406 | WASHER |
| ROD TO LEVER | ||
| 817 | N 000094002059 | COTTER PIN |
| ROD TO LEVER | ||
| Repalced by: N 000094002060 | ||
| 817 | N 000094002060 | COTTER PIN |
| ROD TO LEVER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
