Transporto priemonė: 2636 AS; VIN numerio dalis: 624336

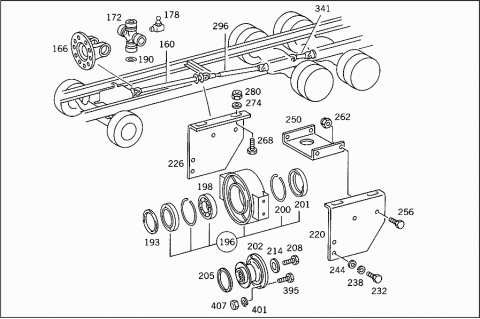

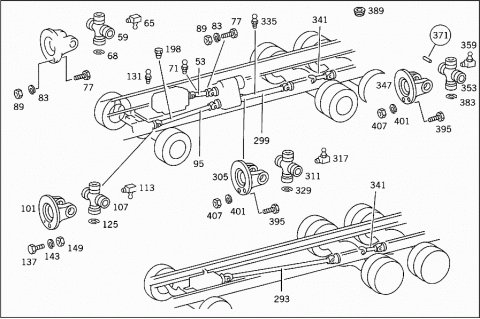

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 053 | A 3954101602 | PROPELLER SHAFT |
| FROM TRANSMISSION TO TRANSFER CASE | ||
| 535 MM | ||
| 059 | A 0004100428 | UNIVERSAL JOINT CROSS |
| Repalced by: A 6204100031 | ||
| 059 | A 6204100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9404100031 | ||
| 059 | A 9404100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 065 | N 071412008302 | GREASE NIPPLE |
| 068 | A 0069943141 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 068 | A 0069943541 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 068 | A 0069943941 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| 071 | N 071412010100 | GREASE NIPPLE |
| 077 | N 000960014237 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 083 | N 912004014100 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE | ||
| 089 | N 000934014020 | NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE | ||
| 095 | A 3854105407 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO FRONT AXLE | ||
| 1400 MM | ||
| 101 | A 3854111711 | DRIVE FLANGE |
| 107 | A 3814100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9734100031 | ||
| 107 | A 9734100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 113 | N 071412008302 | GREASE NIPPLE |
| A 3854100742 | BEARING BUSHING | |
| A 3854101042 | BEARING BUSHING | |
| 125 | A 0069940841 | LOCK |
| AS REQUIRED | ||
| 1.70 MM | ||
| 125 | N 000472048000 | LOCK RING |
| AS REQUIRED | ||
| 1.75 MM | ||
| 125 | A 0069941241 | LOCK |
| AS REQUIRED | ||
| 1.80 MM | ||
| 125 | A 0069941441 | LOCK |
| AS REQUIRED | ||
| 1.85 MM | ||
| 125 | A 0039943641 | LOCK |
| AS REQUIRED | ||
| 1.90 MM | ||
| A 3854110059 | SEAL RING | |
| PROTECTIVE TUBE | ||
| 131 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 131 | N 071412008102 | GREASE NIPPLE |
| 137 | A 3609901901 | SCREW |
| Repalced by: A 3609903001 | ||
| 137 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO TRANSFER CASE AND TO FRONT AXLE | ||
| 143 | N 912004012100 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSFER CASE AND TO FRONT AXLE | ||
| 149 | N 000934012034 | NUT |
| PROPELLER SHAFT TO TRANSFER CASE AND TO FRONT AXLE | ||
| 160 | A 3954101404 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1312 MM | ||
| 160 | A 3954101104 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1503 MM | ||
| 166 | A 3954110211 | DRIVE FLANGE |
| Repalced by: A 3954110811 | ||
| 166 | A 3954110811 | DRIVE FLANGE |
| 172 | A 6204100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9404100031 | ||
| 172 | A 9404100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 178 | N 071412008302 | GREASE NIPPLE |
| A 3954100142 | BEARING BUSHING | |
| 190 | A 0069943141 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 190 | A 0069943541 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 190 | A 0069943941 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| 193 | A 3894130061 | PROTECTIVE CAP |
| 193 | A 3954130061 | PROTECTIVE CAP |
| 196 | A 6204100010 | REPAIR KIT |
| Repalced by: A 3954100022 | ||
| 196 | A 3954100022 | INTERMEDIATE BEARING |
| Repalced by: A 3954100622 | ||
| 196 | A 3954100622 | INTERMEDIATE BEARING |
| Repalced by: A 6554100022 | ||
| 196 | A 6554100022 | INTERMEDIATE BEARING |
| PROPELLER SHAFT | ||
| 198 | A 0029819225 | BALL BEARING |
| 198 | A 0029819325 | BALL BEARING |
| 200 | N 912009110200 | SNAP RING |
| 201 | A 3874130261 | PROTECTIVE CAP |
| A 6554110052 | SPACER WASHER | |
| PROPELLER SHAFT BEARING | ||
| 202 | A 3954100130 | CENTERING FLANGE |
| Repalced by: A 3874110446 | ||
| 202 | A 3874110446 | FLANGE |
| PROPELLER SHAFT BEARING | ||
| 205 | A 3894130061 | PROTECTIVE CAP |
| 205 | A 3954130061 | PROTECTIVE CAP |
| 208 | A 3899900019 | SCREW |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 214 | A 3894110062 | THRUST WASHER |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 220 | A 6204136842 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 220 | A 6204133442 | BRACKET |
| Repalced by: A 6204136042 | ||
| 220 | A 6204136042 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 226 | A 6204136942 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 226 | A 6204133542 | BRACKET |
| Repalced by: A 6204136142 | ||
| 226 | A 6204136142 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 232 | N 000961012106 | SCREW |
| BRACKET TO HOUSING | ||
| 238 | N 912004012100 | LOCK WASHER |
| BRACKET TO HOUSING | ||
| 244 | A 3299900040 | WASHER |
| Repalced by: A 1232420366 | ||
| 244 | A 1232420366 | WASHER |
| BRACKET TO HOUSING | ||
| 250 | A 3954130011 | REINFORCEMENT |
| PROPELLER SHAFT | ||
| 256 | N 000961012106 | SCREW |
| REINFORCEMENT TO BRACKET | ||
| 262 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 262 | N 910113012003 | NUT |
| REINFORCEMENT TO BRACKET | ||
| 268 | N 000961012108 | SCREW |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 274 | A 3299900040 | WASHER |
| Repalced by: A 1232420366 | ||
| 274 | A 1232420366 | WASHER |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 280 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 280 | N 910113012003 | NUT |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 293 | A 3954102202 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE I | ||
| 2205 MM | ||
| 293 | A 3954101102 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE I | ||
| 1247 MM | ||
| 293 | A 3954101002 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE I | ||
| 1317 MM | ||
| 293 | A 6204100002 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE I | ||
| 1872 MM | ||
| 293 | A 3954101202 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE I | ||
| 1467 MM | ||
| 293 | A 3954100902 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE I | ||
| 1371 MM | ||
| 293 | A 3954101702 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE I | ||
| 1411 MM | ||
| 296 | A 3954101102 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1247 MM | ||
| 299 | A 3954102602 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE I | ||
| 1370 MM | ||
| 299 | A 3954101402 | PROPELLER SHAFT |
| Repalced by: A 3954102402 | ||
| 299 | A 3954102402 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE I | ||
| 770 MM | ||
| 299 | A 3954102702 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE I | ||
| 1060 MM | ||
| 305 | A 3954110211 | DRIVE FLANGE |
| Repalced by: A 3954110811 | ||
| 305 | A 3954110811 | DRIVE FLANGE |
| 311 | A 6204100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9404100031 | ||
| 311 | A 9404100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 317 | N 071412008302 | GREASE NIPPLE |
| A 3954100142 | BEARING BUSHING | |
| 329 | A 0069943141 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 329 | A 0069943541 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 329 | A 0069943941 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| A 3954110059 | SEAL RING | |
| PROTECTIVE TUBE | ||
| 105X17 MM | ||
| A 0004110159 | SEAL RING | |
| PROTECTIVE TUBE | ||
| 102.5X22 MM | ||
| 335 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 335 | N 071412008102 | GREASE NIPPLE |
| 341 | A 3954107401 | PROPELLER SHAFT |
| Repalced by: A 3894106501 | ||
| 341 | A 3894106501 | PROPELLER SHAFT |
| FROM REAR AXLE I TO REAR AXLE II | ||
| 780 MM | ||
| 341 | A 3894100701 | PROPELLER SHAFT |
| Repalced by: A 3894106601 | ||
| 341 | A 3894106601 | PROPELLER SHAFT |
| FROM REAR AXLE I TO REAR AXLE II | ||
| 685 MM | ||
| 347 | A 3894110011 | DRIVE FLANGE |
| Repalced by: A 3894110711 | ||
| 347 | A 3894110711 | DRIVE FLANGE |
| 353 | A 6204100131 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004100231 | ||
| 353 | A 0004100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004101628 | ||
| 353 | A 0004101628 | UNIVERSAL JOINT |
| Repalced by: A 9424100131 | ||
| 353 | A 9424100131 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 359 | N 071412008302 | GREASE NIPPLE |
| A 3874100042 | BEARING BUSHING | |
| 371 | A 3959810087 | NEEDLE |
| SET = 164 PIECES | ||
| TO 363 410 06 31;36.25 MM | ||
| A 3634110080 | GASKET | |
| 383 | A 0069941941 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 383 | A 0069942341 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 383 | A 0069942741 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| A 3894110080 | GASKET | |
| PROTECTIVE TUBE | ||
| 389 | N 000906008001 | SCREW PLUG |
| 395 | A 0029909901 | SCREW |
| Repalced by: A 3959900501 | ||
| 395 | A 3959900501 | SCREW |
| PROPELLER SHAFT TO INTERMEDIATE BEARING | ||
| SW 24 | ||
| 395 | A 3959900501 | SCREW |
| PROPELLER SHAFT TO REAR AXLES I AND II | ||
| SW 24 | ||
| 401 | N 912004016101 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 401 | N 912004016101 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSFER CASE | ||
| 401 | N 912004016101 | LOCK WASHER |
| PROPELLER SHAFT TO INTERMEDIATE BEARING | ||
| 401 | N 912004016101 | LOCK WASHER |
| PROPELLER SHAFT TO REAR AXLES I AND II | ||
| 407 | N 000934016013 | NUT |
| Repalced by: N 308673016001 | ||
| 407 | N 308673016001 | NUT |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 407 | N 308673016001 | NUT |
| PROPELLER SHAFT TO TRANSFER CASE | ||
| 407 | N 308673016001 | NUT |
| PROPELLER SHAFT TO INTERMEDIATE BEARING | ||
| 407 | N 308673016001 | NUT |
| PROPELLER SHAFT TO REAR AXLES I AND II | ||
