Transporto priemonė: 2636 AS; VIN numerio dalis: 624336

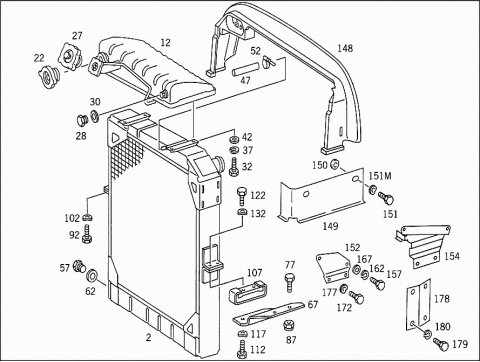

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| 002 | A 0005015901 | RADIATOR |
| Repalced by: A 0005017401 | ||
| 002 | A 0005017401 | RADIATOR |
| Repalced by: A 0005019001 | ||
| 002 | A 0005019001 | RADIATOR |
| Repalced by: A 0015010201 | ||
| 002 | A 0015010201 | RADIATOR |
| Repalced by: A 0005001103 | ||
| 002 | A 0005001103 | RADIATOR |
| BEHR | ||

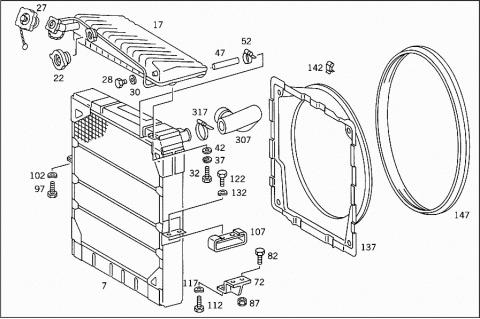

| 007 | A 0005015801 | RADIATOR |
| BEHR | ||
| 007 | A 0005017801 | RADIATOR |
| Repalced by: A 0015010301 | ||
| 007 | A 0015010301 | RADIATOR |
| BEHR | ||
| 012 | A 0005000749 | TANK |
| ON RADIATOR | ||
| TO 000 501 59 01,000 501 74 01 | ||
| 012 | A 0005000749 | TANK |
| ON RADIATOR | ||
| TO 000 501 02 01 | ||
| 012 | A 0005001149 | TANK |
| ON RADIATOR | ||
| TO 000 501 90 01 | ||
| 017 | A 0005000849 | TANK |
| ON RADIATOR | ||
| TO 000 501 58 01,000 501 03 01 | ||
| 017 | A 0005001049 | TANK |
| ON RADIATOR | ||
| TO 000 501 78 01 | ||
| 022 | A 0005013715 | RADIATOR CAP |
| LATERAL | ||
| 022 | A 0005017115 | RADIATOR CAP |
| LATERAL | ||
| 027 | A 0005014615 | RADIATOR CAP |
| FILLER NECK | ||
| 027 | A 0005017215 | RADIATOR CAP |
| FILLER NECK | ||
| 028 | A 0019973230 | SCREW PLUG |
| Repalced by: N 007604014101 | ||
| 028 | N 007604014101 | SCREW PLUG |
| WATER DRAIN | ||
| 030 | N 007603014405 | SEAL RING |
| WATER DRAIN | ||
| 032 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 032 | N 304017008016 | SCREW |
| FROM EXPANSION TANK TO RADIATOR | ||
| 037 | N 912004008102 | LOCK WASHER |
| FROM EXPANSION TANK TO RADIATOR | ||
| 042 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 042 | N 000125008443 | WASHER |
| FROM EXPANSION TANK TO RADIATOR | ||
| A 0139978082 | HOSE | |
| Repalced by: A 0149975782 | ||
| 047 | A 0149975782 | HOSE |
| OVERFLOW, EXPANSION TANK | ||
| 052 | A 0005040033 | CLAMP |
| Repalced by: N 916017011000 | ||
| 052 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 052 | N 000000000665 | CLAMP |
| OVERFLOW, EXPANSION TANK | ||
| 057 | A 0019973230 | SCREW PLUG |
| Repalced by: N 007604014101 | ||
| 057 | N 007604014101 | SCREW PLUG |
| WATER DRAIN | ||
| 062 | N 007603014405 | SEAL RING |
| WATER DRAIN | ||
| 067 | A 6205040201 | SUPPORT |
| RADIATOR,LEFT | ||
| 067 | A 6205040201 | SUPPORT |
| RADIATOR,LEFT | ||
| 067 | A 6555040401 | SUPPORT |
| RADIATOR,LEFT | ||
| 072 | A 6205040801 | SUPPORT |
| RADIATOR,LEFT | ||
| 077 | N 000961012151 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 12X30 | ||
| 082 | N 000961012122 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 12X40 | ||
| 087 | N 910113012002 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 092 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 092 | N 304017010028 | HEXAGON HEAD BOLT |
| RUBBER MOUNTING TO FRAME | ||
| M10X20 | ||
| 097 | N 000933010105 | SCREW |
| RUBBER MOUNTING TO FRAME | ||
| M 10X25 | ||
| 102 | N 000137010201 | SPRING WASHER |
| RUBBER MOUNTING TO FRAME | ||
| 107 | A 6205040012 | RUBBER MOUNTING |
| Repalced by: A 6205040112 | ||
| 107 | A 6205040112 | RUBBER MOUNTING |
| RADIATOR | ||
| 112 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 112 | N 304017010028 | HEXAGON HEAD BOLT |
| RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT | ||
| 117 | N 000137010201 | SPRING WASHER |
| RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT | ||
| 122 | N 000933010105 | SCREW |
| RADIATOR TO RUBBER MOUNTING | ||
| M 10X25 | ||
| 132 | N 000137010201 | SPRING WASHER |
| RADIATOR TO RUBBER MOUNTING | ||
| 137 | A 6205050355 | FAN SHROUD |
| RADIATOR | ||
| 137 | A 6205050555 | FAN SHROUD |
| RADIATOR | ||
| 137 | A 6205050855 | FAN SHROUD |
| RADIATOR | ||
| 137 | A 6205050455 | FAN SHROUD |
| RADIATOR | ||
| 142 | A 1235040246 | CLIP-TYPE NUT |
| FAN SHROUD TO RADIATOR | ||
| 147 | A 6205050086 | BOOT |
| FAN SHROUD | ||
| 148 | A 6205050186 | BOOT |
| HEATING PIPE TO RADIATOR | ||
| 148 | A 6205050486 | BOOT |
| HEATING PIPE TO RADIATOR | ||
| 148 | A 6205050286 | BOOT |
| HEATING PIPE TO RADIATOR | ||
| 149 | A 6205050140 | BRACKET |
| BOOT TO RADIATOR | ||
| 150 | A 6360150051 | SPACER RING |
| Repalced by: A 3059900740 | ||
| 150 | A 3059900740 | WASHER |
| Repalced by: N 000125006421 | ||
| 150 | N 000125006421 | WASHER |
| BOOT TO RADIATOR | ||
| Repalced by: N 000125006449 | ||
| 150 | N 000125006449 | WASHER |
| BOOT TO RADIATOR | ||
| 151 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 151 | N 304017006020 | SCREW |
| BOOT TO RADIATOR | ||
| 151M | N 000137006204 | SPRING WASHER |
| BOOT TO RADIATOR | ||
| 152 | A 4220100040 | BRACKET |
| Repalced by: A 4220100240 | ||
| 152 | A 4220100240 | BRACKET |
| OI DIPSTICK GUIDE TUBE | ||
| 152 | A 4220100240 | BRACKET |
| OI DIPSTICK GUIDE TUBE | ||
| 152 | A 4220100240 | BRACKET |
| OI DIPSTICK GUIDE TUBE | ||
| 154 | A 6205000231 | BRACKET |
| OI DIPSTICK GUIDE TUBE | ||
| 157 | N 000933008145 | SCREW |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 162 | N 912004008102 | LOCK WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 167 | N 007349008003 | WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 172 | N 000933006102 | SCREW |
| OIL DIPSTICK BRACKET TO RADIATOR | ||
| 177 | N 000137006204 | SPRING WASHER |
| OIL DIPSTICK BRACKET TO RADIATOR | ||
| 178 | A 6205001031 | BRACKET |
| 179 | N 000933008145 | SCREW |
| BRACKET TO OIL FILLER PIPE BRACKET | ||
| 180 | N 912004008102 | LOCK WASHER |
| BRACKET TO OIL FILLER PIPE BRACKET | ||

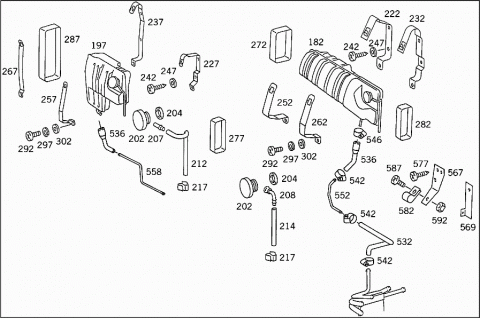

| 182 | A 6205000049 | TANK |
| Repalced by: A 6205000149 | ||
| 182 | A 6205000149 | TANK |
| (EXPANSION TANK) | ||
| 197 | A 6175000049 | TANK |
| Repalced by: A 6205000349 | ||
| 197 | A 6205000349 | TANK |
| (EXPANSION TANK) | ||
| 197 | A 6205000349 | TANK |
| (EXPANSION TANK) | ||
| 202 | A 0005014515 | RADIATOR CAP |
| TOP | ||
| 204 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 207 | A 0005010010 | DRAIN PIPE |
| TO 620 500 00 49,617 500 00 49 | ||
| 208 | A 0005010110 | DRAIN PIPE |
| TO 620 500 01 49,620 500 03 49 | ||
| A 0139978582 | HOSE | |
| Repalced by: A 0139978682 | ||
| 212 | A 0139978682 | HOSE |
| TO 620 500 00 49,620 500 01 49 | ||
| 212 | A 0139978682 | HOSE |
| TO 617 500 00 49 | ||
| 214 | A 0079972682 | HOSE |
| Repalced by: A 0219977682 | ||
| 214 | A 0219977682 | HOSE |
| TO 620 500 03 49 | ||
| 217 | A 0009881878 | CLIP |
| DE-AERATION LINE TO CAB | ||
| 217 | A 0009881878 | CLIP |
| DE-AERATION LINE TO CAB | ||
| 222 | A 6205000031 | BRACKET |
| EXPANSION TANK,RIGHT | ||
| 227 | A 6175000031 | BRACKET |
| EXPANSION TANK,LEFT | ||
| 227 | A 6175000031 | BRACKET |
| EXPANSION TANK,LEFT | ||
| 232 | A 6205000131 | BRACKET |
| EXPANSION TANK,LEFT | ||
| 237 | A 6175000131 | BRACKET |
| EXPANSION TANK,RIGHT | ||
| 237 | A 6175000131 | BRACKET |
| EXPANSION TANK,RIGHT | ||
| 242 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 247 | N 000125006421 | WASHER |
| BRACKET TO CAB | ||
| Repalced by: N 000125006449 | ||
| 247 | N 000125006449 | WASHER |
| BRACKET TO CAB | ||
| 252 | A 6205010320 | STRAP |
| EXPANSION TANK,RIGHT | ||
| 257 | A 6175010220 | STRAP |
| EXPANSION TANK,LEFT | ||
| 257 | A 6175010220 | STRAP |
| EXPANSION TANK,LEFT | ||
| 262 | A 6205010420 | STRAP |
| EXPANSION TANK,LEFT | ||
| 267 | A 6175010320 | STRAP |
| EXPANSION TANK,RIGHT | ||
| 267 | A 6175010320 | STRAP |
| EXPANSION TANK,RIGHT | ||
| 272 | A 6205010195 | SHIM |
| EXPANSION TANK,RIGHT | ||
| 277 | A 6175010095 | SHIM |
| EXPANSION TANK,LEFT | ||
| 277 | A 6175010095 | SHIM |
| EXPANSION TANK,LEFT | ||
| 282 | A 6205010295 | SHIM |
| EXPANSION TANK,LEFT | ||
| 287 | A 6175010195 | SHIM |
| EXPANSION TANK,RIGHT | ||
| 287 | A 6175010195 | SHIM |
| EXPANSION TANK,RIGHT | ||
| 292 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 292 | N 000000001146 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| M 6X16 | ||
| 297 | N 912004006102 | LOCK WASHER |
| EXPANSION TANK TO BRACKET | ||
| 302 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 302 | N 009021006208 | WASHER |
| EXPANSION TANK TO BRACKET | ||

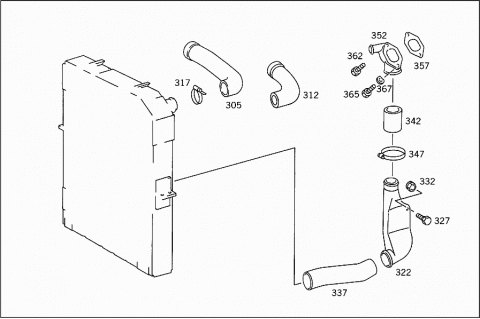

| 305 | A 6205011082 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| A 6205011382 | HOSE | |
| Repalced by: A 6205010082 | ||
| 307 | A 6205010082 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 307 | A 6205012982 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 312 | A 6205011182 | HOSE |
| Repalced by: A 6175014982 | ||
| 312 | A 6205010882 | HOSE |
| Repalced by: A 6175014982 | ||
| 312 | A 6175014982 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 317 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 317 | N 000000001468 | CLAMP |
| HOSE TO RADIATOR AND TO ENGINE | ||
| 60-80X13 MM | ||
| 322 | A 6205010056 | PIPE ELBOW |
| Repalced by: A 6205010156 | ||
| 322 | A 6205010156 | PIPE ELBOW |
| Repalced by: A 6205010056 | ||
| 322 | A 6205010056 | PIPE ELBOW |
| FROM RADIATOR TO WATER PUMP | ||
| 322 | A 6205010456 | PIPE ELBOW |
| Repalced by: A 6205010556 | ||
| 322 | A 6205010556 | PIPE ELBOW |
| Repalced by: A 6555010756 | ||
| 322 | A 6555010756 | PIPE ELBOW |
| FROM RADIATOR TO WATER PUMP | ||
| 322 | A 6555011556 | PIPE ELBOW |
| FROM RADIATOR TO WATER PUMP | ||
| 327 | N 000931010282 | SCREW |
| PIPE BEND TO BRACKET | ||
| 332 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 332 | N 910113010000 | NUT |
| PIPE BEND TO BRACKET | ||
| 337 | A 6205010482 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 337 | A 6205013882 | HOSE |
| Repalced by: A 6555011282 | ||
| 337 | A 6555011282 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 337 | A 6205010982 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 337 | A 6205010682 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 337 | A 6205013782 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 337 | A 6205010782 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 337 | A 6205013582 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 342 | N 900271070007 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 347 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 347 | N 000000001468 | CLAMP |
| HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP | ||
| 60-80X13 MM | ||
| 352 | A 6205010023 | CONNECTOR |
| Repalced by: A 6205010323 | ||
| 352 | A 6205010323 | CONNECTOR |
| AT WATER PUMP | ||
| 352 | A 6205010323 | CONNECTOR |
| AT WATER PUMP | ||
| 352 | A 3875011223 | CONNECTOR |
| Repalced by: A 6205010223 | ||
| 352 | A 6205010223 | CONNECTOR |
| AT WATER PUMP | ||
| 352 | A 6205010123 | CONNECTOR |
| Repalced by: A 6205010423 | ||
| 352 | A 6205010423 | CONNECTOR |
| AT WATER PUMP | ||
| 357 | A 4032010480 | GASKET |
| Repalced by: A 4422010480 | ||
| 357 | A 4422010480 | GASKET |
| CONNECTOR TO WATER PUMP | ||
| Repalced by: A 0002011080 | ||
| 357 | A 0002011080 | GASKET |
| CONNECTOR TO WATER PUMP | ||
| Repalced by: A 0002011180 | ||
| 357 | A 0002011180 | GASKET |
| CONNECTOR TO WATER PUMP | ||
| Repalced by: A 0002011280 | ||
| 357 | A 0002011280 | GASKET |
| CONNECTOR TO WATER PUMP | ||
| 362 | N 000931010271 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| M 10X60 | ||
| 362 | N 000931010271 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| M 10X60 | ||
| 365 | N 000933010105 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| M 10X25 | ||
| 365 | N 000933010105 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| M 10X25 | ||
| 367 | N 000137010201 | SPRING WASHER |
| CONNECTOR TO WATER PUMP | ||

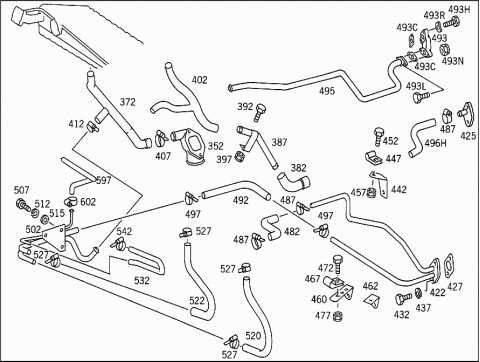

| 372 | A 6205012082 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 372 | A 6205011982 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 372 | A 6205013082 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 382 | A 6205011682 | HOSE |
| Repalced by: A 6585010082 | ||
| 382 | A 6585010082 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 387 | A 6205000172 | LINE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 392 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 392 | N 304017006018 | SCREW |
| PIPE TO CONTROL BRACKET | ||
| 397 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 397 | N 913004006001 | NUT |
| PIPE TO CONTROL BRACKET | ||
| 402 | A 6205011882 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 402 | A 6205011482 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 407 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 407 | N 000000000670 | CLAMP |
| HOSE TO EXPANSION TANK AND TO WATER PUMP | ||
| 407 | N 000000000670 | CLAMP |
| HOSE TO EXPANSION TANK AND TO WATER PUMP | ||
| 412 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 412 | N 000000000667 | CLAMP |
| HOSE TO HEATING PIPE | ||
| 422 | A 6205000079 | FLANGE |
| HEATING AND BREATHING | ||
| 422 | A 6205000479 | FLANGE |
| HEATING AND BREATHING | ||
| 422 | A 6205000879 | FLANGE |
| HEATING AND BREATHING | ||
| 422 | A 6205000379 | FLANGE |
| HEATING AND BREATHING | ||
| 422 | A 6205000279 | FLANGE |
| HEATING AND BREATHING | ||
| 422 | A 6205000179 | FLANGE |
| HEATING AND BREATHING | ||
| 423 | A 6205000579 | FLANGE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 424 | A 6205000779 | FLANGE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 425 | A 6205000679 | FLANGE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 427 | N 917003040008 | GASKET |
| FLANGE TO ENGINE | ||
| 432 | N 000933010105 | SCREW |
| FLANGE TO ENGINE | ||
| 437 | N 912004010102 | LOCK WASHER |
| FLANGE TO ENGINE | ||
| 442 | A 3875016420 | BRACKET |
| BREATHER LINE TO ENGINE,FRONT | ||
| 447 | A 3609950601 | CLAMP |
| DE-AERATION LINE TO BRACKET | ||
| 452 | N 000933006130 | SCREW |
| DE-AERATION LINE TO BRACKET | ||
| M 6X18 | ||
| 457 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 457 | N 913004006001 | NUT |
| DE-AERATION LINE TO BRACKET | ||
| 460 | A 3875011420 | BRACKET |
| HEATING PIPE TO ENGINE | ||
| 460 | A 3875011420 | BRACKET |
| HEATING PIPE TO ENGINE | ||
| 460 | A 6205011420 | BRACKET |
| HEATING PIPE TO ENGINE | ||
| 462 | A 6205010620 | BRACKET |
| HEATING PIPE TO ENGINE | ||
| 467 | A 3609950601 | CLAMP |
| HEATING PIPE TO ANGLE | ||
| 467 | A 3609950601 | CLAMP |
| HEATING PIPE TO FAN SHROUD BRACKET | ||
| 472 | N 000933006130 | SCREW |
| HEATING PIPE TO ANGLE | ||
| 477 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 477 | N 913004006001 | NUT |
| HEATING PIPE TO ANGLE | ||
| 482 | A 3875011682 | HOSE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 487 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 487 | N 000000000667 | CLAMP |
| HOSE TO BREATHER PIPE AND TO ESPANSION TANK | ||
| 492 | A 6205060035 | HOSE |
| FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR | ||
| 492 | A 6205060635 | HOSE |
| FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR | ||
| 492 | A 6205060735 | HOSE |
| FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR | ||
| 492 | A 6205060535 | HOSE |
| FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR | ||
| 492 | A 6205060435 | HOSE |
| FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR | ||
| 493 | A 6205060161 | FLANGE |

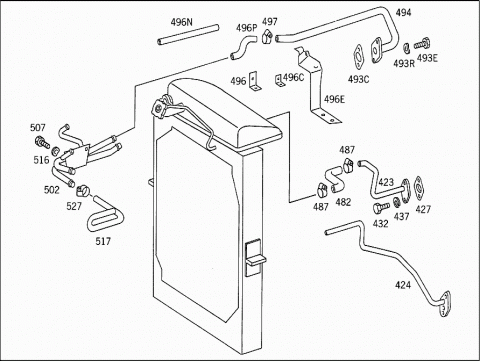

| Repalced by: A 6205060261 | ||
| A 6205060261 | FLANGE | |
| HEATING WATER LINE | ||
| 493C | N 917003022003 | GASKET |
| HEATING PIPE TO ENGINE | ||
| 493E | N 000933008291 | SCREW |
| Repalced by: A 4609900601 | ||
| A 4609900601 | SCREW | |
| HEATING PIPE TO ENGINE | ||
| M 8X20 | ||
| 493H | N 000933008116 | SCREW |
| Repalced by: N 000933008337 | ||
| 493H | N 000933008337 | SCREW |
| Repalced by: A 0099900101 | ||
| 493H | A 0099900101 | SCREW |
| FLANGE TO ENGINE | ||
| M 8X28 | ||
| 493L | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 493L | N 304017008018 | SCREW |
| HEATING PIPE TO FLANGE | ||
| M 8X35 | ||
| 493N | N 910113008001 | NUT |
| HEATING PIPE TO FLANGE | ||
| 493R | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 493R | N 000137008212 | SPRING WASHER |
| HEATING PIPE TO ENGINE | ||
| 494 | A 6205003972 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 494 | A 6205003572 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 494 | A 6205004172 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 494 | A 6205003172 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 494 | A 6205003772 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 494 | A 6205003772 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 495 | A 6205003372 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 495 | A 6205004072 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 496 | A 3818320714 | BRACKET |
| HEATING PIPE TO FAN SHROUD BRACKET | ||
| 496C | A 3604280243 | ANGLE |
| HEATING WATER LINE | ||
| 496C | A 3604280243 | ANGLE |
| HEATING WATER LINE | ||
| 496E | A 6205062340 | BRACKET |
| BRACKET TO WATER PUMP | ||
| 496H | A 6205062135 | HOSE |
| FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR | ||
| 496H | A 6205062935 | HOSE |
| FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR | ||
| 496H | A 6205062935 | HOSE |
| FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR | ||
| 496N | N 900271018038 | HOSE |
| FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR | ||
| 450 MM | ||
| 496P | A 6205062835 | HOSE |
| FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR | ||
| 497 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 497 | N 000000000667 | CLAMP |
| HOSE TO FLANGE AND TO HEATING PIPE | ||
| 502 | A 6205000272 | LINE |
| HEATING AND BREATHING | ||
| 502 | A 6205001572 | LINE |
| Repalced by: A 6205002872 | ||
| 502 | A 6205002872 | LINE |
| HEATING AND BREATHING | ||
| 502 | A 6205002872 | LINE |
| HEATING AND BREATHING | ||
| 502 | A 6205002672 | LINE |
| Repalced by: A 6205002872 | ||
| 502 | A 6205002872 | LINE |
| HEATING AND BREATHING | ||
| 502 | A 6205000372 | LINE |
| Repalced by: A 6205001672 | ||
| 502 | A 6205001672 | LINE |
| HEATING AND BREATHING | ||
| 502 | A 6205003072 | LINE |
| HEATING AND BREATHING | ||
| 502 | A 6205003072 | LINE |
| HEATING AND BREATHING | ||
| 502 | A 6205002972 | LINE |
| Repalced by: A 6205003072 | ||
| 502 | A 6205003072 | LINE |
| HEATING AND BREATHING | ||
| 502 | A 6205000072 | LINE |
| HEATING AND BREATHING | ||
| 502 | A 6205001372 | LINE |
| HEATING AND BREATHING | ||
| 507 | N 000933006102 | SCREW |
| HEATING PIPE TO RADIATOR | ||
| 512 | N 912004006102 | LOCK WASHER |
| HEATING PIPE TO RADIATOR | ||
| 512 | N 912004006102 | LOCK WASHER |
| HEATING PIPE TO RADIATOR | ||
| 515 | N 000125006421 | WASHER |
| HEATING PIPE TO RADIATOR | ||
| Repalced by: N 000125006449 | ||
| 515 | N 000125006449 | WASHER |
| HEATING PIPE TO RADIATOR | ||
| 515 | N 000125006449 | WASHER |
| HEATING PIPE TO RADIATOR | ||
| 516 | N 000137006201 | SPRING WASHER |
| 517 | A 3835060035 | HOSE |
| Repalced by: A 6205062035 | ||
| 517 | A 6205062035 | HOSE |
| FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE | ||
| 517 | A 6205062035 | HOSE |
| FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE | ||
| 520 | A 6205060235 | HOSE |
| HEATER RETURN, FROM RADIATOR TO CAB HEATING PIPE | ||
| 522 | A 6205060335 | HOSE |
| HEATING FEED, FROM RADIATOR TO CAB HEATING PIPE | ||
| 527 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 527 | N 000000000667 | CLAMP |
| HEATING; TO CAB | ||
| 532 | N 900271008043 | HOSE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 8X17 MM | ||
| 532 | N 900271008043 | HOSE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 8X17 MM | ||
| 532 | N 900271008043 | HOSE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 8X17 MM | ||
| 536 | A 6205012882 | HOSE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| A 6205013282 | HOSE | |
| Repalced by: A 6205012882 | ||
| 536 | A 6205012882 | HOSE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 536 | A 6205012882 | HOSE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 536 | A 6205012882 | HOSE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 542 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 542 | N 000000000665 | CLAMP |
| HOSE TO EXPANSION TANK AND TO BREATHER PIPE | ||
| 542 | N 000000000665 | CLAMP |
| HOSE TO EXPANSION TANK AND TO BREATHER PIPE | ||
| 542 | N 000000000665 | CLAMP |
| HOSE TO EXPANSION TANK AND TO BREATHER PIPE | ||
| 542 | N 000000000665 | CLAMP |
| HOSE TO EXPANSION TANK AND TO BREATHER PIPE | ||
| 542 | N 000000000665 | CLAMP |
| HOSE TO EXPANSION TANK AND TO BREATHER PIPE | ||
| 542 | N 000000000665 | CLAMP |
| HOSE TO EXPANSION TANK AND TO BREATHER PIPE | ||
| 546 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 546 | N 000000000667 | CLAMP |
| HOSE TO EXPANSION TANK | ||
| 546 | N 000000000667 | CLAMP |
| HOSE TO EXPANSION TANK | ||
| 546 | N 000000000667 | CLAMP |
| HOSE TO EXPANSION TANK | ||
| 546 | N 000000000667 | CLAMP |
| HOSE TO EXPANSION TANK | ||
| 552 | A 6175010225 | BREATHER PIPE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| A 6175010325 | BREATHER PIPE | |
| Repalced by: A 6205010725 | ||
| 558 | A 6205010725 | BREATHER PIPE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 558 | A 6205010725 | BREATHER PIPE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 567 | A 6175010420 | BRACKET |
| DE-AERATION LINE | ||
| 569 | A 6205010920 | BRACKET |
| DE-AERATION LINE | ||
| 577 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 582 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 582 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 582 | N 916016008200 | CLAMP |
| Repalced by: N 000000000319 | ||
| 582 | N 000000000319 | CLAMP |
| DE-AERATION LINE TO BRACKET | ||
| 587 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 587 | N 000000001146 | SCREW |
| DE-AERATION LINE TO BRACKET | ||
| M 6X16 | ||
| 592 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 592 | N 913004006001 | NUT |
| DE-AERATION LINE TO BRACKET | ||
| 597 | N 900271008043 | HOSE |
| BREATHER LINE BETWEEN RADIATOR AND EXPANSION TANK | ||
| 602 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 602 | N 000000000665 | CLAMP |
| HOSE TO BREATHER PIPE | ||

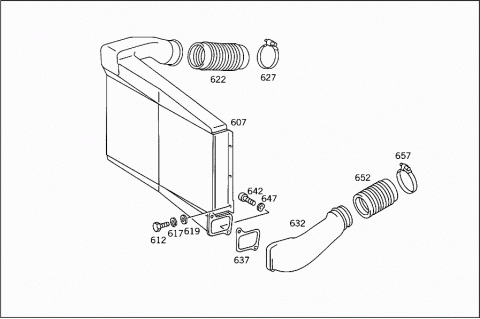

| 607 | A 6205010101 | RADIATOR |
| Repalced by: A 6205010201 | ||
| 607 | A 6205010201 | RADIATOR |
| CHARGE AIR INTERCOOLER | ||
| 612 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 612 | N 304017006020 | SCREW |
| CHARGING AIR INTERCOOLER TO RADIATOR | ||
| 617 | N 912004006102 | LOCK WASHER |
| CHARGING AIR INTERCOOLER TO RADIATOR | ||
| 619 | N 000125006421 | WASHER |
| CHARGING AIR INTERCOOLER TO RADIATOR | ||
| Repalced by: N 000125006449 | ||
| 619 | N 000125006449 | WASHER |
| CHARGING AIR INTERCOOLER TO RADIATOR | ||
| 622 | A 0010947882 | HOSE |
| Repalced by: A 0020945282 | ||
| 622 | A 0020945282 | HOSE |
| FROM ENGINE TO CHARGE AIR INTERCOOLER | ||
| 627 | N 000000000676 | CLAMP |
| HOSE TO RADIATOR AND TO ENGINE | ||
| Repalced by: N 000000005890 | ||
| 627 | N 000000005890 | CLAMP |
| HOSE TO RADIATOR AND TO ENGINE | ||
| 632 | A 6205200406 | PIPE ELBOW |
| FROM CHARGING AIR INTERCOOLER TO ENGINE | ||
| 637 | A 6205280080 | GASKET |
| Repalced by: A 6555280080 | ||
| 637 | A 6555280080 | GASKET |
| PIPE TO CHARGING AIR INTERCOOLER | ||
| 642 | N 006912010030 | SCREW |
| PIPE TO CHARGING AIR INTERCOOLER | ||
| 642 | N 000912010119 | SCREW |
| Repalced by: N 000912010219 | ||
| 642 | N 000912010219 | SCREW |
| PIPE TO CHARGING AIR INTERCOOLER | ||
| 647 | N 000137010201 | SPRING WASHER |
| PIPE TO CHARGING AIR INTERCOOLER | ||
| 652 | A 0010947982 | HOSE |
| Repalced by: A 0020941782 | ||
| 652 | A 0020941782 | HOSE |
| Repalced by: A 0010947982 | ||
| 652 | A 0010947982 | HOSE |
| FROM CHARGING AIR INTERCOOLER TO ENGINE | ||
| 657 | N 000000000676 | CLAMP |
| HOSE TO RADIATOR AND TO ENGINE | ||
| Repalced by: N 000000005890 | ||
| 657 | N 000000005890 | CLAMP |
| HOSE TO RADIATOR AND TO ENGINE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
