Transporto priemonė: 2636 AS; VIN numerio dalis: 624336

Grupė: 28 TRANSFER CASE

#	Kodas	Pavadinimas
	T YYYYYYYYYYYY	PART NAME MISSING
		FOR TRANSFER CASE,SEE UNIT STANDARD VERSION,MODEL:
		750.8

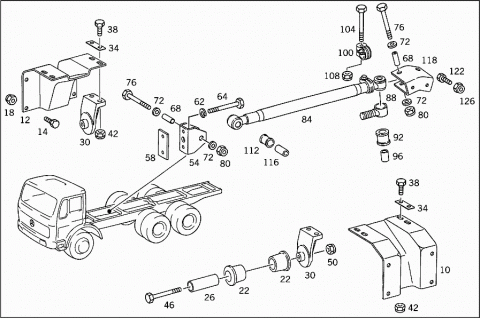

010	A 6212850140	BRACKET
		TRANSFER CASE TO FRAME,LEFT
	T YYYYYYYYYYYY	PART NAME MISSING
		IN PLACE OF SHIFTING CYLINDER
010	A 6212850240	BRACKET
		TRANSFER CASE TO FRAME,LEFT
012	A 6212850040	BRACKET
		TRANSFER CASE TO FRAME,RIGHT
012	A 6212850340	BRACKET
		TRANSFER CASE TO FRAME,RIGHT
014	N 000961016036	SCREW
	Repalced by: N 308676016013
014	N 308676016013	SCREW
		BRACKET TO SIDE MEMBER
018	N 913004016005	NUT
	Repalced by: N 910113016001
018	N 910113016001	NUT
		BRACKET TO SIDE MEMBER
022	A 6212850003	BEARING
		RUBBER MOUNT
026	A 6212850053	SPACER TUBE
		RUBBER MOUNT
030	A 6212850103	BEARING
	Repalced by: A 6212850303
030	A 6212850303	BEARING
		TRANSFER CASE TO SUPPORT,LEFT
030	A 6212850103	BEARING
	Repalced by: A 6212850403
030	A 6212850403	BEARING
		TRANSFER CASE TO SUPPORT,RIGHT
034	A 6212850084	SHIM
		BEARING BRACKET TO BRACKET
034	A 6212850284	SHIM
		BEARING BRACKET TO BRACKET
038	N 000961016096	SCREW
	Repalced by: N 308676016007
038	N 308676016007	SCREW
		BEARING BRACKET TO BRACKET
		M16X50
038	N 308676016007	SCREW
		BEARING BRACKET TO BRACKET
		M16X50
038	N 000961016254	SCREW
		BEARING BRACKET TO BRACKET
		M16X80
042	N 913004016005	NUT
	Repalced by: N 910113016001
042	N 910113016001	NUT
		BEARING BRACKET TO BRACKET
046	N 910105016027	SCREW
		RUBBER MOUNTING TO BEARING BRACKET
050	N 913004016005	NUT
	Repalced by: N 910113016001
050	N 910113016001	NUT
		RUBBER MOUNTING TO BEARING BRACKET
054	A 6212850840	BRACKET
		ROD TO TRANSFER CASE
058	A 6212850384	SHIM
		BRACKET TO TRANSFER CASE
062	N 912004014100	LOCK WASHER
		BRACKET TO TRANSFER CASE
064	N 000960014219	SCREW
		BRACKET TO TRANSFER CASE
068	A 6212850153	SPACER TUBE
		PULL ROD TO TRANSFER CASE AND TO SIDE MEMBER
072	N 007349013003	WASHER
	Repalced by: N 007349013005
072	N 007349013005	WASHER
		PULL ROD TO TRANSFER CASE AND TO SIDE MEMBER
076	N 000960012264	SCREW
	Repalced by: N 308765012003
076	N 308765012003	SCREW
		PULL ROD TO TRANSFER CASE AND TO SIDE MEMBER
080	N 910113012002	NUT
		PULL ROD TO TRANSFER CASE AND TO SIDE MEMBER
084	A 6212850055	ROD
		TRANSFER CASE TO FRAME
084	A 6212850155	ROD
		TRANSFER CASE TO FRAME
088	A 0002850035	JOINT
092	A 0002850082	RUBBER MOUNTING
	Repalced by: A 0002420250
092	A 0002420250	BUSHING
096	A 0002420350	BUSHING
100	A 0009950544	CLAMP
	Repalced by: A 0009957044
100	A 0009957044	CLAMP
		TO 621 285 00 55,621 285 01 55
104	N 000960010023	SCREW
		M 10X45 TO 621 285 00 55,621 285 01 55
108	N 913004010010	NUT
	Repalced by: N 910113010002
108	N 910113010002	HEXAGON NUT
		TO 621 285 00 55,621 285 01 55
112	A 0002850082	RUBBER MOUNTING
	Repalced by: A 0002420250
112	A 0002420250	BUSHING
116	A 0002420350	BUSHING
118	A 6212850940	BRACKET
		ROD TO SIDE MEMBER
	A 6212851440	BRACKET
		ROD TO SIDE MEMBER
122	N 000961014008	SCREW
	Repalced by: N 308676014003
122	N 308676014003	SCREW
		BRACKET TO SIDE MEMBER
		M 14X30
126	N 913004014005	NUT
	Repalced by: N 910113014000
126	N 910113014000	NUT
		BRACKET TO SIDE MEMBER

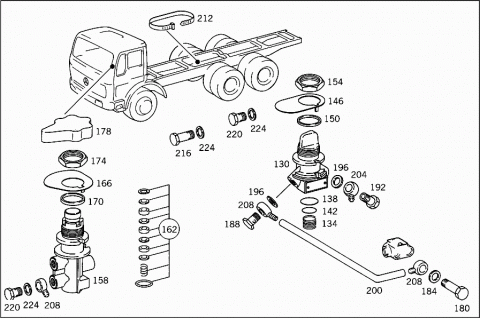

130	A 0019975036	VALVE
		LONGITUDINAL DIFFERENTIAL LOCK CONTROL
		BOSCH
130	A 0019976136	VALVE
		LONGITUDINAL DIFFERENTIAL LOCK CONTROL
		WABCO
130	A 0039975936	VALVE
		LONGITUDINAL DIFFERENTIAL LOCK CONTROL
		KNORR
130	A 0039976036	VALVE
		LONGITUDINAL DIFFERENTIAL LOCK CONTROL
		VOSS
134	A 0049937501	SPRING
		TO 001 997 61 36
138	A 0069972648	SEAL RING
		TO 001 997 61 36
142	A 0039979640	SEAL RING
		TO 001 997 61 36
146	A 3855841624	UNIT IDENTIFICATION PLATE
		LONGITUDINAL DIFFERENTIAL LOCK
150	A 6239900040	WASHER
		VALVE TO ENGINE TUNNEL
154	A 3839900051	NUT
		VALVE TO ENGINE TUNNEL
158	A 0019975936	VALVE
		PNEUMATIC CONTROL USED FOR TRANSFER CASE
		BOSCH
158	A 0019976936	VALVE
		PNEUMATIC CONTROL USED FOR TRANSFER CASE
		WABCO
162	A 0025860943	REPAIR KIT
		TO 001 997 69 36
166	A 3855844124	UNIT IDENTIFICATION PLATE
		TRANSFER CASE
170	A 6239900040	WASHER
		VALVE TO ENGINE TUNNEL
174	A 3839900051	NUT
		VALVE TO ENGINE TUNNEL
178	A 0009970577	HANDLE
		OPERATING VALVE
180	N 915036008202	HOLLOW SCREW
		DISTRIBUTOR
184	N 007603012405	SEAL RING
		DISTRIBUTOR
188	N 915047006202	HOLLOW SCREW
		LONGITUDINAL DIFFERENTIAL LOCK CONTROL
192	N 915036006202	HOLLOW SCREW
		LONGITUDINAL DIFFERENTIAL LOCK CONTROL
192	N 915036006202	HOLLOW SCREW
		PNEUMATIC CONTROL USED FOR TRANSFER CASE
196	N 007603010404	SEAL RING
		LONGITUDINAL DIFFERENTIAL LOCK CONTROL
196	N 007603010404	SEAL RING
		PNEUMATIC CONTROL USED FOR TRANSFER CASE
200	A 0089979082	HOSE
		GEAR CASE BREATHING
		6X8 MM
200	A 0089976082	HOSE
	Repalced by: A 0009872627
200	A 0009872627	PLASTIC PIPE
		4X6 MM
200	A 0009872627	PLASTIC PIPE
		FROM DISTRIBUTOR TO VALVE
		4X6 MM
200	A 0009872627	PLASTIC PIPE
		FROM VALVE TO TRANSFER CASE SHIFTING CYLINDER
		4X6 MM
	A 0039979172	FITTING
		(PARTS KIT),LINE RUPTURE
	A 6509970272	FITTING
		BREATHER LINE TO TRANSFER CASE
204	N 915052004015	BANJO UNION
		HOSE WIDTH, / I.D.,
		4/12 MM
208	N 915052004016	BANJO UNION
		HOSE WIDTH, / I.D.,
		4/10 MM
	A 3874297240	BRACKET
		LINE MOUNTING
212	A 0019978390	LOOM TIE
		LINE MOUNTING
		280 MM
216	N 915047008202	HOLLOW SCREW
		TRANSFER CASE
220	N 915036008202	HOLLOW SCREW
		TRANSFER CASE
224	N 007603012405	SEAL RING
		TRANSFER CASE
