Transporto priemonė: 2726/6X4/48; VIN numerio dalis: 693328

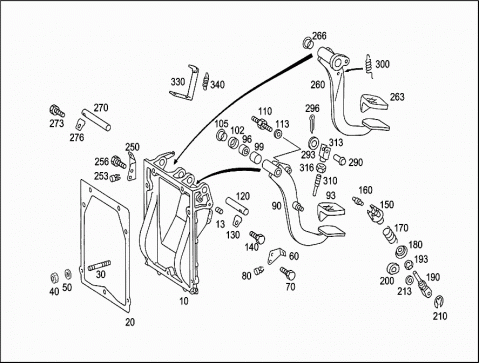

Grupė: 29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 6342900419 | BEARING BRACKET |
| (PEDAL BEARING BRACKET) | ||
| 013 | N 900421008002 | THREADED INSERT |
| PEDAL BEARING BRACKET | ||
| 020 | A 6732940180 | GASKET |
| BEARING BRACKET TO FIRE WALL | ||
| 030 | A 6732940270 | STUD |
| BEARING BRACKET TO FIRE WALL | ||
| M8X35 MM | ||
| 030 | A 6732940370 | STUD |
| BEARING BRACKET TO FIRE WALL | ||
| M8X51 MM | ||
| 040 | N 913023008003 | NUT |
| BEARING BRACKET TO FIRE WALL | ||
| 050 | N 007349008002 | WASHER |
| BEARING BRACKET TO FIRE WALL | ||
| 060 | A 6932917030 | STOP |
| CLUTCH PEDAL | ||
| 070 | N 910105006002 | HEXAGON HEAD BOLT |
| STOP TO BEARING BRACKET | ||
| M 6X12 | ||
| 080 | A 6882917386 | STOP |
| CLUTCH PEDAL | ||
| 090 | A 6732900816 | PEDAL |
| CLUTCH | ||
| 093 | A 1102910182 | PAD |
| CLUTCH PEDAL | ||
| 096 | A 0019816310 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 096 | A 0109818010 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 096 | A 0139814610 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 099 | A 6732910053 | SPACER TUBE |
| CLUTCH PEDAL | ||
| 102 | A 6732910076 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 105 | A 6932957050 | BUSHING |
| ROD TO CLUTCH PEDAL | ||
| 110 | A 6932917074 | PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 91 MM | ||
| 113 | A 6939917035 | SPACER RING |
| ROD TO CLUTCH PEDAL | ||
| 120 | A 6732940074 | PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 130 | A 6732920073 | LOCK |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 140 | N 000000001146 | SCREW |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| M6X16 | ||
| 150 | A 6732910191 | SPRING RETAINER |
| CLUTCH PEDAL RESET | ||
| 160 | A 6732910074 | PIN |
| CLUTCH PEDAL RESET | ||
| 170 | A 3829937001 | SPRING |
| CLUTCH PEDAL RESET | ||
| 180 | A 6732910291 | SPRING RETAINER |
| CLUTCH PEDAL RESET | ||
| 180 | A 1112920491 | BAFFLE PLATE |
| CLUTCH PEDAL RESET | ||
| 190 | A 6732900339 | ROD |
| CLUTCH PEDAL RESET | ||
| 193 | N 000439010203 | NUT |
| CLUTCH PEDAL RESET | ||
| 200 | A 6732910186 | STOP |
| CLUTCH PEDAL RESET | ||
| 210 | N 006799007001 | LOCK PLATE |
| CLUTCH PEDAL RESET | ||
| 213 | N 000125010517 | WASHER |
| CLUTCH PEDAL RESET | ||
| 250 | A 3825410840 | BRACKET |
| BRAKE PEDAL | ||
| 253 | A 1232910286 | STOP |
| BRAKE PEDAL | ||
| 256 | N 910105006002 | HEXAGON HEAD BOLT |
| STOP TO BEARING BRACKET | ||
| 260 | A 6732900118 | PEDAL |
| BRAKE | ||
| 263 | A 1102910182 | PAD |
| BRAKE PEDAL | ||
| 266 | A 1102910550 | BUSHING |
| BRAKE PEDAL | ||
| 270 | A 6732940174 | PIN |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 273 | N 000000001147 | HEXALOBULAR BOLT |
| BRAKE PEDAL TO BEARING BRACKET | ||
| M 6X20 | ||
| 273 | N 910105006004 | HEXAGON HEAD BOLT |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 276 | A 6732920073 | LOCK |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 290 | A 3852920174 | PIN |
| ROD TO BRAKE PEDAL | ||
| 293 | N 000433008403 | WASHER |
| ROD TO BRAKE PEDAL | ||
| 296 | N 000094002059 | COTTER PIN |
| ROD TO BRAKE PEDAL | ||
| 300 | A 6739930110 | SPRING |
| BRAKE PEDAL RELEASE SPRING | ||
| 310 | A 6732920032 | ROD |
| BRAKE ACTUATION | ||
| 313 | N 071752008002 | CLEVIS |
| BRAKE ACTUATION | ||
| 316 | N 000439008104 | NUT |
| BRAKE ACTUATION | ||
| 330 | A 3842917040 | BRACKET |
| CLUTCH PEDAL | ||
| 340 | A 3829937110 | SPRING |
| PEDAL RETURN SPRING | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR SERVICE BRAKE VALVE,SEE GROUP/TU: | ||
| 42/360 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR CYLINDERS & HYDRAULIC LINES, SEE GROUP 25 |
