Transporto priemonė: 3028 B; VIN numerio dalis: 625015
Grupė: 42 BRAKES

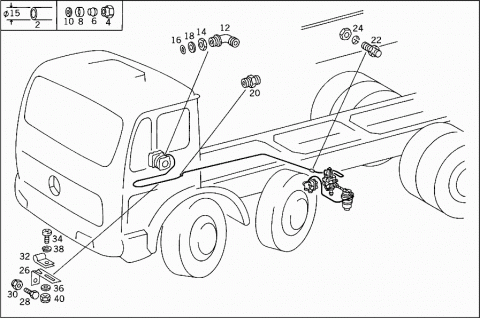

42548
42549
42550
42551
42552
42553

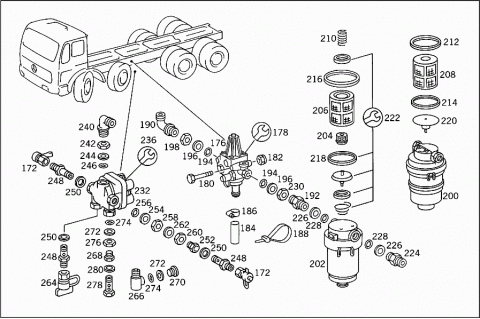

42554

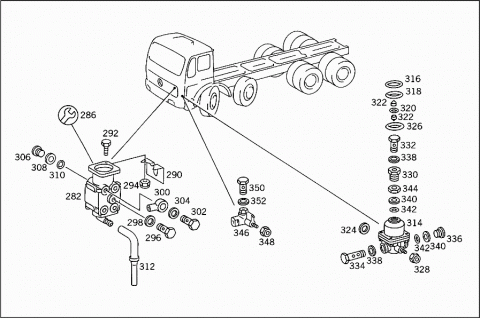

42555

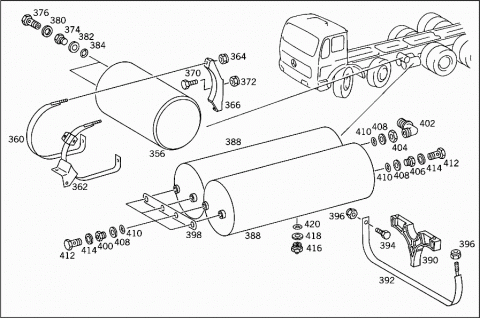

42556

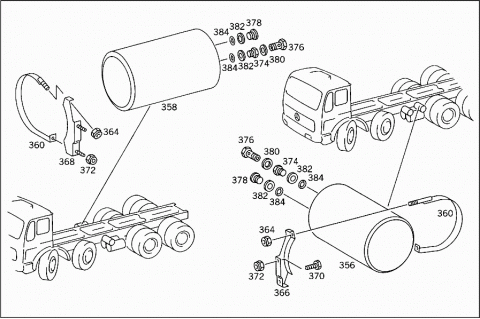

42557

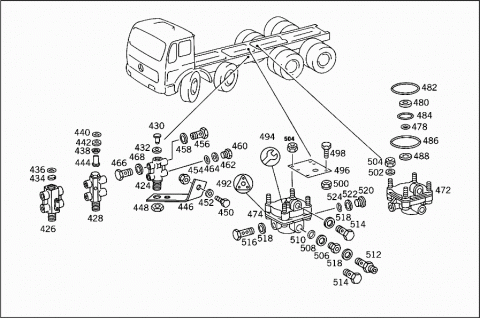

42558
42559

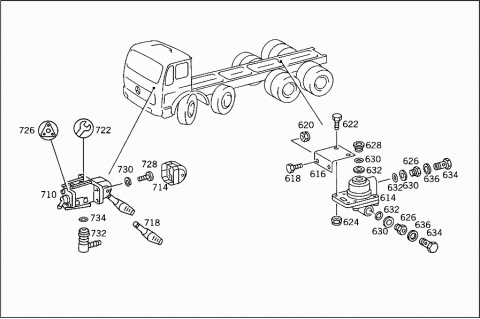

42560

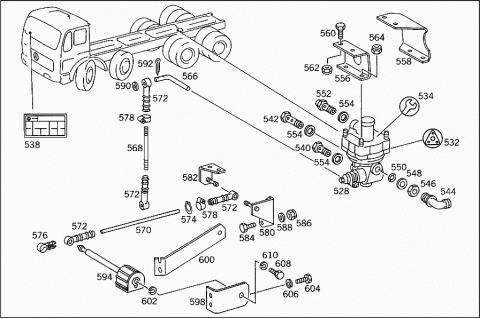

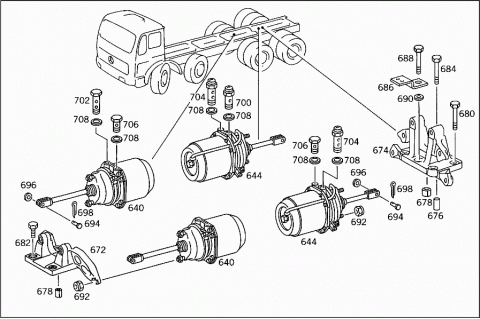

42561

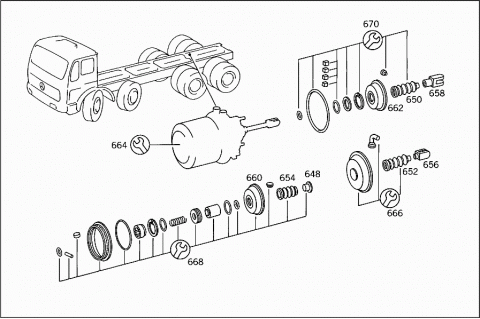

42562
# Kodas Pavadinimas
002 A 0004291401 LINE
AIR COMPRESSOR,PRESSURE REGULATOR, FILTER,FOUR-CIRCUIT PROTECTIVE VALVE
15 MM
002 A 0004291401 LINE
FROM AIR RESERVOIR TO CHECK VALVE
15 MM
004 N 915018015000 UNION NUT
BUTT SCREW CONNECTION
N 915017015100 UNION NUT
CLAMP-ON SCREW CONNECTION
006 N 003861015004 GLAND
008 N 915065015101 THRUST RING
BUTT SCREW CONNECTION
010 N 915045012100 SEAL RING
Repalced by: N 007603012121
010 N 007603012121 SEAL RING
BUTT SCREW CONNECTION
012 A 0004294338 ELBOW FITTING
AT AIR COMPRESSOR
014 N 074305026202 NUT
AT AIR COMPRESSOR
016 A 0039973848 SEAL RING
AT AIR COMPRESSOR
018 A 0004290527 THRUST RING
AT AIR COMPRESSOR
020 A 0019972172 FITTING
BETWEEN THE LINES
N 003902015002 CONNECTION FITTING
BETWEEN THE LINES
022 A 0019972372 FITTING
THROUGH SIDE MEMBER
022 N 003940014201 BULKHEAD FITTING
THROUGH SIDE MEMBER
N 003910015002 BULKHEAD FITTING
THROUGH SIDE MEMBER
024 N 074305022202 NUT
FITTING TO FRAME SIDE MEMBER
026 A 3854290540 BRACKET
COMPRESSED AIR LINE
028 N 000933008152 SCREW
Repalced by: N 304017008027
028 N 304017008027 SCREW
BRACKET TO SIDE MEMBER
030 N 913004008004 NUT
Repalced by: N 913004008001
030 N 913004008001 NUT
BRACKET TO SIDE MEMBER
032 A 3609952001 CLAMP
Repalced by: A 6739950001
032 A 6739950001 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
034 N 007985006145 SCREW
Repalced by: N 007985006581
034 N 007985006581 SCREW
CLAMP TO BRACKET
M 6X20
034 N 007985006193 SCREW
Repalced by: N 000000001146
034 N 000000001146 SCREW
CLAMP TO BRACKET
M 6X16
036 N 000125006421 WASHER
CLAMP TO BRACKET
Repalced by: N 000125006449
036 N 000125006449 WASHER
CLAMP TO BRACKET
038 N 912004006102 LOCK WASHER
CLAMP TO BRACKET
040 N 913004006002 NUT
Repalced by: N 913004006001
040 N 913004006001 NUT
CLAMP TO BRACKET
048 A 0109975982 HOSE
Repalced by: A 0009872827

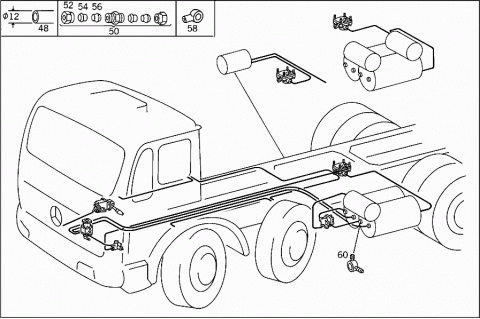

048 A 0009872827 PLASTIC PIPE
AIR RESERVOIR,BRAKE VALVE,BRAKE PRESSURE REGULATOR,SPRING-LOAD ACCUMULATOR
9X12 MM
048 A 0009872827 PLASTIC PIPE
FROM LEFT DIAPHRAGM CYLINDER TO RIGHT DIAPHRAGM CYLINDER
9X12 MM
048 A 0009872827 PLASTIC PIPE
BRAKE VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE
9X12 MM
048 A 0009872827 PLASTIC PIPE
PRESSURE LIMIT VALVE,OVERFLOW VALVE
9X12 MM
048 A 0009872827 PLASTIC PIPE
HAND BRAKE VALVE BLEEDING
9X12 MM
050 A 0049971772 FITTING
Repalced by: A 0029906171
050 A 0029906171 FITTING
(PARTS KIT),LINE RUPTURE
A 0009907378 CONNECTOR
REPAIR SIZE
052 N 915017012100 UNION NUT
LINE CONNECTION
054 N 003861012007 GLAND
Repalced by: A 0019901967
054 A 0019901967 SEAL CONE
LINE CONNECTION
056 N 915062009000 SLEEVE
LINE CONNECTION
A 0019909771 ELBOW FITTING
LINE CONNECTIONS
A 0019908370 T-FITTING
LINE CONNECTIONS
A 0019908171 ELBOW FITTING
LINE CONNECTIONS
058 N 915052009009 BANJO UNION
HOSE WIDTH, / I.D.,
9/16 MM
060 A 0019901088 BANJO UNION
LINE CONNECTIONS

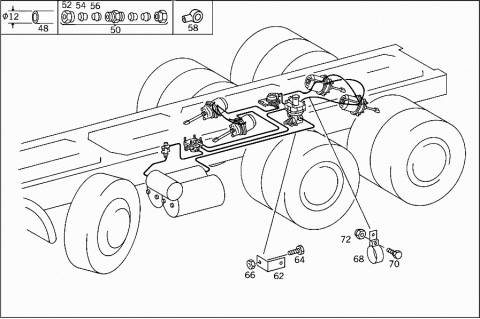

062 A 3954290440 BRACKET
Repalced by: A 6205243040
062 A 6205243040 BRACKET
LINE MOUNTING
062 A 6205243040 BRACKET
LINE MOUNTING
064 N 000933008152 SCREW
Repalced by: N 304017008027
064 N 304017008027 SCREW
BRACKET TO CROSS MEMBER
M 8X30
064 N 304017008027 SCREW
BRACKET TO CROSS MEMBER
M 8X30
066 N 913004008004 NUT
Repalced by: N 913004008001
066 N 913004008001 NUT
BRACKET TO CROSS MEMBER
066 N 913004008001 NUT
BRACKET TO CROSS MEMBER
068 A 3954290840 BRACKET
Repalced by: A 6674920240
068 A 6674920240 CLAMP
Repalced by: A 6554314640
068 A 6554314640 BRACKET
070 N 000933008147 SCREW
Repalced by: N 304017008021
070 N 304017008021 SCREW
072 N 913004008004 NUT
Repalced by: N 913004008001
072 N 913004008001 NUT

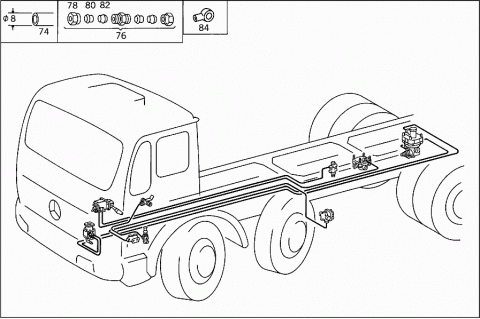

074 A 0089979082 HOSE
BRAKE VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE
6X8 MM
074 A 0089979082 HOSE
PARKING BRAKE VALVE
6X8 MM
074 A 0089979082 HOSE
FROM BRAKE POWER REGULATOR TO BRAKE VALVE
6X8 MM
074 A 0089979082 HOSE
FROM DISTRIBUTOR TO VALVE
6X8 MM
074 A 0089979082 HOSE
BREATHING,REAR AXLES I AND II
6X8 MM
074 A 0089979082 HOSE
FROM T-FITTING TO 3/2-WAY VALVE
6X8 MM
076 A 0039978972 FITTING
Repalced by: A 0029905971
076 A 0029905971 FITTING
(PARTS KIT),LINE RUPTURE
078 N 915017008100 UNION NUT
LINE CONNECTION
080 N 003861008005 GLAND
LINE CONNECTION
082 N 915062006000 SLEEVE
LINE CONNECTION
084 N 915052006014 BANJO UNION
HOSE WIDTH, / I.D.,
6/16 MM
084 N 915052006021 BANJO UNION
HOSE WIDTH, / I.D.,
6/14 MM
084 N 915052006013 BANJO UNION
HOSE WIDTH, / I.D.,
6/12 MM
N 073379006203 HOSE
HOSE WIDTH, / I.D.,
6/10 MM
088 A 0089976082 HOSE
Repalced by: A 0009872627
088 A 0009872627 PLASTIC PIPE

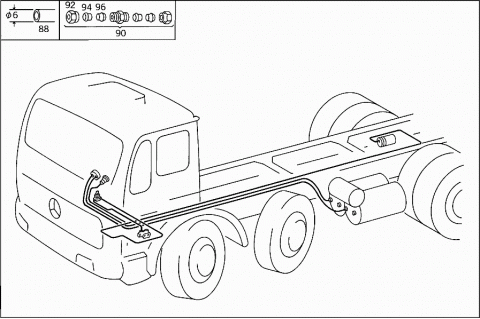

FROM AIR RESERVOIR TO DOUBLE PRESSURE GAUGE
4X6 MM
088 A 0009872627 PLASTIC PIPE
FROM 3/2-WAY SOLENOID VALVE TO CYLINDER
4X6 MM
090 A 0039979172 FITTING
(PARTS KIT),LINE RUPTURE
092 N 915017006100 UNION NUT
LINE CONNECTION
094 N 003861006007 GLAND
Repalced by: A 0019901667
094 A 0019901667 SEAL CONE
LINE CONNECTION
096 N 915062004000 SLEEVE
LINE CONNECTION
A 6739970981 GROMMET
LINE THRU LEFT SIDE MEMBER
A 0079978681 GROMMET
LINE THRU LEFT SIDE MEMBER
098 A 6209970181 GROMMET
LINE THRU FRAME
42/36 MM
098 A 6454290081 GROMMET
LINE THRU FRAME
100 A 3549970081 GROMMET
LINE THRU FRAME
32/27 MM
100 A 3879970481 GROMMET
LINE THRU FRAME
38/30 MM

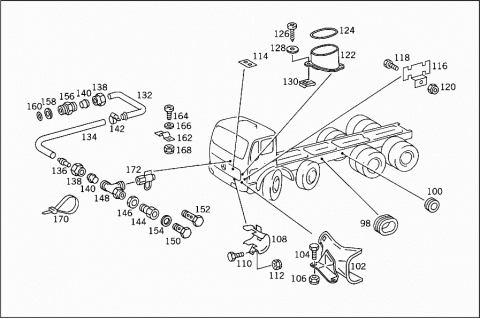

102 A 6204201186 BRACKET
LEFT COMPRESSED AIR LINES
104 N 000933008147 SCREW
Repalced by: N 304017008021
104 N 304017008021 SCREW
BRACKET TO BUMPER STRUT
106 N 913004008004 NUT
Repalced by: N 913004008001
106 N 913004008001 NUT
BRACKET TO BUMPER STRUT
108 A 6154200086 BRACKET
LEFT COMPRESSED AIR LINES
110 N 000933008153 SCREW
Repalced by: N 304017008034
110 N 304017008034 SCREW
BRACKET TO CAB CONSOLE
112 N 913004008004 NUT
Repalced by: N 913004008001
112 N 913004008001 NUT
BRACKET TO CAB CONSOLE
114 A 6204294340 BRACKET
Repalced by: A 3604293140
114 A 3604293140 BRACKET
COMPRESSED AIR LINE
A 3609902340 WASHER
BRAKE LINE MOUNTING
116 A 6204293940 BRACKET
COMPRESSED AIR LINE
118 N 000933008152 SCREW
Repalced by: N 304017008027
118 N 304017008027 SCREW
BRACKET TO SIDE MEMBER
120 N 913004008004 NUT
Repalced by: N 913004008001
120 N 913004008001 NUT
BRACKET TO SIDE MEMBER
122 A 6204291940 BRACKET
BRAKE LINE THRU CAB FLOOR
124 A 6204290084 SEAL RING
BETWEEN BRACKET AND CAB FLOOR
126 N 007981004252 SHEET METAL SCREW
BRACKET TO CAB FLOOR
128 N 009021005202 WASHER
Repalced by: N 009021005205
128 N 009021005205 WASHER
BRACKET TO CAB FLOOR
130 A 0009946445 LOCK
BRACKET TO CAB FLOOR
132 A 6194290801 LINE
Repalced by: A 6254293501
132 A 6254293501 LINE
FRONT AXLE I BRAKE CYLINDER,LEFT AND RIGHT
132 A 6254293501 LINE
FRONT AXLE II BRAKE CYLINDER
134 N 916027011014 HOSE
FRONT AXLE I BRAKE CYLINDER,LEFT AND RIGHT
11X18 MM
134 N 916027011014 HOSE
FRONT AXLE II BRAKE CYLINDER
11X18 MM
136 A 0004290541 FITTING
LEFT AND RIGHT BRAKE HOSES
N 074304016201 FITTING
LEFT AND RIGHT BRAKE HOSES
138 N 915017012100 UNION NUT
LINE CONNECTION
140 N 003861012007 GLAND
Repalced by: A 0019901967
140 A 0019901967 SEAL CONE
LINE CONNECTION
142 N 916017016000 CLAMP
Repalced by: N 000000000666
142 N 000000000666 CLAMP
LINE MOUNTING
16-27X13 MM
144 A 0004296934 ADAPTER FITTING
LEFT AND RIGHT BRAKE HOSES
144 A 0004296834 ADAPTER FITTING
LEFT AND RIGHT BRAKE HOSES
146 N 080705018002 NUT
ADAPTER FITTING TO SIDE MEMBER
148 A 0019907070 T-FITTING
A 0019903871 ELBOW FITTING
AT FITTING
150 N 915036012203 HOLLOW SCREW
LEFT AND RIGHT BRAKE HOSES
152 N 915047012203 HOLLOW SCREW
FRONT AXLE II BRAKE HOSE
154 N 007603016401 SEAL RING
LEFT AND RIGHT BRAKE HOSES
154 N 007603016401 SEAL RING
LEFT AND RIGHT BRAKE HOSES
A 0009940147 SEAL RING
LEFT AND RIGHT BRAKE HOSES
A 0009941448 LOCK
LEFT AND RIGHT BRAKE HOSES
A 0009970934 UNION SCREW
LEFT AND RIGHT BRAKE HOSES
N 000439018204 NUT
LEFT AND RIGHT BRAKE HOSES
156 A 0029971572 FITTING
FRONT AXLE I BRAKE HOSE
156 A 0029971572 FITTING
FRONT AXLE II BRAKE HOSE
N 074317012204 FITTING
Repalced by: A 0009905070
A 0009905070 T-FITTING
FRONT AXLE I BRAKE HOSE
158 A 0004290927 THRUST RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
160 A 0009971548 SEAL RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
N 080705016003 NUT
RIGHT FRONT WHEEL BRAKE CYLINDER
A 1159950465 CLAMP
BRAKE HOSE MOUNTING
A 6209950065 CLAMP
BRAKE HOSE MOUNTING
162 A 3159955010 CLAMP
LINE MOUNTING
164 N 007985006145 SCREW
Repalced by: N 007985006581
164 N 007985006581 SCREW
LINE MOUNTING
M 6X20
166 N 000125006421 WASHER
LINE MOUNTING
Repalced by: N 000125006449
166 N 000125006449 WASHER
LINE MOUNTING
168 N 913004006002 NUT
Repalced by: N 913004006001
168 N 913004006001 NUT
LINE MOUNTING
170 A 0019978390 LOOM TIE
LINE CONNECTION
280 MM
170 A 0019978490 LOOM TIE
LINE CONNECTION
376 MM
172 A 0004312031 TEST CONNECTION
VOSS
172 A 0004314531 TEST CONNECTION
SCHAEFER
172 A 0004314831 TEST CONNECTION
WABCO
172 A 0004316131 TEST CONNECTION
WIRA
172 A 0004316131 TEST CONNECTION
FRONT AXLE BRAKE CIRCUIT
WIRA
172 A 0004316131 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22" / WIRA
172 A 0004316131 TEST CONNECTION
BRAKE POWER REGULATOR,CONNECTION:
"40" / WIRA
172 A 0004316131 TEST CONNECTION
DIAPHRAGM CYLINDER,CONNECTION "1"
WIRA
172 A 0004316131 TEST CONNECTION
TRISTOP CYLINDER;CONNECTIONS:
"11,12" / WIRA
172 A 0004316131 TEST CONNECTION
FRONT AXLE RELAY VALVE,CONNECTIONS:
"11,41" / WIRA
176 A 0024314306 PRESSURE REGULATOR
WITH TIRE INFLATING CONNECTION
BOSCH
176 A 0024314906 PRESSURE REGULATOR
WITH TIRE INFLATING CONNECTION
WABCO
176 A 0024318306 PRESSURE REGULATOR
WITH TIRE INFLATING CONNECTION
KNORR
178 A 0004301768 REPAIR KIT
TO 002 431 43 06,BOSCH 0 481 039 201
178 A 0004301768 REPAIR KIT
TO 003 431 35 06
178 A 0004307960 REPAIR KIT
TO 002 431 43 06,BOSCH 0 481 039 201
178 A 0004307960 REPAIR KIT
TO 003 431 35 06
178 A 0014304960 REPAIR KIT
WABCO
A 0004300407 REPAIR KIT
TO 002 431 83 06,KNORR 903 09
180 N 000931008251 SCREW
PRESSURE REGULATOR TO BRACKET
M 8X75
182 N 913004008004 NUT
Repalced by: N 913004008001
182 N 913004008001 NUT
PRESSURE REGULATOR TO BRACKET
184 A 0159975082 HOSE
PRESSURE REGULATOR,CONNECTION:
"30"
186 N 916026020001 CLAMP
Repalced by: N 000000000667
186 N 000000000667 CLAMP
PRESSURE REGULATOR,CONNECTION:
"30"
188 A 0019978390 LOOM TIE
PRESSURE REGULATOR,CONNECTION:
"30"
190 A 0009905871 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION:
"10"
A 0029978972 FITTING
PRESSURE REGULATOR,CONNECTION:
"10"
N 007603022102 SEAL RING
PRESSURE REGULATOR,CONNECTION:
"10"
192 A 0019972172 FITTING
PRESSURE REGULATOR,CONNECTION:
"21"
194 A 0009870446 SEALING CORD
PRESSURE REGULATOR,CONNECTIONS:
"10,21"
196 A 0004290227 THRUST RING
Repalced by: A 0009940203
196 A 0009940203 THRUST RING
PRESSURE REGULATOR,CONNECTIONS:
"10,21"
198 N 074305022202 NUT
PRESSURE REGULATOR,CONNECTION:
"10"
200 A 0004292595 AIR CLEANER
BOSCH
200 A 0004292695 AIR CLEANER
KNORR
200 A 0004292895 AIR CLEANER
GRAU
202 A 0004292795 AIR CLEANER
WABCO
204 A 0004290597 FILTER ELEMENT
TO 000 429 27 95,WABCO
206 A 0004290497 FILTER ELEMENT
TO 000 429 27 95,WABCO
208 A 0004290397 FILTER ELEMENT
TO 000 429 28 95,GRAU
208 A 0004290797 FILTER ELEMENT
TO 000 429 25 95,BOSCH
210 A 0059930901 SPRING
TO 000 429 27 95,WABCO
212 A 0089978048 SEAL RING
TO 000 429 28 95,GRAU
212 A 0019974048 SEAL RING
TO 000 429 25 95,BOSCH
214 A 0059972748 SEAL RING
TO 000 429 28 95,GRAU
214 A 0119974048 SEAL RING
TO 000 429 25 95,BOSCH
216 A 0049972248 SEAL RING
Repalced by: A 0289972348
216 A 0289972348 SEAL RING
TO 000 429 27 95,100X3 MM,WABCO
218 A 0009870746 SEALING CORD
TO 000 429 27 95,075X3 MM,WABCO
220 A 0004290845 DIAPHRAGM
TO 000 429 28 95,GRAU
220 A 0004291045 DIAPHRAGM
TO 000 429 25 95,BOSCH
222 A 0004204455 REPAIR KIT
TO 000 429 27 95,WABCO
A 0004300369 REPAIR KIT
TO 000 429 26 95,KNORR
224 A 0019972172 FITTING
AIR CLEANER,CONNECTION:
"20"
A 0029978972 FITTING
AIR CLEANER,CONNECTION:
"20"
226 A 0004290227 THRUST RING
Repalced by: A 0009940203
226 A 0009940203 THRUST RING
AIR CLEANER;CONNECTIONS:
"10,20"
228 A 0009870446 SEALING CORD
AIR CLEANER;CONNECTIONS:
"10,20"
230 N 074305022202 NUT
AIR CLEANER TO PRESSURE REGULATOR
232 A 0014319306 VALVE
Repalced by: A 0034315006
232 A 0024314006 VALVE
Repalced by: A 0034315006
232 A 0014318706 VALVE
Repalced by: A 0034315006
232 A 0024312706 VALVE
Repalced by: A 0024319106
232 A 0024319106 VALVE
Repalced by: A 0034315006
232 A 0034315006 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
WABCO
236 A 0035860943 REPAIR KIT
TO 002 431 40 06,WABCO
236 A 0035861043 REPAIR KIT
TO 001 431 87 06,KNORR
236 A 0004304706 GASKET KIT
TO 001 431 93 06,BOSCH 62401
236 A 0004300260 REPAIR KIT
TO 001 431 93 06,BOSCH 62201
236 A 0034300981 GASKET KIT
TO 002 431 91 06 GRAU 66001
236 A 0004305106 REPAIR KIT
TO 003 431 50 06,WABCO
240 A 0009909671 ELBOW FITTING
Repalced by: A 0029901271
240 A 0029901271 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
A 0029902271 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
242 N 074305022202 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
244 A 0004290227 THRUST RING
Repalced by: A 0009940203
244 A 0009940203 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
246 A 0009870446 SEALING CORD
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
248 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22,23"
250 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22,23"
252 A 0004296434 ADAPTER FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
254 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
256 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
258 N 000439016206 NUT
Repalced by: N 308675016001
258 N 308675016001 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
260 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
262 N 000125017010 WASHER
Repalced by: N 000125017016
262 N 000125017016 WASHER
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
264 A 0034291044 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
264 A 0044293744 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
266 A 0019905270 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
268 A 0019905268 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
270 N 000908016001 SCREW PLUG
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
272 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
274 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
276 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
278 N 915047008202 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
280 N 007603012405 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
282 A 0024319305 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
286 A 0014306460 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
290 A 6202920140 BRACKET
BRAKE VALVE TO PEDAL BEARING BRACKET
292 N 000933008152 SCREW
Repalced by: N 304017008027
292 N 304017008027 SCREW
BRAKE VALVE TO PEDAL BEARING BRACKET
294 N 913004008004 NUT
Repalced by: N 913004008001
294 N 913004008001 NUT
BRAKE VALVE TO PEDAL BEARING BRACKET
296 N 915036008202 HOLLOW SCREW
BRAKE VALVE,CONNECTION:
"40"
298 N 007603012405 SEAL RING
BRAKE VALVE,CONNECTION:
"40"
300 A 0019900788 BANJO UNION
BRAKE VALVE,CONNECTION:
"21"
302 N 915036012203 HOLLOW SCREW
BRAKE VALVE,RIGHT CONNECTIONS:
"11,12,21,22"
304 N 007603016401 SEAL RING
BRAKE VALVE,RIGHT CONNECTIONS:
"11,12,21,22"
306 N 000908016001 SCREW PLUG
BRAKE VALVE,LEFT CONNECTIONS:
"11,12,22"
308 A 0004290927 THRUST RING
BRAKE VALVE,LEFT CONNECTIONS:
"11,12,22"
310 A 0009971548 SEAL RING
BRAKE VALVE,LEFT CONNECTIONS:
"11,12,22"
312 A 6174310073 BREATHER PIPE
AT BRAKE VALVE
312 A 6174310173 BREATHER PIPE
AT BRAKE VALVE
314 A 0024306881 VALVE
(PRESSURE RATIO VALVE) FRONT AXLE BRAKE PRESSURE
316 A 0019871746 SEALING CORD
318 A 0089970445 SEAL RING
320 A 0089978648 SEAL RING
322 A 0004313223 VALVE
324 N 007603016401 SEAL RING
326 A 0089978748 SEAL RING
A 0014306960 REPAIR KIT
PRESSURE RATIO VALVE
328 N 913004008004 NUT
Repalced by: N 913004008001
328 N 913004008001 NUT
VALVE TO FLOOR
330 A 0004296134 ADAPTER FITTING
Repalced by: A 0069970072
330 A 0069970072 FITTING
PRESSURE RATIO VALVE,CONNECTION:
"10"
332 N 915036012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"10"
332 N 915036012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"20"
334 N 915047012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"20"
336 N 000908016001 SCREW PLUG
PRESSURE RATIO VALVE,CONNECTION:
"20"
338 N 007603016401 SEAL RING
PRESSURE RATIO VALVE,CONNECTIONS:
"10,20"
338 N 007603016401 SEAL RING
PRESSURE RATIO VALVE,CONNECTION:
"20"
340 A 0004290927 THRUST RING
PRESSURE RATIO VALVE,CONNECTIONS:
"10,20"
342 A 0009971548 SEAL RING
PRESSURE RATIO VALVE,CONNECTIONS:
"10,20"
344 N 080705016003 NUT
346 A 0029900271 ELBOW FITTING
348 N 913004008004 NUT
Repalced by: N 913004008001
348 N 913004008001 NUT
350 N 915036012203 HOLLOW SCREW
352 N 007603016401 SEAL RING
356 A 0004324801 RESERVOIR
Repalced by: A 0014327501
356 A 0014327501 RESERVOIR
Repalced by: A 0034321201
356 A 0034321201 RESERVOIR
358 A 0004324301 RESERVOIR
Repalced by: A 0034321201
360 A 6204300240 STRAP
FROM AIR RESERVOIR TO ANTI-FREEZE DEVICE
362 A 6204301040 STRAP
FROM AIR RESERVOIR TO ANTI-FREEZE DEVICE
362 A 6204301240 STRAP
AIR RESERVOIR
364 N 913004010008 NUT
Repalced by: N 910113010000
364 N 910113010000 NUT
STRAP TO BRACKET
366 A 3874320540 BRACKET
AIR RESERVOIRS III AND IV
366 A 3874320540 BRACKET
AIR RESERVOIR TO FRAME,INSIDE
A 6254320240 BRACKET
AIR RESERVOIR TO FRAME,INSIDE
368 A 6204300610 BRACKET
Repalced by: A 3874320540
368 A 3874320540 BRACKET
AIR RESERVOIR TO FRAME SIDE MEMBER
370 N 000933008215 SCREW
Repalced by: A 0069909301
370 A 0069909301 SCREW
BRACKET TO APPARATUS SUPPORT
M 8X22
N 000933008177 SCREW
Repalced by: N 304017008024
N 304017008024 SCREW
BRACKET TO BRACKET
M 8X25
N 304017008024 SCREW
BRACKET TO APPARATUS SUPPORT
M 8X25
N 000933008152 SCREW
Repalced by: N 304017008027
N 304017008027 SCREW
BRACKET TO SIDE MEMBER
M 8X30
372 N 913004008004 NUT
Repalced by: N 913004008001
372 N 913004008001 NUT
BRACKET TO SUPPORT
374 A 0009905168 FITTING
AIR RESERVOIR,CONNECTIONS:
"13,14,24"
374 A 0009905168 FITTING
"13"
A 0009907771 ELBOW FITTING
AIR RESERVOIR,CONNECTIONS:
"14,24"
N 074305022202 NUT
AIR RESERVOIR,CONNECTIONS:
"14,24"
376 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTIONS:
"13,14,24"
376 N 915036012203 HOLLOW SCREW
"13"
378 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
378 N 000908022011 SCREW PLUG
AIR RESERVOIR,CONNECTION:
378 N 000908022011 SCREW PLUG
AIR RESERVOIR,CONNECTION:
"34"
N 007603022403 SEAL RING
AIR RESERVOIR,CONNECTIONS:
380 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTIONS:
N 007603022403 SEAL RING
AIR RESERVOIR,CONNECTION:
"23"
382 A 0004290227 THRUST RING
Repalced by: A 0009940203
382 A 0009940203 THRUST RING
AIR RESERVOIR,CONNECTIONS:
"13,24,34,14"
384 A 0009870446 SEALING CORD
AIR RESERVOIR,CONNECTIONS:
"13,24,34,14"
388 A 0004322101 RESERVOIR
Repalced by: A 0034322301
388 A 0034322301 RESERVOIR
(AIR RESERVOIR),BRAKE CIRCUITS I & II
40 L
390 A 6204320018 BASE
INSIDE AND OUTSIDE AIR RESERVOIRS
392 A 6204300040 STRAP
INSIDE AND OUTSIDE AIR RESERVOIRS
394 N 000933010105 SCREW
STRAP TO SUPPORT
396 N 913004010008 NUT
Repalced by: N 910113010000
396 N 910113010000 NUT
STRAP TO SUPPORT
398 A 3464320073 LOCK
PROTECTION AGAINST TORSION
400 A 0019907368 FITTING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22"
402 A 0009907771 ELBOW FITTING
AIR RESERVOIR,CONNECTION:
"31"
A 0019901070 T-FITTING
AIR RESERVOIR,CONNECTION:
"32"
A 3169900070 T-FITTING
AIR RESERVOIR,CONNECTION:
"32"
404 N 074305022202 NUT
AIR RESERVOIR,CONNECTIONS:
"31,32"
406 A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"32"
408 A 0004290227 THRUST RING
Repalced by: A 0009940203
408 A 0009940203 THRUST RING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,31,32"
410 A 0009870446 SEALING CORD
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,31,32"
412 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,31,32"
412 N 915036012203 HOLLOW SCREW
"32"
414 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,31,32"
414 N 007603016401 SEAL RING
"32"
416 A 0004322407 VALVE
AIR RESERVOIR DRAIN
Repalced by: A 0004322107
416 A 0004322107 DRAIN VALVE
AIR RESERVOIR DRAIN
416 A 0004321107 VALVE
AIR RESERVOIR DRAIN
Repalced by: A 0004322407
416 A 0004322407 DRAIN VALVE
AIR RESERVOIR DRAIN
Repalced by: A 0004322107
416 A 0004322107 DRAIN VALVE
AIR RESERVOIR DRAIN
416 A 0004322107 VALVE
AIR RESERVOIR DRAIN
A 0005830296 RING
DRAIN VALVE
TO 000 432 08 07
418 A 0004290227 THRUST RING
Repalced by: A 0009940203
418 A 0009940203 THRUST RING
DRAIN VALVE TO AIR RESERVOIR
420 A 0009870446 SEALING CORD
DRAIN VALVE TO AIR RESERVOIR
424 A 0024299644 VALVE
(CHECK VALVE)
VOSS
426 A 0034290444 VALVE
(CHECK VALVE)
WABCO
428 A 0034291244 VALVE
(CHECK VALVE)
SCHAEFER
430 A 0004290383 VALVE TAPPET
TO 002 429 96 44,VOSS
432 A 0004292584 SEAL RING
TO 002 429 96 44,VOSS
434 A 0002950320 VALVE
TO 003 429 04 44,WABCO
436 A 0089977348 SEAL RING
19.3X2.4 MM;TO 003 429 04 44,WABCO
438 A 0109970048 SEAL RING
13.6X2 MM;TO 003 429 12 44,SCHAEFER
440 A 0109970148 SEAL RING
15.3X2.4 MM;TO 003 429 12 44,SCHAEFER
442 A 0004290662 THRUST WASHER
TO 003 429 12 44,SCHAEFER
444 A 0004290728 SEAL CONE
TO 003 429 12 44,SCHAEFER
446 A 6204292540 BRACKET
Repalced by: A 6164290140
446 A 6164290140 BRACKET
448 N 074305022202 NUT
CHECK VALVE TO RESERVOIR
450 N 000933010129 SCREW
Repalced by: N 304017010002
450 N 304017010002 SCREW
450 N 000933010260 SCREW
452 A 3529900640 WASHER
454 N 913004010008 NUT
Repalced by: N 910113010000
454 N 910113010000 NUT
N 915045012100 SEAL RING
Repalced by: N 007603012121
N 007603012121 SEAL RING
CHECK VALVE,CONNECTION:
"10"
456 N 915036012203 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"21"
458 N 007603016401 SEAL RING
CHECK VALVE,CONNECTION:
"21"
460 N 000908016001 SCREW PLUG
A 0029971572 FITTING
CHECK VALVE,CONNECTION:
"22"
462 A 0004290927 THRUST RING
CHECK VALVE,CONNECTION:
"22"
464 A 0009971548 SEAL RING
CHECK VALVE,CONNECTION:
"22"
466 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
466 N 915036010108 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"23"
468 N 007603014405 SEAL RING
CHECK VALVE,CONNECTION:
"23"
472 A 0014299144 VALVE
(RELAY VALVE),REAR AXLE
GRAU
474 A 0014296844 VALVE
(RELAY VALVE),REAR AXLE
WABCO
474 A 0034291644 VALVE
(RELAY VALVE),REAR AXLE
BOSCH
474 A 0034295344 VALVE
(RELAY VALVE),REAR AXLE
KNORR
A 0024298444 VALVE
(RELAY VALVE),FRONT AXLE
WABCO
A 0034295944 VALVE
(RELAY VALVE),FRONT AXLE
BOSCH
478 A 0059972648 SEAL RING
22.3X2.4 MM;TO 001 429 91 44,GRAU
480 A 0004312788 VALVE SEAT
TO 001 429 91 44,GRAU
A 0004311088 VALVE SEAT
TO 002 429 84 44,WABCO
482 A 0059972748 SEAL RING
80X3 MM;TO 000 429 28 95,GRAU
A 0059976745 SEAL RING
74.20X5.70,TO 002 429 84 44,WABCO
484 A 0014311660 SEAL RING
28X2 MM;TO 001 429 91 44,GRAU
486 A 0014311760 SEAL RING
86X2 MM;TO 001 429 91 44,GRAU
A 0099970648 SEAL RING
82.22X2.62,TO 002 429 48 44,WABCO
488 A 0004311980 GASKET
34X2X6 MM;TO 001 429 91 44,GRAU
A 0099970448 SEAL RING
Repalced by: A 0179979048
A 0179979048 SEAL RING
42.52X2.62,TO 002 429 48 44,WABCO
492 A 0025865642 REPAIR KIT
Repalced by: A 0004201071
492 A 0004201271 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH
494 A 0025865742 REPAIR KIT
Repalced by: A 0004301109
494 A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 003 429 16 44,BOSCH
494 A 0005865742 REPAIR KIT
TO 001 429 68 44,WABCO
494 A 0005863542 REPAIR KIT
TO 003 429 53 44,KNORR
A 0004309060 REPAIR KIT
RELAY VALVE
TO 002 429 84 44,WABCO
A 6174310640 BRACKET
REAR AXLE RELAY VALVE
A 6174310640 BRACKET
FRONT AXLE RELAY VALVE
A 3914311240 BRACKET
FRONT AXLE RELAY VALVE
496 A 6254313740 BRACKET
FRONT AXLE RELAY VALVE
N 000933010129 SCREW
Repalced by: N 304017010002
N 304017010002 SCREW
BRACKET TO SIDE MEMBER
M 10X30
N 000933010247 SCREW
BRACKET TO SIDE MEMBER
M 10X38
498 N 000933008177 SCREW
Repalced by: N 304017008024
498 N 304017008024 SCREW
BRACKET TO CROSS MEMBER
M 8X25
N 913004010008 NUT
Repalced by: N 910113010000
N 910113010000 NUT
BRACKET TO SIDE MEMBER
500 N 913004008004 NUT
Repalced by: N 913004008001
500 N 913004008001 NUT
BRACKET TO CROSS MEMBER
502 N 000125008418 WASHER
Repalced by: N 000125008443
502 N 000125008443 WASHER
504 N 913004008004 NUT
Repalced by: N 913004008001
504 N 913004008001 NUT
RELAY VALVE TO BRACKET
506 A 0009905168 FITTING
RELAY VALVE,CONNECTION:
"10"
508 A 0004290227 THRUST RING
Repalced by: A 0009940203
508 A 0009940203 THRUST RING
RELAY VALVE;CONNECTIONS:
"10,11"
510 A 0009870446 SEALING CORD
RELAY VALVE;CONNECTIONS:
"10,11"
N 074305022202 NUT
FRONT AXLE RELAY VALVE,CONNECTION:
"11"
512 N 915039012205 HOLLOW SCREW FITTING
RELAY VALVE,CONNECTION:
"41"
A 0009902687 CROSS FITTING
RELAY VALVE,CONNECTION:
"11"
514 N 915036012203 HOLLOW SCREW
RELAY VALVE;CONNECTIONS:
"10,20,21,40"
516 N 915047012203 HOLLOW SCREW
RELAY VALVE,CONNECTION:
"20"
518 N 007603016401 SEAL RING
RELAY VALVE;CONNECTIONS:
"10,11,20,21,40,41"
520 N 000908016001 SCREW PLUG
RELAY VALVE,CONNECTION:
"20"
522 A 0004290927 THRUST RING
RELAY VALVE,CONNECTION:
"20"
524 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION:
"20"
A 0004300370 MUFFLER
Repalced by: A 0004302370
A 0004302370 MUFFLER
RELAY VALVE,CONNECTION:
"30"
A 0004300470 MUFFLER
RELAY VALVE,CONNECTION:
"30"
528 A 0014313312 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
WABCO 475 710 020 0
528 A 0014313312 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
WABCO 475 710 020 0
528 A 0014313312 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
WABCO 475 710 020 0
528 A 0014313512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
BOSCH 0 481 036 102
528 A 0014313512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
BOSCH 0 481 036 102
528 A 0014313512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
BOSCH 0 481 036 102
528 A 0024310512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
KNORR BR 44 11
528 A 0024310512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
KNORR BR 44 11
528 A 0024310512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
KNORR BR 44 11
A 0024311112 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
WABCO 475 710 041 0
A 0024311112 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
WABCO 475 710 041 0
532 A 0004301868 REPAIR KIT
GASKETS
TO 001 431 35 12,BOSCH
534 A 0014311486 REPAIR KIT
COVERING
TO 001 431 35 12,BOSCH
534 A 0004301883 REPAIR KIT
VALVE
TO 001 431 35 12,BOSCH
534 A 0004307560 REPAIR KIT
TO 001 431 33 12,WABCO
A 0004300307 REPAIR KIT
Repalced by: A 0004300207
A 0004300207 REPAIR KIT
BRAKE POWER REGULATOR
TO 002 431 05 12, KNORR
538 A 6195843821 GUIDE SIGN
LOAD-DEPENDING BRAKE
538 A 6195843821 GUIDE SIGN
LOAD-DEPENDING BRAKE
538 A 6255841021 GUIDE SIGN
LOAD-DEPENDING BRAKE
WABCO 020 0,KNORR 44 11,BOSCH 036 102
538 A 6255841021 GUIDE SIGN
LOAD-DEPENDING BRAKE
WABCO 020 0,KNORR 44 11,BOSCH 036 102
538 A 6255841321 GUIDE SIGN
LOAD-DEPENDING BRAKE
WABCO 475 710 041 0
538 A 6255841321 GUIDE SIGN
LOAD-DEPENDING BRAKE
WABCO 475 710 041 0
538 A 6255841321 GUIDE SIGN
LOAD-DEPENDING BRAKE
WABCO 475 710 041 0
538 A 6255841321 GUIDE SIGN
LOAD-DEPENDING BRAKE
WABCO 475 710 041 0
538 A 6195844721 GUIDE SIGN
LOAD-DEPENDING BRAKE
538 A 6245845921 GUIDE SIGN
LOAD-DEPENDING BRAKE
538 A 6255841421 GUIDE SIGN
LOAD-DEPENDING BRAKE
A 3875840055 ADHESIVE FOIL
540 N 915036012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTION:
"20"
542 N 915047012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTION:
"20"
544 A 0019903071 ELBOW FITTING
BRAKE POWER REGULATOR,CONNECTION:
"10"
546 N 080705016003 NUT
BRAKE POWER REGULATOR,CONNECTION:
"10"
548 A 0004290927 THRUST RING
BRAKE POWER REGULATOR,CONNECTION:
"10"
550 A 0009971548 SEAL RING
BRAKE POWER REGULATOR,CONNECTION:
"10"
552 N 915039012205 HOLLOW SCREW FITTING
BRAKE POWER REGULATOR,CONNECTION:
"40"
554 N 007603016401 SEAL RING
BRAKE POWER REGULATOR,CONNECTIONS:
"10,20,40"
556 A 3854317040 BRACKET
BRAKE POWER REGULATOR
556 A 3854317040 BRACKET
BRAKE POWER REGULATOR
558 A 6234311540 BRACKET
BRAKE POWER REGULATOR
560 N 000933008153 SCREW
Repalced by: N 304017008034
560 N 304017008034 SCREW
BRACKET TO CROSS MEMBER
M 8X25
560 N 000933008154 SCREW
Repalced by: N 304017008021
560 N 304017008021 SCREW
FROM AIR RESERVOIR II TO RELAY VALVE, "V" CONNECTION
M 8X22
562 N 913004008004 NUT
Repalced by: N 913004008001
562 N 913004008001 NUT
BRACKET TO CROSS MEMBER
564 N 913004008004 NUT
Repalced by: N 913004008001
564 N 913004008001 NUT
BRAKE POWER REGULATOR TO BRACKET
566 A 6744310039 LEVER
BRAKE POWER REGULATOR CONTROL
568 N 900331008419 PULL ROD
FROM LEVER TO LINK
568 N 900331008420 PULL ROD
FROM LEVER TO LINK
570 A 3954310192 ROD
BRAKE POWER REGULATOR CONTROL
572 A 0004310735 CONNECTOR
BRAKE POWER REGULATOR CONTROL
574 N 900055008402 LOCK RING
PULL ROD TO CONNECTOR
576 A 6249950065 CLAMP
CONNECTOR TO ROD
578 N 916026010000 CLAMP
Repalced by: N 000000000665
578 N 000000000665 CLAMP
CONNECTOR TO ROD
12-22X13 MM
580 A 6244300110 BRACKET
REAR ROD
582 A 6234300010 BRACKET
584 N 000931008160 SCREW
586 N 913004008004 NUT
Repalced by: N 913004008001
586 N 913004008001 NUT
588 N 000125015013 WASHER
Repalced by: N 000125015019
588 N 000125015019 WASHER
BRACKET TO REAR AXLE II
590 N 000125008418 WASHER
Repalced by: N 000125008443
590 N 000125008443 WASHER
ROD TO LEVER
592 N 000094002069 COTTER PIN
ROD TO LEVER
594 A 0004310918 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
594 A 0004310418 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
598 A 6234310040 BRACKET
METAL SPRING BELLOWS
600 A 6244310040 BRACKET
METAL SPRING BELLOWS
602 N 000125017010 WASHER
Repalced by: N 000125017016
602 N 000125017016 WASHER
METAL SPRING BELLOWS
604 N 000933008212 SCREW
Repalced by: N 304017008016
604 N 304017008016 SCREW
BRACKET TO REAR AXLE
606 N 912004008102 LOCK WASHER
BRACKET TO REAR AXLE
608 N 000961012047 SCREW
METAL SPRING BELLOWS TO BRACKET
610 N 912004012100 LOCK WASHER
METAL SPRING BELLOWS TO BRACKET
A 0024297344 VALVE
(REDUCTION VALVE)
614 A 0034293644 VALVE
(REDUCTION VALVE)
A 0044291044 VALVE
(REDUCTION VALVE)
616 A 6244310740 BRACKET
REDUCTION VALVE
618 N 000933008152 SCREW
Repalced by: N 304017008027
618 N 304017008027 SCREW
BRACKET TO CROSS MEMBER
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
BRACKET TO CROSS MEMBER
620 N 913004008004 NUT
Repalced by: N 913004008001
620 N 913004008001 NUT
BRACKET TO CROSS MEMBER
622 N 000933008153 SCREW
Repalced by: N 304017008034
622 N 304017008034 SCREW
REDUCTION VALVE TO BRACKET
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
REDUCING VALVE TO CROSS MEMBER
624 N 913004008004 NUT
Repalced by: N 913004008001
624 N 913004008001 NUT
REDUCTION VALVE TO BRACKET
N 912004008102 LOCK WASHER
REDUCING VALVE TO CROSS MEMBER
626 A 0009905168 FITTING
REDUCING VALVE,CONNECTIONS:
"10,20"
628 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
628 N 000908022011 SCREW PLUG
REDUCING VALVE,CONNECTION:
"10"
630 A 0004290227 THRUST RING
Repalced by: A 0009940203
630 A 0009940203 THRUST RING
REDUCING VALVE,CONNECTIONS:
"10,20"
632 A 0009870446 SEALING CORD
REDUCING VALVE,CONNECTIONS:
"10,20"
634 N 915036012203 HOLLOW SCREW
REDUCING VALVE,CONNECTIONS:
"10,20"
636 N 007603016401 SEAL RING
REDUCING VALVE,CONNECTIONS:
"10,20"
640 A 0074205618 WHEEL BRAKE CYLINDER
640 A 0084209118 WHEEL BRAKE CYLINDER
640 A 0084205618 WHEEL BRAKE CYLINDER
640 A 0094209718 WHEEL BRAKE CYLINDER
644 A 0074206518 WHEEL BRAKE CYLINDER
REAR AXLE I
WABCO
644 A 0074206518 WHEEL BRAKE CYLINDER
REAR AXLE II
WABCO
644 A 0084209018 WHEEL BRAKE CYLINDER
REAR AXLE I
BOSCH
644 A 0084209018 WHEEL BRAKE CYLINDER
REAR AXLE II
BOSCH
644 A 0074204218 WHEEL BRAKE CYLINDER
REAR AXLE I
KNORR
644 A 0074204218 WHEEL BRAKE CYLINDER
REAR AXLE II
KNORR
644 A 0094206118 WHEEL BRAKE CYLINDER
REAR AXLE I
GRAU
644 A 0094206118 WHEEL BRAKE CYLINDER
REAR AXLE II
GRAU
A 0024204924 BRAKE CYLINDER
REAR AXLE II
648 A 0004231060 SEAL RING
650 A 0004233886 CUP
TO 008 420 90 18,BOSCH
652 A 0004215286 CUP
TO 007420 65 18,WABCO
A 0004215286 CUP
TO 002 420 49 24,WABCO
654 A 0004234187 PROTECTIVE CAP
656 A 0004210763 GUIDE
A 0004210011 PLUG
TO 002 420 49 24,WABCO
658 N 071752014000 YOKE
TO 008 420 90 18,BOSCH
660 A 0004312928 DIAPHRAGM
TO 007 420 42 18,KNORR
662 A 0004313028 DIAPHRAGM
TO 008 420 90 18,BOSCH
A 0004312028 DIAPHRAGM
Repalced by: A 0004315428
A 0004315428 DIAPHRAGM
TO 002 420 49 24,WABCO
664 A 0025865242 REPAIR KIT
Repalced by: A 0024301560
664 A 0024301560 REPAIR KIT
SPRING LOAD ACCUMULATOR CYLINDER
TO 007 420 65 18,WABCO
666 A 0025865042 REPAIR KIT
DIAPHRAGM CYLINDER
TO 007 420 65 18,WABCO
668 A 0004304060 REPAIR KIT
Repalced by: A 0024209524
A 0024209524 REPAIR KIT
DIAPHRAGM PART
TO 007 420 42 18,KNORR
A 0024209424 REPAIR KIT
SPRING LOAD ACCUMULATOR PART
TO 007 420 42 18,KNORR
670 A 0014308660 REPAIR KIT
TRISTOP CYLINDER
TO 008 420 90 18,BOSCH
672 A 3854231133 BEARING BRACKET
672 A 3854232033 BEARING BRACKET
674 A 3954231233 BEARING BRACKET
TRISTOP CYLINDER
676 N 007346012003 CLAMPING SLEEVE
BEARING BRACKET
678 N 001481028004 CLAMPING SLEEVE
BEARING BRACKET TO REAR AXLE
680 N 000961016036 SCREW
Repalced by: N 308676016013
680 N 308676016013 SCREW
BEARING BRACKET TO REAR AXLE
M 16X40
682 N 000960020200 SCREW
684 N 000961020061 SCREW
BEARING BRACKET TO REAR AXLE
M 20X45
686 A 3954290640 BRACKET
BEARING BRACKET TO REAR AXLE
688 N 000961020025 SCREW
BEARING BRACKET TO REAR AXLE
M 20X55
690 A 3379900640 WASHER
BEARING BRACKET TO REAR AXLE
692 N 913004016004 NUT
Repalced by: N 910113016002
692 N 910113016002 NUT
TRISTOP CYLINDER TO BEARING BRACKET
694 A 3619910005 PIN
TRISTOP CYLINDER TO SLACK ADJUSTER
696 N 000433015002 WASHER
Repalced by: N 000433015005
696 N 000433015005 WASHER
TRISTOP CYLINDER TO SLACK ADJUSTER
698 N 000094004065 COTTER PIN
TRISTOP CYLINDER TO SLACK ADJUSTER
700 N 915039012205 HOLLOW SCREW FITTING
REAR AXLE II TRISTOP CYLINDER, CONNECTIONS:
"12"
700 N 915039012205 HOLLOW SCREW FITTING
REAR AXLE I TRISTOP CYLINDER, CONNECTIONS:
"11,12"
702 N 915047012203 HOLLOW SCREW
REAR AXLE I TRISTOP CYLINDER, CONNECTIONS:
"12"
704 N 915040012206 HOLLOW SCREW FITTING
REAR AXLE II TRISTOP CYLINDER, CONNECTIONS:
"11,12"
704 N 915040012206 HOLLOW SCREW FITTING
REAR AXLE I TRISTOP CYLINDER, CONNECTIONS:
"12"
704 N 915040012206 HOLLOW SCREW FITTING
DIAPHRAGM CYLINDER,CONNECTION "1"
706 N 915036012203 HOLLOW SCREW
TRISTOP CYLINDER;CONNECTIONS:
"12"
706 N 915036012203 HOLLOW SCREW
TRISTOP CYLINDER;CONNECTIONS:
"11"
706 N 915036012203 HOLLOW SCREW
DIAPHRAGM CYLINDER,CONNECTION "1"
708 N 007603016401 SEAL RING
REAR AXLE I TRISTOP CYLINDER, CONNECTIONS:
"11,12"
708 N 007603016401 SEAL RING
REAR AXLE II TRISTOP CYLINDER, CONNECTIONS:
"11,12"
708 N 007603016401 SEAL RING
DIAPHRAGM CYLINDER,CONNECTION "1"
710 A 0014303481 VALVE
(PARKING BRAKE VALVE)
BOSCH
710 A 0014305681 VALVE
(PARKING BRAKE VALVE)
WABCO
710 A 0014306681 VALVE
Repalced by: A 0024309881
710 A 0024309881 VALVE
(PARKING BRAKE VALVE)
KNORR
714 A 0014310887 PROTECTIVE CAP
TO 001 430 56 81,WABCO
714 A 0014311087 PROTECTIVE CAP
TO 001 430 34 81,BOSCH
714 A 0014311287 PROTECTIVE CAP
KNORR
718 A 0009972477 HANDLE
TO 001 430 56 81,WABCO
718 A 0009973477 HANDLE
TO 001 430 34 81,BOSCH
718 A 0009975577 HANDLE
KNORR
722 A 0025867443 REPAIR KIT
Repalced by: A 0034303181
722 A 0034303181 REPAIR KIT
TO 001 430 56 81,WABCO
722 A 0034302081 REPAIR KIT
KNORR
722 A 0035860543 REPAIR KIT
TO 001 430 66 81,KNORR
726 A 0025866343 REPAIR KIT
GASKET KIT
TO 001 430 34 81,BOSCH
728 N 007985008119 SCREW
HAND BRAKE VALVE TO CAB
730 N 912006008000 LOCK WASHER
HAND BRAKE VALVE TO CAB
732 A 0009976189 COUPLING
LINE TO HAND BRAKE VALVE
734 A 0099973948 SEAL RING
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
