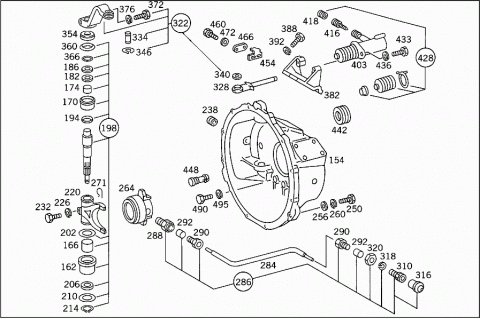

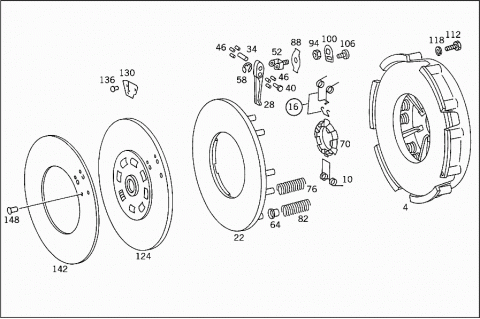

Transporto priemonė: 3028 B; VIN numerio dalis: 625015
Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 0032507004 | CLUTCH PRESSURE PLATE |
| 010 | A 0002523927 | SPRING |
| RELEASE LEVER | ||
| 016 | A 0002524027 | SPRING |
| RELEASE LEVER | ||
| 022 | A 0002524912 | PRESSURE PLATE |
| 028 | A 0002524613 | RELEASE LEVER |
| 034 | A 0002522216 | SPINDLE |
| RELEASE LEVER,CLUTCH PRESSURE PLATE | ||
| 040 | A 0002523116 | SPINDLE |
| RELEASE LEVER,BRACKET | ||
| 046 | A 0002520118 | ROLLER |
| FOR BEDDING THE LEVERS IN BRACKETS | ||
| 052 | A 0002522614 | BRACKET |
| FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE | ||
| 058 | N 006799007007 | LOCK PLATE |
| 064 | A 0002520535 | SLEEVE |
| 070 | A 0002521245 | FLANGE |
| 076 | A 0002524420 | PRESSURE SPRING |
| SPRING STEEL WIRE DIA., | ||
| 4.00 MM | ||
| 082 | A 0002524320 | PRESSURE SPRING |
| SPRING STEEL WIRE DIA., | ||
| 3.75 MM | ||
| 088 | A 0002523719 | LEAF SPRING |
| 094 | A 0002523072 | NUT |
| 100 | A 0002521073 | LOCK |
| 106 | A 0002522971 | SCREW |
| 112 | N 000931010239 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| 118 | N 912004010102 | LOCK WASHER |
| CLUTCH TO FLYWHEEL | ||
| 124 | A 0072504203 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 124 | A 0072504303 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 124 | A 0052500103 | CLUTCH DISC |
| 124 | A 0052500203 | CLUTCH DISC |
| 130 | A 0002523319 | LEAF SPRING |
| Repalced by: A 0002523919 | ||
| 130 | A 0002523919 | LEAF SPRING |
| 136 | A 0002522075 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 5X6 MM | ||
| 136 | A 0002523975 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 6X6 MM | ||
| 142 | A 0012523310 | CLUTCH LINING |
| Repalced by: A 0012528310 | ||
| 142 | A 0012528310 | CLUTCH LINING |
| Repalced by: A 0022520010 | ||
| 142 | A 0022520010 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| 142 | A 0012522010 | CLUTCH LINING |
| 148 | A 0002523375 | RIVET |
| Repalced by: A 0002523775 | ||
| 148 | A 0002523775 | RIVET |
| Repalced by: A 0002524675 | ||
| 148 | A 0002524675 | RIVET |
| Repalced by: A 0002524875 | ||
| 148 | A 0002524875 | RIVET |
| LINING WITH CLUTCH DISC AND INTERMEDIATE SPRING | ||
| 6X5 MM | ||
| 154 | A 3972500305 | HOUSING |
| Repalced by: A 6202501205 | ||
| 154 | A 6202501205 | HOUSING |
| BELL HOUSING WITH BUSHINGS | ||
| 154 | A 6202501205 | HOUSING |
| BELL HOUSING WITH BUSHINGS | ||
| 162 | A 3432510150 | BUSHING |
| BOTTOM | ||
| 166 | A 3439920103 | BUSHING |
| BOTTOM | ||
| 170 | A 6202510050 | BUSHING |
| TOP | ||
| 170 | A 3852510450 | BUSHING |
| Repalced by: A 6202510050 | ||
| 170 | A 6202510050 | BUSHING |
| TOP | ||
| 174 | A 3389920103 | BUSHING |
| TOP | ||
| 182 | A 3859970040 | SEAL RING |
| 186 | A 0119978846 | SEAL RING |
| 186 | A 0099971547 | SEAL RING |
| 186 | A 0099971547 | SEAL RING |
| 194 | A 3852930027 | COVER PLATE |
| TOP | ||
| 198 | A 3892500014 | SHAFT |
| Repalced by: A 3852500014 | ||
| 198 | A 3852500014 | SHAFT |
| (PARTS KIT),RELEASE SHAFT | ||
| 202 | A 3172930177 | WASHER |
| AS REQUIRED | ||
| 202 | A 3172930277 | WASHER |
| AS REQUIRED | ||
| 202 | A 3172930377 | WASHER |
| AS REQUIRED | ||
| 202 | A 3172930477 | WASHER |
| AS REQUIRED | ||
| 202 | A 3172930577 | WASHER |
| AS REQUIRED | ||
| 202 | A 3172930677 | WASHER |
| AS REQUIRED | ||
| 206 | A 3379975040 | SEAL RING |
| BOTTOM | ||
| 210 | A 3432930052 | SPACER WASHER |
| BOTTOM | ||
| 214 | N 000471024000 | LOCK RING |
| BOTTOM | ||
| 220 | A 6202540108 | RELEASE LEVER |
| 226 | N 912004012100 | LOCK WASHER |
| 232 | N 000931012251 | SCREW |
| Repalced by: N 304017012002 | ||
| 232 | N 304017012002 | SCREW |
| RELEASE LEVER TO SHAFT | ||
| 238 | A 3852510083 | PLUG |
| Repalced by: A 6202510383 | ||
| 238 | A 6202510383 | PLUG |
| BELL HOUSING | ||
| 250 | N 000931010264 | SCREW |
| BELL HOUSING TO TIMING GEAR CASE | ||
| 256 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 256 | N 000125010532 | WASHER |
| BELL HOUSING TO TIMING GEAR CASE | ||
| 260 | N 912004010102 | LOCK WASHER |
| 264 | A 0002507415 | RELEASE BEARING |
| 264 | A 0002507715 | RELEASE BEARING |
| 271 | A 3179930225 | SPRING |
| RELEASE LEVER TO RELEASE BEARING | ||
| 284 | A 3859970582 | HOSE |
| RELEASE BEARING LUBRICATION | ||
| 286 | A 6209970288 | GREASE NIPPLE |
| (PARTS KIT) RELEASE BEARING LUBRICATION | ||
| 288 | N 071428004102 | SCREW-IN FITTING |
| RELEASE BEARING LUBRICATION | ||
| 290 | N 003871004102 | UNION SCREW |
| RELEASE BEARING LUBRICATION | ||
| 292 | N 003862004001 | DOUBLE TAPER RING |
| RELEASE BEARING LUBRICATION | ||
| 310 | A 6209970088 | GREASE NIPPLE |
| RELEASE BEARING LUBRICATION | ||
| 316 | A 6209880135 | CAP |
| RELEASE BEARING LUBRICATION | ||
| 318 | N 912004014100 | LOCK WASHER |
| RELEASE BEARING LUBRICATION | ||
| 320 | N 000936014010 | NUT |
| Repalced by: N 308675014000 | ||
| 320 | N 308675014000 | NUT |
| Repalced by: N 308675014002 | ||
| 320 | N 308675014002 | NUT |
| RELEASE BEARING LUBRICATION | ||
| A 3072950228 | LEVER | |
| CLUTCH ACTUATION | ||
| 322 | A 6202900534 | LEVER |
| (PARTS KIT),CLUTCH ACTUATION | ||
| 328 | A 0009966440 | ROD END |
| CLUTCH ACTUATION | ||
| 334 | A 3072560074 | PIN |
| CLUTCH ACTUATION | ||
| 340 | A 0019970041 | SEAL RING |
| Repalced by: A 0019972141 | ||
| 340 | A 0019972141 | SEAL RING |
| CLUTCH ACTUATION | ||
| 346 | N 000471012001 | LOCK RING |
| CLUTCH ACTUATION | ||
| 354 | A 6202500155 | COVER |
| RELEASE SHAFT,TOP | ||
| 354 | A 6202500155 | COVER |
| RELEASE SHAFT,TOP | ||
| 360 | A 3852540576 | WASHER |
| Repalced by: A 6202540176 | ||
| 360 | A 6202540176 | WASHER |
| RELEASE SHAFT,TOP | ||
| 366 | A 0029972948 | SEAL RING |
| RELEASE SHAFT,TOP | ||
| 372 | N 000931010260 | SCREW |
| Repalced by: N 304017010030 | ||
| 372 | N 304017010030 | SCREW |
| Repalced by: N 304017010053 | ||
| 372 | N 304017010053 | SCREW |
| LEVER TO RELEASE SHAFT | ||
| 376 | N 912004010102 | LOCK WASHER |
| 382 | A 3072950840 | BRACKET |
| SLAVE CYLINDER | ||
| 388 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 388 | N 304017010002 | SCREW |
| BRACKET TO BELL HOUSING | ||
| 392 | N 912004010102 | LOCK WASHER |
| 403 | A 0012955307 | SLAVE CYLINDER |
| Repalced by: A 0012958807 | ||
| 403 | A 0012958807 | SLAVE CYLINDER |
| Repalced by: A 0022950407 | ||
| 403 | A 0022950407 | SLAVE CYLINDER |
| CLUTCH ACTUATION | ||
| 416 | A 3075530107 | VALVE |
| 418 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 418 | A 0004217187 | PROTECTIVE CAP |
| 428 | A 0005863129 | REPAIR KIT |
| Repalced by: A 0002900911 | ||
| 428 | A 0002900911 | REPAIR KIT |
| CLUTCH SLAVE CYLINDER | ||
| 433 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 433 | N 304017010002 | SCREW |
| CLUTCH SLAVE CYLINDER TO BRACKET | ||
| 436 | N 912004010102 | LOCK WASHER |
| 442 | A 0002510283 | PLUG |
| BELL HOUSING | ||
| 448 | A 0002510183 | PLUG |
| BELL HOUSING | ||
| 454 | A 3072540127 | POINTER |
| WEAR INDICATOR | ||
| 460 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 460 | N 304017006016 | SCREW |
| WEAR INDICATOR | ||
| 466 | A 3079940032 | LOCK |
| WEAR INDICATOR | ||
| 472 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 472 | N 009021006208 | WASHER |
| WEAR INDICATOR | ||
| 490 | N 000960018111 | SCREW |
| Repalced by: N 308676018010 | ||
| 490 | N 308676018010 | SCREW |
| BELL HOUSING TO TRANSMISSION | ||
| 495 | N 912004018101 | LOCK WASHER |
| BELL HOUSING TO TRANSMISSION | ||
