Transporto priemonė: 3028 B; VIN numerio dalis: 625015
Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|

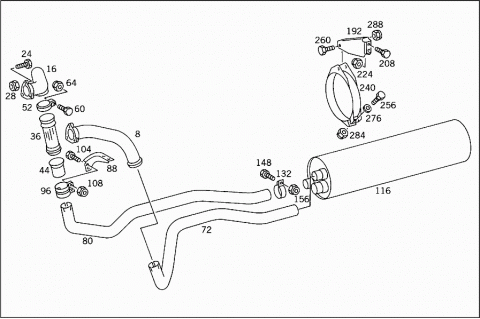

| 008 | A 6194900025 | CONNECTOR |
| LEFT FRONT | ||
| 012 | A 6254900325 | CONNECTOR |
| LEFT FRONT | ||
| 016 | A 6194900125 | CONNECTOR |
| RIGHT FRONT | ||

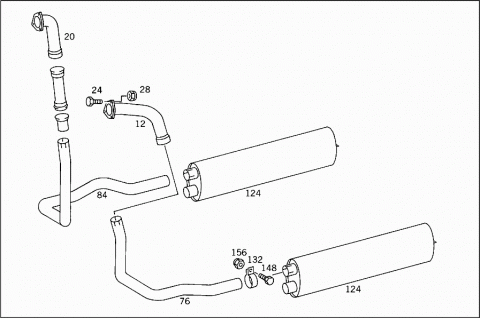

| 020 | A 6254900425 | CONNECTOR |
| RIGHT FRONT | ||
| 024 | N 000931012132 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X50 | ||
| 024 | N 000931012114 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X45 | ||
| 028 | N 913004012010 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 036 | A 6204900365 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 044 | A 6174920008 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 052 | A 6209970490 | CLAMP |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 060 | N 000933008161 | SCREW |
| Repalced by: N 304017008028 | ||
| 060 | N 304017008028 | SCREW |
| CLAMP TO EXHAUST PIPE AND TO FLEXIBLE METAL TUBE | ||
| 064 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 064 | N 913004008001 | NUT |
| CLAMP TO EXHAUST PIPE AND TO FLEXIBLE METAL TUBE | ||
| 072 | A 6194902220 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 072 | A 6194902920 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 072 | A 6194902920 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 076 | A 6254900019 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 080 | A 6194902320 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 080 | A 6194903020 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 080 | A 6194903020 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 084 | A 6254900119 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 088 | A 6194920441 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 088 | A 6254900640 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 088 | A 6194920541 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 088 | A 6254900740 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 096 | A 6204920840 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 104 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 104 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 108 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 108 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 116 | A 6174901901 | EXHAUST MUFFLER |
| 124 | A 6204901401 | EXHAUST MUFFLER |
| LEFT AND RIGHT | ||
| 124 | A 6204901401 | EXHAUST MUFFLER |
| LEFT AND RIGHT | ||
| 124 | A 6214900001 | EXHAUST MUFFLER |
| LEFT AND RIGHT | ||
| 132 | N 071555078502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 132 | N 071555078502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 140 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 140 | N 071555090502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 148 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 148 | N 304017010002 | SCREW |
| EXHAUST PIPE TO MUFFLER | ||
| 148 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 148 | N 304017008027 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 156 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 156 | N 910113010000 | NUT |
| EXHAUST PIPE TO MUFFLER | ||
| 156 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 156 | N 913004008001 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 164 | A 6204910315 | CONSOLE |
| EXHAUST MUFFLER | ||
| 164 | A 6204910615 | CONSOLE |
| EXHAUST MUFFLER | ||
| 172 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 172 | N 308676012026 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 176 | N 910113012002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| A 6194922041 | BRACKET | |
| Repalced by: A 6194900040 | ||
| A 6194922141 | BRACKET | |
| Repalced by: A 6194900040 | ||
| 192 | A 6194900040 | BRACKET |
| EXHAUST MUFFLER | ||
| 200 | A 6194900140 | BRACKET |
| AT SIDE MEMBER | ||
| 200 | A 6194900140 | BRACKET |
| AT SIDE MEMBER | ||
| 200 | A 6244910941 | BRACKET |
| EXHAUST MUFFLER | ||
| 208 | N 000961014028 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X35 | ||
| 208 | N 000961014154 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X25 | ||
| 208 | N 000961014154 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X25 | ||
| 216 | N 000933010128 | SCREW |
| BRACKET TO CONSOLE | ||
| 224 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 224 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 232 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 232 | N 910113010000 | NUT |
| BRACKET TO CONSOLE | ||
| 240 | A 6214900642 | STRAP |
| EXHAUST MUFFLER TO BRACKET | ||
| 240 | A 6204900042 | STRAP |
| EXHAUST MUFFLER TO BRACKET | ||
| 240 | A 6204900042 | STRAP |
| EXHAUST MUFFLER TO BRACKET | ||
| 248 | A 6244900142 | STRAP |
| EXHAUST MUFFLER | ||
| 256 | N 000933008151 | SCREW |
| STRAP TO EXHAUST MUFFLER | ||
| 260 | N 000931010271 | SCREW |
| STRAP TO BRACKET | ||
| 264 | A 0019909404 | SCREW |
| STRAP TO BRACKET | ||
| 268 | N 000933008119 | SCREW |
| Repalced by: N 304017008042 | ||
| 268 | N 304017008042 | SCREW |
| STRAP TO EXHAUST MUFFLER | ||
| 276 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 276 | N 000125008443 | WASHER |
| STRAP TO EXHAUST MUFFLER | ||
| 284 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 284 | N 913004008001 | NUT |
| STRAP TO EXHAUST MUFFLER | ||
| 288 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 288 | N 910113010000 | NUT |
| STRAP TO BRACKET | ||
| 296 | A 6244910741 | BRACKET |
| EXHAUST MUFFLER,REAR | ||
| 296 | A 6254912541 | BRACKET |
| EXHAUST MUFFLER,REAR | ||
| 296 | A 6244910841 | BRACKET |
| EXHAUST MUFFLER,REAR | ||
| 296 | A 6254912641 | BRACKET |
| EXHAUST MUFFLER,REAR | ||
| 304 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 304 | N 304017008018 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 308 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 308 | N 308676012026 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 312 | N 000933010105 | SCREW |
| EXHAUST MUFFLER TO REAR BRACKET | ||
| 316 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 316 | N 000125010532 | WASHER |
| EXHAUST MUFFLER TO REAR BRACKET | ||
| 328 | N 910113012002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 332 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 332 | N 910113010000 | NUT |
| EXHAUST MUFFLER TO REAR BRACKET | ||

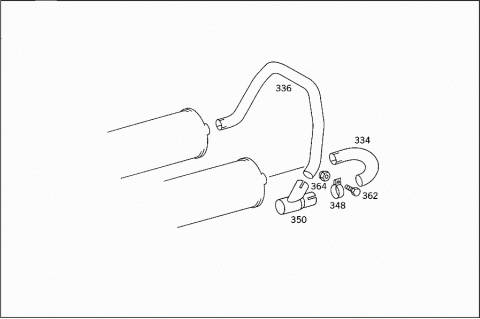

| 334 | A 6174923214 | END PIECE |
| EXHAUST MUFFLER,LEFT | ||
| 336 | A 6194922904 | REAR EXHAUST PIPE |
| EXHAUST MUFFLER,RIGHT | ||
| A 6194922704 | REAR EXHAUST PIPE | |
| Repalced by: A 6194923004 | ||
| 338 | A 6194923004 | REAR EXHAUST PIPE |
| 338 | A 6254920214 | END PIECE |
| EXHAUST MUFFLER,LEFT | ||
| 338 | A 6254920314 | END PIECE |
| EXHAUST MUFFLER,RIGHT | ||

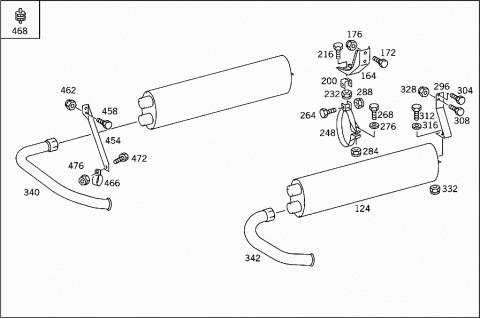

| 340 | A 6244923004 | REAR EXHAUST PIPE |
| 342 | A 6244923104 | REAR EXHAUST PIPE |

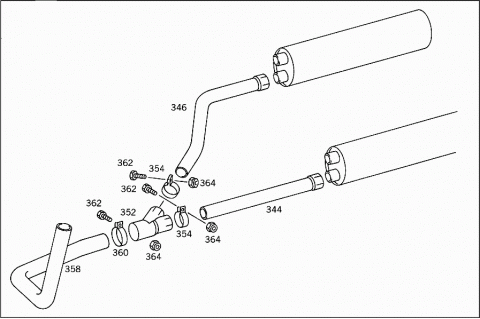

| 344 | A 6254921104 | REAR EXHAUST PIPE |
| SHORT;EXHAUST MUFFLER,LEFT | ||
| 346 | A 6254921204 | REAR EXHAUST PIPE |
| LONG;EXHAUST MUFFLER,RIGHT | ||
| 348 | N 071555075502 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 348 | N 071555078502 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 350 | A 3874900262 | FITTING |
| LEFT EXHAUST PIPE TO RIGHT EXHAUST PIPE | ||
| 352 | A 6204900962 | FITTING |
| LEFT EXHAUST PIPE TO RIGHT EXHAUST PIPE | ||
| 354 | A 3034930343 | CLAMP |
| EXHAUST PIPE TO CONNECTION FITTING | ||
| 356 | A 6194920607 | CONNECTOR |
| BOTTOM | ||
| 358 | A 6254920904 | REAR EXHAUST PIPE |
| BOTTOM | ||
| 360 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 360 | N 071555090502 | CLAMP |
| EXHAUST PIPE TO CONNECTION FITTING | ||
| 360 | N 071555100500 | CLAMP |
| Repalced by: N 071555100501 | ||
| 360 | N 071555100501 | CLAMP |
| EXHAUST PIPE TO CONNECTION FITTING | ||
| 362 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 362 | N 304017010002 | SCREW |
| CLAMP MOUNTING | ||
| 364 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 364 | N 910113010000 | NUT |
| CLAMP MOUNTING | ||

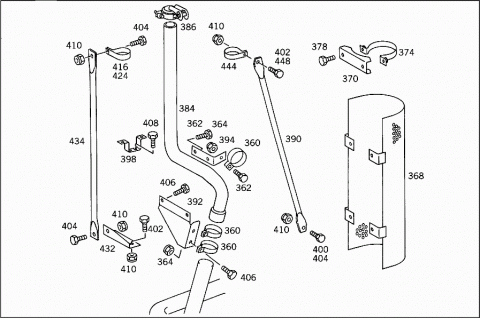

| 366 | A 3834901030 | PROTECTIVE PLATE |
| (HEAT SHIELD) | ||
| 368 | A 3874900030 | PROTECTIVE PLATE |
| TOP | ||
| 370 | A 3954923241 | BRACKET |
| Repalced by: A 3184924841 | ||
| 370 | A 3184924841 | BRACKET |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| 372 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 372 | N 071555090502 | CLAMP |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| A 6204901341 | CLAMP | |
| Repalced by: A 3464920040 | ||
| 374 | A 3464920040 | CLAMP |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| 376 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 376 | N 304017010002 | SCREW |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| 378 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 378 | N 304017008034 | SCREW |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| M 8X25 MM | ||
| 380 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 380 | N 910113010000 | NUT |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| A 6194922604 | REAR EXHAUST PIPE | |
| Repalced by: A 6524928014 | ||
| 382 | A 6524928014 | END PIECE |
| UPWARD | ||
| 384 | A 6254921004 | REAR EXHAUST PIPE |
| UPWARD | ||
| 386 | A 0004900563 | FLAP |
| (RAIN DEFLECTOR) | ||
| 386 | A 0004900663 | FLAP |
| UPPER EXHAUST PIPE | ||
| 388 | A 6194921741 | BRACKET |
| EXHAUST PIPE TO FRAME | ||
| 390 | A 3954900440 | BRACKET |
| EXHAUST PIPE TO FRAME | ||
| 392 | A 6254921541 | BRACKET |
| AT FENDER SUPPORT | ||
| 394 | A 6254921641 | BRACKET |
| AT FENDER SUPPORT | ||
| 396 | A 6174926741 | BRACKET |
| AT FENDER SUPPORT | ||
| 398 | A 6204922441 | BRACKET |
| AT FENDER SUPPORT | ||
| 400 | N 000961014028 | SCREW |
| BRACKET TO FRAME | ||
| 402 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 402 | N 304017010002 | SCREW |
| BRACKET TO FENDER SUPPORT | ||
| 404 | N 000933010105 | SCREW |
| BRACKET TO FENDER SUPPORT | ||
| 406 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 406 | N 304017008034 | SCREW |
| BRACKET TO FENDER SUPPORT | ||
| 408 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 408 | N 304017008021 | SCREW |
| BRACKET TO FENDER SUPPORT | ||
| 410 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 410 | N 910113010000 | NUT |
| BRACKET TO FENDER SUPPORT | ||
| 412 | A 6234920140 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 414 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 414 | N 071555090502 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 416 | N 071555100500 | CLAMP |
| Repalced by: N 071555100501 | ||
| 416 | N 071555100501 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 418 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 418 | N 304017010002 | SCREW |
| EXHAUST PIPE TO BRACKET | ||
| 418 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 418 | N 304017008034 | SCREW |
| EXHAUST PIPE TO BRACKET | ||
| 420 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 420 | N 910113010000 | NUT |
| EXHAUST PIPE TO BRACKET | ||
| A 3954920040 | CLAMP | |
| Repalced by: A 6454921140 | ||
| 422 | A 6454921140 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| A 6204901341 | CLAMP | |
| Repalced by: A 3464920040 | ||
| 422 | A 3464920040 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 424 | N 071555100500 | CLAMP |
| Repalced by: N 071555100501 | ||
| 424 | N 071555100501 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 426 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 426 | N 304017010002 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| 428 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 428 | N 910113010000 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 430 | A 6174900240 | BRACKET |
| AT FENDER SUPPORT | ||
| 432 | A 6204924941 | BRACKET |
| AT FENDER SUPPORT | ||
| 434 | A 6204901540 | BRACKET |
| UPPER EXHAUST PIPE | ||
| 436 | N 000933010157 | SCREW |
| BRACKET TO FENDER SUPPORT | ||
| 438 | N 912004010102 | LOCK WASHER |
| BRACKET TO FENDER SUPPORT | ||
| 440 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 440 | N 000125010532 | WASHER |
| BRACKET TO FENDER SUPPORT | ||
| 442 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 442 | N 071555090502 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 442 | N 071555100500 | CLAMP |
| Repalced by: N 071555100501 | ||
| 442 | N 071555100501 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 444 | A 6204920640 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 446 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 446 | N 304017010002 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| 448 | N 000933010105 | SCREW |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| M 10X25 MM | ||
| 450 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 450 | N 910113010000 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 452 | A 6194922241 | BRACKET |
| REAR EXHAUST PIPE | ||
| 452 | A 6194922541 | BRACKET |
| REAR EXHAUST PIPE | ||
| A 3814910516 | SUPPORT | |
| REAR EXHAUST PIPE | ||
| 454 | A 6254921441 | BRACKET |
| REAR EXHAUST PIPE TO SIDE MEMBER | ||
| 456 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 456 | N 304017008034 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 456 | N 304017008034 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 458 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 458 | N 308676012026 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 460 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 460 | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 460 | N 913004008001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 462 | N 910113012002 | NUT |
| REAR EXHAUST PIPE | ||
| A 6194922641 | BRACKET | |
| END PIECE TO SUPPORT | ||
| 464 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 464 | N 071555090502 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 466 | A 3894920040 | CLAMP |
| BRACKET TO SUPPORT AND TO END PIECE | ||
| 466 | A 3894920040 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 468 | A 0019875340 | RUBBER BUFFER |
| BRACKET TO SUPPORT AND TO END PIECE | ||
| 470 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 470 | N 304017010002 | SCREW |
| EXHAUST PIPE TO BRACKET | ||
| 472 | N 000933010145 | SCREW |
| BRACKET TO SUPPORT AND TO END PIECE | ||
| 472 | N 000933010145 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 474 | N 912004010102 | LOCK WASHER |
| BRACKET TO SUPPORT AND TO END PIECE | ||
| 476 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 476 | N 910113010000 | NUT |
| EXHAUST PIPE TO BRACKET | ||
| 476 | N 910113010000 | NUT |
| BRACKET TO SUPPORT AND TO END PIECE | ||
| 476 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 476 | N 000934010014 | NUT |
| BRACKET TO SUPPORT AND TO END PIECE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
