Transporto priemonė: 3028 B; VIN numerio dalis: 625015
Grupė: 31 FRAME

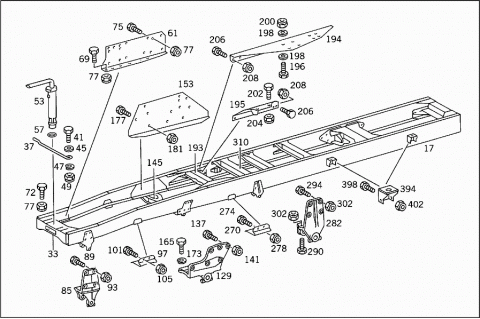

28906

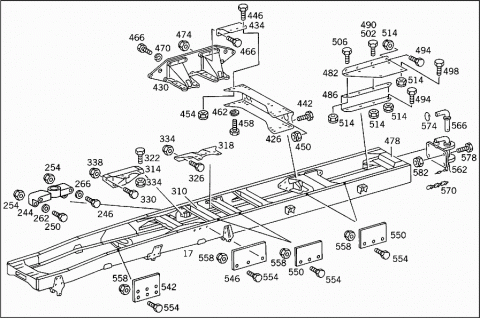

28907

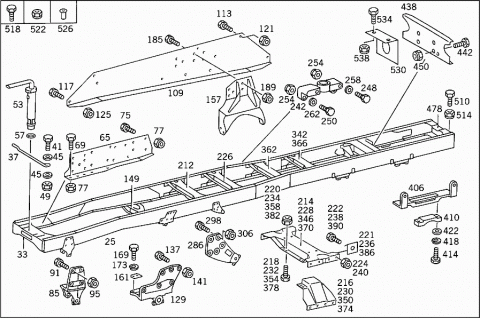

28908

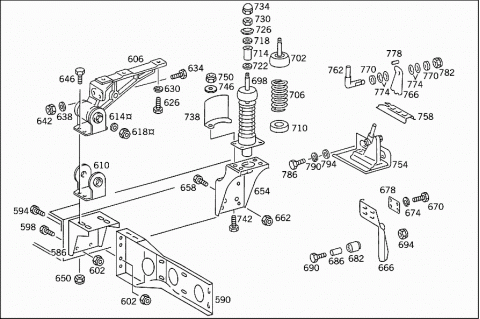

28909

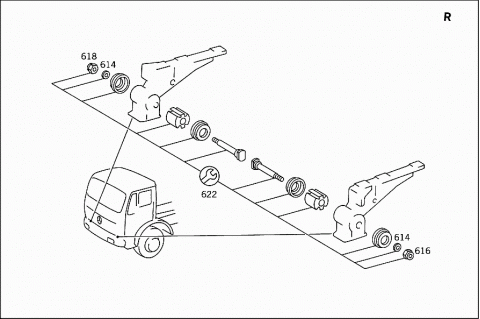

29441
# Kodas Pavadinimas
017 A 6193106001 FRAME
017 A 6193106101 FRAME
017 A 6193106401 FRAME
025 A 6233109601 FRAME
025 A 6233109401 FRAME
025 A 6233109301 FRAME
025 A 6243103802 FRAME
025 A 6243103402 FRAME
025 A 6243103302 FRAME
033 A 3873100422 CROSS MEMBER
FRONT
033 A 3873100522 CROSS MEMBER
FRONT
037 A 3353150031 LOCKING SPRING
COUPLING PIN
037 A 3353150031 LOCKING SPRING
COUPLING PIN
037 A 3873150031 LOCKING SPRING
COUPLING PIN
041 N 000933008153 SCREW
Repalced by: N 304017008034
041 N 304017008034 SCREW
SPRING TO CROSS MEMBER
M 8X25
041 N 304017008034 SCREW
SPRING TO CROSS MEMBER
M 8X25
041 N 000933008152 SCREW
Repalced by: N 304017008027
041 N 304017008027 SCREW
SPRING TO CROSS MEMBER
M 8X30
045 N 000125008418 WASHER
Repalced by: N 000125008443
045 N 000125008443 WASHER
SPRING TO CROSS MEMBER
045 N 000125008443 WASHER
SPRING TO CROSS MEMBER
047 N 912004008102 LOCK WASHER
SPRING TO CROSS MEMBER
049 N 913004008004 NUT
Repalced by: N 913004008001
049 N 913004008001 NUT
SPRING TO CROSS MEMBER
049 N 913004008001 NUT
SPRING TO CROSS MEMBER
053 A 3873150106 COUPLING PIN
FOR COUPLING MOUTH
053 A 3873150106 COUPLING PIN
FOR COUPLING MOUTH
057 A 0009874346 SEALING CORD
FOR COUPLING MOUTH
057 A 0009874346 SEALING CORD
FOR COUPLING MOUTH
061 A 3853122687 GUSSET PLATE
FRONT LEFT
061 A 3853122787 GUSSET PLATE
FRONT RIGHT
065 A 3873122087 GUSSET PLATE
FRONT LEFT
065 A 6203120987 GUSSET PLATE
FRONT RIGHT
069 A 3559900014 SCREW
CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS
M 12X35
069 A 3229901901 SCREW
CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS
M 12X35
072 A 0039900901 SCREW
Repalced by: A 0029908201
072 A 0029908201 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 12X28
075 A 3969900314 SCREW
GUSSET PLATE TO SIDE MEMBER
M 12X30
075 A 0029908201 SCREW
GUSSET PLATE TO SIDE MEMBER
M 12X30
077 N 913004012009 NUT
Repalced by: N 910113012003
077 N 910113012003 NUT
CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS
085 A 6203220201 FRONT SPRING BRACKET
Repalced by: A 6203220501
085 A 6203220501 FRONT SPRING BRACKET
Repalced by: A 6203220901
085 A 6203220901 FRONT SPRING BRACKET
FRONT
089 A 3859902314 SCREW
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
M 18X45
089 A 3859902414 SCREW
Repalced by: N 000961018043
089 N 000961018043 SCREW
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
M 18X55
091 A 6569900014 SCREW
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
M 16X45
091 A 6569900014 SCREW
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
M 16X45
091 A 3879900214 SCREW
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
M 16X55
091 A 3879900214 SCREW
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
M 16X55
093 N 913004018004 NUT
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
095 N 913004016005 NUT
Repalced by: N 910113016001
095 N 910113016001 NUT
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
095 N 910113016001 NUT
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
097 A 3833220131 PLATE
HELPER SPRING
101 A 3859901414 SCREW
STOP TO SIDE MEMBER
M 12X26
105 N 913004012009 NUT
Repalced by: N 910113012003
105 N 910113012003 NUT
STOP TO SIDE MEMBER
109 A 6243110053 ANGLE
LEFT REINFORCEMENT
109 A 6243110153 ANGLE
RIGHT REINFORCEMENT
113 A 3229903101 SCREW
ANGLE TO SIDE MEMBER
M 14X32
117 A 0029908201 SCREW
ANGLE TO SIDE MEMBER
M 12X30
N 000933010157 SCREW
ANGLE TO SIDE MEMBER
M 10X28
121 N 913004014005 NUT
Repalced by: N 910113014000
121 N 910113014000 NUT
ANGLE TO SIDE MEMBER
125 N 913004012009 NUT
Repalced by: N 910113012003
125 N 910113012003 NUT
ANGLE TO SIDE MEMBER
N 913004010008 NUT
Repalced by: N 910113010000
N 910113010000 NUT
ANGLE TO SIDE MEMBER
129 A 6243220001 FRONT SPRING BRACKET
CENTRAL LEFT
129 A 6243220001 FRONT SPRING BRACKET
CENTRAL LEFT
129 A 6243220101 FRONT SPRING BRACKET
CENTRAL RIGHT
129 A 6243220101 FRONT SPRING BRACKET
CENTRAL RIGHT
137 A 3609900114 SCREW
Repalced by: A 0009906314
137 A 0009906314 SCREW
FRONT SPRING CENTRAL BRACKET TO SIDE MEMBER
M 16X48
137 N 000961016096 SCREW
Repalced by: N 308676016007
137 N 308676016007 SCREW
FRONT SPRING CENTRAL BRACKET TO SIDE MEMBER
M 16X50
137 N 000961016077 SCREW
Repalced by: N 308676016006
137 N 308676016006 SCREW
FRONT SPRING CENTRAL BRACKET TO SIDE MEMBER
M 16X45
137 N 000960016249 SCREW
Repalced by: N 308676016004
137 N 308676016004 SCREW
FRONT SPRING CENTRAL BRACKET TO SIDE MEMBER
M 16X55
141 N 913004016005 NUT
Repalced by: N 910113016001
141 N 910113016001 NUT
FRONT SPRING CENTRAL BRACKET TO SIDE MEMBER
145 A 6163120710 CROSS MEMBER
Repalced by: A 6193100127
145 A 6193100127 CROSS MEMBER
FRONT SPRING CENTRAL BRACKET
NO.2
149 A 6243120010 CROSS MEMBER
Repalced by: A 3973120110
149 A 3973120110 CROSS MEMBER
FRONT SPRING CENTRAL BRACKET
NO.2
153 A 6193110453 ANGLE
LEFT
153 A 6193110553 ANGLE
RIGHT
157 A 6243100253 STRUT
Repalced by: A 6253121361
157 A 6253121361 STRUT
FRONT SPRING CENTRAL BRACKET,LEFT
157 A 6243100353 STRUT
Repalced by: A 6253121461
157 A 6253121461 STRUT
FRONT SPRING CENTRAL BRACKET,RIGHT
161 A 6203121984 SHIM
CROSS MEMBER TO FRONT SPRING CENTRAL BRACKET
165 N 000961014154 SCREW
CROSS MEMBER TO FRONT SPRING CENTRAL BRACKET
M 14X25
165 N 000961014100 SCREW
CROSS MEMBER TO FRONT SPRING CENTRAL BRACKET
M 14X30
169 N 000961014113 SCREW
CROSS MEMBER TO FRONT SPRING CENTRAL BRACKET
169 N 000961014028 SCREW
CROSS MEMBER TO FRONT SPRING CENTRAL BRACKET
M 14X40
173 N 912004014100 LOCK WASHER
CROSS MEMBER TO FRONT SPRING CENTRAL BRACKET
177 A 3609900214 SCREW
ANGLE TO SIDE MEMBER
M 14X32
181 N 913004014005 NUT
Repalced by: N 910113014000
181 N 910113014000 NUT
ANGLE TO SIDE MEMBER
185 N 000961014113 SCREW
STRUT TO CROSS AND SIDE MEMBERS
M 14X28
185 N 000961014028 SCREW
STRUT TO CROSS AND SIDE MEMBERS
M 14X40
189 N 913004014002 NUT
Repalced by: N 910113014001
189 N 910113014001 NUT
STRUT TO CROSS AND SIDE MEMBERS
193 A 3813120015 CROSS MEMBER
NO.3
194 A 6193120687 GUSSET PLATE
Repalced by: A 3813120652
194 A 3813120652 ANGLE
TOP LEFT
194 A 6193120787 GUSSET PLATE
Repalced by: A 3813120752
194 A 3813120752 ANGLE
TOP RIGHT
195 A 3813120252 ANGLE
BOTTOM LEFT
195 A 3813120987 GUSSET PLATE
BOTTOM LEFT
195 A 3813120352 ANGLE
BOTTOM RIGHT
195 A 3813121087 GUSSET PLATE
BOTTOM LEFT
196 N 308676012010 SCREW
TOP GUSSET PLATE TO CROSS MEMBER
M 12X40
198 A 3859901040 WASHER
TOP GUSSET PLATE TO CROSS MEMBER
200 N 913004012009 NUT
Repalced by: N 910113012003
200 N 910113012003 NUT
TOP GUSSET PLATE TO CROSS MEMBER
202 N 000961012052 SCREW
Repalced by: N 308676012012
202 N 308676012012 SCREW
BOTTOM GUSSET PLATE TO CROSS MEMBER
M 12X25
204 N 913004012009 NUT
Repalced by: N 910113012003
204 N 910113012003 NUT
BOTTOM GUSSET PLATE TO CROSS MEMBER
206 A 3609900214 SCREW
GUSSET PLATE TO SIDE MEMBER
M 14X32
206 A 3589900314 SCREW
GUSSET PLATE TO SIDE MEMBER
M 14X40
208 N 913004014005 NUT
Repalced by: N 910113014000
208 N 910113014000 NUT
GUSSET PLATE TO SIDE MEMBER
212 A 3873100136 CROSS MEMBER
NO.3
212 A 3873100136 CROSS MEMBER
NO.4
214 A 3873120025 CROSS MEMBER
216 A 3873121961 STRUT
AT CROSS MEMBER
218 A 0039900901 SCREW
Repalced by: A 0029908201
218 A 0029908201 SCREW
STRUT TO CROSS MEMBER
M 12X28
220 N 913004012009 NUT
Repalced by: N 910113012003
220 N 910113012003 NUT
STRUT TO CROSS MEMBER
221 A 6203121584 SHIM
CROSS MEMBER TO SIDE MEMBERS
222 A 3229903101 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 14X32
222 A 3229903101 SCREW
STRUT TO SIDE MEMBER
M 14X32
222 A 3589901014 SCREW
CROSS MEMBER WITH SHIM TO SIDE MEMBER
M 14X36
224 N 913004014005 NUT
Repalced by: N 910113014000
224 N 910113014000 NUT
CROSS MEMBER TO SIDE MEMBERS
226 A 6213100136 CROSS MEMBER
NO.3
226 A 6243100537 CROSS MEMBER
NO.3
228 A 6213120225 CROSS MEMBER
Repalced by: A 3873120025
228 A 3873120025 CROSS MEMBER
228 A 6243120025 CROSS MEMBER
230 A 6243120261 STRUT
AT CROSS MEMBER
232 A 0039900901 SCREW
Repalced by: A 0029908201
232 A 0029908201 SCREW
STRUT TO CROSS MEMBER
M 12X28
234 N 913004012009 NUT
Repalced by: N 910113012003
234 N 910113012003 NUT
STRUT TO CROSS MEMBER
236 A 6203121584 SHIM
CROSS MEMBER TO SIDE MEMBERS
238 A 3589901014 SCREW
CROSS MEMBER WITH SHIM TO SIDE MEMBER
M 14X36
238 A 3229903101 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 14X32
238 A 3229903101 SCREW
STRUT TO SIDE MEMBER
M 14X32
238 A 3589900214 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 14X38
238 A 3589900214 SCREW
STRUT TO SIDE MEMBER
M 14X38
238 A 3589900714 SCREW
CROSS MEMBER WITH SHIM TO SIDE MEMBER
M 14X44
240 N 913004014005 NUT
Repalced by: N 910113014000
240 N 910113014000 NUT
CROSS MEMBER TO SIDE MEMBERS
242 A 6244660935 BEARING BRACKET
STEERING LINKAGE
244 A 6244661035 BEARING BRACKET
STEERING LINKAGE
244 A 6244661035 BEARING BRACKET
STEERING LINKAGE
246 A 6249900114 SCREW
BEARING BRACKET TO SIDE MEMBER
M 16X108
248 A 6249900214 SCREW
Repalced by: A 6249900114
248 A 6249900114 SCREW
BEARING BRACKET TO SIDE MEMBER
250 N 000960016237 SCREW
BEARING BRACKET TO SIDE MEMBER
M 16X68
250 N 000960016237 SCREW
BEARING BRACKET TO SIDE MEMBER
M 16X68
250 N 000960016264 SCREW
BEARING BRACKET TO SIDE MEMBER
M 16X68
254 N 913004016005 NUT
Repalced by: N 910113016001
254 N 910113016001 NUT
BEARING BRACKET TO SIDE MEMBER
254 N 910113016001 NUT
BEARING BRACKET TO SIDE MEMBER
258 A 6209900040 WASHER
BEARING BRACKET TO SIDE MEMBER
262 N 000125017010 WASHER
Repalced by: N 000125017016
262 N 000125017016 WASHER
BEARING BRACKET TO SIDE MEMBER
262 N 000125017016 WASHER
BEARING BRACKET TO SIDE MEMBER
266 N 000125019009 WASHER
BEARING BRACKET TO SIDE MEMBER
266 N 000125019009 WASHER
BEARING BRACKET TO SIDE MEMBER
270 A 6993230032 STOP
FRONT AXLE II
274 A 3859901414 SCREW
STOP TO SIDE MEMBER
M 12X26
278 N 913004012009 NUT
Repalced by: N 910113012003
278 N 910113012003 NUT
STOP TO SIDE MEMBER
282 A 6173220001 FRONT SPRING BRACKET
REAR
286 A 6243220203 FRONT SPRING BRACKET
REAR LEFT
286 A 6243220303 FRONT SPRING BRACKET
REAR RIGHT
290 A 3589900214 SCREW
FRONT SPRING REAR BRACKET TO SIDE MEMBER
M 14X38
294 A 3589900414 SCREW
FRONT SPRING REAR BRACKET TO SIDE MEMBER
M 14X42
298 N 000961016096 SCREW
Repalced by: N 308676016007
298 N 308676016007 SCREW
FRONT SPRING REAR BRACKET TO SIDE MEMBER
M 16X50
298 N 000960016249 SCREW
Repalced by: N 308676016004
298 N 308676016004 SCREW
FRONT SPRING REAR BRACKET TO SIDE MEMBER
M 16X55
302 N 913004014005 NUT
Repalced by: N 910113014000
302 N 910113014000 NUT
FRONT SPRING REAR BRACKET TO SIDE MEMBER
306 N 913004016005 NUT
Repalced by: N 910113016001
306 N 910113016001 NUT
FRONT SPRING REAR BRACKET TO SIDE MEMBER
310 A 6173120117 CROSS MEMBER
NO.4
310 A 6173120117 CROSS MEMBER
Repalced by: A 3813120017
310 A 3813120017 CROSS MEMBER
NO.5
314 A 6193100071 GUSSET PLATE
AT CROSS MEMBER
NO.4
318 A 3833120360 REINFORCEMENT
AT CROSS MEMBER
NO.5
318 A 3833120360 REINFORCEMENT
REINFORCEMENT TO CROSS MEMBER
NO.5
322 A 6709900014 SCREW
STRUT TO CROSS MEMBER
M 10X28
326 A 6679900214 SCREW
REINFORCEMENT TO SIDE MEMBER
M 10X30
326 N 000933010276 SCREW
CROSS MEMBER AND STRUT TO SIDE MEMBER
M 10X28
330 A 3609900214 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 14X32
330 N 000961014008 SCREW
Repalced by: N 308676014003
330 N 308676014003 SCREW
CROSS MEMBER AND STRUT TO SIDE MEMBER
M 14X30
334 N 913004010011 NUT
STRUT TO CROSS MEMBER
334 N 913004010011 NUT
CROSS MEMBER AND STRUT TO SIDE MEMBER
338 N 913004014005 NUT
Repalced by: N 910113014000
338 N 910113014000 NUT
CROSS MEMBER TO SIDE MEMBERS
338 N 913004014005 NUT
Repalced by: N 910113014000
338 N 910113014000 NUT
CROSS MEMBER AND STRUT TO SIDE MEMBER
342 A 3873101037 CROSS MEMBER
NO.4
346 A 3893120125 CROSS MEMBER
350 A 3873121961 STRUT
AT CROSS MEMBER
354 A 0039900901 SCREW
Repalced by: A 0029908201
354 A 0029908201 SCREW
STRUT TO CROSS MEMBER
M 12X28
358 N 913004012009 NUT
Repalced by: N 910113012003
358 N 910113012003 NUT
STRUT TO CROSS MEMBER
362 A 3913100136 CROSS MEMBER
NO.4
366 A 3953100037 CROSS MEMBER
NO.4
366 A 3953100037 CROSS MEMBER
NO.5
370 A 3893120025 CROSS MEMBER
374 A 3873120261 STRUT
AT CROSS MEMBER
378 A 0039900901 SCREW
Repalced by: A 0029908201
378 A 0029908201 SCREW
STRUT TO CROSS MEMBER
382 N 913004012009 NUT
Repalced by: N 910113012003
382 N 910113012003 NUT
STRUT TO CROSS MEMBER
386 A 6203121584 SHIM
CROSS MEMBER TO SIDE MEMBERS
390 A 3589900714 SCREW
CROSS MEMBER WITH SHIM TO SIDE MEMBER
M 14X44
390 A 3589900214 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 14X38
390 A 3589900214 SCREW
STRUT TO SIDE MEMBER
M 14X38
394 A 6193200278 CONSOLE
RETAINING ROPE TO FRAME
398 A 3969900314 SCREW
CONSOLE TO SIDE MEMBER
M 12X30
402 N 913004012009 NUT
Repalced by: N 910113012003
402 N 910113012003 NUT
CONSOLE TO SIDE MEMBER
406 A 3933250731 PLATE
REAR AXLES I AND II
410 A 3933250044 RUBBER BUFFER
REAR AXLES I AND II
414 N 000933010129 SCREW
Repalced by: N 304017010002
414 N 304017010002 SCREW
RUBBER BUFFER TO PLATE
418 N 912004010102 LOCK WASHER
RUBBER BUFFER TO PLATE
422 N 007349010003 WASHER
Repalced by: N 007349010007
422 N 007349010007 WASHER
RUBBER BUFFER TO PLATE
426 A 3853121025 CROSS MEMBER
CENTRAL BEARING
NO.6
426 A 3953120124 CROSS MEMBER
CENTRAL BEARING
NO.5
426 A 3953120124 CROSS MEMBER
CENTRAL BEARING
NO.6
430 A 6193250110 SUPPORT
Repalced by: A 6193250010
430 A 6193250010 SUPPORT
REAR SPRING CENTRAL BEARING
430 A 6243250110 SUPPORT
Repalced by: A 6243250310
430 A 6243250310 SUPPORT
REAR SPRING CENTRAL BEARING
430 A 6243250110 SUPPORT
Repalced by: A 6243250310
430 A 6243250310 SUPPORT
REAR SPRING CENTRAL BEARING
434 A 3853121587 GUSSET PLATE
LEFT
434 A 3853121687 GUSSET PLATE
RIGHT
434 A 6243120041 ANGLE
Repalced by: A 6243120141
434 A 6243120141 ANGLE
AT CROSS MEMBER
438 A 6243120060 REINFORCEMENT
AT CROSS MEMBER
442 A 3559900014 SCREW
CROSS MEMBER CONNECTION
M 12X35
442 N 000960012334 SCREW
REINFORCEMENT TO CROSS MEMBER
M 12X45
446 A 3589901014 SCREW
GUSSET PLATE TO CROSS MEMBER
M 14X36
446 A 3219901601 SCREW
Repalced by: A 3169900014
446 A 3169900014 SCREW
ANGLE TO CROSS MEMBER
M 14X35
A 3939900240 WASHER
REAR SPRING CENTRAL BEARING
450 N 913004012009 NUT
Repalced by: N 910113012003
450 N 910113012003 NUT
CROSS MEMBER CONNECTION
450 N 910113012003 NUT
REINFORCEMENT TO CROSS MEMBER
454 N 913004014005 NUT
Repalced by: N 910113014000
454 N 910113014000 NUT
GUSSET PLATE TO CROSS MEMBER
454 N 910113014000 NUT
ANGLE TO CROSS MEMBER
458 N 000961014050 SCREW
Repalced by: N 308676014020
458 N 308676014020 SCREW
SUPPORT TO CROSS MEMBER
462 N 912004014100 LOCK WASHER
SUPPORT TO CROSS MEMBER
466 N 000961016100 SCREW
Repalced by: N 308676016020
466 N 308676016020 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 16X35
466 N 000961016036 SCREW
Repalced by: N 308676016013
466 N 308676016013 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 16X40
466 N 000961016096 SCREW
Repalced by: N 308676016007
466 N 308676016007 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 16X50
466 N 000960016249 SCREW
Repalced by: N 308676016004
466 N 308676016004 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 16X55
466 N 000960016250 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 16X85
466 N 000960016216 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 16X95
470 N 912004016101 LOCK WASHER
CROSS MEMBER TO SIDE MEMBERS
474 N 913004016005 NUT
Repalced by: N 910113016001
474 N 910113016001 NUT
CROSS MEMBER TO SIDE MEMBERS
478 A 3853100146 CROSS MEMBER
Repalced by: A 3853100246
478 A 3853100246 CROSS MEMBER
REAR
478 A 6233100146 CROSS MEMBER
REAR
482 A 6193120087 GUSSET PLATE
TOP LEFT, BOTTOM RIGHT
482 A 6193120087 GUSSET PLATE
TOP RIGHT, BOTTOM LEFT
482 A 6193120187 GUSSET PLATE
TOP RIGHT, BOTTOM LEFT
482 A 6193120187 GUSSET PLATE
TOP LEFT, BOTTOM RIGHT
486 A 6173120160 REINFORCEMENT
REAR CROSS MEMBER
490 A 3859902214 SCREW
CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS
M 12X32
494 A 3859901414 SCREW
GUSSET PLATE TO SIDE MEMBER
M 12X26
494 A 3859901414 SCREW
REINFORCEMENT TO SIDE MEMBER
M 12X26
494 A 3969900214 SCREW
GUSSET PLATE TO SIDE MEMBER
M 14X28
498 A 3969900114 SCREW
GUSSET PLATE TO CROSS MEMBER
M 12X25
502 A 3969900314 SCREW
REINFORCEMENT TO GUSSET PLATE AND TO CROSS MEMBER
M 12X30
506 N 000961012016 SCREW
REINFORCEMENT TO GUSSET PLATE
M 12X28
510 A 3409900201 SCREW
REAR CROSS MEMBER TO SIDE MEMBERS
M 14X45
514 N 913004012009 NUT
Repalced by: N 910113012003
514 N 910113012003 NUT
REAR CROSS MEMBER TO SIDE MEMBERS
514 N 913004014005 NUT
Repalced by: N 910113014000
514 N 910113014000 NUT
REAR CROSS MEMBER TO SIDE MEMBERS
X XXXXXXXXXXXX PART NAME MISSING
MOUNTING USED FOR FRAME CONNECTION PARTS
Y YYYYYYYYYYYY PART NAME MISSING
DIMENSIONS ARE INDICATED IN THE FOLLOWING ORDER:
Y YYYYYYYYYYYY PART NAME MISSING
THREAD X SHANK DIA. X SHANK LENGTH X TOTAL LENGTH
Y YYYYYYYYYYYY PART NAME MISSING
518 N 000609010004 FITTED SCREW
M 10X11X14X28
518 N 000610010003 FITTED SCREW
M 10X11X25X38
518 N 000609010014 FITTED SCREW
M 10X11X24X40
518 A 3859900514 SCREW
M 10X11X26,5X46
Y YYYYYYYYYYYY PART NAME MISSING
518 A 3859900714 SCREW
M 12X12X10X25
518 A 3859901414 SCREW
M 12X12X11X26
518 A 0039900901 SCREW
Repalced by: A 0029908201
518 A 0029908201 SCREW
M 12X12X12X28
518 A 3859901514 SCREW
M 12X12X13X28
518 A 0029908201 SCREW
M 12X12X14X30
518 A 3859902114 SCREW
M 12X12X15X30
518 A 0029908301 SCREW
Repalced by: N 308676012013
518 N 308676012013 SCREW
M 12X12X16X32
518 A 3859902214 SCREW
M 12X12X17X32
Y YYYYYYYYYYYY PART NAME MISSING
518 A 6209900114 SCREW
M 12X13X12X29
518 A 3969900314 SCREW
M 12X13X13X30
518 A 3589901914 SCREW
M 12X13X15X32
518 A 3559900014 SCREW
M 12X13X18X35
518 A 3589900614 SCREW
M 12X13X21X38
518 A 6179900114 SCREW
M 12X13X23X40
518 A 6249900014 SCREW
M 12X13X25X42
518 A 3859900214 SCREW
M 12X13X35X52
518 A 6689900114 SCREW
M 12X13X58X80
518 A 6689900014 SCREW
M 12X13X63X85
Y YYYYYYYYYYYY PART NAME MISSING
518 A 3859900814 SCREW
Repalced by: A 3229903101
518 A 3229903101 SCREW
M 14X14X18X32
518 A 3859902014 SCREW
M 14X14X18X34
518 A 3559900114 SCREW
M 12X14X13X35
518 A 3219901601 SCREW
Repalced by: A 3169900014
518 A 3169900014 SCREW
M 14X14X17X35
518 A 3219901901 SCREW
M 14X14X22X40
518 A 3559900501 SCREW
M 14X14X24X42
518 A 3409900201 SCREW
M 14X14X27X45
518 A 3609902001 SCREW
M 14X14X32X50
Y YYYYYYYYYYYY PART NAME MISSING
518 A 3589900114 SCREW
M 14X15X15X32
518 A 3589900814 SCREW
M 14X15X17X34
518 A 6459900014 SCREW
M 14X15X18X35
518 A 3589901014 SCREW
M 14X15X19X36
518 A 3589900214 SCREW
M 14X15X21X38
518 A 3589900414 SCREW
M 14X15X25X42
518 A 3589900714 SCREW
M 14X15X27X44
518 A 3589900914 SCREW
M 14X15X29X46
518 A 3859900414 SCREW
M 14X15X31X48
518 A 3859900314 SCREW
M 14X15X35X52
Y YYYYYYYYYYYY PART NAME MISSING
518 A 3859900914 SCREW
Repalced by: N 308676016020
518 N 308676016020 SCREW
M 16X16X18X36
518 A 3859901714 SCREW
M 16X16X20X38
518 A 3859901014 SCREW
M 16X16X22X40
518 A 3859901114 SCREW
Repalced by: N 000961016118
518 N 000961016118 SCREW
M 16X16X24X42
518 A 0029909901 SCREW
Repalced by: A 3959900501
518 A 3959900501 SCREW
M 16X16X20X45
518 A 3859901814 SCREW
M 16X16X30X48
518 A 3859901914 SCREW
M 16X16X32X50
518 A 6259900301 SCREW
M 16X16X38X90
Y YYYYYYYYYYYY PART NAME MISSING
518 A 3589900514 SCREW
M 16X17X22X42
518 A 6459900714 SCREW
M 16X17X24X44
518 A 3609900114 SCREW
Repalced by: A 0009906314
518 A 0009906314 SCREW
M 16X17X28X48
Y YYYYYYYYYYYY PART NAME MISSING
518 A 3469900014 SCREW
M 16X18X18X40
518 A 3859902314 SCREW
M 18X18X23X45
518 A 6569900014 SCREW
M 16X18X25X45
518 A 6209900014 SCREW
M 16X18X26X48
518 A 3469900114 SCREW
M 16X18X31X50
518 A 3859902414 SCREW
Repalced by: N 000961018043
518 N 000961018043 SCREW
M 18X18X33X55
518 A 6229900014 SCREW
M 16X18X38X60
518 A 3919900014 SCREW
M 16X18X63X85
518 A 6249900214 SCREW
Repalced by: A 6249900114
518 A 6249900114 SCREW
M 16X18X22X105
518 A 6249900114 SCREW
M 16X18X22X108
Y YYYYYYYYYYYY PART NAME MISSING
518 N 000610018004 FITTED SCREW
M 18X19X25X45
518 N 000610018009 FITTED SCREW
M 18X19X33X55
518 N 000610018006 FITTED SCREW
M 18X19X38X60
518 N 000609018000 FITTED SCREW
M 18X19X57X85
Y YYYYYYYYYYYY PART NAME MISSING
522 N 913004010011 NUT
522 N 913004012009 NUT
Repalced by: N 910113012003
522 N 910113012003 NUT
522 N 913004014005 NUT
Repalced by: N 910113014000
522 N 910113014000 NUT
522 N 913004016005 NUT
Repalced by: N 910113016001
522 N 910113016001 NUT
522 N 913004018004 NUT
Y YYYYYYYYYYYY PART NAME MISSING
526 N 910005010014 RIVET
10X26 MM
526 N 910005010016 RIVET
10X28 MM
526 N 910005010022 RIVET
10X34 MM
526 N 910005010024 RIVET
10X36 MM
526 N 910005010026 RIVET
10X38 MM
526 N 910005012011 RIVET
12X24 MM
526 N 910005012073 RIVET
12X28 MM
526 N 910005012080 RIVET
12X42 MM
526 N 910005012087 RIVET
12X58 MM
526 N 910005014056 RIVET
14X45 MM
526 N 910005014059 RIVET
14X55 MM
526 N 910005014066 RIVET
14X70 MM
526 N 910005016009 RIVET
16X36 MM
526 N 910005016017 RIVET
16X48 MM
526 N 910005016027 RIVET
16X58 MM
526 N 910005016027 RIVET
16X68 MM
530 A 6175461243 BRACKET
CABLE HARNESS MOUNTING
A 6361550651 SPACER RING
BRACKET TO CROSS MEMBER
534 N 000961012122 SCREW
BRACKET TO CROSS MEMBER
538 N 910113012002 NUT
BRACKET TO CROSS MEMBER
542 A 6193160060 MOUNTING PLATE
BODY MOUNTING
546 A 6193160160 MOUNTING PLATE
BODY MOUNTING
550 A 3853160160 MOUNTING PLATE
BODY MOUNTING
554 A 3589900814 SCREW
PLATE TO FRAME
M 14X34
554 A 3589900214 SCREW
PLATE TO FRAME
M 14X38
554 A 3589900314 SCREW
PLATE TO FRAME
M 14X40
558 N 913004014005 NUT
Repalced by: N 910113014000
558 N 910113014000 NUT
PLATE TO FRAME
562 A 0013152999 TRAILER COUPLING
(TOW BAR COUPLING)
566 A 0003151174 PIN
TRAILER COUPLING
570 N 005685004100 CHAIN
TRAILER COUPLING
574 N 005296025204 RING
TRAILER COUPLING
578 N 000960016171 SCREW
TRAILER COUPLING TO REAR CROSS MEMBER
582 N 913004016004 NUT
Repalced by: N 910113016002
582 N 910113016002 NUT
TRAILER COUPLING TO REAR CROSS MEMBER
586 A 3878912631 CONSOLE
CAB MOUNTING,FRONT
590 A 6203170223 STRUT
BUMPER,LEFT
590 A 6203170423 STRUT
BUMPER,RIGHT
594 N 000961014101 SCREW
Repalced by: N 308676014012
594 N 308676014012 SCREW
CONSOLE AND STRUT TO FRAME
M 14X45
598 N 000961014063 SCREW
Repalced by: A 9429901304
598 A 9429901304 SCREW
CONSOLE AND STRUT TO FRAME
M 14X40
602 N 913004014005 NUT
Repalced by: N 910113014000
602 N 910113014000 NUT
CONSOLE AND STRUT TO FRAME
606 A 6208902103 MOUNTING
CAB,LEFT
606 A 6208902203 MOUNTING
CAB, RIGHT
610 A 6208902003 MOUNTING
Repalced by: A 6208902903
610 A 6208902903 MOUNTING
614 N 007349017002 WASHER
616 N 913004016004 NUT
Repalced by: N 910113016002
618 N 910113016002 NUT
622 A 3815860031 REPAIR KIT
CAB SUSPENSION,FRONT
626 N 000961014028 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
M 14X40
630 N 912004014100 LOCK WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
634 N 000961014064 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
M 14X50
638 A 3209901840 WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
642 N 913004014002 NUT
Repalced by: N 910113014001
642 N 910113014001 NUT
LEFT AND RIGHT BEARING BRACKETS TO CAB
646 N 000961014063 SCREW
Repalced by: A 9429901304
646 A 9429901304 SCREW
CAB TO FRAME
M 14X40
646 N 000961014101 SCREW
Repalced by: N 308676014012
646 N 308676014012 SCREW
CAB TO FRAME
M 14X45
650 N 913004014005 NUT
Repalced by: N 910113014000
650 N 910113014000 NUT
CAB TO FRAME
654 A 3813171201 CONSOLE
CAB MOUNTING,REAR
654 A 3873170001 CONSOLE
Repalced by: A 6553170001
654 A 6553170001 CONSOLE
Repalced by: A 3873170001
654 A 3873170001 CONSOLE
CAB MOUNTING,REAR
658 N 000961014050 SCREW
Repalced by: N 308676014020
658 N 308676014020 SCREW
CONSOLE TO SIDE MEMBER
658 N 000961012097 SCREW
Repalced by: N 308676012026
658 N 308676012026 SCREW
CONSOLE TO SIDE MEMBER
662 N 913004014002 NUT
Repalced by: N 910113014001
662 N 910113014001 NUT
CONSOLE TO SIDE MEMBER
662 N 910113012002 NUT
CONSOLE TO SIDE MEMBER
666 A 3813171926 GUIDE
LEFT
666 A 3873170626 GUIDE
LEFT
666 A 3813172026 GUIDE
RIGHT
666 A 3873170726 GUIDE
RIGHT
670 N 000961012151 SCREW
GUIDE TO CAB
674 N 912004012100 LOCK WASHER
GUIDE TO CAB
678 A 3873170084 SHIM
GUIDE TO CAB
682 A 3813170750 BUSHING
LATERAL GUIDE OF CAB
686 A 3813170553 SPACER TUBE
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
690 N 000960012230 SCREW
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
694 N 910113012002 NUT
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
698 A 6208900019 SHOCK ABSORBER
Repalced by: A 6208900119
698 A 6208900119 SHOCK ABSORBER
CAB SUSPENSION,FRONT
698 A 6208900119 SHOCK ABSORBER
CAB SUSPENSION,FRONT
702 A 0008910201 RUBBER MOUNTING
TO 620 890 00 19
702 A 0008910301 RUBBER MOUNTING
TO 620 890 01 19
706 A 0008911051 SPRING
TO 620 890 00 19
706 A 0008911151 SPRING
TO 620 890 01 19
710 A 0008910123 BUFFER
TO 620 890 00 19
714 A 3813170753 SPACER TUBE
SHOCK ABSORBER MOUNTING
718 A 3275045082 RUBBER RING
SHOCK ABSORBER MOUNTING
722 N 000433015002 WASHER
Repalced by: N 000433015005
722 N 000433015005 WASHER
SHOCK ABSORBER MOUNTING
726 A 3878912010 WASHER
SHOCK ABSORBER MOUNTING
730 N 000934012022 NUT
SHOCK ABSORBER MOUNTING
734 N 001587012008 CAP NUT
Repalced by: N 001587012010
734 N 001587012010 CAP NUT
SHOCK ABSORBER MOUNTING
738 A 3813170031 COVER PLATE
SHOCK ABSORBER
742 N 000933008153 SCREW
Repalced by: N 304017008034
742 N 304017008034 SCREW
SHOCK ABSORBER TO CONSOLE
746 N 009021008205 WASHER
Repalced by: N 009021008213
746 N 009021008213 WASHER
SHOCK ABSORBER TO CONSOLE
750 N 913004008004 NUT
Repalced by: N 913004008001
750 N 913004008001 NUT
SHOCK ABSORBER TO CONSOLE
754 A 3813102075 LOCKING MECHANISM
CAB,LEFT
754 A 3813101975 LOCKING MECHANISM
CAB, RIGHT
758 A 3813170119 LATCH
762 A 3813172374 PIN
766 A 3813170924 LEVER
770 A 3813170676 WASHER
774 A 0009935426 DISC SPRING
778 N 001481006041 CLAMPING SLEEVE
782 N 910113012002 NUT
786 N 000933010105 SCREW
LOCKING MECHANISM TO CAB
790 N 912004010102 LOCK WASHER
LOCKING MECHANISM TO CAB
794 N 000125010518 WASHER
Repalced by: N 000125010532
794 N 000125010532 WASHER
LOCKING MECHANISM TO CAB
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
