Transporto priemonė: 3028 B; VIN numerio dalis: 625015

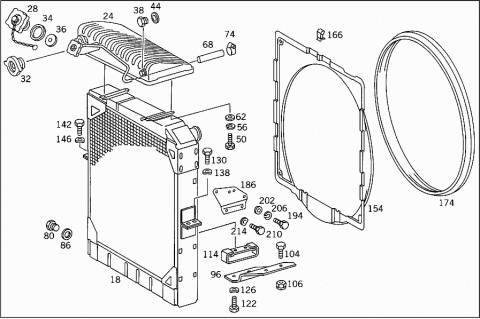

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|

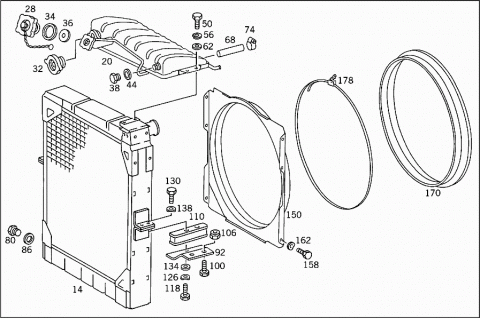

| 014 | A 0015010801 | RADIATOR |
| WATER | ||
| 018 | A 0005019101 | RADIATOR |
| WATER | ||
| 020 | A 0005000649 | TANK |
| COOLING WATER EXPANSION | ||
| 024 | A 0005000749 | TANK |
| COOLING WATER EXPANSION | ||
| 028 | A 0005014615 | RADIATOR CAP |
| FILLER NECK | ||
| 028 | A 0005017215 | RADIATOR CAP |
| FILLER NECK | ||
| 032 | A 0005013715 | RADIATOR CAP |
| LATERAL | ||
| 032 | A 0005017115 | RADIATOR CAP |
| LATERAL | ||
| 034 | A 0005010480 | GASKET |
| O.D., | ||
| 52 MM | ||
| 036 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 038 | A 0019973230 | SCREW PLUG |
| Repalced by: N 007604014101 | ||
| 038 | N 007604014101 | SCREW PLUG |
| WATER DRAIN | ||
| 044 | N 007603014405 | SEAL RING |
| WATER DRAIN | ||
| 050 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 050 | N 304017008016 | SCREW |
| FROM EXPANSION TANK TO RADIATOR | ||
| 056 | N 912004008102 | LOCK WASHER |
| FROM EXPANSION TANK TO RADIATOR | ||
| 062 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 062 | N 000125008443 | WASHER |
| FROM EXPANSION TANK TO RADIATOR | ||
| 068 | A 0149975782 | HOSE |
| OVERFLOW, EXPANSION TANK | ||
| 074 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 074 | N 000000000665 | CLAMP |
| OVERFLOW, EXPANSION TANK | ||
| 12-22X13 MM | ||
| 080 | A 0019973230 | SCREW PLUG |
| Repalced by: N 007604014101 | ||
| 080 | N 007604014101 | SCREW PLUG |
| WATER DRAIN | ||
| 086 | N 007603014405 | SEAL RING |
| WATER DRAIN | ||
| 092 | A 3835040101 | SUPPORT |
| RADIATOR | ||
| 096 | A 6205040201 | SUPPORT |
| RADIATOR,LEFT | ||
| 096 | A 6555040401 | SUPPORT |
| RADIATOR,LEFT | ||
| 100 | N 000961012092 | SCREW |
| Repalced by: N 000961012025 | ||
| 100 | N 000961012025 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 12X32 | ||
| 104 | N 000961012151 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 12X30 | ||
| 106 | N 910113012002 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 110 | A 3875040012 | RUBBER MOUNTING |
| RADIATOR | ||
| 114 | A 6205040112 | RUBBER MOUNTING |
| RADIATOR TO SUPPORT | ||
| 118 | N 000933010128 | SCREW |
| RUBBER MOUNTING TO SUPPORT | ||
| M10X20 | ||
| 122 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 122 | N 304017010028 | SCREW |
| RUBBER MOUNTING TO SUPPORT | ||
| M 10X20 | ||
| 126 | N 000137010201 | SPRING WASHER |
| RUBBER MOUNTING TO SUPPORT | ||
| 126 | N 000137010201 | SPRING WASHER |
| RUBBER MOUNTING TO SUPPORT | ||
| 130 | N 000933010105 | SCREW |
| RADIATOR TO RUBBER MOUNTING | ||
| M 10X25 | ||
| 130 | N 000933010105 | SCREW |
| RADIATOR TO RUBBER MOUNTING | ||
| M 10X25 | ||
| 130 | N 000933010128 | SCREW |
| RADIATOR TO RUBBER MOUNTING | ||
| M 10X20 | ||
| 134 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 134 | N 009021010209 | WASHER |
| RADIATOR TO RUBBER MOUNTING | ||
| 138 | N 000137010201 | SPRING WASHER |
| RADIATOR TO RUBBER MOUNTING | ||
| 142 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 142 | N 304017010028 | SCREW |
| RUBBER MOUNTING TO FRAME | ||
| M 10X20 | ||
| 146 | N 000137010201 | SPRING WASHER |
| RUBBER MOUNTING TO FRAME | ||
| 150 | A 6175050030 | AIR BAFFLE |
| RADIATOR | ||

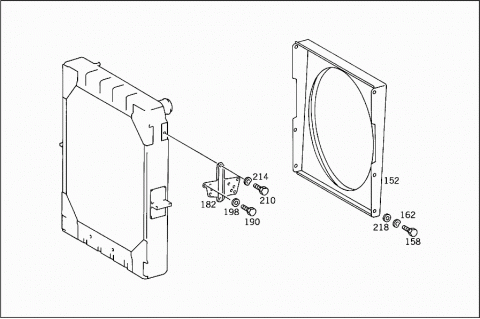

| 152 | A 6205050755 | FAN SHROUD |
| RADIATOR | ||
| 154 | A 6205050655 | FAN SHROUD |
| RADIATOR | ||
| 158 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 158 | N 304017006018 | SCREW |
| AIR BAFFLE TO RADIATOR | ||
| M 6X12 | ||
| 158 | N 000933006130 | SCREW |
| AIR BAFFLE TO RADIATOR | ||
| M 6X18 | ||
| 162 | N 000137006204 | SPRING WASHER |
| AIR BAFFLE TO RADIATOR | ||
| 162 | N 000137006204 | SPRING WASHER |
| GUIDE TUBE BRACKET TO RADIATOR | ||
| 166 | A 1235040246 | CLIP-TYPE NUT |
| FAN SHROUD TO RADIATOR | ||
| 170 | A 3635050180 | BOOT |
| AIR BAFFLE | ||
| 174 | A 6205050086 | BOOT |
| FAN SHROUD | ||
| 178 | A 3639950065 | CLAMP |
| BOOT TO AIR BAFFLE | ||
| 182 | A 4210100040 | BRACKET |
| OI DIPSTICK GUIDE TUBE | ||
| 186 | A 4220100240 | BRACKET |
| OI DIPSTICK GUIDE TUBE | ||
| 190 | N 000933008301 | SCREW |
| Repalced by: A 0079900801 | ||
| 190 | A 0079900801 | SCREW |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 194 | N 000933008145 | SCREW |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 198 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 198 | N 000125008443 | WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 202 | N 007349008003 | WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 206 | N 912004008102 | LOCK WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 210 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 210 | N 304017006016 | SCREW |
| AIR BAFFLE AND BRACKET TO RADIATOR | ||
| 210 | N 304017006016 | SCREW |
| GUIDE TUBE BRACKET TO RADIATOR | ||
| 214 | N 000137006204 | SPRING WASHER |
| AIR BAFFLE AND BRACKET TO RADIATOR | ||
| 214 | N 000137006204 | SPRING WASHER |
| GUIDE TUBE BRACKET TO RADIATOR | ||
| 218 | A 3859901140 | WASHER |
| AIR BAFFLE AND BRACKET TO RADIATOR | ||

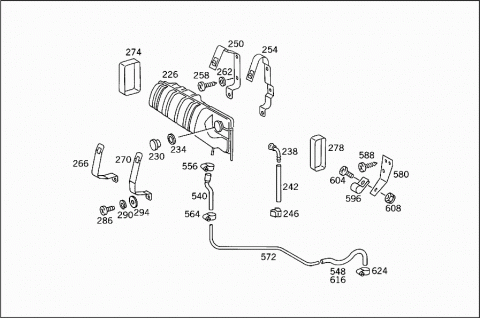

| 226 | A 6205000149 | TANK |
| (EXPANSION TANK) | ||
| 230 | A 0005014515 | RADIATOR CAP |
| TOP | ||
| 234 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 238 | A 0005010110 | DRAIN PIPE |
| 242 | A 0139978682 | HOSE |
| 246 | A 0009881878 | CLIP |
| DE-AERATION LINE TO CAB | ||
| 250 | A 6205000031 | BRACKET |
| EXPANSION TANK,RIGHT | ||
| 254 | A 6205000131 | BRACKET |
| EXPANSION TANK,LEFT | ||
| 258 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 262 | N 000125006421 | WASHER |
| BRACKET TO CAB | ||
| Repalced by: N 000125006449 | ||
| 262 | N 000125006449 | WASHER |
| BRACKET TO CAB | ||
| 266 | A 6205010320 | BRACKET |
| EXPANSION TANK,RIGHT | ||
| 270 | A 6205010420 | STRAP |
| EXPANSION TANK,LEFT | ||
| 274 | A 6205010195 | SHIM |
| EXPANSION TANK,RIGHT | ||
| 278 | A 6205010295 | SHIM |
| EXPANSION TANK,LEFT | ||
| 286 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 286 | N 000000001146 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| M 6X16 | ||
| 290 | N 912004006102 | LOCK WASHER |
| EXPANSION TANK TO BRACKET | ||
| 294 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 294 | N 009021006208 | WASHER |
| EXPANSION TANK TO BRACKET | ||

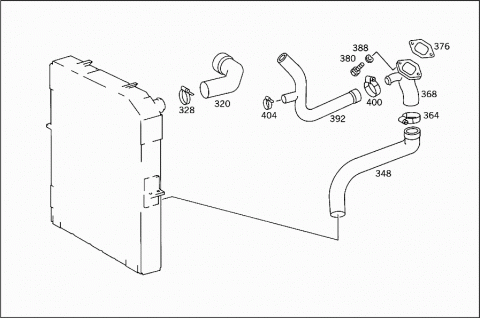

| 320 | A 6175010082 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 324 | A 6205011182 | HOSE |
| Repalced by: A 6175014982 | ||

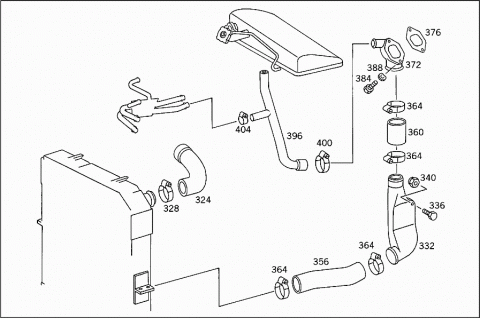

| 324 | A 6175014982 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 324 | A 6205011082 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 328 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 328 | N 000000000674 | CLAMP |
| HOSE TO THERMOSTAT AND TO RADIATOR | ||
| 70-90X13 MM | ||
| 328 | N 000000001468 | CLAMP |
| HOSE TO THERMOSTAT AND TO RADIATOR | ||
| 60-80X13 MM | ||
| 332 | A 6205010456 | PIPE ELBOW |
| Repalced by: A 6205010556 | ||
| 332 | A 6205010556 | PIPE ELBOW |
| Repalced by: A 6555010756 | ||
| 332 | A 6555010756 | PIPE ELBOW |
| FROM RADIATOR TO WATER PUMP | ||
| 336 | N 000931010282 | SCREW |
| PIPE ELBOW TO BRACKET | ||
| 340 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 340 | N 910113010000 | NUT |
| PIPE ELBOW TO BRACKET | ||
| 340 | N 910113010000 | NUT |
| PIPE ELBOW TO BRACKET | ||
| 348 | A 6175010182 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 356 | A 6205013882 | HOSE |
| Repalced by: A 6555011282 | ||
| 356 | A 6555011282 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 356 | A 6205013682 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 360 | N 900271070007 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 364 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 364 | N 000000000674 | CLAMP |
| HOSE TO RADIATOR AND TO WATER PUMP | ||
| 70-90X13 MM | ||
| 368 | A 6165010223 | CONNECTOR |
| AT WATER PUMP | ||
| 372 | A 3875011223 | CONNECTOR |
| Repalced by: A 6205010223 | ||
| 372 | A 6205010223 | CONNECTOR |
| AT WATER PUMP | ||
| 372 | A 6205010023 | CONNECTOR |
| Repalced by: A 6205010323 | ||
| 372 | A 6205010323 | CONNECTOR |
| AT WATER PUMP | ||
| 376 | A 4032010480 | GASKET |
| Repalced by: A 4422010480 | ||
| 376 | A 4422010480 | GASKET |
| CONNECTOR TO WATER PUMP | ||
| Repalced by: A 0002011080 | ||
| 376 | A 0002011080 | GASKET |
| CONNECTOR TO WATER PUMP | ||
| 380 | N 000933010164 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| M 10X22 | ||
| 384 | N 000933010105 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| M 10X25 | ||
| 384 | N 000931010271 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| M 10X60 | ||
| 388 | N 000137010201 | SPRING WASHER |
| CONNECTOR TO WATER PUMP | ||
| 392 | A 6175012782 | HOSE |
| FROM EXPANSION TANK TO WATER PUMP | ||
| 396 | A 6205012082 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 400 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 400 | N 000000000670 | CLAMP |
| HOSE TO EXPANSION TANK AND TO WATER PUMP | ||
| 35-50 X13 MM | ||
| 404 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 404 | N 000000000667 | CLAMP |
| HOSE TO HEATING PIPE | ||
| 20-32X13 MM | ||
| 404 | N 000000000667 | CLAMP |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 20-32X13 MM | ||
| 408 | A 6175000079 | FLANGE |
| HEATING AND BREATHING | ||
| 408 | A 6175000079 | FLANGE |
| HEATING AND BREATHING | ||
| 410 | A 6205000679 | FLANGE |
| DE-AERATION | ||

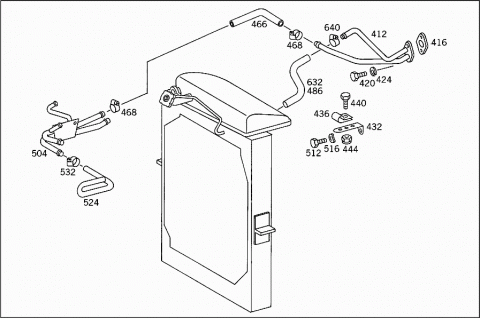

| 412 | A 6205000079 | FLANGE |
| HEATING AND BREATHING | ||

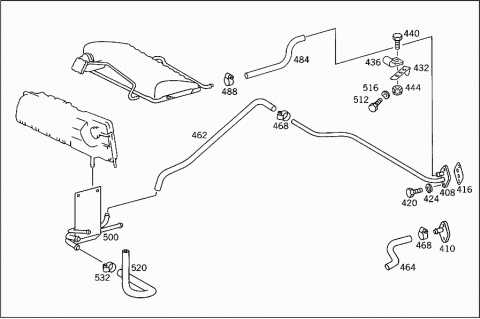

| 414 | A 6175000179 | FLANGE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 415 | A 6205000579 | FLANGE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 416 | N 917003040008 | GASKET |
| FLANGE TO ENGINE | ||
| 420 | N 000933010105 | SCREW |
| FLANGE TO ENGINE | ||
| 424 | N 912004010102 | LOCK WASHER |
| FLANGE TO ENGINE | ||
| 432 | A 3875011420 | BRACKET |
| HEATING PIPE TO ENGINE | ||
| 432 | A 3875011420 | BRACKET |
| HEATING PIPE | ||
| 433 | A 3818320714 | BRACKET |
| HEATING PIPE TO FAN SHROUD BRACKET | ||
| 433 | A 3818320714 | BRACKET |
| HEATING PIPE TO FAN SHROUD BRACKET | ||

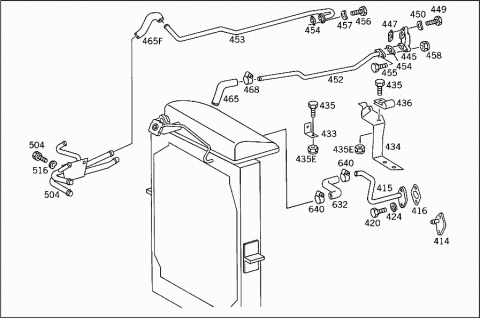

| 434 | A 6205062340 | BRACKET |
| HEATING WATER LINE | ||
| 435 | N 000933006130 | SCREW |
| BRACKET TO FAN SHROUD BRACKET | ||
| 435E | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 435E | N 913004006001 | NUT |
| BRACKET TO FAN SHROUD BRACKET | ||
| 436 | A 3609950601 | CLAMP |
| HEATING PIPE TO ANGLE | ||
| 436 | A 3609950601 | CLAMP |
| HEATING PIPE TO FAN SHROUD BRACKET | ||
| 440 | N 000933006130 | SCREW |
| HEATING WATER LINE TO BRACKET | ||
| 440 | N 000933006130 | SCREW |
| HEATING PIPE TO FAN SHROUD BRACKET | ||
| 444 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 444 | N 913004006001 | NUT |
| HEATING WATER LINE TO BRACKET | ||
| 444 | N 913004006001 | NUT |
| HEATING PIPE TO FAN SHROUD BRACKET | ||
| 445 | A 6205060161 | FLANGE |
| Repalced by: A 6205060261 | ||
| 445 | A 6205060261 | FLANGE |
| HEATING WATER LINE | ||
| 447 | N 917003022003 | GASKET |
| FLANGE TO ENGINE | ||
| 449 | N 000933008116 | SCREW |
| Repalced by: N 000933008337 | ||
| 449 | N 000933008337 | SCREW |
| Repalced by: A 0099900101 | ||
| 449 | A 0099900101 | SCREW |
| FLANGE TO ENGINE | ||
| 450 | N 000137008107 | SPRING WASHER |
| Repalced by: N 000137008204 | ||
| 450 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 450 | N 000137008212 | SPRING WASHER |
| FLANGE TO ENGINE | ||
| 452 | A 6205003472 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 453 | A 6205003672 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 454 | N 917003022003 | GASKET |
| HEATING WATER LINE TO FLANGE | ||
| 454 | N 917003022003 | GASKET |
| HEATING PIPE TO ENGINE | ||
| 455 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 455 | N 304017008018 | SCREW |
| HEATING WATER LINE TO FLANGE | ||
| 456 | N 000933008291 | SCREW |
| Repalced by: A 4609900601 | ||
| 456 | A 4609900601 | SCREW |
| HEATING PIPE TO ENGINE | ||
| 457 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 457 | N 000137008212 | SPRING WASHER |
| HEATING PIPE TO ENGINE | ||
| 458 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 458 | N 913004008001 | NUT |
| HEATING WATER LINE TO FLANGE | ||
| 462 | A 6175060235 | HOSE |
| FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR | ||
| 462 | A 6175060235 | HOSE |
| FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR | ||
| 464 | A 6205062135 | HOSE |
| HEATING PIPE TO RADIATOR | ||
| 465 | A 6205062935 | HOSE |
| FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR | ||
| 465F | A 6175014482 | HOSE |
| FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR | ||
| 466 | A 6205060035 | HOSE |
| FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR | ||
| 468 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 468 | N 000000000667 | CLAMP |
| HOSE TO HEATING PIPE | ||
| 20-32X13 MM | ||
| 484 | A 6175010382 | HOSE |
| DE-AERATION; FROM FLANGE TO COOLING WATER EXPANSION TANK | ||
| 486 | A 3875011682 | HOSE |
| DE-AERATION; FROM FLANGE TO COOLING WATER EXPANSION TANK | ||
| 488 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 488 | N 000000000667 | CLAMP |
| HOSE TO BREATHER PIPE AND TO ESPANSION TANK | ||
| 20-32X13 MM | ||
| 500 | A 6175001372 | LINE |
| HEATING AND BREATHING | ||
| 504 | A 6205002672 | LINE |
| Repalced by: A 6205002872 | ||
| 504 | A 6205002872 | LINE |
| HEATING AND BREATHING | ||
| 512 | N 000933006130 | SCREW |
| HEATING PIPE TO RADIATOR | ||
| 512 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 512 | N 304017006016 | SCREW |
| HEATING PIPE TO RADIATOR | ||
| 516 | N 000137006204 | SPRING WASHER |
| HEATING PIPE TO RADIATOR | ||
| 520 | A 3835060035 | HOSE |
| FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE | ||
| 524 | A 6205062035 | HOSE |
| HEATING PIPE | ||
| 532 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 532 | N 000000000667 | CLAMP |
| HEATING; TO CAB | ||
| 20-32X13 MM | ||
| 540 | A 6205012882 | HOSE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 548 | N 900271008043 | HOSE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 556 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 556 | N 000000000667 | CLAMP |
| HOSE TO EXPANSION TANK | ||
| 20-32X13 MM | ||
| 564 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 564 | N 000000000665 | CLAMP |
| HOSE TO BREATHER PIPE | ||
| 12-22X13 MM | ||
| 572 | A 6175010225 | BREATHER PIPE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 580 | A 6175010420 | BRACKET |
| DE-AERATION LINE | ||
| 588 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 596 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 596 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 596 | N 916016008200 | CLAMP |
| Repalced by: N 000000000319 | ||
| 596 | N 000000000319 | CLAMP |
| DE-AERATION LINE TO BRACKET | ||
| 604 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 604 | N 000000001146 | SCREW |
| DE-AERATION LINE TO BRACKET | ||
| M 6X16 | ||
| 608 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 608 | N 913004006001 | NUT |
| DE-AERATION LINE TO BRACKET | ||
| 616 | N 900271008043 | HOSE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 624 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 624 | N 000000000665 | CLAMP |
| HOSE TO BREATHER PIPE | ||
| 12-22X13 MM | ||
| 632 | A 3875011682 | HOSE |
| DE-AERATION; FROM FLANGE TO COOLING WATER EXPANSION TANK | ||
| 640 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 640 | N 000000000667 | CLAMP |
| HOSE TO BREATHER PIPE AND TO ESPANSION TANK | ||
| 20-32X13 MM | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
