Transporto priemonė: 3028 B; VIN numerio dalis: 625015
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |

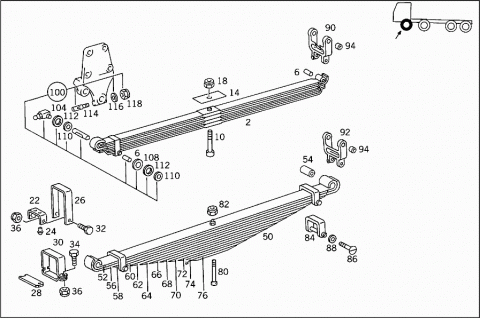

| FRONT AXLE I | ||
| 002 | A 6173200302 | FRONT SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| "4" | ||
| 002 | A 6173201502 | FRONT SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| "4" | ||
| 002 | A 6233200102 | FRONT SPRING |
| (PARABOLIC SPRING),5-LEAF;LEFT | ||
| 002 | A 6233200202 | FRONT SPRING |
| Repalced by: A 6233200102 | ||
| 002 | A 6233200102 | FRONT SPRING |
| (PARABOLIC SPRING),5-LEAF;RIGHT | ||
| 006 | A 3523220050 | BUSHING |
| 006 | A 3853220050 | BUSHING |
| 006 | A 3043210150 | BUSHING |
| 006 | A 6203210050 | BUSHING |
| 010 | N 004626012107 | SPRING BOLT |
| M 12X115 | ||
| 010 | A 3323210071 | SCREW |
| (SPRING BOLT) | ||
| 014 | A 3853210284 | SHIM |
| Repalced by: A 3963210084 | ||
| 014 | A 3963210084 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| 014 | A 3933210284 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| 018 | N 913004012007 | NUT |
| Repalced by: N 910113012005 | ||
| 018 | N 910113012005 | NUT |
| SPRING BOLT | ||
| 018 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 018 | N 910113014000 | NUT |
| SPRING BOLT | ||
| 022 | A 6173210135 | CLAMP |
| SPRING CLAMP TO SPRING LEAF NO.4 | ||
| 024 | N 910006008024 | RIVET |
| CLAMP TO SPRING LEAF | ||
| 026 | A 6173210233 | SPRING CLAMP |
| Repalced by: A 6753210133 | ||
| 026 | A 6753210133 | SPRING CLAMP |
| Repalced by: A 6763210033 | ||
| 026 | A 6763210033 | SPRING CLAMP |
| FRONT SPRING | ||
| 028 | A 6233210133 | SPRING CLAMP |
| FRONT SPRING | ||
| 030 | A 6243210033 | SPRING CLAMP |
| FRONT SPRING | ||
| A 6253240033 | SPRING CLAMP | |
| FRONT SPRING | ||
| 032 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 032 | N 304017008027 | SCREW |
| SPRING CLAMP TO CLAMP | ||
| 034 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 034 | N 304017008034 | SCREW |
| SPRING CLAMP | ||
| N 000963012011 | SCREW | |
| SPRING CLAMP | ||
| A 0003212753 | SPACER TUBE | |
| SPRING CLAMP | ||
| 036 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 036 | N 913004008001 | NUT |
| SPRING CLAMP TO CLAMP | ||
| 036 | N 913004008001 | NUT |
| SPRING CLAMP | ||
| N 910006008023 | RIVET | |
| SPRING CLAMP TO SPRING LEAF | ||
| 050 | A 6243200002 | FRONT SPRING |
| (TRAPEZOIDAL SPRING);NUMBER OF LEAVES: | ||
| "12" | ||
| 052 | A 6243200394 | SPRING LEAF |
| Repalced by: A 6243200594 | ||
| 052 | A 6243200594 | SPRING LEAF |
| NO.1 | ||
| 054 | A 3043210150 | BUSHING |
| 054 | A 6203210050 | BUSHING |
| 056 | A 6243210012 | SPRING LEAF |
| Repalced by: A 6243210912 | ||
| 056 | A 6243210912 | SPRING LEAF |
| NO.2 | ||
| 058 | A 6243210013 | SPRING LEAF |
| NO.3 | ||
| 060 | A 6243210014 | SPRING LEAF |
| NO.4 | ||
| 062 | A 6243210015 | SPRING LEAF |
| NO.5 | ||
| 064 | A 6243210016 | SPRING LEAF |
| NO.6 | ||
| 066 | A 6243210017 | SPRING LEAF |
| NO.7 | ||
| 068 | A 6243210018 | SPRING LEAF |
| NO.8 | ||
| 070 | A 6243210019 | SPRING LEAF |
| NO.9 | ||
| 072 | A 6243210020 | SPRING LEAF |
| Repalced by: A 6593210020 | ||
| 072 | A 6593210020 | SPRING LEAF |
| NO.10 | ||
| 074 | A 6243210021 | SPRING LEAF |
| NO.11 | ||
| 076 | A 6243210022 | SPRING LEAF |
| NO.12 | ||
| 080 | A 3463215071 | SCREW |
| (SPRING BOLT) | ||
| 082 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 082 | N 910113014000 | NUT |
| SPRING BOLT | ||
| 084 | A 6203240833 | SPRING CLAMP |
| Repalced by: A 6203240533 | ||
| 084 | A 6203240533 | SPRING CLAMP |
| SPRING EYE,FRONT AND REAR | ||
| 084 | A 6203240533 | SPRING CLAMP |
| SPRING EYE,REAR | ||
| 084 | A 6593240133 | SPRING CLAMP |
| SPRING EYE,FRONT | ||
| 086 | N 000963012011 | SCREW |
| FOR SPRING CLAMPS | ||
| 088 | A 3039902440 | WASHER |
| FOR SPRING CLAMPS | ||
| 090 | A 6193200062 | SHACKLE |
| Repalced by: A 6253200062 | ||
| 090 | A 6253200062 | SHACKLE |
| FRONT-SPRING CENTRAL BRACKET | ||
| 092 | A 6993200362 | SHACKLE |
| Repalced by: A 6993220220 | ||
| 092 | A 6993220220 | SHACKLE |
| FRONT-SPRING CENTRAL BRACKET | ||
| 094 | A 6243220050 | BUSHING |
| SHACKLE | ||
| 100 | A 6193200065 | SHACKLE PIN |
| (PARTS KIT),FRONT SPRING TO FRONT SPRING FRONT BRACKET | ||
| 100 | A 6193200065 | SHACKLE PIN |
| PARTS KIT, LEFT FRONT SPRING AT LINK | ||
| 100 | A 6253200065 | SHACKLE PIN |
| PARTS KIT, RIGHT FRONT SPRING AT LINK | ||
| 100 | A 3953200165 | SHACKLE PIN |
| PARTS KIT, FRONT LEFT FRONT SPRING | ||
| 100 | A 3953200165 | SHACKLE PIN |
| PARTS KIT, RIGHT FRONT SPRING AT LINK | ||
| 100 | A 3953200265 | SHACKLE PIN |
| PARTS KIT, FRONT RIGHT FRONT SPRING | ||
| 100 | A 3953200265 | SHACKLE PIN |
| PARTS KIT, LEFT FRONT SPRING AT LINK | ||
| 104 | N 071412010300 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 104 | N 071412010100 | GREASE NIPPLE |
| SHACKLE | ||
| 108 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 108 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 108 | A 3523230576 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 110 | A 3853220076 | WASHER |
| FRONT SPRING TO SPRING BRACKET AND TO SHACKLE | ||
| 7.00 MM | ||
| 112 | A 0029973140 | SEAL RING |
| SPRING SUSPENSION | ||
| 114 | A 3529900337 | BOLT |
| SPRING PIN LOCK | ||
| 116 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 116 | N 000125010532 | WASHER |
| SPRING PIN LOCK | ||
| 118 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 118 | N 910113010000 | NUT |
| SPRING PIN LOCK | ||
| 120 | A 3873310226 | PLATE |
| Repalced by: A 6203310026 | ||
| 120 | A 6203310026 | PLATE |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 120 | A 6203310026 | PLATE |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 122 | A 3873310144 | RUBBER BUFFER |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 124 | A 6193230184 | SHIM |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 126 | A 6223210084 | SHIM |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 128 | A 3853210484 | SHIM |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 130 | A 6993200843 | BRACKET |
| Repalced by: A 3913230540 | ||
| 130 | A 3913230540 | BRACKET |
| FRONT AXLE I SHOCK ABSORBER,LEFT BOTTOM | ||
| 130 | A 6193201043 | BRACKET |
| FRONT AXLE I SHOCK ABSORBER,LEFT BOTTOM | ||
| 130 | A 6193201043 | BRACKET |
| FRONT AXLE I SHOCK ABSORBER,LEFT BOTTOM | ||
| 130 | A 6993200943 | BRACKET |
| Repalced by: A 3913230640 | ||
| 130 | A 3913230640 | BRACKET |
| FRONT AXLE I SHOCK ABSORBER,RIGHT BOTTOM | ||
| 130 | A 6193201143 | BRACKET |
| FRONT AXLE I SHOCK ABSORBER,RIGHT BOTTOM | ||
| 130 | A 6193201143 | BRACKET |
| FRONT AXLE I SHOCK ABSORBER,RIGHT BOTTOM | ||
| 132 | A 6243230040 | BRACKET |
| Repalced by: A 6193201043 | ||
| 132 | A 6243230140 | BRACKET |
| Repalced by: A 6193201143 | ||
| 134 | A 6993230050 | BUSHING |
| SHOCK ABSORBER BRACKET | ||
| 138 | A 6233310128 | SHIM |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 138 | A 3353310328 | SHIM |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 140 | A 3449917260 | DOWEL PIN |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 142 | A 3893230074 | PIN |
| Repalced by: A 6573310074 | ||
| 142 | A 6573310074 | PIN |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 144 | A 3043311925 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 275 MM | ||
| 174 | A 3043311925 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 275 MM | ||
| 144 | A 3363310025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 310 MM | ||
| 144 | A 3333310125 | U-BOLT |
| Repalced by: A 3363310025 | ||
| 144 | A 3363310025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 290 MM | ||
| 144 | A 3363310025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 290 MM | ||
| 144 | A 3203310325 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 212 MM | ||
| 144 | A 3043311625 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 245 MM | ||
| 144 | A 3043311625 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 245 MM | ||
| 146 | A 6193230063 | BEARING BRACKET |
| FRONT AXLE I TORSION BAR | ||
| 146 | A 6193230063 | BEARING BRACKET |
| FRONT AXLE I TORSION BAR | ||
| 146 | A 6193230063 | BEARING BRACKET |
| FRONT AXLE I TORSION BAR | ||
| 148 | A 6203230020 | BEARING |
| TORSION BAR,LEFT | ||
| 148 | A 6203230120 | BEARING |
| TORSION BAR,RIGHT | ||
| 150 | N 000934020008 | NUT |
| Repalced by: N 308673020002 | ||
| 150 | N 308673020002 | NUT |
| Repalced by: N 308674020000 | ||
| 150 | N 308674020000 | NUT |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 152 | A 3833240008 | HELPER SPRING |
| FRONT AXLE I | ||
| 154 | A 3953210040 | BRACKET |
| Repalced by: A 6193210140 | ||
| 154 | A 6193210140 | BRACKET |
| Repalced by: A 6253210840 | ||
| 154 | A 6253210840 | BRACKET |
| HELPER SPRING | ||
| 156 | N 000933010145 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 158 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 158 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 159 | A 6193200943 | BRACKET |
| FRONT SPRING STOP | ||
| 160 | A 6173260065 | TORSION BAR |
| FRONT AXLE I | ||
| 160 | A 6173260065 | TORSION BAR |
| FRONT AXLE I | ||
| 162 | A 3873230165 | TORSION BAR |
| FRONT AXLE I | ||
| 163 | A 6203230165 | TORSION BAR |
| Repalced by: A 6523230765 | ||
| 163 | A 6523230765 | TORSION BAR |
| FRONT AXLE I | ||
| 164 | A 0009817231 | JOINT BEARING |
| Repalced by: A 0019814631 | ||
| 164 | A 0019814631 | JOINT BEARING |
| TORSION BAR,FRONT | ||
| 164 | A 0019814631 | JOINT BEARING |
| TORSION BAR,FRONT | ||
| A 0019814831 | JOINT BEARING | |
| TORSION BAR,FRONT | ||
| A 0019814831 | JOINT BEARING | |
| TORSION BAR,FRONT | ||
| 166 | A 6203230050 | BUSHING |
| TORSION BAR TO BEARING | ||
| 166 | A 6203230250 | BUSHING |
| LINK TO TORSION BAR | ||
| 168 | N 000472035000 | LOCK RING |
| TORSION BAR,FRONT | ||
| 168 | N 000472035000 | LOCK RING |
| TORSION BAR,FRONT | ||
| 170 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 170 | N 071412008102 | GREASE NIPPLE |
| TORSION BAR,FRONT | ||
| 170 | N 071412008102 | GREASE NIPPLE |
| TORSION BAR,FRONT | ||
| 172 | A 6173230040 | BRACKET |
| TORSION BAR | ||
| 172 | A 6173230040 | BRACKET |
| TORSION BAR | ||
| 172 | A 6213230340 | BRACKET |
| TORSION BAR | ||
| 174 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 174 | N 308676012012 | SCREW |
| BRACKET TO TORSION BAR | ||
| 174 | N 308676012012 | SCREW |
| BRACKET TO TORSION BAR | ||
| 174 | N 308676012012 | SCREW |
| BRACKET TO TORSION BAR | ||
| 176 | N 910113012002 | NUT |
| BRACKET TO TORSION BAR | ||
| 176 | N 910113012002 | NUT |
| BRACKET TO TORSION BAR | ||
| 176 | N 910113012002 | NUT |
| BRACKET TO TORSION BAR | ||
| 178 | A 3873230385 | RUBBER MOUNTING |
| TORSION BAR | ||
| 178 | A 3873230385 | RUBBER MOUNTING |
| TORSION BAR | ||

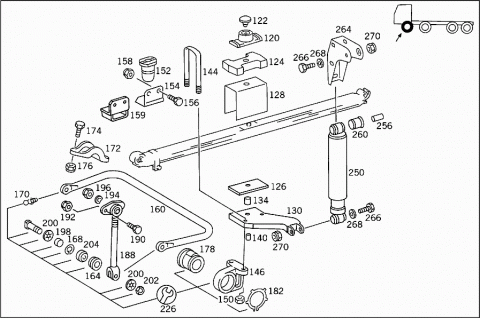

| 180 | A 3873230285 | RUBBER MOUNTING |
| TORSION BAR | ||
| 182 | N 000983068000 | LOCK RING |
| RUBBER MOUNTING | ||
| 182 | N 000983068000 | LOCK RING |
| RUBBER MOUNTING | ||
| 184 | N 007349017002 | WASHER |
| TORSION BAR TO BEARING | ||
| 186 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 186 | N 910113016001 | NUT |
| TORSION BAR TO BEARING | ||
| 188 | A 6173200089 | ROD |
| (ARTICULATED ROD) | ||
| 188 | A 6173200089 | ROD |
| (ARTICULATED ROD) | ||
| 190 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 190 | N 308676012026 | SCREW |
| ROD TO FRAME | ||
| 190 | N 308676012026 | SCREW |
| ROD TO FRAME | ||
| 192 | N 910113012002 | NUT |
| ROD TO FRAME | ||
| 192 | N 910113012002 | NUT |
| ROD TO FRAME | ||
| 194 | N 006796016101 | CONICAL SPRING WASHER |
| ROD TO FRAME | ||
| 194 | N 006796016101 | CONICAL SPRING WASHER |
| ROD TO FRAME | ||
| 196 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 196 | N 910113016002 | NUT |
| ROD TO FRAME | ||
| 196 | N 910113016002 | NUT |
| ROD TO FRAME | ||
| 198 | A 3603230153 | SPACER TUBE |
| ROD TO TORSION BAR | ||
| 198 | A 3603230153 | SPACER TUBE |
| ROD TO TORSION BAR | ||
| 200 | N 006797021201 | TOOTHED WASHER |
| ROD TO TORSION BAR | ||
| 200 | N 006797021201 | TOOTHED WASHER |
| ROD TO TORSION BAR | ||
| 200 | N 006797021101 | TOOTHED WASHER |
| ROD TO TORSION BAR | ||
| 200 | N 006797021101 | TOOTHED WASHER |
| ROD TO TORSION BAR | ||
| 201 | N 007349017002 | WASHER |
| LINK TO TORSION BAR | ||
| 202 | N 000936020010 | NUT |
| ROD TO TORSION BAR | ||
| 202 | N 000936020010 | NUT |
| ROD TO TORSION BAR | ||
| 202 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 202 | N 910113016001 | NUT |
| LINK TO TORSION BAR | ||
| 204 | A 3603230460 | SEAL RING |
| ROD TO TORSION BAR | ||
| 204 | A 3603230460 | SEAL RING |
| ROD TO TORSION BAR | ||

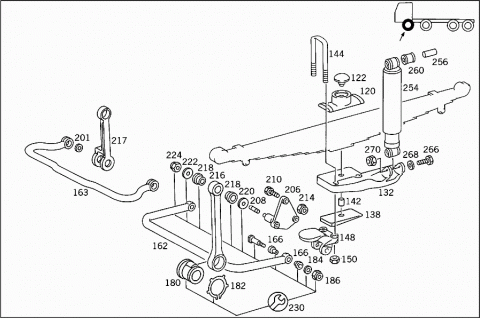

| 206 | A 3873200178 | CONSOLE |
| Repalced by: A 3873230563 | ||
| 206 | A 3873230563 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 206 | A 6223200178 | CONSOLE |
| Repalced by: A 6223230163 | ||
| 206 | A 6223230163 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 208 | N 000939012102 | STUD BOLT |
| 208 | N 000939014036 | STUD BOLT |
| 210 | N 000961016142 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X30 | ||
| 210 | N 000961016040 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X45 | ||
| 214 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 214 | N 910113016002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 214 | N 910113016002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 216 | A 6203230016 | LINK |
| TORSION BAR,FRONT | ||
| 217 | A 6223230216 | LINK |
| TORSION BAR,FRONT | ||
| 218 | A 0003232150 | BUSHING |
| LINK TO CONSOLE | ||
| 218 | A 6203230150 | BUSHING |
| LINK TO CONSOLE | ||
| 220 | A 3873230052 | SPACER WASHER |
| LINK TO CONSOLE | ||
| 222 | A 3873230152 | SPACER WASHER |
| LINK TO CONSOLE | ||
| 222 | A 6203230052 | SPACER WASHER |
| LINK TO CONSOLE | ||
| 224 | N 910113012002 | NUT |
| LINK TO CONSOLE | ||
| 224 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 224 | N 910113014001 | NUT |
| LINK TO CONSOLE | ||
| N 000961014127 | SCREW | |
| LINK TO CONSOLE | ||
| 226 | A 6173200128 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 226 | A 6173200128 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 230 | A 6203200428 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 230 | A 6473200028 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 250 | A 0033239800 | SHOCK ABSORBER |
| Repalced by: A 0043239900 | ||
| 250 | A 0043235700 | SHOCK ABSORBER |
| Repalced by: A 0043239900 | ||
| 250 | A 0043239900 | SHOCK ABSORBER |
| FRONT AXLE I | ||
| 250 | A 0033233200 | SHOCK ABSORBER |
| Repalced by: A 0063230900 | ||
| 250 | A 0033233300 | SHOCK ABSORBER |
| Repalced by: A 0043239200 | ||
| 250 | A 0043239200 | SHOCK ABSORBER |
| Repalced by: A 0063230900 | ||
| 250 | A 0063230900 | SHOCK ABSORBER |
| FRONT AXLE I | ||
| 254 | A 0033238300 | SHOCK ABSORBER |
| Repalced by: A 0043239800 | ||
| 254 | A 0043239800 | SHOCK ABSORBER |
| FRONT AXLE I | ||
| 254 | A 0013263100 | SHOCK ABSORBER |
| Repalced by: A 0043239700 | ||
| 254 | A 0043239700 | SHOCK ABSORBER |
| FRONT AXLE I | ||
| 256 | A 0003232550 | BUSHING |
| Repalced by: A 0003233150 | ||
| 256 | A 0003233150 | SPACER RING |
| TO 003 323 98 00,003 323 32 00,33 00 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 97 00,004 323 99 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 001 323 31 00,006 323 09 00 | ||
| 256 | A 0003235250 | BUSHING |
| TO 004 323 57 00,004 323 92 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 98 00 | ||
| 260 | A 0003232444 | RUBBER BUFFER |
| Repalced by: A 0003232885 | ||
| 260 | A 0003232885 | RUBBER MOUNTING |
| TO 003 323 98 00,003 323 32 00,33 00 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 97 00,004 323 99 00 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 001 323 31 00,006 323 09 00 | ||
| 260 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 260 | A 0003233144 | RUBBER BUFFER |
| TO 004 323 57 00,004 323 92 00, | ||
| Repalced by: A 0003238085 | ||
| 260 | A 0003238085 | RUBBER MOUNTING |
| TO 004 323 57 00,004 323 92 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 98 00 | ||
| 264 | A 6193200143 | BRACKET |
| FRONT AXLE I SHOCK ABSORBER,TOP | ||
| 266 | N 000960016244 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| M 16X90 | ||
| 266 | N 000960016244 | SCREW |
| SHOCK ABSORBER TO BOTTOM BRACKET | ||
| M 16X90 | ||
| 266 | N 000960016164 | SCREW |
| Repalced by: N 000960016250 | ||
| 266 | N 000960016250 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| M 16X85 | ||
| 268 | N 009021017201 | WASHER |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 270 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 270 | N 910113016002 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FRONT AXLE II | ||

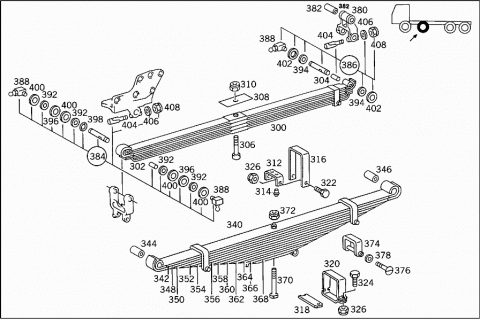

| 300 | A 6193201002 | FRONT SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| "4" | ||
| 300 | A 6173201702 | FRONT SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| "4" | ||
| 300 | A 6233200302 | FRONT SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| "5" | ||
| 302 | A 6993230150 | BUSHING |
| FRONT | ||
| 302 | A 3953210150 | BUSHING |
| FRONT | ||
| 302 | A 3953210250 | BUSHING |
| FRONT | ||
| 304 | A 3523220050 | BUSHING |
| REAR | ||
| 304 | A 3853220050 | BUSHING |
| REAR | ||
| 304 | A 3043210150 | BUSHING |
| REAR | ||
| 304 | A 6203210050 | BUSHING |
| REAR | ||
| 306 | N 004626012107 | SPRING BOLT |
| M 12X115 | ||
| 306 | A 3323210071 | SCREW |
| (SPRING BOLT) | ||
| 308 | A 3853210284 | SHIM |
| Repalced by: A 3963210084 | ||
| 308 | A 3963210084 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| 308 | A 3933210284 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| 310 | N 913004012007 | NUT |
| Repalced by: N 910113012005 | ||
| 310 | N 910113012005 | NUT |
| SPRING BOLT | ||
| 310 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 310 | N 910113014000 | NUT |
| SPRING BOLT | ||
| 312 | A 6173210135 | CLAMP |
| SPRING CLAMP TO SPRING LEAF NO.3 | ||
| 314 | N 910006008024 | RIVET |
| CLAMP TO SPRING LEAF | ||
| 316 | A 6173210233 | SPRING CLAMP |
| Repalced by: A 6753210133 | ||
| 316 | A 6753210133 | SPRING CLAMP |
| Repalced by: A 6763210033 | ||
| 316 | A 6763210033 | SPRING CLAMP |
| FRONT SPRING | ||
| 318 | A 6233210133 | SPRING CLAMP |
| FRONT SPRING | ||
| 320 | A 6243210033 | SPRING CLAMP |
| FRONT SPRING | ||
| A 6253240133 | SPRING CLAMP | |
| FRONT SPRING | ||
| 322 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 322 | N 304017008027 | SCREW |
| SPRING CLAMP TO CLAMP | ||
| 324 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 324 | N 304017008034 | SCREW |
| SPRING CLAMP | ||
| N 000963012011 | SCREW | |
| SPRING CLAMP | ||
| A 0003212753 | SPACER TUBE | |
| SPRING CLAMP | ||
| 326 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 326 | N 913004008001 | NUT |
| SPRING CLAMP TO CLAMP | ||
| 326 | N 913004008001 | NUT |
| SPRING CLAMP | ||
| N 910006008023 | RIVET | |
| SPRING CLAMP TO SPRING LEAF | ||
| 340 | A 6243200102 | FRONT SPRING |
| (TRAPEZOIDAL SPRING);NUMBER OF LEAVES: | ||
| "12" | ||
| 342 | A 6243200294 | SPRING LEAF |
| Repalced by: A 6243200494 | ||
| 342 | A 6243200494 | SPRING LEAF |
| NO.1 | ||
| 344 | A 3953210150 | BUSHING |
| FRONT | ||
| 344 | A 3953210250 | BUSHING |
| FRONT | ||
| 346 | A 3043210150 | BUSHING |
| REAR | ||
| 346 | A 6203210050 | BUSHING |
| REAR | ||
| 348 | A 6243210112 | SPRING LEAF |
| Repalced by: A 6243211012 | ||
| 348 | A 6243211012 | SPRING LEAF |
| NO.2 | ||
| 350 | A 6243210113 | SPRING LEAF |
| NO.3 | ||
| 352 | A 6243210114 | SPRING LEAF |
| NO.4 | ||
| 354 | A 6243210115 | SPRING LEAF |
| NO.5 | ||
| 356 | A 6243210116 | SPRING LEAF |
| NO.6 | ||
| 358 | A 6243210117 | SPRING LEAF |
| NO.7 | ||
| 360 | A 6243210118 | SPRING LEAF |
| NO.8 | ||
| 362 | A 6243210119 | SPRING LEAF |
| NO.9 | ||
| 364 | A 6243210120 | SPRING LEAF |
| NO.10 | ||
| 366 | A 6243210121 | SPRING LEAF |
| NO.11 | ||
| 368 | A 6243210122 | SPRING LEAF |
| NO.12 | ||
| 370 | A 3463215071 | SCREW |
| (SPRING BOLT) | ||
| 372 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 372 | N 910113014000 | NUT |
| SPRING BOLT | ||
| 374 | A 6243240133 | SPRING CLAMP |
| Repalced by: A 6253240033 | ||
| 374 | A 6253240033 | SPRING CLAMP |
| FRONT SPRINGS FOR FRONT AXLE II | ||
| 376 | N 000963012011 | SCREW |
| FOR SPRING CLAMPS | ||
| 378 | A 3039902440 | WASHER |
| FOR SPRING CLAMPS | ||
| 380 | A 6173200163 | SHACKLE |
| Repalced by: A 6173250120 | ||
| 380 | A 6173250120 | SHACKLE |
| FRONT SPRING REAR BRACKET | ||
| 380 | A 3873200162 | SHACKLE |
| FRONT SPRING REAR BRACKET | ||
| 382 | A 3523220050 | BUSHING |
| 382 | A 3853220050 | BUSHING |
| 382 | A 3043210150 | BUSHING |
| 382 | A 6203210050 | BUSHING |
| 384 | A 6253200265 | SHACKLE PIN |
| (PARTS KIT),FRONT SPRING,FRONT | ||
| 384 | A 6253200165 | SHACKLE PIN |
| (PARTS KIT),FRONT SPRING,FRONT | ||
| 386 | A 3853200165 | SHACKLE PIN |
| (PARTS KIT),FRONT SPRING,REAR | ||
| 386 | A 6253200065 | SHACKLE PIN |
| (PARTS KIT),FRONT SPRING,REAR | ||
| 386 | A 3953200165 | SHACKLE PIN |
| (PARTS KIT),FRONT SPRING,REAR | ||
| 388 | N 071412010300 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 388 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 392 | A 3523230976 | WASHER |
| AS REQUIRED | ||
| 4.0X30.0 MM | ||
| 392 | A 3523231076 | WASHER |
| AS REQUIRED | ||
| 4.2X30.0 MM | ||
| 392 | A 3523231176 | WASHER |
| Repalced by: A 3523231076 | ||
| 394 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.0X25.0 MM | ||
| 394 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.2X25.0 MM | ||
| 394 | A 3523230576 | WASHER |
| AS REQUIRED | ||
| 4.3X25.0 MM | ||
| 396 | A 6993230076 | WASHER |
| FRONT SPRING TO SPRING BRACKET AND TO SHACKLE | ||
| 7.0 MM | ||
| 398 | A 0049975048 | SEAL RING |
| SHACKLE PIN | ||
| 24X3 MM | ||
| 400 | A 0029973040 | SEAL RING |
| SPRING SUSPENSION | ||
| 402 | A 0029973140 | SEAL RING |
| SPRING SUSPENSION | ||
| 404 | A 3529900337 | BOLT |
| SPRING PIN LOCK | ||
| 406 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 406 | N 000125010532 | WASHER |
| SPRING PIN LOCK | ||
| 408 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 408 | N 910113010000 | NUT |
| SPRING PIN LOCK | ||

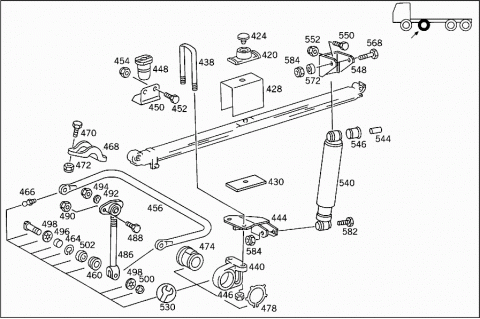

| 420 | A 3873310226 | PLATE |
| Repalced by: A 6203310026 | ||
| 420 | A 6203310026 | PLATE |
| FRONT SPRINGS TO FRONT AXLE II | ||
| 420 | A 6203310026 | PLATE |
| FRONT SPRINGS TO FRONT AXLE II | ||
| 422 | A 3043310027 | SPACER |
| Repalced by: A 6483310026 | ||
| 422 | A 6483310026 | PLATE |
| Repalced by: A 6553310126 | ||
| 422 | A 6553310126 | PLATE |
| Repalced by: A 6483310026 | ||
| 422 | A 6483310026 | PLATE |
| FRONT SPRINGS TO FRONT AXLE II | ||
| 424 | A 3873310144 | RUBBER BUFFER |
| FRONT SPRINGS TO FRONT AXLE II | ||
| 426 | A 3263310044 | RUBBER BUFFER |
| Repalced by: A 6553310044 | ||
| 426 | A 6553310044 | RUBBER BUFFER |
| FRONT SPRINGS TO FRONT AXLE II | ||
| 428 | A 3853210484 | SHIM |
| FRONT SPRINGS TO FRONT AXLE II | ||
| 430 | A 3613515128 | PAD |
| FRONT SPRINGS TO FRONT AXLE II | ||
| 432 | A 3353310328 | SHIM |
| FRONT SPRINGS TO FRONT AXLE II | ||
| 434 | A 6233310028 | SHIM |
| SHOCK ABSORBER TO AXLE | ||
| 436 | A 3893230074 | PIN |
| Repalced by: A 6573310074 | ||
| 436 | A 6573310074 | PIN |
| FRONT SPRINGS TO FRONT AXLE II | ||
| 438 | A 3203310325 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE II | ||
| 212 MM | ||
| 438 | A 3933310125 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE II | ||
| 350/285 MM | ||
| 438 | A 3933310125 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE II | ||
| 350/285 MM | ||
| 438 | A 3043311625 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE II | ||
| 245 MM | ||
| 438 | A 3873310825 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE II | ||
| 335/270 MM | ||
| 438 | A 3873310825 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE II | ||
| 335/270 MM | ||
| 438 | A 3043311425 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE II | ||
| 173 MM | ||
| 438 | A 3933310025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE II | ||
| 350/240 MM | ||
| 438 | A 3933310025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE II | ||
| 350/240 MM | ||
| 438 | A 3873310925 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE II | ||
| 230 MM | ||
| 438 | A 3873310725 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE II | ||
| 335/225 MM | ||
| 438 | A 3873310725 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE II | ||
| 335/225 MM | ||
| 440 | A 6193230063 | BEARING BRACKET |
| FRONT AXLE II TORSION BAR | ||
| 440 | A 6203230563 | BEARING BRACKET |
| FRONT AXLE II TORSION BAR | ||
| 442 | A 6203230220 | BEARING |
| TORSION BAR,LEFT | ||
| 442 | A 6203230220 | BEARING |
| TORSION BAR,LEFT | ||
| 442 | A 6203230320 | BEARING |
| TORSION BAR,RIGHT | ||
| 442 | A 6203230320 | BEARING |
| TORSION BAR,RIGHT | ||
| 444 | A 6993201043 | BRACKET |
| SHOCK ABSORBER MOUNTING,LEFT BOTTOM | ||
| 444 | A 6993201143 | BRACKET |
| SHOCK ABSORBER MOUNTING,RIGHT BOTTOM | ||
| 446 | N 000934020008 | NUT |
| Repalced by: N 308673020002 | ||
| 446 | N 308673020002 | NUT |
| Repalced by: N 308674020000 | ||
| 446 | N 308674020000 | NUT |
| FRONT SPRINGS TO FRONT AXLE II | ||
| 448 | A 3833240008 | HELPER SPRING |
| FRONT SPRINGS TO FRONT AXLE II | ||
| 450 | A 3953210040 | BRACKET |
| HELPER SPRING | ||
| 452 | N 000933010157 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 454 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 454 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 456 | A 6173260165 | TORSION BAR |
| FRONT AXLE II | ||
| 458 | A 6223230065 | TORSION BAR |
| FRONT AXLE II | ||
| 458 | A 6223230065 | TORSION BAR |
| FRONT AXLE II | ||
| A 6253230265 | TORSION BAR | |
| FRONT AXLE II | ||
| N 000939016033 | STUD BOLT | |
| TORSION BAR | ||
| 460 | A 0009817231 | JOINT BEARING |
| Repalced by: A 0019814631 | ||
| 460 | A 0019814631 | JOINT BEARING |
| FRONT AXLE II TORSION BAR | ||
| 460 | A 0019814831 | JOINT BEARING |
| FRONT AXLE II TORSION BAR | ||
| 462 | A 3873260050 | BUSHING |
| TORSION BAR TO BEARING | ||
| 462 | A 3873260050 | BUSHING |
| TORSION BAR TO BEARING | ||
| 464 | N 000472035000 | LOCK RING |
| FRONT AXLE II TORSION BAR | ||
| 466 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 466 | N 071412008102 | GREASE NIPPLE |
| FRONT AXLE II TORSION BAR | ||
| 468 | A 3833260740 | BRACKET |
| FRONT AXLE II TORSION BAR | ||
| 468 | A 6253231140 | BRACKET |
| FRONT AXLE II TORSION BAR | ||
| 470 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 470 | N 308676012012 | SCREW |
| BRACKET TO TORSION BAR | ||
| 470 | N 308676012012 | SCREW |
| BRACKET TO TORSION BAR | ||
| 472 | N 910113012002 | NUT |
| BRACKET TO TORSION BAR | ||
| 472 | N 910113012002 | NUT |
| BRACKET TO TORSION BAR | ||
| 474 | A 6173230085 | RUBBER MOUNTING |
| FRONT AXLE II TORSION BAR | ||
| 476 | A 3873260181 | RUBBER MOUNTING |
| FRONT AXLE II TORSION BAR | ||
| 476 | A 3873260181 | RUBBER MOUNTING |
| FRONT AXLE II TORSION BAR | ||
| A 3933260481 | RUBBER MOUNTING | |
| FRONT AXLE II TORSION BAR | ||
| 478 | N 000983068000 | LOCK RING |
| TORSION BAR TO BEARING BRACKET | ||
| 480 | N 000983085001 | LOCK RING |
| TORSION BAR TO SHACKLE | ||
| 480 | N 000983085001 | LOCK RING |
| TORSION BAR TO SHACKLE | ||
| 480 | N 000983085001 | LOCK RING |
| TORSION BAR TO BEARING BRACKET | ||
| A 0003260650 | BUSHING | |
| TORSION BAR TO SHACKLE | ||
| A 3933260152 | SPACER WASHER | |
| A 3873230252 | SPACER WASHER | |
| N 913004016004 | NUT | |
| Repalced by: N 910113016002 | ||
| N 910113016002 | NUT | |
| 482 | N 007349019002 | WASHER |
| TORSION BAR TO BEARING | ||
| 482 | N 007349019002 | WASHER |
| TORSION BAR TO BEARING | ||
| 484 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 484 | N 910113018004 | NUT |
| TORSION BAR TO BEARING | ||
| 484 | N 910113018004 | NUT |
| TORSION BAR TO BEARING | ||
| 486 | A 6173200089 | ROD |
| (ARTICULATED ROD) | ||
| 488 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 488 | N 308676012026 | SCREW |
| ROD TO FRAME | ||
| 490 | N 910113012002 | NUT |
| ROD TO FRAME | ||
| 492 | N 006796016101 | CONICAL SPRING WASHER |
| ROD TO FRAME | ||
| 494 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 494 | N 910113016002 | NUT |
| ROD TO FRAME | ||
| 496 | A 3603230153 | SPACER TUBE |
| ROD TO TORSION BAR | ||
| 498 | N 006797021201 | TOOTHED WASHER |
| ROD TO TORSION BAR | ||
| 498 | N 006797021101 | TOOTHED WASHER |
| ROD TO TORSION BAR | ||
| 500 | N 000936020010 | NUT |
| ROD TO TORSION BAR | ||
| 502 | A 3603230460 | SEAL RING |
| ROD TO TORSION BAR | ||
| 504 | A 3873200378 | CONSOLE |
| FRONT AXLE II TORSION BAR | ||
| 504 | A 3873200378 | CONSOLE |
| FRONT AXLE II TORSION BAR | ||
| 504 | A 6203200178 | CONSOLE |
| Repalced by: A 6203230463 | ||
| 504 | A 6203230463 | BEARING BRACKET |
| FRONT AXLE II TORSION BAR | ||
| 506 | N 000939016033 | STUD BOLT |
| 506 | N 000939016033 | STUD BOLT |
| 506 | N 000939014036 | STUD BOLT |
| 508 | N 000961016075 | SCREW |
| Repalced by: N 308676016020 | ||
| 508 | N 308676016020 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X35 | ||
| 508 | N 308676016020 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X35 | ||
| 508 | N 000961016039 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X50 | ||
| 508 | N 000961016039 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X50 | ||
| 508 | N 000961016039 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X50 | ||
| 510 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 510 | N 910113016002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 512 | A 6203260047 | SHACKLE |
| FRONT AXLE II TORSION BAR | ||
| 512 | A 6203260047 | SHACKLE |
| FRONT AXLE II TORSION BAR | ||
| A 6253230216 | LINK | |
| Repalced by: A 6253230816 | ||
| A 6253230816 | LINK | |
| FRONT AXLE II TORSION BAR | ||
| 514 | A 0003260650 | BUSHING |
| SHACKLE TO CONSOLE | ||
| 514 | A 0003260650 | BUSHING |
| SHACKLE TO CONSOLE | ||
| A 6203230150 | BUSHING | |
| 516 | A 3873230252 | SPACER WASHER |
| SHACKLE TO CONSOLE | ||
| 516 | A 3873230252 | SPACER WASHER |
| SHACKLE TO CONSOLE | ||
| 518 | A 3933260152 | SPACER WASHER |
| SHACKLE TO CONSOLE | ||
| 518 | A 3933260152 | SPACER WASHER |
| SHACKLE TO CONSOLE | ||
| A 6203230052 | SPACER WASHER | |
| SHACKLE TO CONSOLE | ||
| 520 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 520 | N 910113016002 | NUT |
| SHACKLE TO CONSOLE | ||
| 520 | N 910113016002 | NUT |
| SHACKLE TO CONSOLE | ||
| N 000961016081 | SCREW | |
| SHACKLE TO CONSOLE | ||
| N 913004014002 | NUT | |
| Repalced by: N 910113014001 | ||
| N 910113014001 | NUT | |
| SHACKLE TO CONSOLE | ||
| N 000961014127 | SCREW | |
| SHACKLE TO CONSOLE | ||
| 530 | A 6173200611 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 535 | A 6203200128 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 535 | A 6203200128 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| A 6253200711 | REPAIR KIT | |
| TORSION BAR MOUNTING | ||
| 540 | A 0033239800 | SHOCK ABSORBER |
| Repalced by: A 0043239900 | ||
| 540 | A 0043235700 | SHOCK ABSORBER |
| Repalced by: A 0043239900 | ||
| 540 | A 0043239900 | SHOCK ABSORBER |
| FRONT AXLE II | ||
| 540 | A 0033233200 | SHOCK ABSORBER |
| Repalced by: A 0063230900 | ||
| 540 | A 0033233300 | SHOCK ABSORBER |
| Repalced by: A 0043239200 | ||
| 540 | A 0043239200 | SHOCK ABSORBER |
| Repalced by: A 0063230900 | ||
| 540 | A 0063230900 | SHOCK ABSORBER |
| FRONT AXLE II | ||
| 542 | A 0033239700 | SHOCK ABSORBER |
| Repalced by: A 0063230700 | ||
| 542 | A 0043239800 | SHOCK ABSORBER |
| FRONT AXLE II | ||
| 542 | A 0043234400 | SHOCK ABSORBER |
| Repalced by: A 0063230700 | ||
| 542 | A 0063230700 | SHOCK ABSORBER |
| FRONT AXLE II | ||
| 542 | A 0043239700 | SHOCK ABSORBER |
| FRONT AXLE II | ||
| 544 | A 0003232550 | BUSHING |
| Repalced by: A 0003233150 | ||
| 544 | A 0003233150 | SPACER RING |
| TO 003 323 98 00,003 323 32 00,33 00 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 44 00,004 323 99 00,97 00 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 006 323 07 00,006 323 09 00 | ||
| 544 | A 0003235250 | BUSHING |
| TO 003 323 97 00,004 323 57 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 92 00,004 323 98 00 | ||
| 546 | A 0003232444 | RUBBER BUFFER |
| Repalced by: A 0003232885 | ||
| 546 | A 0003232885 | RUBBER MOUNTING |
| TO 003 323 98 00,003 323 32 00,33 00 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 44 00,004 323 99 00,97 00 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 006 323 07 00,006 323 09 00 | ||
| 546 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 546 | A 0003233144 | RUBBER BUFFER |
| TO 003 323 97 00,004 323 57 00, | ||
| Repalced by: A 0003238085 | ||
| 546 | A 0003238085 | RUBBER MOUNTING |
| TO 003 323 97 00,004 323 57 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 92 00,004 323 98 00 | ||
| 548 | A 6993231140 | BRACKET |
| FRONT AXLE II SHOCK ABSORBER,TOP | ||
| 548 | A 6253230540 | BRACKET |
| FRONT AXLE II SHOCK ABSORBER,TOP | ||
| 550 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 550 | A 9429901304 | SCREW |
| BRACKET TO FRAME | ||
| 552 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 552 | N 910113014000 | NUT |
| BRACKET TO FRAME | ||
| 554 | A 6233200043 | BRACKET |
| LEFT SHOCK ABSORBER | ||
| 554 | A 6233200143 | BRACKET |
| RIGHT SHOCK ABSORBER | ||
| 555 | A 6253230340 | BRACKET |
| LEFT SHOCK ABSORBER | ||
| 555 | A 6253230440 | BRACKET |
| RIGHT SHOCK ABSORBER | ||
| 556 | A 6993230084 | SHIM |
| FRONT AXLE II SHOCK ABSORBER,TOP | ||
| 558 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 558 | A 9429901304 | SCREW |
| BRACKET AND SHIM TO SIDE MEMBER | ||
| M 14X40 | ||
| 558 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 558 | N 308676014012 | SCREW |
| BRACKET AND SHIM TO SIDE MEMBER | ||
| M 14X45 | ||
| 560 | N 000960014229 | SCREW |
| BRACKET AND SHIM TO SIDE MEMBER | ||
| M 14X55 | ||
| 560 | N 000960014190 | SCREW |
| BRACKET AND SHIM TO SIDE MEMBER | ||
| M 14X60 | ||
| 560 | N 000961016075 | SCREW |
| Repalced by: N 308676016020 | ||
| 560 | N 308676016020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 16X35 | ||
| 560 | N 000961016039 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 16X50 | ||
| 560 | N 000961016040 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 16X45 | ||
| 562 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 562 | N 910113014000 | NUT |
| BRACKET AND SHIM TO SIDE MEMBER | ||
| 562 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 562 | N 910113016002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 564 | A 6243230340 | BRACKET |
| FRONT AXLE II SHOCK ABSORBER,TOP | ||
| 566 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 566 | N 910113014001 | NUT |
| BRACKET TO BRACKET | ||
| 568 | N 000960016175 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| M 16X120 | ||
| 568 | N 000960016175 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| M 16X120 | ||
| 570 | N 000960016267 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| M 16X95 | ||
| 572 | A 3878911153 | SPACER TUBE |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 574 | A 3939900240 | WASHER |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 576 | A 3953230140 | BRACKET |
| FRONT AXLE II SHOCK ABSORBER,BOTTOM | ||
| 578 | N 000960020075 | SCREW |
| Repalced by: N 000960020084 | ||
| 578 | N 000960020084 | SCREW |
| BRACKET TO SHIM | ||
| 580 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 580 | N 913004020003 | NUT |
| BRACKET TO SHIM | ||
| 582 | N 000960016164 | SCREW |
| Repalced by: N 000960016250 | ||
| 582 | N 000960016250 | SCREW |
| SHOCK ABSORBER TO BOTTOM BRACKET | ||
| 584 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 584 | N 910113016002 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

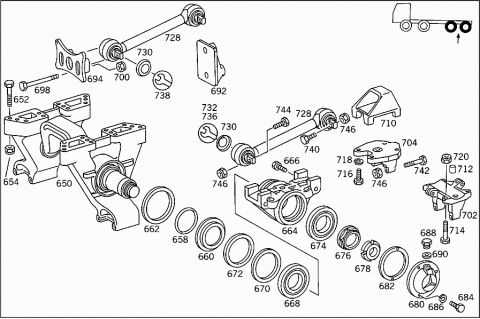

| REAR AXLES I AND II | ||
| 650 | A 3853200475 | SPRING BRACKET |
| REAR SPRING CENTRAL BEARING | ||
| 650 | A 3933201278 | CONSOLE |
| REAR SPRING CENTRAL BEARING | ||
| 650 | A 3953200778 | CONSOLE |
| REAR SPRING CENTRAL BEARING | ||
| 652 | N 914142020103 | SCREW |
| SPRING BRACKET TO FRAME | ||
| M 20X75 | ||
| 652 | A 0003250175 | SCREW |
| Repalced by: A 0003250775 | ||
| 652 | A 0003250775 | SCREW |
| CONSOLE TO FRAME | ||
| 652 | N 914112020200 | SCREW |
| CONSOLE TO FRAME | ||
| M 20X80 | ||
| 652 | N 000960020033 | SCREW |
| Repalced by: N 308765020012 | ||
| 652 | N 308765020012 | SCREW |
| SPRING BRACKET TO FRAME | ||
| M 20X90 | ||
| 652 | N 000960020078 | SCREW |
| Repalced by: A 0003250875 | ||
| 652 | A 0003250875 | SCREW |
| CONSOLE TO FRAME | ||
| 652 | N 914112020201 | SCREW |
| CONSOLE TO FRAME | ||
| M 20X90 | ||
| 652 | A 0003250075 | SCREW |
| Repalced by: A 0003250475 | ||
| 652 | A 0003250475 | SCREW |
| CONSOLE TO FRAME | ||
| 652 | N 914112020204 | SCREW |
| CONSOLE TO FRAME | ||
| M 20X150 | ||
| 654 | N 913012020000 | NUT |
| SPRING BRACKET TO FRAME | ||
| 654 | N 913012020000 | NUT |
| CONSOLE TO FRAME | ||
| 658 | A 0119970245 | SEAL RING |
| REAR SPRING CENTRAL BEARING | ||
| 658 | A 0079976048 | SEAL RING |
| REAR SPRING CENTRAL BEARING | ||
| 658 | A 0079976048 | SEAL RING |
| REAR SPRING CENTRAL BEARING | ||
| 658 | A 0079975948 | SEAL RING |
| REAR SPRING CENTRAL BEARING | ||
| 660 | A 3833250151 | SPACER RING |
| REAR SPRING CENTRAL BEARING | ||
| 660 | A 3873250162 | THRUST WASHER |
| REAR SPRING CENTRAL BEARING CONSOLE | ||
| 660 | A 3873250162 | THRUST WASHER |
| REAR SPRING CENTRAL BEARING CONSOLE | ||
| 660 | A 3893251062 | THRUST WASHER |
| REAR SPRING CENTRAL BEARING | ||
| 662 | A 3853200167 | GASKET |
| REAR SPRING CENTRAL BEARING | ||
| 662 | A 3953200067 | GASKET |
| REAR SPRING CENTRAL BEARING | ||
| 664 | A 3833250112 | SPRING SADDLE |
| REAR SPRING CENTRAL BEARING | ||
| 664 | A 3953250312 | SPRING SADDLE |
| REAR SPRING CENTRAL BEARING | ||
| 664 | A 6243250112 | SPRING SADDLE |
| REAR SPRING CENTRAL BEARING | ||
| 664 | A 6243250212 | SPRING SADDLE |
| REAR SPRING CENTRAL BEARING | ||
| 666 | N 000960020093 | SCREW |
| Repalced by: N 308765020014 | ||
| 666 | N 308765020014 | SCREW |
| (CLAMPING BOLT),AT SPRING SADDLE | ||
| 668 | A 0049811705 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 668 | A 0049814305 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 668 | A 0059815605 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 668 | A 0069810005 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 668 | A 0029815005 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 668 | A 0029815305 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 668 | A 0059819005 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 668 | A 0079810205 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 670 | A 0099975246 | SEAL RING |
| INSIDE | ||
| 670 | A 0109971646 | SEAL RING |
| INSIDE | ||
| 670 | A 0099978846 | SEAL RING |
| INSIDE | ||
| 672 | A 0099975346 | SEAL RING |
| OUTSIDE | ||
| 672 | A 0119973746 | SEAL RING |
| OUTSIDE | ||
| 672 | A 0059978447 | SEAL RING |
| OUTSIDE | ||
| 674 | A 0049811805 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 674 | A 0049814405 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 674 | A 0039816805 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 674 | A 0049810605 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 674 | A 0079810305 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 676 | A 3933250052 | SPACER WASHER |
| SPRING SADDLE TO CENTRAL BEARING BRACKET | ||
| 676 | A 3893252152 | SPACER WASHER |
| SPRING SADDLE TO CENTRAL BEARING BRACKET | ||
| 678 | A 3939900060 | NUT |
| SPRING SADDLE TO CENTRAL BEARING BRACKET | ||
| 678 | A 3899905060 | NUT |
| SPRING SADDLE TO CENTRAL BEARING BRACKET | ||
| 680 | A 3833200084 | COVER |
| REAR SPRING CENTRAL BEARING | ||
| 680 | A 3893200684 | COVER |
| REAR SPRING CENTRAL BEARING | ||
| 682 | A 3833250080 | GASKET |
| COVER TO SPRING SADDLE | ||
| 682 | A 3893250280 | GASKET |
| COVER TO SPRING SADDLE | ||
| 684 | N 000933008145 | SCREW |
| COVER TO SPRING SADDLE | ||
| 686 | N 912004008102 | LOCK WASHER |
| COVER TO SPRING SADDLE | ||
| 688 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 688 | N 007604014110 | SCREW PLUG |
| OIL REFILLING | ||
| 690 | N 007603014405 | SEAL RING |
| OIL REFILLING | ||
| 692 | A 6193250209 | BEARING BRACKET |
| UPPER CONTROL ARM | ||
| 694 | A 3953253709 | BEARING BRACKET |
| UPPER CONTROL ARM | ||
| 694 | A 3953254009 | BEARING BRACKET |
| UPPER CONTROL ARM | ||
| 694 | A 3953253609 | BEARING BRACKET |
| UPPER CONTROL ARM | ||
| 694 | A 3953253909 | BEARING BRACKET |
| UPPER CONTROL ARM | ||
| 698 | N 000960014073 | SCREW |
| BEARING BRACKET TO CROSS MEMBER | ||
| M 14X110 | ||
| 698 | N 000960014121 | SCREW |
| Repalced by: N 308676014014 | ||
| 698 | N 308676014014 | SCREW |
| BEARING BRACKET TO CROSS MEMBER | ||
| M 14X70 | ||
| 698 | N 308676014002 | SCREW |
| BEARING BRACKET TO CROSS MEMBER | ||
| M 14X80 | ||
| 700 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 700 | N 910113014001 | NUT |
| BEARING BRACKET TO CROSS MEMBER | ||
| 700 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 700 | N 910113014000 | NUT |
| BEARING BRACKET TO CROSS MEMBER | ||
| 702 | A 6193250009 | BEARING BRACKET |
| BOTTOM CONTROL ARM,REAR AXLE | ||
| 704 | A 3953251109 | BEARING BRACKET |
| BOTTOM CONTROL ARM,REAR AXLE | ||

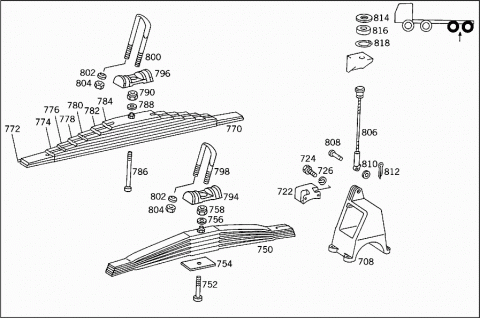

| 708 | A 6193250019 | SPRING SEAT |
| Repalced by: A 6533250019 | ||
| 708 | A 6533250019 | SPRING SEAT |
| REAR AXLES I AND II | ||
| 708 | A 6193250519 | SPRING SEAT |
| Repalced by: A 6533250119 | ||
| 708 | A 6533250119 | SPRING SEAT |
| REAR AXLES I AND II | ||
| 710 | A 6243250319 | SPRING SEAT |
| REAR AXLE I,LEFT | ||
| 710 | A 6243250319 | SPRING SEAT |
| REAR AXLE II,RIGHT | ||
| 710 | A 6243250519 | SPRING SEAT |
| Repalced by: A 6253250119 | ||
| 710 | A 6253250119 | SPRING SEAT |
| REAR AXLE I,LEFT | ||
| 710 | A 6253250119 | SPRING SEAT |
| REAR AXLE I,LEFT | ||
| 710 | A 6253250119 | SPRING SEAT |
| REAR AXLE II,RIGHT | ||
| 710 | A 6253250119 | SPRING SEAT |
| REAR AXLE II,RIGHT | ||
| 710 | A 6243251119 | SPRING SEAT |
| Repalced by: A 6253250319 | ||
| 710 | A 6253250319 | SPRING SEAT |
| REAR AXLE I,LEFT | ||
| 710 | A 6253250319 | SPRING SEAT |
| REAR AXLE II,RIGHT | ||
| 710 | A 6243250219 | SPRING SEAT |
| REAR AXLE I,RIGHT | ||
| 710 | A 6243250219 | SPRING SEAT |
| REAR AXLE II,LEFT | ||
| 710 | A 6243250419 | SPRING SEAT |
| Repalced by: A 6253250019 | ||
| 710 | A 6253250019 | SPRING SEAT |
| REAR AXLE I,RIGHT | ||
| 710 | A 6253250019 | SPRING SEAT |
| REAR AXLE I,RIGHT | ||
| 710 | A 6253250019 | SPRING SEAT |
| REAR AXLE II,LEFT | ||
| 710 | A 6253250019 | SPRING SEAT |
| REAR AXLE II,LEFT | ||
| 710 | A 6243251019 | SPRING SEAT |
| Repalced by: A 6253250219 | ||
| 710 | A 6253250219 | SPRING SEAT |
| REAR AXLE I,RIGHT | ||
| 710 | A 6253250219 | SPRING SEAT |
| REAR AXLE II,LEFT | ||
| 712 | A 3523520074 | PIN |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 712 | A 3893250074 | PIN |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 714 | N 000960020181 | SCREW |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 714 | N 000960020078 | SCREW |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 716 | A 3959900201 | SCREW |
| Repalced by: A 6599900001 | ||
| 716 | A 6599900001 | SCREW |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 716 | A 6599900001 | SCREW |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 716 | A 6599900001 | SCREW |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 716 | A 3959900301 | SCREW |
| Repalced by: A 6599900101 | ||
| 716 | A 6599900101 | SCREW |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 718 | N 074361022351 | LOCK WASHER |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 720 | N 000934020014 | NUT |
| Repalced by: N 308673020002 | ||
| 720 | N 308673020002 | NUT |
| Repalced by: N 308674020000 | ||
| 720 | N 308674020000 | NUT |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 722 | A 6193200044 | RUBBER BUFFER |
| AXLE STOP | ||
| 724 | N 000933010128 | SCREW |
| RUBBER BUFFER TO SPRING SEAT | ||
| 726 | N 912004010102 | LOCK WASHER |
| RUBBER BUFFER TO SPRING SEAT | ||
| 728 | A 3933200132 | LINK |
| Repalced by: A 6553500006 | ||
| 728 | A 6553500006 | CONTROL ARM |
| Repalced by: A 6583500006 | ||
| 728 | A 6553500006 | CONTROL ARM |
| BOTTOM | ||
| 728 | A 6583500006 | CONTROL ARM |
| Repalced by: A 6583500206 | ||
| 728 | A 6583500206 | CONTROL ARM |
| TOP | ||
| 728 | A 6583500206 | CONTROL ARM |
| BOTTOM | ||
| 728 | A 3953500206 | CONTROL ARM |
| TOP | ||
| 728 | A 6593500106 | CONTROL ARM |
| TOP | ||
| 728 | A 6593502406 | CONTROL ARM |
| TOP | ||
| 728 | A 6243500006 | CONTROL ARM |
| TOP | ||
| 728 | A 6593501106 | CONTROL ARM |
| TOP | ||
| 728 | A 6593503406 | CONTROL ARM |
| TOP | ||
| 728 | A 3953500706 | CONTROL ARM |
| BOTTOM | ||
| 728 | A 6593500406 | CONTROL ARM |
| BOTTOM | ||
| 728 | A 6593502706 | CONTROL ARM |
| BOTTOM | ||
| 728 | A 6243500106 | CONTROL ARM |
| BOTTOM | ||
| 728 | A 6593501206 | CONTROL ARM |
| BOTTOM | ||
| 728 | A 6593503506 | CONTROL ARM |
| BOTTOM | ||
| 730 | A 0003381797 | BOOT |
| 732 | A 0005861433 | REPAIR KIT |
| WITH BALL PIVOT | ||
| TO 658 350 00 06 | ||
| 736 | A 0003500213 | REPAIR KIT |
| WITH BALL PIVOT | ||
| TO 393 320 01 32 | ||
| A 0003500505 | REPAIR KIT | |
| Repalced by: A 0003500305 | ||
| A 0003500305 | REPAIR KIT | |
| Repalced by: A 0003500213 | ||
| 736 | A 0003500213 | REPAIR KIT |
| WITH BALL PIVOT | ||
| TO 655 350 00 06 | ||
| 736 | A 0005861135 | REPAIR KIT |
| Repalced by: A 0003500613 | ||
| 736 | A 0003500613 | REPAIR KIT |
| WITH BALL PIVOT | ||
| TO 395 350 02 06;659 350 01 06; | ||
| 736 | A 0003500613 | REPAIR KIT |
| WITH BALL PIVOT | ||
| TO 624 350 01 06;659 350 12 06 | ||
| 738 | A 0003500413 | REPAIR KIT |
| WITH BALL PIVOT | ||
| TO 624 350 00 06;659 350 34 06; | ||
| A 0003501113 | REPAIR KIT | |
| WITH BALL PIVOT | ||
| TO 659 350 24 06;659 350 27 06 | ||
| A 0003501113 | REPAIR KIT | |
| WITH BALL PIVOT | ||
| TO 659 350 35 06 | ||
| 740 | N 000960020152 | SCREW |
| Repalced by: N 000960020120 | ||
| 740 | N 000960020120 | SCREW |
| CONTROL ARM TO BEARING BRACKET | ||
| M 20X230 | ||
| 740 | N 000960020080 | SCREW |
| CONTROL ARM TO BEARING BRACKET | ||
| M 20X240 | ||
| 742 | N 000960020138 | SCREW |
| Repalced by: N 000960020078 | ||
| 742 | N 000960020078 | SCREW |
| UPPER CONTROL ARM TO REAR AXLE | ||
| M 20X85 | ||
| 744 | N 000960020032 | SCREW |
| Repalced by: N 308765020012 | ||
| 744 | N 308765020012 | SCREW |
| LOWER CONTROL ARM TO REAR AXLE | ||
| M 20X90 | ||
| 746 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 746 | N 913004020003 | NUT |
| CONTROL ARM TO BEARING BRACKET | ||
| 746 | N 913004020003 | NUT |
| UPPER CONTROL ARM TO REAR AXLE | ||
| 746 | N 913004020003 | NUT |
| LOWER CONTROL ARM TO REAR AXLE | ||
| 750 | A 6193200305 | REAR SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| "5" | ||
| 750 | A 6193200305 | REAR SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| "5" | ||
| 750 | A 6193200405 | REAR SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| "6" | ||
| 750 | A 6193200405 | REAR SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| "6" | ||
| 750 | A 6233200306 | REAR SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| "5" | ||
| 750 | A 6233200706 | REAR SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| "6" | ||
| 750 | A 6483200006 | REAR SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| "5" | ||
| 752 | A 3523240271 | SPRING BOLT |
| M 16X205 | ||
| 752 | A 3523240271 | SPRING BOLT |
| M 16X205 | ||
| 752 | A 3523240271 | SPRING BOLT |
| M 16X205 | ||
| 752 | A 6193240071 | SPRING BOLT |
| M 16X255 | ||
| 752 | A 6193240071 | SPRING BOLT |
| M 16X255 | ||
| 752 | A 6193240071 | SPRING BOLT |
| M 16X255 | ||
| 752 | A 3523240171 | SPRING BOLT |
| Repalced by: A 3523240371 | ||
| 752 | A 3523240371 | SPRING BOLT |
| M 16X225 | ||
| 754 | A 6193210284 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| 754 | A 6193210284 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| 754 | A 6193210284 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| 754 | A 6193210284 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| 754 | A 6193210284 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| 754 | A 6193210284 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| 756 | N 007349017002 | WASHER |
| SPRING BOLT | ||
| 758 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 758 | N 910113016001 | NUT |
| SPRING BOLT | ||
| 770 | A 3433200106 | REAR SPRING |
| (TRAPEZOIDAL SPRING);NUMBER OF LEAVES: | ||
| "8" | ||
| 772 | A 3433200093 | SPRING LEAF |
| NO.1,NO.2 | ||
| 774 | A 3433240113 | SPRING LEAF |
| NO.3 | ||
| 776 | A 3433240114 | SPRING LEAF |
| NO.4 | ||
| 778 | A 3433240115 | SPRING LEAF |
| NO.5 | ||
| 780 | A 3433240116 | SPRING LEAF |
| NO.6 | ||
| 782 | A 3433240117 | SPRING LEAF |
| NO.7 | ||
| 784 | A 3433240118 | SPRING LEAF |
| NO.8 | ||
| 786 | A 3473240271 | SPRING BOLT |
| 788 | N 007349019002 | WASHER |
| SPRING BOLT | ||
| 790 | N 913004018004 | NUT |
| SPRING BOLT | ||
| 794 | A 6193250031 | PLATE |
| REAR SPRING TO SPRING SADDLE | ||
| 794 | A 3933510326 | SPRING CLAMPING PLATE |
| REAR SPRING TO SPRING SADDLE | ||
| 794 | A 6233510326 | SPRING CLAMPING PLATE |
| REAR SPRING TO SPRING SADDLE | ||
| 796 | A 3433510026 | SPRING CLAMPING PLATE |
| REAR SPRING TO SPRING SADDLE | ||
| 796 | A 6243510126 | SPRING CLAMPING PLATE |
| REAR SPRING TO SPRING SADDLE | ||
| 798 | A 3933510025 | U-BOLT |
| REAR SPRING TO SPRING SADDLE | ||
| 300 MM | ||
| 798 | A 3933510025 | U-BOLT |
| REAR SPRING TO SPRING SADDLE | ||
| 300 MM | ||
| 798 | A 3523510925 | U-BOLT |
| REAR SPRING TO SPRING SADDLE | ||
| 365 MM | ||
| 798 | A 3523510925 | U-BOLT |
| REAR SPRING TO SPRING SADDLE | ||
| 365 MM | ||
| 798 | A 6233510125 | U-BOLT |
| REAR SPRING TO SPRING SADDLE | ||
| 310 MM | ||
| 798 | A 3933510325 | U-BOLT |
| REAR SPRING TO SPRING SADDLE | ||
| 350 MM | ||
| 800 | A 3953510125 | U-BOLT |
| REAR SPRING TO SPRING SADDLE | ||
| 335 MM | ||
| 802 | A 3433250070 | SPHERICAL WASHER |
| REAR SPRING TO SPRING SADDLE | ||
| 804 | A 0019902151 | NUT |
| REAR SPRING TO SPRING SADDLE | ||
| 804 | N 000934024006 | NUT |
| REAR SPRING TO SPRING SADDLE | ||
| 806 | A 6193200091 | WIRE CABLE |
| (RETAINING ROPE) | ||
| 808 | N 001444014214 | PIN |
| RETAINING ROPE TO BEARING BRACKET, BOTTOM | ||
| 810 | N 000433015002 | WASHER |
| Repalced by: N 000433015005 | ||
| 810 | N 000433015005 | WASHER |
| RETAINING ROPE TO BEARING BRACKET, BOTTOM | ||
| 812 | N 000094004061 | COTTER PIN |
| RETAINING ROPE TO BEARING BRACKET, BOTTOM | ||
| 814 | A 3433250162 | THRUST WASHER |
| RETAINING ROPE TO FRAME | ||
| 816 | A 3433250144 | RUBBER BUFFER |
| RETAINING ROPE TO FRAME | ||
| 818 | N 000471035000 | LOCK RING |
| RETAINING ROPE TO FRAME | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| REAR AXLE TORSION BAR | ||
| 825 | A 6253200278 | CONSOLE |
| Repalced by: A 6253261363 | ||
| 825 | A 6253261363 | BEARING BRACKET |
| TORSION BAR,REAR | ||
| 828 | N 000939014036 | STUD BOLT |
| 831 | N 000961014116 | SCREW |
| CONSOLE TO FRAME SIDE MEMBER | ||
| 831 | N 000961014116 | SCREW |
| TOP PLATE TO FRONT AXLE CROSS MEMBER | ||
| N 000961014126 | SCREW | |
| CONSOLE TO FRAME SIDE MEMBER | ||
| 834 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 834 | N 910113014000 | NUT |
| CONSOLE TO FRAME SIDE MEMBER | ||
| 837 | A 6253260065 | TORSION BAR |
| REAR AXLE | ||
| 840 | A 6203230516 | LINK |
| TORSION BAR,REAR | ||
| 843 | A 6203230150 | BUSHING |
| LINK TO CONSOLE | ||
| 846 | A 6203230052 | SPACER WASHER |
| LINK TO CONSOLE | ||
| 849 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 849 | N 910113014001 | NUT |
| LINK TO CONSOLE | ||
| 852 | A 3873260181 | RUBBER MOUNTING |
| TORSION BAR TO BEARING BRACKET | ||
| 855 | N 000983085001 | LOCK RING |
| TORSION BAR TO BEARING BRACKET | ||
| 858 | A 6253200111 | REPAIR KIT |
| TORSION BAR | ||
| 861 | A 6203230350 | BUSHING |
| TORSION BAR TO LINK | ||
| 864 | A 6203230052 | SPACER WASHER |
| TORSION BAR TO LINK | ||
| N 000961014154 | SCREW | |
| 867 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 867 | N 910113014001 | NUT |
| TORSION BAR TO LINK | ||
| 870 | A 6253260063 | BEARING BRACKET |
| TORSION BAR TO REAR AXLE II | ||
| 870 | A 6253260163 | BEARING BRACKET |
| TORSION BAR TO REAR AXLE II | ||
| 873 | A 3833260740 | BRACKET |
| TORSION BAR TO BEARING BRACKET | ||
| 876 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 876 | N 308676012012 | SCREW |
| BRACKET TO BEARING BRACKET | ||
| 879 | N 910113012002 | NUT |
| BRACKET TO BEARING BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
