Transporto priemonė: 3028 B; VIN numerio dalis: 625015

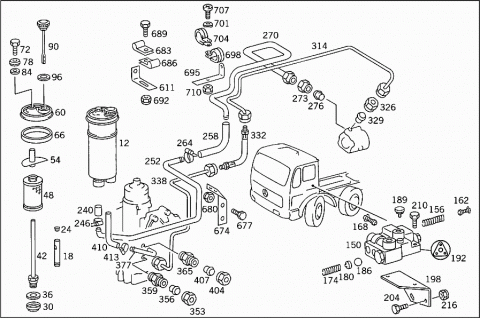

Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|
| 012 | A 0004664702 | TANK |
| OIL | ||
| 013 | A 0004665402 | TANK |
| OIL | ||
| 014 | A 0004660558 | CONNECTOR |
| OIL TANK | ||
| 016 | A 0059970848 | SEAL RING |
| OIL TANK | ||
| 018 | A 0004660518 | PIPE |
| OIL TANK | ||
| 024 | N 000443016000 | EXPANSION PLUG |
| OIL TANK | ||
| 026 | N 000125021006 | WASHER |
| OIL TANK | ||
| 030 | A 0004660191 | VALVE DISC |
| OIL TANK | ||
| 036 | A 0004660291 | SPRING |
| OIL TANK | ||
| 039 | A 0009930815 | SPRING |
| OIL TANK | ||
| 042 | A 0004660418 | PIPE |
| OIL TANK | ||
| 045 | A 0014660241 | SUPPORT |
| FILTER ELEMENT | ||
| 048 | A 0004660004 | FILTER |
| OIL TANK | ||
| 054 | A 0004660453 | SPACER TUBE |
| OIL TANK | ||
| 056 | A 0004660353 | SPACER TUBE |
| OIL TANK | ||
| 058 | A 0009870643 | RUBBER SLEEVE |
| 060 | A 0004662605 | COVER |
| OIL TANK | ||
| 062 | A 0004662005 | COVER |
| OIL TANK | ||
| 066 | A 0004660380 | GASKET |
| Repalced by: A 0004660580 | ||
| 066 | A 0004660580 | GASKET |
| OIL TANK | ||
| 068 | A 0004660260 | SEAL RING |
| OIL TANK | ||
| 072 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 072 | N 304017008016 | SCREW |
| OIL TANK | ||
| 074 | N 000315008006 | NUT |
| OIL TANK | ||
| 078 | A 0004661275 | WASHER |
| OIL TANK | ||
| 084 | A 0004660075 | WASHER |
| OIL TANK | ||
| 090 | A 0004660168 | FILLER CAP |
| OIL TANK | ||
| 092 | A 0004660067 | OIL DIPSTICK |
| OIL TANK | ||
| 096 | A 0004660280 | GASKET |
| OIL TANK | ||
| 102 | A 6254600735 | BRACKET |
| Repalced by: A 6254601335 | ||
| 102 | A 6254601335 | BRACKET |
| Repalced by: A 6254601935 | ||
| 102 | A 6254601935 | BRACKET |
| OIL TANK | ||
| A 6254666840 | BRACKET | |
| OIL TANK | ||
| 108 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 108 | N 304017010002 | SCREW |
| BRACKET TO STEERING COLUMN JACKET TUBE | ||
| 114 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 114 | N 910113010000 | NUT |
| BRACKET TO STEERING COLUMN JACKET TUBE | ||
| 120 | N 007985006154 | SCREW |
| Repalced by: A 0029903712 | ||
| 120 | A 0029903712 | SCREW |
| Repalced by: N 000000001149 | ||
| 120 | N 000000001149 | SCREW |
| STRAP | ||
| 126 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 126 | N 913004006001 | NUT |
| STRAP | ||
| 150 | A 0004661591 | VALVE |
| (CUT-IN VALVE) | ||
| 156 | A 0059935201 | SPRING |
| 162 | A 0004600884 | VALVE |
| 168 | A 0004600784 | VALVE |
| 174 | A 0059935301 | SPRING |
| 180 | A 0004610375 | WASHER |
| 186 | N 005401320000 | BALL |
| 189 | A 0005429414 | INDICATOR |
| Repalced by: A 0105429317 | ||
| 189 | A 0105429317 | SENDER UNIT |
| STEERING FAILURE | ||
| 192 | A 0004600961 | GASKET KIT |
| VALVE | ||
| 198 | A 6994661840 | BRACKET |
| VALVE | ||
| 204 | N 000933010200 | SCREW |
| BRACKET TO BUMPER STRUT | ||
| 210 | N 304017010035 | SCREW |
| VALVE TO BRACKET | ||
| 216 | N 913004010011 | NUT |
| BRACKET TO BUMPER STRUT | ||
| 216 | N 913004010011 | NUT |
| VALVE TO BRACKET | ||
| 240 | A 3859971582 | HOSE |
| OIL TANK | ||
| 246 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 246 | N 000000000667 | CLAMP |
| OIL TANK | ||
| 20-32X13 MM | ||
| 252 | A 3834660765 | LINE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| 258 | A 3859971582 | HOSE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| 260 | A 6254660381 | HOSE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| 1;2 | ||
| 264 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 264 | N 000000000667 | CLAMP |
| HOSE TO SUCTION LINE | ||
| 20-32X13 MM | ||
| 270 | A 3874602424 | LINE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| 273 | N 915017022100 | UNION NUT |
| SUCTION LINE TO OIL PUMP | ||
| 276 | N 003861022004 | GLAND |
| Repalced by: A 0019901267 | ||
| 276 | A 0019901267 | SEAL CONE |
| SUCTION LINE TO OIL PUMP | ||
| 279 | A 6254607388 | BANJO UNION |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| 1 | ||
| 282 | A 6254606688 | LINE |
| Repalced by: A 6254604070 | ||
| 282 | A 6254604070 | LINE |
| Repalced by: A 0004291601 | ||
| 282 | A 0004291601 | LINE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| 2 | ||
| 282 | A 0004291601 | LINE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| 2 | ||
| A 6254605662 | LINE | |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| 2 | ||
| 285 | N 915036022201 | HOLLOW SCREW |
| AT PUMP | ||
| 1 | ||
| 288 | N 007603026104 | SEAL RING |
| AT PUMP | ||
| 1 | ||
| 291 | A 6999900083 | FITTING |
| SUCTION LINE TO OIL PUMP | ||
| 1 | ||
| 293 | N 007603033100 | SEAL RING |
| SUCTION LINE TO OIL PUMP | ||
| 1 | ||
| 296 | A 6999900283 | FITTING |
| Repalced by: A 0009905168 | ||
| 296 | A 0009905168 | FITTING |
| DELIVERY LINE TO PUMP | ||
| 1 | ||
| 296 | A 0009905168 | FITTING |
| DELIVERY LINE TO PUMP | ||
| 1 | ||
| A 4229970672 | FITTING | |
| DELIVERY LINE TO PUMP | ||
| 1 | ||
| 299 | N 007603022102 | SEAL RING |
| DELIVERY LINE TO PUMP | ||
| 1 | ||
| 302 | N 915043012100 | SCREW CONNECTION |
| DELIVERY LINE TO PUMP | ||
| 1 | ||
| 302 | N 915043012100 | SCREW CONNECTION |
| DELIVERY LINE TO PUMP | ||
| 1 | ||
| 305 | A 3529971171 | FITTING |
| SUCTION LINE TO OIL PUMP | ||
| 2 | ||
| 308 | N 007603022102 | SEAL RING |
| SUCTION LINE TO OIL PUMP | ||
| 2 | ||
| A 0029971572 | FITTING | |
| DELIVERY LINE TO PUMP | ||
| 2 | ||
| A 0019902771 | ELBOW FITTING | |
| DELIVERY LINE TO PUMP | ||
| 2 | ||
| 311 | N 915043012100 | SCREW CONNECTION |
| DELIVERY LINE TO PUMP | ||
| 2 | ||
| 314 | A 3874600924 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 317 | A 6254606088 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 1 | ||
| 317 | A 6254606088 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 1 | ||
| A 6254605362 | LINE | |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 1 | ||
| 320 | A 6254606788 | LINE |
| FROM POWER STEERING PUMP AT TRANSMISSION TO CUT-IN VALVE | ||
| 320 | A 6254606788 | LINE |
| FROM POWER STEERING PUMP AT TRANSMISSION TO CUT-IN VALVE | ||
| A 6254605462 | LINE | |
| FROM POWER STEERING PUMP AT TRANSMISSION TO CUT-IN VALVE | ||
| 2 | ||
| 323 | A 6254606888 | LINE |
| FROM TWO-WAY VALVE TO HOSE | ||
| 2 | ||
| 323 | A 6254606888 | LINE |
| FROM TWO-WAY VALVE TO HOSE | ||
| 2 | ||
| A 6254605562 | LINE | |
| (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING | ||
| 326 | N 915017012100 | UNION NUT |
| DELIVERY LINE | ||
| 329 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 329 | A 0019901967 | SEAL CONE |
| DELIVERY LINE | ||
| 332 | A 0009978152 | HOSE |
| (DELIVERY LINE),FROM PUMP TO STEERING | ||
| 332 | A 0019976352 | HOSE |
| (DELIVERY LINE),FROM PUMP TO STEERING | ||
| 332 | A 0129972482 | HOSE |
| (DELIVERY LINE),FROM PUMP TO STEERING | ||
| 335 | A 0129972582 | HOSE |
| (DELIVERY LINE),FROM PUMP TO STEERING | ||
| 1;2 | ||
| 335 | A 0009978252 | HOSE |
| (DELIVERY LINE),FROM PUMP TO STEERING | ||
| 1;2 | ||
| 335 | A 0019976452 | HOSE |
| (DELIVERY LINE),FROM PUMP TO STEERING | ||
| 1;2 | ||
| 338 | A 3854600024 | LINE |
| (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX | ||
| 341 | A 6254606188 | LINE |
| (DELIVERY LINE),FROM HOSE TO T-FITTING | ||
| 1 | ||
| 341 | A 6254606188 | LINE |
| (DELIVERY LINE),FROM HOSE TO T-FITTING | ||
| 1 | ||
| A 6254608270 | LINE | |
| (DELIVERY LINE),FROM HOSE TO T-FITTING | ||
| 1 | ||
| 344 | A 6254606288 | LINE |
| (DELIVERY LINE) FROM T-FITTING TO STEERING BOX | ||
| 1 | ||
| 344 | A 6254606288 | LINE |
| (DELIVERY LINE) FROM T-FITTING TO STEERING BOX | ||
| 1 | ||
| A 6254608370 | LINE | |
| (DELIVERY LINE) FROM T-FITTING TO STEERING BOX | ||
| 1 | ||
| A 6254608670 | LINE | |
| FROM STEERING TO PRESSURE LIMIT VALVE, CONNECTION: | ||
| P1 | ||
| 347 | A 6254606988 | LINE |
| (DELIVERY LINE),FROM HOSE TO T-FITTING | ||
| 347 | A 6254606988 | LINE |
| (DELIVERY LINE),FROM HOSE TO T-FITTING | ||
| A 6254608970 | LINE | |
| FROM HOSE TO PRESSURE LIMIT VALVE T-FITTING,CONNECTION: | ||
| P2 | ||
| 350 | A 6254607088 | LINE |
| 350 | A 6254607088 | LINE |
| A 6254609070 | LINE | |
| FROM STEERING TO PRESSURE LIMIT VALVE, CONNECTION: | ||
| DA | ||
| 353 | N 915017012100 | UNION NUT |
| DELIVERY LINE | ||
| 356 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 356 | A 0019901967 | SEAL CONE |
| DELIVERY LINE | ||
| 359 | N 003901012011 | SCREW-IN FITTING |
| DELIVERY LINE TO STEERING | ||
| 1 | ||
| 359 | N 003901012011 | SCREW-IN FITTING |
| DELIVERY LINE TO STEERING | ||
| 1 | ||
| 359 | N 003901012011 | SCREW-IN FITTING |
| DELIVERY LINE TO STEERING | ||
| 2 | ||
| A 0019900970 | T-FITTING | |
| DELIVERY LINE TO STEERING | ||
| 1 | ||
| 362 | A 0019902771 | ELBOW FITTING |
| DELIVERY LINE TO STEERING | ||
| 2,DA | ||
| 365 | N 003901015005 | SCREW-IN FITTING |
| RETURN LINE TO STEERING | ||
| 1 | ||
| 365 | N 003901015005 | SCREW-IN FITTING |
| RETURN LINE TO STEERING | ||
| 1 | ||
| 368 | N 003952015102 | FITTING |
| Repalced by: N 003952015100 | ||
| 368 | N 003952015100 | FITTING |
| RETURN LINE TO STEERING | ||
| 2,RA | ||
| 371 | A 0039971672 | FITTING |
| LINE TO STEERING | ||
| 374 | N 007603018104 | SEAL RING |
| LINE TO STEERING | ||
| 377 | A 3854660265 | LINE |
| (RETURN LINE),FROM STEERING TO OIL TANK | ||
| 380 | A 6254667866 | LINE |
| FROM STEERING TO T-FITTING | ||
| 1 | ||
| 383 | A 6254667966 | LINE |
| TWO-WAY VALVE T-FITTING,TEST CONNECTION | ||
| 1 | ||
| 386 | A 6254668066 | LINE |
| FROM TWO-WAY VALVE TO HOSE | ||
| 1 | ||
| 389 | A 6254668666 | LINE |
| FROM STEERING TO T-FITTING | ||
| 2 | ||
| 389 | A 6254668666 | LINE |
| FROM STEERING TO T-FITTING | ||
| 2 | ||
| A 6254669357 | LINE | |
| (RETURN LINE) FROM HOSE TO HOSE,CIRCUIT: | ||
| 2 | ||
| A 6254603970 | LINE | |
| (RETURN LINE) FROM FLOW INDICATOR TO HOSE | ||
| A 6254609370 | LINE | |
| (RETURN LINE) FROM FLOW INDICATOR TO HOSE | ||
| 392 | A 6254607488 | LINE |
| FROM TWO-WAY VALVE TO HOSE | ||
| 2 | ||
| 392 | A 6254607488 | LINE |
| FROM TWO-WAY VALVE TO HOSE | ||
| 2 | ||
| 395 | A 6254600588 | LINE |
| Repalced by: A 0005516156 | ||
| 395 | A 0005516156 | TUBE |
| FROM HOSE TO HOSE | ||
| 2 | ||
| 398 | A 6254668966 | LINE |
| FROM HOSE TO FITTING | ||
| 2 | ||
| 401 | A 6254669066 | LINE |
| FROM TWO-WAY VALVE TO HOSE | ||
| 2 | ||
| A 6254606388 | LINE | |
| FROM STEERING TO PRESSURE LIMIT VALVE T-FITTING,CIRCUIT I | ||
| A 6254606388 | LINE | |
| FROM STEERING TO PRESSURE LIMIT VALVE T-FITTING,CIRCUIT I | ||
| A 6254606488 | LINE | |
| FROM PRESSURE LIMIT VALVE TO FLOW INDICATOR,CIRCUIT I | ||
| A 6254606488 | LINE | |
| FROM PRESSURE LIMIT VALVE TO FLOW INDICATOR,CIRCUIT I | ||
| A 6254608470 | LINE | |
| FROM PRESSURE LIMIT VALVE TO FLOW INDICATOR,CIRCUIT I | ||
| 1 | ||
| A 6254606588 | LINE | |
| FROM FLOW INDICATOR TO HIGH PRESSURE HOSE,CIRCUIT I | ||
| A 6254606588 | LINE | |
| FROM FLOW INDICATOR TO HIGH PRESSURE HOSE,CIRCUIT I | ||
| A 6254608570 | LINE | |
| FROM FLOW INDICATOR TO HIGH PRESSURE HOSE,CIRCUIT I | ||
| A 6254607188 | LINE | |
| FROM STEERING TO PRESSURE LIMIT VALVE T-FITTING,CIRCUIT II | ||
| A 6254607188 | LINE | |
| FROM STEERING TO PRESSURE LIMIT VALVE T-FITTING,CIRCUIT II | ||
| A 6254609170 | LINE | |
| FROM STEERING TO PRESSURE LIMIT VALVE T-FITTING | ||
| T2 | ||
| A 6254607288 | LINE | |
| FROM PRESSURE LIMIT VALVE TO HIGH PRESSURE HOSE,CIRCUIT II | ||
| A 6254607288 | LINE | |
| FROM PRESSURE LIMIT VALVE TO HIGH PRESSURE HOSE,CIRCUIT II | ||
| A 6254609270 | LINE | |
| FROM PRESSURE LIMIT VALVE TO FLOW INDICATOR | ||
| 404 | N 915017015100 | UNION NUT |
| RETURN LINE | ||
| 407 | N 003861015004 | GLAND |
| RETURN LINE | ||

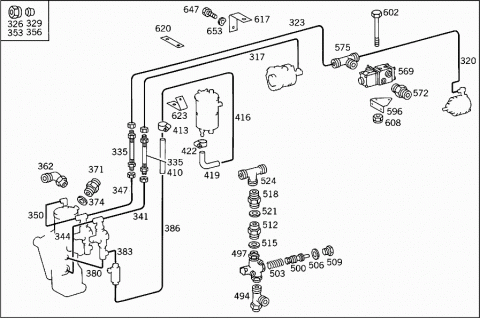

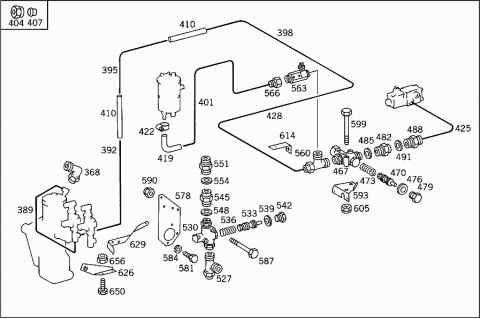

| 410 | A 3439970582 | HOSE |
| Repalced by: A 6999974082 | ||
| 410 | A 6999974082 | HOSE |
| Repalced by: A 3859971682 | ||
| 410 | A 3859971682 | HOSE |
| (RETURN LINE),FROM STEERING TO OIL TANK | ||
| 413 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 413 | N 000000000666 | CLAMP |
| HOSE TO RETURN LINE AND TO OIL TANK | ||
| 16-27X13 MM | ||
| 416 | A 6254660269 | LINE |
| (RETURN LINE),FROM HOSE TO HOSE | ||
| 1 | ||
| 416 | A 6254660269 | LINE |
| (RETURN LINE),FROM HOSE TO HOSE | ||
| 1 | ||
| A 6254669257 | LINE | |
| (RETURN LINE),FROM HOSE TO HOSE | ||
| 1 | ||
| 419 | A 6254660281 | HOSE |
| FROM RETURN LINE TO OIL TANK | ||
| 1;2 | ||
| A 0059974472 | FITTING | |
| RETURN LINE TO STEERING | ||
| 1 | ||
| 422 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 422 | N 000000000666 | CLAMP |
| FROM RETURN LINE TO OIL TANK | ||
| 1;2 ,16-27X13 MM | ||
| 422 | N 000000000666 | CLAMP |
| RETURN LINE TO STEERING | ||
| 2 | ||
| 425 | A 6254607688 | LINE |
| FROM TWO-WAY VALVE TO PRESSURE SAFETY VALVE | ||
| 425 | A 6254607688 | LINE |
| FROM TWO-WAY VALVE TO PRESSURE SAFETY VALVE | ||
| 428 | A 6254607788 | LINE |
| FROM PRESSURE VALVE TO DISTRIBUTOR | ||
| 2 | ||
| 428 | A 6254607788 | LINE |
| FROM PRESSURE VALVE TO DISTRIBUTOR | ||
| 2 | ||
| 431 | A 6254607888 | LINE |
| FROM STEERING TO HOSE | ||
| 1 | ||
| 431 | A 6254609488 | LINE |
| FROM STEERING TO HOSE | ||
| 1 | ||
| 434 | A 6254608088 | LINE |
| FROM STEERING TO HOSE | ||
| 1 | ||
| 434 | A 6254608888 | LINE |
| FROM STEERING TO HOSE | ||
| 1 | ||
| 437 | A 6254608288 | LINE |
| Repalced by: A 0005516156 | ||
| 437 | A 0005516156 | TUBE |
| FROM STEERING TO HOSE | ||
| 2 | ||
| 437 | A 6254609088 | LINE |
| FROM STEERING TO HOSE | ||
| 2 | ||
| 440 | A 6254608488 | LINE |
| Repalced by: A 0005516156 | ||
| 440 | A 0005516156 | TUBE |
| FROM STEERING TO HOSE | ||
| 2 | ||
| 440 | A 6254609288 | LINE |
| FROM STEERING TO HOSE | ||
| 2 | ||
| 443 | N 915017012100 | UNION NUT |
| 446 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 446 | A 0019901967 | SEAL CONE |
| 449 | A 0009978152 | HOSE |
| 449 | A 0019976352 | HOSE |
| 449 | A 0129972482 | HOSE |
| A 6254607988 | LINE | |
| STEERING-TO-POWER-CYLINDER DELIVERY LINE | ||
| 1 | ||
| 450 | A 6254608688 | LINE |
| Repalced by: A 0005516156 | ||
| 452 | A 6254608188 | LINE |
| Repalced by: A 0005516156 | ||
| 452 | A 0005516156 | TUBE |
| STEERING-TO-POWER-CYLINDER DELIVERY LINE | ||
| 1 | ||
| 452 | A 6254608988 | LINE |
| Repalced by: A 0005516156 | ||
| 455 | A 6254608388 | LINE |
| Repalced by: A 0005516156 | ||
| 455 | A 0005516156 | TUBE |
| STEERING-TO-POWER-CYLINDER DELIVERY LINE | ||
| 2 | ||
| 455 | A 6254609188 | LINE |
| Repalced by: A 0005516156 | ||
| 458 | A 6254608588 | LINE |
| Repalced by: A 0005516156 | ||
| 458 | A 0005516156 | TUBE |
| STEERING-TO-POWER-CYLINDER DELIVERY LINE | ||
| 2 | ||
| 458 | A 6254609388 | LINE |
| Repalced by: A 0005516156 | ||
| 458 | A 0005516156 | TUBE |
| STEERING-TO-POWER-CYLINDER DELIVERY LINE | ||
| 1+2 | ||
| 461 | N 915017012100 | UNION NUT |
| 464 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 464 | A 0019901967 | SEAL CONE |
| N 003902012003 | CONNECTION FITTING | |
| Repalced by: A 0029906171 | ||
| A 0029906171 | FITTING | |
| OIL LINE CONNECTION | ||
| 467 | A 0004663091 | PRESSURE LIMIT VALVE |
| RETURN LINE | ||
| 467 | A 0004663491 | VALVE |
| Repalced by: A 0004664291 | ||
| 467 | A 0004664291 | VALVE |
| PRESSURE LIMIT | ||
| 35 BAR | ||
| 470 | A 0004664483 | PISTON |
| (PRESSURE LIMIT VALVE) | ||
| 35 BAR | ||
| 473 | A 0029935201 | SPRING |
| (PRESSURE LIMIT VALVE) | ||
| 35 BAR | ||
| 476 | A 0119970445 | SEAL RING |
| (PRESSURE LIMIT VALVE) | ||
| 35 BAR | ||
| 479 | A 0019978830 | SCREW PLUG |
| (PRESSURE LIMIT VALVE) | ||
| 35 BAR | ||
| 482 | A 0059974272 | FITTING |
| (PRESSURE LIMIT VALVE) | ||
| 35 BAR | ||
| 485 | N 007603026101 | SEAL RING |
| (PRESSURE LIMIT VALVE) | ||
| 35 BAR | ||
| 488 | A 0039971672 | FITTING |
| INLET | ||
| 491 | N 007603018104 | SEAL RING |
| INLET | ||
| 494 | N 003901015005 | SCREW-IN FITTING |
| OUTLET | ||
| 497 | A 0004663291 | VALVE |
| PRESSURE LIMIT | ||
| 100 BAR | ||
| 500 | A 0004664183 | PISTON |
| Repalced by: A 0004665783 | ||
| 500 | A 0004665783 | PISTON |
| (PRESSURE LIMIT VALVE) | ||
| 100 BAR | ||
| 503 | A 6319930801 | SPRING |
| Repalced by: A 0029935201 | ||
| 503 | A 0029935201 | SPRING |
| (PRESSURE LIMIT VALVE) | ||
| 100 BAR | ||
| 506 | A 0119970445 | SEAL RING |
| (PRESSURE LIMIT VALVE) | ||
| 100 BAR | ||
| 509 | A 0019978830 | SCREW PLUG |
| (PRESSURE LIMIT VALVE) | ||
| 100 BAR | ||
| 512 | A 0059974272 | FITTING |
| (PRESSURE LIMIT VALVE) | ||
| 100 BAR | ||
| 515 | N 007603026101 | SEAL RING |
| (PRESSURE LIMIT VALVE) | ||
| 100 BAR | ||
| 518 | A 0039971672 | FITTING |
| INLET | ||
| 518 | A 0039971672 | FITTING |
| INLET | ||
| 521 | N 007603018104 | SEAL RING |
| INLET | ||
| 521 | N 007603018104 | SEAL RING |
| INLET | ||
| 524 | A 0019903170 | T-FITTING |
| INLET | ||
| 524 | A 0019903170 | T-FITTING |
| INLET | ||
| 527 | N 003901015005 | SCREW-IN FITTING |
| OUTLET | ||
| 527 | N 003901015005 | SCREW-IN FITTING |
| OUTLET | ||
| 527 | N 003954015101 | FITTING |
| OUTLET | ||
| 527 | N 003954015101 | FITTING |
| OUTLET | ||
| 530 | A 0004663391 | VALVE |
| Repalced by: A 0004664291 | ||
| 530 | A 0004664291 | VALVE |
| PRESSURE LIMIT | ||
| 150 BAR | ||
| 530 | A 0004664291 | VALVE |
| PRESSURE LIMIT | ||
| 150 BAR | ||
| 533 | A 0004664283 | PISTON |
| (PRESSURE LIMIT VALVE) | ||
| 150 BAR | ||
| 533 | A 0004664283 | PISTON |
| (PRESSURE LIMIT VALVE) | ||
| 150 BAR | ||
| 536 | A 6319930801 | SPRING |
| Repalced by: A 0029935201 | ||
| 536 | A 0029935201 | SPRING |
| (PRESSURE LIMIT VALVE) | ||
| 150 BAR | ||
| 536 | A 0029935201 | SPRING |
| (PRESSURE LIMIT VALVE) | ||
| 150 BAR | ||
| 539 | A 0119970445 | SEAL RING |
| (PRESSURE LIMIT VALVE) | ||
| 150 BAR | ||
| 539 | A 0119970445 | SEAL RING |
| (PRESSURE LIMIT VALVE) | ||
| 150 BAR | ||
| 542 | A 0019978830 | SCREW PLUG |
| (PRESSURE LIMIT VALVE) | ||
| 150 BAR | ||
| 542 | A 0019978830 | SCREW PLUG |
| (PRESSURE LIMIT VALVE) | ||
| 150 BAR | ||
| 545 | A 0059974272 | FITTING |
| (PRESSURE LIMIT VALVE) | ||
| 150 BAR | ||
| 545 | A 0059974272 | FITTING |
| (PRESSURE LIMIT VALVE) | ||
| 150 BAR | ||
| 548 | N 007603026101 | SEAL RING |
| (PRESSURE LIMIT VALVE) | ||
| 150 BAR | ||
| 548 | N 007603026101 | SEAL RING |
| (PRESSURE LIMIT VALVE) | ||
| 150 BAR | ||
| 551 | A 0039971672 | FITTING |
| INLET | ||
| 551 | A 0039971672 | FITTING |
| INLET | ||
| 554 | N 007603018104 | SEAL RING |
| INLET | ||
| 554 | N 007603018104 | SEAL RING |
| INLET | ||
| 560 | N 003901015005 | SCREW-IN FITTING |
| OUTLET | ||
| 560 | N 003954015101 | FITTING |
| OUTLET | ||
| 563 | A 0004602084 | VALVE |
| RETURN LINE | ||
| A 0069931101 | SPRING | |
| A 0004664983 | PISTON | |
| A 0004661450 | BUSHING | |
| A 0095427917 | SENDER UNIT | |
| 566 | A 6259970772 | FITTING |
| 569 | A 0004663591 | VALVE |
| Repalced by: A 0004664291 | ||
| 569 | A 0004664291 | VALVE |
| TWO-WAY VALVE | ||
| 572 | N 003901012007 | SCREW-IN FITTING |
| CONNECTIONS: | ||
| A,P | ||
| 572 | N 003901012007 | SCREW-IN FITTING |
| CONNECTIONS: | ||
| A,P | ||
| N 003953015100 | FITTING | |
| AT TWO-WAY VALVE | ||
| N 003953015100 | FITTING | |
| AT TWO-WAY VALVE | ||
| 575 | A 0019903170 | T-FITTING |
| CONNECTION: | ||
| P | ||
| 575 | A 0019903170 | T-FITTING |
| CONNECTION: | ||
| P | ||
| A 0039971672 | FITTING | |
| PRESSURE RELIEF VALVE OR TRAILER CONTROL VALVE TO SEPARATION POINT | ||
| P1 | ||
| N 007603018104 | SEAL RING | |
| PRESSURE RELIEF VALVE OR TRAILER CONTROL VALVE TO SEPARATION POINT | ||
| P1 | ||
| A 0039971672 | FITTING | |
| PRESSURE RELIEF VALVE OR TRAILER CONTROL VALVE TO SEPARATION POINT | ||
| P2 | ||
| N 007603018104 | SEAL RING | |
| PRESSURE RELIEF VALVE OR TRAILER CONTROL VALVE TO SEPARATION POINT | ||
| P2 | ||
| A 0019900970 | T-FITTING | |
| PRESSURE RELIEF VALVE OR TRAILER CONTROL VALVE TO SEPARATION POINT | ||
| P2 | ||
| N 003901015002 | SCREW-IN FITTING | |
| Repalced by: N 003901015003 | ||
| N 003901015005 | SCREW-IN FITTING | |
| PRESSURE RELIEF VALVE OR TRAILER CONTROL VALVE TO SEPARATION POINT | ||
| T2 | ||
| N 007603018104 | SEAL RING | |
| PRESSURE RELIEF VALVE OR TRAILER CONTROL VALVE TO SEPARATION POINT | ||
| T2 | ||
| N 003954015101 | FITTING | |
| PRESSURE RELIEF VALVE OR TRAILER CONTROL VALVE TO SEPARATION POINT | ||
| T2 | ||
| 578 | A 6254667440 | BRACKET |
| PRESSURE LIMIT VALVE | ||
| 578 | A 6254667440 | BRACKET |
| PRESSURE LIMIT VALVE | ||
| A 6254661443 | BRACKET | |
| PRESSURE LIMIT VALVE | ||
| 581 | N 000933010128 | SCREW |
| BRACKET TO STEERING | ||
| 581 | N 000933010128 | SCREW |
| BRACKET TO STEERING | ||
| 584 | N 000137010201 | SPRING WASHER |
| BRACKET TO STEERING | ||
| 584 | N 000137010201 | SPRING WASHER |
| BRACKET TO STEERING | ||
| 587 | N 000931010473 | SCREW |
| VALVE TO BRACKET | ||
| 587 | N 000931010473 | SCREW |
| VALVE TO BRACKET | ||
| N 000931010331 | SCREW | |
| VALVE TO BRACKET | ||
| M 10X65 | ||
| 590 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 590 | N 910113010000 | NUT |
| VALVE TO BRACKET | ||
| A 3609952001 | CLAMP | |
| Repalced by: A 6739950001 | ||
| A 6739950001 | CLAMP | |
| VALVE TO BRACKET | ||
| N 000933006121 | SCREW | |
| Repalced by: N 304017006020 | ||
| N 304017006020 | SCREW | |
| VALVE TO BRACKET | ||
| N 913004006002 | NUT | |
| Repalced by: N 913004006001 | ||
| N 913004006001 | NUT | |
| VALVE TO BRACKET | ||
| N 000933010198 | SCREW | |
| BRACKET TO STEERING GEAR | ||
| A 6732710140 | BRACKET | |
| OIL LINE TO TRANSMISSION | ||
| A 3609950401 | CLAMP | |
| OIL LINE TO TRANSMISSION | ||
| A 3609950701 | CLAMP | |
| Repalced by: N 916016018202 | ||
| N 916016018202 | CLAMP | |
| OIL LINE TO TRANSMISSION | ||
| N 000933006121 | SCREW | |
| Repalced by: N 304017006020 | ||
| N 304017006020 | SCREW | |
| OIL LINE TO TRANSMISSION | ||
| N 913004006002 | NUT | |
| Repalced by: N 913004006001 | ||
| N 913004006001 | NUT | |
| OIL LINE TO TRANSMISSION | ||
| 593 | A 6254668040 | BRACKET |
| PRESSURE LIMIT VALVE | ||
| 593 | A 6254668040 | BRACKET |
| PRESSURE LIMIT VALVE | ||
| 596 | A 6254666940 | BRACKET |
| PRESSURE LIMIT VALVE | ||
| 596 | A 6254666940 | BRACKET |
| PRESSURE LIMIT VALVE | ||
| 599 | N 000931010331 | SCREW |
| VALVE TO BRACKET | ||
| 602 | N 000931005047 | SCREW |
| VALVE TO BRACKET | ||
| 605 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 605 | N 910113010000 | NUT |
| VALVE TO BRACKET | ||
| 608 | N 913004005004 | NUT |
| Repalced by: N 910113005001 | ||
| 608 | N 910113005001 | NUT |
| VALVE TO BRACKET | ||
| 611 | A 3812950440 | BRACKET |
| LINE TO STEERING | ||
| 614 | A 6254666740 | BRACKET |
| Repalced by: A 6735460443 | ||
| 614 | A 6735460443 | BRACKET |
| AT PUMP | ||
| 614 | A 6735460443 | BRACKET |
| AT PUMP | ||
| 617 | A 6254667040 | BRACKET |
| AT TRANSMISSION | ||
| 617 | A 6254667040 | BRACKET |
| AT TRANSMISSION | ||
| A 6735461143 | BRACKET | |
| AT TRANSMISSION | ||
| 620 | A 6254667740 | BRACKET |
| Repalced by: A 3604293140 | ||
| 620 | A 3604293140 | BRACKET |
| AT ENGINE | ||
| 623 | A 6254668140 | BRACKET |
| Repalced by: A 6194660740 | ||
| 623 | A 6194660740 | BRACKET |
| AT ENGINE | ||
| 626 | A 3852700441 | BRACKET |
| AT ENGINE | ||
| 629 | A 6254667840 | BRACKET |
| BRACKET TO BRACKET | ||
| 629 | A 6254667840 | BRACKET |
| BRACKET TO BRACKET | ||
| 632 | A 6254667340 | BRACKET |
| BRACKET TO LEFT SIDE MEMBER | ||
| 635 | A 6254667240 | BRACKET |
| Repalced by: A 6205246040 | ||
| 635 | A 6205246040 | BRACKET |
| BRACKET TO LEFT SIDE MEMBER | ||
| 638 | A 6254666640 | BRACKET |
| BRACKET TO FENDER | ||
| 641 | A 6254667940 | BRACKET |
| Repalced by: A 3875244140 | ||
| 641 | A 3875244140 | BRACKET |
| BRACKET TO LEFT SIDE MEMBER | ||
| 644 | A 6254667140 | BRACKET |
| AT CYLINDER | ||
| 647 | N 000933012058 | SCREW |
| AT TRANSMISSION | ||
| 650 | N 000933010145 | SCREW |
| BRACKET TO LEFT SIDE MEMBER | ||
| 653 | N 000137012203 | SPRING WASHER |
| Repalced by: N 000137012206 | ||
| 653 | N 000137012206 | SPRING WASHER |
| AT TRANSMISSION | ||
| 656 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 656 | N 910113010000 | NUT |
| BRACKET TO LEFT SIDE MEMBER | ||
| 659 | N 000931008228 | SCREW |
| Repalced by: N 000933008134 | ||
| 659 | N 000933008134 | SCREW |
| BRACKET TO FENDER | ||
| 662 | N 000961014100 | SCREW |
| BRACKET TO LEFT SIDE MEMBER | ||
| 665 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 665 | N 910113014001 | NUT |
| BRACKET TO LEFT SIDE MEMBER | ||
| 668 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 668 | N 304017008027 | SCREW |
| AT CYLINDER | ||
| 671 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 671 | N 913004008001 | NUT |
| AT CYLINDER | ||
| 674 | A 3874660240 | BRACKET |
| Repalced by: A 6564660040 | ||
| 674 | A 6564660040 | BRACKET |
| AT FRAME | ||
| 677 | N 000961012122 | SCREW |
| BRACKET TO FRAME | ||
| M 12X40 | ||
| 677 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 677 | N 308676012026 | SCREW |
| BRACKET TO FRAME | ||
| M 12X35 | ||
| 680 | N 910113012002 | NUT |
| BRACKET TO FRAME | ||
| 683 | A 3609950701 | CLAMP |
| Repalced by: N 916016018202 | ||
| 683 | N 916016018202 | CLAMP |
| LINES TO BRACKET | ||
| 683 | A 3609950501 | CLAMP |
| Repalced by: A 3609952001 | ||
| 683 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 683 | A 6739950001 | CLAMP |
| 686 | A 3609950401 | CLAMP |
| LINES TO BRACKET | ||
| 689 | N 000933006127 | SCREW |
| 689 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 689 | N 304017006020 | SCREW |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| M 6X20 | ||
| 689 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 689 | N 304017006016 | SCREW |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| M 6X16 | ||
| 692 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 692 | N 913004006001 | NUT |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| 695 | A 3874660440 | BRACKET |
| Repalced by: A 6205244040 | ||
| 695 | A 6205244040 | BRACKET |
| AT ENGINE | ||
| 695 | A 6205244040 | BRACKET |
| AT ENGINE | ||
| N 916016012200 | CLAMP | |
| LINES TO BRACKET | ||
| 698 | N 916016016200 | CLAMP |
| Repalced by: N 916016015202 | ||
| 698 | N 916016015202 | CLAMP |
| LINES TO BRACKET | ||
| 701 | N 000137006204 | SPRING WASHER |
| LINES TO BRACKET | ||
| 704 | N 916016015201 | CLAMP |
| AT ENGINE | ||
| 707 | N 007985006176 | SCREW |
| AT ENGINE | ||
| M 6X20 | ||
| 710 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 710 | N 913004006001 | NUT |
| AT ENGINE | ||

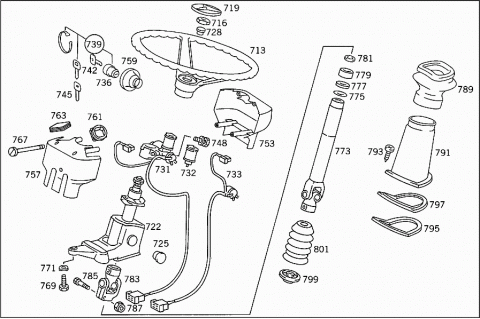

| 713 | A 3834640201 | STEERING WHEEL |
| 716 | N 308675022001 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| 719 | A 0004640432 | BADGE |
| STEERING WHEEL | ||
| 722 | A 3814601831 | STEERING COLUMN BRACKET |
| 722 | A 6154601031 | STEERING COLUMN BRACKET |
| 725 | A 3839970286 | PLUG |
| BOTTOM LATERAL | ||
| 728 | A 3819971186 | PLUG |
| TOP | ||
| 731 | A 0014621130 | STEERING LOCK |
| LESS TUMBLER | ||
| 732 | A 0005451367 | CONTACTOR |
| SOLENOID SWITCH | ||
| 733 | A 0005455413 | SWITCH |
| IGNITION SWITCH | ||
| 736 | A 3814600104 | TUMBLER |
| HUF | ||
| 736 | A 3094600004 | TUMBLER |
| LESS KEY | ||
| YMOS | ||
| 739 | A 3814600004 | TUMBLER |
| WITH 2 KEYS | ||
| HUF | ||
| 739 | A 3094620079 | TUMBLER |
| WITH 2 KEYS | ||
| YMOS | ||
| 742 | A 0007600006 | KEY |
| HUF | ||
| 742 | A 0007600606 | KEY |
| YMOS | ||
| 745 | A 0007663706 | KEY |
| BLANK | ||
| HUF | ||
| 745 | A 0007665306 | KEY |
| BLANK | ||
| YMOS | ||
| 748 | A 0004622371 | SCREW |
| (BREAK-OFF BOLT),STEERING LOCK MOUNTING | ||
| 753 | A 3814622143 | SHELL |
| STEERING COLUMN PANELLING,REAR | ||
| 753 | A 6204620443 | SHELL |
| STEERING COLUMN PANELLING; BLACK,NO.9051 | ||
| 757 | A 3814622443 | SHELL |
| STEERING COLUMN PANELLING,FRONT | ||
| 757 | A 6204620043 | SHELL |
| STEERING COLUMN PANELLING; BLACK,NO.9051 | ||
| 759 | A 3814620486 | GROMMET |
| STEERING COLUMN | ||
| 761 | A 3574620096 | BOOT |
| STEERING COLUMN PANELLING; BLACK,NO.9051 | ||
| 763 | A 3574620196 | BOOT |
| STEERING COLUMN PANELLING; BLACK,NO.9051 | ||
| 767 | A 3819900221 | SCREW |
| STEERING COLUMN PANELLING | ||
| M 5X75,5 | ||
| 767 | A 3019900021 | SCREW |
| Repalced by: A 3819900321 | ||
| 767 | A 3819900321 | SCREW |
| STEERING COLUMN PANELLING | ||
| M 5X83 | ||
| 769 | N 000933010145 | SCREW |
| STEERING COLUMN TO CAB | ||
| 771 | N 000137010201 | SPRING WASHER |
| STEERING COLUMN TO CAB | ||
| 773 | A 3814600609 | STEERING SHAFT |
| Repalced by: A 6504600209 | ||
| 773 | A 6504600209 | STEERING SHAFT |
| 773 | A 6504600609 | STEERING SHAFT |
| 773 | A 3814600309 | STEERING SHAFT |
| Repalced by: A 6504600109 | ||
| 773 | A 6504600109 | STEERING SHAFT |
| 773 | A 6504600509 | STEERING SHAFT |
| 775 | A 3814620175 | WASHER |
| TO A 381 460 06 09,A 381 460 03 09 | ||
| 777 | A 3814620260 | SEAL RING |
| TO A 381 460 06 09,A 381 460 03 09 | ||
| 779 | A 3814620061 | SEAL HOLDER |
| TO A 381 460 06 09,A 381 460 03 09 | ||
| 781 | A 3814620251 | RING |
| STEERING SHAFT | ||
| TO A 381 460 06 09,A 381 460 03 09 | ||
| A 3814600057 | UNIVERSAL JOINT | |
| Repalced by: A 3164600057 | ||
| 783 | A 3164600057 | UNIVERSAL JOINT |
| Repalced by: A 0004600057 | ||
| 783 | A 0004600057 | UNIVERSAL JOINT |
| 783 | A 3164600157 | UNIVERSAL JOINT |
| Repalced by: A 0004600157 | ||
| 783 | A 0004600157 | UNIVERSAL JOINT |
| 785 | A 3819900114 | SCREW |
| STEERING SHAFT TO JOINT | ||
| M 8X42 | ||
| 785 | A 3819900114 | SCREW |
| STEERING SHAFT TO STEERING COLUMN | ||
| M 8X42 | ||
| 785 | A 3819900114 | SCREW |
| STEERING SHAFT TO JOINT | ||
| M 8X42 | ||
| 785 | A 3169900114 | SCREW |
| STEERING SHAFT TO JOINT | ||
| M 8X38 | ||
| 787 | N 910113008001 | NUT |
| STEERING SHAFT TO JOINT | ||
| 787 | N 910113008001 | NUT |
| STEERING SHAFT TO STEERING COLUMN | ||
| 789 | A 3874610396 | BOOT |
| STEERING SHAFT | ||
| 791 | A 3874611297 | PROTECTIVE SLEEVE |
| STEERING SHAFT | ||
| 793 | N 007981005309 | SHEET METAL SCREW |
| Repalced by: N 007981005321 | ||
| 793 | N 007981005321 | SHEET METAL SCREW |
| PROTECTIVE SLEEVE TO CAB FLOOR | ||
| 795 | A 3874610180 | GASKET |
| PROTECTIVE SLEEVE TO CAB FLOOR | ||
| 797 | A 3874620024 | REINFORCEMENT |
| PROTECTIVE SLEEVE TO CAB FLOOR | ||
| 799 | A 3814620475 | WASHER |
| UNIVERSAL JOINT COVERING | ||
| 799 | A 6254620075 | WASHER |
| UNIVERSAL JOINT COVERING | ||
| 801 | A 3814621196 | BOOT |
| UNIVERSAL JOINT COVERING | ||
| 801 | A 6254620096 | BOOT |
| UNIVERSAL JOINT COVERING | ||
| 803 | A 6244610440 | STEERING SUPPORT |
| AT FRAME | ||
| 805 | N 000960014237 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 14X50 | ||
| 807 | N 000960014229 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 14X55 | ||
| 809 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 809 | N 910113014000 | NUT |
| STEERING SUPPORT TO FRAME | ||
| 811 | N 000961016077 | SCREW |
| Repalced by: N 308676016006 | ||

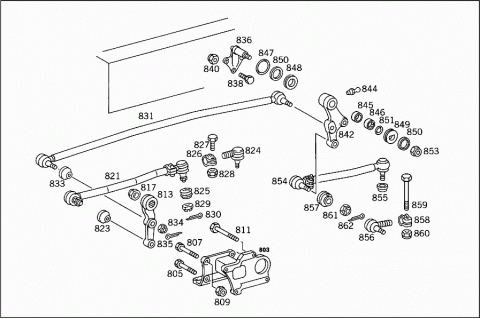

| 811 | N 308676016006 | SCREW |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| M 16X1.5X45 | ||
| 813 | A 6244630101 | PITMAN ARM |
| 815 | A 6254630601 | PITMAN ARM |
| 817 | A 0029905051 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 819 | A 0019908151 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| A 6254603505 | DRAG LINK | |
| Repalced by: A 6254601305 | ||
| 821 | A 6254601305 | DRAG LINK |
| Repalced by: A 6224601405 | ||
| 821 | A 6224601405 | DRAG LINK |
| FROM PITMAN ARM TO FRONT AXLE I | ||
| LEMFOERDER | ||
| 821 | A 6994603705 | DRAG LINK |
| Repalced by: A 6224601505 | ||
| 821 | A 6224601505 | DRAG LINK |
| FROM PITMAN ARM TO FRONT AXLE I | ||
| EHRENREICH | ||
| A 6244600405 | DRAG LINK | |
| Repalced by: A 6244601505 | ||
| 821 | A 6244601505 | DRAG LINK |
| FROM PITMAN ARM TO FRONT AXLE I | ||

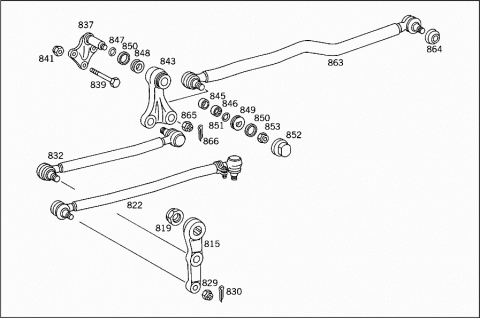

| 822 | A 6254602505 | DRAG LINK |
| FROM PITMAN ARM TO FRONT AXLE I | ||
| A 3354600096 | BOOT | |
| Repalced by: A 0004621796 | ||
| 823 | A 0004621796 | BOOT |
| FIXED PART OF JOINT | ||
| A 0004603448 | DRAG LINK END | |
| Repalced by: A 0014602348 | ||
| A 0004603548 | DRAG LINK END | |
| Repalced by: A 0014601448 | ||
| A 0014601448 | DRAG LINK END | |
| Repalced by: A 0014602348 | ||
| A 0014602348 | DRAG LINK END | |
| Repalced by: A 0014607848 | ||
| A 0014607848 | DRAG LINK END | |
| L.H. THREAD | ||
| TRW | ||
| Repalced by: A 0024600348 | ||
| A 0024600348 | BALL JOINT | |
| L.H. THREAD | ||
| TRW | ||
| A 0004600348 | DRAG LINK END | |
| Repalced by: A 0004602848 | ||
| 824 | A 0004602848 | DRAG LINK END |
| Repalced by: A 0014600848 | ||
| 824 | A 0014600848 | DRAG LINK END |
| Repalced by: A 0014602248 | ||
| 824 | A 0014602248 | DRAG LINK END |
| Repalced by: A 0014607748 | ||
| 824 | A 0014607748 | DRAG LINK END |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 824 | A 0004602948 | DRAG LINK END |
| Repalced by: A 0014601248 | ||
| 824 | A 0014601248 | DRAG LINK END |
| Repalced by: A 0014602248 | ||
| 824 | A 0014602248 | DRAG LINK END |
| Repalced by: A 0014607748 | ||
| 824 | A 0014607748 | DRAG LINK END |
| R.H. THREAD | ||
| EHRENREICH | ||
| A 3354600096 | BOOT | |
| Repalced by: A 0004621796 | ||
| 825 | A 0004621796 | BOOT |
| 826 | A 0003382445 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| LEMFOERDER | ||
| 826 | A 0003383445 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| EHRENREICH | ||
| 826 | A 0003382545 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| 827 | N 000960012453 | SCREW |
| Repalced by: N 308676012017 | ||
| 827 | N 308676012017 | SCREW |
| DRAG LINK END TO DRAG LINK | ||
| 828 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 828 | N 910113012003 | NUT |
| DRAG LINK END TO DRAG LINK | ||
| A 0019905451 | NUT | |
| DRAG LINK TO LEVER | ||
| 829 | N 000937024002 | NUT |
| DRAG LINK TO LEVER | ||
| 829 | N 000937027004 | NUT |
| DRAG LINK TO LEVER | ||
| 830 | N 000094005045 | COTTER PIN |
| DRAG LINK TO LEVER | ||
| 830 | N 000094005017 | COTTER PIN |
| DRAG LINK TO LEVER | ||
| 831 | A 6994604005 | DRAG LINK |
| FROM PITMAN ARM TO INTERMEDIATE LEVER | ||
| EHRENREICH | ||
| A 6994603905 | DRAG LINK | |
| Repalced by: A 6254601405 | ||
| 831 | A 6254601405 | DRAG LINK |
| FROM PITMAN ARM TO INTERMEDIATE LEVER | ||
| LEMFOERDER | ||
| 831 | A 6244603205 | DRAG LINK |
| FROM PITMAN ARM TO INTERMEDIATE LEVER | ||
| 831 | A 6244603105 | DRAG LINK |
| FROM PITMAN ARM TO INTERMEDIATE LEVER | ||
| 831 | A 6254601705 | DRAG LINK |
| FROM PITMAN ARM TO INTERMEDIATE LEVER | ||
| 832 | A 6254603605 | DRAG LINK |
| Repalced by: A 0004604005 | ||
| 832 | A 0004604005 | DRAG LINK |
| FROM PITMAN ARM TO INTERMEDIATE LEVER | ||
| I;LEMFOERDER | ||
| 832 | A 6254607605 | DRAG LINK |
| Repalced by: A 0004605405 | ||
| 832 | A 0004605405 | DRAG LINK |
| FROM PITMAN ARM TO INTERMEDIATE LEVER | ||
| I;EHRENREICH | ||
| 833 | A 0004621796 | BOOT |
| 833 | A 0004621696 | BOOT |
| 834 | N 000937024002 | NUT |
| DRAG LINK TO PITMAN ARM AND TO STEERING INTERMEDIATE ARM | ||
| 834 | N 000937027004 | NUT |
| DRAG LINK TO PITMAN ARM AND TO STEERING INTERMEDIATE ARM | ||
| 835 | N 000094005035 | COTTER PIN |
| DRAG LINK TO PITMAN ARM AND TO STEERING INTERMEDIATE ARM | ||
| 835 | N 000094005017 | COTTER PIN |
| DRAG LINK TO PITMAN ARM AND TO STEERING INTERMEDIATE ARM | ||
| 836 | A 6224610040 | STEERING SUPPORT |
| INTERMEDIATE LEVER | ||
| 836 | A 6244610140 | STEERING SUPPORT |
| INTERMEDIATE LEVER | ||
| 837 | A 6254610440 | STEERING SUPPORT |
| INTERMEDIATE LEVER | ||
| I | ||
| 838 | N 000961016100 | SCREW |
| Repalced by: N 308676016020 | ||
| 838 | N 308676016020 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| 838 | N 000961018048 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 18X50 | ||
| 839 | N 000961018049 | SCREW |
| INTERMEDIATE LEVER | ||
| M 18X45 | ||
| 840 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 840 | N 910113016001 | NUT |
| STEERING SUPPORT TO FRAME | ||
| 841 | N 910113018003 | NUT |
| STEERING SUPPORT TO FRAME | ||
| 842 | A 6244630010 | STEERING INTERMEDIATE ARM |
| 843 | A 6254630810 | STEERING INTERMEDIATE ARM |
| I | ||
| 844 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 844 | N 071412008102 | GREASE NIPPLE |
| INTERMEDIATE LEVER | ||
| 845 | A 3634630153 | SPACER TUBE |
| INTERMEDIATE LEVER | ||
| 845 | A 6254630053 | SPACER TUBE |
| INTERMEDIATE LEVER | ||
| 846 | A 0049813810 | NEEDLE BEARING |
| INTERMEDIATE LEVER | ||
| 846 | A 0139817110 | NEEDLE BEARING |
| INTERMEDIATE LEVER | ||
| 846 | A 0129813310 | NEEDLE BEARING |
| Repalced by: A 0219814710 | ||
| 846 | A 0219814710 | NEEDLE BEARING |
| INTERMEDIATE LEVER | ||
| 847 | A 0069977545 | SEAL RING |
| INSIDE | ||
| 847 | A 0159971847 | SEAL RING |
| INSIDE | ||
| 848 | A 6224630162 | THRUST WASHER |
| INSIDE | ||
| 848 | A 6254630162 | THRUST WASHER |
| INSIDE | ||
| 849 | A 6224630062 | THRUST WASHER |
| OUTSIDE | ||
| 849 | A 6254630062 | THRUST WASHER |
| OUTSIDE | ||
| 850 | A 0069973048 | SEAL RING |
| THRUST WASHER | ||
| 851 | A 0059978148 | SEAL RING |
| Repalced by: A 0169973648 | ||
| 851 | A 0169973648 | SEAL RING |
| OUTSIDE | ||
| 852 | A 6254630033 | CAP |
| OUTSIDE | ||
| 853 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 853 | N 910113018004 | NUT |
| INTERMEDIATE LEVER TO STEERING SUPPORT | ||
| 853 | N 913004022003 | NUT |
| Repalced by: N 910113022001 | ||
| 853 | N 910113022001 | NUT |
| INTERMEDIATE LEVER TO STEERING SUPPORT | ||
| Repalced by: N 910113022000 | ||
| 853 | N 910113022000 | NUT |
| INTERMEDIATE LEVER TO STEERING SUPPORT | ||
| A 6244600305 | DRAG LINK | |
| Repalced by: A 6244601905 | ||
| 854 | A 6244601905 | DRAG LINK |
| FROM INTERMEDIATE LEVER TO FRONT AXLE II | ||
| LEMFOERDER | ||
| 854 | A 6244602005 | DRAG LINK |
| FROM INTERMEDIATE LEVER TO FRONT AXLE II | ||
| EHRENREICH | ||
| 855 | A 0004600196 | BOOT |
| A 0004600348 | DRAG LINK END | |
| Repalced by: A 0004602848 | ||
| 856 | A 0004602848 | DRAG LINK END |
| Repalced by: A 0014600848 | ||
| 856 | A 0014600848 | DRAG LINK END |
| Repalced by: A 0014602248 | ||
| 856 | A 0014602248 | DRAG LINK END |
| Repalced by: A 0014607748 | ||
| 856 | A 0014607748 | DRAG LINK END |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 856 | A 0004602948 | DRAG LINK END |
| Repalced by: A 0014601248 | ||
| 856 | A 0014601248 | DRAG LINK END |
| Repalced by: A 0014602248 | ||
| 856 | A 0014602248 | DRAG LINK END |
| Repalced by: A 0014607748 | ||
| 856 | A 0014607748 | DRAG LINK END |
| R.H. THREAD | ||
| EHRENREICH | ||
| A 3354600096 | BOOT | |
| Repalced by: A 0004621796 | ||
| 857 | A 0004621796 | BOOT |
| 858 | A 0003382445 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| LEMFOERDER | ||
| 858 | A 0003383445 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| EHRENREICH | ||
| 859 | N 000960012453 | SCREW |
| Repalced by: N 308676012017 | ||
| 859 | N 308676012017 | SCREW |
| DRAG LINK END TO DRAG LINK | ||
| M 12X62 | ||
| 860 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 860 | N 910113012003 | NUT |
| DRAG LINK END TO DRAG LINK | ||
| A 0019905451 | NUT | |
| DRAG LINK TO LEVER | ||
| 861 | N 000937024002 | NUT |
| DRAG LINK TO LEVER | ||
| 862 | N 000094005035 | COTTER PIN |
| DRAG LINK TO LEVER | ||
| 863 | A 6254601905 | DRAG LINK |
| FROM INTERMEDIATE LEVER I TO INTERMEDIATE LEVER II | ||
| 863 | A 6254604205 | DRAG LINK |
| Repalced by: A 0004604105 | ||
| 863 | A 0004604105 | DRAG LINK |
| FROM INTERMEDIATE LEVER I TO INTERMEDIATE LEVER II | ||
| LEMFOERDER | ||
| 863 | A 6254607805 | DRAG LINK |
| Repalced by: A 0004605505 | ||
| 863 | A 0004605505 | DRAG LINK |
| FROM INTERMEDIATE LEVER I TO INTERMEDIATE LEVER II | ||
| EHRENREICH | ||
| 864 | A 0004621696 | BOOT |
| 865 | N 000937027000 | NUT |
| Repalced by: N 000937027002 | ||
| 865 | N 000937027002 | NUT |
| DRAG LINK TO LEVER | ||
| 866 | N 000094005017 | COTTER PIN |
| DRAG LINK TO LEVER | ||

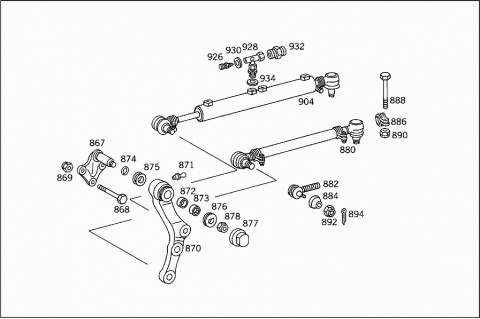

| 867 | A 6254610440 | STEERING SUPPORT |
| INTERMEDIATE LEVER | ||
| II | ||
| 868 | N 000961018048 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| 868 | N 000961018049 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| 869 | N 910113018003 | NUT |
| STEERING SUPPORT TO FRAME | ||
| 870 | A 6254631610 | STEERING INTERMEDIATE ARM |
| II | ||
| 870 | A 6254631010 | STEERING INTERMEDIATE ARM |
| II | ||
| 871 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 871 | N 071412008102 | GREASE NIPPLE |
| INTERMEDIATE LEVER | ||
| 872 | A 6254630053 | SPACER TUBE |
| INTERMEDIATE LEVER | ||
| 873 | A 0139817110 | NEEDLE BEARING |
| INTERMEDIATE LEVER | ||
| 873 | A 0129813310 | NEEDLE BEARING |
| Repalced by: A 0219814710 | ||
| 873 | A 0219814710 | NEEDLE BEARING |
| INTERMEDIATE LEVER | ||
| 874 | A 0159971847 | SEAL RING |
| INSIDE | ||
| 875 | A 6254630162 | THRUST WASHER |
| INSIDE | ||
| 876 | A 6254630062 | THRUST WASHER |
| OUTSIDE | ||
| 877 | A 6254630033 | CAP |
| OUTSIDE | ||
| 878 | N 913004022003 | NUT |
| Repalced by: N 910113022001 | ||
| 878 | N 910113022001 | NUT |
| INTERMEDIATE LEVER TO STEERING SUPPORT | ||
| Repalced by: N 910113022000 | ||
| 878 | N 910113022000 | NUT |
| INTERMEDIATE LEVER TO STEERING SUPPORT | ||
| 880 | A 6254603305 | DRAG LINK |
| Repalced by: A 6994604206 | ||
| 880 | A 6994604206 | DRAG LINK |
| Repalced by: A 0004603905 | ||
| 880 | A 0004603905 | DRAG LINK |
| FROM INTERMEDIATE LEVER II TO FRONT AXLE II | ||
| 880 | A 6254604305 | DRAG LINK |
| Repalced by: A 0004604205 | ||
| 880 | A 0004604205 | DRAG LINK |
| FROM INTERMEDIATE LEVER II TO FRONT AXLE II | ||
| LEMFOERDER | ||
| 880 | A 6254607905 | DRAG LINK |
| Repalced by: A 0004605605 | ||
| 880 | A 0004605605 | DRAG LINK |
| FROM INTERMEDIATE LEVER II TO FRONT AXLE II | ||
| EHRENREICH | ||
| 882 | A 0004605748 | DRAG LINK END |
| Repalced by: A 0004606848 | ||
| 882 | A 0004606848 | DRAG LINK END |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 882 | A 0004606048 | DRAG LINK END |
| Repalced by: A 0004607048 | ||
| 882 | A 0004607048 | DRAG LINK END |
| Repalced by: A 0014601148 | ||
| 882 | A 0014601148 | DRAG LINK END |
| Repalced by: A 0014601748 | ||
| 882 | A 0014601748 | DRAG LINK END |
| Repalced by: A 0014607648 | ||
| 882 | A 0014607648 | DRAG LINK END |
| R.H. THREAD | ||
| EHRENREICH | ||
| 882 | A 0004605848 | DRAG LINK END |
| Repalced by: A 0014600548 | ||
| 882 | A 0014600548 | DRAG LINK END |
| L.H. THREAD | ||
| LEMFOERDER | ||
| 882 | A 0004606148 | DRAG LINK END |
| Repalced by: A 0004607148 | ||
| 882 | A 0004607148 | DRAG LINK END |
| Repalced by: A 0014601348 | ||
| 882 | A 0014601348 | DRAG LINK END |
| Repalced by: A 0014602548 | ||
| 882 | A 0014602548 | DRAG LINK END |
| Repalced by: A 0014607948 | ||
| 882 | A 0014607948 | DRAG LINK END |
| L.H. THREAD | ||
| EHRENREICH | ||
| 884 | A 0004621696 | BOOT |
| 886 | A 0003382445 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| LEMFOERDER | ||
| 886 | A 0003383445 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| EHRENREICH | ||
| 888 | N 000960012453 | SCREW |
| Repalced by: N 308676012017 | ||
| 888 | N 308676012017 | SCREW |
| DRAG LINK END TO DRAG LINK | ||
| 890 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 890 | N 910113012003 | NUT |
| DRAG LINK END TO DRAG LINK | ||
| A 0019907651 | NUT | |
| DRAG LINK END TO DRAG LINK | ||
| 892 | N 000937027004 | NUT |
| DRAG LINK TO LEVER | ||
| 894 | N 000094005017 | COTTER PIN |
| DRAG LINK TO LEVER | ||
| A 6244660435 | BEARING BRACKET | |
| Repalced by: A 6994660235 | ||
| 896 | A 6994660235 | BEARING BRACKET |
| CYLINDER | ||
| 898 | N 000961016100 | SCREW |
| Repalced by: N 308676016020 | ||
| 898 | N 308676016020 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 16X35 | ||
| 898 | N 000961016096 | SCREW |
| Repalced by: N 308676016007 | ||
| 898 | N 308676016007 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 16X50 | ||
| 898 | N 000960016237 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 16X60 | ||
| 900 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 900 | N 910113016001 | NUT |
| BEARING BRACKET TO FRAME | ||
| 902 | A 0004660792 | CYLINDER |
| (POWER CYLINDER),POWER STEERING | ||
| 904 | A 0004661392 | CYLINDER |
| Repalced by: A 0004662192 | ||
| 904 | A 0004662192 | CYLINDER |
| (POWER CYLINDER),POWER STEERING | ||
| 906 | A 0029909751 | NUT |
| CYLINDER | ||
| 908 | A 0004663183 | PISTON |
| CYLINDER | ||
| 908 | A 0004663683 | PISTON |
| CYLINDER | ||
| 910 | A 0004662260 | SEAL RING |
| PISTON | ||
| A 0004662860 | SEAL RING | |
| PISTON | ||
| 912 | A 0004662460 | SEAL RING |
| PISTON | ||
| A 0149977148 | SEAL RING | |
| Repalced by: A 0189976748 | ||
| A 0189976748 | SEAL RING | |
| PISTON | ||
| 914 | A 0004663283 | PISTON |
| PISTON ROD GUIDE | ||
| A 0004664683 | PISTON | |
| PISTON ROD GUIDE | ||
| A 0004663783 | PISTON | |
| PISTON ROD GUIDE | ||
| A 0004661286 | GUIDE | |
| PISTON ROD GUIDE | ||
| 916 | A 0129974248 | SEAL RING |
| PISTON ROD GUIDE | ||
| A 0149977248 | SEAL RING | |
| PISTON ROD GUIDE | ||
| A 0149977348 | SEAL RING | |
| PISTON ROD GUIDE | ||
| 918 | A 0059943541 | LOCK |
| PISTON ROD GUIDE | ||
| A 0004662575 | WASHER | |
| PISTON ROD GUIDE | ||
| 920 | A 0004662560 | SEAL RING |
| PISTON ROD GUIDE | ||
| A 0004662760 | SEAL RING | |
| PISTON ROD GUIDE | ||
| 922 | A 0002670283 | SEAL |
| PISTON ROD GUIDE | ||
| 924 | A 0059943641 | LOCK |
| PISTON ROD GUIDE | ||
| N 000471038002 | LOCK RING | |
| PISTON ROD GUIDE | ||
| A 0069946341 | LOCK | |
| PISTON ROD GUIDE | ||
| A 0009964845 | ARTICULATION PIECE | |
| 926 | A 0004204055 | BLEEDER VALVE |
| Repalced by: A 0004205155 | ||
| 926 | A 0004203555 | BLEEDER VALVE |
| Repalced by: A 0004205155 | ||
| 926 | A 0004205155 | BLEEDER VALVE |
| POWER CYLINDER | ||
| 928 | A 0029904570 | T-FITTING |
| BLEEDER VALVE | ||
| 930 | N 007603018104 | SEAL RING |
| BLEEDER VALVE | ||
| 932 | A 0039971672 | FITTING |
| (POWER CYLINDER),POWER STEERING | ||
| 934 | N 007603018104 | SEAL RING |
| (POWER CYLINDER),POWER STEERING | ||
| 936 | A 6244600348 | DRAG LINK END |
| CYLINDER TO BEARING BRACKET AND TO INTERMEDIATE LEVER | ||
| A 0004630317 | CLAMPING PIECE | |
| Repalced by: A 4619955044 | ||
| 938 | A 4619955044 | CLAMP |
| CLAMP, ONE-HOLE | ||
| "6245" | ||
| A 0004660677 | CLAMP | |
| 940 | N 000960010027 | SCREW |
| Repalced by: N 308676010017 | ||
| 940 | N 308676010017 | SCREW |
| CLAMP, ONE-HOLE | ||
| A 0002680272 | NUT | |
| Repalced by: A 0002680472 | ||
| 942 | A 0002680472 | NUT |
| Repalced by: N 913004010010 | ||
| N 913004010010 | NUT | |
| Repalced by: N 910113010002 | ||
| N 910113010002 | NUT | |
| CLAMP, ONE-HOLE | ||
| 944 | N 000937030000 | NUT |
| DRAG LINK END | ||
| N 000937024002 | NUT | |
| DRAG LINK END | ||
| 946 | N 000094006317 | COTTER PIN |
| DRAG LINK END | ||
| N 000094005035 | COTTER PIN | |
| DRAG LINK END | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
