Transporto priemonė: 3028 B; VIN numerio dalis: 625015
Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|

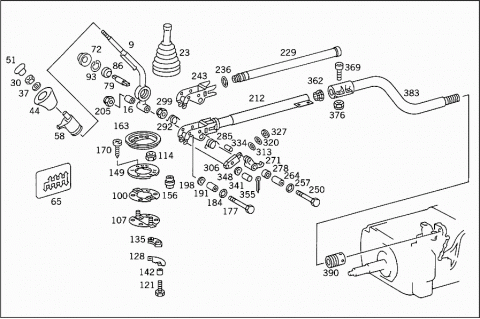

| 009 | A 3852606839 | SHIFT LEVER |
| 009 | A 3852607039 | SHIFT LEVER |
| 016 | A 3359920203 | BUSHING |
| 023 | A 6202680097 | BOOT |
| SHIFT LEVER TO CAB FLOOR | ||
| 030 | N 000936010010 | NUT |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 037 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 037 | N 000125010532 | WASHER |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 044 | A 6202600040 | HANDLE |
| (GEARSHIFT LEVER KNOB) | ||
| 051 | A 6202680157 | COVER |
| LESS GEAR INDICATOR | ||
| 058 | A 0012602557 | VALVE |
| Repalced by: A 0012602457 | ||
| 058 | A 0012602457 | VALVE |
| Repalced by: A 0012605357 | ||
| 058 | A 0012605357 | VALVE |
| Repalced by: A 0012606357 | ||
| 058 | A 0012606357 | VALVE |
| (SHIFT LEVER VALVE) | ||
| HERION | ||
| 058 | A 0012606457 | VALVE |
| (SHIFT LEVER VALVE) | ||
| WABCO | ||
| 065 | A 6205840238 | GUMMED LABEL |
| GEAR INDICATOR | ||
| 072 | A 3852680696 | BOOT |
| Repalced by: A 6202680196 | ||
| 072 | A 6202680196 | BOOT |
| SHIFT LEVER BEARING | ||
| 079 | A 3852681474 | PIN |
| SHIFT LEVER BEARING | ||
| 086 | A 0009815531 | JOINT BEARING |
| Repalced by: A 0019813931 | ||
| 086 | A 0019813931 | JOINT BEARING |
| SHIFT LEVER BEARING | ||
| 086 | A 0009814531 | JOINT BEARING |
| SHIFT LEVER BEARING | ||
| 093 | N 000472042001 | LOCK RING |
| SHIFT LEVER BEARING | ||
| 100 | A 3892680440 | BRACKET |
| SHIFT LEVER UPPER PART | ||
| 107 | A 3892605262 | BRACKET |
| SHIFT LEVER LOWER PART | ||
| 114 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 114 | N 913004008001 | NUT |
| BRACKET TO BRACKET | ||
| 121 | N 000931008046 | SCREW |
| Repalced by: N 304017008018 | ||
| 121 | N 304017008018 | SCREW |
| SHIFT LEVER BEARING TO CAB FLOOR | ||
| 128 | A 3852681640 | BRACKET |
| SHIFT LEVER TO CAB FLOOR | ||
| 135 | A 3852680492 | RUBBER PAD |
| SHIFT LEVER TO CAB FLOOR | ||
| 142 | A 3892680525 | BUSHING |
| SHIFT LEVER TO CAB FLOOR | ||
| 149 | A 3852680392 | RUBBER PAD |
| SHIFT LEVER TO CAB FLOOR | ||
| 156 | A 3852681950 | BUSHING |
| COMPRESSED AIR LINE THRU CAB FLOOR | ||
| 163 | A 3852601962 | BRACKET |
| BOOT | ||
| 170 | N 007981003203 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 177 | N 000931010357 | SCREW |
| Repalced by: N 000933010192 | ||
| 177 | A 0019909404 | SCREW |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 184 | A 0009978648 | SEAL RING |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 191 | A 3852680153 | SPACER TUBE |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 198 | N 900055018001 | SPRING WASHER |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 205 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 205 | N 910113010000 | NUT |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 212 | A 3852609433 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 229 | A 3852603882 | SHIFTING TUBE |
| (TELESCOPIC TUBE) | ||
| 236 | A 0009978748 | SEAL RING |
| SHIFTING ROD | ||
| 30.20 MM | ||
| 243 | A 3852600534 | ROD END |
| HYDRAULIC RELEASE | ||
| 250 | N 000931010357 | SCREW |
| Repalced by: N 000933010192 | ||
| 250 | A 0019909404 | SCREW |
| PAWL TO ROD END | ||
| 257 | A 0009978648 | SEAL RING |
| PAWL TO ROD END | ||
| 17.20 MM | ||
| 264 | A 3852680153 | SPACER TUBE |
| PAWL TO ROD END | ||
| 271 | A 3852600387 | PAWL |
| Repalced by: A 6202600087 | ||
| 271 | A 6202600087 | PAWL |
| SHIFTING ROD | ||
| 278 | A 3359920203 | BUSHING |
| PAWL TO ROD END | ||
| A 6209920003 | BUSHING | |
| PAWL TO ROD END | ||
| A 6202680150 | BUSHING | |
| PAWL TO ROD END | ||
| 285 | A 3859930020 | SPRING |
| PAWL TO ROD END | ||
| 292 | A 3859930120 | SPRING |
| PAWL TO ROD END | ||
| 299 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 299 | N 910113010000 | NUT |
| PAWL TO ROD END | ||
| 306 | A 3852600563 | SHIFTING CYLINDER |
| HYDRAULIC RELEASE | ||
| TECHNOMATIK | ||
| 306 | A 3852600063 | SHIFTING CYLINDER |
| HYDRAULIC RELEASE | ||
| WABCO | ||
| 313 | A 0069976748 | SEAL RING |
| PISTON RINGS | ||
| WABCO | ||
| 320 | A 0069976848 | SEAL RING |
| SCREW FITTING | ||
| WABCO | ||
| 327 | A 0019970641 | SEAL RING |
| OUTSIDE | ||
| WABCO | ||
| 334 | N 001443008203 | PIN |
| Repalced by: N 001444008235 | ||
| 334 | N 001444008235 | PIN |
| SHIFTING CYLINDER TO PAWL | ||
| 8X22 MM | ||
| 341 | N 001444008234 | PIN |
| SHIFTING CYLINDER TO YOKE | ||
| 8X45 MM | ||
| 348 | N 900055008002 | SPRING WASHER |
| SHIFTING CYLINDER TO YOKE | ||
| 355 | N 000094002059 | COTTER PIN |
| 362 | A 3852680776 | WASHER |
| BETWEEN FRONT AND REAR SHIFTING TUBES | ||
| 369 | N 006912010021 | SCREW |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 376 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 376 | N 910113010000 | NUT |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 383 | A 6202609533 | SHIFTING ROD |
| REAR | ||
| 383 | A 6202604133 | SHIFTING ROD |
| REAR | ||
| 390 | A 6202680028 | CONNECTOR |
| REAR SHIFTING ROD TO CONNECTOR | ||

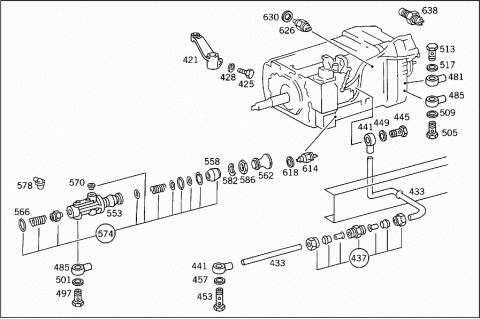

| 421 | A 6252680030 | SHIFT LEVER |
| TRANSMISSION | ||
| 425 | N 000933010145 | SCREW |
| SHIFT LEVER TO TRANSMISSION | ||
| 428 | N 912004010102 | LOCK WASHER |
| SHIFT LEVER TO TRANSMISSION | ||
| 433 | A 0089979082 | HOSE |
| FOUR-CIRCUIT PROTECTIVE VALVE,CLUTCH BOOSTER,DISTRIBUTOR,3/2-WAY VALVE | ||
| 6X8 MM | ||
| 437 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 437 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 441 | N 915052006013 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/12 MM | ||
| 445 | N 915036008202 | HOLLOW SCREW |
| SUPPLY LINE TO 3/2-WAY VALVE | ||
| 449 | N 007603012405 | SEAL RING |
| SUPPLY LINE TO 3/2-WAY VALVE | ||
| 453 | N 915047008202 | HOLLOW SCREW |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "24" | ||
| 457 | N 007603012405 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "24" | ||
| 457 | N 007603012405 | SEAL RING |
| SUPPLY LINE TO 3/2-WAY VALVE | ||
| 461 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 461 | A 0009872627 | PLASTIC PIPE |
| DISTRIBUTOR,3/2-WAY VALVE,ADDITIONAL GEARBOX VALVE | ||
| 4X6 MM | ||
| 461 | A 0009872627 | PLASTIC PIPE |
| FROM 3/2-WAY VALVE TO SHIFTING CYLINDER | ||
| 4X6 MM | ||
| 465 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 469 | N 915062004000 | SLEEVE |
| LINE CONNECTIONS | ||
| 473 | N 003861006008 | GLAND |
| LINE CONNECTIONS | ||
| 477 | N 915017006104 | UNION NUT |
| LINE CONNECTIONS | ||
| 481 | N 915052004016 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/10 MM | ||
| 485 | N 915052004015 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/12 MM | ||
| 485 | N 915052004015 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/12 MM | ||
| A 0019907871 | ELBOW FITTING | |
| 3/2-WAY VALVE;CONNECTION: | ||
| "10,20" | ||
| 489 | N 915047008202 | HOLLOW SCREW |
| DISTRIBUTOR | ||
| 493 | N 007603012405 | SEAL RING |
| DISTRIBUTOR | ||
| 497 | N 915036008202 | HOLLOW SCREW |
| OPERATING VALVE | ||
| 501 | N 007603012405 | SEAL RING |
| OPERATING VALVE | ||
| 505 | N 915036008202 | HOLLOW SCREW |
| SHIFTING CYLINDER,CONNECTION: | ||
| "1" | ||
| 509 | N 007603012405 | SEAL RING |
| SHIFTING CYLINDER,CONNECTION: | ||
| "1" | ||
| 513 | N 915036006202 | HOLLOW SCREW |
| SHIFTING CYLINDER,CONNECTION: | ||
| "41" | ||
| 517 | N 007603010404 | SEAL RING |
| SHIFTING CYLINDER,CONNECTION: | ||
| "41" | ||

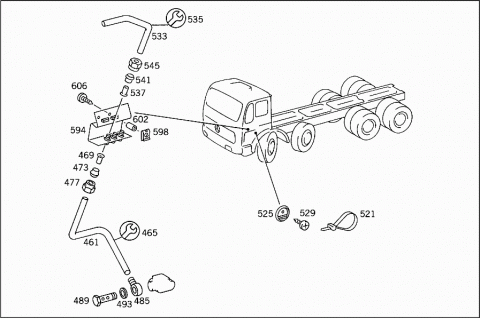

| 521 | A 0019978390 | LOOM TIE |
| LINE MOUNTING | ||
| 521 | A 0019978490 | LOOM TIE |
| LINE MOUNTING | ||
| 525 | A 3816820086 | BRACKET |
| LINE MOUNTING | ||
| 529 | N 007981004244 | SHEET METAL SCREW |
| Repalced by: N 000000000453 | ||
| 529 | N 000000000453 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 533 | A 0109975482 | PLASTIC TUBE |
| 535 | A 0049979572 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 537 | N 915062002000 | SLEEVE |
| LINE CONNECTIONS | ||
| 541 | N 003861004001 | GLAND |
| LINE CONNECTIONS | ||
| 545 | N 915017004101 | UNION NUT |
| LINE CONNECTIONS | ||
| 553 | A 0004342201 | VALVE |
| (PILOT VALVE),SPLITTER BOX | ||
| 558 | A 0004340586 | CUP |
| VALVE | ||
| 562 | A 0009971977 | HANDLE |
| VALVE | ||
| 566 | A 0079972548 | SEAL RING |
| VALVE | ||
| 570 | A 0003280191 | CLEANER |
| VALVE | ||
| 574 | A 0025869843 | REPAIR KIT |
| SPLITTER-BOX PILOT VALVE | ||
| 578 | A 4063580065 | BREATHER |
| Repalced by: A 3933280065 | ||
| 578 | A 3933280065 | PIPE SOCKET |
| SPLITTER-BOX PILOT VALVE | ||
| 582 | N 000137027201 | SPRING WASHER |
| 3/2-WAY VALVE TO CAB FRONT PANEL | ||
| 586 | N 074305026202 | NUT |
| 3/2-WAY VALVE TO CAB FRONT PANEL | ||
| 594 | A 6172600362 | BRACKET |
| Repalced by: A 6172600062 | ||
| 594 | A 6172600062 | BRACKET |
| LINE MOUNTING | ||
| 594 | A 6172600162 | BRACKET |
| LINE MOUNTING | ||
| 598 | A 0009940445 | LOCK |
| Repalced by: A 1409941045 | ||
| 598 | A 1409941045 | LOCK |
| BRACKET TO CAB | ||
| 602 | A 3479915040 | SPACER TUBE |
| BRACKET TO CAB | ||
| 606 | N 007981004254 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 614 | A 0005457909 | SWITCH |
| Repalced by: A 0005459009 | ||
| 614 | A 0005459009 | SWITCH |
| Repalced by: A 0015451109 | ||
| 614 | A 0015451109 | SWITCH |
| Repalced by: A 0015452709 | ||
| 614 | A 0015452709 | SWITCH |
| NEUTRAL POSITION | ||
| 618 | A 0002682059 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 1.60 MM | ||
| 618 | A 0002681959 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 1.80 MM | ||
| 618 | A 0002681559 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 2.00 MM | ||
| 618 | A 0002681659 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 2.20 MM | ||
| 618 | A 0002681759 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 2.40 MM | ||
| 618 | A 0002682159 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 2.60 MM | ||
| 618 | A 0002682259 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 2.80 MM | ||
| 618 | A 0002682359 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 3.00 MM | ||
| 626 | A 0015453414 | SWITCH |
| Repalced by: A 0025458114 | ||
| 626 | A 0025458114 | SWITCH |
| Repalced by: A 0035451614 | ||
| 626 | A 0035451614 | SWITCH |
| GEAR CLUSTER INDICATION | ||
| 626 | A 0035451614 | SWITCH |
| OVERREVVING | ||
| 630 | A 0002680359 | SEAL RING |
| Repalced by: N 007603018100 | ||
| 630 | N 007603018100 | SEAL RING |
| GEAR CLUSTER INDICATION | ||
| 630 | N 007603018100 | SEAL RING |
| OVERREVVING | ||

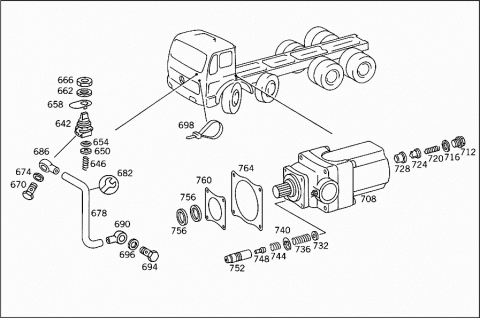

| 638 | A 0065426817 | SENDER UNIT |
| OVERREVVING | ||
| 642 | A 0019975036 | VALVE |
| P.T.O. CONTROL | ||
| BOSCH | ||
| 642 | A 0019976136 | VALVE |
| P.T.O. CONTROL | ||
| WABCO | ||
| 642 | A 0039975936 | VALVE |
| P.T.O. CONTROL | ||
| KNORR | ||
| 642 | A 0039976036 | VALVE |
| P.T.O. CONTROL | ||
| VOSS | ||
| 646 | A 0049937501 | SPRING |
| WABCO | ||
| 650 | A 0069972648 | SEAL RING |
| WABCO | ||
| 654 | A 0039979640 | SEAL RING |
| WABCO | ||
| 658 | A 3855841524 | SYMBOL PLATE |
| P.T.O. CONTROL | ||
| 662 | A 6239900040 | WASHER |
| VALVE TO CAB | ||
| 666 | A 3839900051 | NUT |
| VALVE TO CAB | ||
| 670 | N 915036006202 | HOLLOW SCREW |
| 3/2-WAY VALVE | ||
| 674 | N 007603010404 | SEAL RING |
| 3/2-WAY VALVE | ||
| 678 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 678 | A 0009872627 | PLASTIC PIPE |
| DISTRIBUTOR,3/2-WAY VALVE,SHIFT CYLINDER | ||
| 4X6 MM | ||
| 682 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 686 | N 915052004016 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/10 MM | ||
| 690 | N 915052004015 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/12 MM | ||
| 694 | N 915036008202 | HOLLOW SCREW |
| DISTRIBUTOR | ||
| 694 | N 915036008202 | HOLLOW SCREW |
| P.T.O. CYLINDER | ||
| 696 | N 007603012405 | SEAL RING |
| DISTRIBUTOR | ||
| 696 | N 007603012405 | SEAL RING |
| P.T.O. CYLINDER | ||
| 698 | A 0019978390 | LOOM TIE |
| LINE MOUNTING | ||
| 708 | A 0012361005 | HYDRAULIC PUMP |
| Repalced by: A 0012365705 | ||
| 708 | A 0012365705 | HYDRAULIC PUMP |
| 712 | A 0002360471 | SCREW |
| HYDRAULIC PUMP | ||
| 716 | A 0002361460 | SEAL RING |
| HYDRAULIC PUMP | ||
| 720 | A 0059939901 | SPRING |
| HYDRAULIC PUMP | ||
| 724 | A 0002362135 | VALVE |
| HYDRAULIC PUMP | ||
| 728 | A 0002362235 | VALVE |
| HYDRAULIC PUMP | ||
| 732 | A 0002360476 | WASHER |
| HYDRAULIC PUMP | ||
| 736 | A 0069930001 | SPRING |
| HYDRAULIC PUMP | ||
| 740 | A 0002360576 | WASHER |
| HYDRAULIC PUMP | ||
| 744 | A 0069930101 | SPRING |
| HYDRAULIC PUMP | ||
| 748 | A 0002362335 | VALVE |
| HYDRAULIC PUMP | ||
| 752 | A 0002361017 | PISTON |
| HYDRAULIC PUMP | ||
| 756 | A 0149971747 | SEAL RING |
| HYDRAULIC PUMP | ||
| 760 | A 0002640479 | GASKET |
| HYDRAULIC PUMP | ||
| 764 | A 0002361280 | GASKET |
| HYDRAULIC PUMP | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
