Transporto priemonė: 3240 - 3243; VIN numerio dalis: 940365
Grupė: 49 EXHAUST SYSTEM

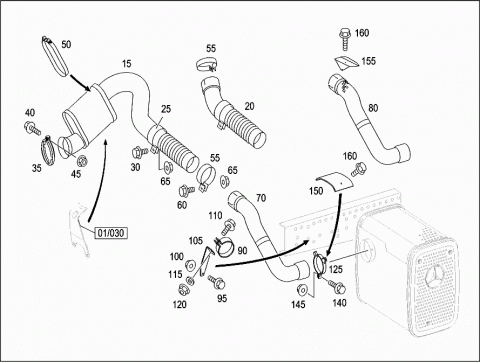

| # | Kodas | Pavadinimas |
|---|---|---|
| 015 | A 9414900919 | EXHAUST PIPE |
| FRONT EXHAUST PIPE | ||
| 015 | A 3754900319 | EXHAUST PIPE |
| Repalced by: A 3754902619 | ||
| 015 | A 3754902619 | EXHAUST PIPE |
| Repalced by: A 3754900319 | ||
| 015 | A 3754900319 | EXHAUST PIPE |
| FRONT EXHAUST PIPE FRONT PART | ||
| 015 | A 3754902519 | EXHAUST PIPE |
| FRONT EXHAUST PIPE FRONT PART | ||
| 015 | A 3754902619 | EXHAUST PIPE |
| Repalced by: A 3754900319 | ||
| 015 | A 3754900319 | EXHAUST PIPE |
| FRONT EXHAUST PIPE FRONT PART | ||
| 020 | A 9414900165 | FLEXIBLE METAL TUBE |
| REPAIR SOLUTION | ||
| 020 | A 9414900265 | EXHAUST HOSE |
| REPAIR SOLUTION | ||
| 025 | A 9414920140 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 025 | A 6524920640 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 030 | N 910105010001 | HEXAGON HEAD BOLT |
| EXHAUST PIPE TO BRACKET | ||
| M10X30 | ||
| 035 | A 9429970290 | CLAMP |
| FRONT EXHAUST PIPE TO THROTTLE HOUSING | ||
| 040 | N 910105008017 | SCREW |
| CLAMP TO EXHAUST PIPE | ||
| M 8X45 | ||
| 045 | N 913023008003 | NUT |
| CLAMP TO EXHAUST PIPE | ||
| 050 | A 9414900042 | STRAP |
| EXHAUST MUFFLER TO BRACKET | ||
| 055 | A 6554920340 | CLAMP |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 055 | A 6554920540 | CLAMP |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 060 | N 910105010007 | SCREW |
| CLAMP TO EXHAUST PIPE | ||
| M 10X35 | ||
| 065 | N 913023010002 | NUT |
| CLAMP TO EXHAUST PIPE | ||
| 070 | A 9414900619 | EXHAUST PIPE |
| Repalced by: A 9414920301 | ||
| 070 | A 9414920301 | FRONT EXHAUST PIPE |
| FRONT EXHAUST PIPE REAR PART | ||
| 070 | A 3754900219 | EXHAUST PIPE |
| Repalced by: A 3754920601 | ||
| 070 | A 3754920601 | FRONT EXHAUST PIPE |
| FRONT EXHAUST PIPE REAR PART | ||
| 080 | A 3754902019 | EXHAUST PIPE |
| FRONT EXHAUST PIPE REAR PART | ||
| 090 | A 9414920140 | CLAMP |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 095 | N 910105010007 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| M 10X35 | ||
| 100 | N 913023010002 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 105 | A 3754920841 | BRACKET |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 105 | A 9414920041 | BRACKET |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 110 | N 910105014013 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X1.5X35 | ||
| 110 | N 910105014005 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X1.5X40 | ||
| 115 | A 3209901840 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 120 | N 913023014003 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 125 | A 9424900041 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 125 | A 9424920140 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 125 | A 0019952102 | CLAMP |
| CLAMP TO EXHAUST MUFFLER | ||
| 125 | A 0019952702 | CLAMP |
| CLAMP TO EXHAUST MUFFLER | ||
| 140 | N 910105010007 | SCREW |
| CLAMP TO EXHAUST MUFFLER | ||
| M 10X35 | ||
| 145 | N 913012010002 | NUT |
| CLAMP TO EXHAUST MUFFLER | ||
| 150 | A 9424920030 | PROTECTIVE PLATE |
| LOWER EXHAUST PIPE | ||
| 150 | A 9424924330 | PROTECTIVE PLATE |
| HEAT SHIELD TO PIPE CLAMP | ||
| 155 | A 3754920930 | PROTECTIVE PLATE |
| LOWER EXHAUST PIPE | ||
| 160 | N 910105006002 | HEXAGON HEAD BOLT |
| PROTECTIVE PLATE TO CLAMP | ||
| M6X12 | ||
| 160 | N 910105006002 | HEXAGON HEAD BOLT |
| HEAT PROTECTION PLATE ON EXHAUST PIPE | ||
| M6X12 | ||
| 160 | N 304017008026 | SCREW |
| HEAT SHIELD | ||
| M 8X16 | ||

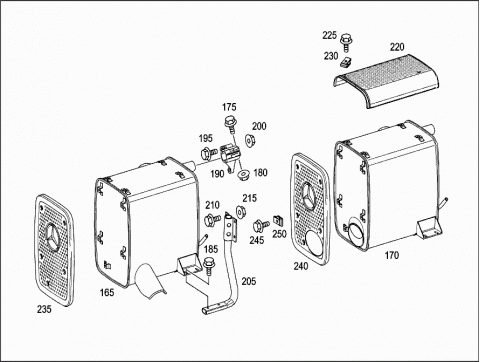

| 165 | A 9424902701 | EXHAUST MUFFLER |
| 165 | A 9424902801 | EXHAUST MUFFLER |
| 170 | A 9424901501 | EXHAUST MUFFLER |
| 170 | A 3754901501 | EXHAUST MUFFLER |
| 175 | N 910105010010 | HEXAGON HEAD BOLT |
| EXHAUST MUFFLER TO FRONT BRACKET | ||
| M10X70 | ||
| 180 | N 913023010002 | NUT |
| EXHAUST MUFFLER TO FRONT BRACKET | ||
| 185 | N 910143010011 | SCREW |
| EXHAUST MUFFLER TO REAR BRACKET | ||
| M 10X20 | ||
| 185 | N 910105010006 | SCREW |
| EXHAUST MUFFLER TO REAR BRACKET | ||
| M 10X20 | ||
| 190 | A 9424920741 | BRACKET |
| EXHAUST MUFFLER TO SIDE MEMBER,FRONT | ||
| 195 | N 910105014018 | SCREW |
| BRACKET ON SIDE MEMBER,FRONT | ||
| M 14X1.5X100 | ||
| 195 | N 000000005291 | HEXAGON HEAD BOLT |
| BRACKET ON SIDE MEMBER,FRONT | ||
| M14X1.5X80 | ||
| 200 | N 913023014003 | NUT |
| BRACKET ON SIDE MEMBER,FRONT | ||
| 205 | A 9424901240 | BRACKET |
| EXHAUST MUFFLER TO SIDE MEMBER,REAR | ||
| 210 | N 910105014005 | SCREW |
| BRACKET ON SIDE MEMBER,REAR | ||
| M 14X1.5X40 | ||
| 210 | N 910105014009 | SCREW |
| BRACKET ON SIDE MEMBER,REAR | ||
| M 14X1.5X70 | ||
| 215 | N 913023014003 | NUT |
| BRACKET ON SIDE MEMBER,REAR | ||
| 220 | A 9424921930 | PROTECTIVE PLATE |
| TOP | ||
| 220 | A 9424922430 | PROTECTIVE PLATE |
| TOP | ||
| 220 | A 3754910130 | HEAT SHIELD |
| 220 | A 3754910230 | HEAT SHIELD |
| 225 | N 910105008013 | SCREW |
| PROTECTIVE PLATE TO EXHAUST MUFFLER | ||
| M 8X12 | ||
| 225 | N 000000005323 | SCREW |
| PROTECTIVE PLATE TO EXHAUST MUFFLER | ||
| M 8X12 | ||
| Repalced by: N 000000003853 | ||
| 225 | N 000000003853 | SCREW |
| PROTECTIVE PLATE TO EXHAUST MUFFLER | ||
| M 8X16 | ||
| 230 | A 0019902891 | SOCKET NUT |
| PROTECTIVE PLATE TO EXHAUST MUFFLER | ||
| 235 | A 9424922730 | PROTECTIVE PLATE |
| ROAD VERSION | ||
| 240 | A 9424922830 | PROTECTIVE PLATE |
| CONSTRUCTION SITE VERSION | ||
| 245 | N 910105008013 | SCREW |
| PROTECTIVE PLATE TO EXHAUST MUFFLER | ||
| M 8X12 | ||
| 250 | A 0019902891 | SOCKET NUT |
| PROTECTIVE PLATE TO EXHAUST MUFFLER | ||

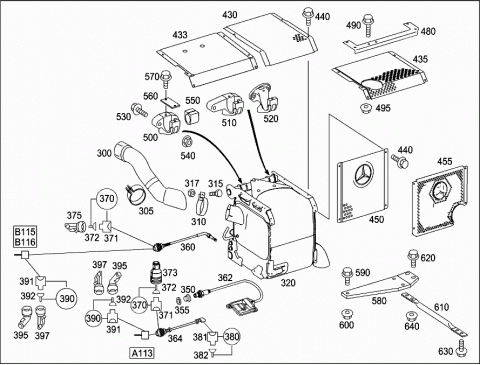

| 300 | A 9444900119 | EXHAUST PIPE |
| FRONT EXHAUST PIPE REAR PART | ||
| 305 | A 9414920140 | CLAMP |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 310 | A 9309950202 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 310 | N 071555124501 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 315 | N 910105010011 | HEXAGON HEAD BOLT |
| EXHAUST PIPE TO MUFFLER | ||
| M10X40 | ||
| 317 | N 913023010002 | NUT |
| EXHAUST PIPE TO MUFFLER | ||
| M10 | ||
| 320 | A 0004908714 | CATALYST |
| ROAD VERSION | ||
| 175 L; EUR O4 | ||
| 320 | A 0014900014 | CATALYST |
| ROAD VERSION | ||
| 175 L | ||
| Repalced by: A 0044900014 | ||
| 320 | A 0044900014 | CATALYST |
| ROAD VERSION | ||
| 175 L | ||
| Repalced by: A 0024900014 | ||
| 320 | A 0024900014 | CATALYST |
| ROAD VERSION | ||
| 175 L | ||
| 320 | A 0014900314 | CATALYST |
| 175 L | ||
| Repalced by: A 0044900314 | ||
| 320 | A 0044900314 | CATALYST |
| 175 L | ||
| Repalced by: A 0024900314 | ||
| 320 | A 0024900314 | CATALYST |
| 175 L | ||
| 320 | A 0004908514 | CATALYST |
| ROAD VERSION | ||
| 225 L; EURO 5 | ||
| 320 | A 0014900414 | CATALYST |
| ROAD VERSION | ||
| 225 L | ||
| Repalced by: A 0044900414 | ||
| 320 | A 0044900414 | CATALYST |
| ROAD VERSION | ||
| 225 L | ||
| Repalced by: A 0024900414 | ||
| 320 | A 0024900414 | CATALYST |
| ROAD VERSION | ||
| 225 L | ||
| 320 | A 0014900714 | CATALYST |
| 225 L | ||
| Repalced by: A 0044900714 | ||
| 320 | A 0044900714 | CATALYST |
| 225 L | ||
| Repalced by: A 0024900714 | ||
| 320 | A 0024900714 | CATALYST |
| 225 L | ||
| 320 | A 0004908814 | CATALYST |
| CONSTRUCTION SITE VERSION | ||
| 175 L; EUR O4 | ||
| 320 | A 0014900114 | CATALYST |
| CONSTRUCTION SITE VERSION | ||
| 175 L | ||
| Repalced by: A 0044900114 | ||
| 320 | A 0044900114 | CATALYST |
| CONSTRUCTION SITE VERSION | ||
| 175 L | ||
| Repalced by: A 0024900114 | ||
| 320 | A 0024900114 | CATALYST |
| CONSTRUCTION SITE VERSION | ||
| 175 L | ||
| Repalced by: A 0054900814 | ||
| 320 | A 0054900814 | REDUCT. CATALYST CONV. |
| CONSTRUCTION SITE VERSION | ||
| 175 L | ||
| 320 | A 0004908614 | CATALYST |
| CONSTRUCTION SITE VERSION | ||
| 225 L; EUR O5 | ||
| 320 | A 0014902314 | CATALYST |
| CONSTRUCTION SITE VERSION | ||
| 225 L | ||
| 320 | A 0014900514 | CATALYST |
| CONSTRUCTION SITE VERSION | ||
| 225 L | ||
| Repalced by: A 0044900514 | ||
| 320 | A 0044900514 | CATALYST |
| CONSTRUCTION SITE VERSION | ||
| 225 L | ||
| Repalced by: A 0024900514 | ||
| 320 | A 0024900514 | CATALYST |
| CONSTRUCTION SITE VERSION | ||
| 225 L | ||
| 320 | A 0014900214 | CATALYST |
| VERTICAL TAIL PIPE BEHIND CAB | ||
| 175 L; EUR 04 | ||
| Repalced by: A 0044900214 | ||
| 320 | A 0044900214 | CATALYST |
| VERTICAL TAIL PIPE BEHIND CAB | ||
| 175 L; EUR 04 | ||
| Repalced by: A 0024900214 | ||
| 320 | A 0024900214 | CATALYST |
| VERTICAL TAIL PIPE BEHIND CAB | ||
| 175 L; EUR 04 | ||
| 320 | A 0014900614 | CATALYST |
| VERTICAL TAIL PIPE BEHIND CAB | ||
| 225 L; EUR 04; F05 / F07 | ||
| Repalced by: A 0044900614 | ||
| 320 | A 0044900614 | CATALYST |
| VERTICAL TAIL PIPE BEHIND CAB | ||
| 225 L; EUR 04; F05 / F07 | ||
| Repalced by: A 0024900614 | ||
| 320 | A 0024900614 | CATALYST |
| VERTICAL TAIL PIPE BEHIND CAB | ||
| 225 L; EUR 04; F05 / F07 | ||
| 320 | A 0014902014 | CATALYST |
| VERTICAL TAIL PIPE BEHIND CAB | ||
| 225 L; EUR 04 | ||
| Repalced by: A 0044902014 | ||
| 320 | A 0044902014 | CATALYST |
| VERTICAL TAIL PIPE BEHIND CAB | ||
| 225 L; EUR 04 | ||
| 320 | A 0034901514 | CATALYST |
| 230 L EURO 4 OM502LA + EURO 5 OM501LA | ||
| Repalced by: A 0064900314 | ||
| 320 | A 0064900314 | CATALYST |
| 230 L EURO 4 OM502LA + EURO 5 OM501LA | ||
| 320 | A 0034900814 | CATALYST |
| 230 L EURO 5 OM502LA | ||
| Repalced by: A 0064900214 | ||
| 320 | A 0064900214 | CATALYST |
| 230 L EURO 5 OM502LA | ||
| 320 | A 0034900314 | CATALYST |
| 230 L EURO 4 OM501LA | ||
| Repalced by: A 0064900114 | ||
| 320 | A 0064900114 | CATALYST |
| 230 L EURO 4 OM501LA | ||
| 320 | A 0034901214 | CATALYST |
| 230 L EURO 4 OM502LA + EURO 5 OM501LA | ||
| Repalced by: A 0064900714 | ||
| 320 | A 0064900714 | CATALYST |
| 230 L EURO 4 OM502LA + EURO 5 OM501LA | ||
| 320 | A 0034900714 | CATALYST |
| 230 L EURO 5 OM502LA | ||
| Repalced by: A 0064900614 | ||
| 320 | A 0064900614 | CATALYST |
| 230 L EURO 5 OM502LA | ||
| 320 | A 0034900014 | CATALYST |
| 230 L EURO 4 OM501LA | ||
| Repalced by: A 0064900514 | ||
| 320 | A 0064900514 | CATALYST |
| 230 L EURO 4 OM501LA | ||
| 320 | A 0034901614 | CATALYST |
| 230 L EURO 4 OM502LA + EURO 5 OM501LA | ||
| Repalced by: A 0064901914 | ||
| 320 | A 0064901914 | CATALYST |
| 230 L EURO 4 OM502LA + EURO 5 OM501LA | ||
| 320 | A 0034900914 | CATALYST |
| 230 L EURO 5 OM502LA | ||
| Repalced by: A 0064901814 | ||
| 320 | A 0064901814 | CATALYST |
| 230 L EURO 5 OM502LA | ||
| 320 | A 0034900414 | CATALYST |
| 230 L EURO 4 OM501LA | ||
| Repalced by: A 0064901714 | ||
| 320 | A 0064901714 | CATALYST |
| 230 L EURO 4 OM501LA | ||
| 320 | A 0024900014 | CATALYST |
| 175 L | ||
| 320 | A 0024900114 | CATALYST |
| 175 L | ||
| Repalced by: A 0054900814 | ||
| 320 | A 0054900814 | REDUCT. CATALYST CONV. |
| 175 L | ||
| 320 | A 0024900414 | CATALYST |
| 225 L | ||
| Repalced by: A 0044908014 | ||
| 320 | A 0044908014 | REDUCT. CATALYST CONV. |
| 225 L | ||
| 320 | A 0024900514 | CATALYST |
| 225 L | ||
| Repalced by: A 0044908114 | ||
| 320 | A 0044908114 | REDUCT. CATALYST CONV. |
| 225 L | ||
| 320 | A 0024900314 | CATALYST |
| 175 L | ||
| 320 | A 0024900714 | CATALYST |
| 225 L | ||
| Repalced by: A 0044908314 | ||
| 320 | A 0044908314 | REDUCT. CATALYST CONV. |
| 225 L | ||
| 320 | A 0024906414 | CATALYST |
| 175 L; EURO 5 | ||
| 320 | A 0024906514 | CATALYST |
| 175 L; EURO 5 | ||
| 320 | A 0024906714 | CATALYST |
| 175 L; EURO 5 | ||
| 350 | A 0019900217 | SCREW |
| TO A 002 490 05 14 | ||
| 355 | N 000000001072 | SEALING RING |
| TO A 002 490 05 14 | ||
| 360 | A 0061530628 | SENDER UNIT |
| TEMPERATURE SENSOR,UPSTREAM OFCATALYTIC CONVERTER | ||
| "T1" | ||
| 360 | A 0061530828 | SENDER UNIT |
| TEMPERATURE SENSOR,DOWNSTREAM OFCATALYTIC CONVERTER | ||
| "T2" | ||
| 360 | A 0061530728 | SENDER UNIT |
| TEMPERATURE SENSOR,DOWNSTREAM OFCATALYTIC CONVERTER | ||
| "T2" | ||
| 362 | A 0061537328 | SENDER UNIT |
| SENSOR | ||
| NOX | ||
| 364 | A 0001506933 | ELECTRIC CABLE |
| ADAPTER | ||
| NOX | ||
| 364 | A 0001507433 | ELECTRIC CABLE |
| ADAPTER | ||
| NOX | ||
| 370 | A 0025402781 | PARTS KIT |
| A113, B115, B116, 4PIN | ||
| 371 | A 0295459528 | PLUG HOUSING |
| 372 | A 0355454828 | CONTACT PIN |
| 0.5 - 1.0 MM2 | ||
| 372 | A 0295456528 | CONTACT PIN |
| 1.0 - 1.5 MM2 | ||
| 372 | A 0005457280 | WIRE SEAL |
| GREY | ||
| 0.5 - 1.0 MM2 | ||
| 372 | A 0005457380 | CORE BUNDLE SEALING |
| YELLOW COLOURED | ||
| 1.0-2.5 MM2 | ||
| 372 | A 0005456280 | BLIND PLUG |
| NATURAL-COLORED | ||
| 372 | A 0005460522 | CLAMPING RING |
| 373 | A 0001530282 | PLUG CAP |
| A113 | ||
| 375 | A 0015460035 | BOOT |
| 180 DEGREE OUTLET WITH VARIABLE CLAMPING | ||
| B115, B116 | ||
| 375 | A 0015460135 | BOOT |
| 180 DEGREE OUTLET FOR CORRUGATED TUBE NW 8.5 | ||
| B115, B116 | ||
| 380 | A 0075408581 | PARTS KIT |
| A113, 5PIN | ||
| 381 | A 0225452926 | PLUG SOCKET |
| 5PIN | ||
| 382 | A 0009823026 | CONTAKT SOCKET |
| 382 | A 0015455080 | GASKET |
| YELLOW | ||
| 382 | A 0015455980 | BLIND PLUG |
| ORANGE | ||
| 382 | A 0005401366 | SOCKET |
| 390 | A 0025402381 | PARTS KIT |
| TEMPERATURE SENSOR,CATALYTIC CONVERTER | ||
| B115, B116, 4PIN | ||
| 390 | A 0025402381 | PARTS KIT |
| NOX SENSOR DOWNSTREAM OF TWC | ||
| A113, 4PIN | ||
| 391 | A 0155456526 | SOCKET HOUSING |
| 4-POLE | ||
| 392 | A 0095454726 | ROUND PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 0.5-1.0 MM2 | ||
| 392 | A 0065459126 | CONTAKT SOCKET |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 1.0-2.5 MM2 | ||
| 392 | A 0005457280 | WIRE SEAL |
| GREY | ||
| 0.5-1.0 MM2 | ||
| 392 | A 0005457380 | CORE BUNDLE SEALING |
| YELLOW COLOURED | ||
| 1.0-2.5 MM2 | ||
| 392 | A 0005456280 | BLIND PLUG |
| NATURAL-COLORED | ||
| 395 | A 0005467735 | BOOT |
| 90 DEGREE OUTLET WITH VARIABLE CLAMPING | ||
| 395 | A 0005469535 | BOOT |
| 90 DEGREE OUTLET FOR CORRUGATED TUBE NW 8.5 | ||
| GGVS | ||
| 397 | A 0015460135 | BOOT |
| LONG | ||
| 397 | A 0015460035 | BOOT |
| SHORT | ||
| 430 | A 9304923430 | PROTECTIVE PLATE |
| TOP | ||
| 175 L | ||
| 430 | A 9304920130 | PROTECTIVE PLATE |
| TOP | ||
| 175 L | ||
| Repalced by: A 9304923430 | ||
| 430 | A 9304923430 | PROTECTIVE PLATE |
| TOP | ||
| 175 L | ||
| 430 | A 9304923530 | PROTECTIVE PLATE |
| TOP | ||
| 225 L | ||
| 430 | A 9304920330 | PROTECTIVE PLATE |
| TOP | ||
| 225 L | ||
| Repalced by: A 9304923530 | ||
| 430 | A 9304923530 | PROTECTIVE PLATE |
| TOP | ||
| 225 L | ||
| 433 | A 9304923130 | PROTECTIVE PLATE |
| AUXILIARY PANEL INSULATION FOR CATALYTIC CONVERTER, TOP | ||
| Repalced by: A 9304923430 | ||
| 433 | A 9304923430 | PROTECTIVE PLATE |
| AUXILIARY PANEL INSULATION FOR CATALYTIC CONVERTER, TOP | ||
| 433 | A 9304923430 | PROTECTIVE PLATE |
| AUXILIARY PANEL INSULATION FOR CATALYTIC CONVERTER, TOP | ||
| 433 | A 9304923130 | PROTECTIVE PLATE |
| AUXILIARY PANEL INSULATION FOR CATALYTIC CONVERTER, TOP | ||
| Repalced by: A 9304923430 | ||
| 433 | A 9304923430 | PROTECTIVE PLATE |
| AUXILIARY PANEL INSULATION FOR CATALYTIC CONVERTER, TOP | ||
| 433 | A 9304923530 | PROTECTIVE PLATE |
| AUXILIARY PANEL INSULATION FOR CATALYTIC CONVERTER, TOP | ||
| 433 | A 9304923230 | PROTECTIVE PLATE |
| AUXILIARY PANEL INSULATION FOR CATALYTIC CONVERTER, TOP | ||
| Repalced by: A 9304923530 | ||
| 433 | A 9304923530 | PROTECTIVE PLATE |
| AUXILIARY PANEL INSULATION FOR CATALYTIC CONVERTER, TOP | ||
| 433 | A 9304923230 | PROTECTIVE PLATE |
| AUXILIARY PANEL INSULATION FOR CATALYTIC CONVERTER, TOP | ||
| Repalced by: A 9304923530 | ||
| 433 | A 9304923530 | PROTECTIVE PLATE |
| AUXILIARY PANEL INSULATION FOR CATALYTIC CONVERTER, TOP | ||
| 433 | A 9304923330 | PROTECTIVE PLATE |
| AUXILIARY PANEL INSULATION FOR CATALYTIC CONVERTER, TOP | ||
| Repalced by: A 9304923630 | ||
| 433 | A 9304923630 | PROTECTIVE PLATE |
| AUXILIARY PANEL INSULATION FOR CATALYTIC CONVERTER, TOP | ||
| 433 | A 9304923630 | PROTECTIVE PLATE |
| AUXILIARY PANEL INSULATION FOR CATALYTIC CONVERTER, TOP | ||
| 433 | A 9304923330 | PROTECTIVE PLATE |
| AUXILIARY PANEL INSULATION FOR CATALYTIC CONVERTER, TOP | ||
| Repalced by: A 9304923630 | ||
| 433 | A 9304923630 | PROTECTIVE PLATE |
| AUXILIARY PANEL INSULATION FOR CATALYTIC CONVERTER, TOP | ||
| 435 | A 9304923630 | PROTECTIVE PLATE |
| TOP | ||
| 225 L | ||
| 435 | A 9304920930 | PROTECTIVE PLATE |
| TOP | ||
| 225 L | ||
| Repalced by: A 9304923630 | ||
| 435 | A 9304923630 | PROTECTIVE PLATE |
| TOP | ||
| 225 L | ||
| 440 | N 910105008026 | SCREW |
| PROTECTIVE PLATE TO EXHAUST MUFFLER | ||
| M 8X20 | ||
| 440 | A 0099904004 | SCREW |
| PROTECTIVE PLATE TO EXHAUST MUFFLER | ||
| M 8X18 TORX GR. 45 | ||
| Repalced by: A 0109905504 | ||
| 440 | A 0109905504 | SCREW W COLLAR A DRIVE |
| PROTECTIVE PLATE TO EXHAUST MUFFLER | ||
| M 8X18 TORX GR. 45 | ||
| 450 | A 9304920030 | PROTECTIVE PLATE |
| FRONT | ||
| 175 L | ||
| 450 | A 9304920230 | PROTECTIVE PLATE |
| ROAD VERSION | ||
| 225 L | ||
| 450 | A 9304921030 | PROTECTIVE PLATE |
| CONSTRUCTION SITE VERSION | ||
| 225 L | ||
| 450 | A 9304921130 | PROTECTIVE PLATE |
| 450 | A 9304922330 | PROTECTIVE PLATE |
| 455 | A 9304922830 | PROTECTIVE PLATE |
| LATERAL | ||
| 480 | A 9304900544 | PLATE |
| CATALYST FIXTURE | ||
| 175 L | ||
| 480 | A 9304900344 | PLATE |
| CATALYST FIXTURE | ||
| 225 L | ||
| 490 | N 000000007146 | HEXAGON HEAD BOLT |
| BRACKET TO CATALYTIC CONVERTER | ||
| M12X1.5X40 | ||
| 490 | N 910105012047 | SCREW |
| BRACKET TO CATALYTIC CONVERTER | ||
| M 12X40 | ||
| 495 | N 913023010002 | NUT |
| MOUNTING PLATE AT CATALYTIC CONVERTER | ||
| 495 | N 913023012002 | NUT |
| MOUNTING PLATE AT CATALYTIC CONVERTER | ||
| 500 | A 9304910615 | CONSOLE |
| EXHAUST MUFFLER TO SIDE MEMBER | ||
| 500 | A 9304910615 | CONSOLE |
| EXHAUST MUFFLER TO SIDE MEMBER | ||
| 500 | A 9304911015 | CONSOLE |
| EXHAUST MUFFLER TO SIDE MEMBER | ||
| 510 | A 9304910715 | CONSOLE |
| EXHAUST MUFFLER TO SIDE MEMBER | ||
| 520 | A 9304910915 | CONSOLE |
| EXHAUST MUFFLER TO SIDE MEMBER | ||
| 530 | N 910105014010 | HEXAGON HEAD BOLT |
| CONSOLE TO SIDE MEMBER | ||
| M 14X1.5X45 | ||
| 530 | N 910105014011 | HEXAGON HEAD BOLT |
| CONSOLE TO SIDE MEMBER | ||
| M 14X1.5X50 | ||
| 530 | N 000000005517 | HEXAGON HEAD BOLT |
| BRACKET TO SIDE MEMBER | ||
| M 14X50 | ||
| 530 | N 000000005721 | HEXAGON HEAD BOLT |
| BRACKET TO SIDE MEMBER | ||
| M14X1.5X60 | ||
| 530 | N 910105014008 | HEXAGON HEAD BOLT |
| CONSOLE TO SIDE MEMBER | ||
| M 14X1.5X55 | ||
| 540 | N 913023014003 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 550 | A 9304910185 | RUBBER MOUNTING |
| EXHAUST MUFFLER TO CONSOLE | ||
| 560 | A 9304910016 | SUPPORT |
| PLATE TO CONSOLE | ||
| 570 | N 000000006719 | HEXAGON HEAD BOLT |
| PLATE TO BEARING BRACKET | ||
| M 10X30 | ||
| 570 | N 910105010001 | HEXAGON HEAD BOLT |
| PLATE TO BEARING BRACKET | ||
| M10X30 | ||
| 570 | N 910105010007 | SCREW |
| PLATE TO BEARING BRACKET | ||
| M 10X35 | ||
| 580 | A 9304920141 | BRACKET |
| STRUT TO CROSS MEMBER | ||
| 590 | N 910105010001 | HEXAGON HEAD BOLT |
| BRACKET TO CROSS MEMBER | ||
| M10X30 | ||
| 600 | N 913023010002 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 610 | A 9304900295 | REINFORCEMENT |
| FASTENING FOR EXHAUST | ||
| 620 | N 910105014010 | SCREW |
| STRUT TO SUPPORT | ||
| M 14X1.5X45 | ||
| 630 | N 910105014010 | SCREW |
| STRUT TO MUFFLER | ||
| M 14X1.5X45 | ||
| 640 | N 913023014003 | NUT |
| STRUT TO SUPPORT | ||

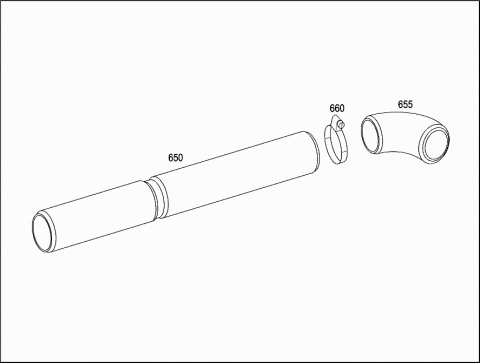

| 650 | A 9324900010 | EXHAUST PIPE |
| INSULATED | ||
| 120 MM | ||
| Repalced by: A 9324900810 | ||
| 650 | A 9324900810 | EXHAUST PIPE |
| INSULATED | ||
| 120 MM | ||
| 650 | A 9324900810 | EXHAUST PIPE |
| INSULATED | ||
| 120 MM | ||
| 650 | A 9324900110 | EXHAUST PIPE |
| INSULATED | ||
| 120 MM | ||
| 650 | A 9324900910 | EXHAUST PIPE |
| INSULATED | ||
| 120 MM | ||
| 650 | A 9324900210 | EXHAUST PIPE |
| INSULATED | ||
| 90 MM | ||
| Repalced by: A 9324900610 | ||
| 650 | A 9324900610 | EXHAUST PIPE |
| INSULATED | ||
| 90 MM | ||
| 650 | A 9324900610 | EXHAUST PIPE |
| INSULATED | ||
| 90 MM | ||
| 650 | A 9324900310 | EXHAUST PIPE |
| INSULATED | ||
| 90 MM | ||
| 650 | A 9324900710 | EXHAUST PIPE |
| INSULATED | ||
| 90 MM | ||
| 655 | A 9324900023 | PIPE ELBOW |
| INSULATED | ||
| 120 MM | ||
| 655 | A 9324900423 | PIPE ELBOW |
| INSULATED | ||
| 120 MM | ||
| 655 | A 9324900123 | PIPE ELBOW |
| INSULATED | ||
| 90 MM | ||
| 655 | A 9324900223 | PIPE ELBOW |
| INSULATED | ||
| 90 MM | ||
| 660 | A 0059971490 | HOSE CLAMP |
| 108-130 | ||
| 660 | A 0059972990 | CLAMP |
| 90 MM | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
