Transporto priemonė: 3240 - 3243; VIN numerio dalis: 940365

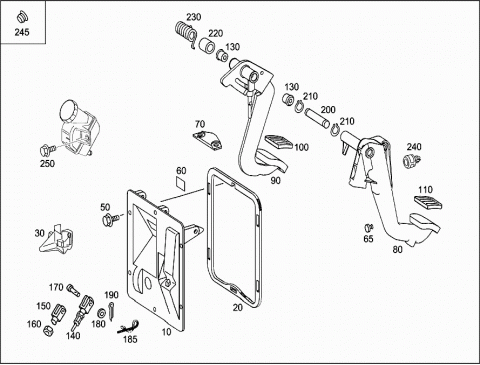

Grupė: 29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 9702940001 | BEARING BRACKET |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 010 | A 9402940001 | BEARING BRACKET |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 010 | A 9702940201 | BEARING BRACKET |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 020 | A 9702940080 | GASKET |
| BEARING BRACKET TO FIRE WALL | ||
| 030 | A 9402940095 | WEB |
| BEARING BRACKET TO FIRE WALL | ||
| 050 | N 000000002815 | SCREW |
| BEARING BRACKET TO FIRE WALL | ||
| M 8X35 | ||
| 050 | N 000000006271 | HEXAGON HEAD BOLT |
| BEARING BRACKET TO FIRE WALL | ||
| M 8X20 | ||
| 060 | A 0069893085 | ADHESIVE TAPE |
| LOCATING HOLE | ||
| 065 | A 1632910086 | STOP |
| CLUTCH PEDAL | ||
| 065 | A 6732910286 | STOP |
| CLUTCH PEDAL | ||
| 070 | A 9412920145 | PLATE |
| BRAKE PEDAL | ||
| 080 | A 9402900016 | PEDAL |
| CLUTCH | ||
| 080 | A 9402900216 | PEDAL |
| CLUTCH | ||
| 080 | A 9402900116 | PEDAL |
| CLUTCH | ||
| 080 | A 9402900416 | PEDAL |
| CLUTCH | ||
| 080 | A 9402900316 | PEDAL |
| CLUTCH | ||
| 090 | A 9402900118 | PEDAL |
| BRAKE | ||
| 090 | A 9702900018 | PEDAL |
| BRAKE | ||
| 090 | A 9702900118 | PEDAL |
| BRAKE | ||
| 090 | A 9402900418 | PEDAL |
| BRAKE | ||
| 100 | A 2012920082 | PAD |
| BRAKE | ||
| 110 | A 2012910282 | PAD |
| CLUTCH | ||
| 130 | A 1242920050 | BUSHING |
| BRAKE PEDAL | ||
| 140 | A 9702900039 | ROD |
| BRAKE ACTUATION | ||
| 140 | A 9702900239 | ROD |
| BRAKE ACTUATION | ||
| 150 | A 6209960001 | YOKE |
| BRAKE ACTUATION | ||
| 150 | N 071752008003 | YOKE |
| BRAKE ACTUATION | ||
| 160 | N 304032008005 | NUT |
| ROD TO YOKE | ||
| 160 | N 304032008006 | NUT |
| ROD TO YOKE | ||
| 170 | A 3852920174 | PIN |
| ROD TO BRAKE PEDAL | ||
| 170 | A 6392920074 | PIN |
| ROD TO BRAKE PEDAL | ||
| 180 | N 000433008406 | WASHER |
| ROD TO BRAKE PEDAL | ||
| 185 | N 912011008000 | LOCK |
| ROD TO BRAKE PEDAL | ||
| 190 | N 000094002059 | COTTER PIN |
| ROD TO BRAKE PEDAL | ||
| 200 | A 9702940274 | PIN |
| CLUTCH AND BRAKE PEDALS TO BEARING BRACKET | ||
| 210 | A 0079942041 | LOCK |
| CLUTCH AND BRAKE PEDALS TO BEARING BRACKET | ||
| 220 | A 9702940053 | SPACER TUBE |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 230 | A 9409930020 | SPRING |
| BRAKE PEDAL RESET | ||
| 230 | A 6679930220 | SPRING |
| BRAKE PEDAL RESET | ||
| 240 | A 1242910086 | STOP |
| CLUTCH PEDAL | ||
| 5,6 MM | ||
| 240 | A 1632910086 | STOP |
| CLUTCH PEDAL | ||
| 12,8 MM | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR SERVICE BRAKE VALVE,SEE GROUP/TU: | ||
| 42/355 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR CYLINDERS & HYDRAULIC LINES, SEE GROUP / TU: | ||
| 25/330 | ||
| 245 | A 3019970386 | PLUG |
| CLUTCH MASTER CYLINDER PLUG OPENING | ||
| 245 | A 0009971586 | PLUG |
| CLUTCH MASTER CYLINDER PLUG OPENING | ||
| 245 | N 915042005000 | PLUG |
| PLUG FOR FASTENING HOLES, EXPANSION RESERVOIR | ||
| 250 | N 000000001114 | SCREW |
| EXPANSION RESERVOIR AT PEDAL BEARING BRACKET | ||
| M 6X15 | ||
| 250 | N 910105006004 | SCREW |
| EXPANSION RESERVOIR AT PEDAL BEARING BRACKET | ||
| M 6X16 |
