Transporto priemonė: 3240 - 3243; VIN numerio dalis: 940365

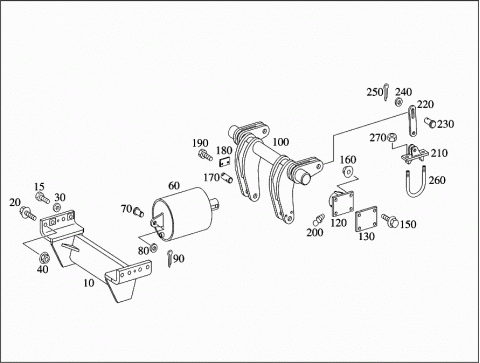

Grupė: 39 TRAILING AXLE - 010 TRAILING AXLES

#	Kodas	Pavadinimas
010	A 3753901340	BRACKET
		(POWER CYLINDER) TRAILING AXLE
015	A 6229900014	SCREW
		BRACKET TO FRAME
		M 16 X 18 X 38 X 60
020	N 910105014008	SCREW
		BRACKET TO FRAME
		M 14X1.5X55
030	A 3439900340	WASHER
		BRACKET TO FRAME
		34X20,5X6 MM
040	N 913023016001	NUT
		BRACKET TO FRAME
040	N 913023014003	NUT
		BRACKET TO FRAME
060	A 3754300226	CYLINDER
		(POWER CYLINDER) TRAILING AXLE
		CARGO
070	A 3753930074	PIN
		POWER CYLINDER TO BRACKET
		53,5 MM
080	A 3523230376	WASHER
		POWER CYLINDER TO BRACKET
090	N 000094006327	COTTER PIN
		TO SECURE PIN
		6.3X36 MM
100	A 3753900038	SUPPORT
		LIFTING DEVICE USED FOR TRAILING AXLE
120	A 3753900135	BEARING BRACKET
		SUPPORT TO FRAME,LEFT
120	A 3753900235	BEARING BRACKET
		SUPPORT TO FRAME,RIGHT
130	A 3753931940	BRACKET
		BEARING BRACKET TO FRAME
		3 MM
150	N 910105014010	SCREW
		BEARING BRACKET TO FRAME
		M 14X1.5X45
150	N 910105014011	SCREW
		BEARING BRACKET TO FRAME
		M 14X1.5X50
160	N 913023014003	NUT
		BEARING BRACKET TO FRAME
170	A 3753930374	PIN
		POWER CYLINDER TO SUPPORT
		88 MM
180	A 3753931740	BRACKET
		TO SECURE PIN
		5 MM
190	N 910105008008	SCREW
		BRACKET TO SUPPORT
		M 8X16
200	N 071412008102	GREASE NIPPLE
		M 8X1
210	A 3753900340	BRACKET
		BRACKET TO TRAILING AXLE
		CARGO
220	A 3753930940	BRACKET
		SWINGING LINK TO TRAILING AXLE
		CARGO
230	A 3753930274	PIN
		BRACKET TO SWINGING LINK
		57.5 MM
240	A 3523230976	WASHER
		BRACKET TO SWINGING LINK
250	N 000094006327	COTTER PIN
		TO SECURE PIN
		6.3X36 MM
260	A 3753930039	CLAMP
		BRACKET TO TRAILING AXLE
		CARGO
270	N 000934018012	NUT
		CLAMP TO AXLE BODY
