Transporto priemonė: 3250 AF; VIN numerio dalis: 625387
Grupė: 42 BRAKES

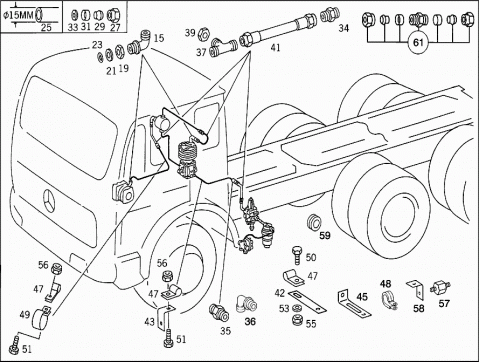

43566

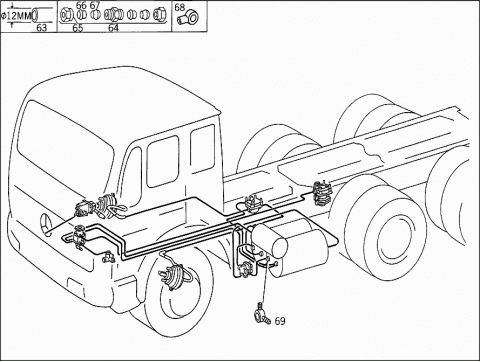

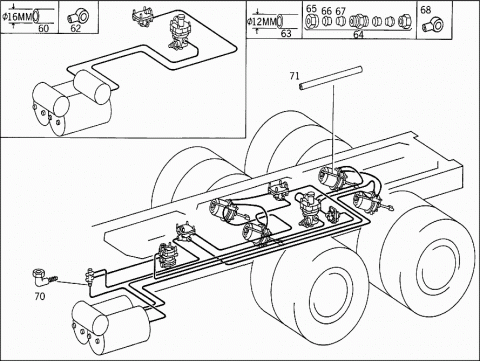

43567
43568
43569
43570

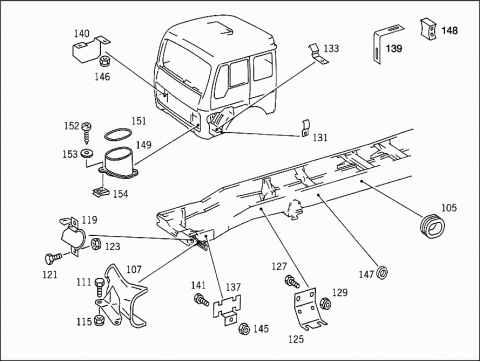

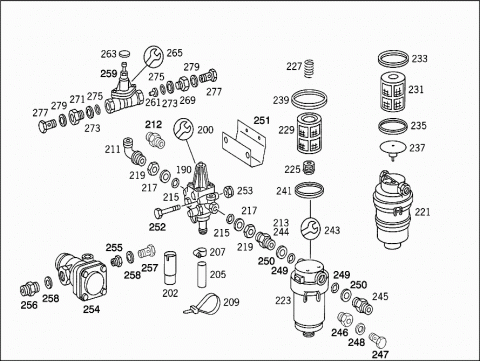

43571

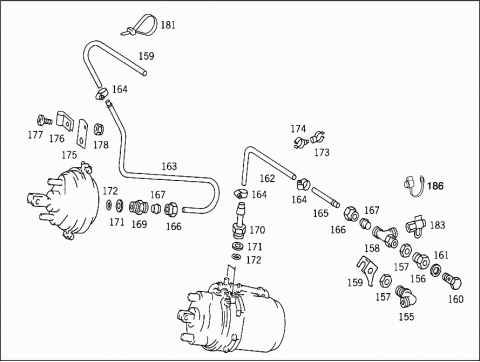

43572
43573
43574

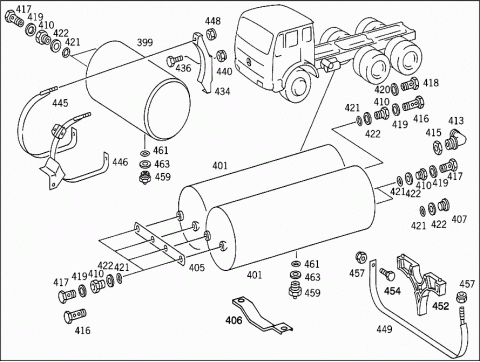

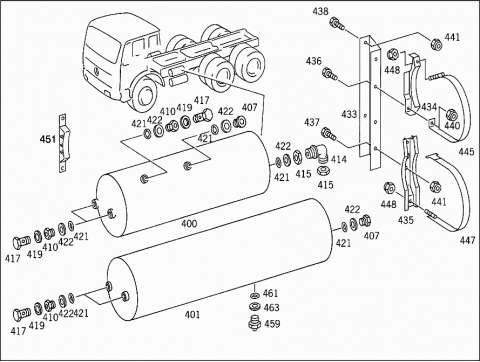

43575

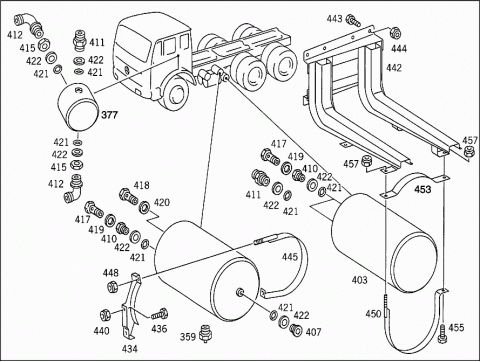

43576
43577
43578
43579
43580

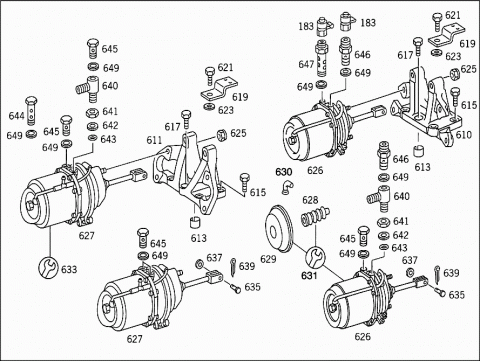

43581
43582

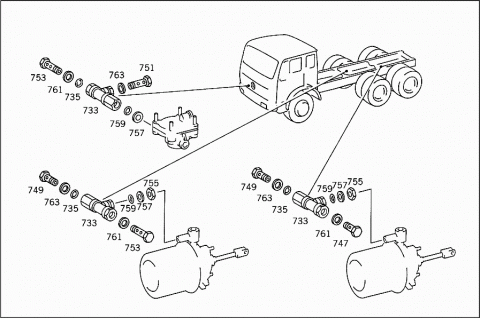

43583
43584
# Kodas Pavadinimas
015 A 6209900071 ELBOW FITTING
AIR COMPRESSOR,CONNECTION:
"20"
Repalced by: A 0039901671
015 A 0039901671 ELBOW FITTING
AIR COMPRESSOR,CONNECTION:
"20"
Repalced by: A 6209900071
015 A 6209900071 ELBOW FITTING
AIR COMPRESSOR,CONNECTION:
"20"
015 A 6209900071 ELBOW FITTING
ENGINE AIR COMPRESSOR,CONNECTION:
"20"
015 A 6209900071 ELBOW FITTING
REAR-COOLING-SYSTEM AIR COMPRESSOR, CONNECTION:
"20"
015 A 0004294338 ELBOW FITTING
ENGINE AIR COMPRESSOR,CONNECTION:
"20"
015 A 0004294338 ELBOW FITTING
REAR-COOLING-SYSTEM AIR COMPRESSOR, CONNECTION:
"20"
A 0029902470 T-FITTING
REAR-COOLING-SYSTEM AIR COMPRESSOR, CONNECTION:
"20"
019 N 074305026202 NUT
AIR COMPRESSOR,CONNECTION:
"20"
021 A 0004290527 THRUST RING
AIR COMPRESSOR,CONNECTION:
"20"
023 A 0039973848 SEAL RING
AIR COMPRESSOR,CONNECTION:
"20"
025 A 0004291401 LINE
AIR COMPRESSOR,PRESSURE REGULATOR, FILTER,FOUR-CIRCUIT PROTECTIVE VALVE
15 MM
027 N 915018015000 UNION NUT
BUTT SCREW CONNECTION
027 N 915017015100 UNION NUT
CLAMP-ON SCREW CONNECTION
029 N 003861015004 GLAND
LINE CONNECTION
031 N 915065015101 THRUST RING
BUTT SCREW CONNECTION
033 N 915045012100 SEAL RING
BUTT SCREW CONNECTION
Repalced by: N 007603012121
033 N 007603012121 SEAL RING
BUTT SCREW CONNECTION
034 N 003908015002 T-FITTING
BETWEEN THE LINES
034 A 0029978972 FITTING
BETWEEN THE LINES
034 N 003902015002 CONNECTION FITTING
BETWEEN THE LINES
035 N 074298022203 DOUBLE FITTING
BETWEEN THE LINES
035 A 0019972172 FITTING
BETWEEN THE LINES
035 N 003902015002 CONNECTION FITTING
BETWEEN THE LINES
036 N 003911015102 FITTING
ANGLE TO FRAME
037 N 074302022405 T-FITTING
AIR COMPRESSOR BRANCH-OFF
Repalced by: A 0029901970
037 A 0029901970 T-FITTING
AIR COMPRESSOR BRANCH-OFF
039 N 074305022202 NUT
T-FITTING TO BRACKET
039 N 074305022202 NUT
ANGLE TO FRAME
041 A 0004298035 BRAKE HOSE
FROM T-FITTING TO AIR COMPRESSOR
041 A 0004297935 BRAKE HOSE
ENGINE AIR COMPRESSOR LINE
041 A 0004297935 BRAKE HOSE
REAR END COOLING-SYSTEM AIR-COMPRESSOR LINE
041 A 0014290035 BRAKE HOSE
ENGINE AIR COMPRESSOR LINE
041 A 0014290035 BRAKE HOSE
REAR END COOLING-SYSTEM AIR-COMPRESSOR LINE
042 A 3044290840 BRACKET
COMPRESSED AIR LINE TO FRAME
Repalced by: A 3604293140
042 A 3604293140 BRACKET
COMPRESSED AIR LINE TO FRAME
042 A 6454310740 BRACKET
COMPRESSED AIR LINE TO AIR CLEANER
043 A 6254290940 BRACKET
COMPRESSED AIR LINE TO FRAME
Repalced by: A 6205240340
043 A 6205240340 BRACKET
COMPRESSED AIR LINE TO FRAME
A 6994664440 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
Repalced by: A 3184924241
A 3184924241 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
045 A 3184280240 BRACKET
LINE MOUNTING
047 A 3609952001 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
Repalced by: A 6739950001
047 A 6739950001 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
047 A 6739950001 CLAMP
047 A 3609950501 CLAMP
COMPRESSED AIR LINE TO COOLING WATER LINE
Repalced by: A 3609952001
047 A 3609952001 CLAMP
COMPRESSED AIR LINE TO COOLING WATER LINE
Repalced by: A 6739950001
047 A 6739950001 CLAMP
COMPRESSED AIR LINE TO COOLING WATER LINE
047 A 6739950001 CLAMP
COMPRESSED AIR LINE TO FRAME
048 A 3609951401 CLAMP
LINE MOUNTING
Repalced by: N 916016011202
048 N 916016011202 CLAMP
LINE MOUNTING
049 N 071555065501 CLAMP
COMPRESSED AIR LINE TO COOLING WATER LINE
050 N 000933006183 SCREW
CLAMP MOUNTING
M 6X16
Repalced by: N 304017006016
050 N 304017006016 SCREW
CLAMP MOUNTING
M 6X16
050 N 000933006130 SCREW
CLAMP MOUNTING
M 6X18
050 N 000933006115 SCREW
CLAMP MOUNTING
M 6X50
050 N 007985006145 SCREW
CLAMP MOUNTING
M 6X20
Repalced by: N 007985006581
050 N 007985006581 SCREW
CLAMP MOUNTING
M 6X20
050 N 000933006121 SCREW
PIPE LINE TO BRACKET
M 6X20
Repalced by: N 304017006020
050 N 304017006020 SCREW
PIPE LINE TO BRACKET
M 6X20
051 N 000933008154 SCREW
CLAMP MOUNTING
M 8X22
Repalced by: N 304017008021
051 N 304017008021 SCREW
CLAMP MOUNTING
M 8X22
051 N 304017008021 SCREW
CLAMP TO BRACKET
M 8X22
051 N 000931008046 SCREW
BRACKET TO FRAME
M 8X35
Repalced by: N 304017008018
051 N 304017008018 SCREW
BRACKET TO FRAME
M 8X35
053 N 000125006421 WASHER
CLAMP MOUNTING
Repalced by: N 000125006449
053 N 000125006449 WASHER
CLAMP MOUNTING
053 N 009021006205 WASHER
COMPRESSED AIR LINE TO FRAME
Repalced by: N 009021006208
053 N 009021006208 WASHER
COMPRESSED AIR LINE TO FRAME
055 N 913004006002 NUT
CLAMP MOUNTING
Repalced by: N 913004006001
055 N 913004006001 NUT
CLAMP MOUNTING
055 N 913004006001 NUT
056 N 913004008004 NUT
CLAMP MOUNTING
Repalced by: N 913004008001
056 N 913004008001 NUT
CLAMP MOUNTING
056 N 913004008001 NUT
CLAMP TO BRACKET
056 N 913004008001 NUT
BRACKET TO FRAME
057 A 6679880211 BUFFER
COMPRESSED AIR LINE TO FRAME
058 A 6735460243 BRACKET
COMPRESSED AIR LINE TO FRAME
059 A 6209970181 GROMMET
PASSAGE OF LINE THRU SIDE MEMBER
42/36 MM
060 A 0129977682 HOSE
12X16 MM
Repalced by: A 0009872927
060 A 0009872927 PLASTIC PIPE
12X16 MM
061 A 0059974372 FITTING
(PARTS KIT),LINE RUPTURE
062 N 915052012004 BANJO UNION
HOSE WIDTH, / I.D.,
12/22 MM
063 A 0109975982 HOSE
9X12 MM
Repalced by: A 0009872827
063 A 0009872827 PLASTIC PIPE
9X12 MM
064 A 0049971772 FITTING
(PARTS KIT),LINE RUPTURE
Repalced by: A 0029906171
064 A 0029906171 FITTING
(PARTS KIT),LINE RUPTURE
A 0009907378 CONNECTOR
REPAIR SIZE
065 N 915017012100 UNION NUT
Repalced by: N 000000006239
065 N 000000006239 UNION NUT
066 N 003861012007 GLAND
Repalced by: A 0019901967
066 A 0019901967 SEAL CONE
067 N 915062009000 SLEEVE
068 N 915052009009 BANJO UNION
HOSE WIDTH, / I.D.,
9/16 MM
069 A 0019901088 BANJO UNION
AIR RESERVOIR,CONNECTIONS:
"21,22,24"
070 A 0019909771 ELBOW FITTING
BETWEEN THE LINES
071 A 0129977782 HOSE
TRISTOP CYLINDER BREATHING
7.5X10 MM

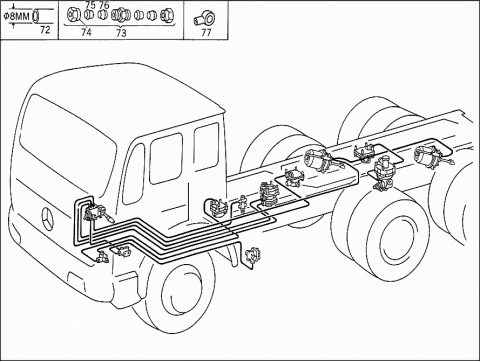

072 A 0089979082 HOSE
6X8 MM
Repalced by: A 0009872727
072 A 0009872727 PLASTIC PIPE
6X8 MM
073 A 0039978972 FITTING
(PARTS KIT),LINE RUPTURE
Repalced by: A 0029905971
073 A 0029905971 FITTING
(PARTS KIT),LINE RUPTURE
074 N 915017008100 UNION NUT
075 N 003861008005 GLAND
076 N 915062006000 SLEEVE
077 N 915052006013 BANJO UNION
HOSE WIDTH, / I.D.,
6/12 MM
077 N 915052006014 BANJO UNION
HOSE WIDTH, / I.D.,
6/16 MM
077 N 915052006021 BANJO UNION
HOSE WIDTH, / I.D.,
6/14 MM
083 N 073379006203 HOSE
PRESSURE GAUGE LINE
6X10 MM

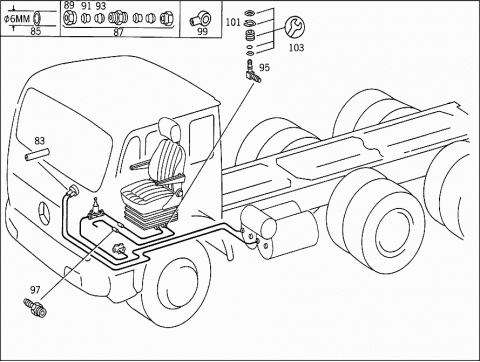

085 A 0089976082 HOSE
4X6 MM
Repalced by: A 0009872627
085 A 0009872627 PLASTIC PIPE
4X6 MM
087 A 0039979172 FITTING
(PARTS KIT),LINE RUPTURE
089 N 915017006100 UNION NUT
091 N 003861006007 GLAND
Repalced by: A 0019901667
091 A 0019901667 SEAL CONE
093 N 915062004000 SLEEVE
095 A 0019907871 ELBOW FITTING
DRIVER'S SEAT WITH PNEUMATIC SUSPENSION
097 N 915059004001 FITTING
BETWEEN THE LINES
099 N 915052004016 BANJO UNION
HOSE WIDTH, / I.D.,
4/10 MM
099 N 915052004015 BANJO UNION
HOSE WIDTH, / I.D.,
4/12 MM
101 A 0009941248 LOCK
COMPRESSED-AIR-LINE PLUG-CONNECTION
TO M 16
Repalced by: A 0009945448
101 A 0009945448 LOCK
COMPRESSED-AIR-LINE PLUG-CONNECTION
TO M 16
103 A 6739970045 REPAIR KIT
COMPRESSED-AIR-LINE PLUG-CONNECTION
TO M 16
Repalced by: A 0309971748
103 A 0309971748 REPAIR KIT
COMPRESSED-AIR-LINE PLUG-CONNECTION
TO M 16
105 A 6209970181 GROMMET
COMPRESSED AIR LINE THRU FRAME
42/36 MM
107 A 6204201586 BRACKET
COMPRESSED AIR LINES
107 A 6204201586 BRACKET
COMPRESSED AIR LINES
107 A 6204201686 BRACKET
COMPRESSED AIR LINES
107 A 6204201686 BRACKET
COMPRESSED AIR LINES
111 N 000933008147 SCREW
BRACKET TO BUMPER STRUT
Repalced by: N 304017008021
111 N 304017008021 SCREW
BRACKET TO BUMPER STRUT
115 N 913004008004 NUT
BRACKET TO BUMPER STRUT
Repalced by: N 913004008001
115 N 913004008001 NUT
BRACKET TO BUMPER STRUT
119 A 6204201986 BRACKET
COMPRESSED AIR LINES
119 A 6204201986 BRACKET
COMPRESSED AIR LINES
119 A 6204202086 BRACKET
COMPRESSED AIR LINES
119 A 6204202086 BRACKET
COMPRESSED AIR LINES
121 N 000961014100 SCREW
BRACKET TO CAB CONSOLE
123 N 913004014002 NUT
BRACKET TO CAB CONSOLE
Repalced by: N 910113014001
123 N 910113014001 NUT
BRACKET TO CAB CONSOLE
125 A 6204297040 BRACKET
COMPRESSED AIR LINES
127 N 000933010129 SCREW
BRACKET TO LEFT SIDE MEMBER
Repalced by: N 304017010002
127 N 304017010002 SCREW
BRACKET TO LEFT SIDE MEMBER
129 N 913004010008 NUT
BRACKET TO LEFT SIDE MEMBER
Repalced by: N 910113010000
129 N 910113010000 NUT
BRACKET TO LEFT SIDE MEMBER
131 A 6174291040 BRACKET
COMPRESSED AIR LINES
133 A 6204297440 BRACKET
COMPRESSED AIR LINES
137 A 6204293940 BRACKET
COMPRESSED AIR LINES
137 A 6204293940 BRACKET
COMPRESSED AIR LINES
139 A 3954290440 BRACKET
COMPRESSED AIR LINES
Repalced by: A 6205243040
139 A 6205243040 BRACKET
COMPRESSED AIR LINES
140 A 6204295240 BRACKET
COMPRESSED AIR LINES
141 N 000933008152 SCREW
BRACKET TO SIDE MEMBER
Repalced by: N 304017008027
141 N 304017008027 SCREW
BRACKET TO SIDE MEMBER
141 N 304017008027 SCREW
BRACKET TO CROSS MEMBER
141 N 000933008153 SCREW
BRACKET TO CROSS MEMBER
Repalced by: N 304017008034
141 N 304017008034 SCREW
BRACKET TO CROSS MEMBER
145 N 913004008004 NUT
BRACKET TO SIDE MEMBER
Repalced by: N 913004008001
145 N 913004008001 NUT
BRACKET TO SIDE MEMBER
145 N 913004008001 NUT
BRACKET TO CROSS MEMBER
146 N 913004006002 NUT
BRACKET TO CAB FLOOR
Repalced by: N 913004006001
146 N 913004006001 NUT
BRACKET TO CAB FLOOR
147 A 3609902340 WASHER
BRAKE LINE TO SIDE MEMBER
148 A 6194290640 BRACKET
COMPRESSED AIR LINE MOUNTING
149 A 6204291940 BRACKET
BRAKE LINE THRU CAB FLOOR
149 A 6204291940 BRACKET
BRAKE LINE THRU CAB FLOOR
149 A 6204292440 BRACKET
BRAKE LINE THRU CAB FLOOR
151 A 6204290084 SEAL RING
BETWEEN BRACKET AND CAB FLOOR
152 N 007981004252 SHEET METAL SCREW
BRACKET TO CAB FLOOR
153 N 009021005202 WASHER
BRACKET TO CAB FLOOR
Repalced by: N 009021005205
153 N 009021005205 WASHER
BRACKET TO CAB FLOOR
154 A 0009946445 LOCK
BRACKET TO CAB FLOOR
155 N 003911012100 FITTING
FRONT AXLE BRAKE HOSE
Repalced by: A 0009907871
155 A 0009907871 ELBOW FITTING
FRONT AXLE BRAKE HOSE
Repalced by: N 000000006195
155 N 000000006195 FITTING
FRONT AXLE BRAKE HOSE
156 A 0004296034 ADAPTER FITTING
FRONT AXLE BRAKE HOSE
Repalced by: A 0004296634
156 A 0004296634 ADAPTER FITTING
FRONT AXLE BRAKE HOSE
Repalced by: A 0004296934
156 A 0004296934 ADAPTER FITTING
FRONT AXLE BRAKE HOSE
157 N 080705018002 NUT
ELBOW FITTING TO SIDE MEMBER
157 N 080705018002 NUT
ADAPTER FITTING TO SIDE MEMBER
158 A 0019907070 T-FITTING
FRONT AXLE BRAKE HOSE
159 A 6204290473 LOCK
AT T-FITTING
160 N 915036012203 HOLLOW SCREW
FRONT AXLE BRAKE HOSE
161 N 007603016401 SEAL RING
FRONT AXLE BRAKE HOSE
162 N 916027011014 HOSE
FRONT AXLE BRAKE CYLINDER
163 A 6254293501 LINE
STEERED AXLE BRAKE CYLINDER
164 N 916017016000 CLAMP
BRAKE HOSE TO LINE AND TO FITTING
Repalced by: N 000000000666
164 N 000000000666 CLAMP
BRAKE HOSE TO LINE AND TO FITTING
165 A 0004290541 FITTING
FRONT AXLE BRAKE HOSE
166 N 915017012100 UNION NUT
Repalced by: N 000000006239
166 N 000000006239 UNION NUT
167 N 003861012007 GLAND
Repalced by: A 0019901967
167 A 0019901967 SEAL CONE
169 A 0029971572 FITTING
FRONT AXLE BRAKE CYLINDER
170 N 074304016201 FITTING
FRONT AXLE BRAKE CYLINDER
171 A 0004290927 THRUST RING
FRONT AXLE BRAKE CYLINDER
172 A 0009971548 SEAL RING
FRONT AXLE BRAKE CYLINDER
173 A 1159950465 CLAMP
BRAKE HOSE MOUNTING
174 A 6209950065 CLAMP
BRAKE HOSE MOUNTING
A 6254312840 BRACKET
COMPRESSED AIR LINE
175 A 6255910240 BRACKET
COMPRESSED AIR LINE
176 A 3609950401 CLAMP
COMPRESSED AIR LINE TO BRACKET
177 N 000000001147 SCREW
CLAMP TO BRACKET
M 6X20
178 N 913004006002 NUT
CLAMP TO BRACKET
Repalced by: N 913004006001
178 N 913004006001 NUT
CLAMP TO BRACKET
181 A 0019978390 LOOM TIE
280 MM
181 A 0019978490 LOOM TIE
376 MM
183 A 0004312031 TEST CONNECTION
FRONT AXLE BRAKE HOSE
VOSS
183 A 0004312031 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
VOSS; "21,22"
183 A 0004312031 TEST CONNECTION
REAR AXLE II TRISTOP CYLINDER, CONNECTIONS:
VOSS; "11,12"
183 A 0004312031 TEST CONNECTION
REAR AXLE RELAY VALVE,CONNECTION:
VOSS; "41"
183 A 0004312031 TEST CONNECTION
REDUCING VALVE,CONNECTION:
VOSS; "10"
183 A 0004312031 TEST CONNECTION
BRAKE POWER REGULATOR,CONNECTION:
VOSS; "40"
183 A 0004314531 TEST CONNECTION
FRONT AXLE BRAKE HOSE
SCHAEFER
183 A 0004314531 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
SCHAEFER; "21,22"
183 A 0004314531 TEST CONNECTION
REAR AXLE II TRISTOP CYLINDER, CONNECTIONS:
SCHAEFER; "11,12"
183 A 0004314531 TEST CONNECTION
REAR AXLE RELAY VALVE,CONNECTION:
SCHAEFER; "41"
183 A 0004314531 TEST CONNECTION
REDUCING VALVE,CONNECTION:
SCHAEFER; "10"
183 A 0004314531 TEST CONNECTION
BRAKE POWER REGULATOR,CONNECTION:
SCHAEFER; "40"
183 A 0004319431 TEST CONNECTION
FRONT AXLE BRAKE HOSE
183 A 0004319431 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22"
183 A 0004319431 TEST CONNECTION
REAR AXLE II TRISTOP CYLINDER, CONNECTIONS:
"11,12"
183 A 0004319431 TEST CONNECTION
REAR AXLE RELAY VALVE,CONNECTION:
"41"
183 A 0004319431 TEST CONNECTION
REDUCING VALVE,CONNECTION:
"10"
183 A 0004319431 TEST CONNECTION
BRAKE POWER REGULATOR,CONNECTION:
"40"
183 A 0004314831 TEST CONNECTION
FRONT AXLE BRAKE HOSE
WABCO
183 A 0004314831 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
WABCO; "21,22"
183 A 0004314831 TEST CONNECTION
REAR AXLE II TRISTOP CYLINDER, CONNECTIONS:
WABCO; "11,12"
183 A 0004314831 TEST CONNECTION
REAR AXLE RELAY VALVE,CONNECTION:
WABCO; "41"
183 A 0004314831 TEST CONNECTION
REDUCING VALVE,CONNECTION:
WABCO; "10"
183 A 0004314831 TEST CONNECTION
BRAKE POWER REGULATOR,CONNECTION:
WABCO; "40"
183 A 0004316131 TEST CONNECTION
FRONT AXLE BRAKE HOSE
WIRA
183 A 0004316131 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
WIRA; "21,22"
183 A 0004316131 TEST CONNECTION
REAR AXLE II TRISTOP CYLINDER, CONNECTIONS:
WIRA; "11,12"
183 A 0004316131 TEST CONNECTION
REAR AXLE RELAY VALVE,CONNECTION:
WIRA; "41"
183 A 0004316131 TEST CONNECTION
REDUCING VALVE,CONNECTION:
WIRA; "10"
183 A 0004316131 TEST CONNECTION
BRAKE POWER REGULATOR,CONNECTION:
WIRA; "40"
186 A 0009979486 PROTECTIVE CAP
190 A 0014310006 PRESSURE REGULATOR
WABCO
Repalced by: A 0024314906
190 A 0014311206 PRESSURE REGULATOR
KNORR
Repalced by: A 0024314906
190 A 0024314906 PRESSURE REGULATOR
WABCO
Repalced by: A 0034313706
190 A 0034313706 PRESSURE REGULATOR
WABCO
190 A 0024313406 PRESSURE REGULATOR
BOSCH
Repalced by: A 0024314306
190 A 0024314306 PRESSURE REGULATOR
BOSCH
Repalced by: A 0034313506
190 A 0024318306 PRESSURE REGULATOR
KNORR
Repalced by: A 0034313506
190 A 0034313506 PRESSURE REGULATOR
BOSCH
190 A 0024315006 PRESSURE REGULATOR
WABCO
190 A 0024314406 PRESSURE REGULATOR
BOSCH
190 A 0024318406 PRESSURE REGULATOR
KNORR
200 A 0015864343 REPAIR KIT
TO 001 431 00 06,WABCO 975 300 110 0
Repalced by: A 0004301107
200 A 0004301107 REPAIR KIT
TO 001 431 00 06,WABCO 975 300 110 0
200 A 0024304681 REPAIR KIT
VALVE KIT
TO 001 431 00 06,WABCO 975 300 110 0
200 A 0025866743 REPAIR KIT
TO 001 431 12 06,KNORR 32 00
200 A 0004301768 REPAIR KIT
DIAPHRAGM
BOSCH
200 A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
BOSCH
200 A 0025866043 REPAIR KIT
TO 001 431 34 06,GRAU 312 017 014
200 A 0014304960 REPAIR KIT
TO 002 431 49 06/ 50 06; WABCO
200 A 0014304960 REPAIR KIT
TO 003 431 37 06
200 A 0004300407 REPAIR KIT
TO 002 431 83 06; KNORR 903 09
200 A 0004300507 REPAIR KIT
TO 002 431 84 06; KNORR
200 A 0004300907 REPAIR KIT
TO 003 431 35 06; BOSCH
202 A 0004300170 MUFFLER
PRESSURE REGULATOR,CONNECTION:
"30"
205 A 0159975082 HOSE
PRESSURE REGULATOR,CONNECTION:
"30"
207 N 916026016001 CLAMP
PRESSURE REGULATOR,CONNECTION:
16-24X9 MM; "30"
Repalced by: A 0059970190
207 A 0059970190 HOSE CLAMP
PRESSURE REGULATOR,CONNECTION:
14-24; "30"
207 N 916026020001 CLAMP
PRESSURE REGULATOR,CONNECTION:
"30"
Repalced by: N 000000000667
207 N 000000000667 CLAMP
PRESSURE REGULATOR,CONNECTION:
"30"
209 A 0019978390 LOOM TIE
PRESSURE REGULATOR,CONNECTION:
"30"
211 A 0009905871 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION:
"10"
211 A 0029902271 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION:
"10"
212 A 0029978972 FITTING
PRESSURE REGULATOR,CONNECTION:
"10"
213 A 0019972372 FITTING
PRESSURE REGULATOR,CONNECTION:
"21"
215 A 0009870446 O-RING
PRESSURE REGULATOR,CONNECTIONS:
"10,21"
217 A 0004290227 THRUST RING
PRESSURE REGULATOR,CONNECTIONS:
"10,21"
Repalced by: A 0009940203
217 A 0009940203 THRUST RING
PRESSURE REGULATOR,CONNECTIONS:
"10,21"
219 N 074305022202 NUT
PRESSURE REGULATOR,CONNECTIONS:
"10,21"
221 A 0004292595 AIR CLEANER
BOSCH
221 A 0004292695 AIR CLEANER
KNORR
221 A 0004292895 AIR CLEANER
GRAU
223 A 0004292795 AIR CLEANER
WABCO
225 A 0004290597 FILTER ELEMENT
WABCO
227 A 0059930901 SPRING
WABCO
229 A 0004290497 FILTER ELEMENT
WABCO
231 A 0004290797 FILTER ELEMENT
BOSCH
231 A 0004290397 FILTER ELEMENT
GRAU
233 A 0089978048 SEAL RING
GRAU
233 A 0019974048 SEAL RING
BOSCH
235 A 0059972748 SEAL RING
GRAU
235 A 0119974048 SEAL RING
BOSCH
237 A 0004290845 DIAPHRAGM
GRAU
237 A 0004291045 DIAPHRAGM
BOSCH
239 A 0049972248 SEAL RING
Repalced by: A 0289972348
239 A 0289972348 SEAL RING
100X3 MM;WABCO
241 A 0009870746 SEALING CORD
75X3 MM;WABCO
243 A 0004204455 REPAIR KIT
AIR CLEANER
WABCO
244 A 0019972372 FITTING
AIR CLEANER
"10"
245 A 0019972172 FITTING
AIR CLEANER,CONNECTION:
"20"
A 0029978972 FITTING
AIR CLEANER,CONNECTION:
"20"
246 A 0009905168 FITTING
AIR CLEANER,CONNECTION:
"20"
247 N 915036012203 HOLLOW SCREW
AIR CLEANER,CONNECTION:
"20"
248 N 007603016401 SEAL RING
AIR CLEANER,CONNECTION:
"20"
249 A 0009870446 O-RING
AIR CLEANER,CONNECTION:
"10,20"
250 A 0004290227 THRUST RING
AIR CLEANER,CONNECTION:
"10,20"
Repalced by: A 0009940203
250 A 0009940203 THRUST RING
AIR CLEANER,CONNECTION:
"10,20"
251 A 6254313340 BRACKET
PRESSURE REGULATOR TO FRAME
252 N 000931008251 SCREW
PRESSURE REGULATOR WITH AIR CLEANER TO STRAP BRACKET
252 N 000931008251 SCREW
PRESSURE REGULATOR TO BRACKET
253 N 913004008004 NUT
PRESSURE REGULATOR WITH AIR CLEANER TO STRAP BRACKET
Repalced by: N 913004008001
253 N 913004008001 NUT
PRESSURE REGULATOR WITH AIR CLEANER TO STRAP BRACKET
253 N 913004008001 NUT
PRESSURE REGULATOR TO BRACKET
A 0014292544 VALVE
(PRESSURE RELIEF VALVE)
254 A 0004205455 REPAIR KIT
PRESSURE RELIEF VALVE
Repalced by: A 0024292844
254 A 0024292844 VALVE
PRESSURE RELIEF VALVE
255 A 0009905168 FITTING
PRESSURE RELIEF VALVE,CONNECTIONS:
"20"
256 A 0019972372 FITTING
PRESSURE RELIEF VALVE,CONNECTIONS:
"10"
257 N 915036012203 HOLLOW SCREW
PRESSURE RELIEF VALVE,CONNECTIONS:
"20"
258 N 007603022403 SEAL RING
PRESSURE RELIEF VALVE,CONNECTIONS:
"10,20"
259 A 0014296544 VALVE
OVERFLOW; PNEUMATICALLY CUSHIONED DRIVER'S SEAT
WABCO
Repalced by: A 0044293144
259 A 0024290044 VALVE
OVERFLOW; PNEUMATICALLY CUSHIONED DRIVER'S SEAT
BOSCH
Repalced by: A 0044293144
259 A 0044293144 VALVE
OVERFLOW; PNEUMATICALLY CUSHIONED DRIVER'S SEAT
WABCO
259 A 0024297044 VALVE
OVERFLOW; PNEUMATICALLY CUSHIONED DRIVER'S SEAT
GRAU
Repalced by: A 0044293244
259 A 0044293244 VALVE
OVERFLOW; PNEUMATICALLY CUSHIONED DRIVER'S SEAT
GRAU
261 A 0024298844 VALVE
GRAU
263 A 0004290745 DIAPHRAGM
GRAU
263 A 0004290645 DIAPHRAGM
GRAU
Repalced by: A 0004290745
263 A 0004290745 DIAPHRAGM
GRAU
265 A 0015862042 REPAIR KIT
OVERFLOW VALVE
WABCO
265 A 0015862642 REPAIR KIT
OVERFLOW VALVE
BOSCH
269 A 0019907168 FITTING
OVERFLOW VALVE,CONNECTION:
"10"
271 A 0009904468 FITTING
OVERFLOW VALVE,CONNECTION:
"20"
273 A 0004290227 THRUST RING
OVERFLOW VALVE,CONNECTIONS:
"10,20"
Repalced by: A 0009940203
273 A 0009940203 THRUST RING
OVERFLOW VALVE,CONNECTIONS:
"10,20"
275 A 0009870446 O-RING
OVERFLOW VALVE,CONNECTIONS:
"10,20"
277 N 915036008202 HOLLOW SCREW
OVERFLOW VALVE,CONNECTIONS:
"10,20"
279 N 007603012405 SEAL RING
OVERFLOW VALVE,CONNECTIONS:
"10,20"
281 A 0024314006 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
Repalced by: A 0034315006
281 A 0014318706 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
Repalced by: A 0034315006
281 A 0014319306 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
Repalced by: A 0034315006
281 A 0024312706 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
Repalced by: A 0024319106
281 A 0024319106 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
Repalced by: A 0034315006
281 A 0034315006 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
WABCO
289 A 0035861043 REPAIR KIT
FOUR-CIRCUIT PROTECTIVE VALVE
KNORR
289 A 0004304706 GASKET KIT
FOUR-CIRCUIT PROTECTIVE VALVE
TO 001 431 93 06,BOSCH 62401
289 A 0004300260 REPAIR KIT
FOUR-CIRCUIT PROTECTIVE VALVE
TO 001 431 93 06,BOSCH 62201
289 A 0034300981 GASKET KIT
TO 002 431 91 06 GRAU 66001
289 A 0035860943 REPAIR KIT
FOUR-CIRCUIT PROTECTIVE VALVE
WABCO
289 A 0004305106 REPAIR KIT
FOUR-CIRCUIT PROTECTIVE VALVE
WABCO; TO 003 431 50 06

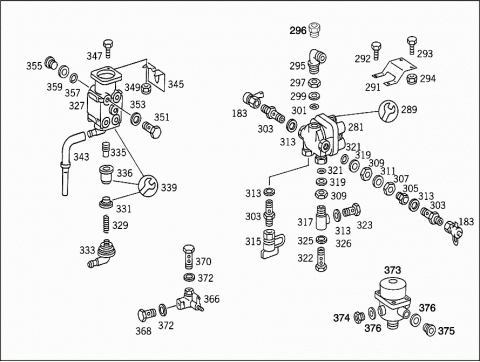

291 A 6254313440 BRACKET
FOUR-CIRCUIT PROTECTIVE VALVE TO SIDE MEMBER
292 N 000933008130 SCREW
FOUR-CIRCUIT PROTECTIVE VALVE TO BRACKET
Repalced by: N 304017008039
292 N 304017008039 SCREW
FOUR-CIRCUIT PROTECTIVE VALVE TO BRACKET
293 N 000933008152 SCREW
BRACKET TO RIGHT SIDE MEMBER
Repalced by: N 304017008027
293 N 304017008027 SCREW
BRACKET TO RIGHT SIDE MEMBER
294 N 913004008004 NUT
BRACKET TO RIGHT SIDE MEMBER
Repalced by: N 913004008001
294 N 913004008001 NUT
BRACKET TO RIGHT SIDE MEMBER
295 A 0009909671 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
Repalced by: A 0029901271
295 A 0029901271 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
295 A 0029902271 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
296 A 0019907368 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
297 N 074305022202 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
299 A 0004290227 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
Repalced by: A 0009940203
299 A 0009940203 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
301 A 0009870446 O-RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
303 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21-23"
305 A 0004296434 ADAPTER FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
307 N 000439016206 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
Repalced by: N 308675016001
307 N 308675016001 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
309 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"22,24"
311 N 000125017010 WASHER
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
Repalced by: N 000125017016
311 N 000125017016 WASHER
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
313 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21-24"
315 A 0034291044 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
315 A 0044293744 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
317 A 0019905270 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
319 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"22,24"
321 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"22,24"
322 N 915047008202 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
323 N 915036012203 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10,24"
325 N 007603012405 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
326 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
327 A 0014318305 BRAKE VALVE
TWO-CIRCUIT
WABCO
327 A 0014318905 BRAKE VALVE
TWO-CIRCUIT
BOSCH
327 A 0014319105 BRAKE VALVE
TWO-CIRCUIT
KNORR
327 A 0014319905 BRAKE VALVE
TWO-CIRCUIT
GRAU
329 A 0014316993 SPRING
BOSCH
331 A 0004312185 FILLER RING
WABCO
333 A 0004310273 BREATHER PIPE
WABCO
335 A 0004318383 PISTON
WABCO
336 A 0004313623 VALVE
WABCO
339 A 0025868743 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
BOSCH
Repalced by: A 0004303506
339 A 0004303506 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
BOSCH
339 A 0014300460 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
WABCO
Repalced by: A 0004308006
339 A 0004308006 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
WABCO
339 A 0035861243 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
KNORR
343 A 6174310073 BREATHER PIPE
AT BRAKE VALVE
343 A 6174310173 BREATHER PIPE
AT BRAKE VALVE
345 A 6202920140 BRACKET
TWO-CIRCUIT BRAKE VALVE
347 N 000933008152 SCREW
TWO-CIRCUIT BRAKE VALVE TO PEDAL BEARING BRACKET
Repalced by: N 304017008027
347 N 304017008027 SCREW
TWO-CIRCUIT BRAKE VALVE TO PEDAL BEARING BRACKET
349 N 913004008004 NUT
TWO-CIRCUIT BRAKE VALVE TO PEDAL BEARING BRACKET
Repalced by: N 913004008001
349 N 913004008001 NUT
TWO-CIRCUIT BRAKE VALVE TO PEDAL BEARING BRACKET
351 N 915036012203 HOLLOW SCREW
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
353 N 007603016401 SEAL RING
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
355 N 000908016001 SCREW PLUG
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
357 A 0009971548 SEAL RING
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
359 A 0004290927 THRUST RING
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
366 A 0029900271 ELBOW FITTING
BETWEEN THE LINES
368 N 915036012203 HOLLOW SCREW
ELBOW FITTING,CONNECTION:
"2"
370 N 915047012203 HOLLOW SCREW
ELBOW FITTING,CONNECTION:
"1"
372 N 007603016401 SEAL RING
ELBOW FITTING,CONNECTIONS:
"1,2"
373 A 0024308881 VALVE
PRESSURE RATIO VALVE
374 A 0009905168 FITTING
PRESSURE RATIO VALVE,CONNECTION:
"10,20"
375 N 000908022001 SCREW PLUG
PRESSURE RATIO VALVE,CONNECTION:
"20"
Repalced by: N 000908022011
375 N 000908022011 SCREW PLUG
PRESSURE RATIO VALVE,CONNECTION:
"20"
376 N 007603022403 SEAL RING
PRESSURE RATIO VALVE,CONNECTION:
"10,20"
377 A 3014300005 RESERVOIR
SUPPLY, ENGINE/REAR-COOLING-SYSTEM AIR COMPRESSOR
1.5 L
Repalced by: A 0034320201
377 A 0034320201 RESERVOIR
SUPPLY, ENGINE/REAR-COOLING-SYSTEM AIR COMPRESSOR
1.5 L

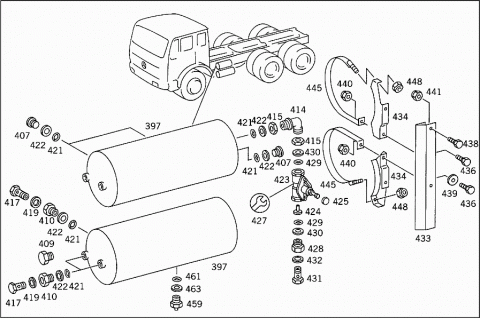

397 A 3874320201 RESERVOIR
BRAKE CIRCUITS I,III
5/15
399 A 0004324801 RESERVOIR
REAR AXLE BRAKE CIRCUIT
20 L
Repalced by: A 0014327501
399 A 0014327501 RESERVOIR
REAR AXLE BRAKE CIRCUIT
20 L
Repalced by: A 0034321301
399 A 0034321301 RESERVOIR
REAR AXLE BRAKE CIRCUIT
20 L
399 A 0034321301 RESERVOIR
REAR AXLE BRAKE CIRCUIT
399 A 0004326901 RESERVOIR
REAR AXLE BRAKE CIRCUIT
20 L
Repalced by: A 0034321401
399 A 0034321401 RESERVOIR
REAR AXLE BRAKE CIRCUIT
20 L
399 A 0004322601 RESERVOIR
REAR AXLE BRAKE CIRCUIT
30 L
Repalced by: A 0034321801
399 A 0034321801 RESERVOIR
REAR AXLE BRAKE CIRCUIT
30 L
400 A 3584301105 RESERVOIR
BRAKE CIRCUIT II
5/35 L
401 A 0024324201 RESERVOIR
BRAKE CIRCUIT I
20 L
Repalced by: A 0034321101
401 A 0034321101 RESERVOIR
BRAKE CIRCUIT I
20 L
Repalced by: A 0064329801
401 A 0064329801 COMPRESSED AIR RESERVOIR
BRAKE CIRCUIT I
20 L
401 A 3604303205 RESERVOIR
FRONT AND REAR AXLE BRAKE CIRCUIT
20 L/40 L
401 A 0034321301 RESERVOIR
FRONT AND REAR AXLE BRAKE CIRCUIT
20L
401 A 0004321701 RESERVOIR
FRONT AND REAR AXLE BRAKE CIRCUIT
Repalced by: A 0034322701
401 A 0034322701 RESERVOIR
FRONT AND REAR AXLE BRAKE CIRCUIT
60 L
401 A 0034322701 RESERVOIR
BRAKE CIRCUIT I
60 L
403 A 3604303605 RESERVOIR
403 A 3214300205 RESERVOIR
Repalced by: A 0034322501
403 A 0034322501 RESERVOIR
403 A 0004328801 RESERVOIR
SPRING LOAD ACCUMULATOR
Repalced by: A 0014320201
403 A 0014320201 RESERVOIR
SPRING LOAD ACCUMULATOR
30 L
Repalced by: A 0024320801
403 A 0024320801 RESERVOIR
SPRING LOAD ACCUMULATOR
30 L
Repalced by: A 0034322101
403 A 0034322101 RESERVOIR
SPRING LOAD ACCUMULATOR
30 L
405 A 6254320073 LOCK
(PROTECTION AGAINST TORSION)
405 A 6244320073 LOCK
(PROTECTION AGAINST TORSION)
406 A 6554320173 LOCK
(PROTECTION AGAINST TORSION)
407 N 000908022001 SCREW PLUG
AIR RESERVOIR,CONNECTIONS:
Repalced by: N 000908022011
407 N 000908022011 SCREW PLUG
AIR RESERVOIR,CONNECTIONS:
409 A 0009905168 FITTING
AIR RESERVOIR,CONNECTIONS:
"13,23"
409 A 0009905168 FITTING
AIR RESERVOIR,CONNECTIONS:
"14,24"
409 A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"31"
409 A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"11-14,22,24,32,34,64"
409 A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"15"
410 A 0009904468 FITTING
AIR RESERVOIR,CONNECTION:
"21,63"
410 A 0019907368 FITTING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22"
411 A 0019972172 FITTING
AIR RESERVOIR,CONNECTION:
"13"
411 A 0019972172 FITTING
AIR-COMPRESSOR AIR-RESERVOIR, CONNECTION:
"39"
411 A 0029978972 FITTING
AIR-COMPRESSOR AIR-RESERVOIR, CONNECTION:
"39"
412 N 003941015101 FITTING
AIR-COMPRESSOR AIR-RESERVOIR, CONNECTIONS:
"19,29"
412 A 0029902271 ELBOW FITTING
AIR-COMPRESSOR AIR-RESERVOIR, CONNECTIONS:
"39"
412 A 0029902271 ELBOW FITTING
AIR-COMPRESSOR AIR-RESERVOIR, CONNECTIONS:
"19,29"
413 A 0009905871 ELBOW FITTING
AIR RESERVOIR,CONNECTION:
"23"
414 A 0004293838 ELBOW FITTING
"52-54"
Repalced by: A 0004294638
414 A 0004294638 ELBOW FITTING
"52-54"
415 N 074305022202 NUT
AIR RESERVOIR,CONNECTION:
"23"
415 N 074305022202 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"39"
415 N 074305022202 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"52-54"
415 N 074305022202 HOLLOW SCREW
AIR-COMPRESSOR AIR-RESERVOIR, CONNECTIONS:
"19,29"
416 N 915047012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"31"
416 N 915047012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTIONS:
"11,27"
417 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTIONS:
"11-14,21-24,32,34,64"
417 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"15"
418 N 915036018204 HOLLOW SCREW
AIR RESERVOIR,CONNECTIONS:
"25,31"
419 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTIONS:
"11-15,21-24,31,32,34"
420 N 007603022102 SEAL RING
AIR RESERVOIR,CONNECTIONS:
"25,31"
421 A 0009870446 O-RING
AIR RESERVOIR,CONNECTIONS:
11-15,19,21-24,29,31-35,39.41.42"
422 A 0004290227 THRUST RING
AIR RESERVOIR,CONNECTIONS:
Repalced by: A 0009940203
422 A 0009940203 THRUST RING
AIR RESERVOIR,CONNECTIONS:
422 N 007603022403 SEAL RING
AIR RESERVOIR
423 A 0034290844 VALVE
AIR RESERVOIR
GRAU
423 A 0034290944 VALVE
AIR RESERVOIR
WABCO
424 A 0024298844 VALVE
TO 003 429 08 44,GRAU
425 A 0004290745 DIAPHRAGM
TO 003 429 08 44,GRAU
425 A 0004290645 DIAPHRAGM
TO 004 429 32 44
Repalced by: A 0004290745
425 A 0004290745 DIAPHRAGM
TO 004 429 32 44
427 A 0005865842 REPAIR KIT
WABCO
428 A 0009905168 FITTING
OVERFLOW VALVE
429 A 0009870446 O-RING
OVERFLOW VALVE TO AIR RESERVOIR
429 A 0009870446 O-RING
SCREW CONNECTION TO OVERFLOW VALVE
430 A 0004290227 THRUST RING
OVERFLOW VALVE TO AIR RESERVOIR
Repalced by: A 0009940203
430 A 0009940203 THRUST RING
OVERFLOW VALVE TO AIR RESERVOIR
431 N 915036012203 HOLLOW SCREW
432 N 007603016401 SEAL RING
433 A 6254313240 BRACKET
AT RIGHT SIDE MEMBER
433 A 6254313240 BRACKET
AT LEFT SIDE MEMBER
434 A 3874320540 BRACKET
AIR RESERVOIR
A 6154320440 BRACKET
AIR RESERVOIR
A 6255910340 BRACKET
435 A 3224320215 CONSOLE
LEFT AIR RESERVOIR
A 6254320117 ANGLE
436 N 000933008177 SCREW
BRACKET TO SIDE PART,FRONT AND REAR
M 8X25
Repalced by: N 304017008024
436 N 304017008024 SCREW
BRACKET TO SIDE PART,FRONT AND REAR
M 8X25
436 N 000933008153 SCREW
AIR RESERVOIR BRACKET TO BRACKET
M 8X25
Repalced by: N 304017008034
436 N 304017008034 SCREW
AIR RESERVOIR BRACKET TO BRACKET
M 8X25
436 N 000933010105 SCREW
AIR RESERVOIR TO BRACKET
M 10X25
436 N 000933010145 SCREW
AIR RESERVOIR FIXTURE
M 10X35
436 N 000933008215 SCREW
BRACKET TO SIDE PART,FRONT AND REAR
Repalced by: A 0069909301
436 A 0069909301 SCREW
BRACKET TO SIDE PART,FRONT AND REAR
M 8X22
437 N 000961014154 SCREW
CONSOLE TO BRACKET
M 14X25
438 N 000961014050 SCREW
BRACKET TO SIDE MEMBER
Repalced by: N 308676014020
438 N 308676014020 SCREW
BRACKET TO SIDE MEMBER
M 14X35
439 N 009021010202 WASHER
AIR RESERVOIR TO BRACKET
Repalced by: N 009021010209
439 N 009021010209 WASHER
AIR RESERVOIR TO BRACKET
439 N 009021008205 WASHER
AIR RESERVOIR BRACKET TO BRACKET
Repalced by: N 009021008213
439 N 009021008213 WASHER
AIR RESERVOIR BRACKET TO BRACKET
440 N 913004008004 NUT
BRACKET TO SIDE PART,FRONT AND REAR
Repalced by: N 913004008001
440 N 913004008001 NUT
BRACKET TO SIDE PART,FRONT AND REAR
440 N 913004008001 NUT
AIR RESERVOIR BRACKET TO BRACKET
441 N 910113008001 NUT
BRACKET TO SIDE PART,FRONT AND REAR
441 N 913004010008 NUT
AIR RESERVOIR TO BRACKET
Repalced by: N 910113010000
441 N 910113010000 NUT
AIR RESERVOIR TO BRACKET
441 N 913004014002 NUT
BRACKET TO SIDE MEMBER
Repalced by: N 910113014001
441 N 910113014001 NUT
BRACKET TO SIDE MEMBER
441 N 910113014001 NUT
CONSOLE TO BRACKET
X XXXXXXXXXXXX PART NAME MISSING
FOR BATTERY/APPARATUS FRONT SUPPORT, SEE GROUP 54
442 A 6254300139 SUPPORT
SPRING-LOADED BRAKE AIR RESERVOIR
443 N 000961014028 SCREW
SUPPORT TO FRAME SIDE MEMBER
444 N 913004014002 NUT
SUPPORT TO FRAME SIDE MEMBER
Repalced by: N 910113014001
444 N 910113014001 NUT
SUPPORT TO FRAME SIDE MEMBER
A 6254300540 STRAP
AIR RESERVOIR TO BRACKET
Repalced by: A 3354300340
A 3354300340 STRAP
AIR RESERVOIR TO BRACKET
445 A 3874300640 STRAP
AIR RESERVOIR TO BRACKET
445 A 6204300240 STRAP
REAR AXLE AIR RESERVOIR
446 A 6204301040 STRAP
REAR AXLE AIR RESERVOIR
446 A 6204301240 STRAP
REAR AXLE AIR RESERVOIR
447 A 3224300240 STRAP
448 N 913004010008 NUT
STRAP TO BRACKET
Repalced by: N 910113010000
448 N 910113010000 NUT
STRAP TO BRACKET
449 A 6254300040 STRAP
AIR RESERVOIR TO APPARATUS SUPPORT
450 A 6254300140 STRAP
AIR RESERVOIR TO APPARATUS SUPPORT
451 A 3354320418 BASE
AIR RESERVOIR,STRAP
452 A 6244320018 BASE
AIR RESERVOIR,STRAP
453 A 6254320019 BASE
AIR RESERVOIR,STRAP
454 N 000933010105 SCREW
AIR RESERVOIR,STRAP
M 10X25
455 N 000933010129 SCREW
AIR RESERVOIR,STRAP
Repalced by: N 304017010002
455 N 304017010002 SCREW
AIR RESERVOIR,STRAP
M 10X30
457 N 913004010008 NUT
AIR RESERVOIR,STRAP
Repalced by: N 910113010000
457 N 910113010000 NUT
AIR RESERVOIR,STRAP
459 A 0004321107 DRAIN VALVE
AIR RESERVOIR
VOSS
459 A 0004322107 DRAIN VALVE
AIR RESERVOIR
ARCO
459 A 0004322407 DRAIN VALVE
AIR RESERVOIR
WIRA
461 A 0009870446 O-RING
DRAIN VALVE TO AIR RESERVOIR
463 A 0004290227 THRUST RING
DRAIN VALVE TO AIR RESERVOIR
Repalced by: A 0009940203
463 A 0009940203 THRUST RING
DRAIN VALVE TO AIR RESERVOIR
465 A 0024299644 VALVE
CHECK
VOSS
467 A 0034291244 VALVE
CHECK
SCHAEFER
A 0034290444 VALVE
CHECK
WABCO
471 A 0109970048 SEAL RING
13.6X2,SCHAEFER
473 A 0109970148 SEAL RING
15.3X2.4,SCHAEFER
475 A 0004290662 THRUST WASHER
SCHAEFER
477 A 0004290728 SEAL CONE
SCHAEFER
479 A 0004290383 VALVE TAPPET
VOSS
481 A 0004292584 SEAL RING
VOSS
483 A 0089977348 SEAL RING
WABCO
485 A 0002950320 VALVE
WABCO
487 A 6204292540 BRACKET
CHECK VALVE
Repalced by: A 6254290540
487 A 6254290540 BRACKET
CHECK VALVE
Repalced by: A 3764294540
487 A 3764294540 BRACKET
CHECK VALVE
Repalced by: A 6525244140
487 A 6525244140 BRACKET
CHECK VALVE
489 N 074305022202 NUT
CHECK VALVE TO BRACKET
491 N 000933010129 SCREW
BRACKET TO SIDE MEMBER
Repalced by: N 304017010002
491 N 304017010002 SCREW
BRACKET TO SIDE MEMBER
493 N 913004010008 NUT
BRACKET TO SIDE MEMBER
Repalced by: N 910113010000
493 N 910113010000 NUT
BRACKET TO SIDE MEMBER
495 N 915036012203 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"22"
495 N 915036012203 HOLLOW SCREW
"21"
497 N 915047012203 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"21"
499 N 007603016401 SEAL RING
CHECK VALVE,CONNECTIONS:
"21,22"
500 N 915036010204 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"23"
Repalced by: N 915036010108
500 N 915036010108 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"23"
501 N 007603014405 SEAL RING
CHECK VALVE,CONNECTIONS:
"10,23"
502 N 000908016001 SCREW PLUG
CHECK VALVE,CONNECTION:
"22"
503 A 0009971548 SEAL RING
CHECK VALVE,CONNECTION:
"22"
504 A 0004290927 THRUST RING
CHECK VALVE,CONNECTION:
"22"
505 A 0014292144 VALVE
FRONT AXLE SERVICE BRAKE
WABCO
505 A 0014292144 VALVE
FRONT-AXLE-SPRING-LOAD-ACCUMULATOR RELAY VALVE
WABCO
505 A 0034291644 VALVE
FRONT AXLE SERVICE BRAKE
BOSCH
505 A 0034291644 VALVE
FRONT-AXLE-SPRING-LOAD-ACCUMULATOR RELAY VALVE
BOSCH
505 A 0034295344 VALVE
FRONT AXLE SERVICE BRAKE
KNORR
505 A 0034295344 VALVE
FRONT-AXLE-SPRING-LOAD-ACCUMULATOR RELAY VALVE
KNORR
505 A 0014296844 VALVE
FRONT AXLE SERVICE BRAKE
WABCO
505 A 0014296844 VALVE
FRONT-AXLE-SPRING-LOAD-ACCUMULATOR RELAY VALVE
WABCO
506 A 0014299144 VALVE
FRONT AXLE SERVICE BRAKE
GRAU
506 A 0014299144 VALVE
FRONT-AXLE-SPRING-LOAD-ACCUMULATOR RELAY VALVE
GRAU
507 A 0059972648 SEAL RING
22.3X2.4 MM,GRAU
508 A 0004312788 VALVE SEAT
GRAU
509 A 0059972748 SEAL RING
80X3 MM,GRAU
510 A 0014311660 SEAL RING
28X2 MM,GRAU
511 A 0014311760 SEAL RING
86X2 MM,GRAU
512 A 0004311980 GASKET
34X2X6 MM,GRAU
513 A 0025865642 REPAIR KIT
GASKET KIT
BOSCH
Repalced by: A 0004201071
513 A 0004201271 VALVE
GASKET KIT
BOSCH
514 A 0005865742 REPAIR KIT
WABCO 973 001 020 0
514 A 0025863542 REPAIR KIT
KNORR
514 A 0025865742 REPAIR KIT
BLEEDER VALVE
BOSCH
Repalced by: A 0004301109
514 A 0004301109 REPAIR KIT
BLEEDER VALVE
BOSCH
514 A 0015862142 REPAIR KIT
WABCO 473 017 000 0
515 N 000433008406 WASHER
RELAY VALVE TO BRACKET
516 N 913004008004 NUT
RELAY VALVE TO BRACKET
Repalced by: N 913004008001
516 N 913004008001 NUT
RELAY VALVE TO BRACKET
517 A 6254311740 BRACKET
FRONT AXLE SERVICE BRAKE RELAY VALVE
518 A 6254310340 BRACKET
FRONT-AXLE-SPRING-LOAD-ACCUMULATOR RELAY VALVE
518 A 6254312340 BRACKET
FRONT-AXLE-SPRING-LOAD-ACCUMULATOR RELAY VALVE
518 A 6254311840 BRACKET
FRONT-AXLE-SPRING-LOAD-ACCUMULATOR RELAY VALVE
518 A 6254312440 BRACKET
FRONT-AXLE-SPRING-LOAD-ACCUMULATOR RELAY VALVE
519 N 308676016022 SCREW
BRACKET TO LEFT SIDE MEMBER
520 N 913004016004 NUT
BRACKET TO LEFT SIDE MEMBER
Repalced by: N 910113016002
520 N 910113016002 NUT
BRACKET TO LEFT SIDE MEMBER
521 N 000961012052 SCREW
BRACKET TO BUMPER STRUT
Repalced by: N 308676012012
521 N 308676012012 HEXAGON HEAD BOLT
BRACKET TO BUMPER STRUT
523 N 910113012002 NUT
BRACKET TO BUMPER STRUT
527 A 0009905168 FITTING
FRONT AXLE RELAY VALVE,CONNECTION:
"10"
527 A 0009905168 FITTING
"11"
529 N 000908022001 SCREW PLUG
FRONT AXLE RELAY VALVE,CONNECTION:
"20"
Repalced by: N 000908022011
529 N 000908022011 SCREW PLUG
FRONT AXLE RELAY VALVE,CONNECTION:
"20"
529 N 000908016001 SCREW PLUG
FRONT AXLE RELAY VALVE,CONNECTION:
"21"
531 A 0019979672 FITTING
FRONT AXLE RELAY VALVE,CONNECTION:
"20"
531 A 0049972572 FITTING
FRONT AXLE RELAY VALVE,CONNECTION:
"21"
533 N 074305022202 NUT
FRONT AXLE RELAY VALVE,CONNECTION:
"20"
533 N 080705016003 NUT
FRONT AXLE RELAY VALVE,CONNECTION:
"21"
535 A 0004290227 THRUST RING
FRONT AXLE RELAY VALVE,CONNECTIONS:
"10,11"
Repalced by: A 0009940203
535 A 0009940203 THRUST RING
FRONT AXLE RELAY VALVE,CONNECTIONS:
"10,11"
535 A 0009940203 THRUST RING
FRONT AXLE RELAY VALVE,CONNECTION:
"20"
535 A 0004290927 THRUST RING
FRONT AXLE RELAY VALVE,CONNECTION:
"21"
537 A 0009870446 O-RING
FRONT AXLE RELAY VALVE,CONNECTIONS:
"10,11"
537 A 0009870446 O-RING
FRONT AXLE RELAY VALVE,CONNECTION:
"20"
537 A 0009971548 SEAL RING
FRONT AXLE RELAY VALVE,CONNECTION:
"21"
539 N 915036012203 HOLLOW SCREW
FRONT AXLE RELAY VALVE,CONNECTIONS:
"10,20,40"
539 N 915036012203 HOLLOW SCREW
FRONT AXLE RELAY VALVE,CONNECTION:
"11"
541 N 915047012203 HOLLOW SCREW
FRONT AXLE RELAY VALVE,CONNECTION:
"41"
542 N 007603016401 SEAL RING
FRONT AXLE RELAY VALVE,CONNECTIONS:
"10,11,20,40,41"

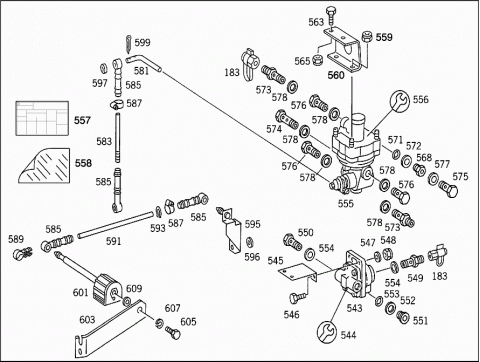

543 A 0034291444 VALVE
(REDUCTION VALVE)
544 A 0004300760 REPAIR KIT
REDUCTION VALVE
545 A 6244310740 BRACKET
REDUCTION VALVE
546 N 000933008153 SCREW
REDUCTION VALVE TO BRACKET
Repalced by: N 304017008034
546 N 304017008034 SCREW
REDUCTION VALVE TO BRACKET
546 N 304017008034 SCREW
BRACKET TO CENTRAL BEARING CROSS MEMBER
547 N 000433008406 WASHER
REDUCTION VALVE TO BRACKET
547 N 000433008406 WASHER
BRACKET TO CENTRAL BEARING CROSS MEMBER
548 N 913004008004 NUT
REDUCTION VALVE TO BRACKET
Repalced by: N 913004008001
548 N 913004008001 NUT
REDUCTION VALVE TO BRACKET
548 N 913004008001 NUT
BRACKET TO CENTRAL BEARING CROSS MEMBER
549 N 915039012205 HOLLOW SCREW FITTING
REDUCING VALVE,CONNECTION:
"10"
550 N 915036012203 HOLLOW SCREW
REDUCING VALVE,CONNECTION:
"20"
551 N 000908016001 SCREW PLUG
REDUCING VALVE,CONNECTION:
"20"
552 A 0004290927 THRUST RING
REDUCING VALVE,CONNECTION:
"20"
553 A 0009971548 SEAL RING
REDUCING VALVE,CONNECTION:
"20"
554 N 007603016401 SEAL RING
REDUCING VALVE,CONNECTIONS:
"10,20"
555 A 0014313312 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
WABCO
555 A 0014313512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
BOSCH
555 A 0024310512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
KNORR
556 A 0004307560 REPAIR KIT
WABCO
556 A 0004301868 REPAIR KIT
GASKETS
BOSCH
556 A 0014311486 REPAIR KIT
COVERING
BOSCH
556 A 0004301883 REPAIR KIT
VALVE
BOSCH
556 A 0004300307 REPAIR KIT
BRAKE POWER REGULATOR
TO 002 431 05 12,KNORR
Repalced by: A 0004300207
556 A 0004300207 REPAIR KIT
BRAKE POWER REGULATOR
TO 002 431 05 12,KNORR
557 A 6255840321 GUIDE SIGN
LOAD-DEPENDING BRAKE
557 A 6255840521 GUIDE SIGN
LOAD-DEPENDING BRAKE
557 A 6255843721 GUIDE SIGN
LOAD-DEPENDING BRAKE
557 A 6255840621 GUIDE SIGN
LOAD-DEPENDING BRAKE
557 A 6255840021 GUIDE SIGN
LOAD-DEPENDING BRAKE
557 A 6255840121 GUIDE SIGN
LOAD-DEPENDING BRAKE
558 A 3875840055 ADHESIVE FOIL
GUIDE SIGN
559 N 913004008004 NUT
BRACKET TO BRAKE POWER REGULATOR
Repalced by: N 913004008001
559 N 913004008001 NUT
BRACKET TO BRAKE POWER REGULATOR
560 A 3854317040 BRACKET
BRAKE POWER REGULATOR
560 A 3854317040 BRACKET
BRAKE POWER REGULATOR
A 6254314640 BRACKET
BRAKE POWER REGULATOR
563 N 000933008154 SCREW
BRACKET TO CROSS MEMBER
Repalced by: N 304017008021
563 N 304017008021 SCREW
BRACKET TO CROSS MEMBER
565 N 913004008004 NUT
BRACKET TO CROSS MEMBER
Repalced by: N 913004008001
565 N 913004008001 NUT
BRACKET TO CROSS MEMBER
568 A 3189970071 FITTING
BRAKE POWER REGULATOR,CONNECTION:
"10"
571 A 0009971548 SEAL RING
BRAKE POWER REGULATOR,CONNECTION:
"10"
572 A 0004290927 THRUST RING
BRAKE POWER REGULATOR,CONNECTION:
"10"
573 N 915039012205 HOLLOW SCREW FITTING
BRAKE POWER REGULATOR,CONNECTION:
"10"
573 N 915039012205 HOLLOW SCREW FITTING
BRAKE POWER REGULATOR,CONNECTION:
"40"
574 N 915047012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTION:
"20"
574 N 915047012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTION:
"20"
575 N 915036018204 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTION:
"10"
576 N 915036012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTION:
"40"
576 N 915036012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTION:
"20"
576 N 915036012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTION:
"10"
577 N 007603022102 SEAL RING
BRAKE POWER REGULATOR,CONNECTION:
"10"
578 N 007603016401 SEAL RING
BRAKE POWER REGULATOR,CONNECTIONS:
"10,20,40"
581 A 6744310039 LEVER
BRAKE POWER REGULATOR CONTROL
583 N 900331008419 PULL ROD
BRAKE POWER REGULATOR CONTROL
585 A 0004310735 CONNECTOR
BRAKE POWER REGULATOR CONTROL
587 N 916026010000 CLAMP
CONNECTOR TO ROD
Repalced by: N 000000000665
587 N 000000000665 CLAMP
CONNECTOR TO ROD
589 A 6249950065 CLAMP
CONNECTOR TO ROD
591 A 3954310192 ROD
BRAKE POWER REGULATOR CONTROL
593 N 900055008402 RETAINING RING
PULL ROD TO CONNECTOR
595 A 6244300210 BRACKET
LINK
596 N 000433015001 WASHER
LINK
597 N 000125008418 WASHER
CONNECTOR TO ROD
Repalced by: N 000125008443
597 N 000125008443 WASHER
CONNECTOR TO ROD
599 N 000094002077 COTTER PIN
CONNECTOR TO ROD
601 A 0004310418 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
603 A 6244310340 BRACKET
METAL SPRING BELLOWS
605 N 000961012047 SCREW
METAL SPRING BELLOWS TO BRACKET
607 N 912004012100 LOCK WASHER
METAL SPRING BELLOWS TO BRACKET
609 N 000125017010 WASHER
BRACKET TO REAR AXLE
Repalced by: N 000125017016
609 N 000125017016 WASHER
BRACKET TO REAR AXLE
610 A 3954231133 BEARING BRACKET
REAR AXLE I & II TRISTOP CYLINDERS
611 A 6254230033 BEARING BRACKET
REAR AXLE I & II TRISTOP CYLINDERS
611 A 6254230033 BEARING BRACKET
REAR AXLE I & II TRISTOP CYLINDERS
613 N 001481028004 CLAMPING SLEEVE
TRISTOP CYLINDER BEARING BRACKET,REAR AXLE
615 A 0039903904 SCREW
BEARING BRACKET TO REAR AXLE
617 N 000961020061 SCREW
BEARING BRACKET TO REAR AXLE
619 A 3954290640 BRACKET
TRISTOP CYLINDER BEARING BRACKET,REAR AXLE
621 N 000961020025 SCREW
BRACKET AND BEARING BRACKET TO REAR AXLE
623 A 3379900640 WASHER
BRACKET AND BEARING BRACKET TO REAR AXLE
625 N 913004016004 NUT
TRISTOP CYLINDER TO BEARING BRACKET
Repalced by: N 910113016002
625 N 910113016002 NUT
TRISTOP CYLINDER TO BEARING BRACKET
626 A 0084202318 WHEEL BRAKE CYLINDER
REAR AXLE I & II TRISTOP CYLINDERS
WABCO
626 A 0084206018 WHEEL BRAKE CYLINDER
REAR AXLE I & II TRISTOP CYLINDERS
KNORR
626 A 0094206018 WHEEL BRAKE CYLINDER
REAR AXLE I & II TRISTOP CYLINDERS
GRAU
626 A 0104207018 WHEEL BRAKE CYLINDER
REAR AXLE I & II TRISTOP CYLINDERS
WABCO
626 A 0104207018 WHEEL BRAKE CYLINDER
REAR AXLE I & II TRISTOP CYLINDERS
WABCO
626 A 0104207018 WHEEL BRAKE CYLINDER
REAR AXLE I & II TRISTOP CYLINDERS
WABCO
626 A 0114209718 WHEEL BRAKE CYLINDER
REAR AXLE I & II TRISTOP CYLINDERS
WABCO
627 A 0094208618 WHEEL BRAKE CYLINDER
REAR AXLE I & II TRISTOP CYLINDERS
WABCO
628 A 0004215286 CUP
WABCO
628 A 0003530191 BOOT
WABCO
628 A 0004234187 PROTECTIVE CAP
KNORR
629 A 0004212086 DIAPHRAGM
WABCO
629 A 0004231286 DIAPHRAGM
WABCO
629 A 0004233486 DIAPHRAGM
WABCO
629 A 0004311528 DIAPHRAGM
KNORR
630 A 0019903478 CONNECTOR
WABCO
631 A 0025865242 REPAIR KIT
TO 008 420 23 18,WABCO
Repalced by: A 0024301560
631 A 0024301560 REPAIR KIT
TO 008 420 23 18,WABCO
631 A 0025864242 REPAIR KIT
DIAPHRAGM CYLINDER
TO 010 420 70 18,WABCO
Repalced by: A 0184203718
631 A 0184203718 WHEEL BRAKE CYLINDER
DIAPHRAGM CYLINDER
TO 010 420 70 18,WABCO
631 A 0004303960 REPAIR KIT
DIAPHRAGM PART
TO 008 420 60 18,KNORR
Repalced by: A 0024209624
631 A 0024209624 REPAIR KIT
DIAPHRAGM PART
TO 008 420 60 18,KNORR
633 A 0024209424 REPAIR KIT
SPRING LOAD ACCUMULATOR PART
TO 008 420 60 18,KNORR
633 A 0014305060 REPAIR KIT
DIAPHRAGM CYLINDER
633 A 0025862642 REPAIR KIT
SPRING LOAD ACCUMULATOR
WABCO
635 A 3619910005 PIN
TRISTOP CYLINDER TO SLACK ADJUSTER
637 N 000433015002 WASHER
TRISTOP CYLINDER TO SLACK ADJUSTER
Repalced by: N 000433015005
637 N 000433015005 WASHER
TRISTOP CYLINDER TO SLACK ADJUSTER
639 N 000094004051 COTTER PIN
TRISTOP CYLINDER TO SLACK ADJUSTER
640 A 0039977072 FITTING
TRISTOP CYLINDER;CONNECTION:
"12"
641 N 080705016003 NUT
TRISTOP CYLINDER;CONNECTION:
"12"
642 A 0004290927 THRUST RING
TRISTOP CYLINDER;CONNECTION:
"12"
643 A 0009971548 SEAL RING
TRISTOP CYLINDER;CONNECTION:
"12"
644 N 915047012203 HOLLOW SCREW
RIGHT TRISTOP CYLINDER; REAR AXLE I, CONNECTION:
"11"
644 N 915047012203 HOLLOW SCREW
RIGHT TRISTOP CYLINDER; REAR AXLE I, CONNECTION:
"11"
645 N 915036012203 HOLLOW SCREW
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
645 N 915036012203 HOLLOW SCREW
RIGHT TRISTOP CYLINDER; REAR AXLE I, CONNECTION:
"11"
645 N 915036012203 HOLLOW SCREW
RIGHT TRISTOP CYLINDER; REAR AXLE I, CONNECTION:
"11"
646 N 915039012205 HOLLOW SCREW FITTING
REAR AXLE II TRISTOP CYLINDER, CONNECTION:
"12"
646 N 915039012205 HOLLOW SCREW FITTING
RIGHT TRISTOP CYLINDER; REAR AXLE II; CONNECTION:
"11"
646 N 915039012205 HOLLOW SCREW FITTING
RIGHT TRISTOP CYLINDER; REAR AXLE II; CONNECTION:
"11"
647 N 915040012206 HOLLOW SCREW FITTING
RIGHT TRISTOP CYLINDER; REAR AXLE II; CONNECTION:
"11"
647 N 915040012206 HOLLOW SCREW FITTING
RIGHT TRISTOP CYLINDER; REAR AXLE II; CONNECTION:
"11"
649 N 007603016401 SEAL RING
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
651 A 0014303781 VALVE
PARKING BRAKE WITH EMERGENCY RELEASE DEVICE AND TRAILER CONTROL
BOSCH
651 A 0014303781 VALVE
PARKING BRAKE WITH EMERGENCY RELEASE DEVICE AND TRAILER CONTROL
BOSCH
651 A 0014306281 VALVE
PARKING BRAKE WITH EMERGENCY RELEASE DEVICE AND TRAILER CONTROL
WABCO
651 A 0014306281 VALVE
PARKING BRAKE WITH EMERGENCY RELEASE DEVICE AND TRAILER CONTROL
WABCO
651 A 0014307281 VALVE
PARKING BRAKE WITH EMERGENCY RELEASE DEVICE AND TRAILER CONTROL
KNORR
Repalced by: A 0034300481
651 A 0034300481 VALVE
PARKING BRAKE WITH EMERGENCY RELEASE DEVICE AND TRAILER CONTROL
KNORR
651 A 0034300481 VALVE
PARKING BRAKE WITH EMERGENCY RELEASE DEVICE AND TRAILER CONTROL
651 A 0014303581 VALVE
PARKING BRAKE WITH EMERGENCY RELEASE DEVICE, LESS TRAILER CONTROL
651 A 0014305881 VALVE
PARKING BRAKE WITH EMERGENCY RELEASE DEVICE, LESS TRAILER CONTROL
651 A 0014306881 VALVE
PARKING BRAKE WITH EMERGENCY RELEASE DEVICE, LESS TRAILER CONTROL
Repalced by: A 0034300081
651 A 0034300081 VALVE
PARKING BRAKE WITH EMERGENCY RELEASE DEVICE, LESS TRAILER CONTROL
651 A 0014304681 VALVE
PARKING BRAKE WITH EMERGENCY RELEASE DEVICE AND TRAILER CONTROL
BOSCH
651 A 0014306381 VALVE
PARKING BRAKE WITH EMERGENCY RELEASE DEVICE AND TRAILER CONTROL
WABCO
651 A 0014307381 VALVE
PARKING BRAKE WITH EMERGENCY RELEASE DEVICE AND TRAILER CONTROL
KNORR
Repalced by: A 0034300581
651 A 0034300581 VALVE
PARKING BRAKE WITH EMERGENCY RELEASE DEVICE AND TRAILER CONTROL
KNORR
655 A 0014310887 PROTECTIVE CAP
WABCO
655 A 0014311087 PROTECTIVE CAP
BOSCH
655 A 0014311287 PROTECTIVE CAP
KNORR
657 A 0009973477 HANDLE
BOSCH
657 A 0009972477 HANDLE
WABCO
657 A 0009975577 HANDLE
KNORR
658 N 001481003025 CLAMPING SLEEVE
KNORR
659 A 0004311264 ACTUATING PART
TO 001 430 37 81,000 430 46 81,BOSCH
660 A 0004311122 COVER
TO 001 430 37 81,000 430 46 81,BOSCH
661 A 0009911501 PIN
TO 001 430 37 81,000 430 46 81,BOSCH
662 A 0004311064 ACTUATING PART
TO 001 430 37 81,000 430 46 81,BOSCH
663 A 0009911601 PIN
TO 001 430 37 81,000 430 46 81,BOSCH
664 A 0009922905 BUSHING
TO 001 430 37 81,000 430 46 81,BOSCH
A 0004306460 REPAIR KIT
BOSCH
A 0025866343 REPAIR KIT
BOSCH
665 A 0024302860 REPAIR KIT
BOSCH,TO 001 430 37 81/46 81
Repalced by: A 0004305206
665 A 0004305206 BRAKE VALVE
REPAIR KIT
BOSCH,TO 001 430 37 81/46 81
665 A 0024302760 REPAIR KIT
BOSCH,12 MM,001 430 37 81,46 81
665 A 0025867243 REPAIR KIT
PARKING BRAKE VALVE
WABCO
Repalced by: A 0034303381
665 A 0034303381 REPAIR KIT
PARKING BRAKE VALVE
WABCO
665 A 0034302781 REPAIR KIT
HAND BRAKE LEVER
665 A 0034302181 REPAIR KIT
TO 003 430 00 81,KNORR
A 0004302660 REPAIR KIT
KNORR
665 A 0034302381 REPAIR KIT
TO 003 430 04 81,003 430 05 81,KNORR
667 A 0009976189 COUPLING
CONNECTION TO VALVE
669 A 0099973948 SEAL RING
671 N 007985008119 SCREW
PARKING BRAKE VALVE TO WINDOW SILL
673 N 912006008000 LOCK WASHER
PARKING BRAKE VALVE TO WINDOW SILL
675 A 0014316905 BRAKE VALVE
(TRAILER CONTROL VALVE)
WABCO
675 A 0014316705 BRAKE VALVE
(TRAILER CONTROL VALVE)
BOSCH
675 A 0024314805 BRAKE VALVE
(TRAILER CONTROL VALVE)
KNORR
677 A 0024314005 BRAKE VALVE
(TRAILER CONTROL VALVE)
GRAU
683 A 0004312988 VALVE SEAT
GRAU
685 A 0059973848 SEAL RING
64.77X2.62 MM,GRAU
687 A 0059973548 SEAL RING
18X2.5 MM,GRAU
689 A 0059973948 SEAL RING
44.2X3 MM,GRAU
691 A 0059974148 SEAL RING
30X2 MM,GRAU
693 A 0059973348 SEAL RING
7X1.5 MM,GRAU
695 A 0059972648 SEAL RING
22.3X2.4 MM,GRAU
697 A 0059973748 SEAL RING
90X3 MM,GRAU
699 A 0059974048 SEAL RING
100X38 MM,GRAU
701 A 0059974248 SEAL RING
9X1.5 MM,GRAU
703 A 0059974348 SEAL RING
23.47X2.62 MM,GRAU
705 A 0024300260 GASKET KIT
SEAL RING
BOSCH 061 214
707 A 0025865243 REPAIR KIT
TRAILER CONTROL VALVE
BOSCH
Repalced by: A 0014304760
707 A 0014304760 REPAIR KIT
TRAILER CONTROL VALVE
BOSCH 061 010
707 A 0024300360 REPAIR KIT
VALVE DISC
BOSCH 061 214
707 A 0025865742 REPAIR KIT
BLEEDER VALVE
BOSCH
Repalced by: A 0004301109
707 A 0004301109 REPAIR KIT
BLEEDER VALVE
BOSCH
707 A 0025869343 REPAIR KIT
TRAILER CONTROL VALVE
WABCO
Repalced by: A 0024301860
707 A 0024301860 REPAIR KIT
TRAILER CONTROL VALVE
WABCO
707 A 0004303060 REPAIR KIT
TRAILER CONTROL VALVE
KNORR
707 A 0004303206 REPAIR KIT
VALVE SEAT
KNORR
709 A 0014309460 REPAIR KIT
TRAILER CONTROL VALVE
GRAU
710 N 913004008004 NUT
TRAILER CONTROL VALVE TO BRACKET
Repalced by: N 913004008001
710 N 913004008001 NUT
TRAILER CONTROL VALVE TO BRACKET
711 A 6204300110 BRACKET
TRAILER CONTROL VALVE
713 N 000933008150 SCREW
BRACKET TO SIDE MEMBER
Repalced by: N 304017008018
713 N 304017008018 SCREW
BRACKET TO SIDE MEMBER
715 N 913004008004 NUT
BRACKET TO SIDE MEMBER
Repalced by: N 913004008001
715 N 913004008001 NUT
BRACKET TO SIDE MEMBER
717 N 915036012203 HOLLOW SCREW
TRAILER CONTROL VALVE,CONNECTIONS:
"11,42,43"
719 N 915047012203 HOLLOW SCREW
TRAILER CONTROL VALVE,CONNECTION:
"41"
721 N 007603016401 SEAL RING
TRAILER CONTROL VALVE,CONNECTIONS:
"11,41,42,43"
723 A 0019905270 T-FITTING
TRAILER CONTROL VALVE,CONNECTIONS:
"12,22"
725 N 080705016003 NUT
TRAILER CONTROL VALVE,CONNECTIONS:
"12,22"
727 N 000908016001 SCREW PLUG
CROSS FITTING,CONNECTIONS:
"20,30,40"
727 N 000908012003 SCREW PLUG
CROSS FITTING,CONNECTIONS:
"20,30,40"
Repalced by: N 000908012009
727 N 000908012009 SCREW PLUG
CROSS FITTING,CONNECTIONS:
"20,30,40"
729 A 0004290927 THRUST RING
CROSS FITTING,CONNECTIONS:
"12,20,22,30,40"
729 A 0004290827 THRUST RING
CROSS FITTING,CONNECTIONS:
"20,30,40"
Repalced by: A 0009940103
729 A 0009940103 THRUST RING
CROSS FITTING,CONNECTIONS:
"20,30,40"
731 A 0009971548 SEAL RING
CROSS FITTING,CONNECTIONS:
"12,20,22,30,40"
731 A 0009875046 SEALING CORD
CROSS FITTING,CONNECTIONS:
"20,30,40"
Repalced by: A 0029975648
731 A 0029975648 SEAL RING
CROSS FITTING,CONNECTIONS:
"20,30,40"
733 A 0034294644 VALVE
EMERGENCY RELEASE; FRONT AXLE,REAR AXLES I AND II
WABCO
733 A 0034295144 VALVE
EMERGENCY RELEASE; FRONT AXLE,REAR AXLES I AND II
VOSS
735 A 0109973348 SEAL RING
WABCO
747 N 915036010204 HOLLOW SCREW
EMERGENCY RELEASE VALVE,CONNECTION:
"12"
Repalced by: N 915036010108
747 N 915036010108 HOLLOW SCREW
EMERGENCY RELEASE VALVE,CONNECTION:
"12"
749 N 915036012203 HOLLOW SCREW
EMERGENCY RELEASE VALVE,CONNECTION:
"11"
751 N 915047012203 HOLLOW SCREW
EMERGENCY RELEASE VALVE,CONNECTION:
"20"
753 N 915047010202 HOLLOW SCREW
EMERGENCY RELEASE VALVE,CONNECTION:
"12"
755 N 080705016003 NUT
EMERGENCY RELEASE VALVE TO TRISTOP CYLINDER
757 A 0004290927 THRUST RING
EMERGENCY RELEASE VALVE TO TRISTOP CYLINDER
757 A 0004290927 THRUST RING
EMERGENCY RELEASE VALVE TO RELAY VALVE
759 A 0009971548 SEAL RING
EMERGENCY RELEASE VALVE TO TRISTOP CYLINDER
759 A 0009971548 SEAL RING
EMERGENCY RELEASE VALVE TO RELAY VALVE
761 N 007603014405 SEAL RING
EMERGENCY RELEASE VALVE,CONNECTION:
"12"
763 N 007603016401 SEAL RING
EMERGENCY RELEASE VALVE,CONNECTIONS:
"11,20"
766 A 0014296844 VALVE
REAR AXLE I SERVICE BRAKE RELAY VALVE
WABCO
766 A 0014296844 VALVE
REAR AXLE I/II SPRING-LOAD-ACCUMULATOR RELAY VALVE
WABCO
766 A 0014296844 VALVE
REAR AXLE I/II SPRING-LOAD-ACCUMULATOR RELAY VALVE
WABCO
766 A 0034291644 VALVE
REAR AXLE I SERVICE BRAKE RELAY VALVE
BOSCH
766 A 0034291644 VALVE
REAR AXLE I/II SPRING-LOAD-ACCUMULATOR RELAY VALVE
BOSCH
766 A 0034291644 VALVE
REAR AXLE I/II SPRING-LOAD-ACCUMULATOR RELAY VALVE
BOSCH
766 A 0034295344 VALVE
REAR AXLE I SERVICE BRAKE RELAY VALVE
KNORR
766 A 0034295344 VALVE
REAR AXLE I/II SPRING-LOAD-ACCUMULATOR RELAY VALVE
KNORR
766 A 0034295344 VALVE
REAR AXLE I/II SPRING-LOAD-ACCUMULATOR RELAY VALVE
KNORR
769 A 0014299144 VALVE
REAR AXLE I/II SPRING-LOAD-ACCUMULATOR RELAY VALVE
GRAU
769 A 0014299144 VALVE
REAR AXLE I/II SPRING-LOAD-ACCUMULATOR RELAY VALVE
GRAU
769 A 0014299144 VALVE
REAR AXLE I/II SPRING-LOAD-ACCUMULATOR RELAY VALVE
GRAU
772 A 0014292144 VALVE
REAR AXLE I/II SPRING-LOAD-ACCUMULATOR RELAY VALVE
WABCO
778 A 0059972648 SEAL RING
22.3X2.4 MM,GRAU
781 A 0004312788 VALVE SEAT
GRAU
784 A 0059972748 SEAL RING
80.3X3 MM,GRAU
787 A 0014311660 SEAL RING
28X2 MM,GRAU
790 A 0014311760 SEAL RING
86X2 MM,GRAU
793 A 0004311980 GASKET
34X2X6 MM,GRAU
796 A 0005865742 REPAIR KIT
WABCO 973 001 020 0
796 A 0025863542 REPAIR KIT
KNORR
796 A 0025865742 REPAIR KIT
BLEEDER VALVE
Repalced by: A 0004301109
796 A 0004301109 REPAIR KIT
BLEEDER VALVE
BOSCH
799 A 0025865642 REPAIR KIT
GASKET KIT
Repalced by: A 0004201071
799 A 0004201271 VALVE
GASKET KIT
BOSCH
806 A 0015862142 REPAIR KIT
WABCO 473 017 000 0
807 N 000433008406 WASHER
RELAY VALVE TO BRACKET
808 N 913004008004 NUT
RELAY VALVE TO BRACKET
Repalced by: N 913004008001
808 N 913004008001 NUT
RELAY VALVE TO BRACKET
809 A 6234310940 BRACKET
REAR AXLE I SERVICE BRAKE RELAY VALVE
809 A 6234310940 BRACKET
REAR AXLE I/II SPRING-LOAD-ACCUMULATOR RELAY VALVE
810 N 000933008153 SCREW
BRACKET TO CROSS MEMBER
Repalced by: N 304017008034
810 N 304017008034 SCREW
BRACKET TO CROSS MEMBER
811 N 009021008205 WASHER
BRACKET TO CROSS MEMBER
Repalced by: N 009021008213
811 N 009021008213 WASHER
BRACKET TO CROSS MEMBER
812 N 000433008406 WASHER
BRACKET TO CROSS MEMBER
813 N 913004008004 NUT
BRACKET TO CROSS MEMBER
Repalced by: N 913004008001
813 N 913004008001 NUT
BRACKET TO CROSS MEMBER
814 A 0009905168 FITTING
REAR AXLE RELAY VALVE,CONNECTION:
"10,14"
814 A 0009905168 FITTING
REAR AXLE RELAY VALVE,CONNECTIONS:
"20,41,42"
815 A 0004290227 THRUST RING
REAR AXLE RELAY VALVE,CONNECTION:
"10,14"
Repalced by: A 0009940203
815 A 0009940203 THRUST RING
REAR AXLE RELAY VALVE,CONNECTION:
"10,14"
815 A 0009940203 WASHER
REAR AXLE RELAY VALVE,CONNECTIONS:
"20,41,42"
816 A 0009870446 O-RING
REAR AXLE RELAY VALVE,CONNECTION:
"10,14"
816 A 0009870446 O-RING
REAR AXLE RELAY VALVE,CONNECTIONS:
"20,41,42"
817 N 915040012206 HOLLOW SCREW FITTING
REAR AXLE RELAY VALVE,CONNECTION:
"41"
818 N 915036012203 HOLLOW SCREW
REAR AXLE RELAY VALVE,CONNECTIONS:
"10,20,40,44"
818 N 915036012203 HOLLOW SCREW
REAR AXLE RELAY VALVE,CONNECTION:
"42"
823 N 915036018204 HOLLOW SCREW
REAR AXLE RELAY VALVE,CONNECTION:
"10"
825 N 007603016401 SEAL RING
REAR AXLE RELAY VALVE,CONNECTIONS:
"10,20,40,41,42"
829 N 007603022102 SEAL RING
REAR AXLE RELAY VALVE,CONNECTION:
"10"
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
