Transporto priemonė: 3250 AF; VIN numerio dalis: 625387
Grupė: 25 CLUTCH

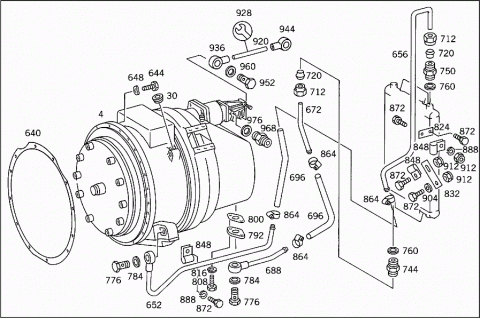

17106

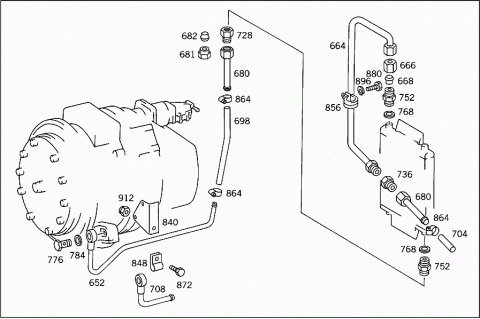

17107

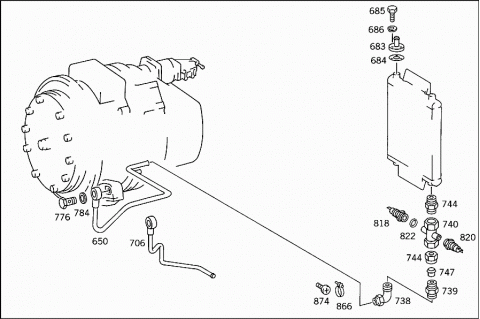

17108

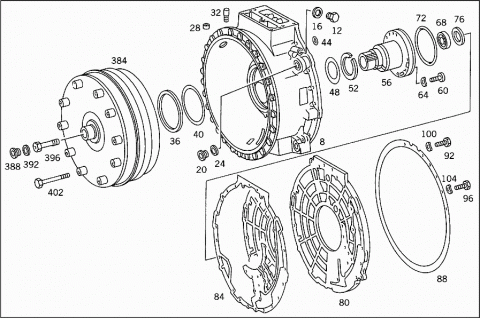

17109

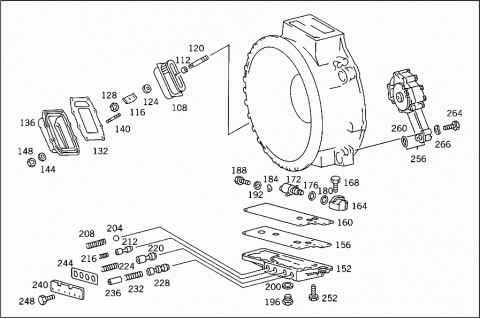

17110

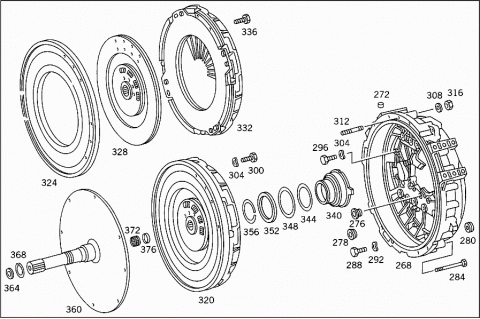

17111

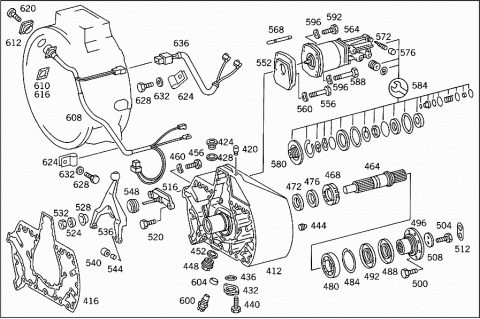

17112

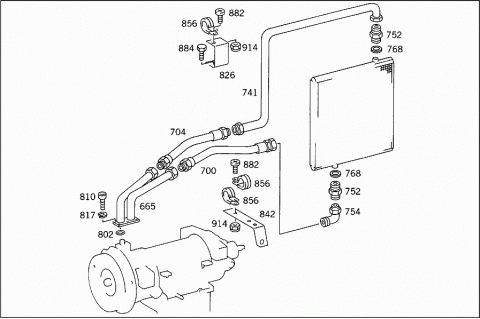

17113
# Kodas Pavadinimas
004 A 6252500202 CONVERTER
(CONVERTER LOCK-UP COUPLING)
004 A 6232500102 CONVERTER
Repalced by: A 6252500102
004 A 6252500102 CONVERTER
(CONVERTER LOCK-UP COUPLING)
008 A 0002512601 BELL HOUSING
Repalced by: A 0002513201
008 A 0002513201 BELL HOUSING
CONVERTER
Repalced by: A 0002514601
008 A 0002514601 BELL HOUSING
CONVERTER
012 A 0002570071 SCREW
Repalced by: N 000910024000
012 N 000910024000 SCREW PLUG
CONVERTER HOUSING
016 N 007603024106 SEAL RING
CONVERTER HOUSING
020 N 000908026005 SCREW PLUG
Repalced by: N 000908026008
020 N 000908026008 SCREW PLUG
Repalced by: A 0009973532
020 A 0009973532 SCREW PLUG
CONVERTER HOUSING
024 N 007603026104 SEAL RING
CONVERTER HOUSING
028 N 000443022000 EXPANSION PLUG
030 N 000906010004 SCREW PLUG
BREATHER
032 A 0002600358 BREATHER
036 A 0049976947 SEAL RING
Repalced by: A 0249977247
036 A 0249977247 SEAL RING
CONVERTER HOUSING
040 A 0002570076 WASHER
Repalced by: A 0002571376
040 A 0002571376 WASHER
CONVERTER HOUSING
044 A 0129973348 SEAL RING
Repalced by: A 0259976248
044 A 0259976248 SEAL RING
CONVERTER HOUSING
Repalced by: A 0169971745
044 A 0169971745 SEAL RING
CONVERTER HOUSING
048 A 0002570276 WASHER
AS REQUIRED
2.40 MM
048 A 0002570376 WASHER
AS REQUIRED
2.20 MM
048 N 000988080010 FITTED WASHER
AS REQUIRED
2.00 MM
048 N 000988080008 FITTED WASHER
AS REQUIRED
1.80 MM
048 N 000988080004 FITTED WASHER
AS REQUIRED
1.60 MM
048 N 000988080002 FITTED WASHER
AS REQUIRED
1.40 MM
048 N 000988080000 FITTED WASHER
AS REQUIRED
1.20 MM
048 N 000988080006 FITTED WASHER
AS REQUIRED
1.00 MM
052 A 0002570359 PISTON RING
PISTON
056 A 0002570245 FLANGE
OIL FEED
060 N 000912010064 SCREW
FLANGE TO HOUSING
064 N 000137010205 SPRING WASHER
FLANGE TO HOUSING
068 N 000720032011 TAPERED ROLLER BEARING
Repalced by: A 0029811305
068 A 0029811305 TAPERED ROLLER BEARING
REAR FLANGE
072 A 0049972548 SEAL RING
REAR FLANGE
076 A 0099977047 SEAL RING
REAR FLANGE
080 A 0002570455 PLATE
BETWEEN CONVERTER AND BELL HOUSING
084 A 0002571280 GASKET
Repalced by: A 0002573680
084 A 0002573680 GASKET
Repalced by: A 0002578180
084 A 0002578180 GASKET
Repalced by: A 0002578780
084 A 0002578780 GASKET
Repalced by: A 0002578980
084 A 0002578980 GASKET
CONVERTER HOUSING
088 A 0002571780 GASKET
Repalced by: A 0002574780
088 A 0002574780 GASKET
Repalced by: A 0002577180
088 A 0002577180 GASKET
Repalced by: A 0002577280
088 A 0002577280 GASKET
BELL HOUSING
092 N 000933010145 SCREW
CONVERTER HOUSING PLATE
096 N 000933008154 SCREW
Repalced by: N 304017008021
096 N 304017008021 SCREW
CONVERTER HOUSING PLATE
100 N 000137010201 SPRING WASHER
CONVERTER HOUSING PLATE
104 N 000137008204 SPRING WASHER
Repalced by: N 000137008212
104 N 000137008212 SPRING WASHER
CONVERTER HOUSING PLATE
108 A 0002570267 FILTER
CONVERTER HOUSING
112 A 0002570150 BUSHING
FILTER TO CONVERTER HOUSING
116 A 0002570028 SPRING
FILTER TO CONVERTER HOUSING
120 A 0009903205 STUD
FILTER TO CONVERTER HOUSING
124 A 0002570576 WASHER
FILTER TO CONVERTER HOUSING
128 N 304032008006 NUT
FILTER TO CONVERTER HOUSING
132 A 0002570380 GASKET
Repalced by: A 0002576480
132 A 0002576480 GASKET
FILTER HOUSING TO CONVERTER HOUSING
136 A 0002570332 HOUSING
FILTER
140 N 000835008146 STUD
FILTER HOUSING TO CONVERTER HOUSING
144 A 0002570976 WASHER
FILTER HOUSING TO CONVERTER HOUSING
148 N 304032008006 NUT
FILTER HOUSING TO CONVERTER HOUSING
152 A 0002570132 HOUSING
CONTROL
156 A 0002571080 GASKET
Repalced by: A 0002575380
156 A 0002575380 GASKET
Repalced by: A 0002578680
156 A 0002578680 GASKET
CONTROL BOX TO CONVERTER HOUSING
160 A 0002570090 COVER PLATE
Repalced by: A 0002570690
160 A 0002570690 COVER PLATE
CONTROL
164 A 0002570232 HOUSING
VALVE
168 N 304017006026 SCREW
Repalced by: N 304017006026
168 N 304017006026 SCREW
VALVE HOUSING TO TIMING CASE
172 A 0002570434 VALVE
Repalced by: A 0002571134
172 A 0002571134 VALVE
Repalced by: A 0002777635
172 A 0002777635 VALVE
LOCK-UP CONTROL
172 A 0002570734 VALVE
Repalced by: A 0002571034
172 A 0002571034 VALVE
Repalced by: A 0002571334
172 A 0002571334 VALVE
Repalced by: A 0002777535
172 A 0002777535 VALVE
Repalced by: A 0002777835
172 A 0002777835 VALVE
LOCK-UP CONTROL
172 A 0002777835 VALVE
LOCK-UP CONTROL
176 A 0089970248 SEAL RING
VALVE
180 A 0039970348 SEAL RING
VALVE
184 A 0085458728 PLUG
Repalced by: A 0005453826
184 A 0005453826 PIN BUSHING
Repalced by: A 0075458226
184 A 0075458226 PIN BUSHING
VALVE
188 N 000912005001 SCREW
VALVE TO HOUSING
192 N 007980005001 LOCK WASHER
VALVE TO HOUSING
196 N 007604012102 SCREW PLUG
HOUSING,BOTTOM
Repalced by: N 007604012105
196 N 007604012105 SCREW PLUG
HOUSING,BOTTOM
200 N 007603012405 SEAL RING
HOUSING,BOTTOM
204 N 005401320000 BALL
OIL FLOW CONTROL
208 A 0049934301 SPRING
106 MM
208 A 0059936501 SPRING
Repalced by: A 0069936501
208 A 0069936501 SPRING
OIL FLOW CONTROL
208 A 0059936501 SPRING
Repalced by: A 0069936501
208 A 0069936501 SPRING
OIL FLOW CONTROL
212 A 0002570042 PISTON
OIL FLOW CONTROL
216 A 0049934401 SPRING
OIL FLOW CONTROL
220 A 0002570142 PISTON
OIL FLOW CONTROL
25X58 MM
224 A 0059933001 SPRING
OIL FLOW CONTROL
224 A 0059936601 SPRING
OIL FLOW CONTROL
228 A 0002570342 PISTON
OIL FLOW CONTROL
25X47 MM
232 A 0049934601 SPRING
OIL FLOW CONTROL
236 A 0002570350 BUSHING
OIL FLOW CONTROL
240 A 0002570008 END COVER
244 A 0002570580 GASKET
END COVER TO HOUSING
248 N 000933006118 SCREW
END COVER TO HOUSING
M 6X18
248 N 304017006021 HEXAGON HEAD BOLT
END COVER TO HOUSING
M6X12
252 N 000933008160 SCREW
Repalced by: N 304017008040
252 N 304017008040 SCREW
Repalced by: N 910105008010
252 N 910105008010 SCREW
Repalced by: N 910143008005
252 N 910143008005 SCREW
CONTROL BOX TO CONVERTER HOUSING
M 8X40
252 N 000933008150 SCREW
Repalced by: N 304017008018
252 N 304017008018 SCREW
CONTROL BOX TO CONVERTER HOUSING
M 8X35
252 N 000931008248 SCREW
Repalced by: N 304017008053
252 N 304017008053 SCREW
CONTROL BOX TO CONVERTER HOUSING
M 8X60
252 N 000933008153 SCREW
Repalced by: N 304017008034
252 N 304017008034 SCREW
CONTROL BOX TO CONVERTER HOUSING
M 8X25
256 A 0002500390 OIL PUMP
Repalced by: A 0002500490
256 A 0002500490 OIL PUMP
260 A 0119970148 SEAL RING
264 N 000931010258 SCREW
OIL PUMP TO CONVERTER HOUSING
266 N 000137010201 SPRING WASHER
OIL PUMP TO CONVERTER HOUSING
268 A 0002501305 HOUSING
Repalced by: A 0002501505
268 A 0002501505 HOUSING
CLUTCH
272 N 000443016000 EXPANSION PLUG
BELL HOUSING,TOP
276 N 000908012003 SCREW PLUG
Repalced by: N 000908012009
276 N 000908012009 SCREW PLUG
BELL HOUSING
278 N 000906010000 SCREW PLUG
BELL HOUSING
280 A 0009977535 PLUG
Repalced by: A 3529970032
280 A 3529970032 SCREW PLUG
BELL HOUSING
284 N 000931010293 SCREW
288 A 0039906701 SCREW
Repalced by: N 000961018009
288 N 000961018009 SCREW
BELL HOUSING TO TRANSMISSION
M 18X45
292 N 000137018202 SPRING WASHER
BELL HOUSING TO TRANSMISSION
296 N 000933010145 SCREW
BELL HOUSING TO TRANSMISSION
M 10X35
300 N 000931010331 SCREW
CLUTCH TO DRIVE SHAFT
M 10X65
304 N 000137010201 SPRING WASHER
BELL HOUSING TO TRANSMISSION
304 N 000137010201 SPRING WASHER
BELL HOUSING TO TRANSMISSION
308 N 000125010518 WASHER
Repalced by: N 000125010532
308 N 000125010532 WASHER
CONVERTER HOUSING TO CLUTCH BELL
312 A 0009906905 STUD
Repalced by: A 0019901605
312 A 0019901605 STUD
CONVERTER HOUSING TO CLUTCH BELL
316 N 000934010009 NUT
Repalced by: N 304032010002
316 N 304032010002 NUT
CONVERTER HOUSING TO CLUTCH BELL
320 A 0052505801 CLUTCH
Repalced by: A 0112505301
320 A 0112505301 CLUTCH
Repalced by: A 0202501703
320 A 0202501703 CLUTCH DISC
320 A 0062502501 CLUTCH
Repalced by: A 0112505401
324 A 0002521907 SHIM
Repalced by: A 0002522507
324 A 0002522507 SHIM
324 A 0002522007 SHIM
Repalced by: A 0002522507
324 A 0002522507 SHIM
328 A 0062503903 CLUTCH DISC
Repalced by: A 0122508803
328 A 0122508803 CLUTCH DISC
328 A 0062508603 CLUTCH DISC
Repalced by: A 0122508203
328 A 0122508203 CLUTCH DISC
332 A 0042501404 CLUTCH PRESSURE PLATE
Repalced by: A 0052505104
332 A 0052505104 CLUTCH PRESSURE PLATE
Repalced by: A 0052505004
332 A 0052505004 CLUTCH PRESSURE PLATE
WITH RELEASE FLANGE
332 A 0042502504 CLUTCH PRESSURE PLATE
Repalced by: A 0052505104
332 A 0052505104 CLUTCH PRESSURE PLATE
Repalced by: A 0052505004
332 A 0052505004 CLUTCH PRESSURE PLATE
WITH RELEASE FLANGE
336 N 000912008130 SCREW
340 A 0002508215 RELEASE BEARING
Repalced by: A 0022500415
340 A 0022500415 RELEASE BEARING
344 A 0002520276 WASHER
348 A 0009938026 DISC SPRING
352 A 0002522436 COMPENSATING RING
Repalced by: A 0002521536
352 A 0002521536 COMPENSATING RING
AS REQUIRED
5.80 MM
352 A 0002521636 COMPENSATING RING
Repalced by: A 0002522336
352 A 0002522336 COMPENSATING RING
AS REQUIRED
6.80 MM
352 A 0002522236 COMPENSATING RING
Repalced by: A 0002521736
352 A 0002521736 COMPENSATING RING
AS REQUIRED
7.80 MM
352 A 0002522136 COMPENSATING RING
Repalced by: A 0002521836
352 A 0002521836 COMPENSATING RING
AS REQUIRED
8.80 MM
356 A 0002521473 LOCK
360 A 0002500122 SHAFT
DRIVE
364 A 0029907240 WASHER
AS REQUIRED
3.70 MM
364 A 0029907040 WASHER
Repalced by: A 0029906940
364 A 0029906940 WASHER
AS REQUIRED
3.40 MM
364 A 0029906840 WASHER
Repalced by: A 0029906640
364 A 0029906640 WASHER
AS REQUIRED
3.10 MM
364 A 0029906540 WASHER
Repalced by: A 0029905540
364 A 0029906440 WASHER
Repalced by: A 0029905540
364 A 0029905540 WASHER
AS REQUIRED
2.80 MM
364 A 0029905640 WASHER
Repalced by: A 0029905840
364 A 0029905840 WASHER
AS REQUIRED
2.50 MM
364 A 0029906040 WASHER
Repalced by: A 0029906140
364 A 0029906140 WASHER
AS REQUIRED
2.20 MM
364 A 0029906240 WASHER
Repalced by: A 0029904240
364 A 0029906340 WASHER
Repalced by: A 0029904240
364 A 0029904240 WASHER
AS REQUIRED
1.90 MM
364 A 0029904340 WASHER
Repalced by: A 0029904540
364 A 0029904440 WASHER
Repalced by: A 0029904540
364 A 0029904540 WASHER
AS REQUIRED
1.60 MM
364 A 0029904640 WASHER
Repalced by: A 0029904840
364 A 0029904740 WASHER
Repalced by: A 0029904840
364 A 0029904840 WASHER
AS REQUIRED
1.30 MM
364 A 0029904940 WASHER
Repalced by: A 0029905140
364 A 0029905040 WASHER
Repalced by: A 0029905140
364 A 0029905140 WASHER
AS REQUIRED
1.00 MM
364 A 0029905240 WASHER
Repalced by: A 0029905440
364 A 0029905340 WASHER
Repalced by: A 0029905440
364 A 0029905440 WASHER
AS REQUIRED
0.70 MM
368 N 034110055000 PISTON RING
FRONT DRIVE SHAFT
372 A 0049816810 NEEDLE BEARING
Repalced by: A 0059813110
372 A 0059813110 NEEDLE BEARING
REAR DRIVE SHAFT
376 A 0039976047 SEAL RING
REAR DRIVE SHAFT
384 A 0002502102 CONVERTER
384 A 0002502502 CONVERTER
Repalced by: A 0002502802
384 A 0002502802 CONVERTER
388 N 000908039000 SCREW PLUG
392 N 007603039100 SEAL RING
396 A 0002570193 SPRING
Repalced by: A 0009900619
396 A 0002540067 OIL NOZZLE
Repalced by: A 0009900619
396 A 0009944340 SNAP RING
Repalced by: A 0009900619
396 A 0009900519 SCREW
Repalced by: A 0009900619
396 A 0009900619 SCREW
CONVERTER TO DRIVE SHAFT
402 N 000961012052 SCREW
Repalced by: N 308676012012
402 N 308676012012 HEXAGON HEAD BOLT
CONVERTER TO FLYWHEEL
N 000137012203 SPRING WASHER
Repalced by: N 000137012206
N 000137012206 SPRING WASHER
CONVERTER TO FLYWHEEL
412 A 0002570401 HOUSING
TRANSMISSION CONNECTION
416 A 0002572180 GASKET
Repalced by: A 0002575280
416 A 0002575280 GASKET
CASE TO BELL HOUSING
420 A 0002600358 BREATHER
424 N 000908026005 SCREW PLUG
Repalced by: N 000908026008
424 N 000908026008 SCREW PLUG
Repalced by: A 0009973532
424 A 0009973532 SCREW PLUG
OIL FILLING,TOP
428 N 007603026104 SEAL RING
OIL FILLING,TOP
432 A 0009970150 FLANGE
HOUSING,BOTTOM
436 A 0129973648 SEAL RING
Repalced by: A 0119973448
436 A 0119973448 SEAL RING
FLANGE TO HOUSING
440 N 000933008053 SCREW
FLANGE TO HOUSING
444 A 0009979930 SCREW PLUG
CASE,REAR
448 A 0002570871 SCREW
OIL DRAIN
452 N 007603038101 SEAL RING
OIL DRAIN
456 N 000931008244 SCREW
CASE TO BELL HOUSING
460 N 000137008204 SPRING WASHER
Repalced by: N 000137008212
460 N 000137008212 SPRING WASHER
CASE TO BELL HOUSING
464 A 0002500014 SHAFT
(OUTPUT SHAFT)
468 A 0002570776 WASHER
OUTPUT SHAFT
472 A 0139973647 SEAL RING
OUTPUT SHAFT
476 A 0139973747 SEAL RING
OUTPUT SHAFT
480 N 005412600014 CYLINDR. ROLLER BEARING
Repalced by: A 0059814101
480 A 0059814101 CYLINDR. ROLLER BEARING
OUTPUT SHAFT
484 N 000472090000 LOCK RING
OUTPUT SHAFT
488 A 0079976047 SEAL RING
INSIDE AND OUTSIDE
492 A 0079976147 SEAL RING
Repalced by: A 0079976047
496 A 0002645045 COUPLING FLANGE
500 A 3609901901 SCREW
Repalced by: A 3609903001
500 A 3609903001 SCREW
PROPELLER SHAFT TO FLANGE
504 N 000933010105 SCREW
FLANGE TO SHAFT
508 A 0002622462 THRUST WASHER
FLANGE TO SHAFT
512 A 0009940032 LOCK
Repalced by: A 0002640273
512 A 0002640273 LOCK
FLANGE TO SHAFT
516 A 0002540640 BRACKET
RELEASE LEVER
520 N 000931010306 SCREW
BRACKET TO HOUSING
524 A 0002540150 BUSHING
RELEASE LEVER TO BRACKET
528 A 0002540035 BEARING
RELEASE LEVER TO BRACKET
532 N 000934012023 NUT
Repalced by: N 308673012002
532 N 308673012002 HEXAGON NUT
RELEASE LEVER TO BRACKET
536 A 0002500513 RELEASE LEVER
Repalced by: A 0002501013
536 A 0002501013 RELEASE LEVER
MASTER CYLINDER
540 A 0002540149 RACE
RELEASE LEVER
544 A 0019925101 BUSHING
RELEASE LEVER
548 A 0002540062 THRUST WASHER
552 A 0002540045 FLANGE
MASTER CYLINDER
556 N 000931008105 SCREW
Repalced by: N 304014008004
556 N 304014008004 SCREW
Repalced by: N 304014008001
556 N 304014008001 SCREW
FLANGE TO HOUSING
560 N 000137008204 SPRING WASHER
Repalced by: N 000137008212
560 N 000137008212 SPRING WASHER
FLANGE TO HOUSING
564 A 0002959906 MASTER CYLINDER
Repalced by: A 0012954906
564 A 0012954906 MASTER CYLINDER
Repalced by: A 0012954706
564 A 0012954706 MASTER CYLINDER
CLUTCH
568 A 0002951230 PISTON
WABCO 470 051 10 60
572 A 0000600178 VALVE
Repalced by: A 3075530107
572 A 3075530107 VALVE
WABCO 470 051 10 60
572 A 0000601878 VALVE
Repalced by: A 0000610271
572 A 0000610271 SCREW
WABCO 470 051 11 40
576 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
576 A 0004217187 PROTECTIVE CAP
WABCO 470 051 10 60
580 A 0002954383 BOOT
584 A 0002900167 REPAIR KIT
Repalced by: A 0002903167
584 A 0002903167 REPAIR KIT
CLUTCH MASTER CYLINDER
588 N 000931008207 SCREW
Repalced by: N 304014008007
588 N 304014008007 SCREW
MASTER CYLINDER TO FLANGE
M 8X90
592 N 000933008152 SCREW
Repalced by: N 304017008027
592 N 304017008027 SCREW
MASTER CYLINDER TO FLANGE
M 8X30
596 N 000137008204 SPRING WASHER
Repalced by: N 000137008212
596 N 000137008212 SPRING WASHER
MASTER CYLINDER TO FLANGE
600 A 0045423317 SENDER UNIT
INDUCTIVE;ENGINE SPEED AND TURBINE SPEED
604 A 0039900840 WASHER
AS REQUIRED
1.00 MM
604 A 0039900940 WASHER
AS REQUIRED
0.30 MM
604 A 0039901040 WASHER
Repalced by: A 3022050152
604 A 3022050152 SPACER WASHER
AS REQUIRED
0.20 MM
608 A 0005468014 ELECTRIC CABLE
Repalced by: A 0005468114
608 A 0005468114 ELECTRIC CABLE
FROM INDUCTIVE PICKUP TO PLUG CONNECTION IN CASE
608 A 0005468114 ELECTRIC CABLE
FROM INDUCTIVE PICKUP TO PLUG CONNECTION IN CASE
608 A 0005468114 ELECTRIC CABLE
FROM INDUCTIVE PICKUP TO PLUG CONNECTION IN CASE
610 A 0005460286 GASKET
612 A 0005450455 GUIDE
CABLE TO SHELL
616 A 0005460286 GASKET
CABLE TO SHELL
620 N 000084003405 SCREW
CABLE TO SHELL
624 A 0009953020 CLAMP
CABLE TO SHELL
628 N 000933008212 SCREW
Repalced by: N 304017008016
628 N 304017008016 SCREW
CABLE TO SHELL
632 A 0002570976 WASHER
CABLE TO SHELL
636 A 0005467714 ELECTRIC CABLE
FROM INDUCTIVE PICKUP TO CABLE CONNECTOR
640 A 3812510180 GASKET
Repalced by: A 3812510580
640 A 3812510580 GASKET
CONVERTER HOUSING TO ENGINE
644 N 000939010092 STUD BOLT
CONVERTER HOUSING TO ENGINE
M 10X45
644 N 304017010053 SCREW
CONVERTER HOUSING TO ENGINE
M 10X50
N 000934010014 NUT
CONVERTER HOUSING TO ENGINE
648 N 006796010100 CONICAL SPRING WASHER
CONVERTER HOUSING TO ENGINE
650 A 6252504066 OIL PIPE
FROM CONVERTER LOCK-UP COUPLING TO OIL COOLER
652 A 6252570466 PIPE
Repalced by: A 6252500766
652 A 6252500766 OIL PIPE
FROM CONVERTER LOCK-UP COUPLING TO OIL COOLER
656 A 6252570666 PIPE
FROM CONVERTER LOCK-UP COUPLING TO OIL COOLER
664 A 6252504366 OIL PIPE
FROM OIL COOLER TO CONVERTER LOCK-UP COUPLING
664 A 6252502566 OIL PIPE
FROM OIL COOLER TO CONVERTER LOCK-UP COUPLING
665 A 6252503866 OIL PIPE
FROM SLEEVE VALVE TO OIL COOLER
666 N 915017035101 UNION NUT
668 N 003861035000 GLAND
672 A 6252570566 PIPE
FROM OIL COOLER TO CONVERTER LOCK-UP COUPLING
680 A 6252502766 OIL PIPE
FEED & RETURN
681 N 915017022100 UNION NUT
Repalced by: N 000000006243
681 N 000000006243 NUT
682 N 003861022004 GLAND
Repalced by: A 0019901267
682 A 0019901267 SEAL CONE
683 A 6252504166 OIL PIPE
FEED & RETURN
684 A 6252570080 GASKET
Repalced by: A 6252570580
684 A 6252570580 GASKET
PIPE TO OIL COOLER
685 N 000933008147 SCREW
Repalced by: N 304017008021
685 N 304017008021 SCREW
PIPE TO OIL COOLER
686 N 912004008102 LOCK WASHER
PIPE TO OIL COOLER
688 A 6252570366 PIPE
Repalced by: A 6252500566
688 A 6252500566 OIL PIPE
FROM OIL COOLER TO CONVERTER LOCK-UP COUPLING
696 A 6259970082 HOSE
FEED & RETURN
698 A 6259971582 HOSE
FEED & RETURN
698 A 6259971582 HOSE
FEED
700 A 6252571782 HOSE
Repalced by: A 6252571582
704 A 6252571682 HOSE
RETURN
706 A 6252504266 OIL PIPE
FROM OIL COOLER TO CONVERTER LOCK-UP COUPLING
708 A 6252502966 OIL PIPE
FROM OIL COOLER TO CONVERTER LOCK-UP COUPLING
712 N 915017022100 UNION NUT
Repalced by: N 000000006243
712 N 000000006243 NUT
720 N 003861022004 GLAND
Repalced by: A 0019901267
720 A 0019901267 SEAL CONE
728 A 0019971378 SCREW CONNECTION
736 A 0019902168 FITTING
738 N 003952022100 FITTING
FEED LINE
739 A 6259970572 FITTING
FEED LINE AND RETURN LINE
740 A 6252503966 OIL PIPE
(CROSS FITTING) TEMPERATURE GAUGE SENDER UNIT CONNECTION
741 A 6252503266 OIL PIPE
FROM OIL COOLER TO SLEEVE VALVE
744 N 915017035101 UNION NUT
747 N 003861035000 GLAND
750 N 003901022006 SCREW-IN FITTING
PIPE TO OIL COOLER
752 N 003901035003 SCREW-IN FITTING
PIPE TO OIL COOLER
754 N 003952035100 FITTING
PIPE TO OIL COOLER
760 N 007603026104 SEAL RING
PIPE TO OIL COOLER
768 N 007603042101 SEAL RING
PIPE TO OIL COOLER
776 N 915036022201 HOLLOW SCREW
PIPE TO CONVERTER LOCK-UP COUPLING
784 N 007603026104 SEAL RING
PIPE TO CONVERTER LOCK-UP COUPLING
792 A 6252570145 FLANGE
PIPE TO CONVERTER LOCK-UP COUPLING
800 A 6252570180 GASKET
Repalced by: A 6252570480
800 A 6252570480 GASKET
FLANGE TO CONVERTER LOCK-UP COUPLING
802 A 0149970848 SEAL RING
OIL LINE TO VALVE BODY ASSEMBLY
808 N 000933008153 SCREW
Repalced by: N 304017008034
808 N 304017008034 SCREW
FLANGE TO CONVERTER LOCK-UP COUPLING
810 N 000912006040 SCREW
OIL LINE TO VALVE BODY ASSEMBLY
816 N 912004008102 LOCK WASHER
FLANGE TO CONVERTER LOCK-UP COUPLING
817 N 912004006102 LOCK WASHER
OIL LINE TO VALVE BODY ASSEMBLY
818 A 0055428217 SENDER UNIT
CONVERTER LOCK-UP COUPLING TEMPERATURE INDICATOR
820 A 0065455624 SWITCH,AUTOMATIC
FOR FAN COUPLING OF CONVERTER LOCK-UP COUPLING
820 A 0065455624 SWITCH,AUTOMATIC
VALVE BODY ASSEMBLY
822 N 007603014405 SEAL RING
TEMPERATURE SENDER UNIT
824 A 6252570140 BRACKET
PIPE TO OIL COOLER,TOP
826 A 6252571040 BRACKET
LINE TO OIL RADIATOR
832 A 6252570240 BRACKET
PIPE TO OIL COOLER,BOTTOM
840 A 6255041441 BRACKET
PIPE TO CONVERTER LOCK-UP COUPLING
842 A 6252570840 BRACKET
OIL LINE TO UNIT SUPPORT
848 A 3609950701 CLAMP
Repalced by: N 916016018202
848 N 916016018202 CLAMP
FEED LINE
848 N 916016018202 CLAMP
FEED LINE
856 N 916016035205 CLAMP
RETURN LINE
864 N 916017025000 CLAMP
Repalced by: N 000000000668
864 N 000000000668 CLAMP
HOSE TO PIPE LINE
866 N 906017020000 PART NAME MISSING
HOSE TO PIPE LINE
872 N 000933006183 SCREW
Repalced by: N 304017006016
872 N 304017006016 SCREW
CLAMP MOUNTING
M 6X16
872 N 304017006016 SCREW
CLAMP MOUNTING
M 6X16
874 N 007985006157 SCREW
Repalced by: N 000000001145
874 N 000000001145 SCREW
CLAMP MOUNTING
M 6X12
880 N 000933008123 SCREW
Repalced by: N 304017008008
880 N 304017008008 SCREW
CLAMP MOUNTING
882 N 007985008142 SCREW
CLAMP MOUNTING
884 N 000933008212 SCREW
Repalced by: N 304017008016
884 N 304017008016 SCREW
CLAMP MOUNTING
888 N 912004006102 LOCK WASHER
CLAMP MOUNTING
896 N 912004008102 LOCK WASHER
CLAMP MOUNTING
904 N 000125006421 WASHER
CLAMP MOUNTING
Repalced by: N 000125006449
904 N 000125006449 WASHER
CLAMP MOUNTING
912 N 913004006002 NUT
Repalced by: N 913004006001
912 N 913004006001 NUT
CLAMP MOUNTING
912 N 913004006001 NUT
CLAMP MOUNTING
914 N 913004008004 NUT
Repalced by: N 913004008001
914 N 913004008001 NUT
CLAMP MOUNTING
920 A 0089979082 HOSE
FOUR-CIRCUIT PROTECTIVE VALVE,CLUTCH BOOSTER
6X8 MM
928 A 0039978972 FITTING
Repalced by: A 0029905971
928 A 0029905971 FITTING
(PARTS KIT),LINE RUPTURE
936 N 915052006014 BANJO UNION
HOSE WIDTH, / I.D.,
6/16 MM
944 N 915052006013 BANJO UNION
HOSE WIDTH, / I.D.,
6/12 MM
952 N 915036012203 HOLLOW SCREW
CLUTCH BOOSTER,CONNECTION:
"10"
960 N 007603016401 SEAL RING
CLUTCH BOOSTER,CONNECTION:
"10"
968 A 0019973972 FITTING
CLUTCH BOOSTER,CONNECTION:
"20"
976 N 007603014405 SEAL RING
CLUTCH BOOSTER,CONNECTION:
"20"
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
