Transporto priemonė: 3250 AF; VIN numerio dalis: 625387
Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|

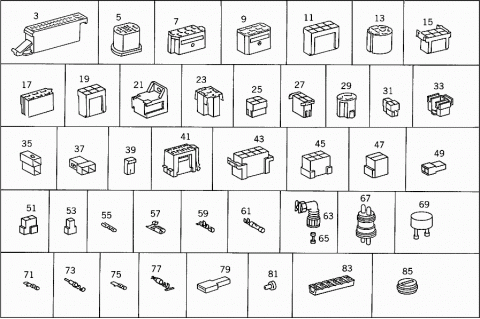

| 003 | A 0115456228 | PIN BUSHING HOUSING |
| 25-POLE | ||
| 005 | A 0065455528 | PIN BUSHING HOUSING |
| HAZARD WARNING LIGHT SWITCH | ||
| 007 | A 6115450028 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 009 | A 6115450128 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 011 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 013 | A 0055459928 | PIN BUSHING HOUSING |
| 7-POLE | ||
| 015 | A 0015458128 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 017 | A 0055458428 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 019 | A 0075450528 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 021 | A 0065451428 | PIN BUSHING HOUSING |
| 5-POLE | ||
| Repalced by: A 0008250518 | ||
| 021 | A 0008250518 | BASE |
| 5-POLE | ||
| 023 | A 0065450728 | PIN BUSHING HOUSING |
| 5-POLE | ||
| 025 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 027 | A 0015454128 | PIN BUSHING HOUSING |
| 4-POLE | ||
| A 6555450128 | PIN BUSHING HOUSING | |
| 4-POLE | ||
| 029 | A 0095451928 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 031 | A 0055456428 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 031 | A 0105457128 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 033 | A 0055458528 | PIN BUSHING HOUSING |
| Repalced by: A 0015458528 | ||
| 033 | A 0015458528 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 035 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 037 | A 0045450728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| A 6555450026 | PIN BUSHING HOUSING | |
| BIPOLAR | ||
| 039 | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 041 | A 3575450028 | PLUG HOUSING |
| 8-POLE | ||
| 043 | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| 045 | A 0015456028 | PLUG HOUSING |
| 6-POLE | ||
| 047 | A 0025451228 | PLUG HOUSING |
| 4-POLE | ||
| 047 | A 0005430140 | PLUG HOUSING |
| 4-POLE, MODULE "V" | ||
| A 6555450828 | PLUG HOUSING | |
| 4-POLE | ||
| 049 | A 0075455928 | PLUG HOUSING |
| BIPOLAR | ||
| 051 | A 0015457928 | PLUG HOUSING |
| BIPOLAR | ||
| 053 | A 0025451328 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| A 6555452728 | PLUG HOUSING | |
| UNIPOLAR | ||
| 055 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 055 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2,5 MM2 | ||
| 055 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 055 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2,5 MM2 | ||
| 055 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 055 | A 0005454626 | PIN BUSHING |
| WITH DETENT;LESS CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 055 | A 0025454026 | FLAT PIN BUSHING |
| Repalced by: A 0035455326 | ||
| 055 | A 0035455326 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 057 | A 0005457926 | PIN BUSHING |
| OFFSET | ||
| 2,5 MM2 | ||
| 059 | A 0015454826 | ROUND PIN BUSHING |
| LESS DETENT | ||
| 0,75-2,5 MM2 | ||
| 061 | A 0025451026 | ROUND PIN BUSHING |
| Repalced by: A 0035450926 | ||
| 061 | A 0035450926 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2-2,5 MM2 | ||
| Repalced by: A 0145457726 | ||
| 061 | A 0145457726 | ROUND PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2-2,5 MM2 | ||
| 063 | N 999854018500 | PLUG |
| 10-POLE | ||
| 065 | A 0005450383 | CONTACT PIN |
| TO PLUG THE BORES | ||
| 067 | A 0065457328 | PLUG |
| BIPOLAR | ||
| 069 | A 0095450328 | PLUG |
| Repalced by: A 0245458828 | ||
| 069 | A 0245458828 | PLUG |
| IDLING SHUNTING | ||
| 069 | A 0245458828 | PLUG |
| NOT CONFORMING TO DANGEROUS GOODS TRAFFIC REGULATIONS (GGVS) | ||
| 071 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2,5 MM2 | ||
| 073 | A 0115450628 | PLUG |
| Repalced by: A 0325457628 | ||
| 073 | A 0325457628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2-2,5 MM2 | ||
| 075 | A 0015458628 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2,5 MM2 | ||
| 075 | A 0025451428 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 075 | A 0215456028 | FLAT PLUG |
| 1-2.5 MM2 | ||
| 077 | A 0025451926 | CONTACT SPRING |
| Repalced by: A 0035450226 | ||
| 077 | A 0035450226 | CONTACT SPRING |
| 1-2.5 MM2 | ||
| A 0045455326 | FLAT PIN BUSHING | |
| 1-2.5 MM2 | ||
| 079 | A 0025451528 | PLUG CONNECTOR |
| 081 | A 0005467741 | CABLE CONNECTOR |
| 1,5 - 6,6 MM2 | ||
| 081 | A 0015466641 | CABLE CONNECTOR |
| 6-10 MM2 | ||
| 083 | A 0015463641 | CABLE CONNECTOR |
| CLAMPING PIECE | ||
| 085 | A 0009970303 | PLUG |
| TO PLUG P.T.O. CONNECTION | ||
| 085 | A 0009970203 | PLUG |
| TO PLUG BACK-UP LIGHT CONNECTION | ||
| 085 | A 0009970203 | PLUG |
| TO PLUG BRANCH-OFF TO GEAR CLUSTER INDICATOR | ||
| 085 | A 0009970203 | PLUG |
| TRANSMISSION-NEUTRAL-POSITION-SENDERUNIT/BACK-UP-LIGHT BRANCH-OFFS | ||

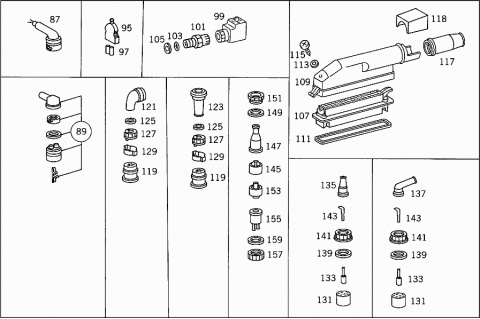

| 087 | A 3805402181 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| 24X1 | ||
| 087 | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| 089 | A 3805402681 | PLUG SOCKET |
| (PARTS KIT),BIPOLAR SCREW CONNECTION, FOR CORRUGATED TUBE | ||
| M 24X1 | ||
| 089 | A 3805402781 | PLUG SOCKET |
| (PARTS KIT),BIPOLAR SCREW CONNECTION, FOR CORRUGATED TUBE | ||
| M 27X1 | ||
| 089 | A 3805403081 | PLUG SOCKET |
| (PARTS KIT),BIPOLAR SCREW CONNECTION, FOR INSULATING HOSE | ||
| M 27X1 | ||
| 095 | A 0015456726 | PLUG SOCKET |
| BIPOLAR | ||
| 097 | A 0015456626 | PLUG SOCKET |
| BIPOLAR | ||
| 099 | A 0015457826 | PLUG SOCKET |
| 101 | A 0005461050 | BUSHING |
| 103 | A 0049971940 | SEAL RING |
| 105 | A 0009971548 | SEAL RING |
| 107 | A 0125451628 | PIN BUSHING HOUSING |
| 35-POLE | ||
| 107 | A 0135459128 | PIN BUSHING HOUSING |
| 25-POLE | ||
| 109 | A 0005454403 | SHELL TYPE HANDLE |
| ELECTRONIC DIESEL FUEL-INJECTION PUMP CONTROL | ||
| 109 | A 0005454803 | SHELL TYPE HANDLE |
| ELECTROPNEUMATIC POWER SHIFT CONTROL UNIT | ||
| 109 | A 0005454003 | SHELL TYPE HANDLE |
| ANTI-LOCK BRAKING SYSTEM CONTROL UNIT | ||
| 109 | A 0005454703 | SHELL TYPE HANDLE |
| AUTOMATIC TRANSMISSION | ||
| 111 | A 0005450739 | RUBBER RING |
| PIN BUSHING HOUSING | ||
| 111 | A 0005451339 | RUBBER RING |
| PIN BUSHING HOUSING | ||
| 113 | A 0005450839 | RUBBER RING |
| PIN BUSHING HOUSING | ||
| 115 | A 0009909236 | SCREW |
| Repalced by: N 007981002306 | ||
| 115 | N 007981002306 | SHEET METAL SCREW |
| PIN BUSHING HOUSING | ||
| 115 | N 007981002208 | SHEET METAL SCREW |
| PIN BUSHING HOUSING | ||
| 117 | A 0069979281 | GROMMET |
| PIN BUSHING HOUSING | ||
| 118 | A 0005450746 | COVERING |
| PIN BUSHING HOUSING | ||
| 119 | A 0125450928 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 119 | A 0125450928 | PIN BUSHING HOUSING |
| SPEED SENDER UNIT | ||
| 121 | A 6175460035 | BOOT |
| SPEED SENDER UNIT | ||
| 123 | A 0005463435 | BOOT |
| SPEED SENDER UNIT | ||
| 125 | A 3019901440 | WASHER |
| SPEED SENDER UNIT | ||
| 127 | A 0005421572 | NUT |
| SPEED SENDER UNIT | ||
| 129 | A 0029978590 | CLIP |
| SPEED SENDER UNIT | ||
| 131 | A 0035452226 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 131 | A 0035452226 | PIN BUSHING HOUSING |
| TACHOGRAPH SENDER UNIT CONNECTION | ||
| 131 | A 0035452226 | PIN BUSHING HOUSING |
| ELECTROPNEUMATIC POWER SHIFT SENDER UNIT | ||
| 133 | A 6455450073 | LOCK |
| ELECTROPNEUMATIC POWER SHIFT SENDER UNIT | ||
| 135 | A 0005455945 | BOOT |
| TACHOGRAPH SENDER UNIT CONNECTION | ||
| 137 | A 0005456045 | BOOT |
| ELECTROPNEUMATIC POWER SHIFT SENDER UNIT | ||
| 139 | A 0005451176 | WASHER |
| TACHOGRAPH SENDER UNIT CONNECTION | ||
| 139 | A 0005451176 | WASHER |
| ELECTROPNEUMATIC POWER SHIFT SENDER UNIT | ||
| 141 | A 0005452372 | NUT |
| TACHOGRAPH SENDER UNIT CONNECTION | ||
| 141 | A 0005452372 | NUT |
| ELECTROPNEUMATIC POWER SHIFT SENDER UNIT | ||
| 143 | A 0005450873 | LOCK |
| TACHOGRAPH SENDER UNIT CONNECTION | ||
| 143 | A 0005450873 | LOCK |
| ELECTROPNEUMATIC POWER SHIFT SENDER UNIT | ||
| 145 | A 0055454628 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 145 | A 0055454628 | PIN BUSHING HOUSING |
| DIFFERENTIAL LOCK CONTROL CONTROL AND P.T.O. CONTROL | ||
| 147 | A 0029970781 | GROMMET |
| DIFFERENTIAL LOCK CONTROL CONTROL AND P.T.O. CONTROL | ||
| 147 | A 0029970781 | GROMMET |
| P.T.O. CONTROL BRANCH-OFF | ||
| 149 | A 0019906440 | WASHER |
| DIFFERENTIAL LOCK CONTROL CONTROL AND P.T.O. CONTROL | ||
| 149 | A 0019906440 | WASHER |
| P.T.O. CONTROL BRANCH-OFF | ||
| 151 | A 0019976572 | FITTING |
| DIFFERENTIAL LOCK CONTROL CONTROL AND P.T.O. CONTROL | ||
| 153 | A 0055454528 | PIN BUSHING HOUSING |
| P.T.O. CONTROL BRANCH-OFF | ||
| 155 | A 0029970881 | GROMMET |
| P.T.O. CONTROL BRANCH-OFF | ||
| 157 | A 0009904954 | NUT |
| P.T.O. CONTROL BRANCH-OFF | ||
| 157 | A 0009904954 | NUT |
| TO PLUG P.T.O. BRANCH-OFF | ||
| 157 | A 0009904954 | NUT |
| TO PLUG TRANSVERSE DIFFERENTIAL LOCK BRANCH-OFF | ||
| 159 | A 0009970925 | EXPANSION PLUG |
| TO PLUG P.T.O. BRANCH-OFF | ||
| 159 | A 0009970925 | EXPANSION PLUG |
| TO PLUG TRANSVERSE DIFFERENTIAL LOCK BRANCH-OFF | ||

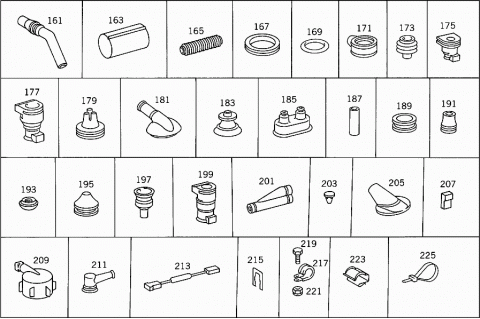

| 161 | A 3818210097 | HOSE |
| DOOR,HEATED OUTSIDE REARVIEW MIRROR, WINDOW REGULATOR MOTOR & ENTRANCE LAMP | ||
| 163 | A 6155460030 | INSULATING HOSE |
| FOR CABLE HARNESS DIA.: | ||
| 30-32 MM | ||
| 163 | A 3805460330 | INSULATING HOSE |
| FOR CABLE HARNESS DIA.: | ||
| 8-10 MM | ||
| 163 | A 0005464830 | INSULATING HOSE |
| FOR CABLE HARNESS DIA.: | ||
| 26 MM | ||
| 165 | A 0005465130 | INSULATING HOSE |
| Repalced by: A 0015460030 | ||
| 165 | A 0015460030 | INSULATING HOSE |
| FOR CABLE HARNESS DIA.: | ||
| 26 MM | ||
| 165 | A 0005461630 | INSULATING HOSE |
| FOR CABLE HARNESS DIA.: | ||
| 10 MM | ||
| 165 | A 0005467130 | INSULATING HOSE |
| Repalced by: A 0005461630 | ||
| 165 | A 0005461630 | INSULATING HOSE |
| FOR CABLE HARNESS DIA.: | ||
| 8,5 MM | ||
| 165 | A 0005469830 | INSULATING HOSE |
| FOR CABLE HARNESS DIA.: | ||
| 17 MM | ||
| 167 | A 0059971981 | GROMMET |
| ELECTRIC CABLE THRU WINDOW SILL | ||
| 167 | A 0079979281 | GROMMET |
| MAIN CABLE HARNESS THRU WINDOW SILL | ||
| 169 | A 0019875046 | SEALING CORD |
| HEATED OUTSIDE REARVIEW MIRROR | ||
| 171 | A 6209970481 | GROMMET |
| ELECTRIC CABLE TO BRACKET | ||
| 173 | A 3819972281 | GROMMET |
| OUTSIDE REARVIEW MIRROR CONNECTION | ||
| 175 | A 3805461937 | GROMMET |
| BATTERY CABLE CONNECTOR | ||
| 16 MM | ||
| 175 | A 3805462037 | GROMMET |
| ALTERNATOR | ||
| 19 MM | ||
| 175 | A 3805462037 | GROMMET |
| REAR CABLE CONNECTOR | ||
| 19 MM | ||
| 175 | A 3805462037 | GROMMET |
| CABLE CONNECTOR BEHIND CAB | ||
| 19 MM | ||
| 175 | A 3805462037 | GROMMET |
| SAE PLUG SOCKET | ||
| 19 MM | ||
| 177 | A 3875460437 | GROMMET |
| AT CABLE CONNECTOR | ||
| 179 | A 3839970181 | GROMMET |
| Repalced by: A 0089976381 | ||
| 179 | A 0089976381 | GROMMET |
| PANE WIPER | ||
| 181 | A 3149970181 | GROMMET |
| HEADLAMP | ||
| 183 | A 1119971581 | GROMMET |
| BLINKER LAMP BRANCH-OFF | ||
| 183 | A 1109971581 | GROMMET |
| ELECTRIC CABLE THRU ROOF PANELLING | ||
| 185 | A 0069979081 | GROMMET |
| DOOR,HEATED OUTSIDE REARVIEW MIRROR, WINDOW REGULATOR MOTOR & ENTRANCE LAMP | ||
| 187 | A 0009970181 | GROMMET |
| 1,75 MM | ||
| 187 | A 0009970381 | GROMMET |
| 3 MM | ||
| 187 | A 0009970481 | GROMMET |
| 4 MM | ||
| 187 | A 0009970581 | GROMMET |
| 5 MM | ||
| 187 | A 0009970681 | GROMMET |
| 7,5 MM | ||
| 187 | A 0009970781 | GROMMET |
| 187 | A 3149970481 | GROMMET |
| 187 | A 3879970481 | GROMMET |
| 38/30 MM | ||
| 187 | A 6209970081 | GROMMET |
| 189 | A 3609970481 | GROMMET |
| BATTERY CABLE THRU SIDE MEMBER | ||
| 189 | A 3549970081 | GROMMET |
| BATTERY CABLE THRU SIDE MEMBER | ||
| 32/27 MM | ||
| 189 | A 3549970081 | GROMMET |
| TAIL LAMP CABLE HARNESS | ||
| 32/27 MM | ||
| 189 | A 1169971581 | GROMMET |
| MAIN CABLE HARNESS THRU WINDOW SILL | ||
| 36X25 MM | ||
| 189 | A 0039973481 | GROMMET |
| ELECTRIC CABLE THRU TAIL LAMP BRACKET | ||
| 191 | A 6019972081 | GROMMET |
| AT TAIL LAMP SHELL | ||
| 193 | A 0029970981 | GROMMET |
| FOGLAMP | ||
| 195 | A 1119971481 | GROMMET |
| BRANCH-OFF TO SIDE MARKER LAMP | ||
| 197 | A 6209970881 | GROMMET |
| SIDE MARKER LAMP | ||
| 199 | A 3805460037 | GROMMET |
| SAE PLUG SOCKET | ||
| 201 | A 3805460737 | GROMMET |
| 203 | A 1109870639 | RUBBER BUFFER |
| Repalced by: A 1119871340 | ||
| 203 | A 1119871340 | RUBBER BUFFER |
| PANE WIPER | ||
| 205 | A 6085450045 | BOOT |
| STEERING COLUMN MOUNTED SWITCH | ||
| 205 | A 6205450245 | BOOT |
| STEERING COLUMN MOUNTED SWITCH | ||
| 207 | A 0005451745 | BOOT |
| PIN BUSHING | ||
| 207 | A 0005453545 | PIN BUSHING HOUSING |
| PIN BUSHING | ||
| 209 | A 3805460235 | BOOT |
| FUEL GAUGE SENDER UNIT BRANCH-OFF | ||
| 211 | A 6205460135 | BOOT |
| BATTERY CUT-OFF | ||
| 213 | A 3805400165 | RESISTOR |
| WINDSHIELD HEATING | ||
| 0,5 W | ||
| 213 | A 3575400065 | RESISTOR |
| 1,0 W | ||
| 213 | A 3015400265 | RESISTOR |
| GEAR CLUSTER INDICATOR RELAY,MAIN CABLE HARNESS | ||
| 1,0 W | ||
| 215 | A 3879940042 | LOCK |
| 217 | N 916016010201 | CLAMP |
| Repalced by: N 916016010211 | ||
| 217 | N 916016010211 | CLAMP |
| Repalced by: N 000000001045 | ||
| 217 | N 000000001045 | CLAMP |
| MAIN CABLE HARNESS BRANCH-OFF TOWARDS WINDOW REGULATOR TO CENTRAL FLAP | ||
| 217 | N 916016032201 | CLAMP |
| ELECTRIC CABLE TO BRACKET | ||
| 217 | N 916016032201 | CLAMP |
| INSULATING HOSE TO WINDOW SILL | ||
| 217 | N 916016032201 | CLAMP |
| INSULATING HOSE TO FRONT CROSS MEMBER | ||
| 219 | N 000933006127 | SCREW |
| CLAMP MOUNTING | ||
| 221 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 221 | N 913004006001 | NUT |
| CLAMP MOUNTING | ||
| 223 | A 0009881878 | CLIP |
| ROOF MOUNTED CABLE HARNESS | ||
| 14 MM | ||
| 223 | A 0009888978 | CLIP |
| ROOF MOUNTED CABLE HARNESS | ||
| 13 MM | ||
| Repalced by: A 0129884678 | ||
| 223 | A 0129884678 | CLIP |
| ROOF MOUNTED CABLE HARNESS | ||
| 13 MM | ||
| 225 | A 0019978490 | LOOM TIE |
| 376 MM | ||
| 225 | A 0019978390 | LOOM TIE |
| 280 MM | ||
| A 0019877625 | PLASTIC SECTION | |
| A 0039872672 | EDGE GUARD SECTION | |
| PROTECTION AGAINST SCORING | ||
| 227 | A 0025410801 | BATTERY |
| Repalced by: A 0035410901 | ||
| 227 | A 0035410901 | BATTERY |
| Repalced by: A 0035418801 | ||
| 227 | A 0035418801 | BATTERY |
| 12V/120 AH | ||
| 227 | A 0045419001 | BATTERY |
| 12 V / 115 AH | ||
| 227 | A 0045414801 | BATTERY |
| FILLED AND CHARGED | ||
| 12V/170AH | ||
| 227 | A 0035410501 | BATTERY |
| FILLED AND CHARGED | ||
| 12V/180AH | ||
| 227 | A 0045414901 | BATTERY |
| FILLED AND CHARGED | ||
| 12V/200AH | ||
| 227 | A 0045419301 | BATTERY |
| FILLED AND CHARGED | ||
| 12V/220AH | ||
| A 0005421190 | BLIND CAP | |
| TO A 004 541 48 01,49 01 | ||
| 229 | A 6205400023 | MOUNTING FRAME |
| BATTERY MOUNTING | ||
| 231 | A 6205410026 | BRACKET |
| Repalced by: A 6205410526 | ||
| 231 | A 6205410526 | BRACKET |
| BATTERY MOUNTING | ||
| 233 | A 6205410053 | SPACER TUBE |
| BATTERY MOUNTING | ||
| 235 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 235 | N 009021008213 | WASHER |
| BATTERY MOUNTING | ||
| 237 | N 000931008396 | SCREW |
| BATTERY MOUNTING | ||
| 239 | A 6205410416 | STOP |
| BATTERY MOUNTING | ||
| 241 | A 6205400018 | BATTERY BASE FRAME |
| BATTERY BASE FRAME | ||
| 243 | A 3855410236 | INSULATING PLATE |
| BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT | ||
| 245 | A 3859910040 | SPACER TUBE |
| BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT | ||
| 247 | N 000931010282 | SCREW |
| BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT | ||
| 249 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 249 | N 007349010007 | WASHER |
| BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT | ||
| 251 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 251 | N 910113010000 | NUT |
| BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT | ||
| 253 | A 6205410102 | BATTERY CASE |
| (BATTERY TRAY) | ||
| 255 | A 6255400116 | BATTERY SUPPORT |
| Repalced by: A 6255400416 | ||
| 255 | A 6255400416 | BATTERY SUPPORT |
| BATTERY/APPARATUS | ||
| 257 | A 6205410540 | BRACKET |
| LEFT | ||
| 257 | A 6205410440 | BRACKET |
| RIGHT | ||
| 259 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 259 | N 304017006020 | SCREW |
| BRACKET TO BATTERY/APPARATUS SUPPORT | ||
| 261 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 261 | N 913004006001 | NUT |
| BRACKET TO BATTERY/APPARATUS SUPPORT | ||
| 263 | A 0009880385 | LOCKING HANDLE |
| PROTECTIVE PLATE TO APPARATUS SUPPORT | ||
| Repalced by: A 9609880142 | ||
| 263 | A 9609880142 | FASTENING CLAMP |
| PROTECTIVE PLATE TO APPARATUS SUPPORT | ||
| 265 | N 910001004105 | RIVET |
| LOCKING LEVER TO BATTERY SUPPORT | ||
| 267 | N 000961014054 | SCREW |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| M 14X45 | ||
| 267 | N 000961014108 | SCREW |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| M 14X55 | ||
| 269 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 269 | N 910113014001 | NUT |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 271 | A 6205410303 | COVER |
| BATTERY/APPARATUS SUPPORT | ||
| 273 | N 922002070000 | ELECTRIC CABLE |
| Repalced by: A 6735460013 | ||
| 273 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY TO STARTING MOTOR | ||
| 275 | N 072332013100 | SOLDERING TERMINAL |
| POS. POLE | ||
| 277 | N 046234012006 | CABLE SHOE |
| STARTING MOTOR | ||
| 279 | N 922002070000 | ELECTRIC CABLE |
| Repalced by: A 6735460013 | ||
| 279 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY I TO BATTERY II | ||
| 281 | N 072332013100 | SOLDERING TERMINAL |
| POS. POLE | ||
| 283 | N 072332013200 | SOLDERING TERMINAL |
| NEG.POLE | ||
| 285 | N 922002070000 | ELECTRIC CABLE |
| Repalced by: A 6735460013 | ||
| 285 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY TO GROUND AT SIDE MEMBER | ||
| 287 | N 072332013200 | SOLDERING TERMINAL |
| NEG.POLE | ||
| 289 | N 046234010007 | CABLE SHOE |
| GROUND CABLE TO SIDE MEMBER | ||
| 291 | N 000933010094 | SCREW |
| GROUND CABLE TO SIDE MEMBER | ||
| 293 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 293 | N 000125010532 | WASHER |
| GROUND CABLE TO SIDE MEMBER | ||
| 295 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 295 | N 910113010000 | NUT |
| GROUND CABLE TO SIDE MEMBER | ||
| 297 | A 3145400041 | GROUND STRAP |
| Repalced by: A 3525400041 | ||
| 297 | A 3525400041 | GROUND STRAP |
| FROM STARTING MOTOR TO SIDE MEMBER | ||
| 299 | N 000933010145 | SCREW |
| GROUND STRAP TO SIDE MEMBER | ||
| 301 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 301 | N 000125010532 | WASHER |
| GROUND STRAP TO SIDE MEMBER | ||
| 303 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 303 | N 910113010000 | NUT |
| GROUND STRAP TO SIDE MEMBER | ||
| 305 | A 6205402339 | NEG. CABLE |
| FROM FRAME CROSS MEMBER TO CAB | ||
| 307 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 307 | N 304017008034 | SCREW |
| GROUND CABLE TO FRAME CROSS MEMBER | ||
| 309 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 309 | N 304017008016 | SCREW |
| GROUND CABLE TO CAB | ||
| 311 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 311 | N 000125008443 | WASHER |
| GROUND CABLE | ||
| 313 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 313 | N 913004008001 | NUT |
| GROUND CABLE | ||
| 315 | N 000934012021 | NUT |
| BATTERY CABLE TO STARTING MOTOR | ||
| 317 | N 912004012100 | LOCK WASHER |
| BATTERY CABLE TO STARTING MOTOR | ||
| 319 | N 000934010014 | NUT |
| GROUND CABLE CONNECTION | ||
| 321 | N 912004010102 | LOCK WASHER |
| GROUND CABLE CONNECTION | ||
| 323 | N 912004006102 | LOCK WASHER |
| STARTING MOTOR TERMINAL 50 | ||
| 325 | N 000934006007 | NUT |
| STARTING MOTOR TERMINAL 50 | ||

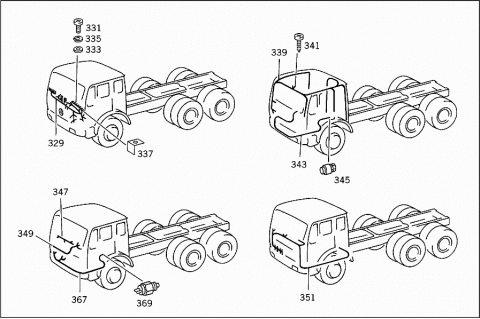

| 329 | A 6205402305 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 329 | A 6205403405 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 329 | A 6205403805 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 329 | A 6205402405 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 329 | A 6205403505 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 329 | A 6205403905 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 331 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 331 | N 000000001146 | SCREW |
| GROUND CONNECTION TO WINDOW SILL | ||
| M 6X16 | ||
| 333 | N 000125006421 | WASHER |
| GROUND CONNECTION TO WINDOW SILL | ||
| Repalced by: N 000125006449 | ||
| 333 | N 000125006449 | WASHER |
| GROUND CONNECTION TO WINDOW SILL | ||
| 335 | N 912004006102 | LOCK WASHER |
| GROUND CONNECTION TO WINDOW SILL | ||
| 337 | A 3604280243 | ANGLE |
| CABLE HARNESS | ||
| 339 | A 6205400236 | ELECTRIC CABLE |
| CAB ROOF | ||
| 339 | A 6205403127 | ELECTRIC CABLE |
| CAB ROOF | ||
| 339 | A 6205400336 | ELECTRIC CABLE |
| CAB ROOF | ||
| 339 | A 6205403227 | ELECTRIC CABLE |
| CAB ROOF | ||
| 341 | N 007981005211 | SHEET METAL SCREW |
| GROUND CABLE CONNECTION | ||
| 343 | A 6155401336 | ELECTRIC CABLE |
| FROM TACHOGRAPH TO PULSE TRANSMITTER | ||
| 345 | A 0055429417 | SENDER UNIT |
| ELECTRONIC TACHOGRAPH | ||
| 345 | A 0065424617 | SENDER UNIT |
| ELECTRONIC TACHOGRAPH | ||
| 347 | A 6205404137 | ELECTRIC CABLE |
| FROM CHASSIS/CAB TO ENGINE-SPEED SWITCH & TO FUSE BOX | ||
| 349 | A 6245407136 | ELECTRIC CABLE |
| FROM PLUG CONNECTION TO NNECT. TO LONGITUD.DIFFERENTIAL LOCK TELL-TALE LAMP | ||
| 351 | A 6255401036 | ELECTRIC CABLE |
| FROM CHASSIS/CAB PLUG CONNECTION TO TELL-TALE LAMP | ||

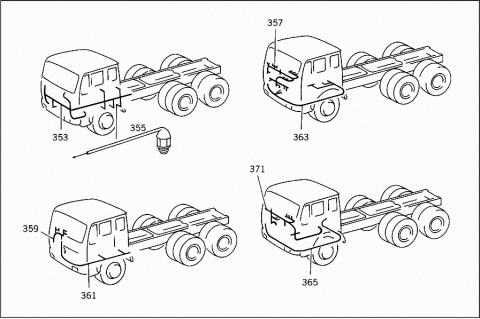

| 353 | A 6255404036 | ELECTRIC CABLE |
| Repalced by: A 6255404436 | ||
| 353 | A 6255404436 | ELECTRIC CABLE |
| FROM PLUG CONNECTION AT CAB TO TRANSMISSION | ||
| 353 | A 6255405136 | ELECTRIC CABLE |
| FROM CAB PLUG CONNECTION TO SOLENOID VALVE | ||
| A 6255405536 | ELECTRIC CABLE | |
| FROM PLUG CONNECTION AT CAB TO NEUTRAL SHIFT POSITION | ||
| 355 | A 0015452911 | SWITCH |
| Repalced by: A 0015457511 | ||
| 355 | A 0015457511 | SWITCH |
| (NEUTRAL-START SWITCH) | ||
| 355 | A 0015457511 | SWITCH |
| NEUTRAL POSITION CYLINDER TO TRANSMISSION | ||
| 357 | A 6255403436 | ELECTRIC CABLE |
| FROM CHASSIS/CAB PLUG-CONNECTION TO INSTRUMENT PANEL | ||
| 357 | A 6255405236 | ELECTRIC CABLE |
| CHASSIS/CAB,RELAY,FUSE,RETARDER STEP SWITCH,RETARDER TELL-TALE LAMP | ||
| 359 | A 6255401436 | ELECTRIC CABLE |
| FROM CHASSIS/CAB PLUG-CONNECTION TO RELAY & REAR END COOLING SYSTEM DIODE | ||
| 361 | A 6255403636 | ELECTRIC CABLE |
| FROM CHASSIS/CAB PLUG-CONNECTION TO REAR VENTILATOR MAGNETIC COUPLING | ||
| 363 | A 6255402427 | ELECTRIC CABLE |
| FROM CAB PLUG CONNECTION TO IDLING SWITCH | ||
| 365 | A 6245406736 | ELECTRIC CABLE |
| FROM CAB PLUG CONNECTION TO CONVERTER LOCK-UP COUPLING | ||
| 367 | A 6205401227 | ELECTRIC CABLE |
| FROM CAB PLUG CONNECTION TO IDLING SWITCH | ||
| 369 | A 0015459414 | SWITCH |
| (ZERO DELIVERY SWITCH);AT ENGINE | ||
| 371 | A 6245409536 | ELECTRIC CABLE |
| FROM CAB TO CONVERTER LOCK-UP COUPLING TELL-TALE LAMP | ||
| 371 | A 6245404036 | ELECTRIC CABLE |
| FROM CAB TO CONVERTER LOCK-UP COUPLING TELL-TALE LAMP | ||
| 373 | A 6255403136 | ELECTRIC CABLE |
| FROM CHASSIS/CAB TO OIL TEMPERATURE SENDER UNIT & TO CLUTCH BOOSTER SWITCH | ||
| 375 | A 6255402436 | ELECTRIC CABLE |
| FROM CAB PLUG CONNECTION TO TEMPERATURE SWITCH | ||
| 377 | A 6205400436 | ELECTRIC CABLE |
| Repalced by: A 6565401132 | ||
| 377 | A 6565401132 | ELECTRIC CABLE |
| DOOR, HEATED AND ADJUSTABLE EXTERIOR MIRRORS, WINDOW OPENERS, ACCESS LIGHT. | ||
| A 6565401732 | ELECTRIC CABLE | |
| FROM CAB MAIN CABLE HARNESS TO CO-DRIVER'S DOOR PLUG CONNECTIONS | ||
| 379 | A 6205400536 | ELECTRIC CABLE |
| Repalced by: A 6565400432 | ||
| 379 | A 6565400432 | ELECTRIC CABLE |
| FROM CAB MAIN CABLE HARNESS TO DRIVER'S DOOR PLUG CONNECTIONS | ||
| A 6565401832 | ELECTRIC CABLE | |
| FROM CAB MAIN CABLE HARNESS TO DRIVER'S DOOR PLUG CONNECTIONS | ||
| 381 | A 0018207015 | ELECTRIC CABLE |
| FROM DOOR PLUG CONNECTION TO OUTSIDE REARVIEW MIRROR,DRIVER'S SIDE | ||
| 381 | A 6155405837 | ELECTRIC CABLE |
| Repalced by: A 6745402536 | ||
| 383 | A 6155406037 | ELECTRIC CABLE |
| Repalced by: A 6745402536 | ||
| 383 | A 6745402536 | ELECTRIC CABLE |
| FROM DOOR PLUG CONNECTION TO EXT.REARVIEW MIRROR,OR WIDE-ANGLE EXT. MIRROR | ||
| 383 | A 6205406036 | ELECTRIC CABLE |
| FROM DOOR PLUG CONNECTION TO OUTSIDE REARVIEW MIRROR,CO-DRIVER'S SIDE | ||
| 383 | A 6205406136 | ELECTRIC CABLE |
| FROM DOOR PLUG CONNECTION TO OUTSIDE REARVIEW MIRROR,CO-DRIVER'S SIDE | ||
| 383 | A 6155406137 | ELECTRIC CABLE |
| FROM DOOR PLUG CONNECTION TO OUTSIDE REARVIEW MIRROR,CO-DRIVER'S SIDE | ||
| 385 | A 0019875046 | SEALING CORD |
| OUTSIDE REARVIEW MIRROR CONNECTION | ||
| 387 | A 6205403937 | ELECTRIC CABLE |
| FROM CONTROL UNIT TO WATER VALVE & TO FUSE BOX | ||
| 387 | A 6205402627 | ELECTRIC CABLE |
| FROM CONTROL UNIT TO WATER VALVE & TO FUSE BOX | ||
| A 6255402336 | ELECTRIC CABLE | |
| STEERING FAILURE TELL-TALE LAMP | ||

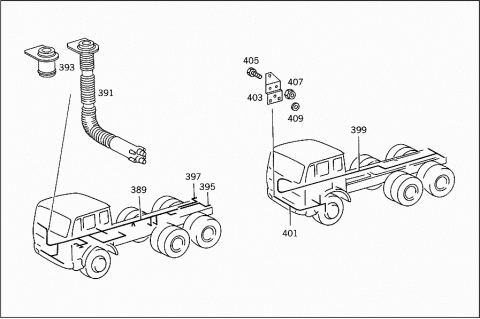

| 389 | A 6255402408 | CABLE HARNESS |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 389 | A 6255400008 | CABLE HARNESS |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 389 | A 6255402608 | CABLE HARNESS |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 391 | A 6205460030 | INSULATING HOSE |
| 391 | A 6205460230 | INSULATING HOSE |
| 393 | A 0005450155 | GUIDE |
| CABLE CONDUIT | ||
| 395 | A 6255400007 | CABLE HARNESS |
| Repalced by: A 6175400207 | ||
| 395 | A 6175400207 | CABLE HARNESS |
| Repalced by: A 6175401507 | ||
| 395 | A 6175401507 | CABLE HARNESS |
| LEFT TAIL LAMP | ||
| 2460 MM | ||
| 397 | A 6255400107 | CABLE HARNESS |
| Repalced by: A 6175401307 | ||
| 397 | A 6175401307 | CABLE HARNESS |
| Repalced by: A 6215402207 | ||
| 397 | A 6215402207 | CABLE HARNESS |
| RIGHT TAIL LAMP | ||
| 1860 MM | ||
| 399 | A 3935402637 | ELECTRIC CABLE |
| Repalced by: A 6205407727 | ||
| 399 | A 6205407727 | ELECTRIC CABLE |
| FROM CHASSIS/CAB PLUG CONNECTION TO BACK-UP LIGHT | ||
| A 3809970062 | SCREW COLLAR | |
| TRANSMISSION-NEUTRAL-POSITION-SENDERUNIT/BACK-UP-LIGHT BRANCH-OFFS | ||
| 401 | A 6255400027 | ELECTRIC CABLE |
| FOR FRAME MOUNTED CABLE HARNESS LEADING TO ENGINE | ||
| 403 | A 3875450540 | BRACKET |
| ENGINE CABLE HARNESS PLUG-CONNECTION | ||
| 405 | N 000933006207 | SCREW |
| ENGINE CABLE HARNESS PLUG-CONNECTION | ||
| 407 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 407 | N 913004006001 | NUT |
| ENGINE CABLE HARNESS PLUG-CONNECTION | ||
| 409 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 409 | N 009021008213 | WASHER |
| ELECTRIC CABLE TO CROSS MEMBER | ||
| 411 | A 3524281740 | BRACKET |
| Repalced by: A 3184280240 | ||
| 411 | A 3184280240 | BRACKET |
| ELECTRIC CABLE TO CROSS MEMBER | ||
| 413 | A 6255460743 | BRACKET |
| Repalced by: A 0805403673 | ||
| 413 | A 0805403673 | BRACKET |
| ELECTRIC CABLE TO CROSS MEMBER | ||
| 415 | A 6255460143 | BRACKET |
| ELECTRIC CABLE TO CROSS MEMBER | ||
| 415 | A 6205460143 | BRACKET |
| ELECTRIC CABLE TO CROSS MEMBER | ||
| 415 | A 6255460343 | BRACKET |
| ELECTRIC CABLE TO CROSS MEMBER | ||
| 415 | A 6205462343 | BRACKET |
| ELECTRIC CABLE TO CROSS MEMBER | ||
| 417 | A 3604292940 | BRACKET |
| ELECTRIC CABLE TO CROSS MEMBER | ||
| A 6255460084 | SHIM | |
| ELECTRIC CABLE TO CROSS MEMBER | ||
| 419 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 419 | N 304017008021 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| M 8X20 | ||
| 421 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 421 | N 304017008034 | SCREW |
| BRACKET TO FRONT CROSS MEMBER | ||
| M 8X25 | ||
| 421 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 421 | N 304017008027 | SCREW |
| BRACKET TO FRONT CROSS MEMBER | ||
| M 8X30 | ||
| 421 | N 000933008160 | SCREW |
| Repalced by: N 304017008040 | ||
| 421 | N 304017008040 | SCREW |
| Repalced by: N 910105008010 | ||
| 421 | N 910105008010 | SCREW |
| Repalced by: N 910143008005 | ||
| 421 | N 910143008005 | SCREW |
| BRACKET TO FRONT CROSS MEMBER | ||
| M 8X40 | ||
| 423 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 423 | N 000125008443 | WASHER |
| BRACKET TO FRONT CROSS MEMBER | ||
| 425 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 425 | N 913004008001 | NUT |
| BRACKET TO FRONT CROSS MEMBER | ||
| 427 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 427 | N 304032005005 | NUT |
| ALTERNATOR CONNECTION | ||
| 429 | N 000137005105 | SPRING WASHER |
| Repalced by: N 000137005203 | ||
| 429 | N 000137005203 | SPRING WASHER |
| ALTERNATOR BRANCH-OFF TO ALTERNATOR | ||
| 431 | N 304032008006 | NUT |
| ALTERNATOR BRANCH-OFF TO ALTERNATOR | ||
| 431 | N 000934006007 | NUT |
| ALTERNATOR BRANCH-OFF TO ALTERNATOR | ||
| 433 | N 000137008107 | SPRING WASHER |
| Repalced by: N 000137008204 | ||
| 433 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 433 | N 000137008212 | SPRING WASHER |
| ALTERNATOR BRANCH-OFF TO ALTERNATOR | ||
| 433 | N 000137006108 | SPRING WASHER |
| ALTERNATOR BRANCH-OFF TO ALTERNATOR | ||
| 435 | A 6205463043 | BRACKET |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 437 | A 6205461943 | BRACKET |
| Repalced by: A 6205463543 | ||
| 437 | A 6205463543 | BRACKET |
| ELECTRIC CABLE TO PIPE BEND | ||
| 439 | A 0005462343 | BRACKET |
| Repalced by: A 0005462243 | ||
| 439 | A 0005462243 | BRACKET |
| ELECTRIC CABLE TO ALTERNATOR AND TO PIPE BEND | ||
| 441 | N 912004005103 | LOCK WASHER |
| ELECTRIC CABLE TO ALTERNATOR | ||
| 443 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 443 | N 304032005005 | NUT |
| ELECTRIC CABLE TO ALTERNATOR | ||
| 445 | N 007985005504 | SCREW |
| ELECTRIC CABLE TO CROSS MEMBER | ||
| 447 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 447 | N 304017008027 | SCREW |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| M 8X30 | ||
| 449 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 449 | N 304017008021 | SCREW |
| ELECTRIC CABLE TO CROSS MEMBER | ||
| M 8X22 | ||
| 451 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 451 | N 000125008443 | WASHER |
| ELECTRIC CABLE TO CROSS MEMBER | ||
| 453 | N 913004005001 | NUT |
| ELECTRIC CABLE TO CROSS MEMBER | ||
| 455 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 455 | N 913004008001 | NUT |
| ELECTRIC CABLE TO CROSS MEMBER | ||
| 457 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 457 | N 304017008027 | SCREW |
| GROUND TO FRAME | ||
| 459 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 459 | N 913004008001 | NUT |
| GROUND TO FRAME | ||
| 461 | A 6205460343 | BRACKET |
| FRAME MTD. CABLE HARNESS & APPARATUSSUPPORT-TO-STARTG.-MOTOR BATTERY-CABLE | ||
| 463 | A 3524281740 | BRACKET |
| Repalced by: A 3184280240 | ||
| 463 | A 3184280240 | BRACKET |
| FRAME MOUNTED CABLE HARNESS AND BATTERY CABLE TO SIDE MEMBER | ||
| 465 | A 3854290540 | BRACKET |
| BATTERY CABLE TO SIDE MEMBER | ||
| 467 | A 6255461043 | BRACKET |
| BATTERY CABLE TO SIDE MEMBER | ||
| 469 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 469 | N 304017008034 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 8X25 | ||
| 471 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 471 | N 304017008018 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 8X35 | ||
| 473 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 473 | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 475 | A 3835460044 | CLAMPING PIECE |
| FRAME MOUNTED CABLE HARNESS AND BATTERY CABLE | ||
| 477 | A 6735460075 | CLAMP |
| BATTERY CABLE MOUNTING | ||
| 479 | N 000933006147 | SCREW |
| CLAMPING PIECE TO BRACKET | ||
| M 6X45 | ||
| 479 | N 000933006147 | SCREW |
| CLAMP TO BRACKET | ||
| M 6X45 | ||
| 479 | N 304017006026 | SCREW |
| Repalced by: N 304017006026 | ||
| 479 | N 304017006026 | SCREW |
| CLAMPING PIECE TO BRACKET | ||
| M 6X40 | ||
| 481 | N 000125006421 | WASHER |
| CLAMPING PIECE TO BRACKET | ||
| Repalced by: N 000125006449 | ||
| 481 | N 000125006449 | WASHER |
| CLAMPING PIECE TO BRACKET | ||
| 481 | N 000125006449 | WASHER |
| CLAMP TO BRACKET | ||
| 483 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 483 | N 913004006001 | NUT |
| CLAMPING PIECE TO BRACKET | ||
| 483 | N 913004006001 | NUT |
| CLAMP TO BRACKET | ||
| A 3875011420 | BRACKET | |
| ELECTRIC CABLE TO THERMOSTAT HOUSING | ||
| 485 | A 6255460043 | BRACKET |
| FRAME MOUNTED CABLE HARNESS & BATTERY CABLE TO LEFT REAR ENGINE MOUNTING | ||
| 487 | A 6255400173 | BRACKET |
| FRAME MOUNTED CABLE HARNESS AND BATTERY CABLE TO BELL HOUSING | ||
| 489 | A 3635460044 | CLAMPING PIECE |
| FRAME MOUNTED CABLE HARNESS AND BATTERY CABLE TO BELL HOUSING | ||
| 491 | N 304017006026 | SCREW |
| Repalced by: N 304017006026 | ||
| 491 | N 304017006026 | SCREW |
| CLAMPING PIECE TO BRACKET | ||
| 493 | N 000125006421 | WASHER |
| CLAMPING PIECE TO BRACKET | ||
| Repalced by: N 000125006449 | ||
| 493 | N 000125006449 | WASHER |
| CLAMPING PIECE TO BRACKET | ||
| 495 | N 912004012100 | LOCK WASHER |
| FRAME MOUNTED CABLE HARNESS AND BATTERY CABLE TO BELL HOUSING | ||
| 497 | A 6204297040 | BRACKET |
| FRAME MOUNTED CABLE HARNESS TO RIGHT SIDE MEMBER | ||
| 499 | A 0019909404 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 501 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 501 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||

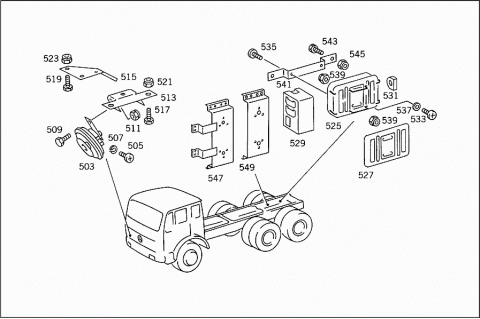

| 503 | A 0025426720 | HORN |
| Repalced by: A 0045424420 | ||
| 503 | A 0045424420 | HORN |
| LOW NOTE | ||
| HELLA | ||
| 503 | A 0025428320 | HORN |
| Repalced by: A 0045422920 | ||
| 503 | A 0045422920 | HORN |
| Repalced by: A 0045424420 | ||
| 503 | A 0045424420 | HORN |
| LOW NOTE | ||
| BOSCH | ||
| 503 | A 0035425320 | HORN |
| Repalced by: A 0025426720 | ||
| 503 | A 0025428420 | HORN |
| Repalced by: A 0045423020 | ||
| 503 | A 0045423020 | HORN |
| HIGH NOTE | ||
| BOSCH | ||
| 503 | A 0025426820 | HORN |
| Repalced by: A 0045424520 | ||
| 503 | A 0045424520 | HORN |
| HIGH NOTE | ||
| HELLA | ||
| 503 | A 0035425420 | HORN |
| Repalced by: A 0025426820 | ||
| 505 | N 007985004123 | SCREW |
| ELECTRIC CABLE TO HORN | ||
| 507 | N 912004004102 | LOCK WASHER |
| ELECTRIC CABLE TO HORN | ||
| 509 | N 000933010128 | SCREW |
| HORN TO BRACKET | ||
| 511 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 511 | N 910113010000 | NUT |
| HORN TO BRACKET | ||
| 513 | A 3875421240 | BRACKET |
| Repalced by: A 6205420840 | ||
| 513 | A 6205420840 | BRACKET |
| HORN | ||
| 513 | A 6205420840 | BRACKET |
| HORN | ||
| 515 | A 6205421340 | BRACKET |
| HORN | ||
| 515 | A 6205421340 | BRACKET |
| HORN | ||
| 515 | A 6555451147 | BRACKET |
| HORN | ||
| 515 | A 6555451147 | BRACKET |
| HORN | ||
| 517 | N 308676016022 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 517 | N 308676016022 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 519 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 519 | N 308676012012 | HEXAGON HEAD BOLT |
| BRACKET TO BUMBER STRUT | ||
| 519 | N 308676012012 | HEXAGON HEAD BOLT |
| BRACKET TO BUMBER STRUT | ||
| 519 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 519 | N 304017008021 | SCREW |
| BRACKET TO BUMBER STRUT | ||
| 519 | N 304017008021 | SCREW |
| BRACKET TO BUMBER STRUT | ||
| 521 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 521 | N 910113016002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 521 | N 910113016002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 523 | N 910113012002 | NUT |
| BRACKET TO BUMBER STRUT | ||
| 523 | N 910113012002 | NUT |
| BRACKET TO BUMBER STRUT | ||
| 523 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 523 | N 913004008001 | NUT |
| BRACKET TO BUMBER STRUT | ||
| 523 | N 913004008001 | NUT |
| BRACKET TO BUMBER STRUT | ||
| 525 | A 0015465441 | CABLE CONNECTOR |
| REAR | ||
| 527 | A 0005460581 | COVERING |
| 529 | A 0095459728 | PLUG |
| REAR CABLE CONNECTOR | ||
| 531 | A 0009872844 | EXPANSION PLUG |
| TO PLUG THE BORES | ||
| 533 | N 007985005165 | SCREW |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| M 5X40 | ||
| 535 | N 007985005149 | SCREW |
| CABLE CONNECTOR TO BRACKET | ||
| 537 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 537 | N 009021005205 | WASHER |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 539 | N 913004005001 | NUT |
| CABLE CONNECTOR TO BRACKET | ||
| 539 | N 913004005001 | NUT |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 541 | A 3465465043 | BRACKET |
| REAR CABLE CONNECTOR | ||
| 543 | N 000933008160 | SCREW |
| Repalced by: N 304017008040 | ||
| 543 | N 304017008040 | SCREW |
| Repalced by: N 910105008010 | ||
| 543 | N 910105008010 | SCREW |
| Repalced by: N 910143008005 | ||
| 543 | N 910143008005 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 545 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 545 | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 547 | A 3805401873 | BRACKET |
| ELECTRIC CABLE TENSILE STRESS RELIEF | ||
| 549 | A 3805464643 | BRACKET |
| ELECTRIC CABLE TENSILE STRESS RELIEF | ||

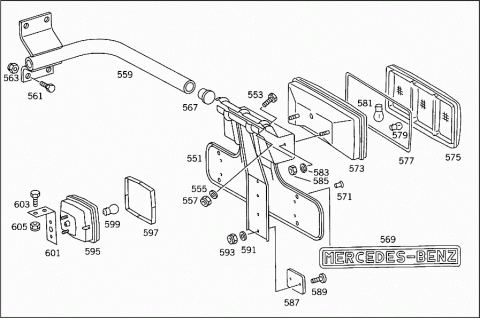

| 551 | A 6205202341 | BRACKET |
| TAIL LAMP | ||
| 553 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 553 | N 304017008043 | SCREW |
| BRACKET TO TAIL LAMP BRACKET | ||
| 555 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 555 | N 000125008443 | WASHER |
| BRACKET TO TAIL LAMP BRACKET | ||
| 557 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 557 | N 913004008001 | NUT |
| BRACKET TO TAIL LAMP BRACKET | ||
| 559 | A 6255200641 | BRACKET |
| Repalced by: A 6255201841 | ||
| 559 | A 6255201841 | BRACKET |
| LEFT | ||
| 559 | A 6255200741 | BRACKET |
| Repalced by: A 6255201941 | ||
| 559 | A 6255201941 | BRACKET |
| RIGHT | ||
| 561 | N 000961014064 | SCREW |
| TAIL LAMP BRACKET TO FRAME | ||
| 563 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 563 | N 910113014001 | NUT |
| TAIL LAMP BRACKET TO FRAME | ||
| 567 | A 0009970620 | EXPANSION PLUG |
| 569 | A 3605840025 | NAME PLATE |
| "MERCEDES BENZ" | ||
| 571 | N 910006004018 | RIVET |
| NAME PLATE TO BRACKET | ||
| 573 | A 0015446903 | TAIL LAMP |
| Repalced by: A 0025440303 | ||
| 573 | A 0025440303 | TAIL LAMP |
| LEFT | ||
| HELLA | ||
| 573 | A 0015448003 | TAIL LAMP |
| Repalced by: A 0025440303 | ||
| 573 | A 0015446803 | TAIL LAMP |
| Repalced by: A 0025440403 | ||
| 573 | A 0025440403 | TAIL LAMP |
| RIGHT | ||
| HELLA | ||
| 573 | A 0015448103 | TAIL LAMP |
| Repalced by: A 0025440403 | ||
| 573 | A 0015447103 | TAIL LAMP |
| RIGHT | ||
| HELLA | ||
| 573 | A 0015448203 | TAIL LAMP |
| RIGHT | ||
| R & S | ||
| 573 | A 0015447003 | TAIL LAMP |
| Repalced by: A 0025440203 | ||
| 573 | A 0025440203 | TAIL LAMP |
| LEFT | ||
| HELLA | ||
| 573 | A 0015448303 | TAIL LAMP |
| LEFT | ||
| R & S | ||
| 575 | A 0015448390 | LENS |
| HELLA | ||
| 575 | A 0015448490 | LENS |
| R & S | ||
| 577 | A 0005448580 | GASKET |
| 577 | A 0005448880 | GASKET |
| 579 | N 072601024702 | BULB |
| Repalced by: N 072601024704 | ||
| 579 | N 072601024704 | BULB |
| 24 V/10 W | ||
| 581 | N 072601024190 | BULB |
| Repalced by: N 072601024192 | ||
| 581 | N 072601024192 | BULB |
| 24 V/21 W | ||
| 583 | N 912004008102 | LOCK WASHER |
| TAIL LAMP TO BRACKET | ||
| 585 | N 304032008006 | NUT |
| TAIL LAMP TO BRACKET | ||
| 587 | A 0005443305 | REFLECTOR |
| Repalced by: A 0005443205 | ||
| 587 | A 0005443205 | REFLECTOR |
| 589 | N 007985005149 | SCREW |
| REFLECTOR TO BRACKET | ||
| 591 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 591 | N 000433005304 | WASHER |
| REFLECTOR TO BRACKET | ||
| 593 | N 913004005001 | NUT |
| REFLECTOR TO BRACKET | ||
| 595 | A 0018201856 | EXTERIOR LAMP |
| Repalced by: A 0005442407 | ||
| 595 | A 0005442407 | BACK-UP LAMP |
| BACK-UP LIGHT | ||
| 597 | A 0015449290 | LENS |
| WITHE | ||
| 599 | N 072601024190 | BULB |
| Repalced by: N 072601024192 | ||
| 599 | N 072601024192 | BULB |
| 24V/21W | ||
| 601 | A 6255440438 | BRACKET |
| BACK-UP LIGHT | ||
| 603 | N 000933010105 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 605 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 605 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 607 | A 0015454614 | SWITCH |
| Repalced by: A 0035452314 | ||
| 607 | A 0035452314 | SWITCH |
| STARTING AT ENGINE | ||
| 609 | A 0005452945 | BOOT |
| SWITCH | ||
| TO 001 545 46 14 | ||
| 611 | A 0005456909 | SWITCH |
| STOP LIGHT | ||
| 613 | A 0009909251 | NUT |
| STOP LIGHT SWITCH TO PEDAL BEARING BRACKET | ||
| 614 | A 0003000241 | SWITCH |
| KICK-DOWN | ||
| 615 | A 1159970640 | SEAL RING |
| KICK-DOWN SWITCH | ||
| 616 | A 3873000040 | BRACKET |
| KICK-DOWN SWITCH | ||
| 617 | A 6173000340 | BRACKET |
| KICK-DOWN SWITCH | ||
| 618 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 618 | N 304017008016 | SCREW |
| BRACKET TO FLOOR PLATE | ||
| M 8X16 | ||
| 618 | N 000933008301 | SCREW |
| Repalced by: A 0079900801 | ||
| 618 | A 0079900801 | SCREW |
| BRACKET TO FLOOR PLATE | ||
| M 8X14 | ||
| 618 | N 000933008145 | SCREW |
| BRACKET TO FLOOR PLATE | ||
| M 8X18 | ||
| 619 | N 912004008102 | LOCK WASHER |
| BRACKET TO FLOOR PLATE | ||
| 619 | N 912004008102 | LOCK WASHER |
| BRACKET TO FLOOR PLATE | ||
| 620 | N 913002008004 | NUT |
| BRACKET TO FLOOR PLATE | ||
| 621 | A 0005456009 | SWITCH |
| CONVERTER LOCK-UP COUPLING | ||
| 0.1-0.5 BAR | ||
| 622 | A 0005455414 | SWITCH |
| PARKING BRAKE CONTROL | ||
| 5.5 BAR | ||
| 623 | A 0015456814 | SWITCH |
| BRAKE PRESSURE CONTROL,CIRCUIT III | ||
| 5.5 BAR | ||
| 624 | N 007603012405 | SEAL RING |
| BRAKE PRESSURE CONTROL,CIRCUIT III | ||
| 625 | A 0075420117 | SENDER UNIT |
| Repalced by: A 0075421517 | ||
| 625 | A 0075421517 | SENDER UNIT |
| Repalced by: A 0145421317 | ||
| 625 | A 0145421317 | SENDER UNIT |
| AUTOMATIC TRANSMISSION OIL TEMPERATURE | ||
| Repalced by: A 0155427317 | ||
| 625 | A 0155427317 | SENDER UNIT |
| AUTOMATIC TRANSMISSION OIL TEMPERATURE | ||
| 626 | N 007603014106 | SEAL RING |
| 627 | A 0005455609 | SWITCH |
| LOCK-UP COUPLING | ||
| 627 | A 0005455609 | SWITCH |
| BACK-UP LIGHT | ||
| 629 | A 0039976072 | FITTING |
| LOCK-UP SWITCH | ||
| 629 | A 0039976072 | FITTING |
| BACK-UP LAMP SWITCH | ||
| 631 | A 0005452080 | GASKET |
| P.T.O.-SOLENOID-VALVE/LOCK-UP PLUGCONNECTION | ||

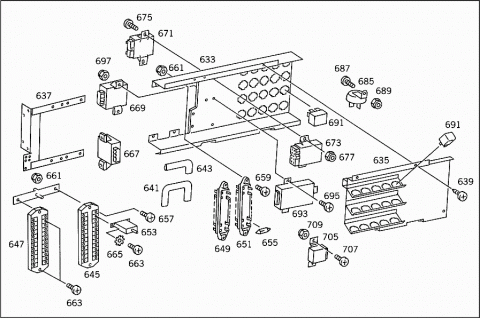

| 633 | A 6205420239 | PLATE |
| Repalced by: A 3985420039 | ||
| 633 | A 3985420039 | PLATE |
| APPARATUS | ||
| 633 | A 6205420339 | PLATE |
| APPARATUS | ||
| 635 | A 6205400042 | PLATE |
| APPARATUS | ||
| 635 | A 6205400142 | PLATE |
| APPARATUS | ||
| 637 | A 6205401373 | BRACKET |
| APPARATUS | ||
| 637 | A 6205401473 | BRACKET |
| APPARATUS | ||
| 639 | N 007981004244 | SHEET METAL SCREW |
| Repalced by: N 000000000453 | ||
| 639 | N 000000000453 | TAPPING SCREW |
| APPARATUS PLATE TO WINDOW SILL | ||
| 641 | A 6209870072 | EDGE GUARD SECTION |
| APPARATUS PLATE | ||
| 643 | A 6209870172 | EDGE GUARD SECTION |
| APPARATUS PLATE | ||
| 645 | A 0005452860 | JUNCTION BOX |
| FUSE | ||
| 647 | A 0005452960 | JUNCTION BOX |
| FUSE | ||
| A 6205450000 | MARKING STRIP | |
| FUSE BOX | ||
| 649 | A 0005458501 | FUSE BOX |
| 12-POLE; TERMINALS 1-2,3-4,5-11 SHUNTED | ||
| 651 | A 0005458401 | FUSE BOX |
| 12-POLE;TERMINALS 1-4;5-10;11-12 SHUNTED | ||
| 653 | A 0015451034 | FUSE |
| (OVERLOAD PROTECTOR) | ||
| 8 A | ||
| 653 | A 0015453134 | FUSE |
| (OVERLOAD PROTECTOR) | ||
| 16 A | ||
| 655 | A 0005458134 | FUSE |
| Repalced by: N 072581005100 | ||
| 655 | N 072581005100 | FUSE |
| 5 A | ||
| 655 | A 0005458334 | FUSE |
| 16 A | ||
| 657 | N 007985006157 | SCREW |
| Repalced by: N 000000001145 | ||
| 657 | N 000000001145 | SCREW |
| JUNCTION BOX TO SWITCHBOARD | ||
| M 6X12 | ||
| 659 | N 007985006154 | SCREW |
| Repalced by: A 0029903712 | ||
| 659 | A 0029903712 | SCREW |
| Repalced by: N 000000001149 | ||
| 659 | N 000000001149 | HEXALOBULAR BOLT |
| FUSE BOX TO APPARATUS PLATE | ||
| 661 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 661 | N 913004006001 | NUT |
| FUSE BOX TO APPARATUS PLATE | ||
| 663 | N 007985004123 | SCREW |
| OVERLOAD PROTECTOR TO TERMINAL BOARD | ||
| 665 | N 006797004232 | TOOTHED WASHER |
| OVERLOAD PROTECTOR TO TERMINAL BOARD | ||
| 667 | A 0035453732 | CONTROL UNIT |
| ENGINE SPEED | ||
| 669 | A 0015450932 | CONTROL UNIT |
| CONVERTER LOCK-UP COUPLING | ||
| 671 | A 0055450624 | SENDER UNIT |
| Repalced by: A 0225452532 | ||
| 671 | A 0225452532 | CONTROL UNIT |
| WIPER INTERMITTENT ACTION | ||
| 671 | A 0055451424 | SENDER UNIT |
| WIPER INTERMITTENT ACTION | ||
| 671 | A 0055451624 | SENDER UNIT |
| WIPER INTERMITTENT ACTION | ||
| 673 | A 0025445932 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 673 | A 0025446432 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 673 | A 0035440632 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| A 0075451117 | SWITCH | |
| EXHAUST BRAKE CONTROL | ||
| 675 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 675 | N 000000001146 | SCREW |
| SENDER UNIT TO APPARATUS PLATE | ||
| M 6X16 | ||
| 675 | N 007985004125 | SCREW |
| Repalced by: N 007985004107 | ||
| 675 | N 007985004107 | SCREW |
| SENDER UNIT TO APPARATUS PLATE | ||
| 677 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 677 | N 913004006001 | NUT |
| SENDER UNIT TO APPARATUS PLATE | ||
| 677 | N 913004004002 | NUT |
| Repalced by: N 913002004001 | ||
| 677 | N 913002004001 | NUT |
| SENDER UNIT TO APPARATUS PLATE | ||
| 685 | A 0005400824 | DIODE |
| Repalced by: A 0005400624 | ||
| 685 | A 0005400624 | DIODE CASE |
| REAR END COOLING SYSTEM | ||
| 685 | A 0005400624 | DIODE CASE |
| LOCK-UP COUPLING | ||
| 687 | N 007985005125 | SCREW |
| Repalced by: N 007985005157 | ||
| 687 | N 007985005157 | SCREW |
| DIODE CASE TO APPARATUS PLATE | ||
| 689 | N 913004005001 | NUT |
| DIODE CASE TO APPARATUS PLATE | ||
| 691 | A 0005455405 | RELAY |
| Repalced by: A 0035459605 | ||
| 691 | A 0035459605 | RELAY |
| 691 | A 0005458405 | RELAY |
| Repalced by: A 0035459605 | ||
| 691 | A 0035459605 | RELAY |
| 691 | A 0035459605 | RELAY |
| TRANSMISSION GEAR CLUSTER INDICATOR | ||
| 691 | A 0035459605 | RELAY |
| STEERING LOCK | ||
| 691 | A 0035459605 | RELAY |
| CO-DRIVER'S DOOR WINDOW REGULATOR | ||
| 691 | A 0035459605 | RELAY |
| CONVERTER LOCK-UP COUPLING | ||
| 691 | A 0035459605 | RELAY |
| P.T.O. | ||
| 691 | A 0035459605 | RELAY |
| REAR END COOLING SYSTEM | ||
| 691 | A 0035459605 | RELAY |
| AUTOMATIC TRANSMISSION | ||
| 693 | A 0025456005 | RELAY |
| (TIME RELAY) | ||
| 5 SEK | ||
| 693 | A 0055452432 | RELAY |
| Repalced by: A 0025457605 | ||
| 693 | A 0025457605 | RELAY |
| CONVERTER LOCK-UP COUPLING | ||
| 693 | A 0055452532 | RELAY |
| Repalced by: A 0025457705 | ||
| 693 | A 0025457705 | RELAY |
| CONVERTER LOCK-UP COUPLING | ||
| 695 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 695 | N 000000001146 | SCREW |
| RELAY TO APPARATUS PANEL | ||
| M 6X16 | ||
| 697 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 697 | N 913004006001 | NUT |
| RELAY TO APPARATUS PANEL | ||
| 699 | A 0035452732 | CONTROL UNIT |
| Repalced by: A 0045451732 | ||
| 699 | A 0045451732 | CONTROL UNIT |
| Repalced by: A 0335453932 | ||
| 699 | A 0335453932 | CONTROL UNIT |
| RETARDER | ||
| 701 | N 000933006127 | SCREW |
| RELAY TO APPARATUS PANEL | ||
| M 6X35 | ||
| 701 | N 000933006124 | SCREW |
| RELAY TO APPARATUS PANEL | ||
| M 6X30 | ||
| 703 | N 912004006102 | LOCK WASHER |
| RELAY TO APPARATUS PANEL | ||
| 705 | A 0035451132 | CONTROL UNIT |
| AUTOMATIC HEATER CONTROL | ||
| 707 | N 007985005193 | SCREW |
| CONTROL UNIT TO BRACKET | ||
| 709 | N 913004005001 | NUT |
| CONTROL UNIT TO BRACKET | ||
| 711 | A 0005423623 | BUZZER |
| Repalced by: A 0015423323 | ||
| 711 | A 0015423323 | BUZZER |
| COOLING WATER TEMPERATURE WARNING | ||
| 713 | A 0055455124 | STEERG.COLUMN MTD. SWITCH |
| 713 | A 6205400045 | STEERG.COLUMN MTD. SWITCH |
| 713 | A 0055455224 | STEERG.COLUMN MTD. SWITCH |
| 713 | A 6205400145 | STEERG.COLUMN MTD. SWITCH |
| 715 | A 6085450045 | BOOT |
| STEERING COLUMN MOUNTED SWITCH | ||
| 715 | A 6205450245 | BOOT |
| STEERING COLUMN MOUNTED SWITCH | ||
| 717 | N 007985004107 | SCREW |
| STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN JACKET TUBE | ||
| 717 | N 007985005193 | SCREW |
| STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN JACKET TUBE | ||
| 719 | N 912006004000 | LOCK WASHER |
| STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN JACKET TUBE | ||
| 719 | N 912004005100 | LOCK WASHER |
| STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN JACKET TUBE | ||
| 721 | A 6205400445 | SWITCH |
| RETARDER | ||
| 723 | A 6205450345 | BOOT |
| 725 | A 6205400084 | LEVER |
| 727 | N 000007002104 | CYLINDRICAL PIN |
| 729 | N 001472004004 | GROOVED PIN |
| 731 | N 007985005193 | SCREW |
| 733 | N 912006005002 | LOCK WASHER |
| 735 | A 0005422527 | WARNING INDICATOR |
| AIR CLEANER | ||
| 737 | A 3816890056 | RING |
| WARNING INDICATOR | ||
| 739 | A 0045450224 | SWITCH |
| HAZARD WARNING LIGHT | ||
| 741 | A 0005453637 | BUTTON |
| HAZARD WARNING LIGHT SWITCH | ||
| 743 | N 910150024000 | BULB |
| 24 V/2 W | ||
| 745 | A 0035426405 | TEMPERATURE GAUGE |
| Repalced by: A 0035428505 | ||
| 745 | A 0035428505 | TEMPERATURE GAUGE |
| CONVERTER LOCK-UP COUPLING | ||
| 745 | A 0035428505 | TEMPERATURE GAUGE |
| AUTOMATIC TRANSMISSION | ||
| 747 | A 0005423025 | POTENTIOMETER |
| Repalced by: A 6155420225 | ||
| 747 | A 6155420225 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 749 | N 006797012153 | TOOTHED WASHER |
| POTENTIOMETER TO INSTRUMENT PANEL | ||
| 751 | A 0029906251 | NUT |
| POTENTIOMETER TO INSTRUMENT PANEL | ||
| 753 | A 0005421889 | KNOB |
| INSTRUMENT LIGHTING | ||
| 755 | A 0005458026 | PLUG SOCKET |
| Repalced by: A 0045454326 | ||
| 755 | A 0045454326 | PLUG SOCKET |
| INSTRUMENT PANEL | ||
| 755 | A 0045454326 | PLUG SOCKET |
| CENTRAL FLAP | ||
| 757 | A 0009900946 | WASHER |
| PLUG SOCKET TO INSTRUMENT PANEL | ||
| 757 | A 0009900946 | WASHER |
| PLUG SOCKET TO CENTRAL FLAP | ||
| 759 | A 3805450076 | WASHER |
| PLUG SOCKET TO INSTRUMENT PANEL | ||
| 759 | A 3805450076 | WASHER |
| PLUG SOCKET TO CENTRAL FLAP | ||
| 761 | A 0005454813 | SWITCH |
| Repalced by: A 0005455913 | ||
| 761 | A 0005455913 | LIGHT SWITCH |
| 763 | A 6155450091 | ORNAMENTAL COVER |
| LIGHT SWITCH TO INSTRUMENT PANEL | ||
| 765 | A 0005450376 | WASHER |
| LIGHT SWITCH TO INSTRUMENT PANEL | ||
| 767 | A 0005451072 | NUT |
| LIGHT SWITCH TO INSTRUMENT PANEL | ||
| 769 | A 3875450037 | BUTTON |
| Repalced by: A 2015400183 | ||
| 769 | A 2015400183 | HANDLE |
| Repalced by: A 2025450081 | ||
| 769 | A 2025450081 | KNOB |
| LIGHT ROTARY SWITCH | ||
| 771 | A 3169880035 | CAP |
| TO PLUG THE HOLE USED FOR STARTER CABLE IN INSTRUMENT PANEL | ||
| 773 | A 0015450411 | SWITCH |
| Repalced by: A 0015450611 | ||
| 773 | A 0015450611 | SWITCH |
| HEATED OUTSIDE REARVIEW MIRROR | ||
| 775 | A 0005452883 | CAP |
| PRESSURE SWITCH | ||
| 777 | A 0015450490 | LENS |
| HEATED OUTSIDE REARVIEW MIRROR | ||
| 779 | N 072601024801 | BULB |
| PRESSURE SWITCH | ||
| 24 V/2 W | ||
| 781 | A 0009974435 | PLUG |
| TO PLUG THE FREE BORES IN INSTRUMENT PANEL | ||
| 783 | A 0028210651 | SWITCH |
| CO-DRIVER'S DOOR WINDOW REGULATOR | ||
| 783 | A 0028210651 | SWITCH |
| CO-DRIVER'S DOOR WINDOW REGULATOR | ||
| 785 | A 0015458607 | SWITCH |
| ADJUSTABLE OUTSIDE REARVIEW MIRROR | ||
| 787 | A 6209880035 | CAP |
| TO PLUG THE FREE HOLES USED FOR SEAT HEATER SWITCH | ||
| 789 | A 0105426910 | TACHOGRAPH |
| Repalced by: A 0125422310 | ||
| 789 | A 0125422310 | TACHOGRAPH |
| Repalced by: A 0115423710 | ||
| 789 | A 0115423710 | TACHOGRAPH |
| MEASURING RANGE,125KM/H; ONE-DAY/DRIVER'S CHANGE REGISTRATION | ||
| 793 | A 0015442694 | BULB |
| WITH SOCKET | ||
| 24 V/1.2 W | ||
| A 0005423394 | DIAGRAM PAPER | |
| SET = 100 PIECES | ||
| 795 | A 0005420481 | GROMMET |
| TACHOGRAFH TO INSTRUMENT PANEL | ||
| A 0005421781 | CAP | |
| TACHOGRAPH LEAD SEALING | ||
| 797 | A 0005420285 | PROTECTIVE PLATE |
| TACHOGRAPH LEAD SEALING | ||
| 797 | A 0005420285 | PROTECTIVE PLATE |
| TACHOGRAPH LEAD SEALING | ||
| 799 | N 007971002206 | SHEET METAL SCREW |
| TACHOGRAPH LEAD SEALING | ||
| A 0005420590 | BLIND CAP | |
| TACHOGRAPH LEAD SEALING | ||
| 801 | A 0035420316 | TACHOMETER |
| ELECTRONIC;WITH WARNING CONTACT | ||
| 801 | A 0025427716 | TACHOMETER |
| Repalced by: A 0035420416 | ||
| 801 | A 0035420416 | TACHOMETER |
| ELECTRONIC;LESS WARNING CONTACT | ||
| 801 | A 0035420416 | TACHOMETER |
| ELECTRONIC;LESS WARNING CONTACT | ||
| 801 | A 0035426316 | TACHOMETER |
| A 0005454919 | SOCKET | |
| A 0005451219 | SOCKET | |
| 803 | N 072601024801 | BULB |
| TACHOMETER | ||
| 24 V/2 W | ||
| 803 | N 910150024000 | BULB |
| TACHOMETER | ||
| 24 V/2 W | ||
| 805 | A 0035405447 | INSTRUMENT CLUSTER |
| Repalced by: A 0035407847 | ||
| 805 | A 0035408247 | INSTRUMENT CLUSTER |
| Repalced by: A 0035407847 | ||
| 805 | A 0035407847 | INSTRUMENT CLUSTER |
| Repalced by: A 0035409647 | ||
| 805 | A 0035403947 | INSTRUMENT CLUSTER |
| Repalced by: A 0035409647 | ||
| 805 | A 0035409647 | INSTRUMENT CLUSTER |
| 807 | A 0015420408 | AIR PRESSURE GAUGE |
| TO 003 540 54 47 | ||
| 807 | A 0015423908 | AIR PRESSURE GAUGE |
| TO 003 540 78 47,82 47 | ||
| 807 | A 0015424208 | AIR PRESSURE GAUGE |
| TO 003 540 39 47,96 47 | ||
| 809 | A 0035423305 | TEMPERATURE GAUGE |
| TO 003 540 54 47 | ||
| 809 | A 0035428805 | TEMPERATURE GAUGE |
| TO 003 540 78 47,82 47 | ||
| 809 | A 0035427405 | TEMPERATURE GAUGE |
| TO 003 540 39 47,96 47 | ||
| 811 | A 0015429902 | OIL PRESSURE GAUGE |
| TO 003 540 54 47 | ||
| 811 | A 0025422702 | OIL PRESSURE GAUGE |
| TO 003 540 78 47,82 47 | ||
| 811 | A 0025421702 | OIL PRESSURE GAUGE |
| TO 003 540 39 47,96 47 | ||
| 813 | A 0015424503 | FUEL GAUGE DASH UNIT |
| TO 003 540 54 47 | ||
| 813 | A 0025429203 | FUEL GAUGE DASH UNIT |
| TO 003 540 78 47,82 47 | ||
| 813 | A 0025428503 | FUEL GAUGE DASH UNIT |
| TO 003 542 39 47,96 47 | ||
| 815 | A 0005422178 | CONNECTION PLATE |
| TO 003 540 54 47 | ||
| 815 | A 0005423178 | CONNECTION PLATE |
| TO 003 540 78 47,82 47 | ||
| 815 | A 0005423578 | CONNECTION PLATE |
| TO 003 540 96 47 | ||
| 817 | A 0005451219 | SOCKET |
| 819 | N 072601024801 | BULB |
| 24 V/2 W | ||
| 819 | A 0015442694 | BULB |
| WITH SOCKET | ||
| 24 V/1.2 W | ||
| 821 | A 0005420481 | GROMMET |
| INSTRUMENT CLUSTER TO INSTRUMENT PANEL | ||
| 823 | A 0015451815 | TELL-TALE LAMP |
| LESS LENS | ||
| 825 | N 072601024801 | BULB |
| 24 V/2 W | ||
| 827 | A 0015457890 | LENS |
| CAB UNLOCKING MECHANISM | ||
| 829 | A 0015459590 | LENS |
| REVOLVING BEAM SIGNAL LAMP | ||
| 831 | A 0035453190 | LENS |
| FUEL RESERVE CONTROL | ||
| 833 | A 0005453990 | LENS |
| TRANSVERSE DIFFERENTIAL LOCK,FRONT AXLE | ||
| 835 | A 0015451490 | LENS |
| TRANSVERSE DIFFERENTIAL LOCK,REAR AXLE I | ||
| 837 | A 0005454190 | LENS |
| TRANSVERSE DIFFERENTIAL LOCK,REAR AXLE | ||
| 839 | A 0015451590 | LENS |
| TRANSVERSE DIFFERENTIAL LOCK,REAR AXLE II | ||
| 841 | A 0005454390 | LENS |
| Repalced by: A 0045453990 | ||
| 841 | A 0045453990 | LENS |
| P.T.O. | ||
| 843 | A 0005454590 | LENS |
| DUMPER CONTROL | ||
| 845 | A 0045454090 | LENS |
| "POWER" (SPEED LIMITATION OFF) | ||
| 847 | A 0035456790 | LENS |
| CRUISE CONTROL FAILURE | ||
| 849 | A 0055458790 | LENS |
| FAILURE OF ELECTRONIC DIESEL FUELINJECTION PUMP CONTROL | ||
| 851 | A 0035453290 | LENS |
| CHARGE CONTROL | ||
| 853 | A 0035455290 | LENS |
| BLINKER CONTROL | ||
| 855 | A 0065451990 | LENS |
| HIGH BEAM | ||
| 857 | A 0035453790 | LENS |
| PARKING BRAKE | ||
| 859 | A 0035454090 | LENS |
| PARKING BRAKE | ||
| 861 | A 0025453890 | LENS |
| SLOW GROUP | ||
| 863 | A 0005456090 | LENS |
| AUTOMATIC TRANSMISSION | ||
| 865 | A 0025453990 | LENS |
| FAST GROUP | ||
| 867 | A 0055459390 | LENS |
| ANTI-LOCK BRAKING SYSTEM CUT-OFF | ||
| 869 | A 0025454190 | LENS |
| RETARDER | ||
| 871 | A 0035455190 | LENS |
| OIL SUPPLY | ||
| 873 | A 0035453590 | LENS |
| ENGINE OIL PRESSURE | ||
| 875 | A 0065454090 | LENS |
| ANTI-LOCK BRAKING SYSTEM, ACCELERATION SKID CONTROL | ||
| 877 | A 0065452690 | LENS |
| FRONT AXLE I/II DIFFERENTIAL LOCK | ||
| 879 | A 0005454090 | LENS |
| LONGITUDINAL DIFFERENTIAL LOCK, TRANSFER CASE | ||
| 881 | A 0015456390 | LENS |
| POWER STEERING | ||
| 883 | A 0055458990 | LENS |
| LIFTING TRAILING AXLE | ||
| 885 | A 0065452790 | LENS |
| LONGITUDINAL DIFFERENTIAL LOCK, TRANSFER CASE | ||
| 887 | A 0015451690 | LENS |
| LONGITUDINAL DIFFERENTIAL LOCK, REAR AXLES I AND II | ||
| 889 | A 0035456390 | LENS |
| TRUCK-TRACTOR ANTI-LOCK BRAKING SYSTEM | ||
| 891 | A 0035456490 | LENS |
| TRAILER ANTI-LOCK BRAKING SYSTEM | ||
| 893 | A 0035456590 | LENS |
| ANTI-LOCK BRAKING SYSTEM CONNECTING CABLE | ||
| 895 | A 0025455390 | LENS |
| FLAME STARTING SYSTEM | ||
| 897 | A 0015457390 | LENS |
| TIRE PRESSURE INDICATOR | ||
| 899 | A 0015458590 | LENS |
| CONVERTER LOCK-UP COUPLING | ||
| A 0085450690 | LENS | |
| PARTICLE FILTER | ||
| 901 | A 0015452290 | LENS |
| LESS SYMBOL; RED | ||
| 901 | A 0015452390 | LENS |
| LESS SYMBOL; GREEN | ||
| 901 | A 0045454290 | LENS |
| LESS SYMBOL; AMBER | ||
| 903 | A 0009974335 | PLUG |
| TO PLUG THE FREE BORES IN INSTRUMENT PANEL | ||
| 905 | A 0025451407 | SWITCH |
| Repalced by: A 0025457007 | ||
| 905 | A 0025457007 | SWITCH |
| DRIVER'S SEAT HEATING | ||
| 905 | A 0025457007 | SWITCH |
| CO-DRIVER'S SEAT HEATING | ||
| 907 | A 0025454807 | SWITCH |
| (BATTERY MASTER SWITCH) | ||
| 909 | A 0025454707 | SWITCH |
| EMERGENCY "OFF" | ||
| 909 | A 0025454707 | SWITCH |
| CAB UNLOCKING MECHANISM | ||
| 911 | A 0055459224 | HAZARD WARNG.LIGHT SWITCH |
| Repalced by: A 0075453824 | ||
| 911 | A 0075453824 | HAZARD WARNG.LIGHT SWITCH |
| 913 | N 072601024230 | BULB |
| 24 V 1,2 W | ||
| 915 | A 0025456907 | SWITCH |
| 915 | A 0025456907 | SWITCH |
| AIR CONDITIONER | ||
| 915 | A 0025456907 | SWITCH |
| FLAME STARTING SYSTEM | ||
| 915 | A 0025456907 | SWITCH |
| REFRIGERATOR | ||
| 915 | A 0025456907 | SWITCH |
| TRAILER PLUG SOCKET | ||
| 915 | A 0025456907 | SWITCH |
| AIR HORN | ||
| 915 | A 0025456907 | SWITCH |
| P.T.O. | ||
| 915 | A 0025456907 | SWITCH |
| REVOLVING BEAM SIGNAL LAMP | ||
| 915 | A 0025456907 | SWITCH |
| RETARDER | ||
| 915 | A 0025456907 | SWITCH |
| LIFTING TRAILING AXLE | ||
| 915 | A 0025456907 | SWITCH |
| WORKING FLOODLIGHT | ||
| 915 | A 0025456907 | SWITCH |
| HEATED OUTSIDE REARVIEW MIRROR | ||
| 915 | A 0025456907 | SWITCH |
| ENGINE COMPARTMENT LIGHTING | ||
| 915 | A 0025456907 | SWITCH |
| ADDITIONAL FLOODLIGHT | ||
| 915 | A 0025456907 | SWITCH |
| REAR FOGLAMP | ||
| 915 | A 0025456907 | SWITCH |
| ANTI-LOCK BRAKING SYSTEM CUT-OFF | ||
| 917 | A 0025453307 | SWITCH |
| WINDSHIELD HEATING | ||
| 919 | A 0025453607 | SWITCH |
| Repalced by: A 0025457607 | ||
| 919 | A 0025457607 | SWITCH |
| 919 | A 0025457607 | SWITCH |
| ADJUSTABLE OUTSIDE REARVIEW MIRROR | ||
| 919 | A 0025457607 | SWITCH |
| WINDOW REGULATOR | ||
| 921 | A 0025458107 | SWITCH |
| AIR FLAP CONTROL | ||
| 923 | A 0055452490 | LENS |
| BATTERY MASTER SWITCH | ||
| 925 | A 0045459490 | LENS |
| AIR CONDITIONER | ||
| 927 | A 0055458690 | LENS |
| FLAME STARTING SYSTEM | ||
| 929 | A 0055455290 | LENS |
| WINDSHIELD HEATING | ||
| 931 | A 0055457790 | LENS |
| REFRIGERATOR | ||
| 933 | A 0055457890 | LENS |
| TRAILER PLUG SOCKET | ||
| 935 | A 0035459790 | LENS |
| AIR HORN | ||
| 937 | A 0055455990 | LENS |
| P.T.O. | ||
| 939 | A 0045450890 | LENS |
| REVOLVING BEAM SIGNAL LAMP | ||
| 941 | A 0035459390 | LENS |
| RETARDER | ||
| 943 | A 0055457990 | LENS |
| LIFTING TRAILING AXLE | ||
| 945 | A 0055458590 | LENS |
| WORKING FLOODLIGHT | ||
| 947 | A 0055459690 | LENS |
| Repalced by: A 0075459690 | ||
| 947 | A 0075459690 | LENS |
| ANTI-LOCK BRAKING SYSTEM CUT-OFF | ||
| 949 | A 0045452190 | LENS |
| HEATED OUTSIDE REARVIEW MIRROR | ||
| 951 | A 0055455890 | LENS |
| ADJUSTABLE OUTSIDE REARVIEW MIRROR | ||
| 953 | A 0055452290 | LENS |
| ADJUSTABLE OUTSIDE REARVIEW MIRROR | ||
| 955 | A 0035458790 | LENS |
| WINDOW REGULATOR | ||
| 957 | A 0055455590 | LENS |
| REAR FOGLAMP | ||
| 959 | A 0055458190 | LENS |
| ENGINE COMPARTMENT LIGHTING | ||
| 961 | A 0045459790 | LENS |
| SEAT HEATING | ||
| 963 | A 0055458090 | LENS |
| ADDITIONAL FLOODLIGHT | ||
| 965 | A 0055459790 | LENS |
| AIR FLAP CONTROL | ||
| 967 | A 0045454890 | LENS |
| LESS SYMBOL; RED | ||
| 967 | A 0045455090 | LENS |
| LESS SYMBOL; GREEN | ||
| 969 | A 6736880035 | COVER |
| TO PLUG THE FREE HOLES USED FOR SWITCH | ||
| 971 | A 6115400066 | ADAPTER FRAME |
| (ROCKER SWITCH) | ||
| 973 | A 0005421181 | GROMMET |
| Repalced by: A 0005421381 | ||
| 973 | A 0005421381 | GROMMET |
| ELECTRIC CABLE THRU FIRE WALL | ||
| 975 | A 0005421281 | GROMMET |
| Repalced by: A 0019975086 | ||
| 975 | A 0019975086 | PLUG |
| ELECTRIC CABLE THRU FIRE WALL | ||
| 977 | A 1139870044 | EXPANSION PLUG |
| ELECTRIC CABLE THRU FIRE WALL | ||
| 979 | A 6155420140 | BRACKET |
| GROMMET TO CAB | ||
| 981 | N 007981004400 | SHEET METAL SCREW |
| Repalced by: N 000000000878 | ||
| 981 | N 000000000878 | SCREW |
| GROMMET TO CAB | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
