Transporto priemonė: 3250 AF; VIN numerio dalis: 625387

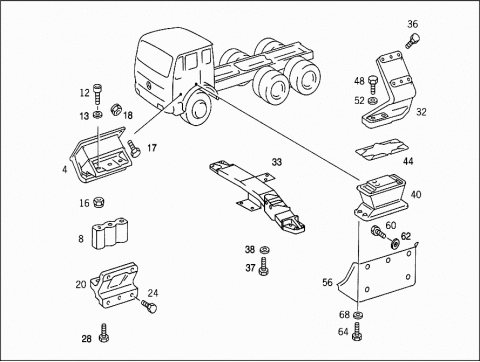

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 6202400017 | RUBBER MOUNTING |
| FRONT | ||
| 004 | A 6202400717 | RUBBER MOUNTING |
| 004 | A 6202400217 | RUBBER MOUNTING |
| FRONT | ||
| 004 | A 6252400017 | RUBBER MOUNTING |
| FRONT | ||
| 004 | A 6252400117 | RUBBER MOUNTING |
| FRONT | ||
| 008 | A 6252410026 | INTERMEDIATE PIECE |
| RUBBER MOUNT | ||
| 012 | N 000912016078 | SCREW |
| INTERMEDIATE PIECE TO SUPPORT | ||
| M 16X150 | ||
| 012 | N 000960016221 | SCREW |
| INTERMEDIATE PIECE TO SUPPORT | ||
| M 16X140; TO 620 240 07 17 | ||
| 012 | N 000912016079 | SCREW |
| INTERMEDIATE PIECE TO SUPPORT | ||
| M 16X135; TO 620 240 00 17 | ||
| 013 | N 000125017011 | WASHER |
| INTERMEDIATE PIECE TO SUPPORT | ||
| TO 620 240 07 17 | ||
| 016 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 016 | N 910113016001 | NUT |
| INTERMEDIATE PIECE TO SUPPORT | ||
| 017 | A 0019904604 | SCREW |
| Repalced by: N 910142008007 | ||
| 017 | N 910142008007 | SCREW |
| INTERMEDIATE PIECE TO SUPPORT | ||
| M 8X55 | ||
| 018 | A 0009906350 | NUT |
| INTERMEDIATE PIECE TO SUPPORT | ||
| M 8 | ||
| 020 | A 6203230024 | CONSOLE |
| FRONT RUBBER MOUNTING,STABILIZER BEARING BRACKET | ||
| 024 | N 000961016036 | SCREW |
| Repalced by: N 308676016013 | ||
| 024 | N 308676016013 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 024 | N 308676016013 | SCREW |
| CONSOLE TO RIGHT SIDE MEMBER | ||
| 028 | N 000933012016 | SCREW |
| Repalced by: N 304017012020 | ||
| 028 | N 304017012020 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORT | ||
| M 12X30 | ||
| 028 | N 000933012133 | SCREW |
| Repalced by: N 304017012013 | ||
| 028 | N 304017012013 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORT | ||
| M 12X35 | ||
| 032 | A 3872422201 | ENGINE SUPPORT |
| LEFT REAR | ||
| 032 | A 3872422301 | ENGINE SUPPORT |
| RIGHT REAR | ||
| 033 | A 6252400001 | ENGINE SUPPORT |
| Repalced by: A 6252400202 | ||
| 033 | A 6252400202 | ENGINE SUPPORT |
| LEFT REAR | ||
| A 6252400101 | ENGINE SUPPORT | |
| Repalced by: A 6252400302 | ||
| A 6252400302 | ENGINE SUPPORT | |
| RIGHT REAR | ||
| 036 | N 000961016077 | SCREW |
| Repalced by: N 308676016006 | ||
| 036 | N 308676016006 | SCREW |
| ENGINE SUPPORT TO BELL HOUSING | ||
| M 16X45 | ||
| 036 | N 000933016048 | SCREW |
| ENGINE REAR SUPPORT TO TIMING CASE | ||
| M 16X45 | ||
| 036 | N 000961016105 | SCREW |
| Repalced by: N 308676016004 | ||
| 036 | N 308676016004 | SCREW |
| ENGINE SUPPORT TO BELL HOUSING | ||
| M 16X55 | ||
| 037 | A 6259900001 | SCREW |
| ENGINE REAR SUPPORT TO TRANSMISSION | ||
| 038 | A 3529902440 | WASHER |
| ENGINE REAR SUPPORT TO TIMING CASE | ||
| 038 | A 3143220376 | WASHER |
| ENGINE REAR SUPPORT TO TRANSMISSION | ||
| 040 | A 6172400318 | RUBBER MOUNTING |
| Repalced by: A 6452400118 | ||
| 040 | A 6452400118 | RUBBER MOUNTING |
| REAR | ||
| 040 | A 6172400418 | RUBBER MOUNTING |
| Repalced by: A 6452400018 | ||
| 040 | A 6452400018 | RUBBER MOUNTING |
| REAR | ||
| 040 | A 6172400518 | RUBBER MOUNTING |
| Repalced by: A 6452400218 | ||
| 040 | A 6452400218 | RUBBER MOUNTING |
| REAR | ||
| 044 | A 3832420034 | SCREENING PLATE |
| ENGINE REAR MOUNTING | ||
| 048 | N 000960016237 | SCREW |
| ENGINE SUPPORT TO RUBBER MOUNTING | ||
| 048 | N 000961016100 | SCREW |
| Repalced by: N 308676016020 | ||
| 048 | N 308676016020 | SCREW |
| ENGINE SUPPORT TO RUBBER MOUNTING | ||
| 052 | A 3529902440 | WASHER |
| ENGINE SUPPORT TO RUBBER MOUNTING | ||
| 056 | A 6202400006 | CONSOLE |
| REAR | ||
| 060 | N 000961016075 | SCREW |
| Repalced by: N 308676016020 | ||
| 060 | N 308676016020 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X35 | ||
| 060 | N 000961016040 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X45 | ||
| 060 | N 000961016119 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X48 | ||
| 060 | N 000960016171 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X58 | ||
| 062 | A 6252420166 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 064 | N 000961012106 | SCREW |
| REAR RUBBER MOUNTING TO CONSOLE | ||
| 068 | A 3859901040 | WASHER |
| REAR RUBBER MOUNTING TO CONSOLE | ||
