Transporto priemonė: 3250 AF; VIN numerio dalis: 625387

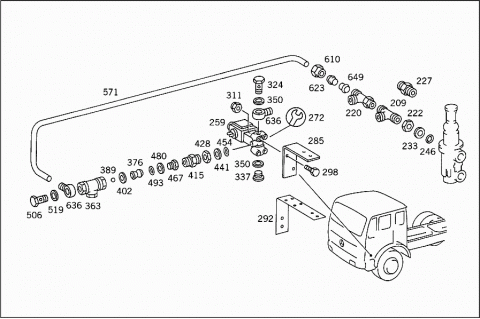

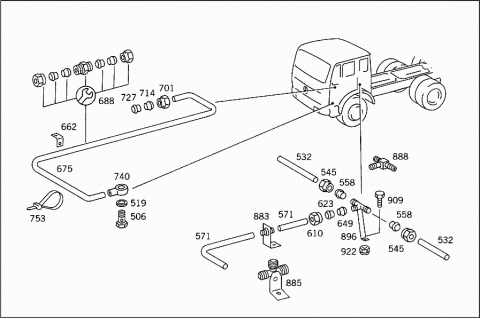

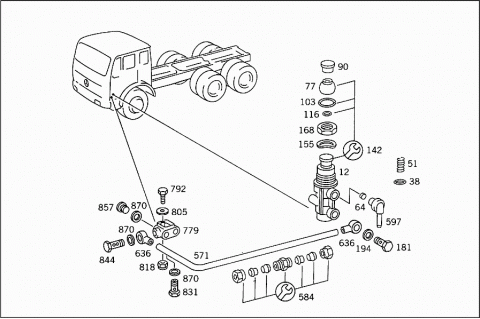

Grupė: 43 EXHAUST BRAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 012 | A 0004342101 | VALVE |
| EXHAUST BRAKE OPERATING MECHANISM | ||
| BOSCH | ||
| 012 | A 0004342301 | VALVE |
| EXHAUST BRAKE OPERATING MECHANISM | ||
| WABCO | ||
| 038 | A 0059979248 | SEAL RING |
| BOSCH | ||
| 051 | A 0014315193 | SPRING |
| BOSCH | ||
| 064 | A 0004314034 | STRAINER |
| BOSCH | ||
| 077 | A 0004340586 | CUP |
| WABCO | ||
| 090 | A 0009971977 | HANDLE |
| WABCO | ||
| 103 | A 0079972448 | SEAL RING |
| WABCO | ||
| 116 | A 0079972548 | SEAL RING |
| WABCO | ||
| 142 | A 0025869843 | REPAIR KIT |
| WABCO | ||
| 142 | A 0025865343 | REPAIR KIT |
| BOSCH | ||
| 155 | N 000137027201 | SPRING WASHER |
| 3/2-WAY VALVE TO CAB | ||
| 168 | N 074305026202 | NUT |
| 3/2-WAY VALVE TO CAB | ||
| 181 | N 915036008202 | HOLLOW SCREW |
| 3/2-WAY VALVE;CONNECTION: | ||
| "10" | ||
| 194 | N 007603012405 | SEAL RING |
| 3/2-WAY VALVE;CONNECTION: | ||
| "10" | ||
| 209 | A 0019902570 | T-FITTING |
| 3/2-WAY VALVE;CONNECTION: | ||
| "20" | ||
| 220 | A 0009909970 | T-FITTING |
| 3/2-WAY VALVE;CONNECTION: | ||
| "20" | ||
| 222 | N 080705012003 | NUT |
| 3/2-WAY VALVE;CONNECTION: | ||
| "20" | ||
| 227 | A 0029975872 | FITTING |
| Repalced by: A 3899970272 | ||
| 227 | A 3899970272 | FITTING |
| 233 | A 0004290827 | THRUST RING |
| 3/2-WAY VALVE;CONNECTION: | ||
| "20" | ||
| Repalced by: A 0009940103 | ||
| 233 | A 0009940103 | THRUST RING |
| 3/2-WAY VALVE;CONNECTION: | ||
| "20" | ||
| 246 | A 0019875046 | SEALING CORD |
| 3/2-WAY VALVE;CONNECTION: | ||
| "20" | ||
| 259 | A 0002607957 | VALVE |
| GAS LOCK ACTUATION | ||
| 259 | A 0002607957 | VALVE |
| EXHAUST BRAKE CONTROL | ||
| 272 | A 0015861526 | REPAIR KIT |
| 3/2-WAY VALVE | ||
| Repalced by: A 0012608357 | ||
| 272 | A 0012608357 | REPAIR KIT |
| 3/2-WAY VALVE | ||
| 285 | A 3874296740 | BRACKET |
| 3/2-WAY VALVE | ||
| 292 | A 6254290340 | BRACKET |
| 3/2-WAY VALVE | ||
| 298 | N 000933006124 | SCREW |
| 3/2-WAY VALVE TO BRACKET | ||
| 311 | N 913004006002 | NUT |
| 3/2-WAY VALVE TO BRACKET | ||
| Repalced by: N 913004006001 | ||
| 311 | N 913004006001 | NUT |
| 3/2-WAY VALVE TO BRACKET | ||
| 324 | N 915036008202 | HOLLOW SCREW |
| 3/2-WAY VALVE;CONNECTION: | ||
| "10" | ||
| 337 | N 000908012003 | SCREW PLUG |
| 3/2-WAY VALVE;CONNECTION: | ||
| "10" | ||
| Repalced by: N 000908012009 | ||
| 337 | N 000908012009 | SCREW PLUG |
| 3/2-WAY VALVE;CONNECTION: | ||
| "10" | ||
| 350 | N 007603012405 | SEAL RING |
| 3/2-WAY VALVE;CONNECTION: | ||
| "10" | ||
| 363 | A 0014292444 | VALVE |
| TWO-WAY | ||
| WABCO | ||
| 363 | A 0034291144 | VALVE |
| TWO-WAY | ||
| VOSS | ||
| 376 | A 0004291182 | VALVE BODY |
| WABCO | ||
| 389 | A 0029810485 | BALL |
| VOSS | ||
| A 0004319583 | PISTON | |
| VOSS | ||
| 402 | A 0004290180 | GASKET |
| VOSS | ||
| A 0019973872 | FITTING | |
| TWO-WAY VALVE TO 3/2-WAY VALVE, CONNECTION: | ||
| "12/20" | ||
| Repalced by: A 0009977172 | ||
| 415 | A 0009977172 | FITTING |
| TWO-WAY VALVE TO 3/2-WAY VALVE, CONNECTION: | ||
| "12/20" | ||
| 428 | N 080705012003 | NUT |
| TWO-WAY VALVE TO 3/2-WAY VALVE, CONNECTION: | ||
| "12/20" | ||
| 441 | A 0004290827 | THRUST RING |
| TWO-WAY VALVE TO 3/2-WAY VALVE, CONNECTION: | ||
| "12/20" | ||
| Repalced by: A 0009940103 | ||
| 441 | A 0009940103 | THRUST RING |
| TWO-WAY VALVE TO 3/2-WAY VALVE, CONNECTION: | ||
| "12/20" | ||
| 454 | A 0019970845 | SEAL RING |
| TWO-WAY VALVE TO 3/2-WAY VALVE, CONNECTION: | ||
| "12/20" | ||
| 467 | A 0009904468 | FITTING |
| TWO-WAY VALVE,CONNECTIONS: | ||
| "11,12,20" | ||
| 480 | A 0004290227 | THRUST RING |
| TWO-WAY VALVE,CONNECTIONS: | ||
| "11,12,20" | ||
| Repalced by: A 0009940203 | ||
| 480 | A 0009940203 | THRUST RING |
| TWO-WAY VALVE,CONNECTIONS: | ||
| "11,12,20" | ||
| 493 | A 0009870446 | O-RING |
| TWO-WAY VALVE,CONNECTIONS: | ||
| "11,12,20" | ||
| 506 | N 915036008202 | HOLLOW SCREW |
| TWO-WAY VALVE,CONNECTIONS: | ||
| "11,20" | ||
| 519 | N 007603012405 | SEAL RING |
| TWO-WAY VALVE,CONNECTIONS: | ||
| "11,20" | ||
| 532 | A 0004290701 | LINE |
| FROM T-FITTING TO EXHAUST BRAKE CYLINDER | ||
| 6X0.70 MM | ||
| Repalced by: A 0004296201 | ||
| 532 | A 0004296201 | LINE |
| FROM T-FITTING TO EXHAUST BRAKE CYLINDER | ||
| 6X0.70 MM | ||
| 545 | N 915017006100 | UNION NUT |
| 558 | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 558 | A 0019901667 | SEAL CONE |
| 571 | A 0089979082 | HOSE |
| 6X8 MM | ||
| Repalced by: A 0009872727 | ||
| 571 | A 0009872727 | PLASTIC PIPE |
| FROM 3/2-WAY VALVE TO TWO-WAY VALVE | ||
| 6X8 MM | ||
| 584 | A 0039978972 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| Repalced by: A 0029905971 | ||
| 584 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 597 | A 4063580065 | BREATHER |
| 3/2-WAY VALVE;CONNECTION: | ||
| "30" | ||
| Repalced by: A 3933280065 | ||
| 597 | A 3933280065 | PIPE SOCKET |
| 3/2-WAY VALVE;CONNECTION: | ||
| "30" | ||
| 610 | N 915017008100 | UNION NUT |
| 623 | N 003861008005 | GLAND |
| 636 | N 915052006013 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/12 MM | ||
| 649 | N 915062006000 | SLEEVE |
| 662 | A 3604280243 | ANGLE |
| COMPRESSED AIR LINE MOUNTING | ||
| A 0029974890 | LOOM TIE | |
| COMPRESSED AIR LINE MOUNTING | ||
| 675 | A 0089976082 | HOSE |
| 4X6 MM | ||
| Repalced by: A 0009872627 | ||
| 675 | A 0009872627 | PLASTIC PIPE |
| 4X6 MM | ||
| 688 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 701 | N 915017006100 | UNION NUT |
| 714 | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 714 | A 0019901667 | SEAL CONE |
| 727 | N 915062004000 | SLEEVE |
| 740 | N 915052004015 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/12 MM | ||
| 753 | A 0019978490 | LOOM TIE |
| COMPRESSED AIR LINE MOUNTING | ||
| 376 MM | ||
| 753 | A 0019978390 | LOOM TIE |
| COMPRESSED AIR LINE MOUNTING | ||
| 280 MM | ||
| 779 | A 0004294037 | DISTRIBUTOR |
| EXHAUST BRAKE LINE CONNECTION | ||
| 792 | N 000931006115 | SCREW |
| DISTRIBUTOR TO CAB | ||
| Repalced by: N 000933006151 | ||
| 792 | N 000933006151 | SCREW |
| DISTRIBUTOR TO CAB | ||
| 805 | N 009021006205 | WASHER |
| DISTRIBUTOR TO CAB | ||
| Repalced by: N 009021006208 | ||
| 805 | N 009021006208 | WASHER |
| DISTRIBUTOR TO CAB | ||
| 818 | N 913004006002 | NUT |
| DISTRIBUTOR TO CAB | ||
| Repalced by: N 913004006001 | ||
| 818 | N 913004006001 | NUT |
| DISTRIBUTOR TO CAB | ||
| 831 | N 915036008202 | HOLLOW SCREW |
| DISTRIBUTOR,CONNECTION: | ||
| "60" | ||
| 831 | N 915036008202 | HOLLOW SCREW |
| DISTRIBUTOR,CONNECTION: | ||
| "20" | ||
| 844 | N 915047008202 | HOLLOW SCREW |
| DISTRIBUTOR,CONNECTIONS: | ||
| "10,20,30" | ||
| 857 | N 000908012003 | SCREW PLUG |
| DISTRIBUTOR,CONNECTIONS: | ||
| "40,50,70" | ||
| Repalced by: N 000908012009 | ||
| 857 | N 000908012009 | SCREW PLUG |
| DISTRIBUTOR,CONNECTIONS: | ||
| "40,50,70" | ||
| 870 | N 007603012405 | SEAL RING |
| DISTRIBUTOR,CONNECTIONS: | ||
| "10,20,30,40,50,60,70" | ||
| 883 | A 3874201386 | BRACKET |
| (T-FITTING) EXHAUST BRAKE LINE CONNECTION | ||
| 885 | A 3874201186 | BRACKET |
| 888 | A 0019902970 | T-FITTING |
| EXHAUST BRAKE LINE CONNECTION | ||
| 896 | A 6204202186 | BRACKET |
| (T-FITTING) EXHAUST BRAKE LINE CONNECTION | ||
| Repalced by: A 6254200486 | ||
| 896 | A 6254200486 | BRACKET |
| (T-FITTING) EXHAUST BRAKE LINE CONNECTION | ||
| 909 | N 000933006103 | SCREW |
| BRACKET TO AIR-COMPRESSOR-LINE BRACKET | ||
| Repalced by: N 304017006018 | ||
| 909 | N 304017006018 | SCREW |
| BRACKET TO AIR-COMPRESSOR-LINE BRACKET | ||
| 922 | N 913004006002 | NUT |
| BRACKET TO AIR-COMPRESSOR-LINE BRACKET | ||
| Repalced by: N 913004006001 | ||
| 922 | N 913004006001 | NUT |
| BRACKET TO AIR-COMPRESSOR-LINE BRACKET | ||
