Transporto priemonė: 3250 AF; VIN numerio dalis: 625387

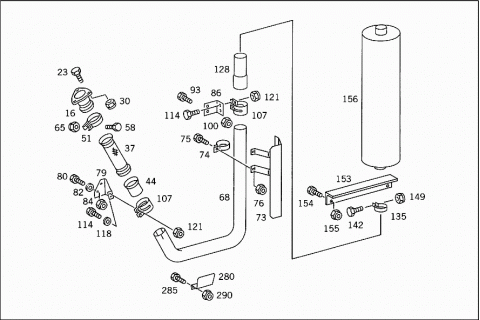

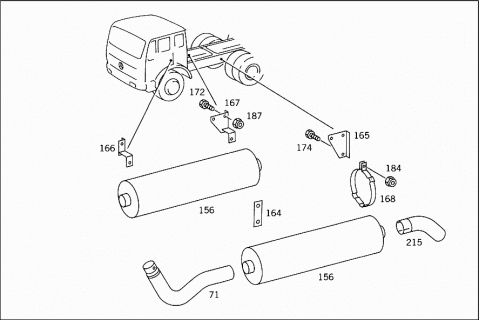

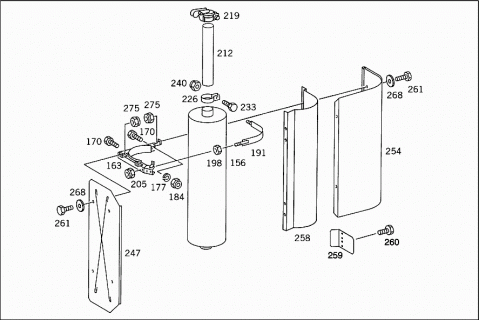

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 016 | A 6254900125 | CONNECTOR |
| LEFT | ||
| 016 | A 6254900225 | CONNECTOR |
| RIGHT | ||
| 016 | A 0804905820 | EXHAUST PIPE |
| RIGHT | ||
| 016 | A 6254900029 | FLANGE |
| CONNECTING PIPE TO EXHAUST MANIFOLD | ||
| 023 | N 000931012114 | SCREW |
| CONNECTOR TO THROTTLE HOUSING | ||
| M 12X45 | ||
| 023 | N 000931012114 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X45 | ||
| 023 | N 000931012179 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X65 | ||
| 030 | N 913004012010 | NUT |
| CONNECTOR TO THROTTLE HOUSING | ||
| 030 | N 913004012010 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 037 | A 6204900365 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 037 | A 6204900465 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 044 | A 6254900025 | CONNECTOR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 044 | A 6204920208 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 051 | A 6209970490 | CLAMP |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 051 | A 6209970590 | CLAMP |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 058 | N 000933008161 | SCREW |
| Repalced by: N 304017008028 | ||
| 058 | N 304017008028 | SCREW |
| CLAMP TO CONNECTOR | ||
| 065 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 065 | N 913004008001 | NUT |
| CLAMP TO CONNECTOR | ||
| 068 | A 6254901020 | EXHAUST PIPE |
| LEFT AND RIGHT | ||
| 068 | A 6254900220 | EXHAUST PIPE |
| LEFT | ||
| 068 | A 6254900520 | EXHAUST PIPE |
| LEFT | ||
| 068 | A 6254900320 | EXHAUST PIPE |
| RIGHT | ||
| 068 | A 6254900620 | EXHAUST PIPE |
| RIGHT | ||
| 071 | A 6254900820 | EXHAUST PIPE |
| LEFT | ||
| 071 | A 6254900920 | EXHAUST PIPE |
| RIGHT | ||
| 073 | A 6254900130 | PROTECTIVE PLATE |
| AT EXHAUST PIPE | ||
| 074 | N 071555100501 | CLAMP |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| 075 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 075 | N 304017010002 | SCREW |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| 076 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 076 | N 910113010000 | NUT |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| 079 | A 6254921741 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 079 | A 6254921841 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 079 | A 6254920341 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 079 | A 6254920441 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 080 | N 000933010105 | SCREW |
| BRACKET TO AIR CLEANER BRACKET | ||
| 082 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 082 | N 007349010007 | WASHER |
| BRACKET TO AIR CLEANER BRACKET | ||
| 084 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 084 | N 910113010000 | NUT |
| BRACKET TO AIR CLEANER BRACKET | ||
| 086 | A 6254920241 | BRACKET |
| EXHAUST PIPE | ||
| 086 | A 6254920741 | BRACKET |
| EXHAUST PIPE | ||
| 093 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 093 | N 304017008021 | SCREW |
| BRACKET TO CROSS CONNECTION STRUT | ||
| 100 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 100 | N 913004008001 | NUT |
| BRACKET TO CROSS CONNECTION STRUT | ||
| A 6204920940 | CLAMP | |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 107 | A 6204920940 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 107 | A 6204920940 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 107 | A 6204920940 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 107 | A 6254920040 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 114 | N 000933010157 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 118 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 118 | N 007349010007 | WASHER |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 121 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 121 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 128 | A 6254920107 | CONNECTOR |
| EXHAUST MUFFLER CONNECTING PIPE | ||
| 128 | A 6254920207 | CONNECTOR |
| EXHAUST MUFFLER CONNECTING PIPE | ||
| 135 | N 071555094501 | CLAMP |
| Repalced by: N 071555094502 | ||
| 135 | N 071555094502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 135 | N 071555104501 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 142 | N 000933010157 | SCREW |
| EXHAUST MUFFLER TO EXHAUST PIPE | ||
| 149 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 149 | N 910113010000 | NUT |
| EXHAUST MUFFLER TO EXHAUST PIPE | ||
| 153 | A 6254910117 | ANGLE |
| EXHAUST MUFFLER STOP | ||
| 154 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 154 | N 304017008034 | SCREW |
| ANGLE TO SUPPORT | ||
| 154 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 154 | N 304017008021 | SCREW |
| ANGLE TO SUPPORT | ||
| 155 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 155 | N 913004008001 | NUT |
| ANGLE TO SUPPORT | ||
| 156 | A 6254900001 | EXHAUST MUFFLER |
| 156 | A 6254900201 | EXHAUST MUFFLER |
| 163 | A 6254900440 | BRACKET |
| EXHAUST MUFFLER | ||
| 163 | A 6254900040 | BRACKET |
| EXHAUST MUFFLER | ||
| 163 | A 6254900340 | BRACKET |
| EXHAUST MUFFLER | ||
| 164 | A 6254910241 | BRACKET |
| Repalced by: A 3434290940 | ||
| 164 | A 3434290940 | BRACKET |
| EXHAUST MUFFLER,LEFT FRONT | ||
| 165 | A 6254910141 | BRACKET |
| EXHAUST MUFFLER,LEFT REAR | ||
| 166 | A 6254900240 | BRACKET |
| EXHAUST MUFFLER,RIGHT FRONT | ||
| 167 | A 6254900140 | BRACKET |
| EXHAUST MUFFLER,RIGHT REAR | ||
| 168 | A 6174910340 | CLAMP |
| Repalced by: A 6174910540 | ||
| 168 | A 6174910540 | CLAMP |
| EXHAUST MUFFLER | ||
| 170 | N 000933010128 | SCREW |
| BRACKET TO CROSS CONNECTION STRUT | ||
| 170 | N 000933010128 | SCREW |
| BRACKET TO SUPPORT | ||
| 172 | N 000961014028 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 174 | N 000933010094 | SCREW |
| CLAMP TO BRACKET | ||
| 177 | N 912004010102 | LOCK WASHER |
| BRACKET TO CROSS CONNECTION STRUT | ||
| 184 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 184 | N 910113010000 | NUT |
| BRACKET TO CROSS CONNECTION STRUT | ||
| 184 | N 910113010000 | NUT |
| BRACKET TO SUPPORT | ||
| 184 | N 910113010000 | NUT |
| CLAMP TO BRACKET | ||
| 187 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 187 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 191 | A 6254900042 | STRAP |
| EXHAUST MUFFLER | ||
| 198 | N 000934010014 | NUT |
| STRAP TO BRACKET | ||
| 205 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 205 | N 910113010000 | NUT |
| STRAP TO BRACKET | ||
| 212 | A 6254920204 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 212 | A 6254920004 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 212 | A 6254920104 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 215 | A 6254920804 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 219 | A 0004900563 | FLAP |
| (RAIN DEFLECTOR) | ||
| 219 | A 0004900663 | FLAP |
| EXHAUST OUTLET | ||
| 226 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 226 | N 071555090502 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 226 | N 071555104501 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 233 | N 000933010157 | SCREW |
| EXHAUST PIPE TO MUFFLER | ||
| 240 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 240 | N 910113010000 | NUT |
| EXHAUST PIPE TO MUFFLER | ||
| 247 | A 6254910030 | PROTECTIVE PLATE |
| STRAIGHT | ||
| 254 | A 6254910130 | PROTECTIVE PLATE |
| BENT | ||
| 258 | A 6254910230 | PROTECTIVE PLATE |
| INSIDE | ||
| 258 | A 6254900030 | PROTECTIVE PLATE |
| EXHAUST MUFFLER | ||
| 259 | A 6254911730 | PROTECTIVE PLATE |
| EXHAUST MUFFLER | ||
| 260 | N 000933008301 | SCREW |
| Repalced by: A 0079900801 | ||
| 260 | A 0079900801 | SCREW |
| PROTECTIVE PLATE TO PROTECTIVE PLATE | ||
| M 8X14 | ||
| 261 | N 000933008145 | SCREW |
| PROTECTIVE PLATE TO BRACKET | ||
| 261 | N 000933008301 | SCREW |
| Repalced by: A 0079900801 | ||
| 261 | A 0079900801 | SCREW |
| PROTECTIVE PLATE TO BRACKET | ||
| 268 | N 007349008003 | WASHER |
| PROTECTIVE PLATE TO BRACKET | ||
| 268 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 268 | N 009021008213 | WASHER |
| PROTECTIVE PLATE TO BRACKET | ||
| 275 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 275 | N 913004008001 | NUT |
| PROTECTIVE PLATE TO BRACKET | ||
| 275 | N 913004008001 | NUT |
| PROTECTIVE PLATE TO PROTECTIVE PLATE | ||
| M 8 | ||
| 280 | A 6258910008 | COVERING |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 285 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 285 | N 304017008021 | SCREW |
| COVERING TO CONSOLE | ||
| 290 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 290 | N 913004008001 | NUT |
| COVERING TO CONSOLE | ||
