Transporto priemonė: 3250 AF; VIN numerio dalis: 625387
Grupė: 41 PROPELLER SHAFT

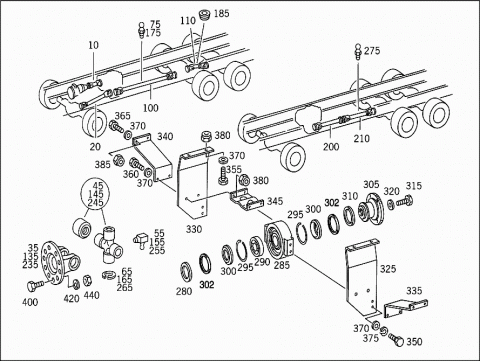

41215
# Kodas Pavadinimas
010 A 3074102702 PROPELLER SHAFT
Repalced by: A 3854108807
010 A 3854108807 PROPELLER SHAFT
FROM CONVERTER LOCK-UP COUPLING TO TRANSMISSION
460 MM
010 A 3954104702 PROPELLER SHAFT
Repalced by: A 3954100607
010 A 3954100607 PROPELLER SHAFT
FROM TRANSMISSION TO TRANSFER CASE
650 MM
020 A 3894101502 PROPELLER SHAFT
FROM TRANSFER CASE TO FRONT AXLE
1490 MM
020 A 3894101802 PROPELLER SHAFT
FROM TRANSFER CASE TO FRONT AXLE
1791 MM
035 A 3854111711 DRIVE FLANGE
FROM CONVERTER LOCK-UP COUPLING TO TRANSMISSION
035 A 3954110511 DRIVE FLANGE
Repalced by: A 3954110911
035 A 3954110911 DRIVE FLANGE
Repalced by: A 3954111011
035 A 3954111011 DRIVE FLANGE
Repalced by: A 3954111211
035 A 3954111211 DRIVE FLANGE
FROM TRANSMISSION TO TRANSFER CASE
035 A 3874110011 DRIVE FLANGE
Repalced by: A 3894110511
035 A 3894110511 DRIVE FLANGE
FROM TRANSFER CASE TO FRONT AXLE
165 MM
035 A 3954110811 DRIVE FLANGE
FROM TRANSFER CASE TO FRONT AXLE
035 A 3894110611 DRIVE FLANGE
FROM TRANSFER CASE TO FRONT AXLE
180 MM
045 A 3814100231 UNIVERSAL JOINT CROSS
Repalced by: A 9734100031
045 A 9734100031 UNIVERSAL JOINT CROSS
FROM CONVERTER LOCK-UP COUPLING TO TRANSMISSION
045 A 6204100031 UNIVERSAL JOINT CROSS
Repalced by: A 9404100031
045 A 9404100031 UNIVERSAL JOINT CROSS
FROM TRANSMISSION TO TRANSFER CASE
045 A 0004100231 UNIVERSAL JOINT CROSS
Repalced by: A 0004101628
045 A 0004101628 UNIVERSAL JOINT
Repalced by: A 9424100131
045 A 9424100131 UNIVERSAL JOINT CROSS
FROM TRANSFER CASE TO FRONT AXLE
045 A 0004100431 UNIVERSAL JOINT CROSS
FROM TRANSFER CASE TO FRONT AXLE
055 N 071412008302 GREASE NIPPLE
065 A 0069940841 LOCK
AS REQUIRED
1.70 MM,TO 381 410 02 31
065 N 000472048000 LOCK RING
AS REQUIRED
1.75 MM,TO 381 410 02 31
065 A 0069941241 LOCK
AS REQUIRED
1.80 MM,TO 381 410 02 31
065 A 0069941441 LOCK
AS REQUIRED
1.85 MM,TO 381 410 02 31
065 A 0039943641 LOCK
AS REQUIRED
1.90 MM,TO 381 410 02 31
065 A 0069943141 LOCK
AS REQUIRED
2.00 MM,TO 620 410 00 31
065 A 0069943541 LOCK
AS REQUIRED
2.10 MM,TO 620 410 00 31
065 A 0069943941 LOCK
AS REQUIRED
2.20 MM,TO 620 410 00 31
065 A 0069941941 LOCK
AS REQUIRED
2.00 MM,TO 000 410 02 31
065 A 0069942341 LOCK
AS REQUIRED
2.10 MM,TO 000 410 02 31
065 A 0069942741 LOCK
AS REQUIRED
2.20 MM,TO 000 410 02 31
065 N 000472072000 LOCK RING
AS REQUIRED
2.50 MM,TO 000 410 04 31
065 A 0059948941 LOCK
AS REQUIRED
2.65 MM,TO 000 410 04 31
065 A 0059949041 LOCK
AS REQUIRED
2.80 MM,TO 000 410 04 31
065 A 0059949141 LOCK
AS REQUIRED
3.00 MM,TO 000 410 04 31
075 N 071412008101 GREASE NIPPLE
Repalced by: N 071412008102
075 N 071412008102 GREASE NIPPLE
FROM CONVERTER LOCK-UP COUPLING TO TRANSMISSION
075 N 071412008102 GREASE NIPPLE
FROM TRANSFER CASE TO FRONT AXLE
100 A 3934100002 PROPELLER SHAFT
FROM TRANSFER CASE TO REAR AXLE I
900 MM
100 A 3934100402 PROPELLER SHAFT
FROM TRANSFER CASE TO REAR AXLE I
670 MM
110 A 3894101002 PROPELLER SHAFT
FROM REAR AXLE I TO REAR AXLE II
780 MM
135 A 0004110211 DRIVE FLANGE
FROM TRANSFER CASE TO REAR AXLE I
135 A 3894110011 DRIVE FLANGE
Repalced by: A 3894110711
135 A 3894110711 DRIVE FLANGE
FRONT
165 MM
135 A 3894110711 DRIVE FLANGE
FROM REAR AXLE I TO REAR AXLE II
165 MM
135 A 3954110011 DRIVE FLANGE
Repalced by: A 3894110811
135 A 3894110811 DRIVE FLANGE
REAR
180 MM
135 A 3894110811 DRIVE FLANGE
FROM REAR AXLE I TO REAR AXLE II
180 MM
145 A 0004100431 UNIVERSAL JOINT CROSS
FROM TRANSFER CASE TO REAR AXLE I
145 A 0004100231 UNIVERSAL JOINT CROSS
Repalced by: A 0004101628
145 A 0004101628 UNIVERSAL JOINT
Repalced by: A 9424100131
145 A 9424100131 UNIVERSAL JOINT CROSS
FROM REAR AXLE I TO REAR AXLE II
155 N 071412010300 GREASE NIPPLE
TO 000 410 04 31
155 N 071412008302 GREASE NIPPLE
TO 000 410 02 31
165 N 000472072000 LOCK RING
AS REQUIRED
2.50 MM,TO 000 410 04 31
165 A 0059948941 LOCK
AS REQUIRED
2.65 MM,TO 000 410 04 31
165 A 0059949041 LOCK
AS REQUIRED
2.80 MM,TO 000 410 04 31
165 A 0059949141 LOCK
AS REQUIRED
3.00 MM,TO 000 410 04 31
165 A 0069941941 LOCK
AS REQUIRED
2.00 MM,TO 000 410 02 31
165 A 0069942341 LOCK
AS REQUIRED
2.10 MM,TO 000 410 02 31
165 A 0069942741 LOCK
AS REQUIRED
2.20 MM,TO 000 410 02 31
175 N 071412010100 GREASE NIPPLE
FROM TRANSFER CASE TO REAR AXLE I
185 N 000906008001 SCREW PLUG
FROM REAR AXLE I TO REAR AXLE II
200 A 6454100304 PROPELLER SHAFT
FROM TRANSFER CASE TO INTERMEDIATE BEARING,REAR AXLE I
1358 MM
200 A 6564102604 PROPELLER SHAFT
Repalced by: A 6564104204
200 A 6564104204 PROPELLER SHAFT
FROM TRANSFER CASE TO INTERMEDIATE BEARING,REAR AXLE I
1350 MM
210 A 6454102202 PROPELLER SHAFT
FROM INTERMEDIATE BEARING TO REAR AXLE I
2194 MM
210 A 6564102102 PROPELLER SHAFT
Repalced by: A 6564106402
210 A 6564106402 PROPELLER SHAFT
FROM INTERMEDIATE BEARING TO REAR AXLE I
2216 MM
235 A 6454110011 DRIVE FLANGE
235 A 6454110011 DRIVE FLANGE
235 A 6564110011 DRIVE FLANGE
Repalced by: A 6564110311
235 A 6564110311 DRIVE FLANGE
235 A 6564110311 DRIVE FLANGE
245 A 6454100131 UNIVERSAL JOINT CROSS
WITH BUSHINGS
245 A 6454100131 UNIVERSAL JOINT CROSS
WITH BUSHINGS
245 A 6564100131 UNIVERSAL JOINT CROSS
Repalced by: A 9424100031
245 A 9424100031 UNIVERSAL JOINT CROSS
MAINTENANCE-FREE
245 A 9424100031 UNIVERSAL JOINT CROSS
WITH BUSHINGS
255 N 071412008302 GREASE NIPPLE
265 A 0069944241 LOCK
AS REQUIRED
2.50 MM
265 A 0069944241 LOCK
AS REQUIRED
2.50 MM
265 A 0069944641 LOCK
AS REQUIRED
2.60 MM
265 A 0069944641 LOCK
AS REQUIRED
2.60 MM
265 A 0069945041 LOCK
AS REQUIRED
2.70 MM
265 A 0069945041 LOCK
AS REQUIRED
2.70 MM
265 A 0069945441 LOCK
AS REQUIRED
2.80 MM
265 A 0069945441 LOCK
AS REQUIRED
2.80 MM
265 A 0069945841 LOCK
AS REQUIRED
2.90 MM
265 A 0069945841 LOCK
AS REQUIRED
2.90 MM
265 A 0069945941 LOCK
AS REQUIRED
3.00 MM
265 A 0069945941 LOCK
AS REQUIRED
3.00 MM
265 A 6564110673 LOCK
AS REQUIRED
3.125 MM
265 A 6564110673 LOCK
AS REQUIRED
3.125 MM
265 A 6564110973 LOCK
AS REQUIRED
3.200 MM
265 A 6564110973 LOCK
AS REQUIRED
3.200 MM
265 A 6564111473 LOCK
AS REQUIRED
3.250 MM
265 A 6564111473 LOCK
AS REQUIRED
3.250 MM
275 N 071412008101 GREASE NIPPLE
Repalced by: N 071412008102
275 N 071412008102 GREASE NIPPLE
FROM INTERMEDIATE BEARING TO REAR AXLE I
280 A 3894130061 PROTECTIVE CAP
280 A 3954130061 PROTECTIVE CAP
285 A 3954100022 INTERMEDIATE BEARING
Repalced by: A 3954100622
285 A 3954100622 INTERMEDIATE BEARING
Repalced by: A 6554100022
285 A 6554100022 INTERMEDIATE BEARING
PROPELLER SHAFT
290 A 0029819225 BALL BEARING
290 A 0029819225 BALL BEARING
290 A 0029819325 BALL BEARING
290 A 0029819325 BALL BEARING
295 N 912009110200 SNAP RING
300 A 3874130261 PROTECTIVE CAP
302 A 6554110052 SPACER WASHER
305 A 6454100030 CENTERING FLANGE
Repalced by: A 6454110046
305 A 6454110046 FLANGE
PROPELLER SHAFT BEARING
310 A 3894130061 PROTECTIVE CAP
310 A 3954130061 PROTECTIVE CAP
315 A 3899900019 SCREW
FOLLOWER FLANGE TO PROPELLER SHAFT
320 A 3894110062 THRUST WASHER
FOLLOWER FLANGE TO PROPELLER SHAFT
325 A 6254130142 BRACKET
PROPELLER SHAFT BEARING,LEFT
330 A 6254130042 BRACKET
PROPELLER SHAFT BEARING,RIGHT
335 A 6254130111 REINFORCEMENT
PROPELLER SHAFT BEARING,LEFT
340 A 6254130011 REINFORCEMENT
PROPELLER SHAFT BEARING,RIGHT
345 A 3954130011 REINFORCEMENT
PROPELLER SHAFT BEARING
350 N 000961012106 SCREW
BRACKET TO PROPELLER SHAFT BEARING
355 N 000961012108 SCREW
BRACKET TO CROSS MEMBER
360 N 000961012205 SCREW
REINFORCEMENT TO PROPELLER SHAFT BEARING BRACKET
365 N 000961014054 SCREW
REINFORCEMENT TO SIDE MEMBER
370 A 3299900040 WASHER
Repalced by: A 1232420366
370 A 1232420366 WASHER
375 N 912004012100 LOCK WASHER
380 N 913001012000 NUT
385 N 913004014002 NUT
Repalced by: N 910113014001
385 N 910113014001 NUT
REINFORCEMENT TO SIDE MEMBER
400 A 3609901901 SCREW
Repalced by: A 3609903001
400 A 3609903001 SCREW
PROPELLER SHAFT TO CONVERTER LOCK-UP COUPLING AND TO TRANSMISSION
M 12X36
400 N 000960014237 SCREW
PROPELLER SHAFTS TO INTERMEDIATE BEARING,TRANSFER CASE AND REAR AXLE I
400 A 0029909901 SCREW
Repalced by: A 3959900501
400 A 3959900501 SCREW
PROPELLER SHAFT TO TRANSFER CASE AND TO FRONT AXLE
M 16X45
400 A 3959900501 SCREW
PROPELLER SHAFT TO REAR AXLES I AND II
M 16X45
400 A 0049900601 SCREW
Repalced by: A 3959900501
400 A 3959900501 SCREW
PROPELLER SHAFT TO REAR AXLE I,FRONT
M 16X50
400 N 000960016249 SCREW
Repalced by: N 308676016004
400 N 308676016004 SCREW
PROPELLER SHAFT TO TRANSFER CASE
M 16X55
420 N 912004012100 LOCK WASHER
420 N 912004014100 LOCK WASHER
420 N 912004016101 LOCK WASHER
440 N 000934012034 NUT
440 N 000934014020 NUT
440 N 000934016013 NUT
Repalced by: N 308673016001
440 N 308673016001 NUT
