Transporto priemonė: 3250 AF; VIN numerio dalis: 625387

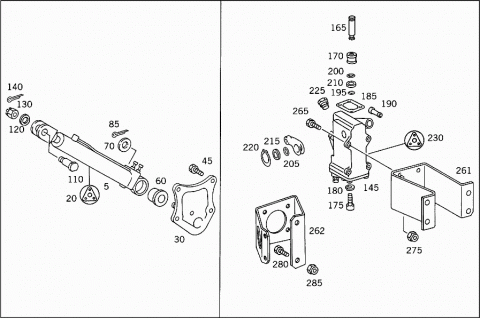

Grupė: 55 SPECIAL INSTALLATIONS - 001 HYDRAULIC SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0005537805 | CYLINDER |
| Repalced by: A 0015534705 | ||
| 005 | A 0015534705 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| WEBER | ||
| 005 | A 0005538905 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| HUNGER | ||
| 020 | A 0005864955 | REPAIR KIT |
| Repalced by: A 0005500107 | ||
| 020 | A 0005500107 | GASKET KIT |
| Repalced by: A 0005500507 | ||
| 020 | A 0005500507 | GASKET KIT |
| HYDRAULIC CYLINDER | ||
| WEBER, TO 000 553 78 05 | ||
| 020 | A 0005501607 | GASKET KIT |
| HYDRAULIC CYLINDER | ||
| WEBER,TO 001 553 47 05 | ||
| 020 | A 0005502007 | GASKET KIT |
| HYDRAULIC CYLINDER | ||
| HUNGER,TO 000 553 89 05 | ||
| 030 | A 6205531038 | BEARING BRACKET |
| HYDRAULIC CYLINDER | ||
| 045 | N 000960016249 | SCREW |
| Repalced by: N 308676016004 | ||
| 045 | N 308676016004 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 16X55 | ||
| 045 | N 000960016261 | SCREW |
| Repalced by: N 308676016014 | ||
| 045 | N 308676016014 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 16X65 | ||
| 060 | A 6208910417 | BUSHING |
| HYDRAULIC CYLINDER | ||
| 070 | A 6205530176 | WASHER |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 085 | N 000094006327 | COTTER PIN |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 110 | A 6208910057 | PIN |
| HYDRAULIC CYLINDER TO SWIVEL ARM | ||
| 120 | N 001440014002 | WASHER |
| HYDRAULIC CYLINDER TO SWIVEL ARM | ||
| 130 | N 000979014007 | NUT |
| HYDRAULIC CYLINDER TO SWIVEL ARM | ||
| 140 | N 000094003226 | COTTER PIN |
| HYDRAULIC CYLINDER TO SWIVEL ARM | ||
| 145 | A 0005534001 | PUMP |
| Repalced by: A 0005537901 | ||
| 145 | A 0005537901 | PUMP |
| WEBER | ||
| 145 | A 0005534301 | PUMP |
| Repalced by: A 0005536801 | ||
| 145 | A 0005536801 | PUMP |
| Repalced by: A 0005537901 | ||
| 145 | A 0005537901 | PUMP |
| WEBER | ||
| 165 | A 0005531390 | PISTON |
| Repalced by: A 0005531990 | ||
| 165 | A 0005531990 | PISTON |
| WEBER,TO 000 553 40 01 | ||
| 165 | A 0005531890 | PISTON |
| WEBER,TO 000 553 79 01 | ||
| 170 | A 0005500155 | VALVE |
| Repalced by: A 0005502955 | ||
| 170 | A 0005502955 | VALVE |
| WEBER,TO 000 553 40 01 | ||
| 170 | A 0005503455 | VALVE |
| WEBER,TO 000 553 79 01 | ||
| 175 | N 000912008111 | SCREW |
| Repalced by: N 000000000190 | ||
| 175 | N 000000000190 | SCREW |
| BOX COVER | ||
| WEBER,TO 000 553 79 01 | ||
| 175 | N 000912008114 | SCREW |
| Repalced by: N 000912008201 | ||
| 175 | N 000912008201 | SCREW |
| BOX COVER | ||
| HUNGER,TO 000 553 68 01, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 000 553 43 01 | ||
| 180 | N 912004008102 | LOCK WASHER |
| BOX COVER | ||
| WEBER,TO 000 553 79 01 | ||
| 185 | A 0005531280 | GASKET |
| BOX COVER | ||
| HUNGER,TO 000 553 68 01, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 000 553 43 01 | ||
| 190 | A 0005530403 | FILTER |
| WEBER,TO 000 553 79 01 | ||
| 190 | A 0005531203 | FILTER |
| SAUER-HUNGER,TO 000 553 68 01, | ||
| 195 | A 0059977448 | SEAL RING |
| 8X1 MM,HUNGER,TO 000 553 43 01 | ||
| 200 | A 0069973748 | SEAL RING |
| 8X1 MM,HUNGER,TO 000 553 43 01 | ||
| 205 | A 0069973848 | SEAL RING |
| 19X3 MM HUNGER,TO 000 553 43 01 | ||
| 210 | A 0069973948 | SEAL RING |
| 19X3 MM HUNGER,TO 000 553 43 01 | ||
| 215 | N 000988020011 | FITTED WASHER |
| WEBER,TO 000 553 79 01 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| HUNGER,TO 000 553 68 01, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 000 553 43 01 | ||
| 220 | N 000471020001 | LOCK RING |
| WEBER,TO 000 553 79 01, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| HUNGER,TO 000 553 68 01 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 000 553 43 01 | ||
| 225 | A 0009900410 | SCREW |
| Repalced by: A 0009901310 | ||
| 225 | A 0009901310 | SCREW |
| Repalced by: A 0009901610 | ||
| 225 | A 0009901610 | SCREW |
| OIL FILLING | ||
| WEBER,TO 000 553 79 01 | ||
| 225 | A 0009901510 | SCREW |
| OIL REFILLING | ||
| HUNGER,TO 000 553 68 01, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 000 553 43 01 | ||
| 230 | A 0005502883 | GASKET KIT |
| HAND PUMP | ||
| WEBER,TO 000 553 40 01 | ||
| 230 | A 0005502783 | GASKET KIT |
| HAND PUMP | ||
| WEBER,TO 000 553 79 01 | ||
| 230 | A 0005502983 | GASKET KIT |
| HAND PUMP | ||
| HUNGER,TO 000 553 68 01 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 000 553 43 01 | ||
| 261 | A 6255530040 | BRACKET |
| HAND PUMP | ||
| 262 | A 6255530240 | BRACKET |
| HAND PUMP | ||
| 265 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 265 | N 304017010002 | SCREW |
| HAND PUMP TO BRACKET | ||
| 275 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 275 | N 910113010000 | NUT |
| HAND PUMP TO BRACKET | ||
| 280 | N 000961014054 | SCREW |
| BRACKET TO FRAME | ||
| 285 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 285 | N 910113014001 | NUT |
| BRACKET TO FRAME | ||

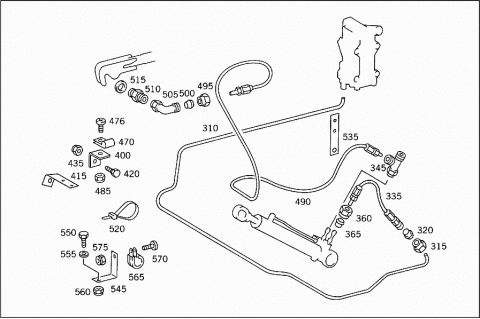

| 310 | A 0004290001 | LINE |
| FROM HAND PUMP TO HYDRAULIC CYLINDER | ||
| 6 MM | ||
| 315 | N 915017006100 | UNION NUT |
| 320 | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 320 | A 0019901667 | SEAL CONE |
| 335 | A 3875530182 | HOSE |
| FROM HYDRAULIC LINE TO CYLINDER | ||
| 345 | A 0019900170 | T-FITTING |
| HAND PUMP HOSE & TRANSMISSION SHIFTING ROD TO CYLINDER | ||
| 360 | N 915017006100 | UNION NUT |
| HIGH PRESSURE HOSE TO HYDRAULIC CYLINDER | ||
| 365 | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 365 | A 0019901667 | SEAL CONE |
| HIGH PRESSURE HOSE TO HYDRAULIC CYLINDER | ||
| 400 | A 3954280043 | ANGLE |
| Repalced by: A 3604280243 | ||
| 400 | A 3604280243 | ANGLE |
| OIL LINE MOUNTING | ||
| 415 | A 3875015420 | BRACKET |
| Repalced by: A 6454310740 | ||
| 415 | A 6454310740 | BRACKET |
| OIL LINE MOUNTING | ||
| 420 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 420 | N 304017008027 | SCREW |
| BRACKET TO FRAME | ||
| 435 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 435 | N 913004008001 | NUT |
| BRACKET TO FRAME | ||
| 470 | A 3609950101 | CLAMP |
| OIL DELIVERY LINE TO BRACKET | ||
| 476 | N 007985006145 | SCREW |
| Repalced by: N 007985006581 | ||
| 476 | N 007985006581 | SCREW |
| OIL DELIVERY LINE TO BRACKET | ||
| 485 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 485 | N 913004006001 | NUT |
| OIL DELIVERY LINE TO BRACKET | ||
| 490 | A 6205530082 | HOSE |
| Repalced by: A 3805530082 | ||
| 490 | A 3805530082 | HOSE |
| FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL | ||
| 495 | N 915017006100 | UNION NUT |
| 500 | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 500 | A 0019901667 | SEAL CONE |
| 505 | N 003952006102 | FITTING |
| Repalced by: A 0019909871 | ||
| 505 | A 0019909871 | ELBOW FITTING |
| HOSE TO TRANSMISSION-SHIFT ROD SHIFTING CYLINDER | ||
| 510 | N 003901006004 | SCREW-IN FITTING |
| Repalced by: A 0029978472 | ||
| 510 | A 0029978472 | FITTING |
| HOSE TO TRANSMISSION-SHIFT ROD SHIFTING CYLINDER | ||
| 515 | N 007603010404 | SEAL RING |
| HOSE TO TRANSMISSION-SHIFT ROD SHIFTING CYLINDER | ||
| 520 | A 0019978490 | LOOM TIE |
| HIGH PRESSURE HOSE TO CAB | ||
| 376 MM | ||
| 535 | A 3872950440 | BRACKET |
| Repalced by: A 6174290040 | ||
| 535 | A 6174290040 | BRACKET |
| Repalced by: A 3604292940 | ||
| 535 | A 3604292940 | BRACKET |
| HIGH PRESSURE HOSE | ||
| 545 | A 3815530640 | BRACKET |
| HIGH PRESSURE HOSE | ||
| 550 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 550 | N 304017008021 | SCREW |
| BRACKET TO BUMBER STRUT | ||
| 550 | N 000933010145 | SCREW |
| BRACKET TO FRAME | ||
| 555 | N 007349008003 | WASHER |
| BRACKET TO BUMBER STRUT | ||
| 555 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 555 | N 000125010532 | WASHER |
| BRACKET TO FRAME | ||
| 560 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 560 | N 913004008001 | NUT |
| BRACKET TO BUMBER STRUT | ||
| 560 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 560 | N 910113010000 | NUT |
| BRACKET TO FRAME | ||
| 565 | N 916016008200 | CLAMP |
| Repalced by: N 000000000319 | ||
| 565 | N 000000000319 | CLAMP |
| HIGH PRESSURE HOSE TO BRACKET | ||
| 570 | N 007985006145 | SCREW |
| Repalced by: N 007985006581 | ||
| 570 | N 007985006581 | SCREW |
| HIGH PRESSURE HOSE TO BRACKET | ||
| 575 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 575 | N 913004006001 | NUT |
| HIGH PRESSURE HOSE TO BRACKET | ||

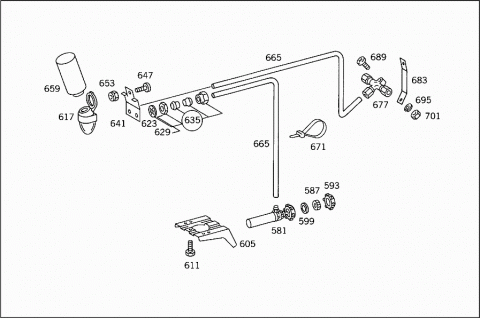

| T YYYYYYYYYYYY | PART NAME MISSING | |
| STARTER PILOT | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| 581 | A 0005502383 | PUMP |
| PRIMING FUEL | ||
| 587 | A 0005550372 | NUT |
| 593 | A 0005550440 | HANDLE |
| 599 | A 3359900240 | WASHER |
| STARTER PILOT PUMP TO WINDOW SILL | ||
| 605 | A 3813020240 | BRACKET |
| 611 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 611 | N 304017006018 | SCREW |
| BRACKET TO WINDOW LEVEL GIRDER | ||
| 617 | A 0005501404 | PRIMER CAPSULE |
| PRIMING FUEL | ||
| 623 | N 006798008101 | SERRATED WASHER |
| 629 | N 000934008021 | NUT |
| 635 | A 0009909454 | NUT |
| REPAIR KIT | ||
| 641 | A 3855550040 | BRACKET |
| PRIMER CAPSULE | ||
| 647 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 647 | N 000000001146 | SCREW |
| BRACKET MOUNTING | ||
| M 6X16 | ||
| 653 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 653 | N 913004006001 | NUT |
| BRACKET MOUNTING | ||
| 659 | A 0005550010 | FILLING CYLINDER |
| PRIMING FUEL | ||
| 665 | A 3359972282 | HOSE |
| PUMP,PRIMER CAPSULE,ENGINE | ||
| 671 | A 0019978390 | LOOM TIE |
| TO MOUNT PLASTIC PIPING | ||
| 677 | A 0009909170 | T-FITTING |
| AT BRACKET | ||
| 683 | A 3855550140 | BRACKET |
| Repalced by: A 3604293140 | ||
| 683 | A 3604293140 | BRACKET |
| T-FITTING | ||
| 689 | N 007985004159 | SCREW |
| T-FITTING TO BRACKET | ||
| 695 | N 912004004102 | LOCK WASHER |
| T-FITTING TO BRACKET | ||
| 701 | N 000439004102 | NUT |
| T-FITTING TO BRACKET | ||
