Transporto priemonė: 3250 AF; VIN numerio dalis: 625387
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |

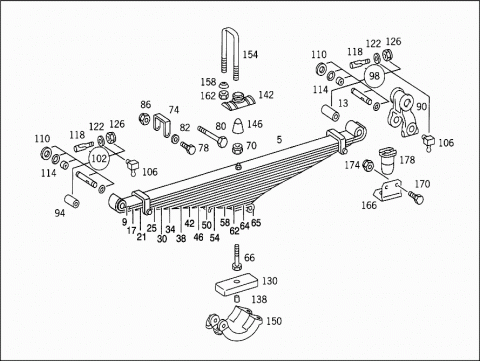

| FRONT AXLE | ||
| 005 | A 3953200302 | FRONT SPRING |
| (TRAPEZOIDAL SPRING);NUMBER OF LEAVES: | ||
| "13" | ||
| 005 | A 6213200002 | FRONT SPRING |
| (TRAPEZOIDAL SPRING);NUMBER OF LEAVES: | ||
| "14" | ||
| 005 | A 6213200002 | FRONT SPRING |
| (TRAPEZOIDAL SPRING);NUMBER OF LEAVES: | ||
| "14" | ||
| 005 | A 6253200402 | FRONT SPRING |
| Repalced by: A 6253202302 | ||
| 005 | A 6253202302 | FRONT SPRING |
| (TRAPEZOIDAL SPRING);NUMBER OF LEAVES: | ||
| "15" | ||
| 009 | A 3953200294 | SPRING LEAF |
| NO.1 | ||
| 009 | A 6213200094 | SPRING LEAF |
| NO.1 | ||
| 009 | A 6213200094 | SPRING LEAF |
| NO.1 | ||
| 009 | A 6253200294 | SPRING LEAF |
| Repalced by: A 6253200994 | ||
| 009 | A 6253200994 | SPRING LEAF |
| NO.1 | ||
| 013 | A 3043210150 | BUSHING |
| 013 | A 6203210050 | BUSHING |
| 017 | A 3953210212 | SPRING LEAF |
| NO.2 | ||
| 017 | A 6213210012 | SPRING LEAF |
| NO.2 | ||
| 017 | A 6213210012 | SPRING LEAF |
| NO.2 | ||
| 017 | A 6253210312 | SPRING LEAF |
| NO.2 | ||
| 021 | A 3953210113 | SPRING LEAF |
| NO.3 | ||
| 021 | A 6213210013 | SPRING LEAF |
| Repalced by: A 6593210513 | ||
| 021 | A 6593210513 | SPRING LEAF |
| NO.3 | ||
| 021 | A 6593210513 | SPRING LEAF |
| NO.3 | ||
| 021 | A 6253210313 | SPRING LEAF |
| NO.3 | ||
| 025 | A 3953210114 | SPRING LEAF |
| Repalced by: A 6563210214 | ||
| 025 | A 6563210214 | SPRING LEAF |
| NO.4 | ||
| 025 | A 6213210014 | SPRING LEAF |
| Repalced by: A 6593210514 | ||
| 025 | A 6593210514 | SPRING LEAF |
| NO.4 | ||
| 025 | A 6593210514 | SPRING LEAF |
| NO.4 | ||
| 025 | A 6253210314 | SPRING LEAF |
| NO.4 | ||
| 030 | A 3953210115 | SPRING LEAF |
| Repalced by: A 6563210215 | ||
| 030 | A 6563210215 | SPRING LEAF |
| NO.5 | ||
| 030 | A 6213210015 | SPRING LEAF |
| Repalced by: A 6593210415 | ||
| 030 | A 6593210415 | SPRING LEAF |
| NO.5 | ||
| 030 | A 6593210415 | SPRING LEAF |
| NO.5 | ||
| 030 | A 6253210215 | SPRING LEAF |
| NO.5 | ||
| 034 | A 3953210116 | SPRING LEAF |
| Repalced by: A 6563210216 | ||
| 034 | A 6563210216 | SPRING LEAF |
| NO.6 | ||
| 034 | A 6213210016 | SPRING LEAF |
| Repalced by: A 6593210416 | ||
| 034 | A 6593210416 | SPRING LEAF |
| NO.6 | ||
| 034 | A 6593210416 | SPRING LEAF |
| NO.6 | ||
| 034 | A 6253210216 | SPRING LEAF |
| NO.6 | ||
| 038 | A 3953210117 | SPRING LEAF |
| Repalced by: A 6563210217 | ||
| 038 | A 6563210217 | SPRING LEAF |
| NO.7 | ||
| 038 | A 6213210017 | SPRING LEAF |
| NO.7 | ||
| 038 | A 6213210017 | SPRING LEAF |
| NO.7 | ||
| 038 | A 6253210217 | SPRING LEAF |
| NO.7 | ||
| 042 | A 3953210118 | SPRING LEAF |
| Repalced by: A 6563210218 | ||
| 042 | A 6563210218 | SPRING LEAF |
| NO.8 | ||
| 042 | A 6213210018 | SPRING LEAF |
| Repalced by: A 6593210418 | ||
| 042 | A 6593210418 | SPRING LEAF |
| NO.8 | ||
| 042 | A 6593210418 | SPRING LEAF |
| NO.8 | ||
| 042 | A 6253210218 | SPRING LEAF |
| NO.8 | ||
| 046 | A 3953210119 | SPRING LEAF |
| Repalced by: A 6563210219 | ||
| 046 | A 6563210219 | SPRING LEAF |
| NO.9 | ||
| 046 | A 6213210019 | SPRING LEAF |
| Repalced by: A 6593210419 | ||
| 046 | A 6593210419 | SPRING LEAF |
| NO.9 | ||
| 046 | A 6593210419 | SPRING LEAF |
| NO.9 | ||
| 046 | A 6253210219 | SPRING LEAF |
| NO.9 | ||
| 050 | A 3953210120 | SPRING LEAF |
| Repalced by: A 6563210120 | ||
| 050 | A 6563210120 | SPRING LEAF |
| NO.10 | ||
| 050 | A 6213210020 | SPRING LEAF |
| Repalced by: A 6593210520 | ||
| 050 | A 6593210520 | SPRING LEAF |
| NO.10 | ||
| 050 | A 6593210520 | SPRING LEAF |
| NO.10 | ||
| 050 | A 6253210220 | SPRING LEAF |
| NO.10 | ||
| 054 | A 3953210121 | SPRING LEAF |
| Repalced by: A 6563210121 | ||
| 054 | A 6563210121 | SPRING LEAF |
| NO.11 | ||
| 054 | A 6213210021 | SPRING LEAF |
| Repalced by: A 6593210321 | ||
| 054 | A 6593210321 | SPRING LEAF |
| NO.11 | ||
| 054 | A 6593210321 | SPRING LEAF |
| NO.11 | ||
| 054 | A 6253210221 | SPRING LEAF |
| NO.11 | ||
| 058 | A 3953210122 | SPRING LEAF |
| NO.12 | ||
| 058 | A 6213210022 | SPRING LEAF |
| Repalced by: A 6593210322 | ||
| 058 | A 6593210322 | SPRING LEAF |
| NO.12 | ||
| 058 | A 6593210322 | SPRING LEAF |
| NO.12 | ||
| 058 | A 6253210222 | SPRING LEAF |
| NO.12 | ||
| 062 | A 3953210123 | SPRING LEAF |
| Repalced by: A 6563210123 | ||
| 062 | A 6563210123 | SPRING LEAF |
| NO.13 | ||
| 062 | A 6213210023 | SPRING LEAF |
| Repalced by: A 6593210223 | ||
| 062 | A 6593210223 | SPRING LEAF |
| NO.13 | ||
| 062 | A 6593210223 | SPRING LEAF |
| NO.13 | ||
| 062 | A 6253210223 | SPRING LEAF |
| NO.13 | ||
| 064 | A 6213210024 | SPRING LEAF |
| NO.14 | ||
| 064 | A 6213210024 | SPRING LEAF |
| NO.14 | ||
| 064 | A 6253210224 | SPRING LEAF |
| NO.14 | ||
| 065 | A 6253210225 | SPRING LEAF |
| NO.15 | ||
| 066 | A 3473210171 | SCREW |
| (SPRING BOLT) | ||
| 066 | A 6213210071 | SCREW |
| (SPRING BOLT) | ||
| 066 | A 6213210071 | SCREW |
| (SPRING BOLT) | ||
| 066 | A 6253210171 | SCREW |
| (SPRING BOLT) | ||
| 070 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 070 | N 910113014000 | NUT |
| SPRING BOLT | ||
| 074 | A 0023219233 | SPRING CLAMP |
| Repalced by: A 6203240833 | ||
| 074 | A 6203240833 | SPRING CLAMP |
| Repalced by: A 6203240533 | ||
| 074 | A 6203240533 | SPRING CLAMP |
| SPRING EYE,FRONT AND REAR | ||
| 074 | A 6203240933 | SPRING CLAMP |
| Repalced by: A 6553240033 | ||
| 074 | A 6553240033 | SPRING CLAMP |
| SPRING EYE,FRONT AND REAR | ||
| 074 | A 6553240033 | SPRING CLAMP |
| SPRING EYE,REAR | ||
| 074 | A 6203240833 | SPRING CLAMP |
| Repalced by: A 6203240533 | ||
| 074 | A 6203240533 | SPRING CLAMP |
| SPRING EYE,FRONT | ||
| 078 | N 000960012216 | SCREW |
| Repalced by: N 308765012007 | ||
| 078 | N 308765012007 | SCREW |
| FOR SPRING CLAMPS | ||
| 080 | N 000963012011 | SCREW |
| FOR SPRING CLAMPS | ||
| 082 | A 3039902440 | WASHER |
| FOR SPRING CLAMPS | ||
| 086 | N 910113012002 | NUT |
| FOR SPRING CLAMPS | ||
| 090 | A 3873200162 | SHACKLE |
| FRONT SPRING | ||
| 094 | A 3043210150 | BUSHING |
| 094 | A 6203210050 | BUSHING |
| 098 | A 3953200265 | SHACKLE PIN |
| (PARTS KIT), SPRING SHACKLE | ||
| 102 | A 3953200165 | SHACKLE PIN |
| (PARTS KIT) FRONT SPRING TO FRONT SPRING BRACKET | ||
| 106 | N 071412010300 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 110 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.0X25.0 MM | ||
| 110 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.2X25.0 MM | ||
| 110 | A 3523230576 | WASHER |
| AS REQUIRED | ||
| 4.3X25.0 MM | ||
| 114 | A 0029973140 | SEAL RING |
| SPRING SUSPENSION | ||
| 118 | A 3529900337 | BOLT |
| SPRING PIN LOCK | ||
| 122 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 122 | N 000125010532 | WASHER |
| SPRING PIN LOCK | ||
| 126 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 126 | N 910113010000 | NUT |
| SPRING PIN LOCK | ||
| 130 | A 3353310328 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 130 | A 3873310428 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 130 | A 6253310028 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 138 | A 3893230074 | PIN |
| Repalced by: A 6573310074 | ||
| 138 | A 6573310074 | PIN |
| FRONT SPRINGS TO FRONT AXLE | ||
| 142 | A 6253300071 | CLAMPING PLATE |
| Repalced by: A 6253300371 | ||
| 142 | A 6253300371 | CLAMPING PLATE |
| FRONT SPRING | ||
| 146 | A 3873310144 | RUBBER BUFFER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 150 | A 6213230220 | BEARING |
| FRONT AXLE,LEFT | ||
| 150 | A 6213230320 | BEARING |
| FRONT AXLE,RIGHT | ||
| 150 | A 6243220031 | PLATE |
| FRONT AXLE,LEFT | ||
| 150 | A 6243220131 | PLATE |
| FRONT AXLE,RIGHT | ||
| 154 | A 3873310225 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 430 MM | ||
| 154 | A 3873310225 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 430 MM | ||
| 154 | A 3873310325 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 450 MM | ||
| 158 | A 3859970126 | WASHER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 162 | N 000934020008 | NUT |
| Repalced by: N 308673020002 | ||
| 162 | N 308673020002 | NUT |
| Repalced by: N 308674020000 | ||
| 162 | N 308674020000 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 166 | A 3953210040 | BRACKET |
| HELPER SPRING | ||
| 170 | N 000933010145 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X35 | ||
| 170 | N 000933010145 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X35 | ||
| 170 | N 000933010094 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X40 | ||
| 170 | N 000933010094 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X40 | ||
| 174 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 174 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 178 | A 3833240008 | HELPER SPRING |
| FRONT SPRING STOP | ||

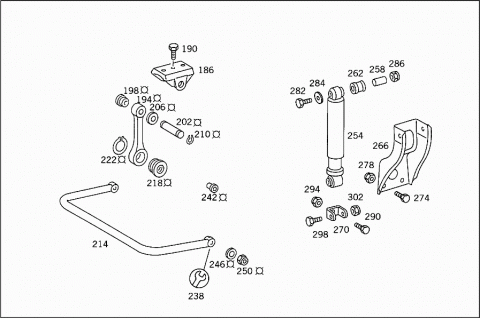

| 186 | A 6203230063 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 190 | N 000931008246 | SCREW |
| Repalced by: N 304017008028 | ||
| 190 | N 304017008028 | SCREW |
| BEARING BRACKET TO ENGINE MOUNTING CONSOLE | ||
| 194 | A 6203230016 | LINK |
| TORSION BAR,FRONT | ||
| 198 | A 0003232150 | BUSHING |
| LINK TO BEARING BRACKET | ||
| 202 | A 6203230074 | PIN |
| LINK TO BEARING BRACKET | ||
| 206 | A 3873230052 | SPACER WASHER |
| LINK TO BEARING BRACKET | ||
| 210 | N 000471032000 | LOCK RING |
| LINK TO BEARING BRACKET | ||
| 214 | A 3893230065 | TORSION BAR |
| FRONT AXLE | ||
| 218 | A 3873230385 | RUBBER MOUNTING |
| TORSION BAR | ||
| 222 | N 000983068000 | LOCK RING |
| TORSION BAR TO SHACKLE | ||
| 238 | A 6253200028 | REPAIR KIT |
| Repalced by: A 6243200028 | ||
| 238 | A 6243200028 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 242 | A 6203230050 | BUSHING |
| TORSION BAR TO BEARING BRACKET | ||
| 246 | N 007349017002 | WASHER |
| TORSION BAR TO BEARING BRACKET | ||
| Repalced by: N 007349017003 | ||
| 246 | N 007349017003 | WASHER |
| TORSION BAR TO BEARING BRACKET | ||
| 250 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 250 | N 910113016001 | NUT |
| TORSION BAR TO BEARING BRACKET | ||
| 254 | A 0033233100 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 254 | A 0033233400 | SHOCK ABSORBER |
| Repalced by: A 0043234700 | ||
| 254 | A 0043234700 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 254 | A 0033239700 | SHOCK ABSORBER |
| Repalced by: A 0063230700 | ||
| 254 | A 0043234400 | SHOCK ABSORBER |
| Repalced by: A 0063230700 | ||
| 254 | A 0063230700 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 258 | A 0003234350 | BUSHING |
| TOP AND BOTTOM | ||
| TO 003 323 31 00 | ||
| 258 | A 0003235250 | BUSHING |
| TOP AND BOTTOM | ||
| TO 003 323 97 00 | ||
| 258 | A 0003233150 | SPACER RING |
| TOP AND BOTTOM | ||
| TO 004 323 44 00,006 323 07 00 | ||
| 262 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 262 | A 0003233144 | RUBBER BUFFER |
| TOP AND BOTTOM | ||
| TO 003 323 31 00,003 323 97 00 | ||
| Repalced by: A 0003238085 | ||
| 262 | A 0003238085 | RUBBER MOUNTING |
| TOP AND BOTTOM | ||
| TO 003 323 31 00,003 323 97 00 | ||
| 262 | A 0003200144 | RUBBER BUFFER |
| TOP AND BOTTOM | ||
| TO 003 323 34 00,004 323 47 00 | ||
| 262 | A 0003232885 | RUBBER MOUNTING |
| TOP AND BOTTOM | ||
| TO 004 323 44 00,006 323 07 00 | ||
| 266 | A 6203230040 | BRACKET |
| Repalced by: A 6243230340 | ||
| 266 | A 6243230340 | BRACKET |
| SHOCK ABSORBER,TOP | ||
| 270 | A 3953230540 | BRACKET |
| SHOCK ABSORBER TO FRONT SPRING | ||
| 270 | A 3953230140 | BRACKET |
| SHOCK ABSORBER TO FRONT SPRING | ||
| 274 | N 000961014028 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 278 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 278 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 282 | N 000960016244 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 284 | N 007349017002 | WASHER |
| SHOCK ABSORBER TO TOP BRACKET | ||
| Repalced by: N 007349017003 | ||
| 284 | N 007349017003 | WASHER |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 286 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 286 | N 910113016002 | NUT |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 290 | N 000960022037 | SCREW |
| BRACKET TO SPRING | ||
| 290 | N 000960020075 | SCREW |
| Repalced by: N 000960020084 | ||
| 290 | N 000960020084 | SCREW |
| BRACKET TO SPRING | ||
| 294 | N 913004022003 | NUT |
| Repalced by: N 910113022001 | ||
| 294 | N 910113022001 | NUT |
| BRACKET TO SPRING | ||
| Repalced by: N 910113022000 | ||
| 294 | N 910113022000 | NUT |
| BRACKET TO SPRING | ||
| 294 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 294 | N 913004020003 | NUT |
| BRACKET TO SPRING | ||
| 298 | N 000960016164 | SCREW |
| Repalced by: N 000960016250 | ||
| 298 | N 000960016250 | SCREW |
| SHOCK ABSORBER TO BOTTOM BRACKET | ||
| 302 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 302 | N 910113016002 | NUT |
| SHOCK ABSORBER TO BOTTOM BRACKET | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |

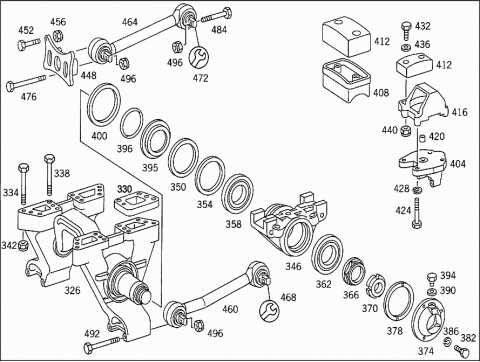

| REAR AXLES I AND II | ||
| 326 | A 3953200678 | CONSOLE |
| REAR SPRING CENTRAL BEARING | ||
| A 3933250284 | SHIM | |
| Repalced by: A 6253250684 | ||
| 330 | A 6253250684 | SHIM |
| CONSOLE TO FRAME | ||
| 334 | N 914142020103 | SCREW |
| Repalced by: A 0003250175 | ||
| 334 | A 0003250175 | SCREW |
| Repalced by: A 0003250775 | ||
| 334 | A 0003250775 | SCREW |
| CONSOLE TO FRAME | ||
| 334 | A 0003250775 | SCREW |
| 334 | N 914112020200 | SCREW |
| CONSOLE TO FRAME | ||
| 334 | N 914112020200 | SCREW |
| 334 | A 0003250975 | SCREW |
| CONSOLE TO FRAME | ||
| 334 | N 914112020202 | SCREW |
| CONSOLE TO FRAME | ||
| 338 | N 000960020123 | SCREW |
| Repalced by: A 0003250075 | ||
| 338 | A 0003250075 | SCREW |
| Repalced by: A 0003250475 | ||
| 338 | A 0003250475 | SCREW |
| CONSOLE TO FRAME | ||
| 338 | A 0003250475 | SCREW |
| CONSOLE TO FRAME | ||
| 338 | N 914112020204 | SCREW |
| CONSOLE TO FRAME | ||
| 338 | N 914112020204 | SCREW |
| CONSOLE TO FRAME | ||
| 338 | A 0003251275 | SCREW |
| CONSOLE TO FRAME | ||
| 338 | A 0003251775 | SCREW |
| CONSOLE TO FRAME | ||
| 342 | N 913012020000 | NUT |
| CONSOLE TO FRAME | ||
| 346 | A 3953250312 | SPRING SADDLE |
| REAR SPRING CENTRAL BEARING | ||
| 346 | A 6243250012 | SPRING SADDLE |
| Repalced by: A 6243250112 | ||
| 346 | A 6243250112 | SPRING SADDLE |
| REAR SPRING CENTRAL BEARING | ||
| 346 | A 6243250212 | SPRING SADDLE |
| REAR SPRING CENTRAL BEARING | ||
| 350 | A 0059978447 | SEAL RING |
| REAR SPRING CENTRAL BEARING | ||
| 354 | A 0099978846 | SEAL RING |
| REAR SPRING CENTRAL BEARING | ||
| 358 | A 0029815005 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 358 | A 0029815305 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 358 | A 0059819005 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 358 | A 0079810205 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 362 | A 0049810605 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 362 | A 0039816805 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 362 | A 0079810305 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 366 | A 3893252152 | SPACER WASHER |
| SPRING SADDLE TO CENTRAL BEARING BRACKET | ||
| 370 | A 3899905060 | NUT |
| SPRING SADDLE TO CENTRAL BEARING BRACKET | ||
| 374 | A 3893200684 | COVER |
| SPRING SADDLE | ||
| 378 | A 3893250280 | GASKET |
| COVER TO REAR SPRING SADDLE | ||
| 382 | N 000933008145 | SCREW |
| COVER TO REAR SPRING SADDLE | ||
| 386 | N 912004008102 | LOCK WASHER |
| COVER TO REAR SPRING SADDLE | ||
| 390 | N 007603014106 | SEAL RING |
| OIL REFILLING | ||
| 394 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 394 | N 007604014110 | SCREW PLUG |
| OIL REFILLING | ||
| 395 | A 3893251062 | THRUST WASHER |
| REAR SPRING CENTRAL BEARING | ||
| 396 | A 0079975948 | SEAL RING |
| SPRING SADDLE TO CENTRAL BEARING BRACKET | ||
| 400 | A 3953200067 | GASKET |
| SPRING SADDLE TO CENTRAL BEARING BRACKET | ||
| 404 | A 3953251109 | BEARING BRACKET |
| SPRING SEAT | ||
| 408 | A 3953250043 | BRACKET |
| SPRING SEAT | ||
| 408 | A 3953250043 | BRACKET |
| SPRING SEAT | ||
| 408 | A 6253250143 | BRACKET |
| SPRING SEAT | ||
| 412 | A 3433250044 | RUBBER BUFFER |
| SPRING SEAT | ||
| 416 | A 6243250819 | SPRING SEAT |
| REAR AXLE I,RIGHT | ||
| 416 | A 6243250819 | SPRING SEAT |
| REAR AXLE II,LEFT | ||
| 416 | A 6243250919 | SPRING SEAT |
| REAR AXLE I,LEFT | ||
| 416 | A 6243250919 | SPRING SEAT |
| REAR AXLE II,RIGHT | ||
| 416 | A 6243250619 | SPRING SEAT |
| Repalced by: A 6593250019 | ||
| 416 | A 6593250019 | SPRING SEAT |
| REAR AXLE I,RIGHT | ||
| 416 | A 6593250019 | SPRING SEAT |
| REAR AXLE II,LEFT | ||
| 416 | A 6243250719 | SPRING SEAT |
| Repalced by: A 6593250119 | ||
| 416 | A 6593250119 | SPRING SEAT |
| REAR AXLE I,LEFT | ||
| 416 | A 6593250119 | SPRING SEAT |
| REAR AXLE II,RIGHT | ||
| 420 | A 3893250074 | PIN |
| (CENTERING CONE) | ||
| 424 | A 3959900201 | SCREW |
| Repalced by: A 6599900001 | ||
| 424 | A 6599900001 | SCREW |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 428 | N 074361022351 | LOCK WASHER |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 432 | N 000931010272 | SCREW |
| BRACKET AND RUBBER MOUNTING TO BEARING BRACKET | ||
| 432 | N 000931010272 | SCREW |
| BRACKET AND RUBBER MOUNTING TO BEARING BRACKET | ||
| 432 | N 000931010388 | SCREW |
| BRACKET AND RUBBER MOUNTING TO BEARING BRACKET | ||
| 436 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 436 | N 007349010007 | WASHER |
| BRACKET AND RUBBER MOUNTING TO BEARING BRACKET | ||
| 440 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 440 | N 910113010000 | NUT |
| BRACKET AND RUBBER MOUNTING TO BEARING BRACKET | ||
| 448 | A 3953253609 | BEARING BRACKET |
| UPPER CONTROL ARM | ||
| 448 | A 3953253609 | BEARING BRACKET |
| UPPER CONTROL ARM | ||
| 448 | A 3953253909 | BEARING BRACKET |
| UPPER CONTROL ARM | ||
| 448 | A 3953253909 | BEARING BRACKET |
| UPPER CONTROL ARM | ||
| 448 | A 3953253709 | BEARING BRACKET |
| UPPER CONTROL ARM | ||
| 448 | A 3953253709 | BEARING BRACKET |
| UPPER CONTROL ARM | ||
| 448 | A 3953254009 | BEARING BRACKET |
| UPPER CONTROL ARM | ||
| 448 | A 3953254009 | BEARING BRACKET |
| UPPER CONTROL ARM | ||
| 448 | A 3953253609 | BEARING BRACKET |
| UPPER CONTROL ARM | ||
| 448 | A 3953253909 | BEARING BRACKET |
| UPPER CONTROL ARM | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR REAR AXLE I AND II CONTROL ARM BEARING BRACKETS,SEE GROUP: | ||
| "42" | ||
| 452 | N 308676014002 | SCREW |
| BEARING BRACKET TO CROSS MEMBER | ||
| 456 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 456 | N 910113014000 | NUT |
| BEARING BRACKET TO CROSS MEMBER | ||
| 460 | A 6243500406 | CONTROL ARM |
| BOTTOM | ||
| 460 | A 6243500406 | CONTROL ARM |
| BOTTOM | ||
| 460 | A 6593501506 | CONTROL ARM |
| BOTTOM | ||
| 460 | A 6593501506 | CONTROL ARM |
| BOTTOM | ||
| 460 | A 6593503806 | CONTROL ARM |
| BOTTOM | ||
| 460 | A 6593503806 | CONTROL ARM |
| BOTTOM | ||
| 460 | A 3953501206 | CONTROL ARM |
| BOTTOM | ||
| 460 | A 6593500906 | CONTROL ARM |
| BOTTOM | ||
| 460 | A 6593503206 | CONTROL ARM |
| BOTTOM | ||
| 464 | A 6243500506 | CONTROL ARM |
| TOP | ||
| 464 | A 6243500506 | CONTROL ARM |
| TOP | ||
| 464 | A 6593501606 | CONTROL ARM |
| TOP | ||
| 464 | A 6593501606 | CONTROL ARM |
| TOP | ||
| 464 | A 6593503906 | CONTROL ARM |
| TOP | ||
| 464 | A 6593503906 | CONTROL ARM |
| TOP | ||
| 464 | A 3953501306 | CONTROL ARM |
| TOP | ||
| 464 | A 6593501006 | CONTROL ARM |
| TOP | ||
| 464 | A 6593503306 | CONTROL ARM |
| TOP | ||
| 468 | A 0005861235 | REPAIR KIT |
| Repalced by: A 0003500413 | ||
| 468 | A 0003500413 | REPAIR KIT |
| LOWER CONTROL ARM | ||
| 472 | A 0003500113 | REPAIR KIT |
| UPPER CONTROL ARM | ||
| 476 | N 000960020080 | SCREW |
| UPPER CONTROL ARM TO FRAME | ||
| 476 | N 000960020080 | SCREW |
| LOWER CONTROL ARM TO CENTRAL BEARING BRACKET | ||
| 476 | N 308765020016 | SCREW |
| UPPER CONTROL ARM TO FRAME | ||
| 484 | N 000960020138 | SCREW |
| Repalced by: N 000960020078 | ||
| 484 | N 000960020078 | SCREW |
| UPPER CONTROL ARM TO REAR AXLE | ||
| 492 | N 000960020032 | SCREW |
| Repalced by: N 308765020012 | ||
| 492 | N 308765020012 | SCREW |
| LOWER CONTROL ARM TO REAR AXLE | ||
| 492 | N 308765020016 | SCREW |
| LOWER CONTROL ARM TO REAR AXLE | ||
| 496 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 496 | N 913004020003 | NUT |
| UPPER CONTROL ARM TO FRAME | ||
| 496 | N 910113020003 | NUT |
| UPPER CONTROL ARM TO FRAME | ||
| 496 | N 910113020003 | NUT |
| LOWER CONTROL ARM TO CENTRAL BEARING BRACKET | ||
| 496 | N 910113020003 | NUT |
| CONTROL ARM TO REAR AXLE | ||

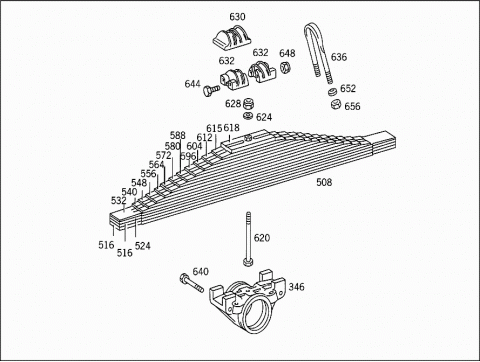

| 508 | A 6243200206 | REAR SPRING |
| (TRAPEZOIDAL SPRING);NUMBER OF LEAVES: | ||
| "13" | ||
| 508 | A 3953200506 | REAR SPRING |
| (TRAPEZOIDAL SPRING);NUMBER OF LEAVES: | ||
| "14" | ||
| 508 | A 6243200006 | REAR SPRING |
| (TRAPEZOIDAL SPRING);NUMBER OF LEAVES: | ||
| "16" | ||
| 516 | A 6243200193 | SPRING LEAF |
| NO.1,NO.2 | ||
| 516 | A 3953200593 | SPRING LEAF |
| NO.1,NO.2 | ||
| 516 | A 6243200293 | SPRING LEAF |
| NO.1,NO.2 | ||
| 524 | A 6243240213 | SPRING LEAF |
| NO.3 | ||
| 524 | A 3953240613 | SPRING LEAF |
| NO.3 | ||
| 524 | A 6243240013 | SPRING LEAF |
| NO.3 | ||
| 532 | A 6243240214 | SPRING LEAF |
| NO.4 | ||
| 532 | A 3953240514 | SPRING LEAF |
| NO.4 | ||
| 532 | A 6243240014 | SPRING LEAF |
| NO.4 | ||
| 540 | A 6243240215 | SPRING LEAF |
| NO.5 | ||
| 540 | A 3953240515 | SPRING LEAF |
| NO.5 | ||
| 540 | A 6243240015 | SPRING LEAF |
| NO.5 | ||
| 548 | A 6243240216 | SPRING LEAF |
| NO.6 | ||
| 548 | A 3953240516 | SPRING LEAF |
| NO.6 | ||
| 548 | A 6243240016 | SPRING LEAF |
| NO.6 | ||
| 556 | A 6243240217 | SPRING LEAF |
| NO.7 | ||
| 556 | A 3953240517 | SPRING LEAF |
| NO.7 | ||
| 556 | A 6243240017 | SPRING LEAF |
| NO.7 | ||
| 564 | A 6243240218 | SPRING LEAF |
| NO.8 | ||
| 564 | A 3953240518 | SPRING LEAF |
| NO.8 | ||
| 564 | A 6243240018 | SPRING LEAF |
| NO.8 | ||
| 572 | A 6243240219 | SPRING LEAF |
| NO.9 | ||
| 572 | A 3953240519 | SPRING LEAF |
| NO.9 | ||
| 572 | A 6243240019 | SPRING LEAF |
| NO.9 | ||
| 580 | A 6243240220 | SPRING LEAF |
| NO.10 | ||
| 580 | A 3953240520 | SPRING LEAF |
| NO.10 | ||
| 580 | A 6243240020 | SPRING LEAF |
| NO.10 | ||
| 588 | A 6243240221 | SPRING LEAF |
| NO.11 | ||
| 588 | A 3953240521 | SPRING LEAF |
| NO.11 | ||
| 588 | A 6243240021 | SPRING LEAF |
| NO.11 | ||
| 596 | A 6243240222 | SPRING LEAF |
| NO.12 | ||
| 596 | A 3953240422 | SPRING LEAF |
| NO.12 | ||
| 596 | A 6243240022 | SPRING LEAF |
| NO.12 | ||
| 604 | A 6243240223 | SPRING LEAF |
| NO.13 | ||
| 604 | A 3953240423 | SPRING LEAF |
| NO.13 | ||
| 604 | A 6243240023 | SPRING LEAF |
| NO.13 | ||
| 612 | A 3953240324 | SPRING LEAF |
| NO.14 | ||
| 612 | A 6243240024 | SPRING LEAF |
| NO.14 | ||
| 615 | A 6243240025 | SPRING LEAF |
| NO.15 | ||
| 618 | A 6243240026 | SPRING LEAF |
| NO.16 | ||
| 620 | A 3953240171 | SPRING BOLT |
| M 18X300 | ||
| 620 | A 3463245271 | SPRING BOLT |
| 620 | A 6243240071 | SPRING BOLT |
| 624 | N 007349019002 | WASHER |
| SPRING BOLT | ||
| 628 | N 913004018004 | NUT |
| SPRING BOLT | ||
| 630 | A 6243510026 | SPRING CLAMPING PLATE |
| REAR SPRING TO SPRING SADDLE | ||
| 630 | A 3433510126 | SPRING CLAMPING PLATE |
| REAR SPRING TO SPRING SADDLE | ||
| 632 | A 6253510026 | SPRING CLAMPING PLATE |
| REAR SPRING TO SPRING SADDLE | ||
| 636 | A 3953510625 | U-BOLT |
| REAR SPRING TO SPRING SADDLE | ||
| 636 | A 3953510425 | U-BOLT |
| REAR SPRING TO SPRING SADDLE | ||
| 636 | A 6243510025 | U-BOLT |
| Repalced by: A 6253510025 | ||
| 636 | A 6253510025 | U-BOLT |
| REAR SPRING TO SPRING SADDLE | ||
| 640 | N 000960024047 | SCREW |
| (CLAMPING BOLT),AT SPRING SADDLE | ||
| M 24X140 | ||
| 644 | N 000960014290 | SCREW |
| REAR SPRING TO SPRING SADDLE | ||
| M 14X190 | ||
| 648 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 648 | N 910113014000 | NUT |
| REAR SPRING TO SPRING SADDLE | ||
| 652 | A 3433250070 | SPHERICAL WASHER |
| REAR SPRING TO SPRING SADDLE | ||
| 656 | A 0019902151 | NUT |
| REAR SPRING TO SPRING SADDLE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
