Transporto priemonė: 3250 AF; VIN numerio dalis: 625387
Grupė: 46 STEERING
53107
53108
53109
53110
53111

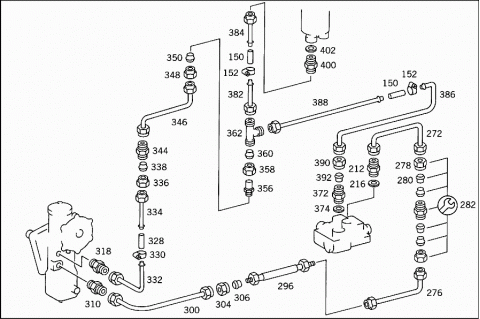

53112
53113

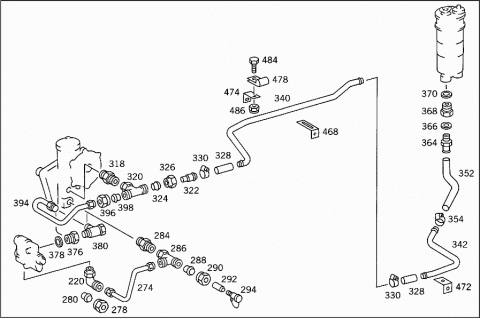

53114
53115
53116
# Kodas Pavadinimas

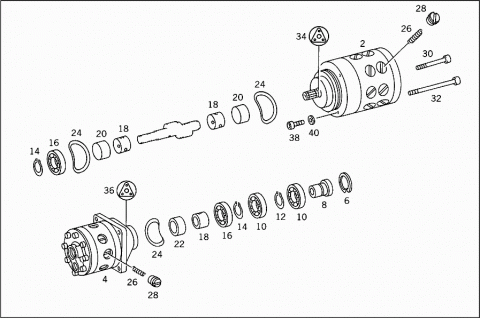

A 0014661701 HYDRAULIC PUMP
Repalced by: A 0014664101
002 A 0014664101 HYDRAULIC PUMP
AT TRANSMISSION
004 A 3074660001 HYDRAULIC PUMP
AT TRANSMISSION
006 N 000472062000 LOCK RING
Repalced by: A 0039945241
006 A 0039945241 LOCK
008 A 0004660858 CONNECTOR
010 N 000625506007 GROOVED BALL BEARING
012 N 000471035000 LOCK RING
014 N 000471020001 LOCK RING
016 N 000625900200 GROOVED BALL BEARING
018 A 0004660750 BUSHING
020 A 0004660950 BUSHING
022 A 0004660650 BUSHING
Repalced by: A 0004661150
022 A 0004661150 BUSHING
024 A 0004661875 WASHER
026 A 0059934001 SPRING
028 A 0004660871 SCREW
030 N 000912010186 SCREW
032 N 000912008175 SCREW
Repalced by: N 914034008014
032 N 914034008014 COMBINATION BOLT
034 A 0004603561 GASKET KIT
036 A 0004600861 GASKET KIT
038 N 000912008166 SCREW
POWER STEERING PUMP TO TRANSMISSION
040 N 000125008418 WASHER
Repalced by: N 000125008443
040 N 000125008443 WASHER
POWER STEERING PUMP TO TRANSMISSION

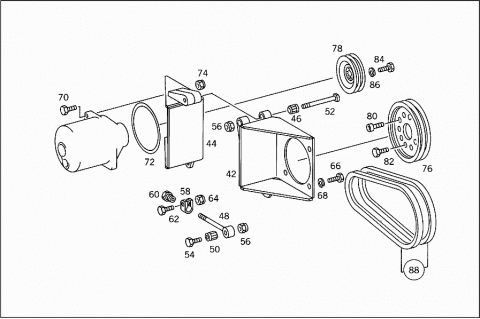

042 A 6254600235 BRACKET
POWER STEERING PUMP
044 A 6254600335 BRACKET
POWER STEERING PUMP
046 A 4031550250 BUSHING
POWER STEERING PUMP BRACKET
048 A 4031500572 CLAMPING BOLT
TENSION READJUSTMENT
050 A 4031550250 BUSHING
052 A 3524660271 SCREW
POWER STEERING PUMP BRACKET
054 N 000931010264 SCREW
THREADED PIECE TO BRACKET
056 N 913004010008 NUT
Repalced by: N 910113010000
056 N 910113010000 NUT
THREADED PIECE TO BRACKET
058 A 3141550528 CLAMPING PIECE
Repalced by: A 3641550028
058 A 3641550028 CLAMPING PIECE
TENSION READJUSTMENT
060 A 3521550272 NUT
TENSION READJUSTMENT
062 N 000960012189 SCREW
Repalced by: N 308676012031
062 N 308676012031 SCREW
Repalced by: N 308676012011
062 N 308676012011 SCREW
CLAMPING PIECE TO BRACKET
064 N 910113012002 NUT
CLAMPING PIECE TO BRACKET
066 A 0039904201 SCREW
BRACKET TO TRANSMISSION
068 N 912004016101 LOCK WASHER
BRACKET TO TRANSMISSION
070 N 000933010094 SCREW
POWER STEERING PUMP TO BRACKET
072 A 6254660052 SPACER WASHER
AS REQUIRED
074 N 913004010008 NUT
Repalced by: N 910113010000
074 N 910113010000 NUT
POWER STEERING PUMP TO BRACKET
076 A 6254660015 PULLEY
FLANGE
078 A 6254660115 PULLEY
POWER STEERING PUMP
080 N 000912008009 SCREW
Repalced by: N 000912008200
080 N 000912008200 SCREW
Repalced by: N 000912008219
080 N 000912008219 SCREW
PULLEY TO FLANGE
082 N 000960014247 SCREW
Repalced by: N 308676014013
082 N 308676014013 SCREW
PULLEY TO FLANGE
084 N 000933006245 SCREW
PULLEY TO POWER STEERING PUMP
086 N 912004006102 LOCK WASHER
PULLEY TO POWER STEERING PUMP
088 A 0039970192 V-BELT
Repalced by: A 0099976892
088 A 0099976892 V-BELT
SET = 2 PIECES
12,5X1025

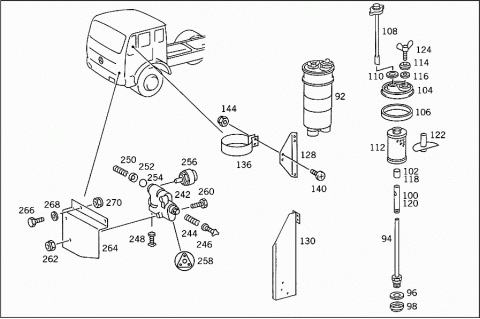

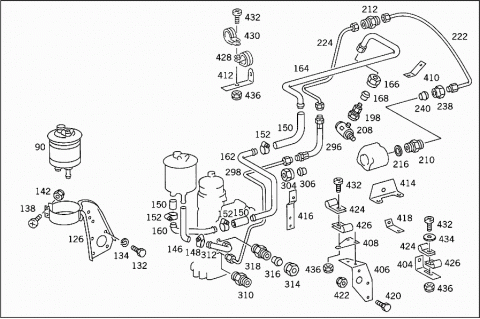

090 A 0004665002 TANK
OIL
A 0004664702 TANK
Repalced by: A 0004665102
092 A 0004665102 TANK
Repalced by: A 0004666802
092 A 0004666802 TANK
OIL
094 A 0014660341 SUPPORT
TO 000 466 51 02
094 A 0004660418 PIPE
TO 000 466 47 02
096 A 0004660291 SPRING
TO 000 466 47 02;000 466 51 02
098 A 0004660191 VALVE DISC
TO 000 466 47 02;000 466 51 02
100 A 0004660518 PIPE
TO 000 466 47 02
102 N 000443016000 EXPANSION PLUG
TO 000 466 47 02
104 A 0004667305 COVER
Repalced by: A 0004661705
104 A 0004661705 COVER
TO 000 466 51 02
104 A 0004662605 COVER
TO 000 466 47 02
106 A 0004660260 SEAL RING
TO 000 466 51 02
106 A 0004660380 GASKET
Repalced by: A 0004660580
106 A 0004660580 GASKET
TO 000 466 47 02
108 A 0004660367 OIL DIPSTICK
TO 000 466 51 02
108 A 0004660168 FILLER CAP
TO 000 466 47 02
110 A 0004660280 GASKET
TO 000 466 47 02
112 A 0004660004 FILTER
TO 000 466 47 02;000 466 51 02
114 A 0004661275 WASHER
TO 000 466 47 02
116 A 0004660075 WASHER
TO 000 466 47 02
118 A 0009870643 RUBBER SLEEVE
TO 000 466 51 02
120 A 0004660953 SPACER TUBE
TO 000 466 51 02
122 A 0004660453 SPACER TUBE
TO 000 466 47 02
124 N 000316008027 SCREW
TO 000 466 51 02
124 N 000933008212 SCREW
Repalced by: N 304017008016
124 N 304017008016 SCREW
TO 000 466 47 02
126 A 6204600235 BRACKET
OIL TANK
126 A 6204600335 BRACKET
OIL TANK
128 A 6254660540 BRACKET
OIL TANK
A 6254664840 BRACKET
OIL TANK
130 A 6254600435 BRACKET
OIL TANK
A 6254666240 BRACKET
OIL TANK
132 N 000933010238 SCREW
Repalced by: N 304017010028
132 N 304017010028 HEXAGON HEAD BOLT
BRACKET TO STEERING
134 N 912004010102 LOCK WASHER
BRACKET TO STEERING
N 000933010105 SCREW
BRACKET TO SUPPORT
N 913004010008 NUT
Repalced by: N 910113010000
N 910113010000 NUT
BRACKET TO SUPPORT
136 A 6254660077 CLAMP
OIL TANK TO BRACKET
138 N 007985006139 SCREW
OIL TANK TO BRACKET
140 N 007985008152 SCREW
OIL TANK TO BRACKET
142 N 913002006001 NUT
Repalced by: N 913002006009
142 N 913002006009 NUT
OIL TANK TO BRACKET
144 N 913004008004 NUT
Repalced by: N 913004008001
144 N 913004008001 NUT
OIL TANK TO BRACKET
146 A 6259970582 HOSE
(RETURN LINE),FROM STEERING TO OIL TANK
146 A 6259970582 HOSE
OIL LINE CONNECTION
148 N 916017025000 CLAMP
Repalced by: N 000000000668
148 N 000000000668 CLAMP
HOSE TO OIL LINE
150 A 3609970982 HOSE
Repalced by: A 3859971582
150 A 3859971582 HOSE
FROM LINE TO OIL TANK
150 A 3859971582 HOSE
(RETURN LINE) FROM CUT-IN VALVE TO OIL TANK
150 A 3859971582 HOSE
OIL LINE CONNECTION
152 N 916017020000 CLAMP
Repalced by: N 000000000667
152 N 000000000667 CLAMP
HOSE TO OIL LINE
152 N 000000000667 CLAMP
HOSE TO OIL LINE

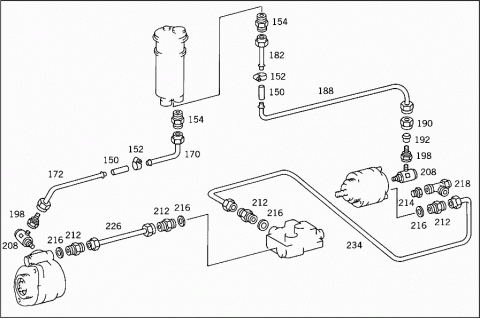

154 N 003901022006 SCREW-IN FITTING
SUCTION LINE TO OIL TANK
156 A 4031340156 FITTING
SUCTION LINE TO OIL TANK
158 N 007603026104 SEAL RING
SUCTION LINE TO OIL TANK
160 A 6254660565 LINE
(SUCTION LINE),FROM OIL TANK TO PUMP
162 A 6254660465 LINE
(SUCTION LINE),FROM OIL TANK TO PUMP
164 A 6254600524 LINE
FROM HOSE TO OIL PUMP
166 N 915017028101 UNION NUT
Repalced by: A 0019901354
166 A 0019901354 NUT
168 N 003861028002 GLAND
Repalced by: A 0019901367
168 A 0019901367 SEAL CONE
170 A 6254600824 LINE
FROM OIL TANK TO POWER STEERING PUMP AT ENGINE
172 A 6254600924 LINE
FROM OIL TANK TO POWER STEERING PUMP AT ENGINE
174 A 3859971582 HOSE
(SUCTION LINE),FROM OIL TANK TO PUMP
176 N 916017020000 CLAMP
Repalced by: N 000000000667
176 N 000000000667 CLAMP
(SUCTION LINE),FROM OIL TANK TO PUMP
178 A 6254606324 LINE
FROM HOSE TO OIL PUMP
178 A 6254606324 LINE
FROM HOSE TO OIL PUMP
178 A 6254608024 LINE
FROM HOSE TO OIL PUMP
178 A 6254608024 LINE
FROM HOSE TO OIL PUMP
178 A 6254608024 LINE
FROM HOSE TO OIL PUMP
180 A 6254604588 LINE
Repalced by: A 0004291601
180 A 0004291601 LINE
FROM HOSE TO OIL PUMP
180 A 0004291601 LINE
FROM HOSE TO OIL PUMP
A 6254600170 LINE
FROM HOSE TO OIL PUMP

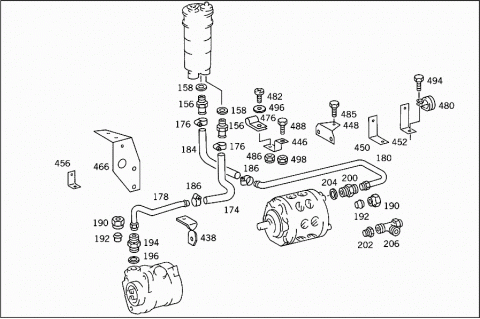

182 A 6254601924 LINE
FROM OIL TANK TO POWER STEERING PUMP AT TRANSMISSION
184 A 3859971582 HOSE
FROM OIL TANK TO POWER STEERING PUMP AT TRANSMISSION
184 A 3859971582 HOSE
FROM OIL TANK TO POWER STEERING PUMP AT ENGINE
186 N 916017020000 CLAMP
Repalced by: N 000000000667
186 N 000000000667 CLAMP
FROM OIL TANK TO POWER STEERING PUMP AT TRANSMISSION
188 A 6254602024 LINE
Repalced by: A 3952571466
188 A 3952571466 PIPE
FROM OIL TANK TO POWER STEERING PUMP AT TRANSMISSION
188 A 6254603524 LINE
Repalced by: A 0004291601
188 A 0004291601 LINE
FROM OIL TANK TO POWER STEERING PUMP AT TRANSMISSION
188 A 6254600788 LINE
FROM OIL TANK TO POWER STEERING PUMP AT TRANSMISSION
190 N 915017022100 UNION NUT
Repalced by: N 000000006243
190 N 000000006243 NUT
192 N 003861022004 GLAND
Repalced by: A 0019901267
192 A 0019901267 SEAL CONE
194 A 4229970572 FITTING
Repalced by: A 0039971372
194 A 0039971372 FITTING
POWER STEERING PUMP
196 N 007603033100 SEAL RING
POWER STEERING PUMP
N 003952022100 FITTING
SUCTION LINE TO POWER STEERING PUMP AT ENGINE
198 A 0019902168 FITTING
AT PUMP
198 A 0019902168 FITTING
SUCTION LINE TO OIL PUMP
200 A 4229970572 FITTING
Repalced by: A 0039971372
200 A 0039971372 FITTING
SUCTION LINE TO POWER STEERING PUMP AT TRANSMISSION
202 A 6999900083 FITTING
SUCTION LINE TO POWER STEERING PUMP AT TRANSMISSION
204 N 007603033100 SEAL RING
SUCTION LINE TO POWER STEERING PUMP AT TRANSMISSION
206 N 915043022100 SCREW CONNECTION
SUCTION LINE TO POWER STEERING PUMP AT TRANSMISSION
208 A 0019909671 ELBOW FITTING
AT PUMP
208 A 0019909671 ELBOW FITTING
SUCTION LINE TO OIL PUMP
210 A 0049977672 FITTING
AT PUMP
212 A 4229970672 FITTING
DELIVERY LINE TO PUMP
212 A 4229970672 FITTING
DELIVERY LINE TO CUT-IN VALVE
A 0059972772 FITTING
Repalced by: N 003901018008
N 003901018008 SCREW-IN FITTING
DELIVERY LINE TO CUT-IN VALVE
214 A 6999900283 FITTING
Repalced by: A 0009905168
214 A 0009905168 FITTING
DELIVERY LINE TO PUMP
216 N 007603022102 SEAL RING
AT PUMP
216 N 007603022102 SEAL RING
DELIVERY LINE
218 N 915043012200 SCREW CONNECTION
DELIVERY LINE TO PUMP
Repalced by: N 000000006458
218 N 000000006458 THREADED CONNECTION
DELIVERY LINE TO PUMP
220 A 0019902771 ELBOW FITTING
DELIVERY LINE TO CUT-IN VALVE
222 A 6254600224 LINE
FROM PUMP TO HIGH PRESSURE HOSE
224 A 6254600324 LINE
(DELIVERY LINE) FROM FITTING TO STEERING
A 6254600388 LINE
FROM PUMP TO HIGH PRESSURE HOSE
A 6254600488 LINE
FROM PUMP TO HIGH PRESSURE HOSE
226 A 6254601024 LINE
FROM POWER STEERING PUMP AT ENGINE TO CUT-IN VALVE
228 A 6254600224 LINE
FROM POWER STEERING PUMP AT ENGINE TO CUT-IN VALVE
A 6254600888 LINE
FROM POWER STEERING PUMP AT ENGINE TO CUT-IN VALVE
228 A 6254604688 LINE
FROM POWER STEERING PUMP AT ENGINE TO CUT-IN VALVE
228 A 6254608788 LINE
FROM POWER STEERING PUMP AT ENGINE TO CUT-IN VALVE
228 A 6254601388 LINE
FROM POWER STEERING PUMP AT ENGINE TO CUT-IN VALVE
A 6994608588 LINE
Repalced by: A 0005516456
A 0005516456 TUBE
FROM POWER STEERING PUMP AT ENGINE TO CUT-IN VALVE
18X1.5X3000 MM

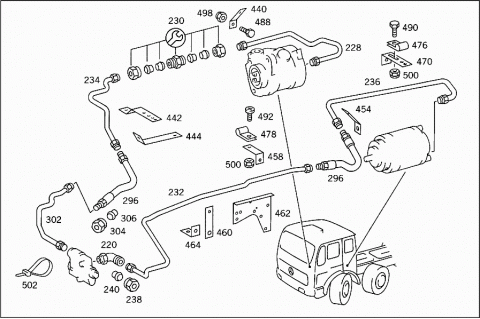

230 A 0049971772 FITTING
Repalced by: A 0029906171
230 A 0029906171 FITTING
OIL LINE CONNECTION
N 003902018001 CONNECTION FITTING
Repalced by: N 003902018002
N 003902018002 CONNECTION FITTING
OIL LINE CONNECTION
A 6254606424 LINE
Repalced by: A 0005516156
A 6254606224 LINE
Repalced by: A 0005516156
232 A 6254609124 LINE
FROM POWER STEERING PUMP AT TRANSMISSION TO CUT-IN VALVE
232 A 6254605888 LINE
FROM POWER STEERING PUMP AT TRANSMISSION TO CUT-IN VALVE
232 A 6254604888 LINE
FROM POWER STEERING PUMP AT TRANSMISSION TO CUT-IN VALVE
A 6254600270 LINE
FROM POWER STEERING PUMP AT TRANSMISSION TO CUT-IN VALVE
A 6994608488 LINE
FROM POWER STEERING PUMP AT TRANSMISSION TO CUT-IN VALVE
234 A 6254602124 LINE
Repalced by: A 0005516156
234 A 0005516156 TUBE
FROM POWER STEERING PUMP AT TRANSMISSION TO CUT-IN VALVE
A 6254600988 LINE
FROM POWER STEERING PUMP AT TRANSMISSION TO CUT-IN VALVE
A 6254600988 LINE
FROM POWER STEERING PUMP AT TRANSMISSION TO CUT-IN VALVE
A 6254606571 LINE
FROM POWER STEERING PUMP AT TRANSMISSION TO CUT-IN VALVE
234 A 6254605788 LINE
FROM POWER STEERING PUMP AT TRANSMISSION TO CUT-IN VALVE
236 A 6254609024 LINE
FROM POWER STEERING PUMP AT TRANSMISSION TO CUT-IN VALVE
236 A 6254600688 LINE
FROM POWER STEERING PUMP AT TRANSMISSION TO CUT-IN VALVE
236 A 6254603624 LINE
FROM POWER STEERING PUMP AT TRANSMISSION TO CUT-IN VALVE
236 A 6254607924 LINE
FROM POWER STEERING PUMP AT TRANSMISSION TO CUT-IN VALVE
238 N 915017012100 UNION NUT
DELIVERY LINE
Repalced by: N 000000006239
238 N 000000006239 UNION NUT
DELIVERY LINE
238 N 915017018100 UNION NUT
DELIVERY LINE
240 N 003861012007 GLAND
Repalced by: A 0019901967
240 A 0019901967 SEAL CONE
DELIVERY LINE
240 N 003861018003 GLAND
Repalced by: A 0019901167
240 A 0019901167 SEAL CONE
DELIVERY LINE
N 915036018204 HOLLOW SCREW
LINE CONNECTION
N 007603022403 SEAL RING
LINE CONNECTION
242 A 0004661591 VALVE
(CUT-IN VALVE)
244 A 0059935201 SPRING
246 A 0004600884 VALVE
248 A 0004600784 VALVE
250 A 0059935301 SPRING
252 A 0004610375 WASHER
254 N 005401320000 BALL
256 A 0005429414 INDICATOR
Repalced by: A 0105429317
256 A 0105429317 SENDER UNIT
STEERING FAILURE
258 A 0004600961 GASKET KIT
VALVE
260 N 000933010094 SCREW
VALVE TO BRACKET
262 N 913004010008 NUT
Repalced by: N 910113010000
262 N 910113010000 NUT
VALVE TO BRACKET
264 A 6994661840 BRACKET
CUT-IN VALVE
264 A 6994662240 BRACKET
Repalced by: A 6994661840
264 A 6994661840 BRACKET
CUT-IN VALVE
266 N 000933010105 SCREW
BRACKET TO SUPPORT
268 N 000125010518 WASHER
Repalced by: N 000125010532
268 N 000125010532 WASHER
BRACKET TO SUPPORT
270 N 913004010008 NUT
Repalced by: N 910113010000
270 N 910113010000 NUT
BRACKET TO SUPPORT
272 A 6254601124 LINE
(DELIVERY LINE) FROM CUT-IN VALVE TO STEERING
274 A 6254603024 LINE
(DELIVERY LINE) FROM CUT-IN VALVE TO STEERING
274 A 6254605588 LINE
Repalced by: A 0005516156
274 A 0005516156 TUBE
(DELIVERY LINE) FROM CUT-IN VALVE TO STEERING
274 A 0005516156 TUBE
(DELIVERY LINE) FROM CUT-IN VALVE TO STEERING
A 6254605088 LINE
Repalced by: A 0005516156
274 A 6254608924 LINE
(DELIVERY LINE) FROM CUT-IN VALVE TO STEERING
274 A 6254605688 LINE
(DELIVERY LINE) FROM CUT-IN VALVE TO STEERING
276 A 6254601224 LINE
(DELIVERY LINE) FROM CUT-IN VALVE TO STEERING
278 N 915017012100 UNION NUT
Repalced by: N 000000006239
278 N 000000006239 UNION NUT
280 N 003861012007 GLAND
Repalced by: A 0019901967
280 A 0019901967 SEAL CONE
282 A 0049971772 FITTING
Repalced by: A 0029906171
282 A 0029906171 FITTING
(DELIVERY LINE) FROM CUT-IN VALVE TO STEERING
284 A 0029971572 FITTING
DELIVERY LINE TO STEERING
N 003954012101 FITTING
Repalced by: A 0019900970
286 A 0019900970 T-FITTING
DELIVERY LINE TO STEERING
288 N 003861012007 GLAND
Repalced by: A 0019901967
288 A 0019901967 SEAL CONE
DELIVERY LINE TO STEERING
290 N 915017012100 UNION NUT
DELIVERY LINE TO STEERING
Repalced by: N 000000006239
290 N 000000006239 UNION NUT
DELIVERY LINE TO STEERING
292 A 6999970472 FITTING
Repalced by: A 0809972472
292 A 0809972472 FITTING
DELIVERY LINE TO STEERING
294 A 6999970089 COUPLING
DELIVERY LINE TO STEERING
296 A 0009978152 HOSE
FROM POWER STEERING PUMP AT TRANSMISSION TO CUT-IN VALVE
296 A 0009978152 HOSE
FROM POWER STEERING PUMP AT ENGINE TO CUT-IN VALVE
296 A 0129972482 HOSE
FROM POWER STEERING PUMP AT TRANSMISSION TO CUT-IN VALVE
296 A 0129972482 HOSE
FROM POWER STEERING PUMP AT ENGINE TO CUT-IN VALVE
296 A 0019976352 HOSE
FROM POWER STEERING PUMP AT TRANSMISSION TO CUT-IN VALVE
296 A 0019976352 HOSE
FROM POWER STEERING PUMP AT ENGINE TO CUT-IN VALVE
A 0179978682 HOSE
FROM POWER STEERING PUMP AT ENGINE TO CUT-IN VALVE
298 A 6254600424 LINE
FROM HIGH PRESSURE HOSE TO STEERING
300 A 6254601324 LINE
FROM HIGH PRESSURE HOSE TO STEERING
302 A 6254602924 LINE
FROM HIGH PRESSURE HOSE TO STEERING
302 A 6254605388 LINE
Repalced by: A 0005516156
302 A 0005516156 TUBE
FROM HIGH PRESSURE HOSE TO STEERING
302 A 6254601088 LINE
FROM HIGH PRESSURE HOSE TO STEERING
302 A 6254608824 LINE
FROM HIGH PRESSURE HOSE TO STEERING
302 A 6254605488 LINE
FROM HIGH PRESSURE HOSE TO STEERING
302 A 6254601188 LINE
FROM HIGH PRESSURE HOSE TO STEERING
302 A 6254604788 LINE
Repalced by: A 0005516156
A 6254609988 LINE
FROM HIGH PRESSURE HOSE TO STEERING
A 6254601488 LINE
FROM HIGH PRESSURE HOSE TO STEERING
A 6994608688 LINE
FROM HIGH PRESSURE HOSE TO STEERING
304 N 915017012100 UNION NUT
LINE MOUNTING
Repalced by: N 000000006239
304 N 000000006239 UNION NUT
LINE MOUNTING
304 N 915017018100 UNION NUT
LINE MOUNTING
306 N 003861012007 GLAND
Repalced by: A 0019901967
306 A 0019901967 SEAL CONE
LINE MOUNTING
306 N 003861018003 GLAND
Repalced by: A 0019901167
306 A 0019901167 SEAL CONE
LINE MOUNTING
310 N 003901012011 SCREW-IN FITTING
DELIVERY LINE TO STEERING
312 A 3854660265 LINE
FROM STEERING TO OIL TANK
314 N 915017015100 UNION NUT
316 N 003861015004 GLAND
318 N 003901015005 SCREW-IN FITTING
RETURN LINE TO STEERING
318 A 6259970872 FITTING
Repalced by: A 0049972272
318 A 0049972272 FITTING
Repalced by: A 0049973372
318 A 0049973372 FITTING
Repalced by: A 3529970571
318 A 3529970571 FITTING
RETURN LINE TO STEERING
320 N 003953015100 FITTING
RETURN LINE TO STEERING
320 N 003953022100 FITTING
RETURN LINE TO STEERING
322 A 6994660158 CONNECTOR
RETURN LINE TO STEERING
324 N 003861015004 GLAND
RETURN LINE TO STEERING
324 N 003861022004 GLAND
Repalced by: A 0019901267
324 A 0019901267 SEAL CONE
RETURN LINE TO STEERING
326 N 915017015100 UNION NUT
RETURN LINE TO STEERING
326 N 915017022100 UNION NUT
RETURN LINE TO STEERING
Repalced by: N 000000006243
326 N 000000006243 NUT
RETURN LINE TO STEERING
328 A 3439970582 HOSE
Repalced by: A 6999974082
328 A 6999974082 HOSE
Repalced by: A 3859971682
328 A 3859971682 HOSE
(RETURN LINE),FROM STEERING TO OIL TANK
328 A 3859971582 HOSE
(RETURN LINE),FROM STEERING TO OIL TANK
330 N 916017016000 CLAMP
Repalced by: N 000000000666
330 N 000000000666 CLAMP
(RETURN LINE),FROM STEERING TO OIL TANK
330 N 916017020000 CLAMP
Repalced by: N 000000000667
330 N 000000000667 CLAMP
(RETURN LINE),FROM STEERING TO OIL TANK
332 A 6254601424 LINE
(RETURN LINE),FROM STEERING TO OIL TANK
334 A 6254601524 LINE
(RETURN LINE),FROM STEERING TO OIL TANK
336 N 915017015100 UNION NUT
338 N 003861015004 GLAND
340 A 6254666465 LINE
(RETURN LINE),FROM STEERING TO OIL TANK
340 A 6254667366 LINE
(RETURN LINE),FROM STEERING TO OIL TANK
340 A 6254609788 LINE
(RETURN LINE),FROM STEERING TO OIL TANK
340 A 6254660066 LINE
(RETURN LINE),FROM STEERING TO OIL TANK
340 A 6254667466 LINE
(RETURN LINE),FROM STEERING TO OIL TANK
340 A 6254609888 LINE
(RETURN LINE),FROM STEERING TO OIL TANK
340 A 6254666066 LINE
(RETURN LINE),FROM STEERING TO OIL TANK
A 6254600070 LINE
(RETURN LINE),FROM STEERING TO OIL TANK
A 6994608388 LINE
(RETURN LINE),FROM STEERING TO OIL TANK
342 A 6254666565 LINE
(RETURN LINE),FROM STEERING TO OIL TANK
342 A 6254660166 LINE
Repalced by: A 0004291601
342 A 0004291601 LINE
(RETURN LINE),FROM STEERING TO OIL TANK
342 A 6254666166 LINE
(RETURN LINE),FROM STEERING TO OIL TANK
344 N 003902015002 CONNECTION FITTING
(RETURN LINE),FROM STEERING TO OIL TANK
346 A 6254601624 LINE
(RETURN LINE),FROM STEERING TO OIL TANK
348 N 915017015100 UNION NUT
350 N 003861015001 GLAND
352 A 3859971582 HOSE
(RETURN LINE),FROM STEERING TO OIL TANK
354 N 916017020000 CLAMP
Repalced by: N 000000000667
354 N 000000000667 CLAMP
(RETURN LINE),FROM STEERING TO OIL TANK
356 A 0029902268 FITTING
(RETURN LINE),FROM STEERING TO OIL TANK
358 N 915017022100 UNION NUT
OIL LINE CONNECTION
Repalced by: N 000000006243
358 N 000000006243 NUT
OIL LINE CONNECTION
358 N 000000006243 NUT
OIL LINE CONNECTION
360 N 003861022004 GLAND
Repalced by: A 0019901267
360 A 0019901267 SEAL CONE
OIL LINE CONNECTION
360 A 0019901267 SEAL CONE
OIL LINE CONNECTION
362 N 003908022000 T-FITTING
(RETURN LINE),FROM STEERING TO OIL TANK
364 A 4031340156 FITTING
(RETURN LINE),FROM STEERING TO OIL TANK
366 N 007603026104 SEAL RING
(RETURN LINE),FROM STEERING TO OIL TANK
A 6999900083 FITTING
(RETURN LINE),FROM STEERING TO OIL TANK
368 A 4229970572 FITTING
Repalced by: A 0039971372
368 A 0039971372 FITTING
(RETURN LINE),FROM STEERING TO OIL TANK
370 N 007603033100 SEAL RING
(RETURN LINE),FROM STEERING TO OIL TANK
372 N 003901022006 SCREW-IN FITTING
RETURN LINE TO CUT-IN VALVE
374 N 007603022102 SEAL RING
RETURN LINE TO CUT-IN VALVE
376 A 6999900383 FITTING
RETURN LINE TO CUT-IN VALVE
378 N 007603026104 SEAL RING
RETURN LINE TO CUT-IN VALVE
380 N 915043015101 SCREW CONNECTION
RETURN LINE TO CUT-IN VALVE
380 N 915043022100 SCREW CONNECTION
RETURN LINE TO CUT-IN VALVE
382 A 6254601724 LINE
(RETURN LINE),FROM STEERING TO OIL TANK
384 A 6254601824 LINE
(RETURN LINE),FROM STEERING TO OIL TANK
386 A 6254602224 LINE
388 A 6254602324 LINE
390 N 915017022100 UNION NUT
Repalced by: N 000000006243
390 N 000000006243 NUT
392 N 003861022004 GLAND
Repalced by: A 0019901267
392 A 0019901267 SEAL CONE
A 6254604988 LINE
Repalced by: A 0005516256
A 0005516256 TUBE
FROM CUT-IN VALVE TO STEERING
394 A 6254602624 LINE
FROM CUT-IN VALVE TO STEERING
394 A 6254609224 LINE
FROM CUT-IN VALVE TO STEERING
394 A 6254605988 LINE
Repalced by: A 0005516256
394 A 0005516256 TUBE
FROM CUT-IN VALVE TO STEERING
394 A 6254609688 LINE
Repalced by: A 0004291601
394 A 0004291601 LINE
FROM CUT-IN VALVE TO STEERING
394 A 0004291601 LINE
FROM CUT-IN VALVE TO STEERING
A 6254606471 LINE
Repalced by: A 0004291601
A 0004291601 LINE
FROM CUT-IN VALVE TO STEERING
396 N 915017015100 UNION NUT
396 N 915017022100 UNION NUT
Repalced by: N 000000006243
396 N 000000006243 NUT
398 N 003861015004 GLAND
398 N 003861022004 GLAND
Repalced by: A 0019901267
398 A 0019901267 SEAL CONE
N 003952022100 FITTING
LINE CONNECTION
400 A 4229970572 FITTING
Repalced by: A 0039971372
400 A 0039971372 FITTING
RETURN LINE TO OIL TANK
402 N 007603033100 SEAL RING
RETURN LINE TO OIL TANK
404 A 3812950440 BRACKET
LINE TO STEERING
406 A 6214660040 BRACKET
DELIVERY AND SUCTION LINES TO FRAME
408 A 6254660240 BRACKET
DELIVERY AND SUCTION LINES TO FRAME
410 A 6254660040 BRACKET
DELIVERY AND SUCTION LINES TO ENGINE
412 A 6254660140 BRACKET
DELIVERY AND SUCTION LINES TO ENGINE, FRONT
414 A 6204660540 BRACKET
DELIVERY AND SUCTION LINES TO ENGINE, FRONT
416 A 6254660340 BRACKET
DELIVERY AND SUCTION LINES TO ENGINE
418 A 6254660040 BRACKET
HIGH PRESSURE LINE; ENGINE,REAR
420 N 000933010129 SCREW
Repalced by: N 304017010002
420 N 304017010002 SCREW
BRACKET TO FRAME
422 N 913004010008 NUT
Repalced by: N 910113010000
422 N 910113010000 NUT
BRACKET TO FRAME
424 A 3839950001 CLAMP
LINES TO BRACKET
426 A 3609950401 CLAMP
LINES TO BRACKET
428 N 916016012200 CLAMP
LINES TO BRACKET
430 N 916016022202 CLAMP
LINES TO BRACKET
432 N 000000001147 SCREW
DELIVERY AND SUCTION LINES TO BRACKET
M 6X20
434 N 009021006205 WASHER
Repalced by: N 009021006208
434 N 009021006208 WASHER
DELIVERY AND SUCTION LINES TO BRACKET
436 N 913004006002 NUT
Repalced by: N 913004006001
436 N 913004006001 NUT
DELIVERY AND SUCTION LINES TO BRACKET
438 A 6254661740 BRACKET
Repalced by: A 3184924241
438 A 3184924241 BRACKET
FROM OIL TANK TO POWER STEERING PUMP AT TRANSMISSION
438 A 6254663440 BRACKET
FROM OIL TANK TO POWER STEERING PUMP AT TRANSMISSION
440 A 6254660040 BRACKET
LINE MOUNTING
442 A 6254660340 BRACKET
OIL LINE TO ENGINE
444 A 6254662140 BRACKET
Repalced by: A 6175461643
444 A 6175461643 BRACKET
OIL LINE TO ENGINE
446 A 6254661840 BRACKET
Repalced by: A 4354290840
446 A 4354290840 BRACKET
OIL LINE TO TRANSMISSION
448 A 6254661940 BRACKET
LINE MOUNTING
450 A 6254663040 BRACKET
Repalced by: A 3013270040
450 A 3013270040 BRACKET
LINE MOUNTING
452 A 6254663140 BRACKET
Repalced by: A 3874661240
452 A 3874661240 BRACKET
Repalced by: A 3044760335
452 A 3044760335 BRACKET
Repalced by: A 6205244040
452 A 6205244040 BRACKET
LINE MOUNTING
454 A 6254661440 BRACKET
Repalced by: A 3184923441
454 A 3184923441 BRACKET
AT TRANSMISSION
456 A 3184280043 ANGLE
Repalced by: A 4220980239
456 A 4220980239 BRACKET
Repalced by: A 4420981239
456 A 4420981239 BRACKET
Repalced by: A 4420981839
456 A 4420981839 BRACKET
AT TRANSMISSION
458 A 6254662040 BRACKET
Repalced by: A 4354290240
458 A 4354290240 BRACKET
CAB SUSPENSION
A 3812950440 BRACKET
CAB SUSPENSION
A 3184280240 BRACKET
LINE MOUNTING
A 6254665243 BRACKET
LINE MOUNTING
460 A 6254662240 BRACKET
LEFT SIDE MEMBER
460 A 6254662240 BRACKET
BRACKET TO BRACKET
A 3974290240 BRACKET
462 A 6255280644 MOUNTING BOW
LEFT SIDE MEMBER
464 A 3604280243 ANGLE
BRACKET TO BRACKET
466 A 6214660040 BRACKET
FRONT LEFT
466 A 6254665940 BRACKET
FRONT LEFT
466 A 6254665940 BRACKET
FRONT LEFT
A 6254664740 BRACKET
Repalced by: A 6454310740
A 6454310740 BRACKET
FRONT LEFT
A 6454310740 BRACKET
FRONT LEFT
468 A 3812950440 BRACKET
AT SIDE MEMBER
470 A 3184280240 BRACKET
BRACKET TO FRAME
472 A 3604280243 ANGLE
OIL LINE TO CROSS MEMBER
472 A 3604280243 ANGLE
OIL LINE TO CROSS MEMBER
474 A 3875015920 BRACKET
Repalced by: A 6454310740
474 A 6454310740 BRACKET
LINE MOUNTING
476 A 3609950401 CLAMP
LINE MOUNTING
476 A 3609951701 CLAMP
Repalced by: N 916016018202
476 N 916016018202 CLAMP
LINE MOUNTING
478 A 3609950701 CLAMP
Repalced by: N 916016018202
478 N 916016018202 CLAMP
LINE MOUNTING
478 A 3609950601 CLAMP
LINE MOUNTING
478 A 3609951301 CLAMP
Repalced by: A 3609951201
478 A 3609951201 CLAMP
LINE MOUNTING
478 A 3609950201 CLAMP
Repalced by: A 3604300143
478 A 3604300143 CLAMP
Repalced by: N 916016008200
478 N 916016008200 CLAMP
Repalced by: N 000000000319
478 N 000000000319 CLAMP
LINES TO BRACKET
480 N 916016032201 CLAMP
LINE MOUNTING
N 000933006183 SCREW
Repalced by: N 304017006016
N 304017006016 SCREW
CLAMP TO BRACKET
M 6X16
482 N 000000001147 SCREW
CLAMP TO BRACKET
M 6X20
484 N 000933006121 SCREW
Repalced by: N 304017006020
484 N 304017006020 SCREW
CLAMP TO BRACKET
M 6X20
485 N 000933012133 SCREW
Repalced by: N 304017012013
485 N 304017012013 SCREW
CLAMP TO BRACKET
485 N 000933012058 SCREW
CLAMP TO BRACKET
486 N 913004006002 NUT
Repalced by: N 913004006001
486 N 913004006001 NUT
CLAMP TO BRACKET
488 N 000933010129 SCREW
Repalced by: N 304017010002
488 N 304017010002 SCREW
CLAMP TO BRACKET,AND BRACKET TO SIDE MEMBER
490 N 000933008152 SCREW
Repalced by: N 304017008027
490 N 304017008027 SCREW
CLAMP TO BRACKET,AND BRACKET TO SIDE MEMBER
M 8X30
490 N 000933008153 SCREW
Repalced by: N 304017008034
490 N 304017008034 SCREW
CLAMP TO BRACKET,AND BRACKET TO SIDE MEMBER
M 8X25
490 N 000933010105 SCREW
CLAMP TO BRACKET,AND BRACKET TO SIDE MEMBER
M 10X25
490 N 000931008362 SCREW
Repalced by: N 304017008028
490 N 304017008028 SCREW
LINE MOUNTING
M 8X50
492 N 007985008173 SCREW
Repalced by: N 007985008182
492 N 007985008182 SCREW
CLAMP TO BRACKET
M 8X20
494 N 000933008147 SCREW
Repalced by: N 304017008021
494 N 304017008021 SCREW
BRACKET MOUNTING
496 N 009021006205 WASHER
Repalced by: N 009021006208
496 N 009021006208 WASHER
CLAMP TO BRACKET
498 N 913004010008 NUT
Repalced by: N 910113010000
498 N 910113010000 NUT
CLAMP TO BRACKET,AND BRACKET TO SIDE MEMBER
500 N 913004008004 NUT
Repalced by: N 913004008001
500 N 913004008001 NUT
CLAMP TO BRACKET,AND BRACKET TO SIDE MEMBER
502 A 0019978490 LOOM TIE
LINE MOUNTING

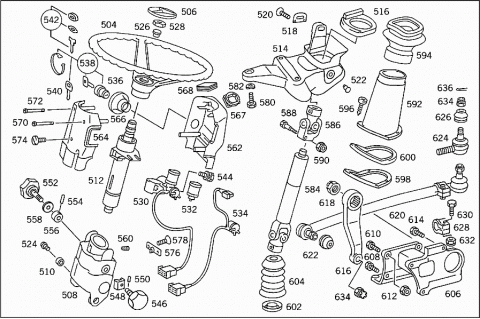

504 A 3834640201 STEERING WHEEL
506 A 0004640432 BADGE
STEERING WHEEL
508 A 3834601652 STEERING COLUMN END
Repalced by: A 3054600452
508 A 3054600452 STEERING COLUMN END
ADJUSTABLE STEERING COLUMN
510 A 3834620650 BUSHING
A 3834601137 BEARING
Repalced by: A 3834601537
512 A 3834601537 BEARING
STEERING SHAFT
512 A 6204600237 BEARING
STEERING SHAFT
512 A 6204600637 BEARING
STEERING SHAFT
512 A 6204600437 BEARING
STEERING SHAFT
512 A 6204600837 BEARING
STEERING SHAFT
512 A 3834601237 BEARING
Repalced by: A 3834601637
512 A 3834601637 BEARING
STEERING SHAFT
512 A 6204600337 BEARING
STEERING SHAFT
512 A 6204600737 BEARING
STEERING SHAFT
512 A 6204600537 BEARING
STEERING SHAFT
512 A 6204600937 BEARING
STEERING SHAFT
514 A 3834600931 STEERING COLUMN BRACKET
516 A 3834610349 RUBBER PAD
518 A 3834620975 WASHER
520 N 914146005702 SCREW
522 A 3819970386 PLUG
Repalced by: A 0009972020
522 A 0009972020 EXPANSION PLUG
Repalced by: A 0009973220
522 A 0009973220 EXPANSION PLUG
LATERAL
522 A 3839970286 PLUG
LATERAL
524 A 3834620674 PIN
STEERING COLUMN END
526 A 3819971186 PLUG
STEERING WHEEL TO STEERING COLUMN
528 N 000439022205 NUT
STEERING WHEEL TO STEERING COLUMN
530 A 0014621130 STEERING LOCK
LESS TUMBLER
532 A 0005451367 CONTACTOR
SOLENOID SWITCH
534 A 0005455413 SWITCH
IGNITION SWITCH
536 A 3814600104 TUMBLER
538 A 3814600004 TUMBLER
WITH 2 KEYS
540 A 0007600006 KEY
HUF
540 A 0007600606 KEY
YMOS
542 A 0007663706 KEY
BLANK
544 A 0004622371 SCREW
(BREAK-OFF BOLT),STEERING LOCK MOUNTING
546 A 3834601869 HANDLE
Repalced by: A 6754600369
546 A 6754600369 HANDLE
Repalced by: A 6554600369
546 A 6554600369 HANDLE
STEERING WHEEL HEIGHT ADJUSTMENT
548 A 3834620763 THRUST PLATE
STEERING WHEEL HEIGHT ADJUSTMENT
550 N 001481003011 CLAMPING SLEEVE
Repalced by: A 6559910061
550 A 6559910061 DOWEL PIN
STEERING WHEEL HEIGHT ADJUSTMENT
552 A 3834601969 HANDLE
Repalced by: A 6554600469
552 A 6554600469 HANDLE
STEERING WHEEL TILT ADJUSTMENT
554 N 001481002512 CLAMPING SLEEVE
STEERING WHEEL TILT ADJUSTMENT
556 A 6554620163 THRUST PLATE
Repalced by: A 3834620363
556 A 3834620363 THRUST PLATE
558 A 0009936426 DISC SPRING
STEERING WHEEL TILT ADJUSTMENT
560 N 000417004006 HEADLESS SETSCREW
Repalced by: N 000417004011
560 N 000417004011 HEADLESS SETSCREW
STEERING WHEEL TILT ADJUSTMENT
562 A 3834621243 SHELL
STEERING COLUMN PANELLING,REAR
562 A 3834621343 SHELL
STEERING COLUMN PANELLING,REAR
562 A 6204620543 SHELL
STEERING COLUMN PANELLING; BLACK,NO.9051
564 A 3834620143 SHELL
STEERING COLUMN PANELLING,FRONT
564 A 3834621543 SHELL
STEERING COLUMN PANELLING,FRONT
564 A 3834621443 SHELL
STEERING COLUMN PANELLING,FRONT
564 A 6204620243 SHELL
STEERING COLUMN PANELLING; BLACK,NO.9051
566 A 3814620486 GROMMET
STEERING COLUMN
567 A 3574620096 BOOT
STEERING COLUMN PANELLING; BLACK,NO.9051
568 A 3574620196 BOOT
STEERING COLUMN PANELLING; BLACK,NO.9051
570 A 3819900221 SCREW
STEERING COLUMN PANELLING
M 5X75.5
A 3019900021 SCREW
Repalced by: A 3819900321
572 A 3819900321 SCREW
STEERING COLUMN PANELLING
M 5X83
574 A 3819900521 SCREW
STEERING COLUMN PANELLING
M 5X13
576 A 3834600036 GUIDE
Repalced by: A 3834600136
576 A 3834600136 GUIDE
STEERING SHAFT
578 N 000965004006 SCREW
GUIDE TO STEERING COLUMN END
580 N 000933010145 SCREW
STEERING COLUMN TO CAB
580 N 000933010145 SCREW
STEERING COLUMN TO CAB
582 N 000137010201 SPRING WASHER
STEERING COLUMN TO CAB
582 N 000137010201 SPRING WASHER
STEERING COLUMN TO CAB
584 A 3874602709 STEERING SHAFT
Repalced by: A 3814601809
584 A 3814601809 STEERING SHAFT
Repalced by: A 6504600409
584 A 6504600409 STEERING SHAFT
LEMFOERDER
584 A 6504600809 STEERING SHAFT
ELBE
A 3814620175 WASHER
TO 387 460 27 09,381 460 18 09
A 3814620260 SEAL RING
TO 387 460 27 09,381 460 18 09
A 3814620061 SEAL HOLDER
TO 387 460 27 09,381 460 18 09
A 3814620251 RING
TO 387 460 27 09,381 460 18 09
A 3814600057 UNIVERSAL JOINT
Repalced by: A 3164600057
586 A 3164600057 UNIVERSAL JOINT
Repalced by: A 0004600057
586 A 0004600057 UNIVERSAL JOINT
586 A 3164600157 UNIVERSAL JOINT
Repalced by: A 0004600157
586 A 0004600157 UNIVERSAL JOINT
588 A 3819900114 SCREW
STEERING SHAFT TO JOINT
M 8X42
588 A 3819900114 SCREW
STEERING SHAFT TO STEERING COLUMN
M 8X42
588 A 3819900114 SCREW
STEERING SHAFT TO JOINT
M 8X42
588 A 3169900114 SCREW
STEERING SHAFT TO JOINT
M 8X38
590 N 910113008010 NUT
Repalced by: N 910113008001
590 N 910113008001 NUT
STEERING SHAFT TO JOINT
590 N 910113008001 NUT
STEERING SHAFT TO STEERING COLUMN
592 A 3874611297 PROTECTIVE SLEEVE
STEERING SHAFT
594 A 3874610396 BOOT
STEERING COLUMN COVERING,TOP
596 N 007981005309 SHEET METAL SCREW
Repalced by: N 007981005321
596 N 007981005321 SHEET METAL SCREW
PROTECTIVE SLEEVE TO CAB FLOOR
598 A 3874610180 GASKET
PROTECTIVE SLEEVE TO CAB FLOOR
600 A 3874620024 REINFORCEMENT
PROTECTIVE SLEEVE TO CAB FLOOR
602 A 3814620475 WASHER
UNIVERSAL JOINT COVERING
604 A 3814621196 BOOT
UNIVERSAL JOINT COVERING
606 A 6204610640 STEERING SUPPORT
AT FRAME
606 A 6204610740 STEERING SUPPORT
AT FRAME
608 N 000960016057 SCREW
STEERING SUPPORT TO FRAME
M 16X80
610 N 000960016249 SCREW
Repalced by: N 308676016004
610 N 308676016004 SCREW
STEERING SUPPORT TO FRAME
M 16X55
612 N 913004016005 NUT
Repalced by: N 910113016001
612 N 910113016001 NUT
STEERING SUPPORT TO FRAME
614 N 000961016077 SCREW
Repalced by: N 308676016006
614 N 308676016006 SCREW
STEERING BOX ASSEMBLY TO STEERING SUPPORT
616 A 6204630001 PITMAN ARM
Repalced by: A 6254630501
616 A 6254630501 PITMAN ARM
618 A 0029905051 NUT
PITMAN ARM TO STEERING BOX ASSEMBLY
618 A 0019908151 NUT
PITMAN ARM TO STEERING BOX ASSEMBLY
620 A 3874601405 DRAG LINK
Repalced by: A 3874603205
620 A 3874603205 DRAG LINK
LEMFOERDER
620 A 3874603305 DRAG LINK
EHRENREICH
620 A 3874601505 DRAG LINK
Repalced by: A 3874603505
620 A 3874603505 DRAG LINK
LEMFOERDER
620 A 3874603605 DRAG LINK
EHRENREICH
622 A 3354600096 BOOT
Repalced by: A 0004621796
622 A 0004621796 BOOT
624 A 0004600348 DRAG LINK END
Repalced by: A 0004602848
624 A 0004602848 DRAG LINK END
Repalced by: A 0014600848
624 A 0014600848 DRAG LINK END
Repalced by: A 0014602248
624 A 0014602248 DRAG LINK END
Repalced by: A 0014607748
624 A 0014607748 DRAG LINK END
R.H. THREAD
LEMFOERDER
624 A 0004602948 DRAG LINK END
Repalced by: A 0014601248
624 A 0014601248 DRAG LINK END
Repalced by: A 0014602248
624 A 0014602248 DRAG LINK END
Repalced by: A 0014607748
624 A 0014607748 DRAG LINK END
R.H. THREAD
EHRENREICH
626 A 3354600096 BOOT
Repalced by: A 0004621796
626 A 0004621796 BOOT
628 A 0003382545 CLAMP
DRAG LINK END TO DRAG LINK
LEMFOERDER
628 A 0003383145 CLAMP
DRAG LINK END TO DRAG LINK
EHRENREICH
630 N 000960012453 SCREW
Repalced by: N 308676012017
630 N 308676012017 SCREW
DRAG LINK END TO DRAG LINK
632 N 913004012009 NUT
Repalced by: N 910113012003
632 N 910113012003 NUT
DRAG LINK END TO DRAG LINK
A 0019905451 NUT
DRAG LINK TO LEVER
634 N 000937024002 NUT
DRAG LINK TO LEVER
636 N 000094005035 COTTER PIN
DRAG LINK TO LEVER
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
