Transporto priemonė: 3250 AF; VIN numerio dalis: 625387
Grupė: 28 TRANSFER CASE
| # | Kodas | Pavadinimas |
|---|---|---|

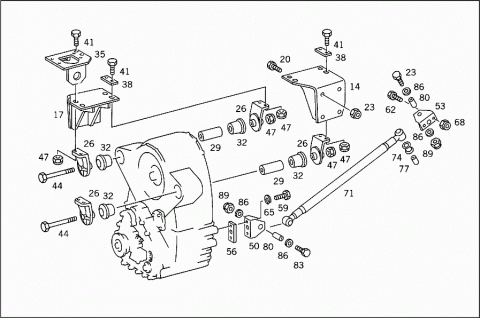

| 014 | A 6252800085 | SUPPORT |
| LEFT | ||
| 017 | A 6252800185 | SUPPORT |
| RIGHT | ||
| 020 | N 000961016077 | SCREW |
| Repalced by: N 308676016006 | ||
| 020 | N 308676016006 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 023 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 023 | N 910113016001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 026 | A 6212850403 | BEARING |
| SUSPENSION | ||
| 029 | A 6212850053 | SPACER TUBE |
| SUSPENSION | ||
| 032 | A 6212850003 | BEARING |
| TRANSFER CASE TO SUPPORT | ||
| 035 | A 6252800885 | SUPPORT |
| OIL PUMP | ||
| 038 | A 6212850084 | SHIM |
| BRAKE ANCHOR | ||
| 041 | N 000961016096 | SCREW |
| Repalced by: N 308676016007 | ||
| 041 | N 308676016007 | SCREW |
| BEARING AND SHIM TO SUPPORT | ||
| 044 | N 308765016000 | SCREW |
| Repalced by: N 308765016018 | ||
| 044 | N 308765016018 | SCREW |
| RUBBER MOUNTING TO BEARING | ||
| 047 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 047 | N 910113016001 | NUT |
| BEARING AND SHIM TO SUPPORT | ||
| 047 | N 910113016001 | NUT |
| RUBBER MOUNTING TO BEARING | ||
| 050 | A 6212850840 | BRACKET |
| PULL ROD TO TRANSFER CASE | ||
| 053 | A 6252851240 | BRACKET |
| PULL ROD TO SIDE MEMBER | ||
| 056 | A 6212850384 | SHIM |
| BRACKET TO TRANSFER CASE | ||
| 059 | N 000960014219 | SCREW |
| BRACKET TO TRANSFER CASE | ||
| 062 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 062 | A 9429901304 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 065 | N 912004014100 | LOCK WASHER |
| BRACKET TO TRANSFER CASE | ||
| 068 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 068 | N 910113014000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 071 | A 6212850955 | ROD |
| TRANSFER CASE TO FRAME | ||
| 074 | A 0002420250 | BUSHING |
| OUTSIDE | ||
| 077 | A 0002420350 | BUSHING |
| INSIDE | ||
| 080 | A 6212850153 | SPACER TUBE |
| ROD TO BRACKET | ||
| 083 | N 000960012264 | SCREW |
| Repalced by: N 308765012003 | ||
| 083 | N 308765012003 | SCREW |
| ROD TO BRACKET | ||
| 086 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 086 | N 007349013005 | WASHER |
| ROD TO BRACKET | ||
| 089 | N 910113012002 | NUT |
| ROD TO BRACKET | ||

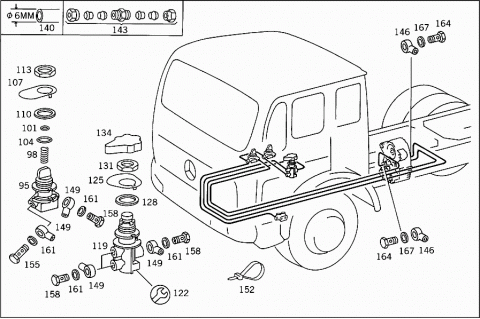

| 095 | A 0019975036 | VALVE |
| 3/2-WAY | ||
| BOSCH | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| LONGITUDINAL DIFFERENTIAL LOCK, TRANSFER CASE | ||
| 095 | A 0019976136 | VALVE |
| 3/2-WAY | ||
| WABCO | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| LONGITUDINAL DIFFERENTIAL LOCK, TRANSFER CASE | ||
| 095 | A 0039975936 | VALVE |
| 3/2-WAY | ||
| KNORR | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| LONGITUDINAL DIFFERENTIAL LOCK, TRANSFER CASE | ||
| 095 | A 0039976036 | VALVE |
| 3/2-WAY | ||
| VOSS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| LONGITUDINAL DIFFERENTIAL LOCK, TRANSFER CASE | ||
| 098 | A 0049937501 | SPRING |
| WABCO | ||
| 101 | A 0069972648 | SEAL RING |
| WABCO | ||
| 104 | A 0039979640 | SEAL RING |
| WABCO | ||
| 107 | A 3855844324 | UNIT IDENTIFICATION PLATE |
| LONGITUDINAL DIFFERENTIAL LOCK, TRANSFER CASE | ||
| 110 | A 3859901640 | WASHER |
| VALVE TO ENGINE TUNNEL | ||
| 113 | A 3839900051 | NUT |
| VALVE TO ENGINE TUNNEL | ||
| 119 | A 0019975936 | VALVE |
| PNEUMATIC CONTROL USED FOR TRANSFER CASE | ||
| BOSCH | ||
| 119 | A 0019976936 | VALVE |
| PNEUMATIC CONTROL USED FOR TRANSFER CASE | ||
| WABCO | ||
| 122 | A 0025860943 | REPAIR KIT |
| WABCO | ||
| 125 | A 3855844124 | UNIT IDENTIFICATION PLATE |
| TRANSFER CASE | ||
| 128 | A 3859901640 | WASHER |
| VALVE TO ENGINE TUNNEL | ||
| 131 | A 3839900051 | NUT |
| VALVE TO ENGINE TUNNEL | ||
| 134 | A 0009970577 | HANDLE |
| OPERATING VALVE | ||
| 140 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 140 | A 0009872627 | PLASTIC PIPE |
| FROM 3/2-WAY VALVE TO DISTRIBUTOR | ||
| 4X6 MM | ||
| 140 | A 0009872627 | PLASTIC PIPE |
| FROM 3/2-WAY VALVE TO 3/2-WAY VALVE | ||
| 4X6 MM | ||
| 140 | A 0009872627 | PLASTIC PIPE |
| FROM VALVE TO TRANSFER CASE SHIFTING CYLINDER | ||
| 4X6 MM | ||
| 143 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 146 | N 915052004015 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/12 MM | ||
| 149 | N 915052004016 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/10 MM | ||
| A 0002610283 | OIL PIPE | |
| FROM OIL PUMP TO OIL COOLER | ||
| A 3604292940 | BRACKET | |
| OIL LINE TO CROSS MEMBER | ||
| N 916016010203 | CLAMP | |
| FEED LINE AND RETURN LINE TO BRACKET | ||
| 10/20 MM | ||
| N 916016010201 | CLAMP | |
| Repalced by: N 916016010211 | ||
| N 916016010211 | CLAMP | |
| Repalced by: N 000000001045 | ||
| N 000000001045 | CLAMP | |
| FEED LINE AND RETURN LINE TO BRACKET | ||
| 10/15 MM | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BRACKET TO CROSS MEMBER | ||
| M 8X20 | ||
| N 007985008152 | SCREW | |
| OIL LINE TO BRACKET | ||
| M 8X25 | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| OIL LINE TO BRACKET | ||
| 152 | A 0019978390 | LOOM TIE |
| LINE MOUNTING | ||
| 155 | N 915047006202 | HOLLOW SCREW |
| LONGITUDINAL DIFFERENTIAL LOCK CONTROL | ||
| 158 | N 915036006202 | HOLLOW SCREW |
| LONGITUDINAL DIFFERENTIAL LOCK CONTROL | ||
| 158 | N 915036006202 | HOLLOW SCREW |
| PNEUMATIC CONTROL USED FOR TRANSFER CASE | ||
| 161 | N 007603010404 | SEAL RING |
| LONGITUDINAL DIFFERENTIAL LOCK CONTROL | ||
| 161 | N 007603010404 | SEAL RING |
| PNEUMATIC CONTROL USED FOR TRANSFER CASE | ||
| 164 | N 915036008202 | HOLLOW SCREW |
| TRANSFER CASE | ||
| 167 | N 007603012405 | SEAL RING |
| TRANSFER CASE | ||
