Transporto priemonė: 3250 AF; VIN numerio dalis: 625387
Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|

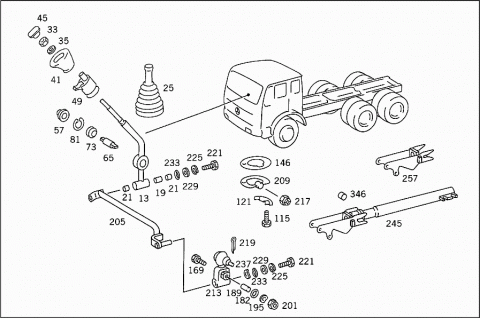

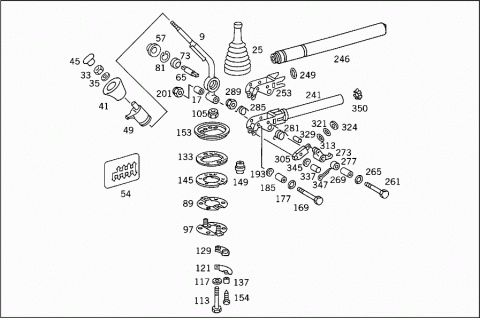

| 009 | A 3852607039 | SHIFT LEVER |
| 013 | A 6202600939 | SHIFT LEVER |
| 017 | A 3359920203 | BUSHING |
| 019 | A 6202680050 | BUSHING |
| 021 | A 0109818010 | NEEDLE BEARING |
| 021 | A 0119812910 | NEEDLE BEARING |
| 025 | A 6202680097 | BOOT |
| 033 | N 000936010010 | NUT |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 035 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 035 | N 000125010532 | WASHER |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 041 | A 6202600040 | HANDLE |
| (SHIFT LEVER HANDLE) | ||
| 045 | A 6202680157 | COVER |
| LESS GEAR INDICATOR | ||
| 049 | A 0002609557 | VALVE |
| Repalced by: A 0012602457 | ||
| 049 | A 0012602557 | VALVE |
| Repalced by: A 0012602457 | ||
| 049 | A 0012602457 | VALVE |
| Repalced by: A 0012605357 | ||
| 049 | A 0012605357 | VALVE |
| Repalced by: A 0012606357 | ||
| 049 | A 0012606357 | VALVE |
| (SHIFT LEVER VALVE) | ||
| HERION | ||
| 049 | A 0012606457 | VALVE |
| (SHIFT LEVER VALVE) | ||
| WABCO | ||
| 054 | A 6205840238 | GUMMED LABEL |
| GEAR INDICATOR | ||
| 057 | A 3852680696 | BOOT |
| Repalced by: A 6202680196 | ||
| 057 | A 6202680196 | BOOT |
| SHIFT LEVER BEARING | ||
| 065 | A 3852681474 | PIN |
| SHIFT LEVER BEARING | ||
| 073 | A 0009814531 | JOINT BEARING |
| SHIFT LEVER BEARING | ||
| 073 | A 0009815531 | JOINT BEARING |
| Repalced by: A 0019813931 | ||
| 073 | A 0019813931 | JOINT BEARING |
| SHIFT LEVER BEARING | ||
| 081 | N 000472042001 | LOCK RING |
| SHIFT LEVER BEARING | ||
| 089 | A 3892680440 | BRACKET |
| SHIFT LEVER UPPER PART | ||
| 097 | A 3892605262 | BRACKET |
| SHIFT LEVER LOWER PART | ||
| 097 | A 3892605262 | BRACKET |
| CONSOLE TO BRACKET | ||
| 105 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 105 | N 913004008001 | NUT |
| BRACKET TO BRACKET | ||
| 113 | N 000931008244 | SCREW |
| SHIFT LEVER BEARING TO CAB FLOOR | ||
| M 8X45 | ||
| 113 | N 000931008246 | SCREW |
| Repalced by: N 304017008028 | ||
| 113 | N 304017008028 | SCREW |
| SHIFT LEVER BEARING TO CAB FLOOR | ||
| M 8X50 | ||
| 115 | N 000931008046 | SCREW |
| Repalced by: N 304017008018 | ||
| 115 | N 304017008018 | SCREW |
| SHIFT LEVER BEARING TO CAB FLOOR | ||
| M 8X35 | ||
| 115 | N 000931008266 | SCREW |
| SHIFT LEVER BEARING TO CAB FLOOR | ||
| M 8X40 | ||
| 117 | N 007349008003 | WASHER |
| SHIFT LEVER BEARING TO CAB FLOOR | ||
| 121 | A 3852681640 | BRACKET |
| SHIFT LEVER TO CAB FLOOR | ||
| 121 | A 3852681640 | BRACKET |
| SHIFTING TRANSFER,LEFT | ||
| 129 | A 3852680492 | RUBBER PAD |
| SHIFT LEVER TO CAB FLOOR | ||
| 129 | A 3852680492 | RUBBER PAD |
| SHIFTING TRANSFER,LEFT | ||
| 133 | A 6202680084 | SHIM |
| SHIFT LEVER TO CAB FLOOR | ||
| 137 | A 3892680525 | BUSHING |
| SHIFT LEVER TO CAB FLOOR | ||
| 137 | A 3892680525 | BUSHING |
| SHIFTING TRANSFER,LEFT | ||
| 145 | A 3852680392 | RUBBER PAD |
| SHIFT LEVER TO CAB FLOOR | ||
| 146 | A 6202680092 | RUBBER PAD |
| SHIFTING TRANSFER,LEFT | ||
| 149 | A 3852681950 | BUSHING |
| COMPRESSED AIR LINE THRU CAB FLOOR | ||
| 153 | A 3852601962 | BRACKET |
| BOOT | ||
| 154 | N 007981003203 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 169 | N 000931010357 | SCREW |
| Repalced by: N 000933010192 | ||
| 169 | A 0019909404 | SCREW |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 169 | A 0019909404 | SCREW |
| SHIFTING ROD TO JOINT | ||
| 177 | A 0009978648 | SEAL RING |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 182 | A 0099972648 | SEAL RING |
| SHIFTING ROD TO JOINT | ||
| 185 | A 3852680153 | SPACER TUBE |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 189 | A 6202680074 | PIN |
| SHIFTING ROD TO JOINT | ||
| 193 | N 900055018001 | SPRING WASHER |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 195 | N 900055016001 | SPRING WASHER |
| SHIFTING ROD TO JOINT | ||
| 201 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 201 | N 910113010000 | NUT |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 201 | N 910113010000 | NUT |
| SHIFTING ROD TO JOINT | ||
| 205 | A 6252600433 | SHIFTING ROD |
| FRONT; TRANSVERSE | ||
| 209 | A 6202600662 | BRACKET |
| SHIFTING TRANSFER,LEFT | ||
| 213 | A 6202680089 | JOINT |
| SHIFTING TRANSFER,LEFT | ||
| A 0002686089 | JOINT | |
| A 6732680189 | JOINT | |
| Repalced by: A 0009965245 | ||
| A 0009965245 | ARTICULATION PIECE | |
| A 2013300185 | REPAIR KIT | |
| N 000439014206 | NUT | |
| 217 | N 000979010005 | NUT |
| JOINT TO BRACKET | ||
| 219 | N 000094002077 | COTTER PIN |
| JOINT TO BRACKET | ||
| 221 | N 000933010128 | SCREW |
| SHIFTING ROD TO SHIFT LEVER | ||
| 225 | N 912004010102 | LOCK WASHER |
| SHIFTING ROD TO SHIFT LEVER | ||
| 229 | A 3859900740 | WASHER |
| SHIFTING ROD TO SHIFT LEVER | ||
| 233 | A 0099972648 | SEAL RING |
| SHIFTING ROD TO SHIFT LEVER | ||
| 237 | N 900055016001 | SPRING WASHER |
| SHIFTING ROD TO SHIFT LEVER | ||
| 241 | A 3852609433 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 245 | A 6202607033 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 246 | A 3852603882 | SHIFTING TUBE |
| (TELESCOPIC TUBE) | ||
| 246 | A 6202603082 | SHIFTING TUBE |
| (TELESCOPIC TUBE) | ||
| 249 | A 0009978748 | SEAL RING |
| 30.20 MM | ||
| 253 | A 3852600534 | ROD END |
| HYDRAULIC RELEASE | ||
| 257 | A 6202600034 | ROD END |
| HYDRAULIC RELEASE | ||
| 261 | N 000931010357 | SCREW |
| Repalced by: N 000933010192 | ||
| 261 | A 0019909404 | SCREW |
| PAWL TO ROD END | ||
| 265 | A 0009978648 | SEAL RING |
| PAWL TO ROD END | ||
| 17.20 MM | ||
| 269 | A 3852680153 | SPACER TUBE |
| PAWL TO ROD END | ||
| 273 | A 3852600387 | PAWL |
| Repalced by: A 6202600087 | ||
| 273 | A 6202600087 | PAWL |
| SHIFTING ROD | ||
| 277 | A 3359920203 | BUSHING |
| PAWL TO ROD END | ||
| 20 MM | ||
| 277 | A 6209920003 | BUSHING |
| PAWL TO ROD END | ||
| 24 MM | ||
| 277 | A 6202680150 | BUSHING |
| PAWL TO ROD END | ||
| 17 MM | ||
| 281 | A 3859930020 | SPRING |
| PAWL TO ROD END | ||
| 285 | A 3859930120 | SPRING |
| PAWL TO ROD END | ||
| 289 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 289 | N 910113010000 | NUT |
| PAWL TO ROD END | ||
| 305 | A 3852600063 | SHIFTING CYLINDER |
| HYDRAULIC RELEASE | ||
| WABCO | ||
| 305 | A 3852600563 | SHIFTING CYLINDER |
| HYDRAULIC RELEASE | ||
| TECHNOMATIK | ||
| 313 | A 0069976748 | SEAL RING |
| PISTON RINGS | ||
| WABCO | ||
| 321 | A 0069976848 | SEAL RING |
| SCREW FITTING | ||
| WABCO | ||
| 324 | A 0019970641 | SEAL RING |
| OUTSIDE | ||
| WABCO | ||
| 329 | N 001444008235 | PIN |
| SHIFTING CYLINDER TO PAWL | ||
| 8X22 MM | ||
| 337 | N 001444008234 | PIN |
| SHIFTING CYLINDER TO YOKE | ||
| 8X45 MM | ||
| 337 | N 001444008237 | PIN |
| SHIFTING CYLINDER TO YOKE | ||
| 8X60 MM | ||
| 345 | N 900055008002 | SPRING WASHER |
| SHIFTING CYLINDER TO YOKE | ||
| 346 | A 6209900340 | WASHER |
| SHIFTING CYLINDER TO YOKE | ||
| 347 | N 000094002059 | COTTER PIN |
| SHIFTING CYLINDER TO YOKE | ||
| Repalced by: N 000094002060 | ||
| 347 | N 000094002060 | COTTER PIN |
| SHIFTING CYLINDER TO YOKE | ||
| 350 | A 3852680776 | WASHER |
| BETWEEN THE SHIFTING RODS | ||
| 354 | N 006912010021 | SCREW |
| SHIFTING ROD TO SHIFTING ROD | ||
| 359 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 359 | N 910113010000 | NUT |
| SHIFTING ROD TO SHIFTING ROD | ||
| 364 | A 6202680028 | CONNECTOR |
| BETWEEN THE SHIFTING RODS | ||

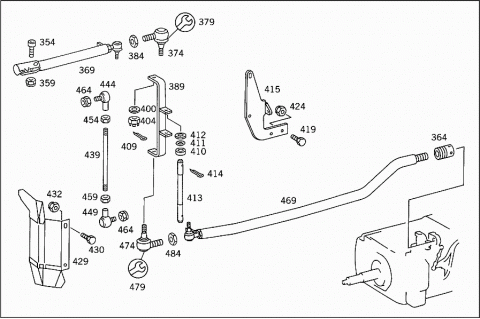

| 369 | A 6252600133 | SHIFTING ROD |
| EXTENSION | ||
| 374 | A 6732680189 | JOINT |
| Repalced by: A 0009965245 | ||
| 374 | A 0009965245 | ARTICULATION PIECE |
| 379 | A 0003381997 | BOOT |
| Repalced by: A 2013300185 | ||
| 379 | A 2013300185 | REPAIR KIT |
| 384 | N 000439014203 | NUT |
| Repalced by: N 308675014001 | ||
| 384 | N 308675014001 | NUT |
| 389 | A 6252600162 | BRACKET |
| Repalced by: A 6252601162 | ||
| 389 | A 6252601162 | BRACKET |
| (CONNECTOR),FROM FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 400 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 400 | N 000125010532 | WASHER |
| SHIFTING ROD TO BRACKET | ||
| 404 | N 000979010001 | NUT |
| SHIFTING ROD TO BRACKET | ||
| 409 | N 000094002077 | COTTER PIN |
| SHIFTING ROD TO BRACKET | ||
| 410 | A 0109818010 | NEEDLE BEARING |
| BRACKET TO BRACKET ON CAB | ||
| 410 | A 0119812910 | NEEDLE BEARING |
| BRACKET TO BRACKET ON CAB | ||
| 411 | A 0099972648 | SEAL RING |
| BRACKET TO BRACKET ON CAB | ||
| 412 | A 6252680076 | WASHER |
| Repalced by: A 3819901340 | ||
| 412 | A 3819901340 | WASHER |
| BRACKET TO BRACKET ON CAB | ||
| 413 | A 6252680074 | PIN |
| BRACKET TO BRACKET ON CAB | ||
| 414 | N 000094004080 | COTTER PIN |
| BRACKET TO BRACKET ON CAB | ||
| 415 | A 6252600262 | BRACKET |
| Repalced by: A 6252601262 | ||
| 415 | A 6252601262 | BRACKET |
| CONNECTOR | ||
| 419 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 419 | N 304017010002 | SCREW |
| BRACKET TO BRACKET ON CAB | ||
| A 0019908504 | SCREW | |
| BRACKET TO BRACKET ON CAB | ||
| M 10X35 | ||
| 424 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 424 | N 910113010000 | NUT |
| BRACKET TO BRACKET ON CAB | ||
| 429 | A 6252600096 | COVERING |
| Repalced by: A 6252600196 | ||
| 429 | A 6252600196 | COVERING |
| (HEAT SHIELD) | ||
| 430 | N 000933010105 | SCREW |
| HEAT SHIELD MOUNTING | ||
| 432 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 432 | N 910113010000 | NUT |
| HEAT SHIELD MOUNTING | ||
| 439 | A 6252680225 | SHIFTING ROD |
| Repalced by: N 900331012339 | ||
| 439 | N 900331012339 | PULL ROD |
| BRACING | ||
| 444 | A 0009960345 | ARTICULATION PIECE |
| Repalced by: A 0009965045 | ||
| 444 | A 0009965045 | ARTICULATION PIECE |
| Repalced by: A 0009965545 | ||
| 444 | A 0009965545 | ARTICULATION PIECE |
| Repalced by: A 0019963045 | ||
| 444 | A 0019963045 | CONSTANT VELOCITY JOINT |
| 449 | A 0009960445 | ARTICULATION PIECE |
| Repalced by: A 0009965145 | ||
| 449 | A 0009965145 | ARTICULATION PIECE |
| Repalced by: A 0009965645 | ||
| 449 | A 0009965645 | ARTICULATION PIECE |
| Repalced by: A 0019963145 | ||
| 449 | A 0019963145 | CONSTANT VELOCITY JOINT |
| 454 | N 304032012001 | NUT |
| JOINT TO BRACING ROD | ||
| 459 | N 304032012002 | NUT |
| JOINT TO BRACING ROD | ||
| 464 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 464 | N 910113010000 | NUT |
| BRACING ROD TO LINK | ||
| 469 | A 6252600033 | SHIFTING ROD |
| REAR | ||
| 474 | A 6732680189 | JOINT |
| Repalced by: A 0009965245 | ||
| 474 | A 0009965245 | ARTICULATION PIECE |
| A 0003381997 | BOOT | |
| Repalced by: A 2013300185 | ||
| 479 | A 2013300185 | REPAIR KIT |
| 484 | N 000439014203 | NUT |
| Repalced by: N 308675014001 | ||
| 484 | N 308675014001 | NUT |
| JOINT TO SHIFTING ROD | ||
| 489 | A 0089979082 | HOSE |
| FOUR-CIRCUIT PROTECTIVE VALVE,CLUTCH BOOSTER,DISTRIBUTOR,3/2-WAY VALVE | ||
| 6X8 MM | ||
| 492 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 492 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 496 | N 915052006013 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/12 MM | ||
| 500 | A 0019978490 | LOOM TIE |
| LINE TO BRACKET | ||
| 504 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 504 | A 0009872627 | PLASTIC PIPE |
| DISTRIBUTOR,SHIFTING CYLINDER | ||
| 4X6 MM | ||
| 504 | A 0009872627 | PLASTIC PIPE |
| FROM 3/2-WAY VALVE TO ADDITIONAL GEARBOX VALVE | ||
| 4X6 MM | ||
| 508 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 512 | N 915062004000 | SLEEVE |
| LINE CONNECTIONS | ||
| 516 | N 003861006008 | GLAND |
| LINE CONNECTIONS | ||
| 520 | N 915017006104 | UNION NUT |
| LINE CONNECTIONS | ||
| 524 | N 915052004015 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/12 MM | ||
| 524 | N 915052004015 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/12 MM | ||
| 524 | N 915052004016 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/10 MM | ||
| 528 | N 915047008202 | HOLLOW SCREW |
| DISTRIBUTOR | ||
| 532 | N 915036008202 | HOLLOW SCREW |
| ADDITIONAL GEARBOX VALVE | ||
| 532 | N 915036008202 | HOLLOW SCREW |
| ADDITIONAL GEARBOX VALVE | ||
| 532 | N 915036008202 | HOLLOW SCREW |
| SHIFTING CYLINDER,CONNECTION: | ||
| "1" | ||
| 536 | N 007603012405 | SEAL RING |
| DISTRIBUTOR | ||
| 536 | N 007603012405 | SEAL RING |
| ADDITIONAL GEARBOX VALVE | ||
| 536 | N 007603012405 | SEAL RING |
| DISTRIBUTOR | ||
| 536 | N 007603012405 | SEAL RING |
| SHIFTING CYLINDER,CONNECTION: | ||
| "1" | ||
| 540 | N 915036006202 | HOLLOW SCREW |
| SHIFTING CYLINDER,CONNECTION: | ||
| "41" | ||
| 544 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 544 | N 007603010110 | SEAL RING |
| SHIFTING CYLINDER,CONNECTION: | ||
| "41" | ||
| 545 | A 0019907871 | ELBOW FITTING |
| SPLITTER-BOX PILOT-VALVE PLUGCONNECTION | ||
| 546 | A 0009941248 | LOCK |
| Repalced by: A 0009945448 | ||
| 546 | A 0009945448 | LOCK |
| SPLITTER-BOX PILOT-VALVE PLUGCONNECTION | ||
| 547 | A 6739970045 | REPAIR KIT |
| Repalced by: A 0309971748 | ||
| 547 | A 0309971748 | REPAIR KIT |
| SPLITTER-BOX PILOT-VALVE PLUGCONNECTION | ||
| 548 | A 0019978390 | LOOM TIE |
| LINE MOUNTING | ||
| 552 | A 0109975482 | PLASTIC TUBE |
| 554 | A 0049979572 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 556 | N 915062002000 | SLEEVE |
| LINE CONNECTIONS | ||
| 560 | N 003861004001 | GLAND |
| LINE CONNECTIONS | ||
| 564 | N 915017004101 | UNION NUT |
| LINE CONNECTIONS | ||
| Repalced by: N 000000006521 | ||
| 564 | N 000000006521 | NUT |
| LINE CONNECTIONS | ||
| 568 | A 0004342201 | VALVE |
| ADDITIONAL GEARBOX | ||
| WABCO | ||
| 572 | A 0009972548 | SEAL RING |
| Repalced by: A 0099971645 | ||
| 572 | A 0099971645 | SEAL RING |
| 576 | A 0003280191 | CLEANER |
| 580 | A 0004340586 | CUP |
| 584 | A 0009971977 | HANDLE |
| 588 | A 0025869843 | REPAIR KIT |
| SPLITTER-BOX PILOT VALVE | ||
| 592 | A 4063580065 | BREATHER |
| Repalced by: A 3933280065 | ||
| 592 | A 3933280065 | PIPE SOCKET |
| ADDITIONAL GEARBOX VALVE | ||
| 596 | N 000137027201 | SPRING WASHER |
| VALVE TO CAB | ||
| 600 | N 074305026202 | NUT |
| VALVE TO BRACKET | ||
| 604 | A 6202600062 | BRACKET |
| LINE CONNECTIONS | ||
| 608 | A 0005455209 | SWITCH |
| Repalced by: A 0005457909 | ||
| 608 | A 0005457909 | SWITCH |
| Repalced by: A 0005459009 | ||
| 608 | A 0005459009 | SWITCH |
| Repalced by: A 0015451109 | ||
| 608 | A 0015451109 | SWITCH |
| Repalced by: A 0015452709 | ||
| 608 | A 0015452709 | SWITCH |
| NEUTRAL POSITION SWITCH | ||
| 612 | A 0002682059 | SEAL RING |
| SWITCH TO CASE COVER | ||
| 1.60 MM | ||
| 612 | A 0002681959 | SEAL RING |
| SWITCH TO CASE COVER | ||
| 1.80 MM | ||
| 612 | A 0002681559 | SEAL RING |
| SWITCH TO CASE COVER | ||
| 2.00 MM | ||
| 612 | A 0002681659 | SEAL RING |
| SWITCH TO CASE COVER | ||
| 2.20 MM | ||
| 612 | A 0002681759 | SEAL RING |
| SWITCH TO CASE COVER | ||
| 2.40 MM | ||
| 612 | A 0002682159 | SEAL RING |
| SWITCH TO CASE COVER | ||
| 2.60 MM | ||
| 612 | A 0002682259 | SEAL RING |
| SWITCH TO CASE COVER | ||
| 2.80 MM | ||
| 612 | A 0002682359 | SEAL RING |
| SWITCH TO CASE COVER | ||
| 3.00 MM | ||
| 616 | A 0005454214 | SWITCH |
| Repalced by: A 0015458214 | ||
| 616 | A 0015458214 | SWITCH |

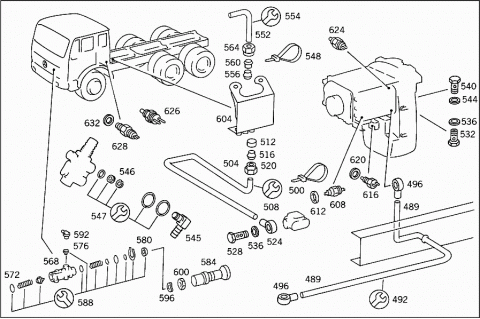

| LONGITUDINAL DIFFERENTIAL LOCK | ||
| 616 | A 0015454714 | SWITCH |
| LONGITUDINAL DIFFERENTIAL LOCK | ||
| Repalced by: A 0015455709 | ||
| 616 | A 0015455709 | SWITCH |
| LONGITUDINAL DIFFERENTIAL LOCK | ||
| 620 | N 007603018101 | SEAL RING |
| LONGITUDINAL DIFFERENTIAL LOCK | ||
| 624 | A 0015453414 | SWITCH |
| Repalced by: A 0025458114 | ||
| 624 | A 0025458114 | SWITCH |
| Repalced by: A 0035451614 | ||
| 624 | A 0035451614 | SWITCH |
| GEAR CLUSTER INDICATION | ||
| 626 | A 0015458214 | SWITCH |
| OVERREVVING | ||
| 628 | A 0065428017 | SENDER UNIT |
| OVERREVVING | ||
| 632 | A 0002680359 | SEAL RING |
| Repalced by: N 007603018100 | ||
| 632 | N 007603018100 | SEAL RING |
| SWITCH TO CASE COVER | ||
| 632 | N 007603018100 | SEAL RING |
| OVERREVVING | ||

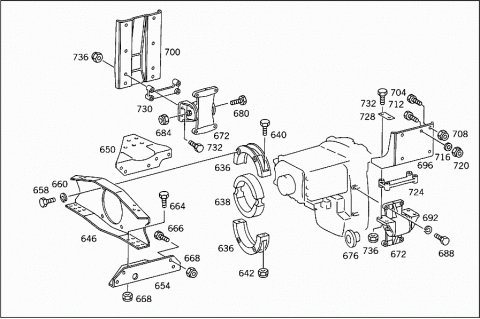

| 636 | A 3952660104 | BEARING CAP |
| TRANSMISSION CASE FRONT COVER | ||
| 638 | A 3872660003 | MOUNTING |
| TRANSMISSION CASE FRONT COVER | ||
| 640 | N 000960012199 | SCREW |
| Repalced by: N 308676012018 | ||
| 640 | N 308676012018 | SCREW |
| BEARING COVER TO TRANSMISSION CASE | ||
| 642 | N 910113012002 | NUT |
| BEARING COVER TO TRANSMISSION CASE | ||
| 646 | A 3872660302 | SUPPORT |
| TRANSMISSION FRONT SUSPENSION | ||
| 650 | A 3872661540 | BRACKET |
| TOP LEFT | ||
| 650 | A 3872661640 | BRACKET |
| TOP RIGHT | ||
| 654 | A 3872661740 | BRACKET |
| BOTTOM LEFT | ||
| 654 | A 6252660240 | BRACKET |
| BOTTOM LEFT | ||
| 654 | A 3872661840 | BRACKET |
| BOTTOM RIGHT | ||
| 654 | A 6252660340 | BRACKET |
| BOTTOM RIGHT | ||
| 658 | N 000961016075 | SCREW |
| Repalced by: N 308676016020 | ||
| 658 | N 308676016020 | SCREW |
| SUPPORT AND BRACKET TO FRAME | ||
| 660 | N 912004016101 | LOCK WASHER |
| SUPPORT AND BRACKET TO FRAME | ||
| 664 | N 000961014100 | SCREW |
| SUPPORT AND BRACKET TO FRAME | ||
| M14 X 1.5 X 30 | ||
| 664 | A 0039909304 | SCREW |
| SUPPORT AND BRACKET TO FRAME | ||
| M14 X 1.5 X 35 ; MIT BUND | ||
| 666 | N 000961014028 | SCREW |
| BRACKET TO FRAME | ||
| M14 X 1.5 X 40 | ||
| A 0029909604 | SCREW | |
| Repalced by: N 910105014010 | ||
| N 910105014010 | SCREW | |
| BRACKET TO FRAME | ||
| M 14X45 | ||
| 666 | N 000961014054 | SCREW |
| BRACKET TO FRAME | ||
| M14 X 1.5 X 45 | ||
| A 0029909704 | SCREW | |
| BRACKET TO FRAME | ||
| M 14X50 | ||
| 668 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 668 | N 910113014001 | NUT |
| SUPPORT AND BRACKET TO FRAME | ||
| A 0009906950 | NUT | |
| SUPPORT AND BRACKET TO FRAME | ||
| M 14 | ||
| 672 | A 3872600594 | BEARING BRACKET |
| TRANSMISSION SUSPENSION | ||
| 676 | A 4932660003 | MOUNTING |
| TRANSMISSION SUSPENSION | ||
| 680 | N 000960016221 | SCREW |
| BEARING COVER TO CONSOLE | ||
| A 0039906204 | SCREW | |
| BEARING COVER TO CONSOLE | ||
| M 16X145 | ||
| 684 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 684 | N 910113016002 | NUT |
| BEARING COVER TO CONSOLE | ||
| A 0009907150 | NUT | |
| BEARING COVER TO CONSOLE | ||
| M 16 | ||
| 688 | N 000961016075 | SCREW |
| Repalced by: N 308676016020 | ||
| 688 | N 308676016020 | SCREW |
| CONSOLE TO TRANSMISSION CASE | ||
| 692 | N 912004016101 | LOCK WASHER |
| CONSOLE TO TRANSMISSION CASE | ||
| 696 | A 6252660040 | BRACKET |
| TRANSMISSION SUSPENSION,LEFT | ||
| 700 | A 3872662940 | BRACKET |
| TRANSMISSION SUSPENSION,RIGHT | ||
| 700 | A 6252660140 | BRACKET |
| TRANSMISSION SUSPENSION,RIGHT | ||
| 704 | N 308676016022 | SCREW |
| BRACKET TO FRAME | ||
| 708 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 708 | N 910113016002 | NUT |
| BRACKET TO FRAME | ||
| 712 | N 000961014108 | SCREW |
| BRACKET TO FRAME | ||
| 716 | A 3769900340 | WASHER |
| BRACKET TO FRAME | ||
| 720 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 720 | N 910113014001 | NUT |
| BRACKET TO FRAME | ||
| 724 | A 3872660084 | SHIM |
| CONSOLE TO BRACKET | ||
| 728 | A 3872660184 | SHIM |
| Repalced by: A 3093170084 | ||
| 728 | A 3093170084 | SHIM |
| CONSOLE TO BRACKET | ||
| 730 | A 6252660084 | SHIM |
| CONSOLE TO BRACKET | ||
| 732 | N 000960016105 | SCREW |
| CONSOLE TO BRACKET | ||
| M 16X80 | ||
| A 0039904804 | SCREW | |
| CONSOLE TO BRACKET | ||
| M 16X85 | ||
| 732 | N 000960016244 | SCREW |
| CONSOLE TO BRACKET | ||
| M 16X90 | ||
| A 0039905104 | SCREW | |
| CONSOLE TO BRACKET | ||
| M 16X95 | ||
| 736 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 736 | N 910113016002 | NUT |
| CONSOLE TO BRACKET | ||
| A 0009906250 | NUT | |
| CONSOLE TO BRACKET | ||
| M 16 | ||

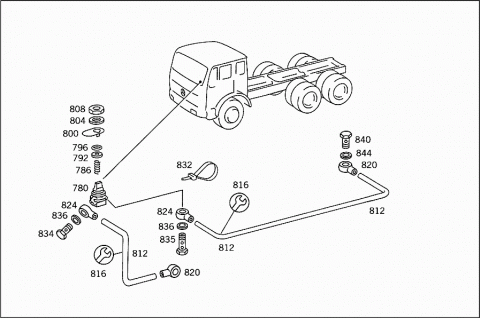

| 780 | A 0019975036 | VALVE |
| LONGITUDINAL DIFFERENTIAL LOCK CONTROL | ||
| BOSCH | ||
| 780 | A 0019976136 | VALVE |
| LONGITUDINAL DIFFERENTIAL LOCK CONTROL | ||
| WABCO | ||
| 780 | A 0039975936 | VALVE |
| LONGITUDINAL DIFFERENTIAL LOCK CONTROL | ||
| KNORR | ||
| 780 | A 0039976036 | VALVE |
| LONGITUDINAL DIFFERENTIAL LOCK CONTROL | ||
| VOSS | ||
| 786 | A 0049937501 | SPRING |
| WABCO | ||
| 792 | A 0069972648 | SEAL RING |
| WABCO | ||
| 796 | A 0039979640 | SEAL RING |
| WABCO | ||
| 800 | A 3855841624 | UNIT IDENTIFICATION PLATE |
| LONGITUDINAL DIFFERENTIAL LOCK | ||
| A 3855844324 | UNIT IDENTIFICATION PLATE | |
| LONGITUDINAL DIFFERENTIAL LOCK, AXLES I AND II | ||
| A 3855844324 | UNIT IDENTIFICATION PLATE | |
| LONGITUDINAL DIFFERENTIAL LOCK, AXLES I AND II | ||
| SIEHE GRUPPE 35 | ||
| 804 | A 3859901640 | WASHER |
| VALVE TO FLOOR | ||
| 808 | A 3839900051 | NUT |
| VALVE TO FLOOR | ||
| 812 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 812 | A 0009872627 | PLASTIC PIPE |
| FROM DISTRIBUTOR TO 3/2-WAY VALVE | ||
| 4X6 MM | ||
| 812 | A 0009872627 | PLASTIC PIPE |
| FROM 3/2-WAY VALVE TO 3/2-WAY VALVE | ||
| 4X6 MM | ||
| 812 | A 0009872627 | PLASTIC PIPE |
| FROM 3/2-WAY VALVE TO SHIFTING CYLINDER | ||
| 4X6 MM | ||
| 816 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 820 | N 915052004015 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/12 MM | ||
| 824 | N 915052004016 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/10 MM | ||
| 832 | A 0019978390 | LOOM TIE |
| LINE MOUNTING | ||
| 834 | N 915036006202 | HOLLOW SCREW |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "15,23,25" | ||
| 835 | N 915047006202 | HOLLOW SCREW |
| 3/2-WAY VALVE;CONNECTION: | ||
| "13" | ||
| 836 | N 007603010404 | SEAL RING |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "13,15,23,25" | ||
| 840 | N 915047008202 | HOLLOW SCREW |
| SHIFTING CYLINDER | ||
| 840 | N 915036008202 | HOLLOW SCREW |
| SHIFTING CYLINDER | ||
| 844 | N 007603012405 | SEAL RING |
| SHIFTING CYLINDER | ||

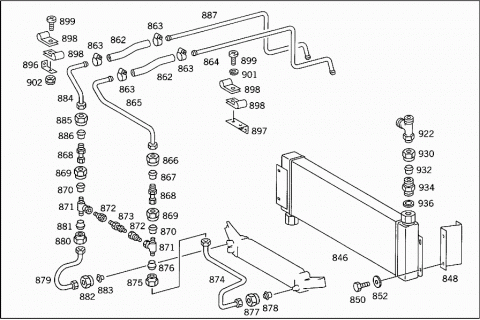

| 846 | A 0005018001 | RADIATOR |
| TRANSMISSION | ||
| 848 | A 6255001631 | BRACKET |
| OIL COOLER TO RADIATOR | ||
| 850 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 850 | N 304017006016 | SCREW |
| OIL COOLER TO RADIATOR | ||
| 852 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 852 | N 009021006208 | WASHER |
| OIL COOLER TO RADIATOR | ||
| 852 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 852 | N 009021008213 | WASHER |
| OIL COOLER TO RADIATOR | ||
| 853 | A 6252601585 | PIPE |
| FEED LINE LEADING TO OIL COOLER TO TRANSMISSION | ||
| 854 | N 915017018100 | UNION NUT |
| 855 | N 003861018003 | GLAND |
| Repalced by: A 0019901167 | ||
| 855 | A 0019901167 | SEAL CONE |
| 856 | A 0009907163 | HOLLOW SCREW |
| FEED LINE LEADING TO OIL COOLER TO TRANSMISSION | ||
| 857 | N 007603022102 | SEAL RING |
| FEED LINE LEADING TO OIL COOLER TO TRANSMISSION | ||
| 858 | A 0012603457 | VALVE |
| FEED AND RETURN | ||
| 859 | A 6252601685 | PIPE |
| FROM VALVE TO HOSE | ||
| 860 | N 915017018100 | UNION NUT |
| 861 | N 003861018003 | GLAND |
| Repalced by: A 0019901167 | ||
| 861 | A 0019901167 | SEAL CONE |
| 862 | A 6259972482 | HOSE |
| FEED AND RETURN | ||
| 863 | A 0039979490 | LOOM TIE |
| HOSE TO OIL LINE | ||
| 864 | A 6252612083 | OIL PIPE |
| FEED,CENTRAL | ||
| 865 | A 6252601785 | PIPE |
| FEED, FRONT | ||
| 866 | N 915017018100 | UNION NUT |
| 867 | N 003861018003 | GLAND |
| Repalced by: A 0019901167 | ||
| 867 | A 0019901167 | SEAL CONE |
| 868 | A 6252600043 | SLEEVE |
| FEED AND RETURN | ||
| 869 | N 915017015100 | UNION NUT |
| 870 | N 003861015004 | GLAND |
| 871 | N 003953015100 | FITTING |
| FROM DISTRIBUTOR TO VALVE | ||
| 872 | A 0019906368 | FITTING |
| VALVE | ||
| 873 | A 0009972787 | VALVE |
| OIL COOLER BY-PASS VALVE | ||
| 874 | A 6252601885 | PIPE |
| FEED TO RADIATOR | ||
| 875 | N 915017015100 | UNION NUT |
| 876 | N 003861015004 | GLAND |
| 877 | N 915017015200 | UNION NUT |
| LINE TO OIL RADIATOR | ||
| 878 | N 915003013202 | SEAL CONE |
| LINE TO OIL RADIATOR | ||
| 879 | A 6252601985 | PIPE |
| RETURN LINE TO RADIATOR | ||
| 880 | N 915017015100 | UNION NUT |
| 881 | N 003861015004 | GLAND |
| 882 | N 915017015200 | UNION NUT |
| LINE TO OIL RADIATOR | ||
| 883 | N 915003013202 | SEAL CONE |
| LINE TO OIL RADIATOR | ||
| 884 | A 6252602085 | PIPE |
| RETURN; FRONT | ||
| 885 | N 915017018100 | UNION NUT |
| 886 | N 003861018003 | GLAND |
| Repalced by: A 0019901167 | ||
| 886 | A 0019901167 | SEAL CONE |
| 887 | A 6252612583 | OIL PIPE |
| RETURN,CENTRAL | ||
| 888 | A 6252602185 | PIPE |
| FROM VALVE TO HOSE | ||
| 889 | N 915017018100 | UNION NUT |
| 890 | N 003861018003 | GLAND |
| Repalced by: A 0019901167 | ||
| 890 | A 0019901167 | SEAL CONE |
| 891 | A 6252602285 | PIPE |
| RETURN LINE FROM OIL COOLER TO TRANSMISSION | ||
| 892 | N 915017018100 | UNION NUT |
| 893 | N 003861018003 | GLAND |
| Repalced by: A 0019901167 | ||
| 893 | A 0019901167 | SEAL CONE |
| 894 | N 915036018204 | HOLLOW SCREW |
| RETURN LINE FROM OIL COOLER TO TRANSMISSION | ||
| 895 | N 007603022102 | SEAL RING |
| RETURN LINE FROM OIL COOLER TO TRANSMISSION | ||
| 896 | A 6252610640 | BRACKET |
| OIL LINE TO RADIATOR | ||
| 897 | A 6252601762 | BRACKET |
| FROM PIPE IN SUBSTRUCTURE TO HEATING WATER LINE, RETURN | ||
| 898 | A 3609950601 | CLAMP |
| LINE MOUNTING | ||
| 899 | N 000000001147 | SCREW |
| LINE MOUNTING | ||
| M 6X20 | ||
| 899 | N 007985006154 | SCREW |
| Repalced by: A 0029903712 | ||
| 899 | A 0029903712 | SCREW |
| Repalced by: N 000000001149 | ||
| 899 | N 000000001149 | HEXALOBULAR BOLT |
| LINE MOUNTING | ||
| M 6X25 | ||
| 900 | N 000125006421 | WASHER |
| LINE MOUNTING | ||
| Repalced by: N 000125006449 | ||
| 900 | N 000125006449 | WASHER |
| LINE MOUNTING | ||
| 901 | N 912004006102 | LOCK WASHER |
| LINE MOUNTING | ||
| 902 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 902 | N 913004006001 | NUT |
| LINE MOUNTING | ||
| 903 | A 6252600885 | PIPE |
| Repalced by: A 4062602485 | ||
| 903 | A 6252600085 | PIPE |
| Repalced by: A 4062602485 | ||
| 903 | A 4062602485 | PIPE |
| FROM TRANSMISSION TO OIL COOLER | ||
| 903 | A 4062602485 | PIPE |
| FROM OIL COOLER TO TRANSMISSION | ||
| 904 | N 003861018003 | GLAND |
| Repalced by: A 0019901167 | ||
| 904 | A 0019901167 | SEAL CONE |
| 905 | N 915017018100 | UNION NUT |
| 906 | A 0009907163 | HOLLOW SCREW |
| FEED LINE LEADING TO OIL COOLER TO TRANSMISSION | ||
| 907 | N 915036018204 | HOLLOW SCREW |
| RETURN LINE FROM OIL COOLER TO TRANSMISSION | ||
| 908 | N 007603022102 | SEAL RING |
| OIL LINES TO TRANSMISSION | ||
| 909 | A 0005516456 | TUBE |
| FEED AND RETURN | ||
| 910 | N 003861018003 | GLAND |
| Repalced by: A 0019901167 | ||
| 910 | A 0019901167 | SEAL CONE |
| FEED AND RETURN | ||
| 910 | A 0019901167 | SEAL CONE |
| FEED AND RETURN | ||
| 912 | N 915017018100 | UNION NUT |
| FEED AND RETURN | ||
| 912 | N 915017018100 | UNION NUT |
| FEED AND RETURN | ||
| 914 | A 6252610983 | OIL PIPE |
| FEED AND RETURN | ||
| 916 | A 6259971882 | HOSE |
| FEED AND RETURN | ||
| 918 | A 0012603457 | VALVE |
| FEED AND RETURN | ||
| 920 | A 0009972787 | VALVE |
| OIL COOLER BY-PASS VALVE | ||

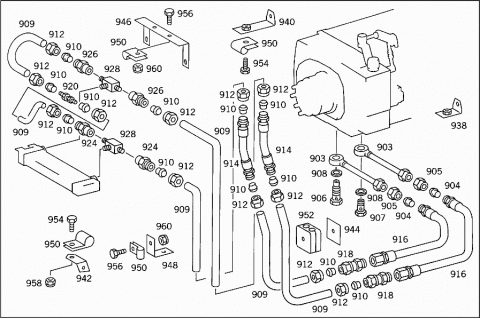

| 922 | N 003954018100 | FITTING |
| LINE TO OIL RADIATOR | ||
| 924 | A 0019971478 | SCREW CONNECTION |
| LINE TO OIL RADIATOR | ||
| 926 | A 0029902368 | FITTING |
| Repalced by: A 0019971478 | ||
| 926 | A 0019971478 | SCREW CONNECTION |
| LINE TO OIL RADIATOR | ||
| 928 | A 0029902771 | ELBOW FITTING |
| LINE TO OIL RADIATOR | ||
| 930 | N 915017022100 | NUT |
| LINE TO OIL RADIATOR | ||
| Repalced by: N 000000006243 | ||
| 930 | N 000000006243 | NUT |
| LINE TO OIL RADIATOR | ||
| 932 | N 003861022004 | GLAND |
| Repalced by: A 0019901267 | ||
| 932 | A 0019901267 | SEAL CONE |
| LINE TO OIL RADIATOR | ||
| 934 | N 003901022006 | SCREW-IN FITTING |
| LINE TO OIL RADIATOR | ||
| 936 | N 007603026104 | SEAL RING |
| LINE TO OIL RADIATOR | ||
| 938 | A 6252600462 | BRACKET |
| OIL LINE TO TRANSMISSION,LEFT | ||
| 940 | A 6252600562 | BRACKET |
| OIL LINE TO TRANSMISSION,RIGHT | ||
| 942 | A 6252610040 | BRACKET |
| OIL LINE TO SUPPORT,LEFT | ||
| 942 | A 6252610140 | BRACKET |
| OIL LINE TO SUPPORT,RIGHT | ||
| 944 | A 6252660184 | SHIM |
| OIL LINE TO SUPPORT | ||
| 946 | A 6252610440 | BRACKET |
| OIL LINE TO RADIATOR | ||
| 948 | A 6252850840 | BRACKET |
| OIL LINE TO SUPPORT | ||
| 950 | A 3609950601 | CLAMP |
| LINE MOUNTING | ||
| 952 | A 0009952510 | CLAMP |
| LINE MOUNTING | ||
| 954 | N 000933006207 | SCREW |
| LINE MOUNTING | ||
| M 6X14 | ||
| 954 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 954 | N 304017006016 | SCREW |
| LINE MOUNTING | ||
| M 6X16 | ||
| 954 | N 000931006115 | SCREW |
| Repalced by: N 000933006151 | ||
| 954 | N 000933006151 | SCREW |
| LINE MOUNTING | ||
| M 6X50 | ||
| 954 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 954 | N 304017008016 | SCREW |
| LINE MOUNTING | ||
| M 8X16 | ||
| 954 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 954 | N 304017008021 | SCREW |
| LINE MOUNTING | ||
| M 8X20 | ||
| N 007985008142 | SCREW | |
| LINE MOUNTING | ||
| M 8X16 | ||
| 956 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 956 | N 304017008034 | SCREW |
| LINE MOUNTING | ||
| M 8X25 | ||
| 958 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 958 | N 913004006001 | NUT |
| LINE MOUNTING | ||
| 960 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 960 | N 913004008001 | NUT |
| LINE MOUNTING | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
