Transporto priemonė: 3340 K; VIN numerio dalis: 942165

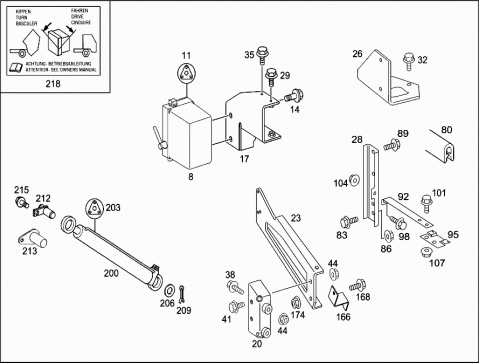

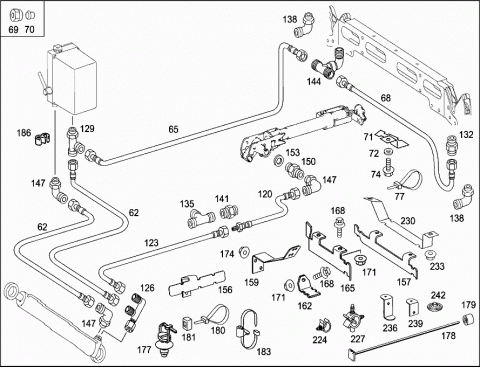

Grupė: 55 HYDRAULIC SYSTEM - 030 HYDRAULIC SYSTEM USED FOR CAB TILTING
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 0015533601 | PUMP |
| (HAND PUMP) | ||
| 008 | A 0015533601 | PUMP |
| (HAND PUMP) | ||
| 008 | A 0015533601 | PUMP |
| (HAND PUMP) | ||
| 008 | A 0015533701 | PUMP |
| (HAND PUMP) | ||
| 008 | A 0015533701 | PUMP |
| (HAND PUMP) | ||
| 008 | A 0015533701 | PUMP |
| (HAND PUMP) | ||
| 011 | A 0005506907 | GASKET KIT |
| HAND PUMP | ||
| 011 | A 0005506907 | GASKET KIT |
| HAND PUMP | ||
| 011 | A 0005506907 | GASKET KIT |
| HAND PUMP | ||
| 011 | A 0005506907 | GASKET KIT |
| HAND PUMP | ||
| 011 | A 0005506907 | GASKET KIT |
| HAND PUMP | ||
| 011 | A 0005506907 | GASKET KIT |
| HAND PUMP | ||
| 014 | A 0019908004 | SCREW |
| Repalced by: N 910105010040 | ||
| 014 | A 0019908004 | SCREW |
| Repalced by: N 910105010040 | ||
| 014 | N 910105010040 | SCREW |
| HAND PUMP TO BRACKET | ||
| M 10X16 | ||
| 014 | N 910105010040 | SCREW |
| HAND PUMP TO BRACKET | ||
| M 10X16 | ||
| 014 | N 910105010006 | SCREW |
| HAND PUMP TO BRACKET | ||
| M 10X20 | ||
| 014 | N 910105010007 | HEXAGON HEAD BOLT |
| HAND PUMP TO BRACKET | ||
| M 10X35 | ||
| 014 | N 910105010011 | HEXAGON HEAD BOLT |
| HAND PUMP TO BRACKET | ||
| M10X40 | ||
| 017 | A 9405500840 | BRACKET |
| HAND PUMP | ||
| 017 | A 9405500940 | BRACKET |
| HAND PUMP | ||
| 020 | A 9405501140 | BRACKET |
| HAND PUMP | ||
| 023 | A 9405501040 | BRACKET |
| HAND PUMP | ||
| 026 | A 3755530740 | BRACKET |
| HAND PUMP | ||
| 028 | A 3755501040 | BRACKET |
| HAND PUMP | ||
| 029 | N 910105010009 | SCREW |
| BRACKET TO ENTRANCE SUPPORT | ||
| M 10X25 | ||
| 029 | N 910105010009 | SCREW |
| BRACKET TO ENTRANCE SUPPORT | ||
| M 10X25 | ||
| 032 | N 000000000428 | HEXAGON HEAD BOLT |
| BRACKET TO FENDER BRACKET | ||
| M10X35 | ||
| 035 | N 910105012007 | SCREW |
| BRACKET TO ENTRANCE SUPPORT | ||
| M 12X30 | ||
| 035 | N 910105012007 | SCREW |
| BRACKET TO ENTRANCE SUPPORT | ||
| M 12X30 | ||
| 038 | N 000000005291 | HEXAGON HEAD BOLT |
| BRACKET TO FRAME | ||
| M14X1.5X80 | ||
| 038 | N 000000005290 | HEXAGON HEAD BOLT |
| BRACKET TO FRAME | ||
| M 14X1.5X90 | ||
| 041 | N 910105014013 | SCREW |
| BRACKET TO BRACKET | ||
| M 14X1.5X35 | ||
| 044 | N 913023014003 | NUT |
| BRACKET TO FRAME | ||
| M14X1.5 | ||
| 044 | N 913023014003 | NUT |
| BRACKET TO BRACKET | ||
| M14X1.5 | ||
| 062 | A 9405531882 | HOSE |
| BETWEEN T-FITTING AND CAB CONNECTION POINT | ||
| 062 | A 9405531882 | HOSE |
| BETWEEN T-FITTING AND CAB CONNECTION POINT | ||
| 062 | A 9405532882 | HOSE |
| FROM HAND PUMP TO HYDRAULIC CYLINDER | ||
| 062 | A 9405532082 | HOSE |
| BETWEEN HAND PUMP AND TILTING CYLINDER (LOWERING) | ||
| 062 | A 9405532082 | HOSE |
| BETWEEN HAND PUMP AND TILTING CYLINDER (LOWERING) | ||
| 062 | A 9405532982 | HOSE |
| FROM HAND PUMP TO HYDRAULIC CYLINDER | ||
| 062 | A 9405533582 | HOSE |
| FROM HAND PUMP TO HYDRAULIC CYLINDER | ||
| 062 | A 9405533682 | HOSE |
| FROM HAND PUMP TO HYDRAULIC CYLINDER | ||
| 062 | A 9405531982 | HOSE |
| FROM HAND PUMP TO HYDRAULIC CYLINDER | ||
| 062 | A 9405531982 | HOSE |
| FROM HAND PUMP TO HYDRAULIC CYLINDER | ||
| 065 | A 9405532382 | HOSE |
| HAND PUMP ON LOCK | ||
| 065 | A 9425533282 | HOSE |
| HAND PUMP ON LOCK | ||
| 065 | A 9405533082 | HOSE |
| HAND PUMP ON LOCK | ||
| 065 | A 9405532482 | HOSE |
| HAND PUMP ON LOCK | ||
| 065 | A 9425533382 | HOSE |
| Repalced by: A 9405532082 | ||
| 065 | A 9405532082 | HOSE |
| HAND PUMP ON LOCK | ||
| 065 | A 9405533182 | HOSE |
| HAND PUMP ON LOCK | ||
| 065 | A 9405532782 | HOSE |
| HAND PUMP ON LOCK | ||
| 068 | A 9405532282 | HOSE |
| FROM LOCKING MECHANISM ON LOCKING MECHANISM | ||
| 068 | A 9405532282 | HOSE |
| FROM LOCKING MECHANISM ON LOCKING MECHANISM | ||
| 068 | A 3755500056 | PIPE LINE |
| LOCK,RIGHT,TO LOCK,LEFT | ||
| 069 | N 915017006100 | UNION NUT |
| 070 | A 0019901667 | GLAND |
| 071 | A 9435428840 | BRACKET |
| HYDRAULIC LINE TO CAB CROSS MEMBER | ||
| 071 | A 3755422040 | BRACKET |
| HYDRAULIC LINE TO CAB CROSS MEMBER | ||
| 071 | A 3755422040 | BRACKET |
| HIGH PRESSURE HOSE TO CAB | ||
| 072 | A 3609902340 | WASHER |
| BRACKET TO HYDRAULIC PUMP | ||
| 074 | N 000000000276 | SCREW |
| BRACKET TO CAB CONSOLE | ||
| M8X20 | ||
| 077 | A 0059971590 | CABLE TIE |
| HYDRAULIC LINE TO BRACKET | ||
| 380X7.8MM | ||
| Repalced by: A 0029975890 | ||
| 077 | A 0029975890 | CABLE TIE |
| HYDRAULIC LINE TO BRACKET | ||
| 375X8.4MM | ||
| 077 | A 0059971590 | CABLE TIE |
| HYDRAULIC LINE TO BRACKET | ||
| 380X7.8MM | ||
| Repalced by: A 0029975890 | ||
| 077 | A 0029975890 | CABLE TIE |
| HYDRAULIC LINE TO BRACKET | ||
| 375X8.4MM | ||
| 077 | A 0029975890 | CABLE TIE |
| HYDRAULIC LINE TO BRACKET | ||
| 375X8.4MM | ||
| 077 | A 0059971590 | CABLE TIE |
| HYDRAULIC LINE TO BRACKET | ||
| 380X7.8MM | ||
| Repalced by: A 0029975890 | ||
| 077 | A 0029975890 | CABLE TIE |
| HYDRAULIC LINE TO BRACKET | ||
| 375X8.4MM | ||
| 077 | A 0059971590 | CABLE TIE |
| HYDRAULIC LINE TO BRACKET | ||
| 380X7.8MM | ||
| Repalced by: A 0029975890 | ||
| 077 | A 0029975890 | CABLE TIE |
| HYDRAULIC LINE TO BRACKET | ||
| 375X8.4MM | ||
| 077 | A 0059971590 | CABLE TIE |
| HYDRAULIC LINE TO BRACKET | ||
| 380X7.8MM | ||
| Repalced by: A 0029975890 | ||
| 077 | A 0029975890 | CABLE TIE |
| HYDRAULIC LINE TO BRACKET | ||
| 375X8.4MM | ||
| 077 | A 0029975890 | CABLE TIE |
| LINE MOUNTING | ||
| 375X8.4MM | ||
| 077 | A 0049979890 | CABLE TIE |
| HYDRAULIC LINE TO BRACKET | ||
| 385X3.5MM | ||
| 077 | A 0049979890 | CABLE TIE |
| HIGH-PRESSSURE HOSE ON PUMP | ||
| 385X3.5MM | ||
| 077 | A 0049979890 | CABLE TIE |
| HIGH-PRESSSURE HOSE ON PUMP | ||
| 385X3.5MM | ||
| 077 | A 0049979890 | CABLE TIE |
| LINE MOUNTING | ||
| 385X3.5MM | ||
| 077 | A 0049979890 | CABLE TIE |
| LINE MOUNTING | ||
| 385X3.5MM | ||
| 077 | A 0049979890 | CABLE TIE |
| LINE MOUNTING | ||
| 385X3.5MM | ||
| 077 | A 0029972490 | CABLE TIE |
| LINE MOUNTING | ||
| 310X5MM | ||
| 077 | A 0029972490 | CABLE TIE |
| LINE MOUNTING | ||
| 310X5MM | ||
| 080 | A 0009852662 | EDGE GUARD SECTION |
| AT BATTERY CARRIER | ||
| 083 | N 000000000428 | HEXAGON HEAD BOLT |
| SUPPORT ON BATTERY CARRIER | ||
| 086 | N 913023010002 | NUT |
| SUPPORT ON BATTERY CARRIER | ||
| 089 | N 910105010011 | HEXAGON HEAD BOLT |
| HYDRAULIC PUMP TO BRACKET | ||
| 092 | A 3755531640 | BRACKET |
| AT HYDRAULIC PUMP | ||
| 095 | A 9414296568 | BRACKET |
| AT HYDRAULIC PUMP | ||
| 098 | N 910105010009 | SCREW |
| AT HYDRAULIC PUMP | ||
| 101 | N 910105014013 | SCREW |
| AT HYDRAULIC PUMP | ||
| 104 | N 913023010002 | NUT |
| AT HYDRAULIC PUMP | ||
| 107 | N 913023014003 | NUT |
| AT HYDRAULIC PUMP | ||
| M14X1.5 | ||
| 107 | N 913023014003 | NUT |
| AT HYDRAULIC PUMP | ||
| M14X1.5 | ||
| 120 | A 9405532582 | HOSE |
| SWITCH RELEASE,CAB | ||
| Repalced by: A 9405533782 | ||
| 120 | A 9405533782 | HOSE |
| SWITCH RELEASE,CAB | ||
| 120 | A 9405533382 | HOSE |
| HYDR.LINE OF CONNECTION FITTING UNDER CAB TO UNLOCKING MECHANISM | ||
| 123 | A 9405532682 | HOSE |
| SEPARATING POINT TO DUMPING CYLINDER | ||
| 123 | A 9405532682 | HOSE |
| SEPARATING POINT TO DUMPING CYLINDER | ||
| 123 | A 9405533482 | HOSE |
| SEPARATING POINT TO DUMPING CYLINDER | ||
| 123 | A 9405533282 | HOSE |
| FROM LOCKING MECHANISM ON LOCKING MECHANISM | ||
| 126 | A 9309970171 | DOUBLE FITTING |
| HIGH PRESSURE HOSE TO HYDRAULIC CYLINDER | ||
| 126 | A 9309970171 | DOUBLE FITTING |
| HIGH PRESSURE HOSE TO HYDRAULIC CYLINDER | ||
| 126 | A 9309970171 | DOUBLE FITTING |
| HIGH-PRESSSURE HOSE ON PUMP | ||
| 129 | A 0019900170 | T-FITTING |
| HIGH-PRESSSURE HOSE ON PUMP | ||
| 129 | A 0019900170 | T-FITTING |
| HIGH PRESSURE HOSE TO HYDRAULIC CYLINDER | ||
| 132 | A 0019909878 | CONNECTOR |
| HIGH-PRESSURE HOSE ON LOCKING MECHANISM | ||
| 132 | A 9309970371 | FITTING |
| HIGH PRESSURE HOSE TO LOCK,LEFT | ||
| 135 | A 0009903470 | T-FITTING |
| HIGH-PRESSURE HOSE ON LOCKING MECHANISM | ||
| Repalced by: N 000000006204 | ||
| 135 | N 000000006204 | FITTING |
| HIGH-PRESSURE HOSE ON LOCKING MECHANISM | ||
| 135 | A 0009903470 | T-FITTING |
| HIGH-PRESSURE HOSE ON LOCKING MECHANISM | ||
| Repalced by: N 000000006204 | ||
| 135 | N 000000006204 | FITTING |
| HIGH-PRESSURE HOSE ON LOCKING MECHANISM | ||
| 135 | A 0009979172 | FITTING |
| BETWEEN THE LINES | ||
| 138 | A 0039977172 | FITTING |
| HIGH-PRESSURE HOSE ON LOCKING MECHANISM | ||
| 138 | A 0019909871 | ELBOW FITTING |
| HIGH PRESSURE HOSE TO LOCK,LEFT | ||
| 138 | A 0009907171 | ELBOW FITTING |
| HIGH PRESSURE HOSE TO INTERLOCK, RIGHT | ||
| 141 | N 003902006001 | CONNECTION FITTING |
| Repalced by: A 0039979172 | ||
| 141 | A 0039979172 | FITTING |
| HIGH-PRESSURE HOSE ON LOCKING MECHANISM | ||
| 141 | A 0039979172 | FITTING |
| HIGH PRESSURE HOSE TO LOCK,LEFT | ||
| 141 | A 0039979172 | FITTING |
| HIGH PRESSURE HOSE TO LOCK,LEFT | ||
| 144 | A 9419970171 | FITTING |
| HIGH PRESSURE HOSE TO INTERLOCK, RIGHT | ||
| 147 | A 0019909871 | ELBOW FITTING |
| CONTROL UNLOCKING HIGH-PRESSURE HOSE | ||
| 147 | A 0019909871 | ELBOW FITTING |
| CONTROL UNLOCKING HIGH-PRESSURE HOSE | ||
| 147 | A 0019909871 | ELBOW FITTING |
| CONTROL UNLOCKING HIGH-PRESSURE HOSE | ||
| 147 | A 0019909871 | ELBOW FITTING |
| HIGH PRESSURE HOSE TO HYDRAULIC CYLINDER | ||
| 147 | A 0019909871 | ELBOW FITTING |
| HIGH PRESSURE HOSE TO HYDRAULIC CYLINDER | ||
| 147 | A 0019909871 | ELBOW FITTING |
| HIGH PRESSURE HOSE TO HYDRAULIC CYLINDER | ||
| 147 | A 0019909871 | ELBOW FITTING |
| HIGH PRESSURE HOSE TO HYDRAULIC CYLINDER | ||
| 147 | A 0019909871 | ELBOW FITTING |
| HIGH PRESSURE HOSE TO HYDRAULIC CYLINDER | ||
| 147 | A 0019909871 | ELBOW FITTING |
| HIGH-PRESSSURE HOSE ON PUMP | ||
| 147 | A 0019909871 | ELBOW FITTING |
| HIGH-PRESSSURE HOSE ON PUMP | ||
| 147 | A 0019909871 | ELBOW FITTING |
| HIGH-PRESSSURE HOSE ON PUMP | ||
| 147 | A 9309970171 | DOUBLE FITTING |
| HIGH-PRESSSURE HOSE ON PUMP | ||
| 147 | A 9309970171 | DOUBLE FITTING |
| HIGH-PRESSSURE HOSE ON PUMP | ||
| 150 | A 0029978472 | FITTING |
| CONTROL UNLOCKING HIGH-PRESSURE HOSE | ||
| 150 | A 0029978472 | FITTING |
| CONTROL UNLOCKING HIGH-PRESSURE HOSE | ||
| 150 | A 0029978472 | FITTING |
| CONTROL UNLOCKING HIGH-PRESSURE HOSE | ||
| 153 | N 007603010404 | SEAL RING |
| CONTROL UNLOCKING HIGH-PRESSURE HOSE | ||
| 153 | N 007603010404 | SEAL RING |
| CONTROL UNLOCKING HIGH-PRESSURE HOSE | ||
| 153 | N 007603010404 | SEAL RING |
| CONTROL UNLOCKING HIGH-PRESSURE HOSE | ||
| 156 | A 3755530840 | BRACKET |
| TO BRACKET,STEERING GEAR | ||
| 156 | A 3755450440 | BRACKET |
| TO BRACKET,STEERING GEAR | ||
| 157 | A 3755531840 | BRACKET |
| BRACKET TO ENTRANCE | ||
| 159 | A 9405532040 | BRACKET |
| Repalced by: A 9405532340 | ||
| 159 | A 9405532340 | BRACKET |
| HIGH PRESSURE HOSE TO CAB | ||
| 159 | A 9405532340 | BRACKET |
| HIGH PRESSURE HOSE TO CAB | ||
| 159 | A 9405533140 | BRACKET |
| HIGH PRESSURE HOSE TO CAB | ||
| 162 | A 9415423440 | BRACKET |
| BRACKET TO ENTRANCE | ||
| 162 | A 9415423440 | BRACKET |
| BRACKET TO ENTRANCE | ||
| 162 | A 9415423440 | BRACKET |
| BRACKET TO ENTRANCE | ||
| 162 | A 9415423440 | BRACKET |
| BRACKET TO ENTRANCE | ||
| 162 | A 9415423440 | BRACKET |
| BRACKET TO ENTRANCE | ||
| 162 | A 9415423440 | BRACKET |
| BRACKET TO ENTRANCE | ||
| 165 | A 9405532140 | BRACKET |
| LINE MOUNTING | ||
| 165 | A 9405532140 | BRACKET |
| LINE MOUNTING | ||
| 165 | A 9405532140 | BRACKET |
| LINE MOUNTING | ||
| 165 | A 3755530340 | BRACKET |
| LINE MOUNTING | ||
| 166 | A 9405533240 | BRACKET |
| LINE MOUNTING | ||
| 168 | N 910143008002 | HEXALOBULAR BOLT |
| BRACKET TO ENTRANCE | ||
| 168 | N 910143008002 | HEXALOBULAR BOLT |
| BRACKET TO ENTRANCE | ||
| M8X25 | ||
| 168 | N 910143008002 | SCREW |
| BRACKET TO ENTRANCE | ||
| 168 | N 910143008002 | SCREW |
| BRACKET TO ENTRANCE | ||
| 168 | N 910143008002 | SCREW |
| BRACKET TO ENTRANCE | ||
| 168 | N 910143008002 | SCREW |
| BRACKET TO ENTRANCE | ||
| 168 | N 910143008002 | SCREW |
| BRACKET TO ENTRANCE | ||
| 168 | N 000000003853 | SCREW |
| BRACKET TO BRACKET,STEERING GEAR | ||
| M 8X16 | ||
| 168 | N 000000003765 | SCREW |
| BRACKET TO BRACKET,STEERING GEAR | ||
| M 6X20 | ||
| 168 | N 000000003765 | SCREW |
| BRACKET TO BRACKET,STEERING GEAR | ||
| M 6X20 | ||
| 171 | N 913023008003 | NUT |
| BRACKET TO ENTRANCE | ||
| 171 | N 913023008003 | NUT |
| BRACKET TO ENTRANCE | ||
| 171 | N 913023008003 | NUT |
| BRACKET TO ENTRANCE | ||
| 171 | N 913023008003 | NUT |
| BRACKET TO BRACKET,STEERING GEAR | ||
| 171 | N 000000003175 | NUT |
| BRACKET TO BRACKET,STEERING GEAR | ||
| 171 | N 000000003175 | NUT |
| BRACKET TO BRACKET,STEERING GEAR | ||
| 171 | N 000000003175 | NUT |
| BRACKET TO BRACKET,STEERING GEAR | ||
| 171 | N 000000003175 | NUT |
| BRACKET TO BRACKET,STEERING GEAR | ||
| 174 | N 913023006001 | NUT |
| BRACKET TO BRACKET,STEERING GEAR | ||
| 174 | N 913023006001 | NUT |
| BRACKET TO CAB | ||
| 174 | N 913023006001 | NUT |
| BRACKET TO CAB | ||
| 174 | N 913023006001 | NUT |
| BRACKET TO CAB | ||
| 177 | A 0069971790 | LOOM TIE |
| HIGH PRESSURE HOSE TO SUBSTRUCTURE | ||
| 150 X 3.6 MM | ||
| 177 | A 0069971790 | CABLE TIE |
| AT CAB SIDE MEMBER | ||
| 150 X 3.6 MM | ||
| 177 | A 0069971790 | CABLE TIE |
| OIL DELIVERY LINE TO CAB | ||
| 177 | A 0059976290 | CABLE STRAP |
| HIGH PRESSURE HOSE TO SUBSTRUCTURE | ||
| 260X3.3MM | ||
| 177 | A 0059976290 | CABLE STRAP |
| HIGH PRESSURE HOSE TO SUBSTRUCTURE | ||
| 260X3.3MM | ||
| 177 | A 0069971790 | CABLE TIE |
| OIL DELIVERY LINE TO CAB | ||
| 150 X 3.6 MM | ||
| 178 | A 0069971190 | LOOM TIE |
| HOSE FASTENING | ||
| 378X7.6MM | ||
| 179 | A 3609902340 | WASHER |
| HOSE FASTENING | ||
| 180 | A 0029972490 | CABLE TIE |
| HIGH PRESSURE HOSE TO HAND PUMP | ||
| 310X5MM | ||
| 180 | A 0029972490 | CABLE TIE |
| HIGH PRESSURE HOSE TO HAND PUMP | ||
| 310X5MM | ||
| 180 | A 0049979890 | CABLE TIE |
| BRACKET TO CAB CONSOLE | ||
| 385X3.5MM | ||
| 180 | A 0049979890 | CABLE TIE |
| HOSE FASTENING | ||
| 385X3.5MM | ||
| 180 | A 0049979890 | CABLE TIE |
| BRACKET TO CAB CONSOLE | ||
| 385X3.5MM | ||
| 180 | A 0049979890 | CABLE TIE |
| HOSE FASTENING | ||
| 385X3.5MM | ||
| 180 | A 0019978390 | CABLE TIE |
| HOSE FASTENING | ||
| 376 X 7.6 MM | ||
| 180 | A 0059975890 | LOOM TIE |
| LINES TO BRACKET | ||
| 180 | A 0059975890 | LOOM TIE |
| HOSE FASTENING | ||
| 180 | A 0059971590 | CABLE TIE |
| HIGH PRESSURE HOSE TO CAB | ||
| 380X7.8MM | ||
| Repalced by: A 0029975890 | ||
| 180 | A 0029975890 | CABLE TIE |
| HIGH PRESSURE HOSE TO CAB | ||
| 375X8.4MM | ||
| 181 | A 0005450051 | SPACER RING |
| HOSE FASTENING | ||
| 183 | A 0015460143 | CABLE STRAP |
| HOSE FASTENING | ||
| 300X5.0MM | ||
| 183 | A 0015460143 | CABLE STRAP |
| HOSE FASTENING | ||
| 300X5.0MM | ||
| 186 | A 6388320028 | CLAMP |
| HOSE FASTENING | ||
| 186 | A 6388320028 | CLAMP |
| HOSE FASTENING | ||
| 200 | A 0025535505 | CYLINDER |
| Repalced by: A 0025538505 | ||
| 200 | A 0025538505 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| WEBER | ||
| 200 | A 3755530305 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| WEBER | ||
| 200 | A 0025534405 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| WEBER | ||
| 200 | A 0025534405 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| WEBER | ||
| 203 | A 0005507207 | GASKET KIT |
| HYDRAULIC CYLINDER | ||
| 203 | A 0005507107 | GASKET KIT |
| HYDRAULIC CYLINDER | ||
| 206 | A 9425530176 | WASHER |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 206 | A 9425530176 | WASHER |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 206 | A 9425530076 | WASHER |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 209 | N 000094006312 | COTTER PIN |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 209 | N 000094006312 | COTTER PIN |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 209 | N 000094006312 | COTTER PIN |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 212 | A 9405500074 | PIN |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 212 | A 9405500074 | PIN |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 213 | A 9405500074 | PIN |
| HYDRAULIC CYLINDER TO CAB | ||
| 215 | N 910106008021 | SCREW |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 215 | N 910106008021 | HEXAGON HEAD BOLT |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| M8X65 | ||
| 215 | N 910106008021 | HEXAGON HEAD BOLT |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 218 | A 9425843338 | GUMMED LABEL |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| 218 | A 9425843738 | GUMMED LABEL |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| 218 | A 3755841338 | STICKER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| 218 | A 3755841338 | STICKER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| 224 | A 0069885078 | CLIP |
| LINE MOUNTING | ||
| 227 | A 0009956665 | CLAMP |
| LINE MOUNTING | ||
| 230 | A 9405532640 | BRACKET |
| HIGH PRESSURE HOSE TO CAB | ||
| 233 | N 913023006001 | NUT |
| HIGH PRESSURE HOSE TO CAB | ||
| 236 | A 9405532740 | BRACKET |
| OIL DELIVERY LINE TO CAB | ||
| 239 | A 9405532840 | BRACKET |
| OIL DELIVERY LINE TO CAB | ||
| 242 | A 0019883581 | FASTENER BUTTON |
| OIL DELIVERY LINE TO CAB | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
