Transporto priemonė: 4050 A/8X8; VIN numerio dalis: 625052

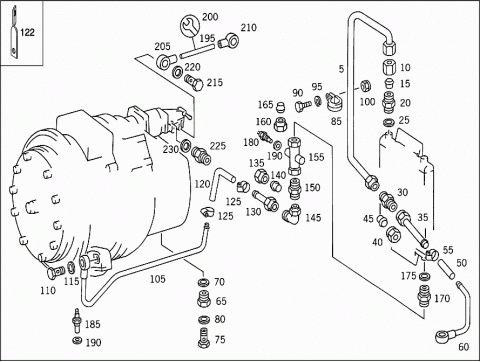

Grupė: 25 CLUTCH

#	Kodas	Pavadinimas
005	A 6252504366	OIL PIPE
		OIL COOLER OUTLET
010	N 915017035101	UNION NUT
015	N 003861035000	GLAND
020	N 003901035003	SCREW-IN FITTING
		PIPE TO OIL COOLER
025	N 007603042101	SEAL RING
		PIPE TO OIL COOLER
030	A 6259970572	FITTING
		OIL LINE CONNECTION
035	A 6252502766	OIL PIPE
		FROM CONNECTION FITTING TO HOSE
040	N 915017022100	UNION NUT
	Repalced by: N 000000006243
040	N 000000006243	NUT
045	N 003861022004	GLAND
	Repalced by: A 0019901267
045	A 0019901267	SEAL CONE
050	A 6259971582	HOSE
		OIL LINE CONNECTION
055	N 916017020000	CLAMP
	Repalced by: N 000000000667
055	N 000000000667	CLAMP
		HOSE TO PIPE LINE
		20-32X13 MM
060	A 6252503466	OIL PIPE
		FEED LINE TO CONVERTER LOCK-UP COUPLING
065	A 6259900168	FITTING
		PIPE TO CONVERTER LOCK-UP COUPLING
070	N 007603038101	SEAL RING
		PIPE TO CONVERTER LOCK-UP COUPLING
075	N 915036022201	HOLLOW SCREW
		PIPE TO CONVERTER LOCK-UP COUPLING
080	N 007603026104	SEAL RING
		PIPE TO CONVERTER LOCK-UP COUPLING
	A 6254292140	BRACKET
		FEED LINE TO TRANSMISSION
085	N 916016035205	CLAMP
		LINE TO RADIATOR
085	N 916016020201	CLAMP
		FEED LINE TO TRANSMISSION
090	N 000933008123	SCREW
	Repalced by: N 304017008008
090	N 304017008008	SCREW
		CLAMP MOUNTING
		M 8X10
090	N 000933006103	SCREW
	Repalced by: N 304017006018
090	N 304017006018	SCREW
		FEED LINE TO TRANSMISSION
		M 6X12
095	N 912004008102	LOCK WASHER
		CLAMP MOUNTING
100	N 913004006002	NUT
	Repalced by: N 913004006001
100	N 913004006001	NUT
		FEED LINE TO TRANSMISSION
105	A 6252503366	OIL PIPE
		RETURN LINE TO CONVERTER LOCK-UP COUPLING
110	N 915036022201	HOLLOW SCREW
		PIPE TO CONVERTER LOCK-UP COUPLING
115	N 007603026104	SEAL RING
		PIPE TO CONVERTER LOCK-UP COUPLING
120	A 6259971582	HOSE
		OIL LINE CONNECTION
122	A 6252610940	BRACKET
		RETURN LINE TO TRANSMISSION
	N 916016020201	CLAMP
		RETURN LINE TO TRANSMISSION
	N 000933006103	SCREW
	Repalced by: N 304017006018
	N 304017006018	SCREW
		RETURN LINE TO TRANSMISSION
	N 913004006002	NUT
	Repalced by: N 913004006001
	N 913004006001	NUT
		RETURN LINE TO TRANSMISSION
125	N 916017020000	CLAMP
	Repalced by: N 000000000667
125	N 000000000667	CLAMP
		HOSE TO PIPE LINE
		20-32X13 MM
130	A 6252502766	OIL PIPE
		FROM CONNECTION FITTING TO HOSE
135	N 915017022100	UNION NUT
	Repalced by: N 000000006243
135	N 000000006243	NUT
140	N 003861022004	GLAND
	Repalced by: A 0019901267
140	A 0019901267	SEAL CONE
145	N 003952022100	FITTING
		ELBOW FITTING
150	A 6259970572	FITTING
		OIL LINE CONNECTION
155	A 6252503966	OIL PIPE
		(CROSS FITTING) TEMPERATURE GAUGE SENDER UNIT CONNECTION
160	N 915017035101	UNION NUT
165	N 003861035000	GLAND
170	N 003901035003	SCREW-IN FITTING
		PIPE TO OIL COOLER
175	N 007603042101	SEAL RING
		PIPE TO OIL COOLER
180	A 0065455624	SWITCH,AUTOMATIC
		FOR FAN COUPLING OF CONVERTER LOCK-UP COUPLING
185	A 0055428217	SENDER UNIT
		CONVERTER LOCK-UP COUPLING TEMPERATURE INDICATOR
190	N 007603014405	SEAL RING
		TEMPERATURE SENDER UNIT
195	A 0089979082	HOSE
		FOUR-CIRCUIT PROTECTIVE VALVE,CLUTCH BOOSTER
		6X8 MM
200	A 0039978972	FITTING
	Repalced by: A 0029905971
200	A 0029905971	FITTING
		(PARTS KIT),LINE RUPTURE
205	N 915052006014	BANJO UNION
		HOSE WIDTH, / I.D.,
		6/16 MM
210	N 915052006013	BANJO UNION
		HOSE WIDTH, / I.D.,
		6/12 MM
215	N 915036012203	HOLLOW SCREW
		CLUTCH BOOSTER,CONNECTION:
		"10"
220	N 007603016401	SEAL RING
		CLUTCH BOOSTER,CONNECTION:
		"10"
225	A 0019973972	FITTING
		CLUTCH BOOSTER,CONNECTION:
		"20"
230	N 007603014405	SEAL RING
		CLUTCH BOOSTER,CONNECTION:
		"20"
