Transporto priemonė: 4050 A/8X8; VIN numerio dalis: 625052

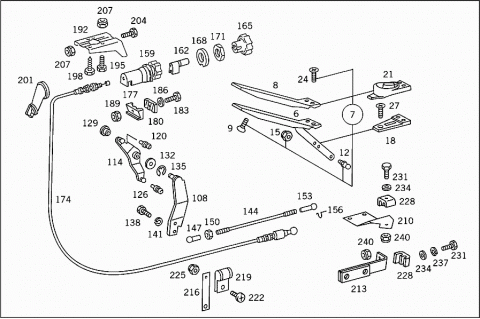

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 6253000004 | ACCELERATOR PEDAL |
| 007 | A 6243000304 | ACCELERATOR PEDAL |
| (PARTS KIT) | ||
| 008 | A 6153000104 | PAD |
| ACCELERATOR PEDAL | ||
| 009 | N 007991005007 | SCREW |
| ACCELERATOR PEDAL | ||
| 012 | A 0009911015 | BALL PIVOT |
| ACCELERATOR PEDAL | ||
| 015 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 015 | N 913004006001 | NUT |
| BALL PIVOT TO ACCELERATOR PEDAL | ||
| 018 | A 6153010084 | SHIM |
| ACCELERATOR PEDAL TO FLOOR PLATE | ||
| 021 | A 6153010097 | BOOT |
| ACCELERATOR PEDAL | ||
| 024 | N 000965006003 | SCREW |
| ACCELERATOR PEDAL TO FLOOR PLATE | ||
| M6X25 | ||
| 027 | N 000965006040 | SCREW |
| ACCELERATOR PEDAL TO FLOOR PLATE | ||
| M 6X30 | ||
| 028 | A 6553010093 | GUIDE RAIL |
| ACCELERATOR PEDAL TO FLOOR PLATE | ||
| 029 | N 000965006077 | SCREW |
| GUIDE RAIL RETROFIT | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR KICK-DOWN SWITCH,SEE GROUP 54 | ||
| 051 | A 3819910123 | BALL SOCKET |
| FROM ACCELERATOR PEDAL TO SHAFT | ||
| 054 | N 071805010403 | CIRCLIP |
| BALL SOCKET TO BALL PIVOT | ||
| 057 | A 6153000021 | BEARING TUBE |
| CONTROL SHAFT | ||
| 060 | A 3813020050 | BUSHING |
| BEARING TUBE | ||
| 063 | A 6153000020 | SHAFT |
| CONTROL | ||
| 066 | N 071803010204 | BALL PIVOT |
| 069 | A 3813000625 | LEVER |
| (CONTROL LEVER) | ||
| 072 | N 071803010204 | BALL PIVOT |
| 075 | N 001481004017 | CLAMPING SLEEVE |
| Repalced by: N 308752004001 | ||
| 075 | N 308752004001 | CLAMPING PIN |
| LEVER TO SHAFT | ||
| 078 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 078 | N 304017008016 | SCREW |
| INTERMEDIATE BEARING TO CAB FLOOR | ||
| 081 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 081 | N 913004008001 | NUT |
| INTERMEDIATE BEARING TO CAB FLOOR | ||
| 084 | A 3550700475 | ROD |
| Repalced by: A 6583001715 | ||
| 084 | A 6583001715 | ROD |
| FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER | ||
| 087 | N 071805010302 | SNAP RING |
| ROD TO BALL PIVOT | ||
| 090 | N 900331006629 | PULL ROD |
| FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER | ||
| 093 | N 304032006005 | NUT |
| L.H. THREAD | ||
| 096 | N 001479006001 | TURNBUCKLE |
| PULL ROD | ||
| 099 | N 000934006007 | NUT |
| PULL ROD | ||
| 102 | N 071805010204 | BALL SOCKET |
| PULL ROD | ||
| 105 | N 071805010403 | CIRCLIP |
| BALL SOCKET TO BALL PIVOT | ||
| 108 | A 6203000136 | BEARING BRACKET |
| Repalced by: A 6203000736 | ||
| 108 | A 6203000736 | BEARING BRACKET |
| INTERMEDIATE BEARING | ||
| 111 | A 6253000036 | BEARING BRACKET |
| Repalced by: A 6253000136 | ||
| 111 | A 6253000136 | BEARING BRACKET |
| INTERMEDIATE BEARING | ||
| 114 | A 6253000028 | LEVER |
| INTERMEDIATE BEARING | ||
| 117 | A 6203000728 | LEVER |
| INTERMEDIATE BEARING | ||
| 120 | N 071803010209 | BALL PIVOT |
| Repalced by: A 3129910120 | ||
| 120 | A 3129910120 | BALL PIVOT |
| 10X6 MM | ||
| 120 | N 071803010204 | BALL PIVOT |
| 10X8 MM | ||
| 123 | N 071803010202 | BALL PIVOT |
| 10X4.5 MM | ||
| 126 | N 071803013208 | BALL PIVOT |
| 13X5 MM | ||
| 129 | A 3813020050 | BUSHING |
| INTERMEDIATE BEARING | ||
| 132 | A 3813010388 | COVERING |
| Repalced by: A 6153010088 | ||
| 132 | A 6153010088 | COVERING |
| INTERMEDIATE BEARING | ||
| 135 | N 006799010001 | LOCK PLATE |
| INTERMEDIATE BEARING | ||
| 138 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 138 | N 304017008021 | SCREW |
| BEARING BRACKET TO CAB FLOOR | ||
| 141 | N 912004008102 | LOCK WASHER |
| BEARING BRACKET TO CAB FLOOR | ||
| 144 | N 900331008421 | PULL ROD |
| FROM INTERMEDIATE LEVER TO ENGINE | ||
| 144 | N 900331008420 | PULL ROD |
| FROM INTERMEDIATE LEVER TO ENGINE | ||
| 147 | N 071805013203 | BALL SOCKET |
| FRONT | ||
| 150 | N 304032008006 | NUT |
| BALL SOCKET TO ROD | ||
| 150 | N 304032008006 | NUT |
| BRACKET TO PULL ROD | ||
| 153 | A 4069910022 | BALL SOCKET |
| REAR | ||
| 156 | N 071805013402 | CIRCLIP |
| BALL SOCKET TO BALL PIVOT | ||
| 159 | A 3813000326 | MANUAL CONTROL |
| IDLING ADJUSTMENT | ||
| 162 | A 3813020108 | GUIDE |
| WIRE CABLE | ||
| 165 | A 6153020001 | KNOB |
| MANUAL CONTROL | ||
| 168 | N 000988030003 | FITTED WASHER |
| MANUAL CONTROL TO INSTRUMENT PANEL | ||
| 171 | A 3819900051 | NUT |
| 174 | A 6203000130 | WIRE CABLE |
| IDLING ADJUSTMENT | ||
| 174 | A 6153000930 | WIRE CABLE |
| IDLING ADJUSTMENT | ||
| 177 | A 6175460044 | CLAMPING PIECE |
| WIRE CABLE TO FIRE WALL | ||
| 177 | A 6175460344 | CLAMPING PIECE |
| WIRE CABLE TO FIRE WALL | ||
| 180 | A 6175460144 | CLAMPING PIECE |
| WIRE CABLE TO FIRE WALL | ||
| 180 | A 3875460344 | CLAMPING PIECE |
| WIRE CABLE TO FIRE WALL | ||
| 183 | N 000931006118 | SCREW |
| WIRE CABLE TO FIRE WALL | ||
| 186 | N 000125006421 | WASHER |
| WIRE CABLE TO FIRE WALL | ||
| Repalced by: N 000125006449 | ||
| 186 | N 000125006449 | WASHER |
| WIRE CABLE TO FIRE WALL | ||
| 189 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 189 | N 913004006001 | NUT |
| WIRE CABLE TO FIRE WALL | ||
| 192 | A 3813020240 | BRACKET |
| IDLING ADJUSTER | ||
| 195 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 195 | N 304017006018 | SCREW |
| BRACKET TO WINDOW SILL GIRDER | ||
| 198 | N 007976005207 | SHEET METAL SCREW |
| Repalced by: N 914031005208 | ||
| 198 | N 914031005208 | COMBINATION BOLT |
| BRACKET TO WINDOW SILL GIRDER | ||
| 201 | A 0069978881 | GROMMET |
| WIRE CABLE THRU WINDOW SILL | ||
| 204 | N 000933006102 | SCREW |
| FRESH AIR DUCT | ||
| 207 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 207 | N 913004006001 | NUT |
| FRESH AIR DUCT | ||
| 210 | A 6203020040 | BRACKET |
| WIRE CABLE TO RADIATOR MOUNTING | ||
| 213 | A 6203000140 | BRACKET |
| WIRE CABLE TO RADIATOR MOUNTING | ||
| 216 | A 6253020040 | BRACKET |
| AT FRONT SPRING FRONT BRACKET | ||
| 219 | N 916016010201 | CLAMP |
| Repalced by: N 916016010211 | ||
| 219 | N 916016010211 | CLAMP |
| Repalced by: N 000000001045 | ||
| 219 | N 000000001045 | CLAMP |
| WIRE CABLE TO BRACKET | ||
| 222 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 222 | N 000000001146 | SCREW |
| WIRE CABLE TO BRACKET | ||
| M 6X16 | ||
| 225 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 225 | N 913004006001 | NUT |
| WIRE CABLE TO BRACKET | ||
| 228 | A 3875460244 | CLAMPING PIECE |
| WIRE CABLE | ||
| 231 | N 000933006127 | SCREW |
| CLAMPING PIECE TO BRACKET | ||
| 234 | N 000125006421 | WASHER |
| CLAMPING PIECE TO BRACKET | ||
| Repalced by: N 000125006449 | ||
| 234 | N 000125006449 | WASHER |
| CLAMPING PIECE TO BRACKET | ||
| 237 | N 912004006102 | LOCK WASHER |
| CLAMPING PIECE TO BRACKET | ||
| 240 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 240 | N 913004006001 | NUT |
| CLAMPING PIECE TO BRACKET | ||
