Transporto priemonė: 4141; VIN numerio dalis: 930319

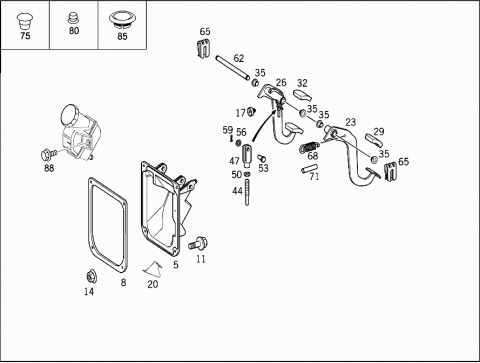

Grupė: 29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 9412940101 | BEARING BRACKET |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 005 | A 9342940001 | BEARING BRACKET |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 005 | A 9342940001 | BEARING BRACKET |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 008 | A 9412940080 | GASKET |
| BEARING BRACKET TO FIRE WALL | ||
| 011 | N 000000003805 | SCREW |
| BEARING BRACKET TO FIRE WALL | ||
| M 8X30 | ||
| 011 | A 9349900016 | THREADED PIN |
| WITH INTERNAL THREAD | ||
| M 8 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BEARING BRACKET TO FIRE WALL | ||
| 011 | A 9349900116 | THREADED PIN |
| WITH INTERNAL THREAD | ||
| M 8 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BEARING BRACKET TO FIRE WALL | ||
| 014 | N 913023008003 | NUT |
| BEARING BRACKET TO FIRE WALL | ||
| 017 | A 6732910286 | STOP |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 020 | A 9412910340 | BRACKET |
| STOP LIGHT SWITCH TO PEDAL BEARING BRACKET | ||
| 023 | A 9412900116 | PEDAL |
| CLUTCH | ||
| 026 | A 9412900118 | PEDAL |
| BRAKE | ||
| 029 | A 2012910282 | PAD |
| CLUTCH PEDAL | ||
| 032 | A 2012920082 | PAD |
| BRAKE PEDAL | ||
| 035 | A 1242920050 | BUSHING |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 035 | A 1242920050 | BUSHING |
| BRAKE PEDAL | ||
| 035 | A 1242920050 | BUSHING |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 044 | A 6732920032 | ROD |
| BRAKE ACTUATION | ||
| 047 | N 071752008003 | YOKE |
| BRAKE ACTUATION | ||
| 050 | N 304035008001 | NUT |
| BRAKE ACTUATION | ||
| 050 | N 304032008006 | NUT |
| BRAKE ACTUATION | ||
| 053 | A 3852920174 | PIN |
| ROD TO BRAKE PEDAL | ||
| 056 | N 000433008406 | WASHER |
| ROD TO BRAKE PEDAL | ||
| 059 | N 000094002059 | COTTER PIN |
| ROD TO BRAKE PEDAL | ||
| Repalced by: N 000094002060 | ||
| 059 | N 000094002060 | COTTER PIN |
| ROD TO BRAKE PEDAL | ||
| 062 | A 9412940074 | PIN |
| CLUTCH AND BRAKE PEDALS TO BEARING BRACKET | ||
| 065 | N 912002016001 | LOCK |
| CLUTCH AND BRAKE PEDALS TO BEARING BRACKET | ||
| 068 | A 6559930010 | SPRING |
| CLUTCH-PEDAL/BRAKE-PEDAL RESET | ||
| 068 | A 6559930010 | SPRING |
| BRAKE PEDAL | ||
| 071 | N 040621014200 | INSULATING HOSE |
| PROTECTION AGAINST SCORING | ||
| 075 | A 0009971586 | PLUG |
| CLUTCH MASTER CYLINDER PLUG OPENING | ||
| 080 | A 3019970386 | PLUG |
| CLUTCH MASTER CYLINDER PLUG OPENING | ||
| 085 | A 3819973186 | PLUG |
| PLUG BORE SPEEDOMETER CABLE | ||
| 37.5 | ||
| 088 | N 910105006004 | SCREW |
| EXPANSION RESERVOIR AT PEDAL BEARING BRACKET | ||
| M 6X16 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR SERVICE BRAKE VALVE,SEE GROUP/TU: | ||
| 42/355 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR CYLINDERS & HYDRAULIC LINES, SEE GROUP / TU: | ||
| 25/330 | ||
