Transporto priemonė: 710; VIN numerio dalis: 688109

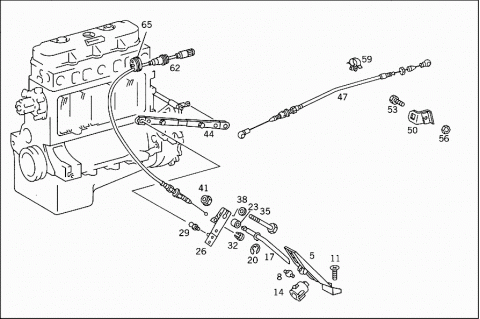

Grupė: 30 CONTROL - 060 ACCELERATOR PEDAL CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6733000004 | ACCELERATOR PEDAL |
| Repalced by: A 3843007004 | ||
| 005 | A 3843007004 | ACCELERATOR PEDAL |
| 008 | A 3093010022 | JOINT |
| 011 | N 000965006064 | SCREW |
| PEDAL TO CAB FLOOR | ||
| 014 | A 1263010141 | STOP |
| FULL THROTTLE | ||
| 017 | A 3843007625 | LEVER |
| (PEDAL LEVER) | ||
| 020 | N 006799009002 | LOCK PLATE |
| 023 | A 3863017050 | BUSHING |
| 026 | A 6673000125 | LEVER |
| (CONTROL LEVER) | ||
| 026 | A 6883007025 | LEVER |
| (CONTROL LEVER) | ||
| 029 | N 071803008200 | BALL PIVOT |
| 032 | A 3093020050 | BUSHING |
| CONTROL LEVER | ||
| 035 | N 000931006197 | SCREW |
| CONTROL LEVER TO PEDAL LEVER | ||
| 038 | N 000125006420 | WASHER |
| CONTROL LEVER TO PEDAL LEVER | ||
| 041 | N 913004006001 | NUT |
| CONTROL LEVER TO PEDAL LEVER | ||
| 044 | A 6883007015 | ROD |
| 047 | A 6883007130 | WIRE CABLE |
| IDLING ADJUSTER | ||
| 050 | A 6673000040 | BRACKET |
| 053 | N 000933006230 | SCREW |
| BRACKET TO COWL | ||
| 053 | N 000000001147 | SCREW |
| BRACKET TO COWL | ||
| M 6X20 | ||
| 056 | N 000934006006 | NUT |
| BRACKET TO COWL | ||
| 059 | A 0009956044 | CLAMP |
| BOWDEN CABLE TO CAB | ||
| 062 | A 3863007132 | WIRE CABLE |
| ENGINE SHUT-OFF | ||
| 062 | A 6923007032 | WIRE CABLE |
| ENGINE SHUT-OFF | ||
| 065 | A 6679970681 | GROMMET |
| WIRE CABLE | ||

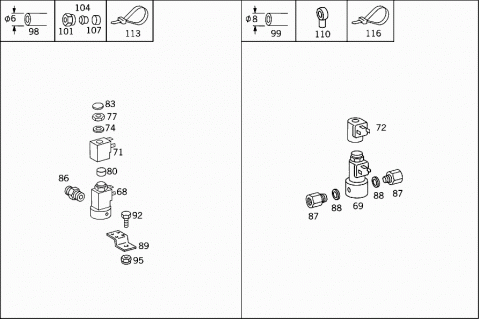

| 068 | A 6889977336 | VALVE |
| 3/2-WAY SOLENOID VALVE | ||
| "WABCO" | ||
| 068 | A 3459977336 | VALVE |
| 3/2-WAY SOLENOID VALVE | ||
| "SCHRADER" | ||
| 069 | A 6889977336 | VALVE |
| 3/2-WAY SOLENOID VALVE | ||
| "WABCO" | ||
| 069 | A 3889978236 | VALVE |
| 3/2-WAY SOLENOID VALVE | ||
| "PARKER" | ||
| A 0059972336 | REPAIR KIT | |
| TO 388 997 82 36 | ||
| 071 | A 3647630056 | MAGNET |
| TO 345 997 73 36 | ||
| 072 | A 0005460388 | SOLENOID |
| TO 688 997 73 36 | ||
| 074 | A 0139971648 | SEAL RING |
| TO 345 997 73 36 | ||
| 077 | A 0004310472 | NUT |
| TO 345 997 73 36 | ||
| 080 | A 0004311868 | VALVE PART |
| TO 345 997 73 36 | ||
| 083 | A 0014311687 | PROTECTIVE CAP |
| TO 345 997 73 36 | ||
| 086 | A 6924297036 | CONNECTOR |
| 3/2-WAY SOLENOID VALVE | ||
| 087 | A 3509977472 | FITTING |
| 3/2-WAY SOLENOID VALVE | ||
| 088 | N 007603016401 | SEAL RING |
| 089 | A 6884317040 | BRACKET |
| 3/2-WAY SOLENOID VALVE | ||
| 092 | N 000933008274 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 095 | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 098 | A 0089976082 | HOSE |
| FROM 3/2-WAY VALVE TO POWER CYLINDER | ||
| 4X6 | ||
| 099 | A 0089979082 | HOSE |
| FROM 3/2-WAY VALVE TO POWER CYLINDER | ||
| 101 | N 915017006100 | UNION NUT |
| 104 | N 003861006008 | GLAND |
| 107 | N 915062004000 | SLEEVE |
| 110 | N 915052006000 | BANJO UNION |
| 113 | A 3449977290 | LOOM TIE |
| Repalced by: A 3459977390 | ||
| 113 | A 3459977390 | LOOM TIE |
| 116 | A 3459977390 | LOOM TIE |
