Transporto priemonė: 712C/37; VIN numerio dalis: 688255

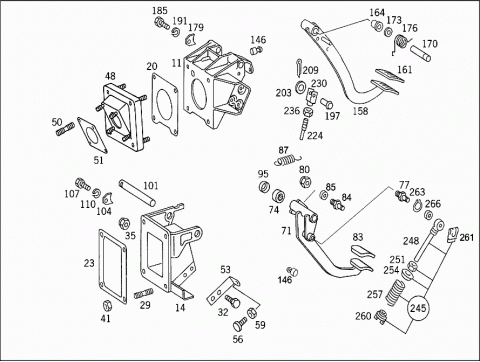

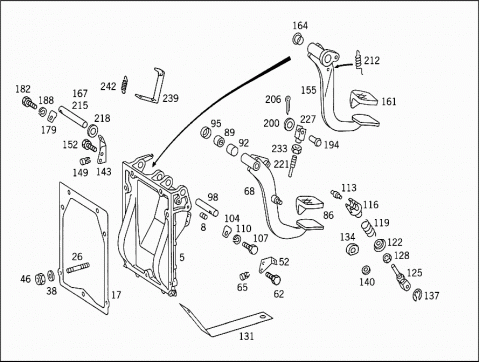

Grupė: 29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6732903119 | BEARING BRACKET |
| Repalced by: A 6342900419 | ||
| 005 | A 6342900419 | BEARING BRACKET |
| 008 | N 900421008002 | THREADED INSERT |
| 011 | A 3842947201 | BEARING BRACKET |
| BRAKE PEDAL | ||
| Repalced by: A 3842947001 | ||
| 011 | A 3842947001 | BEARING BRACKET |
| BRAKE PEDAL | ||
| 014 | A 6882940201 | BEARING BRACKET |
| CLUTCH PEDAL | ||
| 017 | A 6732940180 | GASKET |
| BEARING BRACKET TO FIRE WALL | ||
| 020 | A 3842947080 | GASKET |
| BEARING BRACKET TO FIRE WALL | ||
| 023 | A 6452940280 | GASKET |
| BEARING BRACKET TO FIRE WALL | ||
| 023 | A 6452940280 | GASKET |
| BEARING BRACKET TO FIRE WALL | ||
| 026 | A 6732940270 | STUD |
| BEARING BRACKET TO FIRE WALL | ||
| 029 | A 6882920070 | STUD |
| BEARING BRACKET TO FIRE WALL | ||
| 029 | A 6882920170 | STUD |
| BEARING BRACKET TO FIRE WALL | ||
| 032 | N 000000001147 | SCREW |
| BEARING BRACKET TO FIRE WALL | ||
| M 6X20 | ||
| 035 | N 913023006002 | NUT |
| BEARING BRACKET TO FIRE WALL | ||
| 038 | N 007349008002 | WASHER |
| BEARING BRACKET TO FIRE WALL | ||
| 041 | N 913023008003 | NUT |
| BEARING BRACKET TO FIRE WALL | ||
| N 000137008202 | SPRING WASHER | |
| BEARING BRACKET TO FIRE WALL | ||
| 046 | N 913023008003 | NUT |
| BEARING BRACKET TO FIRE WALL | ||
| 048 | A 3844307210 | BRACKET |
| BRAKE VALVE | ||
| 048 | A 3844307010 | BRACKET |
| BRAKE VALVE | ||
| 050 | N 000835008096 | STUD |
| Repalced by: A 6732940370 | ||
| 050 | A 6732940370 | STUD |
| M8X51 | ||
| 051 | A 3134310080 | GASKET |
| 051 | A 6884310080 | GASKET |
| 052 | A 6732910130 | STOP |
| CLUTCH PEDAL | ||
| 052 | A 6932917030 | STOP |
| CLUTCH PEDAL | ||
| 053 | A 3842907032 | STOP |
| CLUTCH PEDAL | ||
| 056 | A 3012910241 | STOP |
| CLUTCH PEDAL | ||
| M8 | ||
| 056 | N 910105008010 | HEXAGON HEAD BOLT |
| CLUTCH PEDAL | ||
| M8 | ||
| 059 | N 913023008003 | NUT |
| RUBBER BUFFER TO STOP | ||
| 062 | N 000933006220 | SCREW |
| STOP TO BEARING BRACKET | ||
| 065 | A 3862917086 | STOP |
| CLUTCH PEDAL | ||
| 065 | A 3862917086 | STOP |
| CLUTCH PEDAL | ||
| 068 | A 6732900816 | PEDAL |
| CLUTCH | ||
| 068 | A 6932907016 | PEDAL |
| CLUTCH | ||
| 071 | A 6882900216 | PEDAL |
| CLUTCH | ||
| 071 | A 6952900016 | PEDAL |
| CLUTCH | ||
| 071 | A 6952900316 | CLUTCH PEDAL |
| CLUTCH | ||
| 074 | A 0019816310 | NEEDLE BEARING |
| 074 | A 0109818010 | NEEDLE BEARING |
| 077 | A 6882910074 | PIN |
| 39 MM (M10) | ||
| 077 | A 3862917074 | PIN |
| 28 MM | ||
| 080 | N 913002010001 | NUT |
| 083 | A 1102910182 | PAD |
| 084 | A 6959910015 | HEADED PIN |
| PEDAL RETURN SPRING | ||
| 084 | A 3882917074 | PIN |
| PEDAL RETURN SPRING | ||
| 085 | N 000000001044 | WASHER |
| PEDAL RETURN SPRING | ||
| 086 | A 1102910182 | PAD |
| CLUTCH PEDAL | ||
| 087 | A 6939930010 | SPRING |
| PEDAL RETURN SPRING | ||
| Repalced by: A 6939930110 | ||
| 087 | A 6939930110 | COMPENSATING SPRING |
| PEDAL RETURN SPRING | ||
| 089 | A 0019816310 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 089 | A 0019816310 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 089 | A 0139814610 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 089 | A 0109818010 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 089 | A 0109818010 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 092 | A 6732910053 | SPACER TUBE |
| CLUTCH PEDAL | ||
| 095 | A 6732910076 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 095 | A 6732910076 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 095 | A 6732910076 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 098 | A 6732940074 | PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 101 | A 6452940074 | PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 104 | A 6732920073 | LOCK |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 104 | A 6732920073 | LOCK |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 107 | N 000000001146 | HEXALOBULAR BOLT |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 107 | N 000000001146 | SCREW |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 110 | N 912004006100 | LOCK WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| N 000125006420 | WASHER | |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 113 | A 6732910074 | PIN |
| CLUTCH PEDAL RESET | ||
| 116 | A 6732910191 | SPRING RETAINER |
| CLUTCH PEDAL RESET | ||
| 119 | A 6739930601 | SPRING |
| CLUTCH PEDAL RESET | ||
| 119 | A 6939937101 | SPRING |
| CLUTCH PEDAL RESET | ||
| 122 | A 6732910291 | SPRING RETAINER |
| CLUTCH PEDAL RESET | ||
| 125 | A 6732900339 | ROD |
| CLUTCH PEDAL RESET | ||
| 128 | N 000439010203 | NUT |
| CLUTCH PEDAL RESET | ||
| 131 | A 6934297040 | BRACKET |
| PEDAL BRACKET | ||
| 134 | A 6732910186 | STOP |
| CLUTCH PEDAL RESET | ||
| 137 | N 006799007001 | LOCK PLATE |
| CLUTCH PEDAL RESET | ||
| 140 | N 000125010517 | WASHER |
| CLUTCH PEDAL RESET | ||
| 143 | A 6732920030 | STOP |
| Repalced by: A 3825410840 | ||
| 143 | A 3825410840 | BRACKET |
| BRAKE PEDAL | ||
| 146 | A 6882917386 | STOP |
| BRAKE PEDAL | ||
| 146 | A 6882917186 | STOP |
| CLUTCH PEDAL | ||
| 149 | A 1232910286 | STOP |
| DEAD CENTER SPRING | ||
| 149 | A 1232910286 | STOP |
| DEAD CENTER SPRING | ||
| 152 | N 910105006002 | HEXAGON HEAD BOLT |
| STOP TO BEARING BRACKET | ||
| 155 | A 6732900118 | PEDAL |
| BRAKE | ||
| 158 | A 3842907018 | PEDAL |
| BRAKE | ||
| 161 | A 1102910182 | PAD |
| BRAKE PEDAL | ||
| 161 | A 1102910182 | PAD |
| BRAKE PEDAL | ||
| 164 | A 1102910550 | BUSHING |
| BRAKE PEDAL | ||
| 164 | A 1102910550 | BUSHING |
| BRAKE PEDAL | ||
| 164 | A 6932957050 | BUSHING |
| ROD TO CLUTCH PEDAL | ||
| 167 | A 6732940174 | PIN |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 170 | A 6452940074 | PIN |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 173 | A 1154630152 | SPACER WASHER |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 176 | A 3849937020 | SPRING |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 179 | A 6732920073 | LOCK |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 179 | A 6732920073 | LOCK |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 182 | N 000933006220 | SCREW |
| BRAKE PEDAL TO BEARING BRACKET | ||
| M 6X16 | ||
| 185 | N 000000001145 | HEXALOBULAR BOLT |
| BRAKE PEDAL TO BEARING BRACKET | ||
| M6X12 | ||
| 188 | N 912004006100 | LOCK WASHER |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 191 | N 000127006203 | LOCK WASHER |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 194 | A 3852920174 | PIN |
| ROD TO BRAKE PEDAL | ||
| 197 | A 3529910007 | PIN |
| ROD TO BRAKE PEDAL | ||
| 200 | N 000433008400 | WASHER |
| ROD TO BRAKE PEDAL | ||
| 203 | N 000433010500 | WASHER |
| ROD TO BRAKE PEDAL | ||
| 206 | N 000094002059 | COTTER PIN |
| ROD TO BRAKE PEDAL | ||
| 209 | N 000094003238 | COTTER PIN |
| ROD TO BRAKE PEDAL | ||
| 212 | A 6739930110 | SPRING |
| BRAKE PEDAL RELEASE SPRING | ||
| 215 | A 6932917074 | PIN |
| ROD TO CLUTCH PEDAL | ||
| 218 | A 6939917035 | SPACER RING |
| ROD TO CLUTCH PEDAL | ||
| 221 | A 6732920032 | ROD |
| BRAKE ACTUATION | ||
| 224 | A 3842927032 | ROD |
| BRAKE ACTUATION | ||
| 227 | N 071752008002 | YOKE |
| BRAKE ACTUATION | ||
| 230 | A 3849967001 | YOKE |
| BRAKE ACTUATION | ||
| 233 | N 000439008104 | NUT |
| BRAKE ACTUATION | ||
| 236 | N 913023012002 | NUT |
| BRAKE ACTUATION | ||
| 239 | A 3842917040 | BRACKET |
| CLUTCH PEDAL | ||
| 242 | A 3829937010 | SPRING |
| Repalced by: A 3829937110 | ||
| 242 | A 3829937110 | SPRING |
| PEDAL RETURN SPRING | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR CYLINDERS & HYDRAULIC LINES, SEE GROUP 25 | ||
| 245 | A 3862900039 | ROD |
| Repalced by: A 3822900093 | ||
| 245 | A 3822900093 | SPRING |
| PARTS KIT | ||
| 245 | A 3822900093 | SPRING |
| PARTS KIT | ||
| 248 | A 3822908419 | ROD |
| 248 | A 3822908419 | ROD |
| (PUSH ROD) | ||
| 251 | N 000439010221 | NUT |
| 254 | A 1112910491 | SPRING RETAINER |
| 254 | A 6732910291 | SPRING RETAINER |
| 257 | A 3869937001 | SPRING |
| 257 | A 6882917092 | SPRING |
| 260 | A 3092910091 | SPRING RETAINER |
| 261 | A 6459880178 | CLIP |
| 263 | N 000471008001 | LOCK RING |
| 266 | N 001440008002 | WASHER |
