Transporto priemonė: 712C/37; VIN numerio dalis: 688255

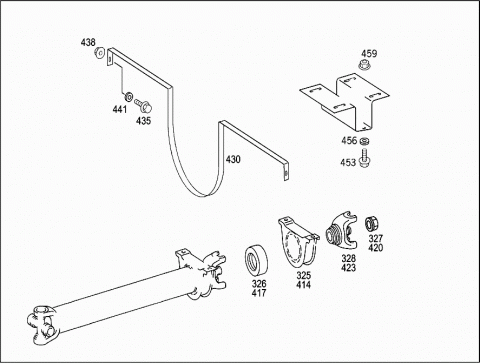

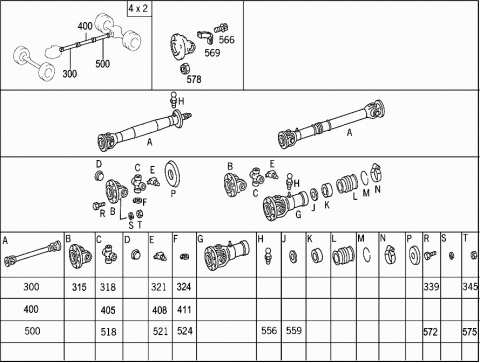

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| A 6854100501 | PROPELLER SHAFT | |
| WITH RETARDER | ||
| 1500 MM | ||
| A 0004105031 | UNIVERSAL JOINT CROSS | |
| 1500 MM | ||
| 300 | A 6884108701 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1080MM | ||
| 300 | A 6884108901 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1550 MM | ||
| 300 | A 6884100501 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1570 MM | ||
| 300 | A 6884109101 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1466 MM | ||
| 300 | A 6884100601 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1444 MM | ||
| 300 | A 6884100901 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 630 MM | ||
| 300 | A 6884100801 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1485 MM | ||
| 300 | A 6884101201 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 830 MM | ||
| 300 | A 6884101601 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 726 MM | ||
| 300 | A 6884101501 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 850 MM | ||
| 300 | A 6884101401 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 770 MM | ||
| 300 | A 6884100401 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 940 MM | ||
| 300 | A 6884100401 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 940 MM | ||
| 300 | A 6884100401 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 940 MM | ||
| 315 | A 0004112211 | DRIVE FLANGE |
| 315 | A 3524110011 | DRIVE FLANGE |
| 318 | A 0004103331 | UNIVERSAL JOINT CROSS |
| 318 | A 0004103331 | UNIVERSAL JOINT CROSS |
| 318 | A 0004103331 | UNIVERSAL JOINT CROSS |
| 318 | A 0004103331 | UNIVERSAL JOINT CROSS |
| 318 | A 0004103331 | UNIVERSAL JOINT CROSS |
| 318 | A 0004101431 | UNIVERSAL JOINT CROSS |
| 318 | A 0004101431 | UNIVERSAL JOINT CROSS |
| 321 | A 0009974788 | GREASE NIPPLE |
| 321 | A 0009974788 | GREASE NIPPLE |
| 321 | A 0009974788 | GREASE NIPPLE |
| 321 | A 0009974788 | GREASE NIPPLE |
| 321 | A 0009974788 | GREASE NIPPLE |
| 321 | A 0009975975 | PART NAME MISSING |
| GREASE NIPPLE | ||
| 324 | A 0039942035 | SNAP RING |
| PARTS KIT | ||
| 324 | A 0039942035 | SNAP RING |
| PARTS KIT | ||
| 324 | A 0039942035 | SNAP RING |
| PARTS KIT | ||
| 324 | A 0039942035 | SNAP RING |
| PARTS KIT | ||
| 324 | A 0029944735 | SNAP RING |
| 325 | A 0004100222 | INTERMEDIATE BEARING |
| 325 | A 0004100222 | INTERMEDIATE BEARING |
| 325 | A 0004100222 | INTERMEDIATE BEARING |
| 325 | A 0004100222 | INTERMEDIATE BEARING |
| 325 | A 0004100222 | INTERMEDIATE BEARING |
| 326 | A 0004130112 | RUBBER MOUNTING |
| 326 | A 0004130112 | RUBBER MOUNTING |
| 326 | A 0004130112 | RUBBER MOUNTING |
| 326 | A 0004130112 | RUBBER MOUNTING |
| 326 | A 0004130112 | RUBBER MOUNTING |
| 327 | A 0009905050 | NUT |
| 327 | A 0009905050 | NUT |
| 327 | A 0009905050 | NUT |
| 327 | A 0009905050 | NUT |
| 327 | A 0009905050 | NUT |
| 328 | A 0004101230 | CENTERING FLANGE |
| 328 | A 0004101230 | CENTERING FLANGE |
| 328 | A 0004101230 | CENTERING FLANGE |
| 328 | A 0004101230 | CENTERING FLANGE |
| 328 | A 0004101230 | CENTERING FLANGE |
| 339 | A 3529904701 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| M 10 X 1 MM | ||
| 345 | N 000934010042 | NUT |
| PROPELLER SHAFT TO TRANSMISSION | ||
| M10 X 1 | ||
| N 913023012002 | NUT | |
| PROPELLER SHAFT ON TRANSMISSION AND RETARDER | ||
| 400 | A 6884101301 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 1250 MM | ||
| 405 | A 0004103331 | UNIVERSAL JOINT CROSS |
| 408 | A 0009974788 | GREASE NIPPLE |
| 411 | A 0029944735 | SNAP RING |
| 414 | A 0004100222 | INTERMEDIATE BEARING |
| 417 | A 0004130112 | RUBBER MOUNTING |
| 420 | A 0009905050 | NUT |
| 423 | A 0004101230 | CENTERING FLANGE |
| 430 | A 6884117382 | REBOUND STRAP |
| PROPELLER SHAFT | ||
| 430 | A 6884117382 | REBOUND STRAP |
| PROPELLER SHAFT | ||
| 430 | A 3844117282 | REBOUND STRAP |
| PROPELLER SHAFT | ||
| A 6854110082 | REBOUND STRAP | |
| PROPELLER SHAFT | ||
| N 000961010038 | SCREW | |
| REBOUND STRAP TO FRAME | ||
| A 6809900163 | HOLLOW SCREW | |
| REBOUND STRAP TO FRAME | ||
| 3/8-24 | ||
| 435 | N 910105014012 | SCREW |
| REBOUND STRAP TO FRAME | ||
| M 14X1.5X30 | ||
| 435 | N 910105014012 | SCREW |
| REBOUND STRAP TO FRAME | ||
| M 14X1.5X30 | ||
| 435 | N 910105014012 | SCREW |
| REBOUND STRAP TO FRAME | ||
| M 14X1.5X30 | ||
| N 913004010010 | NUT | |
| REBOUND STRAP TO FRAME | ||
| 438 | N 913023014003 | NUT |
| REBOUND STRAP TO FRAME | ||
| 438 | N 913023014003 | NUT |
| REBOUND STRAP TO FRAME | ||
| 438 | N 913023014003 | NUT |
| REBOUND STRAP TO FRAME | ||
| 441 | N 000125015012 | WASHER |
| REBOUND STRAP TO FRAME | ||
| 453 | N 910105012010 | SCREW |
| PROPELLER SHAFT BEARING TO BRACKET | ||
| M 12X1.5X40 MM | ||
| 456 | N 000125013012 | WASHER |
| PROPELLER SHAFT BEARING TO BRACKET | ||
| 456 | N 007349013002 | WASHER |
| PROPELLER SHAFT BEARING TO BRACKET | ||
| 459 | N 913023012002 | NUT |
| PROPELLER SHAFT BEARING TO BRACKET | ||
| 500 | A 6884108202 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1233 MM | ||
| 500 | A 6884108002 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1313 MM | ||
| 500 | A 6884108002 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1233 MM | ||
| 500 | A 6884100102 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1063 MM | ||
| 500 | A 6884100102 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1063 MM | ||
| 500 | A 6884100102 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1063 MM | ||
| 500 | A 6884108302 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 1763 MM | ||
| 500 | A 6884101002 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1528 MM | ||
| 500 | A 6884101102 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1528 MM | ||
| 518 | A 0004101931 | UNIVERSAL JOINT CROSS |
| 518 | A 0004101931 | UNIVERSAL JOINT CROSS |
| 518 | A 0004101931 | UNIVERSAL JOINT CROSS |
| 518 | A 0004101931 | UNIVERSAL JOINT CROSS |
| 518 | A 0004103331 | UNIVERSAL JOINT CROSS |
| 518 | A 0004103331 | UNIVERSAL JOINT CROSS |
| 518 | A 0004103331 | UNIVERSAL JOINT CROSS |
| 521 | A 0009974788 | GREASE NIPPLE |
| 521 | A 0009974788 | GREASE NIPPLE |
| 521 | A 0009974788 | GREASE NIPPLE |
| 521 | A 0009974788 | GREASE NIPPLE |
| 521 | A 0009974788 | GREASE NIPPLE |
| 521 | A 0009974788 | GREASE NIPPLE |
| THREADED | ||
| 521 | A 0009976688 | GREASE NIPPLE |
| THREADED | ||
| 524 | A 0029944435 | SNAP RING |
| 1.31/1.41 MM | ||
| 524 | A 0029944435 | SNAP RING |
| 1.31/1.41 MM | ||
| 524 | A 0029944435 | SNAP RING |
| 1.31/1.41 MM | ||
| 524 | A 0029944435 | SNAP RING |
| 1.31/1.41 MM | ||
| 524 | A 0029944535 | SNAP RING |
| 1.42/1.46 MM | ||
| 524 | A 0029944535 | SNAP RING |
| 1.42/1.46 MM | ||
| 524 | A 0029944535 | SNAP RING |
| 1.42/1.46 MM | ||
| 524 | A 0029944535 | SNAP RING |
| 1.42/1.46 MM | ||
| 524 | A 0029944635 | SNAP RING |
| 1.47/1.51 MM | ||
| 524 | A 0029944635 | SNAP RING |
| 1.47/1.51 MM | ||
| 524 | A 0029944635 | SNAP RING |
| 1.47/1.51 MM | ||
| 524 | A 0029944635 | SNAP RING |
| 1.47/1.51 MM | ||
| 524 | A 0029944735 | SNAP RING |
| 1.52/1.56 MM | ||
| 524 | A 0029944735 | SNAP RING |
| 1.52/1.56 MM | ||
| 524 | A 0029944735 | SNAP RING |
| 1.52/1.56 MM | ||
| 524 | A 0029944735 | SNAP RING |
| 1.52/1.56 MM | ||
| 524 | A 0029944735 | SNAP RING |
| 1.52/1.56 MM | ||
| 524 | A 0029944735 | SNAP RING |
| 1.52/1.56 MM | ||
| 524 | A 0029944835 | SNAP RING |
| 1.57/1.61 MM | ||
| 524 | A 0029944835 | SNAP RING |
| 1.57/1.61 MM | ||
| 524 | A 0029944835 | SNAP RING |
| 1.57/1.61 MM | ||
| 524 | A 0029944835 | SNAP RING |
| 1.57/1.61 MM | ||
| 524 | A 0029944935 | SNAP RING |
| 1.62/1.66 MM | ||
| 524 | A 0029944935 | SNAP RING |
| 1.62/1.66 MM | ||
| 524 | A 0029944935 | SNAP RING |
| 1.62/1.66 MM | ||
| 524 | A 0029944935 | SNAP RING |
| 1.62/1.66 MM | ||
| 556 | A 0009974888 | GREASE NIPPLE |
| 556 | A 0009974888 | GREASE NIPPLE |
| 556 | A 0009974888 | GREASE NIPPLE |
| 556 | A 0009974888 | GREASE NIPPLE |
| 556 | A 0009974888 | GREASE NIPPLE |
| 559 | A 0004130480 | SEAL RING |
| 559 | A 0004130480 | SEAL RING |
| 559 | A 0004130480 | SEAL RING |
| 559 | A 0004130480 | SEAL RING |
| 559 | A 0004130480 | SEAL RING |
| 566 | A 3849907801 | SCREW |
| 566 | A 3849907801 | SCREW |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 566 | A 3849907801 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 566 | A 3849907801 | SCREW |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 566 | A 6889907201 | SCREW |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 569 | A 6889907145 | BEARING COVER |
| 569 | A 6889907145 | BEARING COVER |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 569 | A 6889907145 | BEARING COVER |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 569 | A 6889907145 | BEARING COVER |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 569 | A 6889907145 | BEARING COVER |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 572 | A 6859820012 | SCREW |
| PROPELLER SHAFT TO FLANGE | ||
| 575 | N 913023012002 | NUT |
| PROPELLER SHAFT TO FLANGE | ||
| 578 | N 913004010014 | NUT |
| PROPELLER SHAFT TO FLANGE |
