Transporto priemonė: 712C/37; VIN numerio dalis: 688255

Grupė: 40 WHEELS - 090 DISC WHEELS AND SPARE WHEEL CARRIER

#	Kodas	Pavadinimas

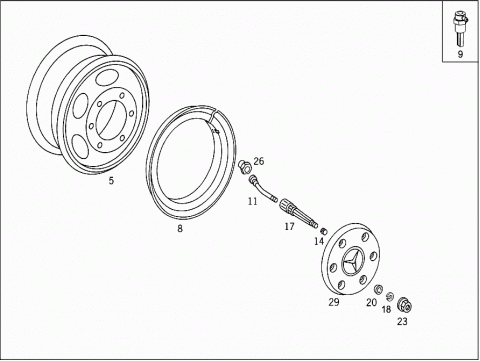

005	A 6884007202	DISC WHEEL
		BORLEM, 6.00X16
005	A 6884007402	DISC WHEEL
		JOCHPE - MAXION, 6.00X16
005	A 6734000002	DISC WHEEL
	Repalced by: A 6884007502
005	A 6884000202	DISC WHEEL
	Repalced by: A 6884007502
005	A 6884000602	DISC WHEEL
	Repalced by: A 6884007502
005	A 6884007502	DISC WHEEL
		MAXION, 6.00 X 17.5
005	A 6884007502	DISC WHEEL
		MAXION, 6.00 X 17.5
005	A 6884007502	DISC WHEEL
		MAXION, 6.00 X 17.5
005	A 6884007502	DISC WHEEL
		JOCHPE - MAXION, 6.00 X 17.5
005	A 3454008902	DISC WHEEL
		FNV 7.50X22.5
005	A 6884007502	DISC WHEEL
		JOCHPE - MAXION, 6.00 X 17.5
005	A 6884000402	DISC WHEEL
	Repalced by: A 6884007602
005	A 6884007602	DISC WHEEL
		BORLEM, 6.00 X 17.5
005	A 6884007602	DISC WHEEL
		BORLEM, 6.00 X 17.5
005	A 6884007602	DISC WHEEL
		BORLEM, 6.00 X 17.5
005	A 6884007602	DISC WHEEL
		BORLEM, 6.00 X 17.5
005	A 3454009202	DISC WHEEL
		LEMMERZ 7.50X22.5
005	A 6884007602	DISC WHEEL
		BORLEM, 6.00 X 17.5
008	A 3084017006	SIDE RING
		T0 688 400 72 02
008	A 6884010006	SIDE RING
		T0 688 400 74 02
009	A 9584760032	VALVE
009	A 6644767132	VALVE
011	A 0004013213	VALVE
	Repalced by: A 0004017213
011	A 6884017713	VALVE
		(TIRE INFLATOR VALVE)
011	A 6884010113	VALVE
		(TIRE INFLATOR VALVE)
011	A 3214010013	VALVE
		EXTENSION
011	A 0004017213	VALVE
		(TIRE INFLATOR VALVE)
011	A 0004017213	VALVE
		(TIRE INFLATOR VALVE)
011	A 0004017213	VALVE
		(TIRE INFLATOR VALVE)
011	A 0004017213	VALVE
		(TIRE INFLATOR VALVE)
011	A 0004017213	VALVE
		(TIRE INFLATOR VALVE)
011	A 0004017213	VALVE
		(TIRE INFLATOR VALVE)
014	N 007757008600	VALVE CAP
017	A 3104010413	VALVE
		EXTENSION
017	A 3104010413	VALVE
		EXTENSION
018	A 3249970026	SPHERICAL RING
		DISC WHEEL TO REAR AXLE
020	N 074361018353	SPRING LOCK WASHER
		DISC WHEELS TO FRONT AND REAR AXLES
023	N 074361018205	NUT
		DISC WHEELS TO FRONT AND REAR AXLES
023	N 000000005650	NUT
023	A 0009905053	NUT
026	A 0004010272	NUT
026	A 0004010272	NUT
026	A 0004010272	NUT
029	A 6684000225	HUB CAP
		WHEEL STUD DIAMETER
		19 MM

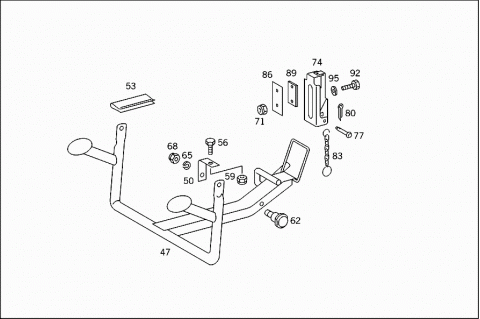

047	A 6884007041	MOUNTING BOW
		SPARE WHEEL CARRIER
050	A 6884037340	BRACKET
053	A 6884037144	COVER PLATE
056	N 910105008016	SCREW
		BRACKET TO SIDE MEMBER
		M 8X30
059	N 913023008003	NUT
		BRACKET TO SIDE MEMBER
062	A 3084037075	PIN
		CARRIER TO BRACKET
065	N 900055014003	SPRING WASHER
		CARRIER TO BRACKET
068	N 913023010002	NUT
		CARRIER TO BRACKET
071	N 913023010002	NUT
		REINFORCEMENT TO REAR CROSS MEMBER
074	A 6884007068	FASTENER
		CARRIER TO SPARE WHEEL
077	A 6889917107	PIN
080	N 000094001617	COTTER PIN
080	N 000094001616	COTTER PIN
083	A 0008500095	FASTENER
		CHAIN
086	A 6884037008	REINFORCEMENT
089	A 6884037019	BASE BLOCK
092	N 910105010001	SCREW
		REINFORCEMENT TO REAR CROSS MEMBER
		M 10X30
092	N 910105010001	SCREW
		SHIM TO REAR CROSS MEMBER
		M 10X30
095	N 000125010517	WASHER
		REINFORCEMENT TO REAR CROSS MEMBER
095	N 000125010517	WASHER
		SHIM TO REAR CROSS MEMBER
