Transporto priemonė: 809 K; VIN numerio dalis: 673042

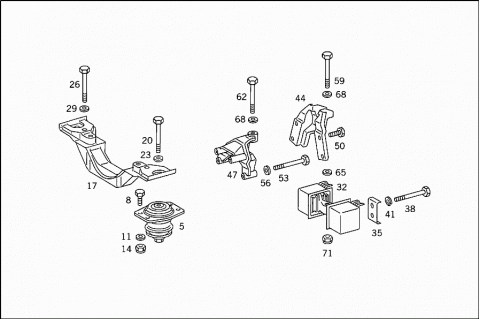

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6732400117 | RUBBER MOUNTING |
| Repalced by: A 6732400317 | ||
| 005 | A 6732400317 | RUBBER MOUNTING |
| FRONT | ||
| 008 | N 000933010105 | SCREW |
| RUBBER MOUNTING TO FRONT CONSOLE | ||
| M 10X25 | ||
| 008 | N 000933010145 | SCREW |
| RUBBER MOUNTING TO FRONT CONSOLE | ||
| M 10X35 | ||
| 011 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 011 | N 007349010007 | WASHER |
| RUBBER MOUNTING TO FRONT CONSOLE | ||
| 014 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 014 | N 910113010000 | NUT |
| RUBBER MOUNTING TO FRONT CONSOLE | ||
| 017 | A 6732400601 | ENGINE SUPPORT |
| Repalced by: A 6732400901 | ||
| 017 | A 6732400901 | ENGINE SUPPORT |
| Repalced by: A 6732400801 | ||
| 017 | A 6732400801 | ENGINE SUPPORT |
| Repalced by: A 6732401001 | ||
| 017 | A 6732401001 | ENGINE SUPPORT |
| ENGINE FRONT SUSPENSION | ||
| 020 | N 000960014167 | SCREW |
| Repalced by: N 000961014064 | ||
| 020 | N 000961014064 | SCREW |
| ENGINE SUPPORT TO RUBBER MOUNTING | ||
| 023 | A 3859900440 | WASHER |
| Repalced by: A 3379900440 | ||
| 023 | A 3379900440 | WASHER |
| ENGINE SUPPORT TO RUBBER MOUNTING | ||
| 026 | N 000960016171 | SCREW |
| ENGINE FRONT SUSPENSION | ||
| 026 | N 000960012212 | SCREW |
| ENGINE FRONT SUSPENSION | ||
| 029 | A 3529902440 | WASHER |
| ENGINE FRONT SUSPENSION | ||
| 032 | A 6732420813 | RUBBER MOUNTING |
| Repalced by: A 6732421113 | ||
| 032 | A 6732421113 | RUBBER MOUNTING |
| REAR | ||
| 032 | A 6732420913 | RUBBER MOUNTING |
| Repalced by: A 6732421513 | ||
| 032 | A 6732421513 | RUBBER MOUNTING |
| REAR | ||
| 032 | A 6732421713 | RUBBER MOUNTING |
| REAR | ||
| 032 | A 6732420813 | RUBBER MOUNTING |
| Repalced by: A 6732421213 | ||
| 032 | A 6732421213 | RUBBER MOUNTING |
| REAR | ||
| 032 | A 6732420913 | RUBBER MOUNTING |
| Repalced by: A 6732421413 | ||
| 032 | A 6732421413 | RUBBER MOUNTING |
| REAR | ||
| 032 | A 6732421813 | RUBBER MOUNTING |
| REAR | ||
| 035 | A 6732420132 | REINFORCEMENT |
| RUBBER MOUNTING TO REAR CROSS MEMBER | ||
| 038 | A 0029902604 | SCREW |
| RUBBER MOUNTING TO REAR CROSS MEMBER | ||
| 041 | N 912004012100 | LOCK WASHER |
| RUBBER MOUNTING TO REAR CROSS MEMBER | ||
| 044 | A 6732400640 | BRACKET |
| REAR RUBBER MOUNTING | ||
| 044 | A 6732400640 | BRACKET |
| REAR RUBBER MOUNTING | ||
| 044 | A 6732400640 | BRACKET |
| REAR RUBBER MOUNTING | ||
| 044 | A 6732400640 | BRACKET |
| REAR RUBBER MOUNTING | ||
| A 6732401040 | BRACKET | |
| REAR RUBBER MOUNTING | ||
| 047 | A 6732400440 | BRACKET |
| REAR RUBBER MOUNTING | ||
| 050 | N 000931010264 | SCREW |
| BRACKET TO TRANSMISSION | ||
| M 10X45 | ||
| 050 | N 000931010264 | SCREW |
| BRACKET TO TRANSMISSION | ||
| M 10X45 | ||
| 050 | N 000931010260 | SCREW |
| Repalced by: N 304017010030 | ||
| 050 | N 304017010030 | HEXAGON HEAD BOLT |
| Repalced by: N 304017010053 | ||
| 050 | N 304017010053 | SCREW |
| BRACKET TO TRANSMISSION | ||
| M 10X50 | ||
| 053 | N 914141010119 | SCREW |
| BRACKET TO TRANSMISSION | ||
| M 10X70 | ||
| 053 | N 000931010336 | SCREW |
| Repalced by: N 304014010005 | ||
| 053 | N 304014010005 | SCREW |
| BRACKET TO TRANSMISSION | ||
| M 10X130 | ||
| 053 | N 000931010455 | SCREW |
| BRACKET TO TRANSMISSION | ||
| M 10X180 | ||
| 056 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 056 | N 009021010209 | WASHER |
| BRACKET TO TRANSMISSION | ||
| 059 | N 000960018111 | SCREW |
| Repalced by: N 308676018010 | ||
| 059 | N 308676018010 | SCREW |
| RUBBER MOUNTING TO BRACKET | ||
| M 18X70 | ||
| 059 | N 308676018010 | SCREW |
| RUBBER MOUNTING TO BRACKET | ||
| M 18X70 | ||
| 062 | N 000960018087 | SCREW |
| RUBBER MOUNTING TO BRACKET | ||
| M 18X110 | ||
| 062 | N 000960018145 | SCREW |
| RUBBER MOUNTING TO BRACKET | ||
| M 18X80 | ||
| 065 | A 3379900640 | WASHER |
| BETWEEN RUBBER MOUNTING AND TRANSMISSION BRACKET | ||
| 068 | A 6209900040 | WASHER |
| RUBBER MOUNTING TO BRACKET | ||
| 071 | N 910113018003 | NUT |
| RUBBER MOUNTING TO BRACKET | ||
