Transporto priemonė: 817; VIN numerio dalis: 676066
Grupė: 49 EXHAUST SYSTEM - 135 SINGLE MUFFLER EXHAUST SYSTEM WITH RESONATOR
| # | Kodas | Pavadinimas |
|---|---|---|

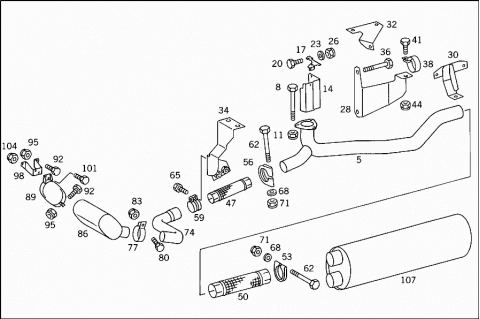

| 005 | A 6764902319 | EXHAUST PIPE |
| CONNECTING PIPE TO EXHAUST MANIFOLD | ||
| 005 | A 6764904219 | EXHAUST PIPE |
| CONNECTING PIPE TO EXHAUST MANIFOLD | ||
| 005 | A 6764904219 | EXHAUST PIPE |
| CONNECTING PIPE TO EXHAUST MANIFOLD | ||
| 005 | A 6764904519 | EXHAUST PIPE |
| Repalced by: A 6764906419 | ||
| 005 | A 6764906419 | EXHAUST PIPE |
| CONNECTING PIPE TO EXHAUST MANIFOLD | ||
| 008 | N 000960012342 | SCREW |
| Repalced by: N 308676012015 | ||
| 008 | N 308676012015 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 011 | N 913004012013 | NUT |
| Repalced by: N 910113012006 | ||
| 011 | N 910113012006 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 014 | A 6764900730 | PROTECTIVE PLATE |
| FRONT EXHAUST PIPE | ||
| 017 | A 6764901140 | BRACKET |
| HEAT SHIELD | ||
| 020 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 020 | N 304017008021 | SCREW |
| PROTECTIVE PLATE TO BRACKET | ||
| 023 | A 1089900340 | WASHER |
| PROTECTIVE PLATE TO BRACKET | ||
| 026 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 026 | N 913004008001 | NUT |
| PROTECTIVE PLATE TO BRACKET | ||
| 028 | A 6764922241 | BRACKET |
| FRONT EXHAUST PIPE | ||
| 030 | A 6744902940 | BRACKET |
| Repalced by: A 6764902440 | ||
| 030 | A 6764902440 | BRACKET |
| FRONT EXHAUST PIPE | ||
| 032 | A 6764921141 | BRACKET |
| FRONT EXHAUST PIPE | ||
| 034 | A 6754900140 | BRACKET |
| FRONT EXHAUST PIPE | ||
| 036 | N 000931010282 | SCREW |
| BRACKET TO TRANSMISSION CASE | ||
| 038 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 038 | N 071555090502 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 038 | A 6764920040 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 041 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 041 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 041 | N 000931008247 | SCREW |
| Repalced by: N 304014008021 | ||
| 041 | N 304014008021 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 044 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 044 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 044 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 044 | N 913004008001 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 047 | A 6734900065 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE | ||
| 050 | A 6744900065 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 053 | A 6744920040 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 056 | A 6684920340 | CLAMP |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE | ||
| 059 | A 6204920840 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 062 | N 000931008220 | SCREW |
| Repalced by: N 304017008067 | ||
| 062 | N 304017008067 | SCREW |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE | ||
| 062 | N 000931008222 | SCREW |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 062 | N 000931008222 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 065 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 065 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 068 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 068 | N 000125008443 | WASHER |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE AND TO EXHAUST MUFFLER | ||
| 068 | N 000125008443 | WASHER |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE | ||
| 068 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 068 | N 000125008443 | WASHER |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 071 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 071 | N 913004008001 | NUT |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE AND TO EXHAUST MUFFLER | ||
| 071 | N 913004008001 | NUT |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE | ||
| 071 | N 913004008001 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 074 | A 6794900319 | EXHAUST PIPE |
| FROM FLEXIBLE METAL TUBE TO RESONATOR | ||
| 077 | N 071555068502 | CLAMP |
| FROM FLEXIBLE METAL TUBE TO RESONATOR | ||
| 080 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 080 | N 304017008034 | SCREW |
| FROM FLEXIBLE METAL TUBE TO RESONATOR | ||
| 083 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 083 | N 913004008001 | NUT |
| FROM FLEXIBLE METAL TUBE TO RESONATOR | ||
| 086 | A 6794900101 | RESONATOR |
| 089 | A 6794900041 | CLAMP |
| RESONATOR | ||
| 092 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 092 | N 304017010002 | SCREW |
| RESONATOR | ||
| 092 | N 304017010002 | SCREW |
| BRACKET TO FRAME | ||
| 095 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 095 | N 910113010000 | NUT |
| RESONATOR | ||
| 095 | N 910113010000 | NUT |
| BRACKET TO FRAME | ||
| 098 | A 6794910541 | BRACKET |
| RESONATOR | ||
| 101 | N 000933010128 | SCREW |
| CLAMP TO BRACKET | ||
| 104 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 104 | N 910113010000 | NUT |
| CLAMP TO BRACKET | ||

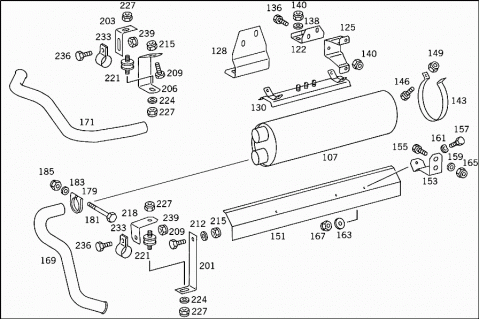

| 107 | A 6764900501 | EXHAUST MUFFLER |
| 107 | A 6764900501 | EXHAUST MUFFLER |
| 108 | A 6764900201 | EXHAUST MUFFLER |
| 108 | A 6764900201 | EXHAUST MUFFLER |
| 110 | A 6744900930 | PROTECTIVE PLATE |
| AT MUFFLER | ||
| 113 | N 000933010164 | SCREW |
| PROTECTIVE PLATE TO EXHAUST MUFFLER | ||
| 116 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 116 | N 000125010532 | WASHER |
| PROTECTIVE PLATE TO EXHAUST MUFFLER | ||
| 119 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 119 | N 910113010000 | NUT |
| PROTECTIVE PLATE TO EXHAUST MUFFLER | ||
| 122 | A 6744904640 | BRACKET |
| Repalced by: A 6744924841 | ||
| 122 | A 6744924841 | BRACKET |
| EXHAUST MUFFLER | ||
| 125 | A 6744916241 | BRACKET |
| EXHAUST MUFFLER | ||
| 128 | A 6744916341 | BRACKET |
| EXHAUST MUFFLER | ||
| 130 | A 6734901734 | SUPPORT |
| EXHAUST MUFFLER | ||
| 132 | A 6744920017 | ANGLE |
| EXHAUST MUFFLER TO FRAME | ||
| 134 | A 6744910117 | ANGLE |
| ANGLE TO BRACKET | ||
| 136 | N 000933010145 | SCREW |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| M 10X35 | ||
| 136 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 136 | N 304017010002 | SCREW |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| M 10X30 | ||
| 136 | N 304017010002 | SCREW |
| ANGLE TO SUPPORT | ||
| M 10X30 | ||
| 138 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 138 | N 007349010007 | WASHER |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 138 | N 007349010007 | WASHER |
| ANGLE TO SUPPORT | ||
| 138 | A 6739900940 | WASHER |
| Repalced by: N 006902011100 | ||
| 138 | N 006902011100 | WASHER |
| Repalced by: N 006902011102 | ||
| 138 | N 006902011102 | WASHER |
| ANGLE TO SUPPORT | ||
| 138 | N 006902011102 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 140 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 140 | N 910113010000 | NUT |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 140 | N 910113010000 | NUT |
| ANGLE TO SUPPORT | ||
| 143 | A 6744912641 | BRACKET |
| Repalced by: A 6744914541 | ||
| 143 | A 6744914541 | STRAP |
| AT MUFFLER | ||
| 146 | N 000933010164 | SCREW |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 149 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 149 | N 910113010000 | NUT |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 151 | A 6744901130 | PROTECTIVE PLATE |
| (HEAT SHIELD),EXHAUST MUFFLER | ||
| 153 | A 6744922341 | BRACKET |
| HEAT SHIELD TO FRAME | ||
| 155 | N 000961012151 | SCREW |
| HEAT SHIELD TO FRAME | ||
| 157 | N 000933008301 | SCREW |
| Repalced by: A 0079900801 | ||
| 157 | A 0079900801 | SCREW |
| PROTECTIVE PLATE TO BRACKET | ||
| 159 | A 6739901040 | WASHER |
| HEAT SHIELD TO FRAME | ||
| 161 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 161 | N 000137008212 | SPRING WASHER |
| PROTECTIVE PLATE TO BRACKET | ||
| 163 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 163 | N 009021008213 | WASHER |
| PROTECTIVE PLATE TO BRACKET | ||
| Repalced by: N 000000003250 | ||
| 163 | N 000000003250 | WASHER |
| PROTECTIVE PLATE TO BRACKET | ||
| 165 | N 910113012002 | NUT |
| HEAT SHIELD TO FRAME | ||
| 167 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 167 | N 913004008001 | NUT |
| PROTECTIVE PLATE TO BRACKET | ||
| 169 | A 6764928004 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 169 | A 6764928104 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 171 | A 6794920104 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 172 | A 6764928704 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 172 | A 6764927904 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 173 | A 6764923504 | REAR EXHAUST PIPE |
| FRONT PART | ||
| 173 | A 6764923304 | REAR EXHAUST PIPE |
| FRONT PART | ||
| 173 | A 6764923704 | REAR EXHAUST PIPE |
| FRONT PART | ||
| 173 | A 6764923604 | REAR EXHAUST PIPE |
| FRONT PART | ||
| 173 | A 6764923404 | REAR EXHAUST PIPE |
| FRONT PART | ||
| 175 | A 6764925604 | REAR EXHAUST PIPE |
| REAR PART | ||
| 177 | A 6764925704 | REAR EXHAUST PIPE |
| REAR PART | ||
| 179 | A 6764920040 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 181 | N 000931008247 | SCREW |
| Repalced by: N 304014008021 | ||
| 181 | N 304014008021 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 183 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 183 | N 000125008443 | WASHER |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 185 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 185 | N 913004008001 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 187 | N 071555078502 | CLAMP |
| REAR EXHAUST PIPE FRONT PART TO REAR PART | ||
| 189 | N 000933010105 | SCREW |
| REAR EXHAUST PIPE FRONT PART TO REAR PART | ||
| 191 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 191 | N 910113010000 | NUT |
| REAR EXHAUST PIPE FRONT PART TO REAR PART | ||
| 193 | A 6734921741 | BRACKET |
| CENTRAL EXHAUST PIPE TO LEFT SIDE MEMBER | ||
| 195 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 195 | N 304017010002 | SCREW |
| BRACKET TO LEFT SIDE MEMBER | ||
| 197 | A 6739900940 | WASHER |
| Repalced by: N 006902011100 | ||
| 197 | N 006902011100 | WASHER |
| Repalced by: N 006902011102 | ||
| 197 | N 006902011102 | WASHER |
| BRACKET TO LEFT SIDE MEMBER | ||
| 199 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 199 | N 910113010000 | NUT |
| BRACKET TO LEFT SIDE MEMBER | ||
| 201 | A 3524920141 | BRACKET |
| TAIL PIPE,FRONT | ||
| 203 | A 6205240340 | BRACKET |
| BRACKET TO FILTER BRACKET | ||
| 206 | A 6764922541 | BRACKET |
| BRACKET TO FILTER BRACKET | ||
| 209 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 209 | N 304017008021 | SCREW |
| BRACKET TO BATTERY/APPARATUS SUPPORT | ||
| 209 | N 304017008021 | SCREW |
| BRACKET TO FILTER BRACKET | ||
| 212 | N 007349008003 | WASHER |
| BRACKET TO APPARATUS SUPPORT | ||
| 215 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 215 | N 913004008001 | NUT |
| BRACKET TO APPARATUS SUPPORT | ||
| 215 | N 913004008001 | NUT |
| BRACKET TO FILTER BRACKET | ||
| 218 | A 6744915741 | BRACKET |
| TAIL PIPE,FRONT | ||
| 219 | A 6744923941 | BRACKET |
| TAIL PIPE,FRONT | ||
| 221 | A 3849877140 | RUBBER BUFFER |
| BRACKET TO TAIL PIPE BRACKET | ||
| 224 | A 6739900940 | WASHER |
| Repalced by: N 006902011100 | ||
| 224 | N 006902011100 | WASHER |
| Repalced by: N 006902011102 | ||
| 224 | N 006902011102 | WASHER |
| BRACKET TO RUBBER MOUNTING | ||
| 227 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 227 | N 910113010000 | NUT |
| BRACKET TO RUBBER MOUNTING | ||
| 230 | A 6764920141 | BRACKET |
| TAIL PIPE,FRONT | ||
| 230 | A 6764920241 | BRACKET |
| TAIL PIPE,FRONT | ||
| 233 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 233 | N 071555090502 | CLAMP |
| TAIL PIPE,FRONT | ||
| 236 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 236 | N 304017010002 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| 239 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 239 | N 910113010000 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 242 | A 6174911316 | SUPPORT |
| CENTRAL EXHAUST PIPE TO BRACKET | ||
| 245 | N 000933010128 | SCREW |
| EXHAUST PIPE TO BRACKET ON SIDE MEMBER | ||
| 248 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 248 | N 910113010000 | NUT |
| EXHAUST PIPE TO BRACKET ON SIDE MEMBER | ||
| 251 | A 6164922841 | BRACKET |
| CENTRAL EXHAUST PIPE | ||
| 254 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 254 | N 304017010002 | SCREW |
| BRACKET TO EXHAUST PIPE | ||
| 257 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 257 | N 910113010000 | NUT |
| BRACKET TO EXHAUST PIPE | ||
| 260 | A 3814920082 | DAMPING PAD |
| BRACKET TO SUPPORT | ||
| 263 | A 0019875340 | RUBBER BUFFER |
| REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER | ||
| 266 | A 6205240340 | BRACKET |
| REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER | ||
| 269 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 269 | N 910113010000 | NUT |
| RUBBER MOUNTING TO BRACKET | ||
| 272 | N 071555075502 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER | ||
| 275 | N 000933010145 | SCREW |
| CLAMP TO BRACKET | ||
| 278 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 278 | N 910113010000 | NUT |
| CLAMP TO BRACKET | ||
| 281 | A 6734900740 | BRACKET |
| REAR CABLE CONNECTOR | ||
| 284 | N 000933008116 | SCREW |
| Repalced by: N 000933008337 | ||
| 284 | N 000933008337 | SCREW |
| Repalced by: A 0099900101 | ||
| 284 | A 0099900101 | SCREW |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 287 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 287 | N 009021008213 | WASHER |
| BRACKET TO RIGHT SIDE MEMBER | ||
| Repalced by: N 000000003250 | ||
| 287 | N 000000003250 | WASHER |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 290 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 290 | N 913004008001 | NUT |
| BRACKET TO RIGHT SIDE MEMBER | ||
| A 6524920630 | PROTECTIVE PLATE | |
| TAIL PIPE,FRONT | ||
| A 6764902540 | BRACKET | |
| Repalced by: A 6764902640 | ||
| A 6764902640 | BRACKET | |
| HEAT SHIELD | ||
| A 0019903504 | SCREW | |
| Repalced by: A 0019903404 | ||
| A 0019903404 | SCREW | |
| HEAT SHIELD TO BRACKET | ||
| N 009021008107 | WASHER | |
| HEAT SHIELD TO BRACKET | ||

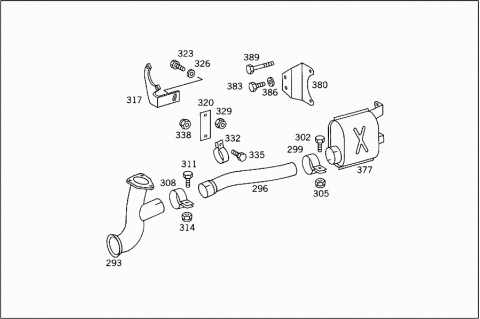

| 293 | A 6764904419 | EXHAUST PIPE |
| CONNECTING PIPE TO EXHAUST MANIFOLD | ||
| 296 | A 6764903119 | EXHAUST PIPE |
| FROM EXHAUST PIPE TO RESONATOR | ||
| 299 | N 071555068502 | CLAMP |
| CONNECTING PIPE ON RESONATOR | ||
| 302 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 302 | N 304017008034 | SCREW |
| CONNECTING PIPE ON RESONATOR | ||
| 305 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 305 | N 913004008001 | NUT |
| CONNECTING PIPE ON RESONATOR | ||
| 308 | N 071555075502 | CLAMP |
| FRONT EXHAUST PIPE ON CONNECTING PIPE | ||
| 311 | N 000933010145 | SCREW |
| FRONT EXHAUST PIPE ON CONNECTING PIPE | ||
| 314 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 314 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE ON CONNECTING PIPE | ||
| 317 | A 6764922741 | BRACKET |
| FRONT EXHAUST PIPE TO CLUTCH BELL | ||
| 320 | A 3143011040 | BRACKET |
| CONNECTING PIPE ON BRACKET | ||
| 323 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 323 | N 304017008034 | SCREW |
| BRACKET TO BRACKET | ||
| 326 | N 007349008003 | WASHER |
| BRACKET TO BRACKET | ||
| 329 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 329 | N 913004008001 | NUT |
| BRACKET TO BRACKET | ||
| 332 | N 071555065501 | CLAMP |
| CONNECTING PIPE ON BRACKET | ||
| 335 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 335 | N 304017008034 | SCREW |
| CONNECTING PIPE ON BRACKET | ||
| 338 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 338 | N 913004008001 | NUT |
| CONNECTING PIPE ON BRACKET | ||

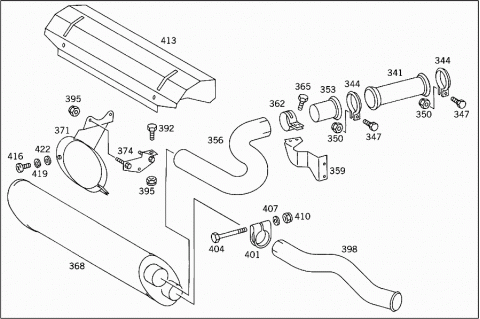

| 341 | A 6554900165 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| 344 | A 6209970590 | LOOM TIE |
| METAL HOSE ON FRONT EXHAUST PIPE AND SLIP LINK | ||
| 347 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 347 | N 304017008018 | SCREW |
| METAL HOSE ON FRONT EXHAUST PIPE AND SLIP LINK | ||
| 350 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 350 | N 913004008001 | NUT |
| METAL HOSE ON FRONT EXHAUST PIPE AND SLIP LINK | ||
| 353 | A 6204920208 | COLLAR |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE | ||
| 356 | A 6744903219 | EXHAUST PIPE |
| SLIDING PIECE TO EXHAUST MUFFLER | ||
| 359 | A 6754900140 | BRACKET |
| 362 | A 6204920940 | CLAMP |
| SLIP LINK ON INTERMEDIATE PIPE AND BRACKET | ||
| 365 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 365 | N 304017010002 | SCREW |
| SLIP LINK ON INTERMEDIATE PIPE AND BRACKET | ||
| 368 | A 6764900501 | EXHAUST MUFFLER |
| 371 | A 6744903440 | BRACKET |
| EXHAUST MUFFLER,LEFT | ||
| 371 | A 6744903540 | BRACKET |
| EXHAUST MUFFLER,RIGHT | ||
| 374 | A 6744901640 | BRACKET |
| BRACKET TO LEFT SIDE MEMBER | ||
| A 6744901740 | BRACKET | |
| BRACKET ON FRAME SIDE MEMBER,RIGHT | ||
| 374 | A 6744905240 | BRACKET |
| BRACKET ON FRAME SIDE MEMBER,RIGHT | ||
| 377 | A 6764901201 | RESONATOR |
| 380 | A 6764901340 | BRACKET |
| RESONATOR | ||
| 383 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 383 | N 304017008021 | SCREW |
| BRACKET TO RESONATOR | ||
| 386 | N 007349008003 | WASHER |
| BRACKET TO RESONATOR | ||
| 389 | N 000931010282 | SCREW |
| BRACKET TO TRANSMISSION CASE | ||
| 392 | N 000933010260 | SCREW |
| BRACKET TO FRAME SIDE MEMBER | ||
| 395 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 395 | N 910113010000 | NUT |
| EXHAUST MUFFLER TO FRAME | ||
| 398 | A 6764920204 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 398 | A 6764928504 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 401 | A 6764920040 | CLAMP |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 404 | N 000931008247 | SCREW |
| Repalced by: N 304014008021 | ||
| 404 | N 304014008021 | SCREW |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 407 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 407 | N 000125008443 | WASHER |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 410 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 410 | N 913004008001 | NUT |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 413 | A 6744900130 | PROTECTIVE PLATE |
| (HEAT SHIELD),EXHAUST MUFFLER | ||
| A 3874928541 | BRACKET | |
| LICENSE PLATE | ||
| A 0009902291 | NUT RETAINER | |
| Repalced by: A 0019906791 | ||
| A 0019906791 | NUT RETAINER | |
| LICENSE PLATE | ||
| N 000933006121 | SCREW | |
| Repalced by: N 304017006020 | ||
| N 304017006020 | SCREW | |
| LICENSE PLATE | ||
| N 000137006204 | SPRING WASHER | |
| LICENSE PLATE | ||
| 416 | N 007985008123 | SCREW |
| Repalced by: A 0029904212 | ||
| 416 | A 0029904212 | SCREW |
| HEAT SHIELD TO BRACKET | ||
| 419 | N 912004008102 | LOCK WASHER |
| HEAT SHIELD TO BRACKET | ||
| 422 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 422 | N 000125008443 | WASHER |
| HEAT SHIELD TO BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
