Transporto priemonė: 917 INDONESIA; VIN numerio dalis: 383011
Grupė: 42 BRAKES

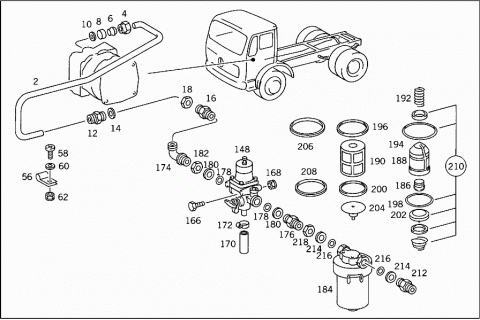

43510

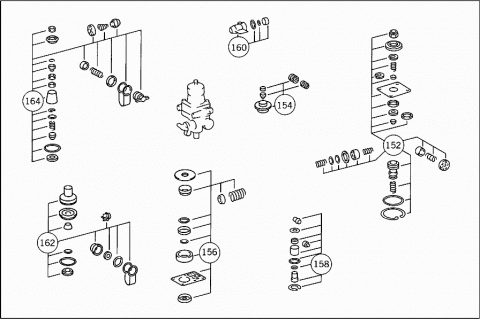

43511

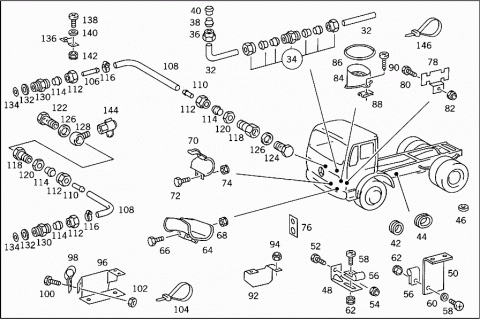

43512

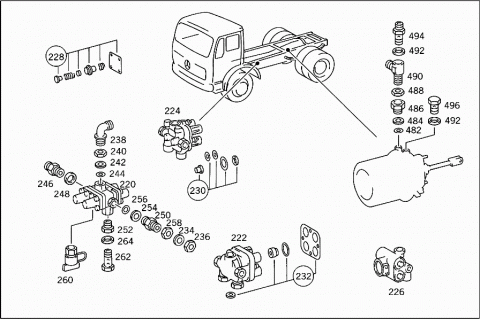

43513

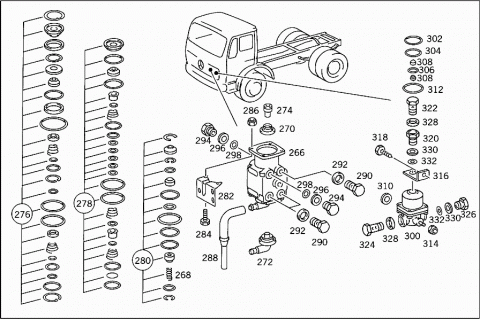

43514

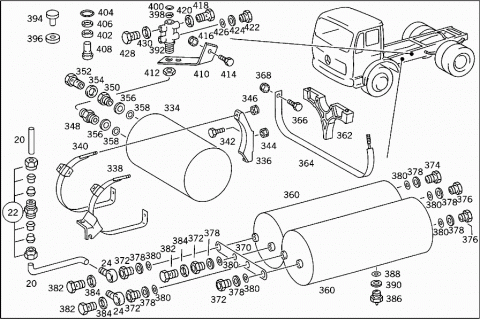

43515

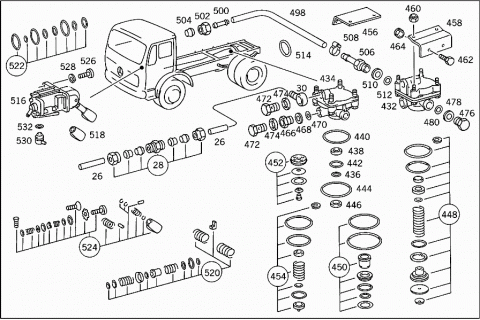

43516
# Kodas Pavadinimas
T YYYYYYYYYYYY PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT STANDARD VERSION, MODEL:
730.0
T YYYYYYYYYYYY PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT STANDARD VERSION, MODEL:
731.6
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKES,SEE UNIT STANDARD VERSION, MODEL:
744.4
T YYYYYYYYYYYY PART NAME MISSING
FOR AIR COMPRESSOR CONNECTION,SEE GROUP 13
002 A 0004291401 LINE
AIR COMPRESSOR,PRESSURE REGULATOR, FOUR-CIRCUIT PROTECTIVE VALVE
15 MM
004 N 915018015000 UNION NUT
N 915017015100 UNION NUT
006 N 003861015004 GLAND
008 N 915065015101 THRUST RING
010 N 915045012100 SEAL RING
Repalced by: N 007603012121
010 N 007603012121 SEAL RING
012 A 0019972172 FITTING
AT AIR COMPRESSOR
A 0029978972 FITTING
AT AIR COMPRESSOR
014 N 007603022102 SEAL RING
AT AIR COMPRESSOR
016 A 0019972372 FITTING
THROUGH SIDE MEMBER
N 003910015002 BULKHEAD FITTING
THROUGH SIDE MEMBER
018 N 074305022202 NUT
FITTING TO FRAME SIDE MEMBER
020 A 0109975982 HOSE
Repalced by: A 0009872827
020 A 0009872827 PLASTIC PIPE
AIR RESERVOIR,RELAY VALVE, SPRING-LOAD ACCUMULATOR CYLINDER
9X12 MM
020 A 0009872827 PLASTIC PIPE
BRAKE VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE
9X12 MM
020 A 0009872827 PLASTIC PIPE
PRESSURE RATIO VALVE
9X12 MM
020 A 0009872827 PLASTIC PIPE
HAND BRAKE VALVE BLEEDING
9X12 MM
022 A 0049971772 FITTING
Repalced by: A 0029906171
022 A 0029906171 FITTING
(PARTS KIT),LINE RUPTURE
024 A 0019901088 BANJO UNION
024 N 915052009009 BANJO UNION
HOSE WIDTH, / I.D.,
9/16 MM
026 A 0089979082 HOSE
BRAKE VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE
6X8 MM
026 A 0089979082 HOSE
PARKING BRAKE VALVE
6X8 MM
026 A 0089979082 HOSE
DISTRIBUTOR
6X8 MM
026 A 0089979082 HOSE
AXLE BREATHING
6X8 MM
028 A 0039978972 FITTING
Repalced by: A 0029905971
028 A 0029905971 FITTING
(PARTS KIT),LINE RUPTURE
030 N 915052006014 BANJO UNION
HOSE WIDTH, / I.D.,
6/16 MM
032 A 0089976082 HOSE
Repalced by: A 0009872627
032 A 0009872627 PLASTIC PIPE
FROM AIR RESERVOIR TO DOUBLE PRESSURE GAUGE
4X6 MM
034 A 0039979172 FITTING
(PARTS KIT),LINE RUPTURE
036 N 915017006100 UNION NUT
038 N 003861006007 GLAND
Repalced by: A 0019901667
038 A 0019901667 SEAL CONE
040 N 915062004000 SLEEVE
042 A 6209970181 GROMMET
LINE THRU FRAME
42/36 MM
044 A 3549970081 GROMMET
LINE THRU FRAME
32/27 MM
046 A 3609902440 WASHER
Repalced by: A 3609902340
046 A 3609902340 WASHER
COMPRESSED AIR LINE TO FRAME
048 A 3854290540 BRACKET
AIR COMPRESSOR LINE
050 A 6164290040 BRACKET
AIR COMPRESSOR LINE
052 N 000961014028 SCREW
BRACKET TO RIGHT SIDE MEMBER
M 14X40
054 N 913004014002 NUT
Repalced by: N 910113014001
054 N 910113014001 NUT
BRACKET TO RIGHT SIDE MEMBER
056 A 3609952001 CLAMP
Repalced by: A 6739950001
056 A 6739950001 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
058 N 007985006145 SCREW
Repalced by: N 007985006581
058 N 007985006581 SCREW
CLAMP TO BRACKET
060 N 000125006421 WASHER
CLAMP TO BRACKET
062 N 913004006002 NUT
Repalced by: N 913004006001
062 N 913004006001 NUT
CLAMP TO BRACKET
064 A 6204201286 BRACKET
RIGHT COMPRESSED AIR LINES
066 N 000933008147 SCREW
Repalced by: N 304017008021
066 N 304017008021 SCREW
BRACKET TO BUMPER STRUT
068 N 913004008004 NUT
Repalced by: N 913004008001
068 N 913004008001 NUT
BRACKET TO BUMPER STRUT
070 A 6204201486 BRACKET
RIGHT COMPRESSED AIR LINES
072 N 000933008153 SCREW
Repalced by: N 304017008034
072 N 304017008034 SCREW
BRACKET TO CAB CONSOLE
074 N 913004008004 NUT
Repalced by: N 913004008001
074 N 913004008001 NUT
BRACKET TO CAB CONSOLE
076 A 6204294340 BRACKET
Repalced by: A 3604293140
076 A 3604293140 BRACKET
COMPRESSED AIR LINE
078 A 6204293940 BRACKET
COMPRESSED AIR LINE
080 N 000933008152 SCREW
Repalced by: N 304017008027
080 N 304017008027 SCREW
BRACKET TO SIDE MEMBER
082 N 913004008004 NUT
Repalced by: N 913004008001
082 N 913004008001 NUT
BRACKET TO SIDE MEMBER
084 A 6204292440 BRACKET
BRAKE LINE THRU CAB FLOOR
086 A 6204290084 SEAL RING
BETWEEN BRACKET AND CAB FLOOR
088 A 0009946445 LOCK
BRACKET TO CAB FLOOR
090 N 007976004205 SHEET METAL SCREW
BRACKET TO CAB FLOOR
092 A 6204295240 BRACKET
RIGHT COVER PLATE
094 N 913004006002 NUT
Repalced by: N 913004006001
094 N 913004006001 NUT
BRACKET TO CAB FLOOR
096 A 6173530040 BRACKET
BREATHER LINE
098 A 6179950035 CLAMP
BREATHER LINE TO FRONT STABILIZER
100 N 000933006102 SCREW
BREATHER LINE TO FRONT STABILIZER
102 N 913004006002 NUT
Repalced by: N 913004006001
102 N 913004006001 NUT
BREATHER LINE TO FRONT STABILIZER
104 A 0019978390 LOOM TIE
BREATHER LINE TO FRONT AND REAR AXLES
106 A 6194290801 LINE
Repalced by: A 6254293501
106 A 6254293501 LINE
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
108 N 916027011014 HOSE
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
110 A 0004290541 FITTING
LEFT AND RIGHT BRAKE HOSES
112 N 915017012100 UNION NUT
114 N 003861012007 GLAND
Repalced by: A 0019901967
114 A 0019901967 SEAL CONE
116 N 916017016000 CLAMP
Repalced by: N 000000000666
116 N 000000000666 CLAMP
LINE MOUNTING
118 A 0004296634 ADAPTER FITTING
Repalced by: A 0004296934
118 A 0004296934 ADAPTER FITTING
LEFT AND RIGHT BRAKE HOSES
120 N 080705018002 NUT
ADAPTER FITTING TO SIDE MEMBER
122 N 915047012203 HOLLOW SCREW
LEFT FRONT BRAKE HOSE
124 N 915036012203 HOLLOW SCREW
RIGHT FRONT BRAKE HOSE
126 N 007603016105 SEAL RING
LEFT AND RIGHT BRAKE HOSES
128 A 0019900788 BANJO UNION
LEFT FRONT BRAKE HOSE
130 A 0029971572 FITTING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
132 A 0004290927 THRUST RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
134 A 0009971548 SEAL RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
136 A 3159955010 CLAMP
LINE MOUNTING
138 N 000000001147 SCREW
LINE MOUNTING
M 6X20
140 N 000125006421 WASHER
LINE MOUNTING
142 N 913004006002 NUT
Repalced by: N 913004006001
142 N 913004006001 NUT
LINE MOUNTING
144 A 0004316131 TEST CONNECTION
FRONT AXLE BRAKE CIRCUIT
WIRA
144 A 0004316131 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22"
144 A 0004316131 TEST CONNECTION
TRISTOP CYLINDER;CONNECTIONS:
"1,2"
A 0009979486 PLUG
146 A 0019978390 LOOM TIE
LINE MOUNTING
280 MM
146 A 0019978490 LOOM TIE
LINE MOUNTING
376 MM
148 A 0014310006 PRESSURE REGULATOR
Repalced by: A 0024314906
148 A 0014313406 PRESSURE REGULATOR
Repalced by: A 0024314306
148 A 0014311206 PRESSURE REGULATOR
Repalced by: A 0024314906
148 A 0024314906 PRESSURE REGULATOR
WITH TIRE INFLATING CONNECTION
WABCO
148 A 0024313406 PRESSURE REGULATOR
Repalced by: A 0024314306
148 A 0024314306 PRESSURE REGULATOR
WITH TIRE INFLATING CONNECTION
BOSCH
148 A 0024318306 PRESSURE REGULATOR
WITH TIRE INFLATING CONNECTION
KNORR
152 A 0015864343 REPAIR KIT
Repalced by: A 0004301107
152 A 0004301107 REPAIR KIT
TO 001 431 00 06,WABCO 975 300 110 0
154 A 0024304681 REPAIR KIT
VALVE KIT
TO 001 431 00 06,WABCO 975 300 110 0
A 0014304960 REPAIR KIT
TO 003 431 37 06,WABCO
156 A 0015868543 REPAIR KIT
Repalced by: A 0004301407
156 A 0004301407 REPAIR KIT
TO 001 431 06 06,BOSCH 0 481 039 101
156 A 0004301407 REPAIR KIT
TO 003 431 35 06
158 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 34 06,BOSCH 0 481 039 221
158 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 003 431 35 06
160 A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 34 06,BOSCH 0 481 039 221
162 A 0025866043 REPAIR KIT
TO 001 431 34 06,GRAU 312 017 014
164 A 0025866743 REPAIR KIT
TO 001 431 12 06,KNORR 32 00
A 0004300407 REPAIR KIT
TO 002 431 83 06,KNORR 903 09
166 N 000931008251 SCREW
PRESSURE REGULATOR TO BRACKET
M 8X75
168 N 913004008004 NUT
Repalced by: N 913004008001
168 N 913004008001 NUT
PRESSURE REGULATOR TO BRACKET
170 A 0005461830 INSULATING HOSE
PRESSURE REGULATOR,CONNECTION:
"3"
170 A 0159975082 HOSE
PRESSURE REGULATOR,CONNECTION:
172 N 916026016001 CLAMP
Repalced by: A 0059970190
172 A 0059970190 LOOM TIE
PRESSURE REGULATOR,CONNECTION:
"3"
172 N 916026020001 CLAMP
Repalced by: N 000000000667
172 N 000000000667 CLAMP
PRESSURE REGULATOR,CONNECTION:
174 A 0009905871 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION:
"1"
N 003911015102 FITTING
PRESSURE REGULATOR,CONNECTION:
"1"
176 A 0019972372 FITTING
PRESSURE REGULATOR,CONNECTION:
"2"
178 A 0009870446 SEALING CORD
PRESSURE REGULATOR,CONNECTIONS:
"1,2"
180 A 0004290227 THRUST RING
PRESSURE REGULATOR,CONNECTIONS:
"1,2"
182 N 074305022202 NUT
PRESSURE REGULATOR,CONNECTIONS:
"1"
184 A 0004292595 AIR CLEANER
BOSCH
184 A 0004292695 AIR CLEANER
KNORR
184 A 0004292795 AIR CLEANER
WABCO
184 A 0004292895 AIR CLEANER
GRAU
186 A 0004290597 FILTER ELEMENT
TO 000 429 27 95,WABCO
188 A 0004290497 FILTER ELEMENT
TO 000 429 27 95,WABCO
188 A 0004290397 FILTER ELEMENT
TO 000 429 28 95,GRAU
190 A 0004290797 FILTER ELEMENT
TO 000 429 25 95,BOSCH
192 A 0059930901 SPRING
TO 000 429 27 95,WABCO
194 A 0089978048 SEAL RING
TO 000 429 28 95,GRAU
196 A 0019974048 SEAL RING
TO 000 429 25 95,BOSCH
198 A 0059972748 SEAL RING
TO 000 429 28 95,GRAU
200 A 0119974048 SEAL RING
TO 000 429 25 95,BOSCH
202 A 0004290845 DIAPHRAGM
TO 000 429 28 95,GRAU
204 A 0004291045 DIAPHRAGM
TO 000 429 25 95,BOSCH
206 A 0089978848 SEAL RING
TO 000 429 27 95,WABCO
208 A 0089978948 SEAL RING
Repalced by: A 0009870746
208 A 0009870746 SEALING CORD
TO 000 429 27 95,WABCO
210 A 0004204455 REPAIR KIT
TO 000 429 27 95,WABCO
A 0004300369 REPAIR KIT
TO 000 429 26 95,KNORR
212 A 0019972172 FITTING
AIR CLEANER,CONNECTION:
"20"
A 0029978972 FITTING
AIR CLEANER,CONNECTION:
"20"
214 A 0004290227 THRUST RING
AIR CLEANER;CONNECTIONS:
"20,21"
216 A 0009870446 SEALING CORD
AIR CLEANER;CONNECTIONS:
"20,21"
218 N 074305022202 NUT
AIR CLEANER TO PRESSURE REGULATOR
220 A 0024314006 VALVE
Repalced by: A 0034315006
222 A 0014319306 VALVE
Repalced by: A 0034315006
224 A 0014318706 VALVE
Repalced by: A 0034315006
226 A 0024312706 VALVE
Repalced by: A 0024319106
226 A 0024319106 VALVE
Repalced by: A 0034315006
226 A 0034315006 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
WABCO
228 A 0035860943 REPAIR KIT
TO 002 431 40 06,WABCO
230 A 0035861043 REPAIR KIT
TO 001 431 87 06,KNORR
232 A 0004304706 GASKET KIT
TO 001 431 93 06,BOSCH 62401
232 A 0004300260 REPAIR KIT
TO 001 431 93 06,BOSCH 62201
A 0034300981 GASKET KIT
TO 002 431 91 06 GRAU 66001
232 A 0004305106 REPAIR KIT
TO 003 431 50 06,WABCO
234 N 000125017010 WASHER
Repalced by: N 000125017016
234 N 000125017016 WASHER
VALVE TO BRACKET
236 N 080705016003 NUT
VALVE TO BRACKET
238 A 0009909671 ELBOW FITTING
Repalced by: A 0029901271
238 A 0029901271 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
N 003911015102 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
240 N 074305022202 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
242 A 0004290227 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
244 A 0009870446 SEALING CORD
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
246 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22,23"
248 N 007603016105 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22,23"
250 A 0004296434 ADAPTER FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
252 A 0019905268 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
254 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22,24"
256 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"22,24"
258 N 000439016206 NUT
Repalced by: N 308675016001
258 N 308675016001 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
260 A 0034291044 VALVE
EMERGENCY RELEASE VALVE,CONNECTION:
"23"
260 A 0044293744 VALVE
EMERGENCY RELEASE VALVE,CONNECTION:
"23"
262 N 915036008202 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
264 N 007603012111 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
266 A 0014318305 BRAKE VALVE
TRUCK-TRACTOR BRAKE
WABCO
266 A 0014318905 BRAKE VALVE
TRUCK-TRACTOR BRAKE
BOSCH
266 A 0014319105 BRAKE VALVE
TRUCK-TRACTOR BRAKE
KNORR
266 A 0014319905 BRAKE VALVE
TRUCK-TRACTOR BRAKE
GRAU
268 A 0014316993 SPRING
TO 001 431 89 05,BOSCH
270 A 0004312185 FILLER RING
TO 001 431 83 05,WABCO
272 A 0004310273 BREATHER PIPE
TO 001 431 83 05,WABCO
274 A 0004318383 PISTON
TO 001 431 83 05,WABCO
276 A 0004306260 REPAIR KIT
Repalced by: A 0014300460
276 A 0014300460 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
TO 001 431 83 05,WABCO
278 A 0035861243 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
TO 001 431 91 05,KNORR
280 A 0025868743 REPAIR KIT
Repalced by: A 0004303506
280 A 0004303506 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
TO 001 431 89 05,BOSCH
282 A 6202920140 BRACKET
BRAKE VALVE TO PEDAL BEARING BRACKET
284 N 000933008152 SCREW
Repalced by: N 304017008027
284 N 304017008027 SCREW
BRAKE VALVE TO PEDAL BEARING BRACKET
286 N 913004008004 NUT
Repalced by: N 913004008001
286 N 913004008001 NUT
BRAKE VALVE TO PEDAL BEARING BRACKET
288 A 6174310073 BREATHER PIPE
BRAKE VALVE
288 A 6174310173 BREATHER PIPE
BRAKE VALVE
290 N 915036012203 HOLLOW SCREW
BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
292 N 007603016105 SEAL RING
BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
294 N 000908016001 SCREW PLUG
BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
296 A 0004290927 THRUST RING
BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
298 A 0009971548 SEAL RING
BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
300 A 0014306481 VALVE
PRESSURE RATIO VALVE
302 A 0019871746 SEALING CORD
38X3 MM
304 A 0089970445 SEAL RING
34.59X2.62
306 A 0089978648 SEAL RING
28.24X2.62 MM
308 A 0004313223 VALVE
310 N 007603016401 SEAL RING
312 A 0089978748 SEAL RING
56X1.7 MM
314 N 913004008004 NUT
Repalced by: N 913004008001
314 N 913004008001 NUT
VALVE TO FLOOR
316 A 6204312540 BRACKET
PRESSURE RATIO VALVE
318 N 007976005204 SHEET METAL SCREW
BRACKET TO CAB FLOOR
320 A 0004296134 ADAPTER FITTING
Repalced by: A 0069970072
320 A 0069970072 FITTING
PRESSURE RATIO VALVE,CONNECTION:
"1"
322 N 915036012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"1"
324 N 915047012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"2"
326 N 000908016001 SCREW PLUG
PRESSURE RATIO VALVE,CONNECTION:
"2"
328 N 007603016105 SEAL RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1,2"
330 A 0004290927 THRUST RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1,2"
332 A 0009971548 SEAL RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1,2"
A 0029900271 ELBOW FITTING
A 0029900871 ELBOW FITTING
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
FITTING TO CAB FLOOR
N 915036012203 HOLLOW SCREW
AT FITTING
N 915045012200 SEAL RING
AT FITTING
N 007603016105 SEAL RING
AT FITTING
334 A 0004324801 RESERVOIR
Repalced by: A 0014327501
334 A 0014327501 RESERVOIR
Repalced by: A 0034321201
334 A 0034321201 RESERVOIR
PARKING BRAKE
20 L
336 A 3874320540 BRACKET
FRONT AIR RESERVOIR
338 A 6204300240 STRAP
FRONT AIR RESERVOIR
340 A 6204301240 STRAP
FRONT AIR RESERVOIR
340 A 6204301040 STRAP
FRONT AIR RESERVOIR
342 N 000933008215 SCREW
Repalced by: A 0069909301
342 A 0069909301 SCREW
AIR RESERVOIR TO SUPPORT
344 N 913004008004 NUT
Repalced by: N 913004008001
344 N 913004008001 NUT
AIR RESERVOIR TO SUPPORT
346 N 913004010008 NUT
Repalced by: N 910113010000
346 N 910113010000 NUT
AIR RESERVOIR TO BRACKET
348 A 0019972172 FITTING
AIR RESERVOIR,CONNECTION:
"13"
N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"13"
A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"13"
N 007603016105 SEAL RING
AIR RESERVOIR,CONNECTION:
"13"
A 0019909771 ELBOW FITTING
AIR RESERVOIR,CONNECTION:
"13"
N 915052009009 BANJO UNION
AIR RESERVOIR,CONNECTION:
"13"
350 A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"23"
352 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"23"
354 N 007603016105 SEAL RING
AIR RESERVOIR,CONNECTION:
"23"
356 A 0004290227 THRUST RING
AIR RESERVOIR,CONNECTIONS:
"13,23"
358 A 0009870446 SEALING CORD
AIR RESERVOIR,CONNECTIONS:
"13,23"
360 A 0004322601 RESERVOIR
Repalced by: A 0034321801
360 A 0034321801 RESERVOIR
AIR RESERVOIR,BRAKE CIRCUITS I & II
30 L
362 A 6204320018 BASE
INSIDE AND OUTSIDE AIR RESERVOIRS
364 A 6204300040 STRAP
INSIDE AND OUTSIDE AIR RESERVOIRS
366 N 000933010105 SCREW
STRAP TO SUPPORT
368 N 913004010008 NUT
Repalced by: N 910113010000
368 N 910113010000 NUT
STRAP TO SUPPORT
370 A 3464320073 LOCK
PROTECTION AGAINST TORSION
372 A 0019907368 FITTING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22"
374 A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"31"
376 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
376 N 000908022011 SCREW PLUG
AIR RESERVOIR,CONNECTION:
"32"
378 A 0004290227 THRUST RING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,31,32"
380 A 0009870446 SEALING CORD
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,31,32"
382 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,31"
384 N 007603016105 SEAL RING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,31"
386 A 0004322107 VALVE
AIR RESERVOIR
A 0005830296 RING
DRAIN VALVE
TO 000 432 08 07
388 A 0009870446 SEALING CORD
DRAIN VALVE TO AIR RESERVOIR
390 A 0004290227 THRUST RING
DRAIN VALVE TO AIR RESERVOIR
392 A 0024299644 VALVE
(CHECK VALVE)
VOSS
392 A 0034290444 VALVE
(CHECK VALVE)
WABCO
392 A 0034291244 VALVE
(CHECK VALVE)
SCHAEFER
394 A 0004290383 VALVE TAPPET
TO 002 429 96 44,VOSS
396 A 0004292584 SEAL RING
TO 002 429 96 44,VOSS
398 A 0002950320 VALVE
TO 003 429 04 44,WABCO
400 A 0089977348 SEAL RING
19.3X2.4 MM; TO 003 429 04 44,WABCO
402 A 0109970048 SEAL RING
13.6X2 MM; TO 003 429 12 44,SCHAEFER
404 A 0109970148 SEAL RING
15.3X2.4 MM; TO 003 429 12 44,SCHAEFER
406 A 0004290662 THRUST WASHER
TO 003 429 12 44,SCHAEFER
408 A 0004290728 SEAL CONE
TO 003 429 12 44,SCHAEFER
410 A 6204292540 BRACKET
Repalced by: A 6164290140
410 A 6164290140 BRACKET
CHECK VALVE
412 N 074305022202 NUT
CHECK VALVE TO BRACKET
414 N 000933010129 SCREW
Repalced by: N 304017010002
414 N 304017010002 SCREW
BRACKET TO LEFT SIDE MEMBER
416 N 913004010008 NUT
Repalced by: N 910113010000
416 N 910113010000 NUT
BRACKET TO LEFT SIDE MEMBER
418 N 915036012203 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"21"
420 N 007603016105 SEAL RING
CHECK VALVE,CONNECTION:
"21"
422 N 000908016001 SCREW PLUG
CHECK VALVE,CONNECTION:
"22"
424 A 0004290927 THRUST RING
CHECK VALVE,CONNECTION:
"22"
426 A 0009971548 SEAL RING
CHECK VALVE,CONNECTION:
"22"
428 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
428 N 915036010108 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"23"
430 N 007603014106 SEAL RING
CHECK VALVE,CONNECTION:
"23"
434 A 0014299144 VALVE
SERVICE BRAKE
GRAU
434 A 0014299144 VALVE
PARKING BRAKE
GRAU
436 A 0059972648 SEAL RING
22.3X2.4 MM; TO 001 429 91 44,GRAU
438 A 0004312788 VALVE SEAT
TO 001 429 91 44,GRAU
440 A 0059972748 SEAL RING
TO 000 429 28 95,GRAU
442 A 0014311660 SEAL RING
28X2 MM; TO 001 429 91 44,GRAU
444 A 0014311760 SEAL RING
86X2 MM; TO 001 429 91 44,GRAU
446 A 0004311980 GASKET
34X2X6 MM; TO 001 429 91 44,GRAU
448 A 0005865742 REPAIR KIT
TO 001 429 68 44,WABCO
450 A 0025865642 REPAIR KIT
Repalced by: A 0004201071
450 A 0004201071 VALVE
TO 003 429 16 44,BOSCH; UP TO 03.82
450 A 0004201271 VALVE
TO 003 429 16 44,BOSCH; FROM 04.82
452 A 0025865742 REPAIR KIT
Repalced by: A 0004301109
452 A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 003 429 16 44,BOSCH
454 A 0005863542 REPAIR KIT
TO 003 429 53 44,KNORR
456 A 6174310740 BRACKET
(RELAY VALVE),SERVICE BRAKE
458 A 6174310640 BRACKET
(RELAY VALVE),PARKING BRAKE
460 N 913004008004 NUT
Repalced by: N 913004008001
460 N 913004008001 NUT
RELAY VALVE TO BRACKET
462 N 000933010105 SCREW
BRACKET TO RIGHT SIDE MEMBER
M 10X25
462 N 000933010105 SCREW
BRACKET TO LEFT SIDE MEMBER
M 10X25
464 N 913004010008 NUT
Repalced by: N 910113010000
464 N 910113010000 NUT
BRACKET TO RIGHT SIDE MEMBER
464 N 910113010000 NUT
BRACKET TO LEFT SIDE MEMBER
466 A 0009905168 FITTING
RELAY VALVE,CONNECTION:
"1"
468 A 0004290227 THRUST RING
RELAY VALVE,CONNECTION:
"1"
470 A 0009870446 SEALING CORD
RELAY VALVE,CONNECTION:
"1"
472 N 915036012203 HOLLOW SCREW
RELAY VALVE;CONNECTIONS:
"1,4"
474 N 007603016105 SEAL RING
RELAY VALVE;CONNECTIONS:
"1,4"
476 N 000908016001 SCREW PLUG
RELAY VALVE,CONNECTION:
"2"
478 A 0004290927 THRUST RING
RELAY VALVE,CONNECTION:
"2"
480 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION:
"2"
482 A 0009971548 SEAL RING
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
484 A 0004290927 THRUST RING
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
486 A 0004296134 ADAPTER FITTING
Repalced by: A 0069970072
486 A 0069970072 FITTING
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
488 N 080705016003 NUT
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
490 A 0019905370 T-FITTING
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
492 N 007603016105 SEAL RING
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
494 N 915039012205 HOLLOW SCREW FITTING
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
496 N 915036012203 HOLLOW SCREW
TRISTOP CYLINDER;CONNECTIONS:
"11"
498 N 916027011014 HOSE
FROM BRAKE POWER REGULATOR TO COMBINATION CYLINDER
500 A 0004290541 FITTING
AT TRISTOP CYLINDER
502 N 915017012100 UNION NUT
504 N 003861012007 GLAND
Repalced by: A 0019901967
504 A 0019901967 SEAL CONE
506 N 074304016201 FITTING
AT RELAY VALVE
508 N 916017016000 CLAMP
Repalced by: N 000000000666
508 N 000000000666 CLAMP
HOSE TO FITTING
510 A 0004290927 THRUST RING
SERVICE BRAKE CONNECTION TO RELAY VALVE
510 A 0004290927 THRUST RING
PARKING BRAKE CONNECTION TO RELAY VALVE
512 A 0009971548 SEAL RING
SERVICE BRAKE CONNECTION TO RELAY VALVE
512 A 0009971548 SEAL RING
PARKING BRAKE CONNECTION TO RELAY VALVE
514 A 3039975745 SEAL RING
BRAKE HOSE TO PARKING BRAKE HOSE
516 A 0014304381 VALVE
HAND BRAKE VALVE
BOSCH
516 A 0014305781 VALVE
HAND BRAKE VALVE
WABCO
516 A 0014306781 VALVE
Repalced by: A 0024309981
516 A 0024309981 VALVE
HAND BRAKE VALVE
A 0009975577 HANDLE
KNORR
518 A 0009972477 HANDLE
WABCO
518 A 0009973477 HANDLE
BOSCH
A 0014310887 PROTECTIVE CAP
WABCO
A 0014311087 PROTECTIVE CAP
BOSCH
A 0014311287 PROTECTIVE CAP
KNORR
N 001481003025 CLAMPING SLEEVE
KNORR
520 A 0025867443 REPAIR KIT
Repalced by: A 0034303181
520 A 0034303181 REPAIR KIT
WABCO
522 A 0025866343 REPAIR KIT
BOSCH
A 0034302081 REPAIR KIT
TO 002 430 98 81,002 430 99 81,KNORR
524 A 0035860543 REPAIR KIT
KNORR
526 N 007985008119 SCREW
VALVE TO CAB
528 N 912006008000 LOCK WASHER
VALVE TO CAB
530 A 0009976189 COUPLING
HAND BRAKE VALVE,CONNECTIONS:
"11,21"
532 A 0099973948 SEAL RING
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
