Transporto priemonė: 917 INDONESIA; VIN numerio dalis: 383011

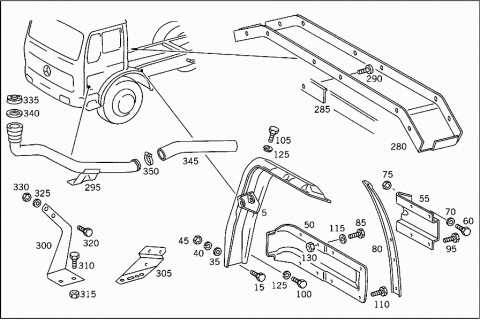

Grupė: 52 CHASSIS SHEET METAL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3815201433 | SUPPORT |
| LEFT FENDER | ||
| 005 | A 3815202333 | SUPPORT |
| RIGHT FENDER | ||
| 015 | N 308676012010 | SCREW |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| M 12X40 | ||
| 015 | N 000961012106 | SCREW |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| M 12X35 | ||
| 015 | N 000961012151 | SCREW |
| SUPPORT TO RIGHT SIDE OF FRAME AND TO CAB CONSOLE | ||
| 015 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 015 | N 308676012012 | SCREW |
| SUPPORT TO LEFT SIDE OF FRAME AND TO CAB CONSOLE | ||
| M 12X25 | ||
| 035 | N 000125013008 | WASHER |
| 040 | N 912004012100 | LOCK WASHER |
| SUPPORT TO RIGHT SIDE OF FRAME AND TO CAB CONSOLE | ||
| 045 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 045 | N 910113012003 | NUT |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| 050 | A 3875210240 | BRACKET |
| Repalced by: A 6575210140 | ||
| 050 | A 6575210140 | BRACKET |
| FENDER | ||
| 055 | A 3875210140 | BRACKET |
| Repalced by: A 6575210040 | ||
| 055 | A 6575210040 | BRACKET |
| Repalced by: A 6575200033 | ||
| 055 | A 6575200033 | SUPPORT |
| FENDER | ||
| 060 | N 000961014028 | SCREW |
| FENDER BRACKET TO SIDE MEMBER | ||
| M 14X40 | ||
| 060 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 060 | N 308676014020 | SCREW |
| FENDER BRACKET TO SIDE MEMBER | ||
| M 14X35 | ||
| 070 | A 3609901840 | WASHER |
| FENDER BRACKET TO SIDE MEMBER | ||
| 075 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 075 | N 910113014001 | NUT |
| FENDER BRACKET TO SIDE MEMBER | ||
| 080 | A 3815200026 | FENDER STAY |
| RIGHT | ||
| 085 | N 000933008145 | SCREW |
| FENDER TO FENDER BRACKET | ||
| M 8X18 | ||
| 085 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 085 | N 304017008021 | SCREW |
| FENDER TO FENDER BRACKET | ||
| M 8X22 | ||
| 095 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 095 | N 304017008034 | SCREW |
| FENDER BRACKET TO CONSOLE | ||
| M 8X25 | ||
| 100 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 100 | N 304017008027 | SCREW |
| FENDER AND FENDER STAY TO SUPPORT | ||
| M 8X30 | ||
| 105 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 105 | N 304017008018 | SCREW |
| FENDER AND FENDER STAY TO SUPPORT | ||
| M 8X35 | ||
| 110 | N 000933008160 | SCREW |
| Repalced by: N 304017008040 | ||
| 110 | N 304017008040 | SCREW |
| Repalced by: N 910105008010 | ||
| 110 | N 910105008010 | SCREW |
| Repalced by: N 910143008005 | ||
| 110 | N 910143008005 | SCREW |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| M 8X40 | ||
| 115 | N 000433008406 | WASHER |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| 115 | A 1159904540 | WASHER |
| Repalced by: A 6312670276 | ||
| 115 | A 6312670276 | WASHER |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| 125 | N 912004008102 | LOCK WASHER |
| FENDER AND FENDER STAY TO SUPPORT | ||
| 130 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 130 | N 913004008001 | NUT |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| 130 | N 913004008001 | NUT |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||

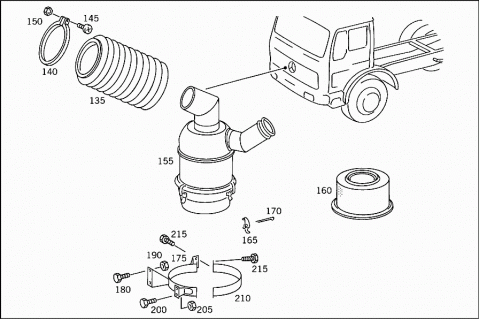

| 135 | A 3815280191 | BOOT |
| FROM AIR INTAKE PIPE TO AIR CLEANER | ||
| 140 | A 3815280443 | CLAMP |
| BOOT TO AIR DUCT AND TO AIR CLEANER | ||
| 145 | N 000084004423 | SCREW |
| BOOT TO AIR DUCT AND TO AIR CLEANER | ||
| 150 | N 000934004006 | NUT |
| BOOT TO AIR DUCT AND TO AIR CLEANER | ||
| A 0130948002 | AIR CLEANER | |
| OIL BATH | ||
| DONALDSON | ||
| A 0140944802 | AIR CLEANER | |
| (PAPER AIR CLEANER) | ||
| DONALDSON | ||
| 155 | A 0090946802 | AIR CLEANER |
| OIL BATH | ||
| KNECHT | ||
| 155 | A 0090946702 | AIR CLEANER |
| OIL BATH | ||
| MANN & HUMMEL | ||
| A 0030940104 | FILTER ELEMENT | |
| DONALDSON | ||
| A 0030940204 | FILTER ELEMENT | |
| DONALDSON | ||
| A 0010945404 | FILTER ELEMENT | |
| DONALDSON | ||
| 160 | A 0010941904 | FILTER ELEMENT |
| KNECHT | ||
| A 0009973548 | SEAL RING | |
| DONALDSON | ||
| A 0009973648 | SEAL RING | |
| DONALDSON | ||
| A 0000940015 | RETAINING RING | |
| DONALDSON | ||
| A 0000940575 | NUT | |
| DONALDSON | ||
| A 0000944641 | BRACKET | |
| DONALDSON | ||
| A 0000941020 | SCREENING | |
| 165 | A 0000940955 | FASTENER |
| KNECHT | ||
| 170 | N 000094004065 | COTTER PIN |
| KNECHT | ||
| A 6165200033 | SUPPORT | |
| AIR CLEANER | ||
| 175 | A 3855200733 | SUPPORT |
| Repalced by: A 6505200433 | ||
| 175 | A 6505200433 | SUPPORT |
| AIR CLEANER | ||
| A 6165280240 | BRACKET | |
| FRONT | ||
| A 6165280140 | BRACKET | |
| REAR | ||
| 180 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 180 | N 308676014020 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X35 | ||
| 180 | N 000961012122 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 12X40 | ||
| 190 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 190 | N 910113014001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 190 | N 910113012002 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 200 | N 000933010128 | SCREW |
| SUPPORT TO BUMPER STRUT | ||
| M 10X20 | ||
| 200 | N 000933010128 | SCREW |
| SUPPORT TO BUMPER STRUT | ||
| M 10X20 | ||
| 205 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 205 | N 910113010000 | NUT |
| SUPPORT TO BUMPER STRUT | ||
| 205 | N 910113010000 | NUT |
| SUPPORT TO BUMPER STRUT | ||
| 205 | N 910113010000 | NUT |
| SUPPORT TO BUMPER STRUT | ||
| 210 | A 3855280421 | STRAP |
| AIR CLEANER TO SUPPORT | ||
| A 3520900181 | STRAP | |
| AIR CLEANER TO SUPPORT | ||
| A 6155200633 | SUPPORT | |
| AIR CLEANER TO SUPPORT | ||
| N 000933010128 | SCREW | |
| STRAP WITH AIR CLEANER TO SUPPORT | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| STRAP WITH AIR CLEANER TO SUPPORT | ||
| 215 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 215 | N 304017008021 | SCREW |
| STRAP WITH AIR CLEANER TO SUPPORT | ||

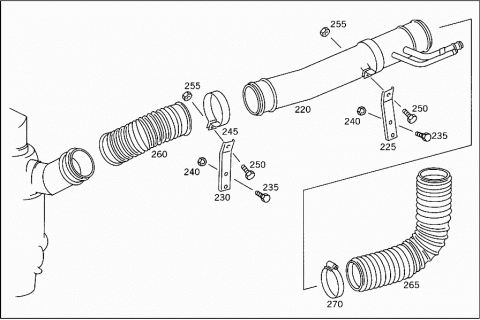

| 220 | A 3835200201 | AIR INTAKE PIPE |
| FROM AIR CLEANER TO INTAKE FITTING | ||
| A 6155281140 | BRACKET | |
| AIR INTAKE PIPE TO SUPPORT | ||
| A 6155281240 | BRACKET | |
| AIR INTAKE PIPE TO SUPPORT | ||
| 225 | A 3835280540 | BRACKET |
| AIR INTAKE PIPE,LEFT FRONT | ||
| 230 | A 3835280340 | BRACKET |
| AIR INTAKE PIPE,LEFT REAR | ||
| 235 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 235 | N 304017008034 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 240 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 240 | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 245 | A 3049951235 | CLAMP |
| AIR INTAKE PIPE TO BRACKET | ||
| 250 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 250 | N 304017008034 | SCREW |
| AIR INTAKE PIPE TO BRACKET | ||
| 255 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 255 | N 913004008001 | NUT |
| AIR INTAKE PIPE TO BRACKET | ||
| A 6155280582 | HOSE | |
| FROM AIR CLEANER TO AIR INTAKE PIPE | ||
| 260 | A 3830940008 | ACCORDION TUBE |
| FROM AIR CLEANER TO AIR INTAKE PIPE | ||
| 265 | A 6155280482 | HOSE |
| Repalced by: A 6155280782 | ||
| 265 | A 6155280782 | HOSE |
| FROM AIR INTAKE PIPE TO INTAKE ELBOW | ||
| 265 | A 3835280008 | AIR INTAKE PIPE |
| Repalced by: A 6155280482 | ||
| 265 | A 6155280482 | HOSE |
| (ACCORDION TUBE) FROM AIR INTAKE PIPE TO INTAKE FITTING | ||
| 270 | N 916017110001 | CLAMP |
| Repalced by: A 0059971490 | ||
| 270 | A 0059971490 | LOOM TIE |
| HOSE TO AIR INTAKE PIPE | ||
| N 916017120000 | CLAMP | |
| FROM AIR CLEANER TO AIR INTAKE PIPE | ||
| 270 | N 916017080000 | CLAMP |
| Repalced by: N 000000000675 | ||
| 270 | N 000000000675 | CLAMP |
| Repalced by: A 0059972990 | ||
| 270 | A 0059972990 | CLAMP |
| HOSE TO AIR INTAKE PIPE | ||
| 280 | A 3835240529 | COVER |
| ENGINE COVERING | ||
| 285 | A 3875240084 | SHIM |
| COVER PLATE TO CAB REAR PANEL | ||
| 290 | N 007981005306 | SHEET METAL SCREW |
| COVER PLATE TO CAB REAR PANEL | ||
| 295 | A 4010101564 | OIL FILLER NECK |
| 300 | A 4010182540 | BRACKET |
| OIL FILLER NECK,FRONT | ||
| 305 | A 4010182940 | BRACKET |
| OIL FILLER NECK,REAR | ||
| 310 | N 000933010105 | SCREW |
| FRONT BRACKET TO FRAME | ||
| 315 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 315 | N 910113010000 | NUT |
| FRONT BRACKET TO FRAME | ||
| 320 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 320 | N 304017006020 | SCREW |
| OIL FILLER NECK TO BRACKET | ||
| 325 | N 000125006421 | WASHER |
| OIL FILLER NECK TO BRACKET | ||
| 330 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 330 | N 913004006001 | NUT |
| OIL FILLER NECK TO BRACKET | ||
| 335 | A 3520100468 | CAP |
| OIL REFILLING | ||
| 340 | A 0000180180 | GASKET |
| Repalced by: A 1020180080 | ||
| 340 | A 1020180080 | GASKET |
| Repalced by: A 1020180380 | ||
| 340 | A 1020180380 | GASKET |
| 345 | A 3520181082 | HOSE |
| FROM OIL FILLER NECK TO OIL PAN | ||
| 350 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 350 | N 000000000671 | CLAMP |
| HOSE TO FILLER NECK | ||
