Transporto priemonė: 917 INDONESIA; VIN numerio dalis: 383011

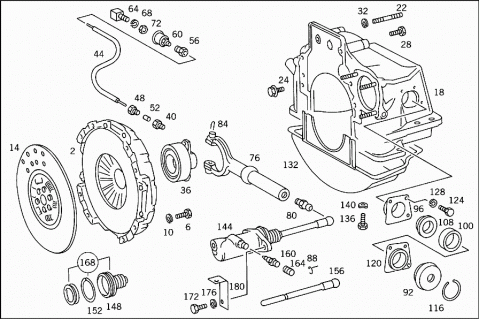

Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| 002 | A 0022508704 | CLUTCH PRESSURE PLATE |
| 006 | N 000931008311 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| 010 | N 912004008102 | LOCK WASHER |
| CLUTCH TO FLYWHEEL | ||
| 014 | A 0072502803 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 014 | A 0032508403 | CLUTCH DISC |
| 014 | A 0052505303 | CLUTCH DISC |
| A 0002523519 | LEAF SPRING | |
| Repalced by: A 0002524719 | ||
| A 0002524719 | LEAF SPRING | |
| A 0002522075 | RIVET | |
| LEAF SPRING TO CLUTCH DISC | ||
| 5X6 MM | ||
| A 0002523975 | RIVET | |
| LEAF SPRING TO CLUTCH DISC | ||
| 6X6 MM | ||
| A 0012524710 | CLUTCH LINING | |
| Repalced by: A 0012529010 | ||
| A 0012529010 | CLUTCH LINING | |
| ASBESTOS-FREE | ||
| A 0002529510 | CLUTCH LINING | |
| A 0002521275 | RIVET | |
| Repalced by: A 0002524375 | ||
| A 0002524375 | RIVET | |
| LINING WITH INTERMEDIATE SPRING | ||
| A 0002521475 | RIVET | |
| Repalced by: A 0002523875 | ||
| A 0002523875 | RIVET | |
| LINING WITH CLUTCH DISC | ||
| 018 | A 3812510501 | BELL HOUSING |
| 022 | A 0009902605 | STUD |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 024 | N 900170012005 | SCREW |
| Repalced by: A 0029906804 | ||
| 024 | A 0029906804 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 12X35 | ||
| 028 | N 000931012206 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 12X145 | ||
| 032 | N 912004012100 | LOCK WASHER |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 036 | A 0002504615 | RELEASE BEARING |
| Repalced by: A 0012509315 | ||
| 036 | A 0012509315 | RELEASE BEARING |
| 036 | A 0002504215 | RELEASE BEARING |
| A 6209970288 | GREASE NIPPLE | |
| (PARTS KIT) RELEASE BEARING LUBRICATION | ||
| 040 | N 071428004102 | SCREW-IN FITTING |
| RELEASE BEARING LUBRICATION | ||
| 044 | A 3059971982 | HOSE |
| RELEASE BEARING LUBRICATION | ||
| 048 | N 003871004102 | UNION SCREW |
| RELEASE BEARING LUBRICATION | ||
| 052 | N 003862004001 | DOUBLE TAPER RING |
| RELEASE BEARING LUBRICATION | ||
| 056 | N 071428004102 | SCREW-IN FITTING |
| RELEASE BEARING LUBRICATION | ||
| 060 | N 003411002001 | GREASE CUP |
| Repalced by: A 6209880135 | ||
| 060 | A 6209880135 | CAP |
| RELEASE BEARING LUBRICATION | ||
| 064 | A 3072510208 | INTERMEDIATE PIECE |
| Repalced by: A 6209970088 | ||
| 064 | A 6209970088 | GREASE NIPPLE |
| RELEASE BEARING LUBRICATION | ||
| 068 | N 912004014100 | LOCK WASHER |
| RELEASE BEARING LUBRICATION | ||
| 072 | N 000936014010 | NUT |
| Repalced by: N 308675014000 | ||
| 072 | N 308675014000 | NUT |
| Repalced by: N 308675014002 | ||
| 072 | N 308675014002 | NUT |
| RELEASE BEARING LUBRICATION | ||
| 076 | A 3812540208 | RELEASE LEVER |
| CLUTCH | ||
| 080 | A 3029910015 | BALL PIVOT |
| RELEASE LEVER | ||
| 080 | A 3529910415 | BALL PIVOT |
| RELEASE LEVER | ||
| 084 | A 3812540113 | SPRING LOCK |
| RELEASE LEVER TO RELEASE COLLAR | ||
| 088 | N 071805016402 | SECURING CLIP |
| CLUTCH SLAVE CYLINDER TO RELEASE YOKE | ||
| 092 | A 6152540097 | BOOT |
| RELEASE LEVER | ||
| 096 | A 3812540540 | BRACKET |
| INSIDE | ||
| 100 | A 3802540035 | BEARING |
| RELEASE LEVER | ||
| 100 | A 3802540135 | BEARING |
| RELEASE LEVER | ||
| 108 | A 3802540159 | SEAL RING |
| HARD | ||
| 108 | A 3802540359 | SEAL RING |
| HARD | ||
| 108 | A 3802540059 | SEAL RING |
| SOFT | ||
| 108 | A 3802540259 | SEAL RING |
| SOFT | ||
| 116 | A 0009945341 | LOCK |
| RELEASE LEVER | ||
| 120 | A 3812500243 | BRACKET |
| OUTSIDE | ||
| A 3812510204 | END COVER | |
| TOP | ||
| N 000137006204 | SPRING WASHER | |
| BELL HOUSING COVER | ||
| N 000933006122 | SCREW | |
| Repalced by: N 304017006034 | ||
| N 304017006034 | SCREW | |
| BELL HOUSING COVER | ||
| 124 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 124 | N 304017008021 | SCREW |
| BRACKET TO BELL HOUSING | ||
| 128 | N 912004008102 | LOCK WASHER |
| BRACKET TO BELL HOUSING | ||
| A 3522500055 | PROTECTIVE PLATE | |
| Repalced by: A 3522510106 | ||
| A 3522510106 | PROTECTIVE PLATE | |
| BELL HOUSING | ||
| 132 | A 3812501005 | HOUSING |
| Repalced by: A 6762500105 | ||
| 132 | A 6762500105 | HOUSING |
| Repalced by: A 6762510002 | ||
| 132 | A 6762510002 | BELL HOUSING |
| LOWER PART | ||
| A 3522500055 | PROTECTIVE PLATE | |
| Repalced by: A 3522510106 | ||
| A 3522510106 | PROTECTIVE PLATE | |
| BELL HOUSING | ||
| 136 | N 914125006306 | SCREW |
| Repalced by: N 910106006006 | ||
| 136 | N 000000002270 | SCREW |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| M 6X10 | ||
| 140 | N 000137006204 | SPRING WASHER |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| 144 | A 0002957207 | SLAVE CYLINDER |
| CLUTCH | ||
| 148 | A 0002952983 | BOOT |
| 152 | A 0002950673 | LOCK |
| 156 | A 0002950233 | ROD |
| 160 | A 3075530107 | VALVE |
| 164 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 164 | A 0004217187 | PROTECTIVE CAP |
| 168 | A 0005864329 | REPAIR KIT |
| Repalced by: A 0002900811 | ||
| 168 | A 0002900811 | REPAIR KIT |
| CLUTCH SLAVE CYLINDER | ||
| 172 | N 000933010157 | SCREW |
| CLUTCH SLAVE CYLINDER TO BRACKET | ||
| 176 | N 912004010102 | LOCK WASHER |
| CLUTCH SLAVE CYLINDER TO BRACKET | ||
| 180 | A 3835460543 | BRACKET |
| STARTING CABLE | ||
