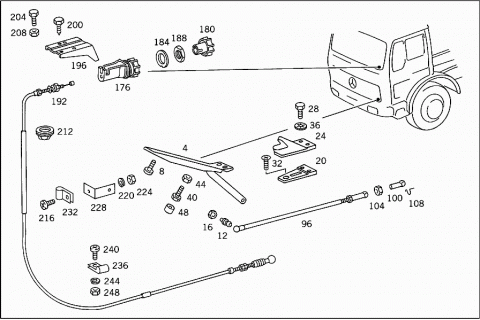

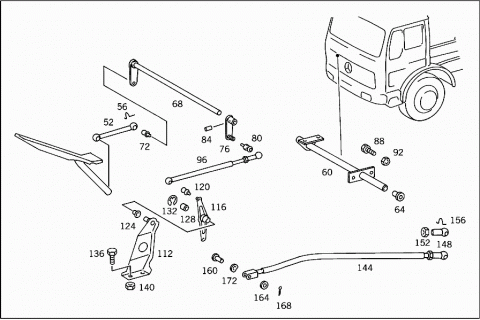

Transporto priemonė: 917 INDONESIA; VIN numerio dalis: 383011
Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 6243000304 | ACCELERATOR PEDAL |
| (PARTS KIT) | ||
| A 6153000104 | PAD | |
| ACCELERATOR PEDAL | ||
| 008 | N 007991005007 | SCREW |
| ACCELERATOR PEDAL | ||
| 012 | A 0009911015 | BALL PIVOT |
| ACCELERATOR PEDAL | ||
| 016 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 016 | N 913004006001 | NUT |
| ACCELERATOR PEDAL | ||
| 020 | A 6153010084 | SHIM |
| ACCELERATOR PEDAL | ||
| 024 | A 6153010097 | BOOT |
| ACCELERATOR PEDAL | ||
| 028 | N 000965006003 | SCREW |
| PEDAL TO CAB FLOOR | ||
| 032 | N 000965006040 | SCREW |
| PEDAL TO CAB FLOOR | ||
| 036 | N 006798006300 | SERRATED WASHER |
| PEDAL TO CAB FLOOR | ||
| A 6553010093 | GUIDE RAIL | |
| ACCELERATOR PEDAL TO FLOOR PLATE | ||
| N 000965006077 | SCREW | |
| GUIDE RAIL RETROFIT | ||
| 040 | N 000931008254 | SCREW |
| Repalced by: N 304014008002 | ||
| 040 | N 304014008002 | SCREW |
| ACCELERATOR PEDAL | ||
| 044 | N 304032008006 | NUT |
| ACCELERATOR PEDAL | ||
| 048 | A 3813010041 | STOP |
| ACCELERATOR PEDAL | ||
| 052 | A 3819910123 | BALL SOCKET |
| FROM ACCELERATOR PEDAL TO SHAFT | ||
| 056 | N 071805010403 | SECURING CLIP |
| 060 | A 3813000021 | BEARING TUBE |
| Repalced by: A 6153000021 | ||
| 060 | A 6153000021 | BEARING TUBE |
| CONTROL SHAFT | ||
| 064 | A 3813020050 | BUSHING |
| 068 | A 3813000020 | SHAFT |
| Repalced by: A 6153000020 | ||
| 068 | A 6153000020 | SHAFT |
| CONTROL | ||
| 072 | N 071803010204 | BALL PIVOT |
| 076 | A 3813000625 | LEVER |
| CONTROL | ||
| 080 | N 071803010204 | BALL PIVOT |
| 084 | N 001481004017 | CLAMPING SLEEVE |
| Repalced by: N 308752004001 | ||
| 084 | N 308752004001 | CLAMPING PIN |
| 088 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 088 | N 304017008016 | SCREW |
| INTERMEDIATE BEARING TO CAB FLOOR | ||
| 092 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 092 | N 913004008001 | NUT |
| INTERMEDIATE BEARING TO CAB FLOOR | ||
| 096 | A 3604301992 | ROD |
| FROM ACCELERATOR PEDAL TO CONTROL SHAFT BEARING | ||
| 100 | A 0009912422 | BALL SOCKET |
| 104 | N 000934006007 | NUT |
| 108 | N 071805010403 | SECURING CLIP |
| 112 | A 3813000636 | BEARING BRACKET |
| Repalced by: A 6203000436 | ||
| 112 | A 6203000436 | BEARING BRACKET |
| INTERMEDIATE BEARING | ||
| 116 | A 3813001028 | LEVER |
| Repalced by: A 6153001028 | ||
| 116 | A 6153001028 | LEVER |
| INTERMEDIATE BEARING | ||
| 120 | N 071803010202 | BALL PIVOT |
| 124 | A 3813020050 | BUSHING |
| INTERMEDIATE BEARING | ||
| 128 | A 3813010388 | COVERING |
| Repalced by: A 6153010088 | ||
| 128 | A 6153010088 | COVERING |
| INTERMEDIATE BEARING | ||
| 132 | N 006799010001 | LOCK PLATE |
| INTERMEDIATE BEARING | ||
| 136 | N 000933010105 | SCREW |
| CONTROL SHAFT BEARING TO FIRE WALL | ||
| 140 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 140 | N 910113010000 | NUT |
| CONTROL SHAFT BEARING TO FIRE WALL | ||
| 144 | A 3813002415 | ROD |
| INTERMEDIATE BEARING TO CONTROL SHAFT | ||
| 148 | A 4069910022 | BALL SOCKET |
| PULL ROD | ||
| 152 | N 304032008006 | NUT |
| PULL ROD | ||
| 156 | N 071805013402 | SECURING CLIP |
| PULL ROD | ||
| 160 | N 001434008038 | PIN |
| ROD TO LEVER | ||
| 164 | N 000433008406 | WASHER |
| ROD TO LEVER | ||
| 168 | N 000094001617 | COTTER PIN |
| ROD TO LEVER | ||
| 172 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 172 | N 000137008212 | SPRING WASHER |
| ROD TO LEVER | ||
| 176 | A 3813000326 | MANUAL CONTROL |
| IDLING ADJUSTMENT | ||
| A 3813020108 | GUIDE | |
| IDLING ADJUSTMENT | ||
| 180 | A 6153020001 | KNOB |
| 184 | N 000988030003 | FITTED WASHER |
| 188 | A 3819900051 | NUT |
| 192 | A 3813001230 | WIRE CABLE |
| IDLING ADJUSTMENT | ||
| 196 | A 3813020340 | BRACKET |
| Repalced by: A 3813020240 | ||
| 196 | A 3813020240 | BRACKET |
| IDLING ADJUSTER | ||
| 200 | N 007976005207 | SHEET METAL SCREW |
| Repalced by: N 914031005208 | ||
| 200 | N 914031005208 | COMBINATION BOLT |
| BRACKET TO WINDOW SILL GIRDER | ||
| 204 | N 000933006102 | SCREW |
| FRESH AIR DUCT | ||
| 208 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 208 | N 913004006001 | NUT |
| FRESH AIR DUCT | ||
| 212 | A 3833020091 | GROMMET |
| CABLE | ||
| 216 | N 000000001147 | SCREW |
| BRACKET TO FIRE WALL | ||
| M 6X20 | ||
| 220 | N 912004006102 | LOCK WASHER |
| BRACKET TO FIRE WALL | ||
| 224 | N 000934006007 | NUT |
| BRACKET TO FIRE WALL | ||
| 228 | A 3873020140 | BRACKET |
| FRAME SIDE MEMBER | ||
| 232 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 232 | A 6739950001 | CLAMP |
| CABLE TO BRACKET | ||
| 232 | A 6739950001 | CLAMP |
| WIRE CABLE TO FRONT CROSS MEMBER | ||
| 236 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 236 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 236 | N 916016008200 | CLAMP |
| WIRE CABLE TO FRAME SIDE MEMBER | ||
| 240 | N 000000001147 | SCREW |
| CABLE TO BRACKET | ||
| M 6X20 | ||
| 240 | N 000000001147 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 6X20 | ||
| 240 | N 000000001147 | SCREW |
| WIRE CABLE TO FRONT CROSS MEMBER | ||
| M 6X20 | ||
| 244 | N 912004006102 | LOCK WASHER |
| CABLE TO BRACKET | ||
| 244 | N 912004006102 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 244 | N 912004006102 | LOCK WASHER |
| WIRE CABLE TO FRONT CROSS MEMBER | ||
| N 009021006205 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| WIRE CABLE TO FRONT CROSS MEMBER | ||
| 248 | N 000934006007 | NUT |
| CABLE TO BRACKET | ||
| 248 | N 000934006007 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 248 | N 000934006007 | NUT |
| WIRE CABLE TO FRONT CROSS MEMBER | ||
