Transporto priemonė: 917 INDONESIA; VIN numerio dalis: 383011
Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|

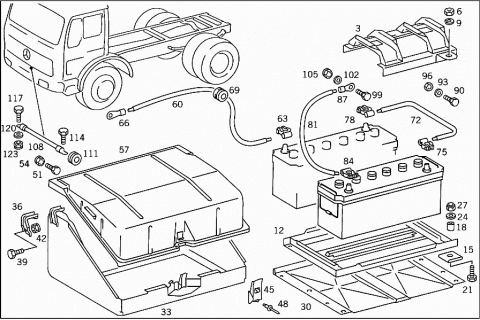

| 003 | A 3835400023 | MOUNTING FRAME |
| Repalced by: A 6845400023 | ||
| 003 | A 6845400023 | MOUNTING FRAME |
| BATTERY MOUNTING | ||
| A 3875410324 | CLAMPING SCREW | |
| BATTERY MOUNTING | ||
| 006 | N 000934006007 | NUT |
| BATTERY MOUNTING | ||
| 009 | N 912004006102 | LOCK WASHER |
| BATTERY MOUNTING | ||
| 012 | A 3875400818 | RAIL |
| BATTERY BASE FRAME | ||
| 015 | A 3855410236 | INSULATING PLATE |
| BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT | ||
| 018 | A 3859910040 | SPACER TUBE |
| BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT | ||
| 021 | N 000931010282 | SCREW |
| BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT | ||
| 024 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 024 | N 007349010007 | WASHER |
| BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT | ||
| 027 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 027 | N 910113010000 | NUT |
| BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT | ||
| 030 | A 6205410102 | BATTERY CASE |
| (BATTERY TRAY) | ||
| 033 | A 6205400016 | BATTERY SUPPORT |
| Repalced by: A 6205401916 | ||
| 033 | A 6205401916 | BATTERY SUPPORT |
| Repalced by: A 6165400316 | ||
| 033 | A 6165400316 | BATTERY SUPPORT |
| BATTERY/APPARATUS | ||
| 036 | A 6205410540 | BRACKET |
| LEFT | ||
| 036 | A 6205410440 | BRACKET |
| RIGHT | ||
| 039 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 039 | N 304017006020 | SCREW |
| BRACKET TO APPARATUS SUPPORT | ||
| 042 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 042 | N 913004006001 | NUT |
| BRACKET TO APPARATUS SUPPORT | ||
| 045 | A 0009880385 | LOCKING HANDLE |
| BATTERY SUPPORT | ||
| 048 | N 910001004105 | RIVET |
| LOCKING LEVER TO BATTERY SUPPORT | ||
| 051 | N 000961014028 | SCREW |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| M 14X40 | ||
| 051 | N 000961014054 | SCREW |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| M 14X45 | ||
| 054 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 054 | N 910113014001 | NUT |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 057 | A 6205410303 | COVER |
| BATTERY/APPARATUS SUPPORT | ||
| 060 | N 072551070880 | ELECTRIC CABLE |
| Repalced by: N 922002070000 | ||
| 060 | N 922002070000 | ELECTRIC CABLE |
| Repalced by: A 6735460013 | ||
| 060 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY TO STARTING MOTOR | ||
| 063 | N 072332013100 | SOLDERING TERMINAL |
| POS. POLE | ||
| 066 | N 046234010007 | CABLE SHOE |
| STARTING MOTOR | ||
| 069 | A 0039973481 | GROMMET |
| BATTERY CABLE THRU SIDE MEMBER | ||
| 072 | N 072551070880 | ELECTRIC CABLE |
| Repalced by: N 922002070000 | ||
| 072 | N 922002070000 | ELECTRIC CABLE |
| Repalced by: A 6735460013 | ||
| 072 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY I TO BATTERY II | ||
| 075 | N 072332013100 | SOLDERING TERMINAL |
| POS. POLE | ||
| 078 | N 072332013200 | SOLDERING TERMINAL |
| NEG.POLE | ||
| 081 | N 072551070880 | ELECTRIC CABLE |
| Repalced by: N 922002070000 | ||
| 081 | N 922002070000 | ELECTRIC CABLE |
| Repalced by: A 6735460013 | ||
| 081 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY TO GROUND AT SIDE MEMBER | ||
| 084 | N 072332013200 | SOLDERING TERMINAL |
| NEG.POLE | ||
| 087 | N 046234010007 | CABLE SHOE |
| GROUND CABLE TO SIDE MEMBER | ||
| 090 | N 000933010105 | SCREW |
| GROUND CABLE TO SIDE MEMBER | ||
| 093 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 093 | N 009021010209 | WASHER |
| GROUND CABLE TO SIDE MEMBER | ||
| 096 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 096 | N 910113010000 | NUT |
| GROUND CABLE TO SIDE MEMBER | ||
| N 912004010102 | LOCK WASHER | |
| CABLE TO STARTING MOTOR,TERMINAL 30 | ||
| N 000934010014 | NUT | |
| CABLE TO STARTING MOTOR,TERMINAL 30 | ||
| 099 | N 000933010105 | SCREW |
| GROUND STRAP TO SIDE MEMBER | ||
| 102 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 102 | N 009021010209 | WASHER |
| GROUND STRAP TO SIDE MEMBER | ||
| 105 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 105 | N 910113010000 | NUT |
| GROUND STRAP TO SIDE MEMBER | ||
| 108 | A 3835400231 | NEG. CABLE |
| Repalced by: A 6205402339 | ||
| 108 | A 6205402339 | NEG. CABLE |
| FROM FRAME CROSS MEMBER TO CAB | ||
| 111 | A 0009970581 | GROMMET |
| GROUND CABLE | ||
| 114 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 114 | N 304017008034 | SCREW |
| GROUND FRAME-CABLE-HARNESS & CAB-FRAME GROUND STRAP TO FRAME CROSS MEMBER | ||
| 117 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 117 | N 304017008016 | SCREW |
| GROUND STRAP TO CAB | ||
| 120 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 120 | N 000125008443 | WASHER |
| FRAME CABLE HARN.GROUND CONN.&CAB FRAME GROUND STRAP TO FRAME CROSS MEMBER | ||
| 123 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 123 | N 913004008001 | NUT |
| FRAME CABLE HARN.GROUND CONN.&CAB FRAME GROUND STRAP TO FRAME CROSS MEMBER | ||

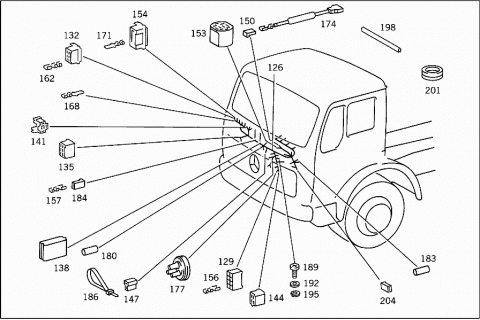

| 126 | A 3835406305 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 129 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 132 | A 0015458128 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 135 | A 0075450528 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 138 | A 0055458428 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 141 | A 0065450728 | PIN BUSHING HOUSING |
| 5-POLE | ||
| 144 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 147 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 150 | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 153 | A 0065455528 | PIN BUSHING HOUSING |
| STEERING COLUMN MOUNTED | ||
| 154 | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| 156 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 156 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 157 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 157 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 162 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 162 | A 0025454026 | FLAT PIN BUSHING |
| Repalced by: A 0035455326 | ||
| 162 | A 0035455326 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 168 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 171 | A 0025451428 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 174 | A 3015400265 | RESISTOR |
| HAZARD WARNING LIGHT SWITCH | ||
| 177 | A 3839970181 | GROMMET |
| Repalced by: A 0089976381 | ||
| 177 | A 0089976381 | GROMMET |
| PANE WIPER | ||
| 180 | A 0009970181 | GROMMET |
| CABLE SHOE | ||
| 1.75 MM | ||
| 183 | A 0009970581 | GROMMET |
| CABLE SHOE | ||
| 5 MM | ||
| 184 | A 0005451745 | BOOT |
| PIN BUSHING | ||
| 186 | A 0019978490 | LOOM TIE |
| 376 MM | ||
| 186 | A 0019978390 | LOOM TIE |
| 280 MM | ||
| 189 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 189 | N 000000001146 | SCREW |
| GROUND CONNECTION TO WINDOW SILL | ||
| M 6X16 | ||
| 192 | N 000125006421 | WASHER |
| GROUND CONNECTION TO WINDOW SILL | ||
| 195 | N 912004006102 | LOCK WASHER |
| GROUND CONNECTION TO WINDOW SILL | ||
| 198 | A 0019877625 | PLASTIC SECTION |
| MAIN CABLE HARNESS THRU WINDOW SILL | ||
| 201 | A 0059971981 | GROMMET |
| MAIN CABLE HARNESS THRU WINDOW SILL | ||
| 204 | A 0025451128 | PIN BUSHING HOUSING |
| ADDITIONAL WORK ON MAIN CABLE HARNESS | ||

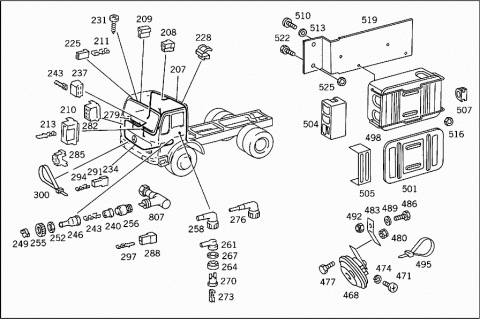

| 207 | A 6175400127 | ELECTRIC CABLE |
| CAB ROOF | ||
| 207 | A 6175400727 | ELECTRIC CABLE |
| CAB ROOF | ||
| A 0015458428 | PIN BUSHING HOUSING | |
| 4-POLE | ||
| 208 | A 0055456428 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 209 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 210 | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| 211 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 211 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 213 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 225 | A 0005451745 | BOOT |
| PIN BUSHING | ||
| 228 | A 0009881878 | CLIP |
| CABLE HARNESS MOUNTING | ||
| 231 | N 007981005211 | SHEET METAL SCREW |
| GROUND CABLE CONNECTION | ||
| 5,5X16 | ||
| 234 | A 6155401336 | ELECTRIC CABLE |
| FROM TACHOGRAPH TO PULSE TRANSMITTER | ||
| 237 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 240 | A 0125450928 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 243 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 243 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 246 | A 0005463435 | BOOT |
| 249 | A 0029978590 | CLIP |
| 252 | A 3019901440 | WASHER |
| 255 | A 0005421572 | NUT |
| 256 | A 0055429417 | SENDER UNIT |
| ELECTRONIC TACHOGRAPH | ||
| 256 | A 0065424617 | SENDER UNIT |
| 258 | A 0025450628 | PLUG |
| FROM CHASSIS/CAB PLUG CONNECTION TO LONGITUDINAL DIFFERENTIAL LOCK,FRONT | ||
| 261 | A 3805460335 | BOOT |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| 264 | A 0009903654 | NUT |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| M 27X1 | ||
| 267 | A 3809900140 | WASHER |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| 270 | A 3805450226 | PLUG SOCKET |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| 273 | A 0015454826 | ROUND PIN BUSHING |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| 276 | A 3805400281 | PLUG SOCKET |
| Repalced by: A 3805402281 | ||
| 276 | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| 279 | A 3875402336 | ELECTRIC CABLE |
| Repalced by: A 3875403934 | ||
| 279 | A 3875403934 | CABLE HARNESS |
| FROM LIGHT SWITCH TO IGNITION STARTING SWITCH | ||
| 282 | A 0015458128 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 285 | A 0065450728 | PIN BUSHING HOUSING |
| 5-POLE | ||
| 288 | A 0015457928 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 291 | A 0025451328 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 294 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 294 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 297 | A 0025450628 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 300 | A 0019978390 | LOOM TIE |
| 280 MM | ||

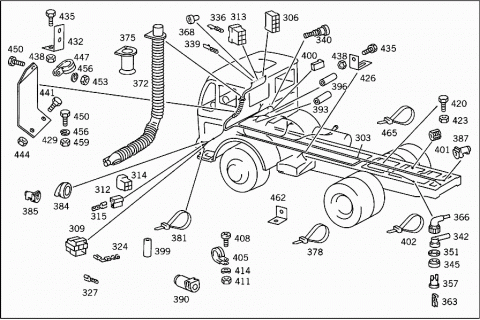

| 303 | A 3815404308 | CABLE HARNESS |
| Repalced by: A 3815408109 | ||
| 303 | A 3815408109 | CABLE HARNESS |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 303 | A 3815408609 | CABLE HARNESS |
| Repalced by: A 3815408709 | ||
| 303 | A 3815408709 | CABLE HARNESS |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 303 | A 3815404208 | CABLE HARNESS |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 303 | A 3815404508 | CABLE HARNESS |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 306 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 309 | A 0015458528 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 312 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 313 | A 0015456028 | PLUG HOUSING |
| 6-POLE | ||
| 314 | A 0025451228 | PLUG HOUSING |
| 4-POLE | ||
| 315 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 315 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 315 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 315 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 324 | A 0005457926 | PIN BUSHING |
| OFFSET | ||
| 2.5 MM2 | ||
| 327 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 336 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 339 | A 0025451428 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 340 | A 3805461135 | BOOT |
| STARTING AT ENGINE | ||
| 342 | A 3805460335 | BOOT |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1,M 24X1 | ||
| 345 | A 0009903654 | NUT |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| M 27X1 | ||
| 345 | A 0009902054 | NUT |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| M 24X1 | ||
| 351 | A 3809900140 | WASHER |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| 351 | A 0009906840 | WASHER |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24X1 | ||
| 357 | A 3805450226 | PLUG SOCKET |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| 357 | A 3805450026 | PLUG SOCKET |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24X1 | ||
| 363 | A 0015454826 | ROUND PIN BUSHING |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1,M 24X1 | ||
| 366 | A 3805400281 | PLUG SOCKET |
| Repalced by: A 3805402281 | ||
| 366 | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| 366 | A 3805400181 | PLUG SOCKET |
| Repalced by: A 3805402181 | ||
| 366 | A 3805402181 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 24X1 | ||
| 368 | A 0005467741 | CABLE CONNECTOR |
| 1,5 - 6,6 MM2 | ||
| 368 | A 0015466641 | CABLE CONNECTOR |
| 6-10 MM2 | ||
| 372 | A 3875460030 | INSULATING HOSE |
| Repalced by: A 6205460230 | ||
| 372 | A 6205460230 | INSULATING HOSE |
| 375 | A 0005450155 | GUIDE |
| CABLE CONDUIT | ||
| 378 | A 0019978390 | LOOM TIE |
| 280 MM | ||
| 381 | A 0019978490 | LOOM TIE |
| 376 MM | ||
| 384 | A 3149970181 | GROMMET |
| HEADLAMP | ||
| 385 | A 3805461937 | GROMMET |
| 387 | A 3805462037 | GROMMET |
| REAR CABLE CONNECTOR | ||
| 390 | A 0005462237 | GROMMET |
| ALTERNATOR | ||
| 393 | A 0009970381 | GROMMET |
| PIN BUSHING | ||
| 3 MM | ||
| 396 | A 0009970581 | GROMMET |
| PIN BUSHING | ||
| 5 MM | ||
| 399 | A 0009970681 | GROMMET |
| PIN BUSHING | ||
| 7.5 MM | ||
| 400 | A 0005451745 | BOOT |
| BLINKER LIGHT | ||
| 401 | A 3875462143 | BRACKET |
| HAND BRAKE CONTROL BRANCH-OFF TO BRAKE HOSE | ||
| 402 | A 0019978390 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 280 MM | ||
| 402 | A 0019978490 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 376 MM | ||
| 405 | N 916016015202 | CLAMP |
| CABLE TO ALTERNATOR | ||
| A 0005462243 | BRACKET | |
| CABLE TO ALTERNATOR | ||
| 408 | N 007985006157 | SCREW |
| Repalced by: N 000000001145 | ||
| 408 | N 000000001145 | SCREW |
| CLAMP TO ALTERNATOR | ||
| N 007985005504 | SCREW | |
| CLAMP TO ALTERNATOR | ||
| 411 | N 000934006007 | NUT |
| CABLE TO ALTERNATOR | ||
| N 913004005001 | NUT | |
| CABLE TO ALTERNATOR | ||
| 411 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 411 | N 304032005005 | NUT |
| CLAMP TO ALTERNATOR | ||
| 411 | N 304032005005 | NUT |
| CABLE TO ALTERNATOR | ||
| 414 | N 000137006204 | SPRING WASHER |
| CABLE TO ALTERNATOR | ||
| 414 | N 000137005203 | SPRING WASHER |
| CLAMP TO ALTERNATOR | ||
| 414 | N 000137005203 | SPRING WASHER |
| CABLE TO ALTERNATOR | ||
| N 000084006132 | SCREW | |
| CABLE TO STARTING MOTOR,TERMINAL 50 | ||
| N 912004006102 | LOCK WASHER | |
| CABLE TO STARTING MOTOR,TERMINAL 50 | ||
| 420 | N 000933010105 | SCREW |
| GROUND CABLE TO SIDE MEMBER | ||
| 423 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 423 | N 910113010000 | NUT |
| GROUND CABLE TO SIDE MEMBER | ||
| 426 | A 3854290640 | BRACKET |
| BATTERY CABLE AND CABLE HARNESS TO SIDE MEMBER | ||
| A 3604280243 | ANGLE | |
| BATTERY CABLE MOUNTING | ||
| A 0005469644 | CLAMPING PIECE | |
| Repalced by: A 3835460044 | ||
| A 3835460044 | CLAMPING PIECE | |
| BATTERY CABLE TO BRACKET ON SIDE MEMBER | ||
| A 3835460044 | CLAMPING PIECE | |
| BATTERY CABLE TO CLUTCH MASTER CYLINDER | ||
| N 000931006148 | SCREW | |
| CLAMPING PIECE TO BRACKET | ||
| N 000931006148 | SCREW | |
| CLAMPING PIECE TO CLUTCH MASTER CYLINDER BRACKET | ||
| N 009021006205 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| CLAMPING PIECE TO BRACKET | ||
| N 009021006208 | WASHER | |
| CLAMPING PIECE TO CLUTCH MASTER CYLINDER BRACKET | ||
| N 913004006002 | NUT | |
| Repalced by: N 913004006001 | ||
| N 913004006001 | NUT | |
| CLAMPING PIECE TO BRACKET | ||
| N 913004006001 | NUT | |
| CLAMPING PIECE TO CLUTCH MASTER CYLINDER BRACKET | ||
| 429 | A 3875420940 | BRACKET |
| MAIN CABLE HARNESS TO FRONT CROSS MEMBER | ||
| 432 | A 3875401873 | BRACKET |
| MAIN CABLE HARNESS TO FRONT CROSS MEMBER | ||
| 435 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 435 | N 304017008027 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 438 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 438 | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 441 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 441 | N 304017008021 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| M 8X20 | ||
| 441 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 441 | N 304017008034 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| M 8X25 | ||
| 444 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 444 | N 913004008001 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 447 | N 916016032201 | CLAMP |
| ELECTRIC CABLE TO BRACKET | ||
| 450 | N 000933006127 | SCREW |
| CABLE HARNESS MOUNTING | ||
| 453 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 453 | N 913004006001 | NUT |
| ELECTRIC CABLE TO BRACKET | ||
| 456 | N 912004006102 | LOCK WASHER |
| ELECTRIC CABLE TO CAB FLOOR | ||
| 459 | N 000934006007 | NUT |
| ELECTRIC CABLE TO CAB FLOOR | ||
| 462 | A 3604280243 | ANGLE |
| FUEL-GAUGE-SENDER-UNIT CABLE | ||
| 465 | A 0019978390 | LOOM TIE |
| FUEL-GAUGE-SENDER-UNIT CABLE | ||
| 468 | A 0025426720 | HORN |
| Repalced by: A 0045424420 | ||
| 468 | A 0045424420 | HORN |
| HELLA | ||
| 468 | A 0025428320 | HORN |
| Repalced by: A 0045422920 | ||
| 468 | A 0045422920 | HORN |
| Repalced by: A 0045424420 | ||
| 468 | A 0045424420 | HORN |
| BOSCH | ||
| 471 | N 007985004123 | SCREW |
| ELECTRIC CABLE TO HORN | ||
| 474 | N 912004004102 | LOCK WASHER |
| ELECTRIC CABLE TO HORN | ||
| 477 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 477 | N 304017010002 | SCREW |
| HORN TO BRACKET | ||
| 480 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 480 | N 910113010000 | NUT |
| HORN TO BRACKET | ||
| 483 | A 3805420040 | BRACKET |
| Repalced by: A 3095421340 | ||
| 483 | A 3095421340 | BRACKET |
| HORN | ||
| 486 | N 000933010105 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 489 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 489 | N 009021010209 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 492 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 492 | N 910113010000 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 495 | A 0019978390 | LOOM TIE |
| CABLE TO DISC-TYPE HORN | ||
| 498 | A 0015463841 | CABLE CONNECTOR |
| Repalced by: A 0015465441 | ||
| 498 | A 0015465441 | CABLE CONNECTOR |
| BEHIND REAR AXLE | ||
| 498 | A 0015465441 | CABLE CONNECTOR |
| BEHIND CAB | ||
| 501 | A 0005460581 | COVERING |
| 504 | A 0105456728 | PLUG |
| REAR CABLE CONNECTOR | ||
| 505 | A 0005460283 | ANGLE |
| CABLE CONNECTOR BEHIND CAB | ||
| 507 | A 0009872844 | EXPANSION PLUG |
| TO LOCK TRAILER-PLUG-SOCKET OUTLET | ||
| 510 | N 007985005146 | SCREW |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| M 5X25 | ||
| 513 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 513 | N 009021005205 | WASHER |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 516 | N 913004005001 | NUT |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 519 | A 3835461143 | BRACKET |
| REAR CABLE CONNECTOR | ||
| 522 | N 000933010105 | SCREW |
| BRACKET AND GROUND CABLE TO SIDE MEMBER | ||
| 525 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 525 | N 910113010000 | NUT |
| BRACKET AND GROUND CABLE TO SIDE MEMBER | ||
| 528 | A 3525405173 | BRACKET |
| LEFT TAIL LAMP | ||
| 528 | A 3525405273 | BRACKET |
| RIGHT TAIL LAMP | ||
| 531 | A 3525440538 | BRACKET |
| REFLECTOR | ||
| 536 | N 000000001147 | SCREW |
| BRACKET TO TAIL LAMP BRACKET | ||
| M 6X20 | ||
| 536 | N 000965006006 | SCREW |
| BRACKET TO TAIL LAMP BRACKET | ||
| 540 | N 000125006421 | WASHER |
| BRACKET TO TAIL LAMP BRACKET | ||
| 543 | N 913002006005 | NUT |
| Repalced by: N 913002006009 | ||
| 543 | N 913002006009 | NUT |
| BRACKET TO TAIL LAMP BRACKET | ||
| 546 | N 000933010164 | SCREW |
| TAIL LAMP BRACKET TO FRAME | ||
| M 10X22 | ||
| 546 | N 000933010157 | SCREW |
| TAIL LAMP BRACKET TO FRAME | ||
| M 10X28 | ||
| 549 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 549 | N 910113010000 | NUT |
| TAIL LAMP BRACKET TO FRAME | ||
| 552 | A 3605840025 | NAME PLATE |
| "MERCEDES BENZ" | ||
| 555 | N 910006004018 | RIVET |
| 4X10 | ||
| 558 | N 000933008145 | SCREW |
| NAME PLATE TO TAIL LAMP BRACKET | ||
| 561 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 561 | N 913004008001 | NUT |
| NAME PLATE TO TAIL LAMP BRACKET | ||
| 564 | N 000000001147 | SCREW |
| LICENSE PLATE MOUNTING | ||
| M 6X20 | ||
| 567 | N 000125006421 | WASHER |
| LICENSE PLATE MOUNTING | ||
| 570 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 570 | N 913004006001 | NUT |
| LICENSE PLATE MOUNTING | ||
| 573 | A 0015447103 | TAIL LAMP |
| RIGHT | ||
| HELLA | ||
| 573 | A 0015448203 | TAIL LAMP |
| RIGHT | ||
| R & S | ||
| 573 | A 0015447003 | TAIL LAMP |
| Repalced by: A 0025440203 | ||
| 573 | A 0025440203 | TAIL LAMP |
| LEFT | ||
| HELLA | ||
| 573 | A 0015448303 | TAIL LAMP |
| LEFT | ||
| R & S | ||
| 576 | A 0015448390 | LENS |
| HELLA | ||
| 576 | A 0015448490 | LENS |
| R & S | ||
| 579 | A 0005448580 | GASKET |
| 579 | A 0005448880 | GASKET |
| 582 | N 072601024702 | BULB |
| Repalced by: N 072601024704 | ||
| 582 | N 072601024704 | BULB |
| 10 W | ||
| 585 | N 072601024190 | BULB |
| Repalced by: N 072601024192 | ||
| 585 | N 072601024192 | BULB |
| 21 W | ||
| 588 | A 6175400207 | CABLE HARNESS |
| Repalced by: A 6175401507 | ||
| 588 | A 6175401507 | CABLE HARNESS |
| LEFT TAIL LAMP | ||
| 588 | A 6175400307 | CABLE HARNESS |
| Repalced by: A 6215402207 | ||
| 588 | A 6215402207 | CABLE HARNESS |
| RIGHT TAIL LAMP | ||
| 594 | A 3875460437 | GROMMET |
| AT CABLE CONNECTOR | ||
| 597 | A 6019972081 | GROMMET |
| AT TAIL LAMP SHELL | ||
| 600 | A 3875440076 | WASHER |
| TAIL LAMP | ||
| 603 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 603 | N 000125008443 | WASHER |
| TAIL LAMP TO BRACKET | ||
| 606 | N 912004008102 | LOCK WASHER |
| TAIL LAMP TO BRACKET | ||
| 609 | N 304032008006 | NUT |
| TAIL LAMP TO BRACKET | ||
| 612 | A 0019978390 | LOOM TIE |
| TAIL LAMP CABLE,LEFT AND RIGHT | ||
| 280 MM | ||
| 612 | A 0019978490 | LOOM TIE |
| TAIL LAMP CABLE,LEFT AND RIGHT | ||
| 376 MM | ||
| 615 | A 0039973481 | GROMMET |
| TAIL LAMP CABLE TO FRAME | ||
| 618 | A 0005443305 | REFLECTOR |
| 621 | N 007985005146 | SCREW |
| REFLECTOR TO BRACKET | ||
| 624 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 624 | N 000433005304 | WASHER |
| REFLECTOR TO BRACKET | ||
| 627 | N 913004005001 | NUT |
| REFLECTOR TO BRACKET | ||
| 630 | A 0015454614 | SWITCH |
| Repalced by: A 0035452314 | ||
| 630 | A 0035452314 | SWITCH |
| STARTING AT ENGINE | ||
| M 24X1 | ||
| 633 | A 0005452945 | BOOT |
| SWITCH | ||
| TO 001 545 46 14 | ||
| 636 | A 0005456909 | SWITCH |
| STOP LIGHT | ||
| 639 | A 0009909251 | NUT |
| STOP LIGHT SWITCH TO PEDAL BEARING BRACKET | ||
| 642 | A 0005455414 | SWITCH |
| PARKING BRAKE | ||
| 645 | A 0015456814 | SWITCH |
| CHECK VALVE,CONNECTION: | ||
| "24" | ||
| 646 | N 007603012102 | SEAL RING |
| CHECK VALVE,CONNECTION: | ||
| "24" | ||
| 648 | A 6205420339 | PLATE |
| APPARATUS | ||
| 651 | N 007981004244 | SHEET METAL SCREW |
| Repalced by: N 000000000453 | ||
| 651 | N 000000000453 | SHEET METAL SCREW |
| APPARATUS PLATE TO WINDOW SILL | ||
| 654 | A 0005458501 | FUSE BOX |
| 12-POLE; TERMINALS 1-2,3-4,5-11 SHUNTED | ||
| 657 | A 0005458401 | FUSE BOX |
| 12-POLE;TERMINALS 1-4;5-10;11-12 SHUNTED | ||
| 660 | A 0005458234 | FUSE |
| Repalced by: N 072581008101 | ||
| 660 | N 072581008101 | FUSE |
| 8 A | ||
| 663 | N 007985006154 | SCREW |
| Repalced by: A 0029903712 | ||
| 663 | A 0029903712 | SCREW |
| Repalced by: N 000000001149 | ||
| 663 | N 000000001149 | SCREW |
| FUSE BOX TO APPARATUS PLATE | ||
| 666 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 666 | N 913004006001 | NUT |
| FUSE BOX TO APPARATUS PLATE | ||
| 669 | A 0055450624 | SENDER UNIT |
| Repalced by: A 0225452532 | ||
| 669 | A 0225452532 | CONTROL UNIT |
| WIPER PULSE SENDER UNIT | ||
| 669 | A 0055451424 | SENDER UNIT |
| WIPER PULSE SENDER UNIT | ||
| 669 | A 0055451624 | SENDER UNIT |
| WIPER PULSE SENDER UNIT | ||
| 672 | A 0025445932 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 672 | A 0025446432 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 672 | A 0025446732 | SENDER UNIT |
| Repalced by: A 0035440632 | ||
| 672 | A 0035440632 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 675 | N 007985006191 | SCREW |
| SENDER UNIT TO APPARATUS PLATE | ||
| 678 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 678 | N 913004006001 | NUT |
| SENDER UNIT TO APPARATUS PLATE | ||
| 681 | A 0005455405 | RELAY |
| Repalced by: A 0035459605 | ||
| 681 | A 0005458405 | RELAY |
| Repalced by: A 0035459605 | ||
| 681 | A 0035459605 | RELAY |
| STARTING MOTOR | ||
| 681 | A 0035459605 | RELAY |
| STEERING LOCK | ||
| 684 | A 0005423623 | BUZZER |
| COOLING WATER TEMPERATURE WARNING | ||
| 687 | A 0055455224 | STEERG.COLUMN MTD. SWITCH |
| 690 | A 6085450045 | BOOT |
| STEERING COLUMN MOUNTED SWITCH | ||
| 693 | N 007985004107 | SCREW |
| STEERING COLUMN MOUNTED SWITCH | ||
| 696 | N 912006004001 | LOCK WASHER |
| STEERING COLUMN MOUNTED SWITCH | ||
| 699 | A 3819971986 | PLUG |
| WARNING INDICATOR | ||
| 702 | A 6155420225 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 705 | A 0045450224 | SWITCH |
| HAZARD WARNING LIGHT | ||
| 708 | A 0005453637 | BUTTON |
| HAZARD WARNING LIGHT SWITCH | ||
| 711 | N 072601024801 | BULB |
| HAZARD WARNING LIGHT SWITCH | ||
| 2 W | ||
| 714 | A 3015400265 | RESISTOR |
| HAZARD WARNING LIGHT SWITCH | ||
| 717 | A 6155420225 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 720 | N 006797012153 | TOOTHED WASHER |
| POTENTIOMETER TO INSTRUMENT PANEL | ||
| 723 | A 0029906251 | NUT |
| POTENTIOMETER TO INSTRUMENT PANEL | ||
| 726 | A 0005421889 | KNOB |
| INSTRUMENT LIGHTING | ||
| 729 | A 0005458026 | PLUG SOCKET |
| Repalced by: A 0045454326 | ||
| 729 | A 0045454326 | PLUG SOCKET |
| INSTRUMENT PANEL | ||
| 732 | A 0009900946 | WASHER |
| PLUG SOCKET TO INSTRUMENT PANEL | ||
| 735 | A 3805450076 | WASHER |
| PLUG SOCKET TO INSTRUMENT PANEL | ||
| 738 | A 0005454813 | SWITCH |
| Repalced by: A 0005455913 | ||
| 738 | A 0005455913 | LIGHT SWITCH |
| 741 | A 0005450376 | WASHER |
| LIGHT SWITCH TO INSTRUMENT PANEL | ||
| 744 | A 0005451072 | NUT |
| LIGHT SWITCH TO INSTRUMENT PANEL | ||
| 747 | A 3875450037 | BUTTON |
| Repalced by: A 2015400183 | ||
| A 2015400183 | HANDLE | |
| Repalced by: A 2025450081 | ||
| A 2025450081 | KNOB | |
| LIGHT ROTARY SWITCH | ||
| 750 | A 3169880035 | CAP |
| TO PLUG THE HOLE USED FOR STARTER CABLE IN INSTRUMENT PANEL | ||
| 753 | A 0009974435 | PLUG |
| TO PLUG THE FREE BORES IN INSTRUMENT PANEL | ||
| 756 | A 6209880035 | CAP |
| TO PLUG THE FREE HOLES USED FOR SEAT HEATER SWITCH | ||
| 759 | A 3899880135 | CAP |
| TO PLUG THE FREE BORES USED FOR SWITCHES IN INSTRUMENT PANEL | ||
| 762 | A 0015451815 | TELL-TALE LAMP |
| LESS LENS | ||
| 768 | N 072601024801 | BULB |
| 2 W | ||
| 771 | A 0035453290 | LENS |
| CHARGE CONTROL | ||
| 774 | A 0035454190 | LENS |
| Repalced by: A 0035455290 | ||
| A 0035455290 | LENS | |
| BLINKER LIGHT CONTROL | ||
| 777 | A 0035453390 | LENS |
| Repalced by: A 0065451990 | ||
| 777 | A 0065451990 | LENS |
| HIGH BEAM | ||
| 780 | A 0035453790 | LENS |
| PARKING BRAKE | ||
| 781 | A 0035453590 | LENS |
| OIL PRESSURE | ||
| 783 | A 0005454090 | LENS |
| LONGITUDINAL DIFFERENTIAL LOCK,FRONT | ||
| 786 | A 0009974335 | PLUG |
| TO PLUG THE FREE BORES IN INSTRUMENT PANEL | ||
| 789 | A 0095429106 | SPEEDOMETER |
| Repalced by: A 0105424606 | ||
| 789 | A 0105424606 | SPEEDOMETER |
| Repalced by: A 0105424706 | ||
| 789 | A 0105424706 | SPEEDOMETER |
| ELECTRONIC | ||
| 125 KM/H | ||
| 792 | A 0005420287 | FRAME |
| COVERING | ||
| 795 | A 0005420690 | BLIND CAP |
| SPEEDOMETER | ||
| 798 | A 0015442694 | BULB |
| 24 V,1.2 W | ||
| 801 | A 0005420481 | GROMMET |
| SPEEDOMETER TO INSTRUMENT PANEL | ||
| 804 | N 007971002206 | SHEET METAL SCREW |
| TACHOGRAPH LEAD SEALING | ||
| 807 | A 0005420630 | ANGLE DRIVE |
| PULSE SENDER UNIT TO TRANSMISSION | ||
| 813 | A 0005421081 | GROMMET |
| ELECTRIC CABLE THRU FIRE WALL | ||
| 816 | A 6155420140 | BRACKET |
| ELECTRIC CABLE THRU FIRE WALL | ||
| 822 | N 007981004400 | SHEET METAL SCREW |
| Repalced by: N 000000000878 | ||
| 822 | N 000000000878 | SCREW |
| GROMMET TO CAB | ||
| 825 | A 0015421416 | TACHOMETER |
| ELECTRONIC | ||
| 828 | N 072601024801 | BULB |
| 2 W | ||
| 831 | A 0025405847 | INSTRUMENT CLUSTER |
| Repalced by: A 0035405447 | ||
| 831 | A 0035405447 | INSTRUMENT CLUSTER |
| Repalced by: A 0035407847 | ||
| 831 | A 0035407847 | INSTRUMENT CLUSTER |
| Repalced by: A 0035409647 | ||
| 831 | A 0035409647 | INSTRUMENT CLUSTER |
| 834 | A 0005422178 | CONNECTION PLATE |
| TO 002 540 58 47,003 540 54 47 | ||
| 834 | A 0005423178 | CONNECTION PLATE |
| TO 003 540 78 47 | ||
| A 0005423578 | CONNECTION PLATE | |
| TO 003 540 96 47 | ||
| 837 | A 0015420408 | AIR PRESSURE GAUGE |
| TO 002 540 58 47,003 540 54 47 | ||
| 837 | A 0015423908 | AIR PRESSURE GAUGE |
| TO 003 540 78 47 | ||
| A 0015424208 | AIR PRESSURE GAUGE | |
| TO 003 540 96 47 | ||
| 840 | A 0035423305 | TEMPERATURE GAUGE |
| TO 002 540 58 47,003 540 54 47 | ||
| 840 | A 0035428805 | TEMPERATURE GAUGE |
| TO 003 540 78 47 | ||
| A 0035427405 | TEMPERATURE GAUGE | |
| TO 003 540 96 47 | ||
| 843 | A 0015429902 | OIL PRESSURE GAUGE |
| TO 002 540 58 47,003 540 54 47 | ||
| 843 | A 0025422702 | OIL PRESSURE GAUGE |
| TO 003 540 78 47 | ||
| A 0025421702 | OIL PRESSURE GAUGE | |
| TO 003 540 96 47 | ||
| 846 | A 0015424503 | FUEL GAUGE DASH UNIT |
| TO 002 540 58 47,003 540 54 47 | ||
| 846 | A 0025429203 | FUEL GAUGE DASH UNIT |
| TO 003 540 78 47 | ||
| A 0025428503 | FUEL GAUGE DASH UNIT | |
| TO 003 540 96 47 | ||
| 849 | A 0005451219 | SOCKET |
| 852 | N 072601024801 | BULB |
| 2 W | ||
| A 0015442694 | BULB | |
| 1.2W,TO 003 540 96 47 | ||
| 855 | A 0005420481 | GROMMET |
| INSTRUMENT CLUSTER TO INSTRUMENT PANEL | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
