Transporto priemonė: 917 INDONESIA; VIN numerio dalis: 383011

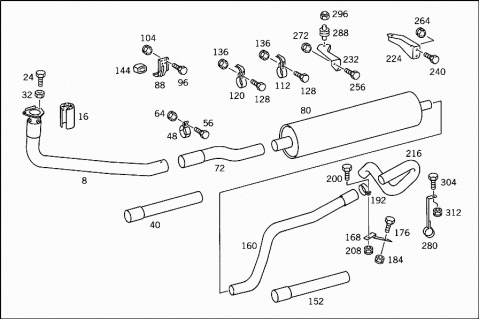

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 3814900319 | EXHAUST PIPE |
| FRONT | ||
| 016 | A 3834922530 | PROTECTIVE PLATE |
| 024 | N 000931012132 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 032 | N 000934012021 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 040 | A 3024920509 | CONNECTOR |
| FRONT | ||
| 048 | N 071555075502 | CLAMP |
| CONNECTOR TO BRACKET | ||
| 75.5 MM | ||
| 056 | N 000933010157 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| M 10X28 | ||
| 064 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 064 | N 910113010000 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 072 | A 3814920101 | FRONT EXHAUST PIPE |
| 080 | A 3834900201 | EXHAUST MUFFLER |
| 088 | A 3814910416 | SUPPORT |
| EXHAUST MUFFLER TO FRAME | ||
| 088 | A 3814910416 | SUPPORT |
| CONNECTOR TO FRAME | ||
| 096 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 096 | N 304017008034 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 8X25 | ||
| 104 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 104 | N 913004008001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 112 | A 3834921041 | BRACKET |
| EXHAUST MUFFLER TO SUPPORT AND TO PIPE | ||
| 120 | A 3834921241 | BRACKET |
| CONNECTOR TO FRAME | ||
| 128 | N 000933010157 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| M 10X28 | ||
| 136 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 136 | N 910113010000 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 144 | A 3814920082 | DAMPING PAD |
| EXHAUST MUFFLER TO SUPPORT AND TO PIPE | ||
| 144 | A 3814920082 | DAMPING PAD |
| CONNECTOR TO FRAME | ||
| 152 | A 3604921907 | CONNECTOR |
| REAR | ||
| 160 | A 3834926204 | REAR EXHAUST PIPE |
| CENTRAL PART | ||
| 168 | A 3834922016 | SUPPORT |
| REAR EXHAUST PIPE TO CROSS MEMBER | ||
| 168 | A 3834921916 | SUPPORT |
| REAR EXHAUST PIPE TO CROSS MEMBER | ||
| 176 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 176 | N 304017008034 | SCREW |
| SUPPORT TO CROSS MEMBER | ||
| M 8X25 | ||
| 184 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 184 | N 913004008001 | NUT |
| SUPPORT TO CROSS MEMBER | ||
| 192 | A 3834920440 | CLAMP |
| EXHAUST PIPE TO CROSS MEMBER | ||
| 200 | N 000933010157 | SCREW |
| CLAMP TO BRACKET | ||
| M 10X28 | ||
| 208 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 208 | N 910113010000 | NUT |
| CLAMP TO BRACKET | ||
| 216 | A 3814926004 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 216 | A 3814926804 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| A 6214921004 | REAR EXHAUST PIPE | |
| Repalced by: A 3834926504 | ||
| A 3834926504 | REAR EXHAUST PIPE | |
| (TAIL PIPE) | ||
| 224 | A 3814920216 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 232 | A 3814910616 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 240 | N 000933010105 | SCREW |
| REAR SUPPORT TO SIDE MEMBER | ||
| M 10X25 | ||
| 240 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 240 | N 304017010002 | SCREW |
| REAR SUPPORT TO SIDE MEMBER | ||
| M 10X30 | ||
| 256 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 256 | N 304017008034 | SCREW |
| REAR SUPPORT TO SIDE MEMBER | ||
| M 8X25 | ||
| 264 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 264 | N 910113010000 | NUT |
| REAR SUPPORT TO SIDE MEMBER | ||
| 272 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 272 | N 913004008001 | NUT |
| REAR SUPPORT TO SIDE MEMBER | ||
| 280 | A 3834927941 | BRACKET |
| EXHAUST PIPE | ||
| 280 | A 3834921641 | BRACKET |
| Repalced by: A 3834927941 | ||
| 280 | A 3834927941 | BRACKET |
| EXHAUST PIPE | ||
| 288 | A 0019875340 | RUBBER BUFFER |
| 296 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 296 | N 910113010000 | NUT |
| BRACKET TO SUPPORT | ||
| 304 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 304 | N 304017008034 | SCREW |
| BRACKET TO SUPPORT | ||
| 312 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 312 | N 913004008001 | NUT |
| BRACKET TO SUPPORT | ||
