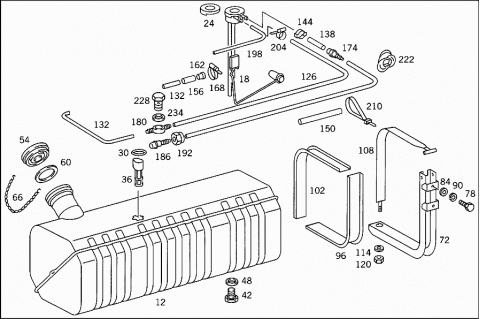

Transporto priemonė: 917 INDONESIA; VIN numerio dalis: 383011
Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 012 | A 3834701101 | FUEL TANK |
| 018 | A 0055423417 | SENDER UNIT |
| Repalced by: A 0085427717 | ||
| 018 | A 0085427717 | SENDER UNIT |
| FUEL GAUGE | ||
| 024 | A 0009970920 | EXPANSION PLUG |
| 030 | A 0119970745 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 036 | A 0004710235 | FUEL STRAINER |
| 042 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 042 | N 007604014110 | SCREW PLUG |
| AT TANK | ||
| 048 | N 007603014405 | SEAL RING |
| AT TANK | ||
| 054 | A 0004718030 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 054 | A 0004717930 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 054 | A 0004700305 | FILLER CAP |
| 060 | A 3049970340 | SEAL RING |
| 066 | A 3034700031 | CHAIN |
| 072 | A 3834701842 | SUPPORT |
| FUEL TANK | ||
| 078 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 078 | N 308676014020 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 084 | A 3859900440 | WASHER |
| Repalced by: A 3379900440 | ||
| 084 | A 3379900440 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 090 | N 912004014100 | LOCK WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 096 | A 3634750220 | PAD |
| FUEL TANK TO SUPPORT | ||
| 71.6X59.6 MM | ||
| 102 | A 3634750320 | PAD |
| FUEL TANK TO SUPPORT | ||
| 58.2X46.2 MM | ||
| 108 | A 3834700140 | STRAP |
| Repalced by: A 6174700440 | ||
| 108 | A 6174700440 | STRAP |
| FUEL TANK TO SUPPORT | ||
| 114 | A 3609970126 | WASHER |
| STRAP TO SUPPORT | ||
| 120 | N 000934012021 | NUT |
| STRAP TO SUPPORT | ||
| M 12 | ||
| 120 | N 000934012022 | NUT |
| M 12X1.5 | ||
| 126 | A 0089975482 | HOSE |
| FEED & RETURN | ||
| 8X11 MM | ||
| 132 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 132 | A 0009872627 | PLASTIC PIPE |
| LEAK LINE | ||
| 4X6 MM | ||
| 138 | A 3054760126 | HOSE |
| FEED & RETURN | ||
| 144 | A 0029978790 | CLIP |
| FUEL LINES TO FUEL TANK | ||
| 150 | N 040621011200 | INSULATING HOSE |
| FEED | ||
| 156 | N 073379006203 | HOSE |
| LEAK LINE | ||
| 162 | N 915062004000 | SLEEVE |
| LEAK LINE | ||
| 168 | N 916026010000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 168 | N 000000000665 | CLAMP |
| LEAK LINE | ||
| 174 | A 3879900078 | CONNECTOR |
| Repalced by: N 915062008000 | ||
| 174 | N 915062008000 | SLEEVE |
| FEED & RETURN | ||
| 180 | A 0009908188 | BANJO UNION |
| FEED | ||
| 186 | A 0019975272 | FITTING |
| RETURN | ||
| 192 | N 915017008201 | UNION NUT |
| RETURN | ||
| 198 | A 0089979082 | HOSE |
| FUEL TANK BREATHING | ||
| 6X8 MM | ||
| 204 | N 916026010000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 204 | N 000000000665 | CLAMP |
| FUEL LINE TO SENDER UNIT | ||
| 210 | A 0019978490 | LOOM TIE |
| FUEL LINE | ||
| 210 | A 0019978390 | LOOM TIE |
| FUEL LINE | ||
| 222 | A 3879970181 | GROMMET |
| FUEL LINE THRU FRAME SIDE MEMBER | ||
| 228 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 228 | N 915036010108 | HOLLOW SCREW |
| FUEL LINES TO ENGINE | ||
| 234 | N 007603014405 | SEAL RING |
| FUEL LINES TO ENGINE | ||
