Transporto priemonė: 917 INDONESIA; VIN numerio dalis: 383011
Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|

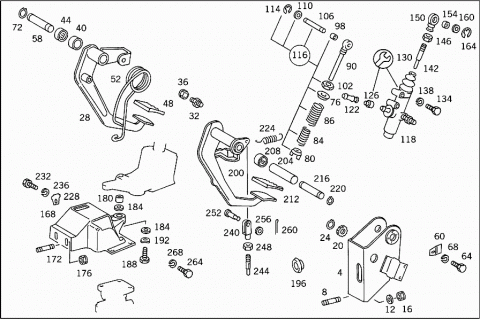

| 004 | A 3812901219 | BEARING BRACKET |
| CLUTCH PEDAL | ||
| 008 | N 000939008083 | STUD BOLT |
| BEARING BRACKET TO CAB | ||
| M 8X20 | ||
| 008 | N 000939008156 | STUD BOLT |
| M 8X30 | ||
| 012 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 012 | N 000125008443 | WASHER |
| BEARING BRACKET TO CAB | ||
| 016 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 016 | N 913004008001 | NUT |
| BEARING BRACKET TO CAB | ||
| 020 | A 3812910186 | STOP |
| CLUTCH PEDAL | ||
| 024 | N 000471016001 | LOCK RING |
| Repalced by: A 0079942041 | ||
| 024 | A 0079942041 | LOCK |
| STOP TO BEARING BRACKET | ||
| 028 | A 6202900216 | PEDAL |
| CLUTCH | ||
| 032 | A 3812910274 | PIN |
| 036 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 036 | N 913004008001 | NUT |
| 040 | A 3812910053 | SPACER TUBE |
| 044 | A 0119813410 | NEEDLE BEARING |
| 048 | A 1072910182 | PAD |
| CLUTCH PEDAL | ||
| 052 | A 3819930710 | SPRING |
| CLUTCH PEDAL RESET | ||
| 058 | A 3812940707 | PIVOT PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 060 | A 3812910073 | LOCK |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 064 | N 000933006102 | SCREW |
| LOCK PLATE | ||
| 068 | N 912004006102 | LOCK WASHER |
| LOCK PLATE | ||
| 072 | N 000471020001 | LOCK RING |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 076 | A 1112910491 | SPRING RETAINER |
| DEAD CENTER SPRING,TOP | ||
| 080 | A 3092910091 | SPRING RETAINER |
| BOTTOM | ||
| 084 | A 3819930201 | SPRING |
| (DEAD CENTER SPRING) | ||
| 23,2 MM | ||
| 086 | A 1109930501 | SPRING |
| (DEAD CENTER SPRING) | ||
| 35 MM | ||
| 090 | A 3812910233 | ROD |
| OVER-CENTER ACTING SPRING | ||
| 090 | A 3812910333 | ROD |
| OVER-CENTER ACTING SPRING | ||
| 098 | A 0059814410 | NEEDLE BEARING |
| ROD TO CLUTCH PEDAL | ||
| 098 | A 0059813810 | NEEDLE BEARING |
| ROD TO CLUTCH PEDAL | ||
| 098 | A 0089811210 | NEEDLE BEARING |
| ROD TO CLUTCH PEDAL | ||
| 098 | A 0139818210 | NEEDLE BEARING |
| ROD TO CLUTCH PEDAL | ||
| 102 | N 000936010010 | NUT |
| SPRING TO PUSH ROD | ||
| 106 | A 3812910574 | PIN |
| PUSH ROD TO PEDAL | ||
| 110 | N 000433008406 | WASHER |
| PUSH ROD TO PEDAL | ||
| 114 | N 006799006003 | LOCK PLATE |
| PUSH ROD TO PEDAL | ||
| 116 | A 3802900193 | REPAIR KIT |
| DEAD CENTER SPRING | ||
| 118 | A 0012952906 | MASTER CYLINDER |
| Repalced by: A 0012956006 | ||
| 118 | A 0012956006 | MASTER CYLINDER |
| CLUTCH;LESS DE-AERATION | ||
| 122 | A 0002950836 | INTERMEDIATE PIECE |
| 126 | A 0009971186 | PLUG |
| 130 | A 0005863529 | REPAIR KIT |
| Repalced by: A 0002903412 | ||
| 130 | A 0002903412 | REPAIR KIT |
| TO MASTER CYLINDER HAVING ALUMINUM PISTON | ||
| TO 001 295 29 06 | ||
| 130 | A 0002904667 | REPAIR KIT |
| TO MASTER CYLINDER HAVING SYNTHETIC PISTON | ||
| TO 001 295 60 06 | ||
| 134 | N 000931006191 | SCREW |
| CLUTCH MASTER CYLINDER TO PEDAL BEARING BRACKET | ||
| 138 | N 912004006102 | LOCK WASHER |
| CLUTCH MASTER CYLINDER TO PEDAL BEARING BRACKET | ||
| 142 | A 3812950033 | ROD |
| MASTER CYLINDER | ||
| 146 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 146 | N 304035008001 | NUT |
| ROD TO YOKE | ||
| 150 | A 0009961145 | ARTICULATION PIECE |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 150 | A 0009961045 | ARTICULATION PIECE |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 154 | A 0059814410 | NEEDLE BEARING |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 154 | A 0059813810 | NEEDLE BEARING |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 154 | A 0089811210 | NEEDLE BEARING |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 154 | A 0139818210 | NEEDLE BEARING |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 160 | N 000433008406 | WASHER |
| ROD TO LEVER | ||
| 164 | N 006799006003 | LOCK PLATE |
| ROD TO LEVER | ||
| 168 | A 3812941001 | BEARING BRACKET |
| BRAKE PEDAL | ||
| 172 | N 000939008136 | STUD BOLT |
| BEARING BRACKET TO CAB | ||
| 176 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 176 | N 913004008001 | NUT |
| BEARING BRACKET TO CAB | ||
| 180 | A 3604270253 | SPACER TUBE |
| BEARING BRACKET TO WINDOW SILL GIRDER | ||
| 184 | A 3859901840 | WASHER |
| Repalced by: A 4039900040 | ||
| 184 | A 4039900040 | WASHER |
| BEARING BRACKET TO WINDOW SILL GIRDER | ||
| 188 | N 000931010272 | SCREW |
| BEARING BRACKET TO WINDOW SILL GIRDER | ||
| 192 | N 000137010201 | SPRING WASHER |
| BEARING BRACKET TO WINDOW SILL GIRDER | ||
| 196 | A 3819970486 | PLUG |
| TO PLUG BRAKE OPENING | ||
| 196 | A 3819970386 | PLUG |
| Repalced by: A 0009972020 | ||
| 196 | A 0009972020 | EXPANSION PLUG |
| Repalced by: A 0009973220 | ||
| 196 | A 0009973220 | EXPANSION PLUG |
| TO PLUG BRAKE OPENING | ||
| 200 | A 3852900518 | PEDAL |
| BRAKE | ||
| 204 | A 3812910053 | SPACER TUBE |
| BRAKE PEDAL | ||
| 208 | A 0119813410 | NEEDLE BEARING |
| BRAKE PEDAL | ||
| 212 | A 1072910182 | PAD |
| BRAKE PEDAL | ||
| 216 | A 3852940007 | PIVOT PIN |
| PEDAL TO BEARING BRACKET | ||
| 220 | N 000471020001 | LOCK RING |
| PEDAL TO BEARING BRACKET | ||
| 224 | A 3879935010 | SPRING |
| BRAKE PEDAL RELEASE SPRING | ||
| 228 | A 3812910073 | LOCK |
| PEDAL TO BEARING BRACKET | ||
| 232 | N 000933006102 | SCREW |
| LOCK TO BEARING BRACKET | ||
| 236 | N 912004006102 | LOCK WASHER |
| LOCK TO BEARING BRACKET | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR BRAKE VALVE,SEE GROUP 42 | ||
| 240 | A 6209960001 | YOKE |
| PISTON ROD AND PUSH ROD | ||
| 244 | A 3852950133 | ROD |
| Repalced by: A 9702900039 | ||
| 244 | A 9702900039 | ROD |
| PISTON ROD AND PUSH ROD | ||
| 248 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 248 | N 304035008001 | NUT |
| PISTON ROD AND PUSH ROD | ||
| 252 | A 3852920174 | PIN |
| PISTON ROD TO LEVER | ||
| 256 | N 000433008406 | WASHER |
| PISTON ROD TO LEVER | ||
| 260 | N 000094002059 | COTTER PIN |
| PISTON ROD TO LEVER | ||
| 264 | N 000931006191 | SCREW |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 268 | N 912004006102 | LOCK WASHER |
| MASTER CYLINDER TO BEARING BRACKET | ||

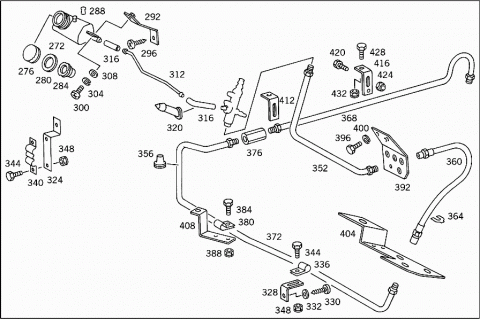

| 272 | A 0002952315 | RESERVOIR |
| RESERVOIR | ||
| 276 | A 0002950116 | LOCKING CAP |
| 280 | A 0009972940 | SEAL RING |
| 284 | A 0004314334 | STRAINER |
| 288 | A 0009885435 | CAP |
| RESERVOIR DE-AERATION | ||
| 292 | A 3872900433 | BRACKET |
| RESERVOIR | ||
| 296 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 300 | N 007985006158 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| 304 | N 912004006102 | LOCK WASHER |
| EXPANSION TANK TO BRACKET | ||
| 308 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 308 | N 009021006208 | WASHER |
| EXPANSION TANK TO BRACKET | ||
| 312 | A 3872950813 | PIPE |
| FROM CLUTCH MASTER CYLINDER TO RESERVOIR | ||
| 316 | A 0009978952 | HOSE |
| FROM CLUTCH MASTER CYLINDER TO RESERVOIR | ||
| 320 | A 3819970981 | GROMMET |
| CLUTCH LINE THRU CAB WINDOW SILL | ||
| 324 | A 3872950340 | BRACKET |
| BRACKET TO CAB | ||
| 324 | A 3872950640 | BRACKET |
| BRACKET TO CAB | ||
| 328 | A 3812950440 | BRACKET |
| BRACKET TO CAB | ||
| 330 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 332 | N 000125006421 | WASHER |
| BRACKET TO CAB | ||
| 336 | A 3609950301 | CLAMP |
| HYDRAULIC LINE TO BRACKET | ||
| 340 | A 3879950007 | CLAMP |
| HYDRAULIC LINE TO BRACKET | ||
| 344 | N 007985006158 | SCREW |
| HYDRAULIC LINE TO BRACKET | ||
| 348 | N 913004006004 | NUT |
| HYDRAULIC LINE TO BRACKET | ||
| 352 | A 3812901814 | LINE |
| FROM CLUTCH MASTER CYLINDER TO HYDRAULIC HOSE | ||
| 700 MM | ||
| 356 | A 3819970881 | GROMMET |
| 360 | A 0002951435 | HOSE |
| FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER | ||
| 555 MM | ||
| 364 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 364 | A 6525040038 | MOUNTING PLATE |
| CLUTCH LINE | ||
| 368 | A 3812902214 | LINE |
| FROM HYDRAULIC HOSE TO CLUTCH CONNECTOR | ||
| 2000 MM | ||
| 372 | A 3812902014 | LINE |
| FROM CONNECTOR TO CLUTCH SLAVE CYLINDER | ||
| 1100 MM | ||
| 376 | A 0002950736 | INTERMEDIATE PIECE |
| CLUTCH LINE | ||
| 380 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 380 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 380 | N 916016008200 | CLAMP |
| LINE TO BRACKET | ||
| 384 | N 007985006158 | SCREW |
| CLAMP TO BRACKET | ||
| 388 | N 913004006004 | NUT |
| CLAMP TO BRACKET | ||
| 392 | A 3852952140 | BRACKET |
| FROM CLUTCH MASTER CYLINDER LINE TO HYDRAULIC HOSE | ||
| 396 | N 000933006102 | SCREW |
| BRACKET TO CAB | ||
| 400 | N 912004006102 | LOCK WASHER |
| BRACKET TO CAB | ||
| 404 | A 3852951340 | BRACKET |
| CLUTCH LINE | ||
| 404 | A 3852951240 | BRACKET |
| CLUTCH LINE | ||
| 404 | A 3852952440 | BRACKET |
| CLUTCH LINE | ||
| 408 | A 3812951340 | BRACKET |
| HYDRAULIC LINE UNDER COUPLING MOUTH CROSS MEMBER | ||
| 412 | A 3812952440 | BRACKET |
| WITH STABILIZER ROD TO FRAME | ||
| 416 | A 3812951940 | BRACKET |
| Repalced by: A 3464296040 | ||
| 416 | A 3464296040 | BRACKET |
| WITH ENGINE REAR CROSS MEMBER TO RUBBER-MOUNTING CONSOLE | ||
| 420 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 420 | N 304017008021 | SCREW |
| LINE TO BRACKET | ||
| 424 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 424 | N 913004008001 | NUT |
| LINE TO BRACKET | ||
| 424 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 424 | N 304017008034 | SCREW |
| BRACKET TO FRAME | ||
| 8X25 | ||
| 428 | N 000933010105 | SCREW |
| BRACKET TO FRAME | ||
| 10X25 | ||
| 428 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 428 | N 308676012012 | SCREW |
| BRACKET TO FRAME | ||
| 12X25 | ||
| 432 | N 910113008001 | NUT |
| BRACKET TO FRAME | ||
| 432 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 432 | N 910113010000 | NUT |
| BRACKET TO FRAME | ||
| 432 | N 910113012002 | NUT |
| BRACKET TO FRAME | ||
