Transporto priemonė: 917 INDONESIA; VIN numerio dalis: 383011
Grupė: 41 PROPELLER SHAFT

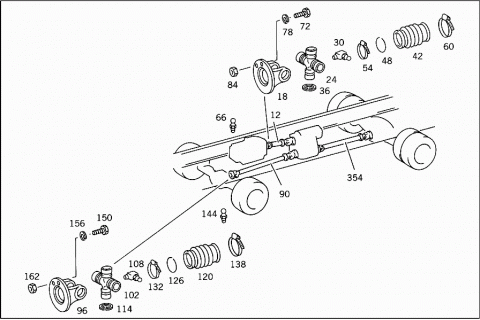

41208

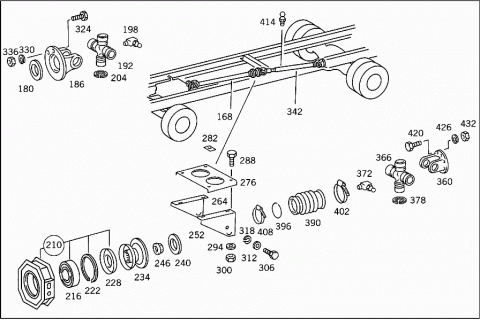

41209
# Kodas Pavadinimas
012 A 3834105602 PROPELLER SHAFT
Repalced by: A 6744102202
012 A 6744102202 PROPELLER SHAFT
FROM TRANSMISSION TO TRANSFER CASE
667 MM
018 A 3544110011 DRIVE FLANGE
018 A 3814110811 DRIVE FLANGE
024 A 3854100131 UNIVERSAL JOINT CROSS
WITH BUSHINGS
024 A 6174100031 UNIVERSAL JOINT CROSS
Repalced by: A 0004104031
024 A 0004104031 UNIVERSAL JOINT CROSS
WITH BUSHINGS
030 N 071412008302 GREASE NIPPLE
UNIVERSAL JOINT CROSS
036 A 3379945035 SNAP RING
AS REQUIRED
2.80 MM
036 A 3379945435 SNAP RING
AS REQUIRED
2.85 MM
036 A 3379945135 SNAP RING
AS REQUIRED
2.90 MM
036 A 3379945235 SNAP RING
AS REQUIRED
2.95 MM
036 A 3379945335 SNAP RING
AS REQUIRED
3.00 MM
036 N 000472042001 LOCK RING
AS REQUIRED
1.750 MM
036 A 0059949941 LOCK
AS REQUIRED
1.90 MM
036 A 0069940441 LOCK
AS REQUIRED
1.98 MM
042 A 3814100180 BOOT
048 A 3214110053 WIRE RING
054 N 916002078100 CLAMP
BOOT TO PROPELLER SHAFT
78 MM
060 N 916002098100 CLAMP
BOOT TO PROPELLER SHAFT
98 MM
066 N 071412008101 GREASE NIPPLE
Repalced by: N 071412008102
066 N 071412008102 GREASE NIPPLE
PROPELLER SHAFT
072 A 3529900401 SCREW
Repalced by: A 3529904701
072 A 3529904701 SCREW
Repalced by: A 0079901001
072 A 0079901001 SCREW
PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE
078 N 912004010102 LOCK WASHER
PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE
084 N 000934010010 NUT
PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE
090 A 3814106902 PROPELLER SHAFT
Repalced by: A 6744101502
090 A 6744101502 PROPELLER SHAFT
FROM TRANSFER CASE TO FRONT AXLE
1108 MM
096 A 3524110011 DRIVE FLANGE
096 A 3814110811 DRIVE FLANGE
102 A 3854100231 UNIVERSAL JOINT CROSS
WITH BUSHINGS
102 A 6174100131 UNIVERSAL JOINT CROSS
WITH BUSHINGS
108 N 071412008302 GREASE NIPPLE
114 A 3129941135 SNAP RING
AS REQUIRED
2.50 MM
114 A 3129941635 SNAP RING
AS REQUIRED
2.55 MM
114 A 3129941335 SNAP RING
AS REQUIRED
2.60 MM
114 A 3129941435 SNAP RING
AS REQUIRED
2.65 MM
114 A 3129941535 SNAP RING
AS REQUIRED
2.70 MM
114 A 3129941735 SNAP RING
AS REQUIRED
2.75 MM
114 N 000472042001 LOCK RING
AS REQUIRED
1,78 MM
114 N 000472042001 LOCK RING
AS REQUIRED
1.90 MM
114 A 0069940441 LOCK
AS REQUIRED
1.98 MM
120 A 3814100180 BOOT
126 A 3214110053 WIRE RING
132 N 916002078100 CLAMP
BOOT TO PROPELLER SHAFT
78 MM
138 N 916002098100 CLAMP
BOOT TO PROPELLER SHAFT
98 MM
144 N 071412008101 GREASE NIPPLE
Repalced by: N 071412008102
144 N 071412008102 GREASE NIPPLE
PROPELLER SHAFT
150 A 3529900401 SCREW
Repalced by: A 3529904701
150 A 3529904701 SCREW
Repalced by: A 0079901001
150 A 0079901001 SCREW
PROPELLER SHAFT TO TRANSFER CASE AND TO FRONT AXLE
156 N 912004010102 LOCK WASHER
PROPELLER SHAFT TO TRANSFER CASE AND TO FRONT AXLE
162 N 000934010010 NUT
PROPELLER SHAFT TO TRANSFER CASE AND TO FRONT AXLE
168 A 3834100604 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING
846 MM
168 A 3834100704 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING
1445 MM
180 A 3814130261 PROTECTIVE CAP
180 A 3814130461 PROTECTIVE CAP
186 A 3544110011 DRIVE FLANGE
192 A 3854100131 UNIVERSAL JOINT CROSS
WITH BUSHINGS
198 N 071412008302 GREASE NIPPLE
UNIVERSAL JOINT CROSS
204 A 3379945035 SNAP RING
AS REQUIRED
2.80 MM
204 A 3379945435 SNAP RING
AS REQUIRED
2.85 MM
204 A 3379945135 SNAP RING
AS REQUIRED
2.90 MM
204 A 3379945235 SNAP RING
AS REQUIRED
2.95 MM
204 A 3379945335 SNAP RING
AS REQUIRED
3.00 MM
210 A 3814100222 INTERMEDIATE BEARING
Repalced by: A 3814101222
210 A 3814101222 INTERMEDIATE BEARING
Repalced by: A 3814101522
210 A 3814101522 INTERMEDIATE BEARING
PROPELLER SHAFT
216 A 0019818625 BALL BEARING
222 A 0019948141 LOCK
228 A 3814130161 PROTECTIVE CAP
INSIDE
234 A 3814100030 CENTERING FLANGE
PROPELLER SHAFT BEARING
240 A 3814130261 PROTECTIVE CAP
OUTSIDE
240 A 3814130461 PROTECTIVE CAP
OUTSIDE
246 A 3529900150 NUT
FOLLOWER FLANGE TO PROPELLER SHAFT
252 A 3854131042 BRACKET
PROPELLER SHAFT BEARING TO CROSS MEMBER, LEFT FRONT
252 A 3854130442 BRACKET
PROPELLER SHAFT BEARING TO CROSS MEMBER, LEFT FRONT
264 A 3854131142 BRACKET
PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT FRONT
264 A 3854130642 BRACKET
PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT FRONT
276 A 3854130011 REINFORCEMENT
BRACKET TO CROSS MEMBER
282 A 3854130111 REINFORCEMENT
BRACKET TO CROSS MEMBER
288 N 000960010026 SCREW
Repalced by: N 000961010031
288 N 000961010031 SCREW
Repalced by: N 308676010023
288 N 308676010023 SCREW
BRACKET TO CROSS MEMBER
294 N 007349010003 WASHER
Repalced by: N 007349010007
294 N 007349010007 WASHER
BRACKET TO CROSS MEMBER
300 N 913002010010 NUT
BRACKET TO CROSS MEMBER
306 N 000931010282 SCREW
FRONT PROPELLER SHAFT TO BRACKET
M 10X40
306 N 000933010105 SCREW
FRONT PROPELLER SHAFT TO BRACKET
M 10X25
312 N 912004010102 LOCK WASHER
FRONT PROPELLER SHAFT TO BRACKET
318 N 007349010003 WASHER
Repalced by: N 007349010007
318 N 007349010007 WASHER
FRONT PROPELLER SHAFT TO BRACKET
324 A 3529900401 SCREW
Repalced by: A 3529904701
324 A 3529904701 SCREW
Repalced by: A 0079901001
324 A 0079901001 SCREW
PROPELLER SHAFT TO TRANSMISSION
330 N 912004010102 LOCK WASHER
PROPELLER SHAFT TO TRANSMISSION
336 N 000934010010 NUT
PROPELLER SHAFT TO TRANSMISSION
342 A 3834100302 PROPELLER SHAFT
Repalced by: A 6744100202
342 A 6744100202 PROPELLER SHAFT
FROM INTERMEDIATE BEARING TO REAR AXLE
1587 MM
342 A 3834100802 PROPELLER SHAFT
Repalced by: A 6744103902
342 A 6744103902 PROPELLER SHAFT
FROM INTERMEDIATE BEARING TO REAR AXLE
1524 MM
342 A 3834100202 PROPELLER SHAFT
FROM INTERMEDIATE BEARING TO REAR AXLE
1203 MM
342 A 3834100702 PROPELLER SHAFT
Repalced by: A 6744102102
342 A 6744102102 PROPELLER SHAFT
FROM INTERMEDIATE BEARING TO REAR AXLE
1151 MM
354 A 3854106307 PROPELLER SHAFT
FROM TRANSFER CASE TO REAR AXLE
890 MM
360 A 3544110011 DRIVE FLANGE
360 A 3814110811 DRIVE FLANGE
360 A 3854111711 DRIVE FLANGE
366 A 3854100131 UNIVERSAL JOINT CROSS
WITH BUSHINGS
366 A 6174100031 UNIVERSAL JOINT CROSS
Repalced by: A 0004104031
366 A 0004104031 UNIVERSAL JOINT CROSS
WITH BUSHINGS
366 A 3814100231 UNIVERSAL JOINT CROSS
Repalced by: A 9734100031
366 A 9734100031 UNIVERSAL JOINT CROSS
WITH BUSHINGS
372 N 071412008302 GREASE NIPPLE
UNIVERSAL JOINT CROSS
378 A 0069940641 LOCK
AS REQUIRED
1.65 MM
378 A 0069940841 LOCK
AS REQUIRED
1.70 MM
378 N 000472048000 LOCK RING
AS REQUIRED
1.75 MM
378 A 0069941241 LOCK
AS REQUIRED
1.80 MM
378 A 0069941441 LOCK
AS REQUIRED
1.85 MM
378 A 0039943641 LOCK
AS REQUIRED
1.90 MM
378 A 3379945035 SNAP RING
AS REQUIRED
2.80 MM
378 A 3379945435 SNAP RING
AS REQUIRED
2.85 MM
378 A 3379945135 SNAP RING
AS REQUIRED
2.90 MM
378 A 3379945235 SNAP RING
AS REQUIRED
2.95 MM
378 A 3379945335 SNAP RING
AS REQUIRED
3.00 MM
378 N 000472042001 LOCK RING
AS REQUIRED
1,78 MM
378 A 0059949941 LOCK
AS REQUIRED
1.90 MM
378 A 0069940441 LOCK
AS REQUIRED
1.98 MM
390 A 3814100080 BOOT
Repalced by: A 3814100180
390 A 3814100180 BOOT
396 A 3214110053 WIRE RING
402 N 916002078100 CLAMP
BOOT TO PROPELLER SHAFT
78 MM
408 N 916002098100 CLAMP
BOOT TO PROPELLER SHAFT
98 MM
414 N 071412008101 GREASE NIPPLE
Repalced by: N 071412008102
414 N 071412008102 GREASE NIPPLE
PROPELLER SHAFT
420 A 3529900401 SCREW
Repalced by: A 3529904701
420 A 3529904701 SCREW
Repalced by: A 0079901001
420 A 0079901001 SCREW
REAR PROPELLER SHAFT TO FRONT PROPELLER SHAFT
420 A 3609901901 SCREW
Repalced by: A 3609903001
420 A 3609903001 SCREW
PROPELLER SHAFT TO REAR AXLE
420 A 3609903001 SCREW
PROPELLER SHAFT TO TRANSFER CASE AND TO REAR AXLE
426 N 912004010102 LOCK WASHER
REAR PROPELLER SHAFT TO FRONT PROPELLER SHAFT
426 N 912004012100 LOCK WASHER
PROPELLER SHAFT TO REAR AXLE
426 N 912004012100 LOCK WASHER
PROPELLER SHAFT TO TRANSFER CASE AND TO REAR AXLE
432 N 000934010010 NUT
REAR PROPELLER SHAFT TO FRONT PROPELLER SHAFT
432 N 000934012034 NUT
PROPELLER SHAFT TO REAR AXLE
432 N 000934012034 NUT
PROPELLER SHAFT TO TRANSFER CASE AND TO REAR AXLE
