Transporto priemonė: 917 INDONESIA; VIN numerio dalis: 383011

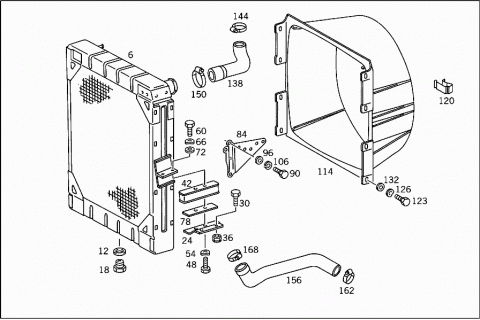

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 3815010701 | RADIATOR |
| Repalced by: A 3815010801 | ||
| 006 | A 3815010801 | RADIATOR |
| 006 | A 3835010801 | RADIATOR |
| 006 | H YK6845001701 | RADIATOR |
| 012 | N 007603014405 | SEAL RING |
| 018 | N 007604014101 | SCREW PLUG |
| 024 | A 3835040401 | SUPPORT |
| RADIATOR MOUNTING | ||
| 030 | N 000961012023 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 036 | N 910113012002 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 042 | A 3875040112 | RUBBER MOUNTING |
| RADIATOR MOUNTING | ||
| 048 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 048 | N 304017010028 | SCREW |
| RUBBER MOUNTING TO SUPPORT | ||
| M 10X18 | ||
| 054 | N 000137010201 | SPRING WASHER |
| RUBBER MOUNTING TO SUPPORT | ||
| 060 | N 000933010145 | SCREW |
| RADIATOR TO LEFT AND RIGHT RUBBER MOUNTINGS | ||
| M 10X35 | ||
| 066 | N 000137010201 | SPRING WASHER |
| RADIATOR TO LEFT AND RIGHT RUBBER MOUNTINGS | ||
| 072 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 072 | N 000125010532 | WASHER |
| RADIATOR TO LEFT AND RIGHT RUBBER MOUNTINGS | ||
| 078 | A 3835040084 | SHIM |
| RADIATOR TO LEFT AND RIGHT RUBBER MOUNTINGS | ||
| 5 MM | ||
| 078 | A 3855040184 | SHIM |
| RADIATOR TO LEFT AND RIGHT RUBBER MOUNTINGS | ||
| 3 MM | ||
| 078 | A 3855040284 | SHIM |
| RADIATOR TO LEFT AND RIGHT RUBBER MOUNTINGS | ||
| 2 MM | ||
| 084 | A 4010100240 | BRACKET |
| OIL DIPSTICK TO RADIATOR | ||
| 090 | N 000933008145 | SCREW |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 096 | N 007349008003 | WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 106 | N 912004008102 | LOCK WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 114 | A 3815050555 | FAN SHROUD |
| 114 | A 3815051555 | FAN SHROUD |
| 120 | A 1235040246 | CLAMP |
| FAN SHROUD TO RADIATOR | ||
| 123 | N 000933006102 | SCREW |
| FAN SHROUD TO RADIATOR | ||
| M 6X16 | ||
| 123 | N 000933006130 | SCREW |
| FAN SHROUD TO RADIATOR | ||
| M 6X18 | ||
| 126 | N 000137006204 | SPRING WASHER |
| FAN SHROUD TO RADIATOR | ||
| 132 | A 3859901140 | WASHER |
| FAN SHROUD TO RADIATOR | ||
| 138 | A 3815011082 | HOSE |
| FROM THERMOSTAT TO RADIATOR FILLER NECK | ||
| 144 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 144 | N 000000000671 | CLAMP |
| HOSE TO RADIATOR AND TO ENGINE | ||
| 150 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 150 | N 000000000672 | CLAMP |
| HOSE TO RADIATOR AND TO ENGINE | ||
| 156 | A 3815012682 | HOSE |
| FROM RADIATOR TO OIL COOLER | ||
| A 6765010081 | RUBBER PAD | |
| COOLING WATER LINE | ||
| 162 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 162 | N 000000000671 | CLAMP |
| HOSE TO RADIATOR AND TO OIL COOLER | ||
| 168 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 168 | N 000000000672 | CLAMP |
| HOSE TO RADIATOR AND TO OIL COOLER | ||

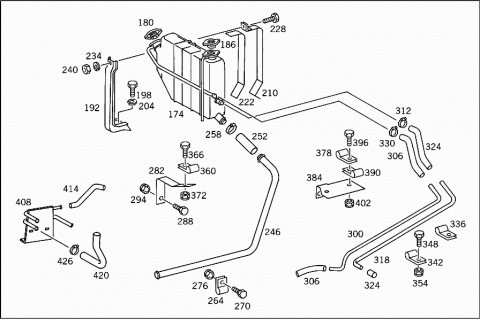

| 174 | A 3815000849 | TANK |
| EXPANSION TANK | ||
| 180 | A 0005014515 | RADIATOR CAP |
| 186 | A 0005014615 | RADIATOR CAP |
| 186 | A 0005017215 | RADIATOR CAP |
| 192 | A 3815010520 | BRACKET |
| Repalced by: A 6155010020 | ||
| 192 | A 6155010020 | BRACKET |
| EXPANSION TANK | ||
| 198 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 198 | N 304017010028 | SCREW |
| BRACKET TO FENDER SUPPORT | ||
| 204 | N 912004010102 | LOCK WASHER |
| BRACKET TO FENDER SUPPORT | ||
| 210 | A 3815012720 | BRACKET |
| (STRAP) | ||
| 222 | A 3634750220 | PAD |
| 222 | A 3815010495 | SHIM |
| 228 | N 000933010105 | SCREW |
| EXPANSION TANK TO SUPPORT | ||
| 234 | N 912004010102 | LOCK WASHER |
| EXPANSION TANK TO SUPPORT | ||
| 240 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 240 | N 910113010000 | NUT |
| EXPANSION TANK TO SUPPORT | ||
| 246 | A 3815011124 | COOLING WATER PIPE |
| FROM EXPANSION TANK TO WATER PUMP | ||
| 252 | N 900271028026 | HOSE |
| FROM EXPANSION TANK TO WATER PUMP | ||
| 258 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 258 | N 000000000670 | CLAMP |
| HOSE TO EXPANSION TANK AND TO WATER PUMP | ||
| 258 | N 000000000670 | CLAMP |
| HOSE TO EXPANSION TANK AND TO WATER PUMP | ||
| 264 | N 916016028200 | CLAMP |
| COOLING WATER LINE TO BRACKET & CONSOLE,RESP. | ||
| 264 | N 916016028200 | CLAMP |
| COOLING WATER LINE TO BRACKET & CONSOLE,RESP. | ||
| 270 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 270 | N 304017008021 | SCREW |
| COOLING WATER LINE TO BRACKET & CONSOLE,RESP. | ||
| 276 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 276 | N 913004008001 | NUT |
| COOLING WATER LINE TO BRACKET & CONSOLE,RESP. | ||
| 282 | A 3815013020 | BRACKET |
| COOLING WATER PIPE TO SIDE MEMBER | ||
| 288 | N 000961012151 | SCREW |
| COOLING WATER PIPE TO SIDE MEMBER | ||
| 294 | N 910113012002 | NUT |
| COOLING WATER PIPE TO SIDE MEMBER | ||
| 300 | A 3815014025 | BREATHER PIPE |
| FROM RADIATOR TO EXPANSION TANK | ||
| 306 | N 900271012018 | HOSE |
| FROM RADIATOR TO EXPANSION TANK | ||
| 312 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 312 | N 000000000667 | CLAMP |
| HOSE TO RADIATOR AND TO EXPANSION TANK | ||
| 318 | A 3815012125 | BREATHER PIPE |
| FROM EXPANSION TANK TO ENGINE | ||
| 324 | N 900271015037 | HOSE |
| FROM EXPANSION TANK TO ENGINE | ||
| 330 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 330 | N 000000000667 | CLAMP |
| HOSE TO EXPANSION TANK AND TO ENGINE | ||
| 336 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 336 | A 6739950001 | CLAMP |
| ENGINE BREATHING | ||
| 342 | A 3609950401 | CLAMP |
| ENGINE BREATHING | ||
| 348 | N 000933006102 | SCREW |
| ENGINE BREATHING | ||
| 354 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 354 | N 913004006001 | NUT |
| ENGINE BREATHING | ||
| 360 | A 3049951520 | CLAMP |
| DE-AERATION LINE TO BRACKET | ||
| 366 | N 000933006102 | SCREW |
| DE-AERATION LINE TO BRACKET | ||
| 372 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 372 | N 913004006001 | NUT |
| DE-AERATION LINE TO BRACKET | ||
| 378 | A 3609950401 | CLAMP |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 384 | A 3522030840 | BRACKET |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 390 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 390 | A 6739950001 | CLAMP |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 396 | N 000933006127 | SCREW |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 402 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 402 | N 913004006001 | NUT |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 408 | A 3815002872 | LINE |
| (HEATING PIPE) | ||
| 414 | N 900271018038 | HOSE |
| (HEATING LINE),FROM ENGINE TO HEATER | ||
| 420 | A 3835060035 | HOSE |
| (HEATING LINE),FROM ENGINE TO HEATER | ||
| A 3815010144 | COVER | |
| HEATING CONNECTION LOCK | ||
| 426 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 426 | N 000000000667 | CLAMP |
| HOSE TO HEATING PIPE | ||
