Transporto priemonė: 917 INDONESIA; VIN numerio dalis: 383011
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

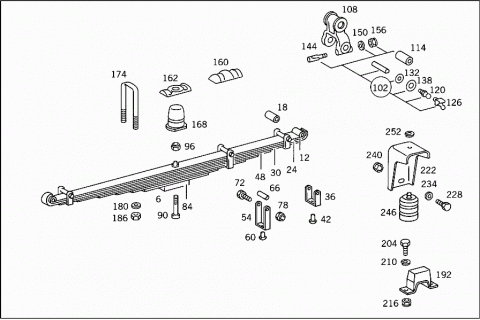

| 006 | A 3833200402 | FRONT SPRING |
| 8-LEAF | ||
| 006 | A 3833202202 | FRONT SPRING |
| 8-LEAF | ||
| 012 | A 3833201294 | SPRING LEAF |
| NO.1 | ||
| 012 | A 3853202994 | SPRING LEAF |
| NO.1 | ||
| 018 | A 3523220050 | BUSHING |
| 018 | A 3853220050 | BUSHING |
| 024 | A 3833212012 | SPRING LEAF |
| NO.2 | ||
| 024 | A 3853212512 | SPRING LEAF |
| NO.2 | ||
| 030 | A 3833200194 | SPRING LEAF |
| NO.3 | ||
| 030 | A 3833201894 | SPRING LEAF |
| NO.3 | ||
| 036 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.3 | ||
| 036 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.3 | ||
| 042 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 042 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| A 3833210513 | SPRING LEAF | |
| AT SPRING LEAF NO.4 | ||
| NO.3 | ||
| 048 | A 3833210614 | SPRING LEAF |
| NO.4 | ||
| 048 | A 3833210514 | SPRING LEAF |
| NO.4 | ||
| 054 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.6 | ||
| 054 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.7 | ||
| 054 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.4 | ||
| 060 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 066 | A 0003212353 | SPACER TUBE |
| Repalced by: A 0003213253 | ||
| 066 | A 0003213253 | SPACER TUBE |
| FOR SPRING CLAMPS | ||
| 072 | N 000931008326 | SCREW |
| Repalced by: N 304014008009 | ||
| 072 | N 304014008009 | SCREW |
| FOR SPRING CLAMPS | ||
| 078 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 078 | N 913004008001 | NUT |
| FOR SPRING CLAMPS | ||
| 084 | A 3143221084 | SHIM |
| 084 | A 3833220084 | SHIM |
| 090 | N 004626012120 | SPRING BOLT |
| M 12X145 | ||
| 090 | N 004626012127 | SPRING BOLT |
| M 12X145 | ||
| 096 | N 913004012007 | NUT |
| Repalced by: N 910113012005 | ||
| 096 | N 910113012005 | NUT |
| 102 | A 3853200165 | SHACKLE PIN |
| PARTS KIT | ||
| 108 | A 6173200163 | SHACKLE |
| FRONT SPRING | ||
| 114 | A 3523220050 | BUSHING |
| 114 | A 3853220050 | BUSHING |
| 120 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 120 | N 071412010300 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 126 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 132 | A 3523230376 | WASHER |
| SPRING SEAT | ||
| 4.00 MM | ||
| 132 | A 3523230476 | WASHER |
| SPRING SEAT | ||
| 4.20 MM | ||
| 138 | A 0029973140 | SEAL RING |
| SPRING SEAT | ||
| 144 | A 3529900337 | BOLT |
| SPRING SEAT | ||
| 150 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 150 | N 000125010532 | WASHER |
| SPRING SEAT | ||
| 156 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 156 | N 910113010000 | NUT |
| SPRING SEAT | ||
| 160 | A 3833220031 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 162 | A 3523220131 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 168 | A 3833240008 | HELPER SPRING |
| FRONT SPRINGS TO FRONT AXLE | ||
| 174 | A 3403510325 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 174 | A 3523311225 | U-BOLT |
| Repalced by: A 3533310625 | ||
| 174 | A 3533310625 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 290 MM | ||
| 174 | A 3523310625 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 230 MM | ||
| 180 | A 3279970026 | WASHER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 186 | N 000934018006 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 192 | A 3853300075 | RUBBER MOUNTING |
| FRONT SPRING STOP | ||
| 204 | N 000933010105 | SCREW |
| STOP BUFFER TO FRONT AXLE,LEFT | ||
| M 10X25 | ||
| 204 | N 000933010128 | SCREW |
| STOP BUFFER TO FRONT AXLE,RIGHT | ||
| M 10X20 | ||
| 210 | N 912004010102 | LOCK WASHER |
| STOP BUFFER TO FRONT AXLE,RIGHT | ||
| 216 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 216 | N 910113010000 | NUT |
| STOP BUFFER TO FRONT AXLE,LEFT | ||
| 222 | A 3853250040 | BRACKET |
| HELPER SPRING | ||
| 228 | N 000961014088 | SCREW |
| Repalced by: N 308676014008 | ||
| 228 | N 308676014008 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 234 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 234 | N 000125015019 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 240 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 240 | N 910113014000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 246 | A 3853200077 | RUBBER SPRING |
| (HELPER SPRING) | ||
| 252 | N 912002012001 | LOCK |
| RUBBER SPRING TO BRACKET | ||
| N 000125013008 | WASHER | |

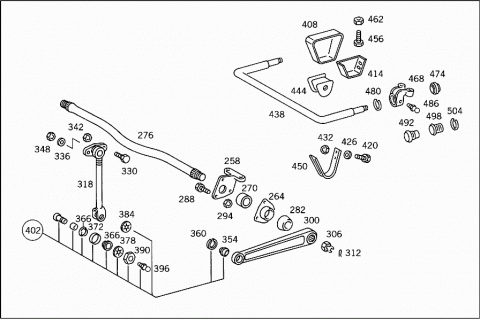

| 258 | A 3523231463 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 264 | A 3523230283 | HOUSING |
| TORSION BAR,FRONT | ||
| 270 | A 3603230085 | RUBBER MOUNTING |
| TORSION BAR,FRONT | ||
| 276 | A 3603230065 | TORSION BAR |
| TORSION BAR,FRONT | ||
| 282 | A 3603230151 | SPACER RING |
| TORSION BAR,FRONT | ||
| 288 | N 000933010145 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 294 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 294 | N 910113010000 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 300 | A 3603230869 | LEVER |
| TORSION BAR,FRONT | ||
| 306 | N 000937030000 | NUT |
| LEVER TO TORSION BAR | ||
| 312 | N 000094006317 | COTTER PIN |
| LEVER TO TORSION BAR | ||
| 318 | A 6173200089 | ROD |
| TORSION BAR | ||
| 330 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 330 | N 308676012026 | SCREW |
| ROD TO FRAME | ||
| M 12X35 | ||
| 330 | N 000961012179 | SCREW |
| ROD TO FRAME | ||
| M 12X38 | ||
| 336 | N 006796016102 | CONICAL SPRING WASHER |
| ROD TO FRAME | ||
| 342 | N 910113012002 | NUT |
| ROD TO FRAME | ||
| 348 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 348 | N 910113016002 | NUT |
| ROD TO FRAME | ||
| 354 | A 0009817231 | JOINT BEARING |
| Repalced by: A 0019814631 | ||
| 354 | A 0019814631 | JOINT BEARING |
| A 0019814831 | JOINT BEARING | |
| 360 | N 007993035200 | SNAP RING |
| JOINT TO LEVER | ||
| 366 | A 3603230460 | SEAL RING |
| ARTICULATED ROD TO LEVER | ||
| 372 | A 3603230153 | SPACER TUBE |
| ARTICULATED ROD TO LEVER | ||
| 378 | N 006797021201 | TOOTHED WASHER |
| ARTICULATED ROD TO LEVER | ||
| 384 | N 006797021101 | TOOTHED WASHER |
| ARTICULATED ROD TO LEVER | ||
| 390 | N 000936020010 | NUT |
| ARTICULATED ROD TO LEVER | ||
| 396 | N 071412010100 | GREASE NIPPLE |
| 402 | A 3603200041 | REPAIR KIT |
| TORSION BAR,FRONT | ||
| 408 | A 3833231363 | BEARING BRACKET |
| TORSION BAR | ||
| 414 | A 3833230195 | REINFORCEMENT |
| 420 | N 000961012164 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 420 | N 000961012164 | SCREW |
| REINFORCEMENT TO BEARING BRACKET AND TO ENGINE CROSS MEMBER | ||
| 426 | N 000125013008 | WASHER |
| 432 | N 910113012002 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 432 | N 910113012002 | NUT |
| REINFORCEMENT TO BEARING BRACKET AND TO ENGINE CROSS MEMBER | ||
| 438 | A 3853230265 | TORSION BAR |
| FRONT AXLE | ||
| 444 | A 3833260081 | RUBBER MOUNTING |
| TORSION BAR TO BEARING BRACKET | ||
| 450 | A 3833230240 | BRACKET |
| TORSION BAR TO BEARING BRACKET | ||
| 456 | N 000961012164 | SCREW |
| BRACKET TO BEARING BRACKET | ||
| 462 | N 910113012002 | NUT |
| BRACKET TO BEARING BRACKET | ||
| 468 | A 3853230263 | BEARING BRACKET |
| TORSION BAR TO FRONT AXLE | ||
| 474 | A 0009816131 | JOINT BEARING |
| CAB REAR PANEL | ||
| 474 | A 0009817431 | JOINT BEARING |
| CAB REAR PANEL | ||
| 480 | N 000472055000 | LOCK RING |
| AT BEARING BRACKET | ||
| 486 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 486 | N 071412008102 | GREASE NIPPLE |
| AT BEARING BRACKET | ||
| 492 | A 3833230092 | BOOT |
| CAB REAR PANEL | ||
| 498 | A 3833230392 | BOOT |
| CAB REAR PANEL | ||
| 504 | N 900055022200 | LOCK RING |
| CAB REAR PANEL | ||

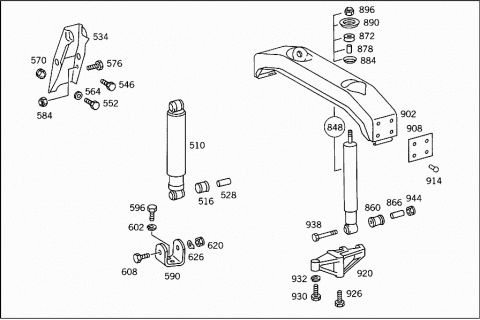

| 510 | A 0023238600 | SHOCK ABSORBER |
| Repalced by: A 0043236400 | ||
| 510 | A 0043236400 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 510 | A 0023238700 | SHOCK ABSORBER |
| Repalced by: A 0043235200 | ||
| 510 | A 0043235200 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 516 | A 0003232444 | RUBBER BUFFER |
| Repalced by: A 0003232885 | ||
| 516 | A 0003232885 | RUBBER MOUNTING |
| TO 002 323 86 00,004 323 64 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 323 87 00 | ||
| 516 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 516 | A 0003233144 | RUBBER BUFFER |
| TO 004 323 52 00 | ||
| 528 | A 0003232550 | BUSHING |
| Repalced by: A 0003233150 | ||
| 528 | A 0003233150 | BUSHING |
| TO 002 323 86 00,004 323 64 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 323 87 00 | ||
| 528 | A 0003235250 | BUSHING |
| TO 004 323 52 00 | ||
| 534 | A 3833200278 | CONSOLE |
| LEFT SHOCK ABSORBER | ||
| 534 | A 3833200478 | CONSOLE |
| LEFT SHOCK ABSORBER | ||
| 534 | A 3833200378 | CONSOLE |
| RIGHT SHOCK ABSORBER | ||
| 534 | A 3833200578 | CONSOLE |
| RIGHT SHOCK ABSORBER | ||
| 546 | N 000961012151 | SCREW |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 552 | N 000961012122 | SCREW |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| M 12X40 | ||
| 552 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 552 | N 308676012012 | SCREW |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| M 12X25 | ||
| 564 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 564 | N 007349013005 | WASHER |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 570 | N 910113012002 | NUT |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 576 | N 000960016244 | SCREW |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 584 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 584 | N 910113016002 | NUT |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 590 | A 3833231863 | BEARING BRACKET |
| BOTTOM | ||
| 596 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 596 | N 308676012012 | SCREW |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 602 | N 912004012100 | LOCK WASHER |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 608 | N 000960016164 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 608 | N 000960016105 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 620 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 620 | N 910113016002 | NUT |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 626 | N 000093017001 | LOCK PLATE |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||

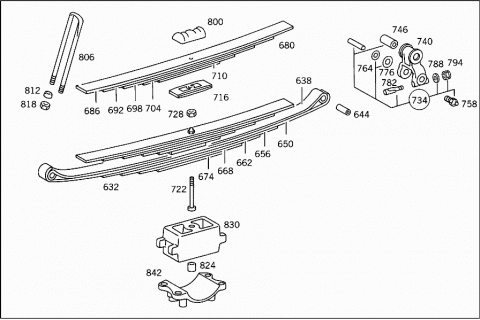

| 632 | A 3833200208 | REAR SPRING |
| 6-LEAF;WITH 5-LEAF HELPER SPRING | ||
| 638 | A 3833200993 | SPRING LEAF |
| NO.1 | ||
| 644 | A 3523250150 | BUSHING |
| 644 | A 3853250050 | BUSHING |
| 650 | A 3833241012 | SPRING LEAF |
| NO.2 | ||
| 656 | A 3833240213 | SPRING LEAF |
| NO.3 | ||
| 662 | A 3833240214 | SPRING LEAF |
| NO.4 | ||
| 668 | A 3833240215 | SPRING LEAF |
| NO.5 | ||
| 674 | A 3833240216 | SPRING LEAF |
| NO.6 | ||
| 680 | A 3833200010 | HELPER SPRING |
| 5-LEAF | ||
| 686 | A 3833240240 | SPRING LEAF |
| NO.1 | ||
| 692 | A 3833240241 | SPRING LEAF |
| NO.2 | ||
| 698 | A 3833240242 | SPRING LEAF |
| NO.3 | ||
| 704 | A 3833240243 | SPRING LEAF |
| NO.4 | ||
| 710 | A 3833240244 | SPRING LEAF |
| NO.5 | ||
| 716 | A 3523240135 | SPACER |
| 722 | A 6173241671 | SPRING BOLT |
| M 12X220 | ||
| 728 | N 913004012007 | NUT |
| Repalced by: N 910113012005 | ||
| 728 | N 910113012005 | NUT |
| 734 | A 3853200065 | SHACKLE PIN |
| PARTS KIT | ||
| 740 | A 3523200163 | SHACKLE |
| REAR SPRING | ||
| 746 | A 3523250150 | BUSHING |
| 746 | A 3853250050 | BUSHING |
| 758 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 764 | A 3523230976 | WASHER |
| SPRING SEAT | ||
| 4.00 MM | ||
| 764 | A 3523231076 | WASHER |
| SPRING SEAT | ||
| 4.20 MM | ||
| 776 | A 0029973040 | SEAL RING |
| SPRING SEAT | ||
| 782 | A 3529900337 | BOLT |
| SPRING SEAT | ||
| 788 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 788 | N 000125010532 | WASHER |
| SPRING SEAT | ||
| 794 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 794 | N 910113010000 | NUT |
| SPRING SEAT | ||
| 800 | A 3833250231 | PLATE |
| REAR AXLE TO TO REAR SPRINGS | ||
| 806 | A 3853511425 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 390 MM | ||
| 806 | A 3853512925 | U-BOLT |
| Repalced by: A 3853512025 | ||
| 806 | A 3853512025 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 450 MM | ||
| 812 | A 3859970126 | WASHER |
| REAR SPRING TO REAR AXLE | ||
| 818 | N 000934020008 | NUT |
| Repalced by: N 308673020002 | ||
| 818 | N 308673020002 | NUT |
| Repalced by: N 308674020000 | ||
| 818 | N 308674020000 | NUT |
| REAR SPRING TO REAR AXLE | ||
| 824 | A 6179910064 | SHEAR BUSHING |
| REAR SPRING TO REAR AXLE | ||
| 830 | A 3853510728 | PAD |
| REAR AXLE TO TO REAR SPRINGS | ||
| 830 | A 3853510528 | PAD |
| REAR AXLE TO TO REAR SPRINGS | ||
| 830 | A 3853510628 | PAD |
| REAR AXLE TO TO REAR SPRINGS | ||
| 830 | A 3833250484 | SHIM |
| REAR AXLE TO TO REAR SPRINGS | ||
| 842 | A 3853250031 | PLATE |
| REAR AXLE TO TO REAR SPRINGS | ||
| 848 | A 3853260100 | SHOCK ABSORBER |
| (PARTS KIT),REAR AXLE | ||
| 848 | A 3853260200 | SHOCK ABSORBER |
| (PARTS KIT),REAR AXLE | ||
| 860 | A 0003230785 | RUBBER MOUNTING |
| SHOCK ABSORBER,BOTTOM | ||
| TO 003 326 92 00,003 326 95 00 | ||
| A 0003233044 | RUBBER BUFFER | |
| Repalced by: A 0003233144 | ||
| A 0003233144 | RUBBER BUFFER | |
| SHOCK ABSORBER,BOTTOM | ||
| TO 003 326 45 00,004 326 18 00 | ||
| 866 | A 0003230553 | SPACER TUBE |
| SHOCK ABSORBER,BOTTOM | ||
| 872 | A 3853260068 | RUBBER BUFFER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 878 | A 3853230253 | SPACER TUBE |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 884 | A 3543260067 | RETAINER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 890 | A 3173260167 | RETAINER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 896 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 896 | N 910113016002 | NUT |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 902 | A 3853100440 | CROSS MEMBER |
| REAR SHOCK ABSORBERS | ||
| 902 | A 3853100140 | CROSS MEMBER |
| REAR SHOCK ABSORBERS | ||
| 908 | A 3853120084 | SHIM |
| SHOCK ABSORBER TO LOWER CONTROL ARM | ||
| 914 | N 910005012080 | RIVET |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| 12X42 MM | ||
| 920 | A 3833260040 | BRACKET |
| LEFT SHOCK ABSORBER | ||
| 920 | A 3833260140 | BRACKET |
| RIGHT SHOCK ABSORBER | ||
| 926 | N 000960014073 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 14X110 | ||
| 930 | N 000960014244 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 14X65 | ||
| 932 | N 912004014100 | LOCK WASHER |
| BRACKET TO SPRING SADDLE | ||
| 938 | A 3859900101 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| 944 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 944 | N 913004020003 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
