Transporto priemonė: 917 INDONESIA; VIN numerio dalis: 383011
Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR STEERING,SEE UNIT STANDARD VERSION, MODEL: | ||
| 765.2 | ||

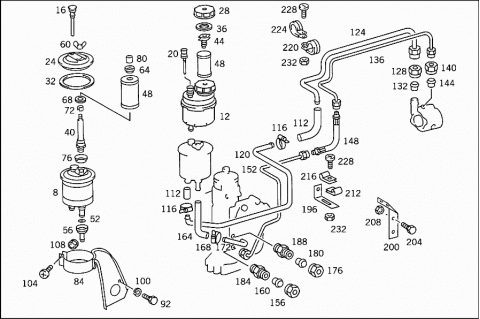

| 008 | A 0004663802 | TANK |
| Repalced by: A 0004664502 | ||
| 012 | A 0004664502 | TANK |
| 016 | A 0004660218 | PIPE |
| TO 000 466 38 02 | ||
| 020 | A 0004660267 | OIL DIPSTICK |
| Repalced by: A 0004660867 | ||
| 020 | A 0004660867 | OIL DIPSTICK |
| TO 000 466 45 02 | ||
| A 1233270059 | PROTECTIVE CAP | |
| 024 | A 0004662005 | COVER |
| TO 000 466 38 02 | ||
| 028 | A 0004660068 | FILLER CAP |
| TO 000 466 45 02 | ||
| 032 | A 0004660260 | SEAL RING |
| TO 000 466 38 02 | ||
| 036 | A 0004661760 | SEAL RING |
| TO 000 466 45 02 | ||
| 040 | A 0014664465 | FILTER CARRIER |
| TO 000 466 38 02 | ||
| 044 | A 0004660740 | BRACKET |
| TO 000 466 45 02 | ||
| 048 | A 0004660604 | FILTER |
| 052 | A 0059970848 | SEAL RING |
| TO 000 466 38 02 | ||
| 056 | A 0004660558 | CONNECTOR |
| TO 000 466 38 02 | ||
| 060 | N 000315008006 | NUT |
| TO 000 466 38 02 | ||
| 064 | A 0004660675 | CENTERING RING |
| TO 000 466 38 02 | ||
| 068 | A 0004660275 | WASHER |
| Repalced by: A 9402680552 | ||
| 068 | A 9402680552 | SPACER WASHER |
| TO 000 466 38 02 | ||
| 072 | A 0004660153 | SPACER TUBE |
| TO 000 466 38 02 | ||
| 076 | A 0004660238 | COVER PLATE |
| TO 000 466 38 02 | ||
| 080 | A 0009870643 | RUBBER SLEEVE |
| TO 000 466 38 02 | ||
| 084 | A 3834600335 | BRACKET |
| OIL TANK | ||
| 084 | A 3834600135 | BRACKET |
| OIL TANK | ||
| 092 | N 304017010027 | SCREW |
| BRACKET TO STEERING | ||
| M 10X15 | ||
| 092 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 092 | N 304017010028 | SCREW |
| BRACKET TO STEERING | ||
| M 10X18 | ||
| 100 | N 912004010102 | LOCK WASHER |
| BRACKET TO STEERING | ||
| 104 | N 007985006139 | SCREW |
| OIL TANK TO BRACKET | ||
| M 6X30 | ||
| 108 | N 913002006001 | NUT |
| Repalced by: N 913002006009 | ||
| 108 | N 913002006009 | NUT |
| OIL TANK TO BRACKET | ||
| 112 | A 3609970982 | HOSE |
| Repalced by: A 3859971582 | ||
| 112 | A 3859971582 | HOSE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| 116 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 116 | N 000000000667 | CLAMP |
| HOSE TO OIL LINE | ||
| 120 | A 3834660865 | LINE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| 120 | A 3834660365 | LINE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| 124 | A 3814600224 | LINE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| 128 | N 915017022100 | UNION NUT |
| SUCTION LINE TO OIL PUMP | ||
| 132 | N 003861022004 | GLAND |
| Repalced by: A 0019901267 | ||
| 132 | A 0019901267 | SEAL CONE |
| SUCTION LINE TO OIL PUMP | ||
| 136 | A 3814601024 | LINE |
| (DELIVERY LINE),FROM PUMP TO STEERING | ||
| 140 | N 915017012100 | UNION NUT |
| OIL LINES | ||
| 144 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 144 | A 0019901967 | SEAL CONE |
| OIL LINES | ||
| 148 | A 0009978152 | HOSE |
| (DELIVERY LINE),FROM PUMP TO STEERING | ||
| 148 | A 0129972482 | HOSE |
| (DELIVERY LINE),FROM PUMP TO STEERING | ||
| 148 | A 0019976352 | HOSE |
| (DELIVERY LINE),FROM PUMP TO STEERING | ||
| 152 | A 3854600124 | LINE |
| (DELIVERY LINE),FROM PUMP TO STEERING | ||
| 152 | A 3814601224 | LINE |
| (DELIVERY LINE),FROM PUMP TO STEERING | ||
| 156 | N 915017012100 | UNION NUT |
| OIL LINES | ||
| 160 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 160 | A 0019901967 | SEAL CONE |
| OIL LINES | ||
| 164 | A 3439970582 | HOSE |
| Repalced by: A 6999974082 | ||
| 164 | A 6999974082 | HOSE |
| Repalced by: A 3859971682 | ||
| 164 | A 3859971682 | HOSE |
| (RETURN LINE),FROM STEERING TO OIL TANK | ||
| 164 | A 3834660381 | HOSE |
| (RETURN LINE),FROM STEERING TO OIL TANK | ||
| 168 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 168 | N 000000000666 | CLAMP |
| HOSE TO OIL LINE | ||
| 172 | A 3854660265 | LINE |
| (RETURN LINE),FROM STEERING TO OIL TANK | ||
| 176 | N 915017015100 | UNION NUT |
| OIL LINES | ||
| 180 | N 003861015004 | GLAND |
| OIL LINES | ||
| 184 | N 003901012011 | SCREW-IN FITTING |
| DELIVERY LINE TO STEERING | ||
| 188 | N 003901015005 | SCREW-IN FITTING |
| RETURN LINE TO STEERING | ||
| 188 | A 3839970072 | FITTING |
| RETURN LINE TO STEERING | ||
| 196 | A 3812950440 | BRACKET |
| LINE TO STEERING | ||
| 200 | A 3874660940 | BRACKET |
| DELIVERY AND SUCTION LINES TO BRACKET AT FRAME | ||
| 204 | N 000961012025 | SCREW |
| BRACKET TO FRAME | ||
| M 12X28 | ||
| 208 | N 910113012002 | NUT |
| BRACKET TO FRAME | ||
| 212 | A 3609950401 | CLAMP |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| 216 | A 3609950701 | CLAMP |
| Repalced by: N 916016018202 | ||
| 216 | N 916016018202 | CLAMP |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| 220 | N 916016012200 | CLAMP |
| DELIVERY AND SUCTION LINES | ||
| 224 | N 916016022202 | CLAMP |
| DELIVERY AND SUCTION LINES | ||
| 228 | N 000000001147 | SCREW |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| M 6X20 | ||
| 232 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 232 | N 913004006001 | NUT |
| DELIVERY AND SUCTION LINES TO BRACKET | ||

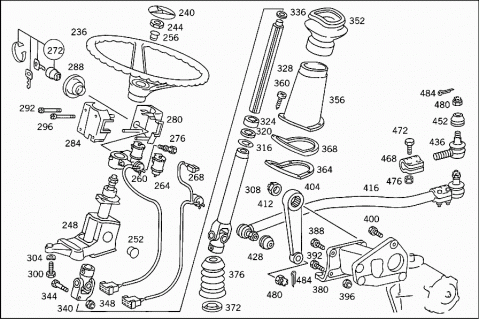

| 236 | A 3834640201 | STEERING WHEEL |
| 240 | A 0004640432 | BADGE |
| STEERING WHEEL | ||
| 244 | N 308675022001 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| 248 | A 3814602531 | STEERING COLUMN BRACKET |
| 252 | A 3839970286 | PLUG |
| BOTTOM LATERAL | ||
| 256 | A 3819971186 | PLUG |
| TOP | ||
| 260 | A 0014621130 | STEERING LOCK |
| LESS TUMBLER | ||
| 264 | A 0005451367 | CONTACTOR |
| SOLENOID SWITCH | ||
| 268 | A 0005455413 | SWITCH |
| IGNITION SWITCH | ||
| 272 | A 3814600004 | TUMBLER |
| WITH 2 KEYS | ||
| HUF | ||
| 272 | A 3094620079 | TUMBLER |
| WITH 2 KEYS | ||
| YMOS | ||
| A 3814600104 | TUMBLER | |
| LESS KEY | ||
| HUF | ||
| A 3094600004 | TUMBLER | |
| LESS KEY | ||
| YMOS | ||
| A 0007600006 | KEY | |
| TO HEX.SOCKET SCREW | ||
| HUF | ||
| A 0007600606 | KEY | |
| STEERING LOCK | ||
| YMOS | ||
| A 0007663706 | KEY | |
| BLANK | ||
| HUF | ||
| A 0007665306 | KEY | |
| BLANK | ||
| YMOS | ||
| 276 | A 0004622371 | SCREW |
| (BREAK-OFF BOLT),STEERING LOCK MOUNTING | ||
| 280 | A 3814622243 | SHELL |
| STEERING COLUMN PANELLING,REAR | ||
| 284 | A 3814622343 | SHELL |
| STEERING COLUMN PANELLING,FRONT | ||
| 288 | A 3814620486 | GROMMET |
| STEERING COLUMN | ||
| 292 | A 3819900221 | SCREW |
| STEERING COLUMN PANELLING | ||
| 296 | A 3819900321 | SCREW |
| STEERING COLUMN PANELLING | ||
| M 5X83 | ||
| 300 | N 000933010145 | SCREW |
| STEERING COLUMN BRACKET TO CAB | ||
| 304 | N 000137010201 | SPRING WASHER |
| STEERING COLUMN BRACKET TO CAB | ||
| A 3814600601 | STEERING BOX ASSEMBLY | |
| A 3814601909 | STEERING SHAFT | |
| 308 | A 3814607109 | STEERING SHAFT |
| 308 | A 3814607209 | STEERING SHAFT |
| 316 | A 3814620175 | WASHER |
| 320 | A 3814620260 | SEAL RING |
| 324 | A 3814620061 | SEAL HOLDER |
| 328 | A 3814620403 | SLEEVE |
| STEERING SHAFT | ||
| 328 | A 3814620503 | SLEEVE |
| STEERING SHAFT | ||
| 336 | A 3814620251 | RING |
| STEERING SHAFT | ||
| 340 | A 3814600057 | UNIVERSAL JOINT |
| Repalced by: A 3164600057 | ||
| 340 | A 3164600057 | UNIVERSAL JOINT |
| Repalced by: A 0004600057 | ||
| 340 | A 0004600057 | UNIVERSAL JOINT |
| 340 | A 3164600157 | UNIVERSAL JOINT |
| Repalced by: A 0004600157 | ||
| 340 | A 0004600157 | UNIVERSAL JOINT |
| 344 | A 3819900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| M 8X42 | ||
| 344 | A 3819900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| M 8X42 | ||
| 344 | A 3819900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| M 8X42 | ||
| 344 | A 3169900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| M 8X38 | ||
| 348 | N 910113008001 | NUT |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| 352 | A 3874610396 | BOOT |
| PROTECTIVE SLEEVE TO CAB FLOOR | ||
| 356 | A 3874611297 | PROTECTIVE SLEEVE |
| UNIVERSAL JOINT COVERING | ||
| 360 | N 007981005309 | SHEET METAL SCREW |
| Repalced by: N 007981005321 | ||
| 360 | N 007981005321 | SHEET METAL SCREW |
| PROTECTIVE SLEEVE TO CAB FLOOR | ||
| 364 | A 3874610180 | GASKET |
| PROTECTIVE SLEEVE TO CAB FLOOR | ||
| 368 | A 3874620024 | REINFORCEMENT |
| PROTECTIVE SLEEVE TO CAB FLOOR | ||
| 372 | A 3814620475 | WASHER |
| UNIVERSAL JOINT TO STEERING | ||
| 376 | A 3814621196 | BOOT |
| UNIVERSAL JOINT TO STEERING | ||
| 380 | A 3834610740 | STEERING SUPPORT |
| AT FRAME | ||
| 380 | A 3834610540 | STEERING SUPPORT |
| Repalced by: A 6154610140 | ||
| 380 | A 6154610140 | STEERING SUPPORT |
| AT FRAME | ||
| 388 | N 000960014229 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 14X55 | ||
| 392 | N 000960014237 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 10X50 | ||
| 396 | N 913004014001 | NUT |
| STEERING SUPPORT TO FRAME | ||
| 400 | N 000961016077 | SCREW |
| Repalced by: N 308676016006 | ||
| 400 | N 308676016006 | SCREW |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| M 16X1.5X45 | ||
| 404 | A 3834630101 | PITMAN ARM |
| 404 | A 3854630001 | PITMAN ARM |
| 412 | A 0019908151 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 416 | A 3834601905 | DRAG LINK |
| Repalced by: A 3834604605 | ||
| 416 | A 3834604605 | DRAG LINK |
| LEMFOERDER | ||
| 416 | A 3834602505 | DRAG LINK |
| EHRENREICH | ||
| 416 | A 3854600905 | DRAG LINK |
| Repalced by: A 3854603605 | ||
| 416 | A 3854603605 | DRAG LINK |
| LEMFOERDER | ||
| 416 | A 3854602105 | DRAG LINK |
| EHRENREICH | ||
| 428 | A 0003301085 | BOOT |
| FIXED PART OF JOINT | ||
| 428 | A 0004621896 | BOOT |
| FIXED PART OF JOINT | ||
| 436 | A 0004600148 | DRAG LINK END |
| Repalced by: A 0004602648 | ||
| 436 | A 0004602648 | DRAG LINK END |
| TO BE SCREWED INTO DRAG LINK | ||
| LEMFOERDER | ||
| 436 | A 0004602748 | DRAG LINK END |
| ADJUSTABLE | ||
| EHRENREICH | ||
| 436 | A 0004633429 | BALL JOINT |
| Repalced by: A 0013300135 | ||
| 436 | A 0013300135 | JOINT |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 436 | A 0013300235 | JOINT |
| R.H. THREAD | ||
| EHRENREICH | ||
| 452 | A 0004621896 | BOOT |
| 452 | A 0003301085 | BOOT |
| 468 | A 0003381445 | CLAMP |
| Repalced by: A 0003380645 | ||
| 468 | A 0003380645 | CLAMP |
| CLAMP, TWO-HOLE | ||
| A 0003382445 | CLAMP | |
| CLAMP, ONE-HOLE | ||
| LEMFOERDER | ||
| A 0003383445 | CLAMP | |
| CLAMP, ONE-HOLE | ||
| EHRENREICH | ||
| 468 | A 0003382345 | CLAMP |
| Repalced by: A 0003382545 | ||
| 468 | A 0003382545 | CLAMP |
| CLAMP, TWO-HOLE | ||
| A 0003382545 | CLAMP | |
| CLAMP, ONE-HOLE | ||
| LEMFOERDER | ||
| A 0003383145 | CLAMP | |
| CLAMP, ONE-HOLE | ||
| EHRENREICH | ||
| 472 | N 000960012349 | SCREW |
| CLAMP, TWO-HOLE | ||
| N 000960012453 | SCREW | |
| Repalced by: N 308676012017 | ||
| N 308676012017 | SCREW | |
| CLAMP, ONE-HOLE | ||
| 476 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 476 | N 910113012003 | NUT |
| CLAMP, TWO-HOLE | ||
| 476 | N 910113012003 | NUT |
| CLAMP, ONE-HOLE | ||
| 480 | N 000937020001 | NUT |
| DRAG LINK TO LEVER | ||
| 484 | N 000094004065 | COTTER PIN |
| DRAG LINK TO LEVER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
